Factory parts data · Europe

Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Horn

3 part groups · 2 illustrations

Illustrations

860129 1989-08 → 1999-07

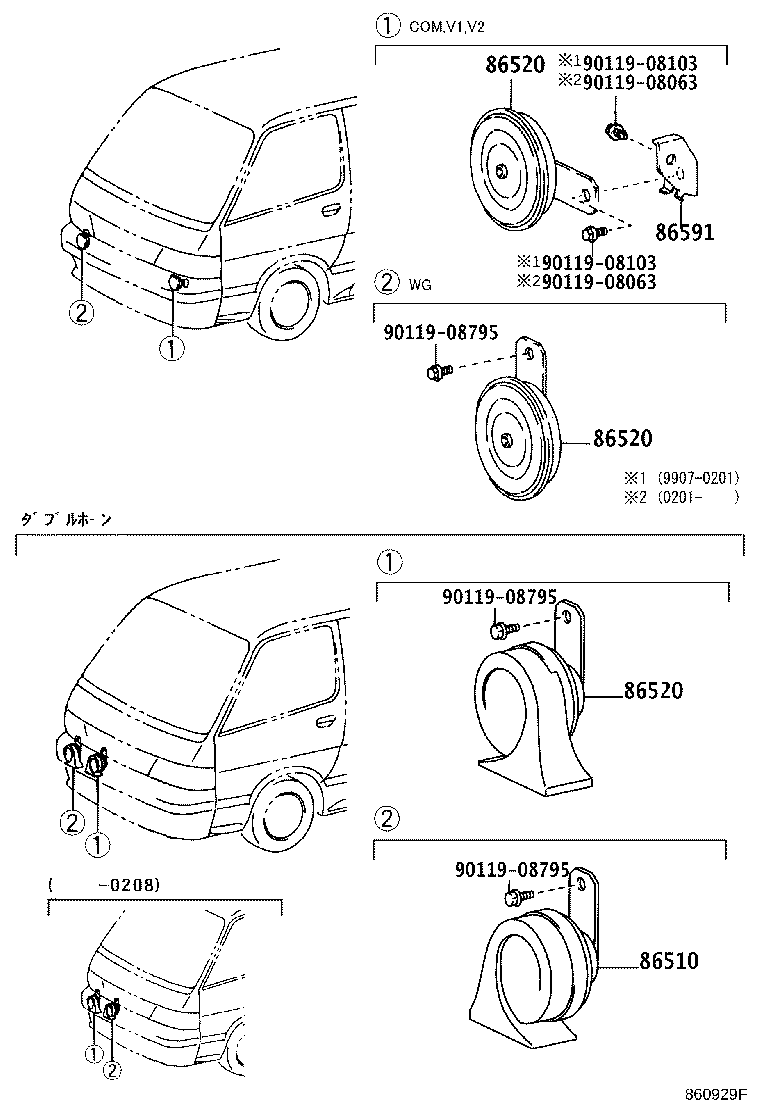

Figure 860929F

860929F 1999-07 → —

Part groups

PNC	Description
86510	Horn Assy, High Pitched
86520	Horn Assy, Low Pitched
86591	Bracket, Horn

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
