Toyota Hiace/Regiusace
1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan
Discontinued model
Data version 2005-07
Mirror
14 part groups · 6 illustrations

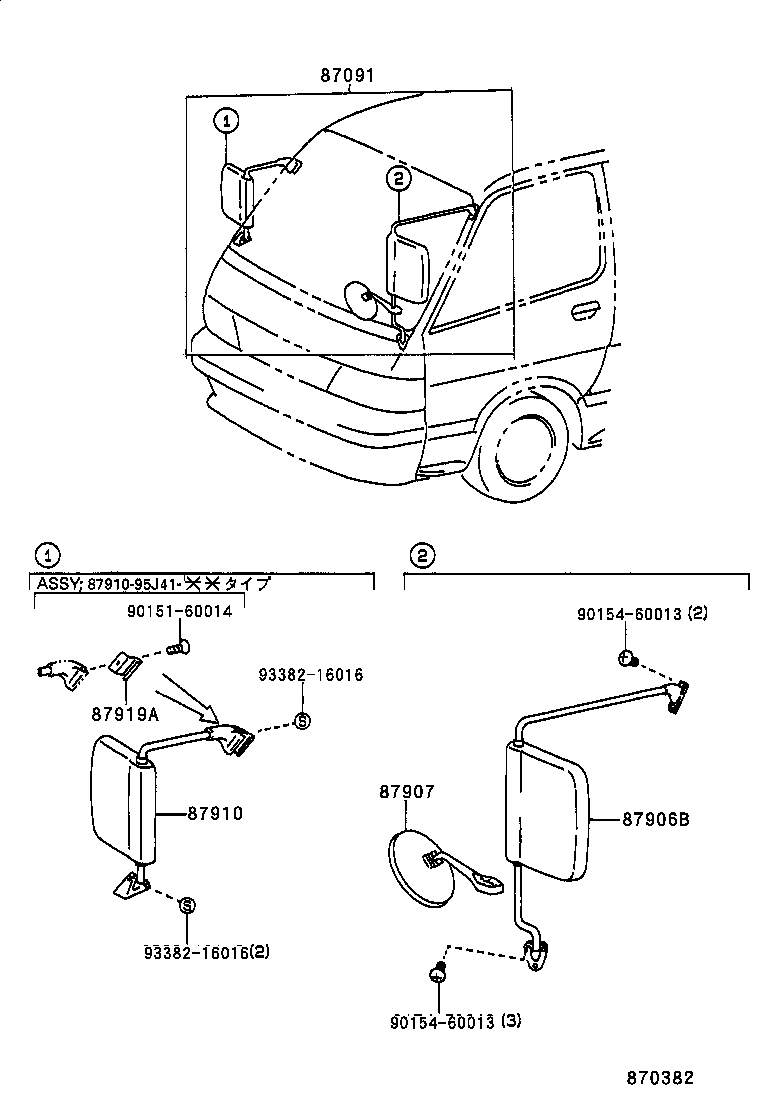

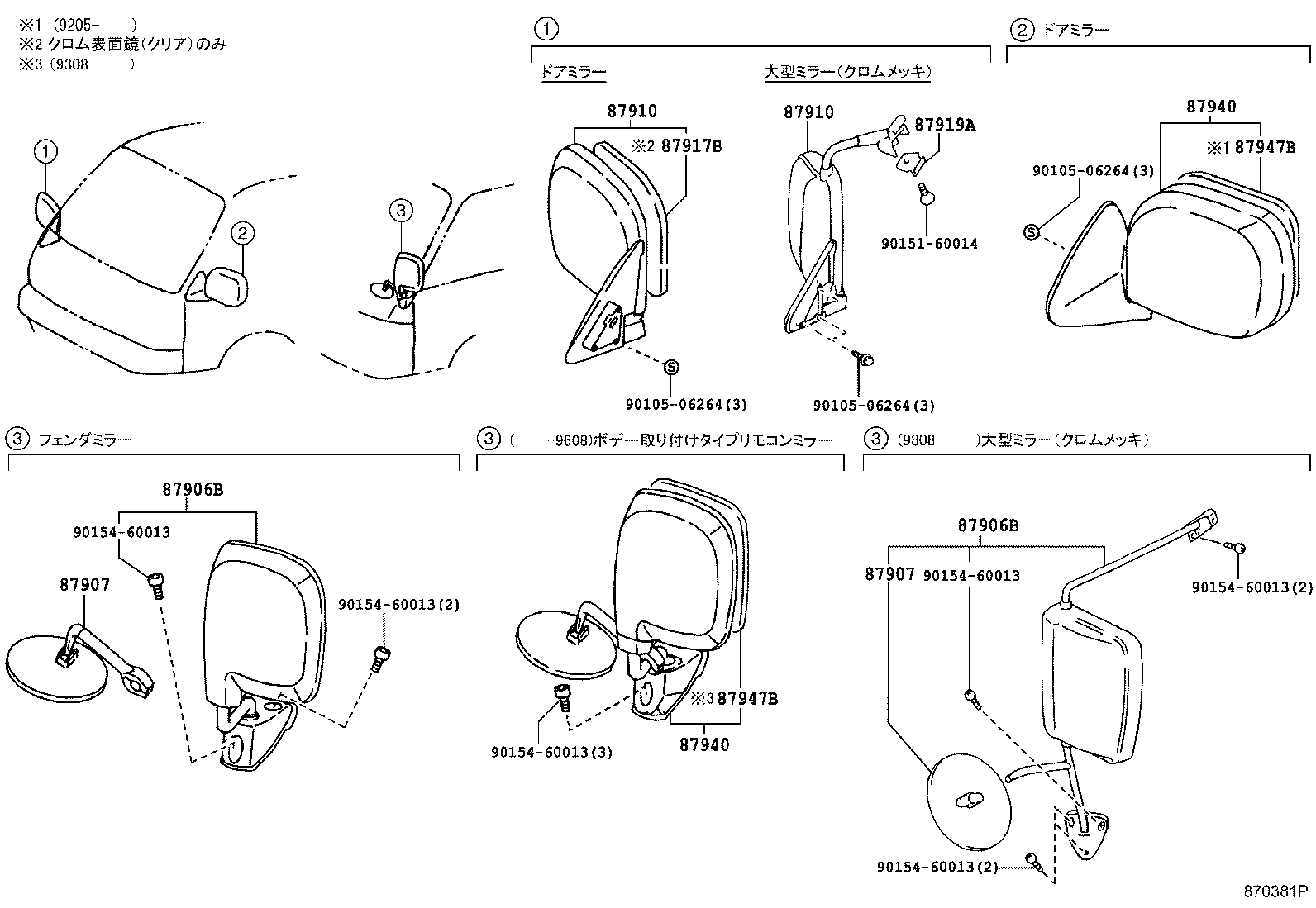

Part groups
| PNC | Description |
|---|---|
| 87091 | Mirror Set, Outer Rear View, NO.1 |
| 87810 | Mirror Assy, Inner Rear View |
| 87810B | Bulb, Inner Rear View Mirror Lamp |
| 87827 | Absorber, Inner Rear View Mirror |
| 87834 | Cover, Inner Rear View Mirror Stay Holder |
| 87906B | Mirror Sub-assy, Outer Rear View, LH |
| 87907 | Mirror Sub-assy, Outer Under View |
| 87907A | Mirror Sub-assy, Outer Under Rear View |
| 87910 | Mirror Assy, Outer Rear View, RH |
| 87917B | Mirror, Outer Rear View, RH |
| 87919A | Bracket, Outer Mirror |
| 87940 | Mirror Assy, Outer Rear View, LH |
| 87947B | Mirror, Outer Rear View, LH |
| 87950 | Mirror Assy, Outer Under Rear View |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
