Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

63 part groups · 37 illustrations

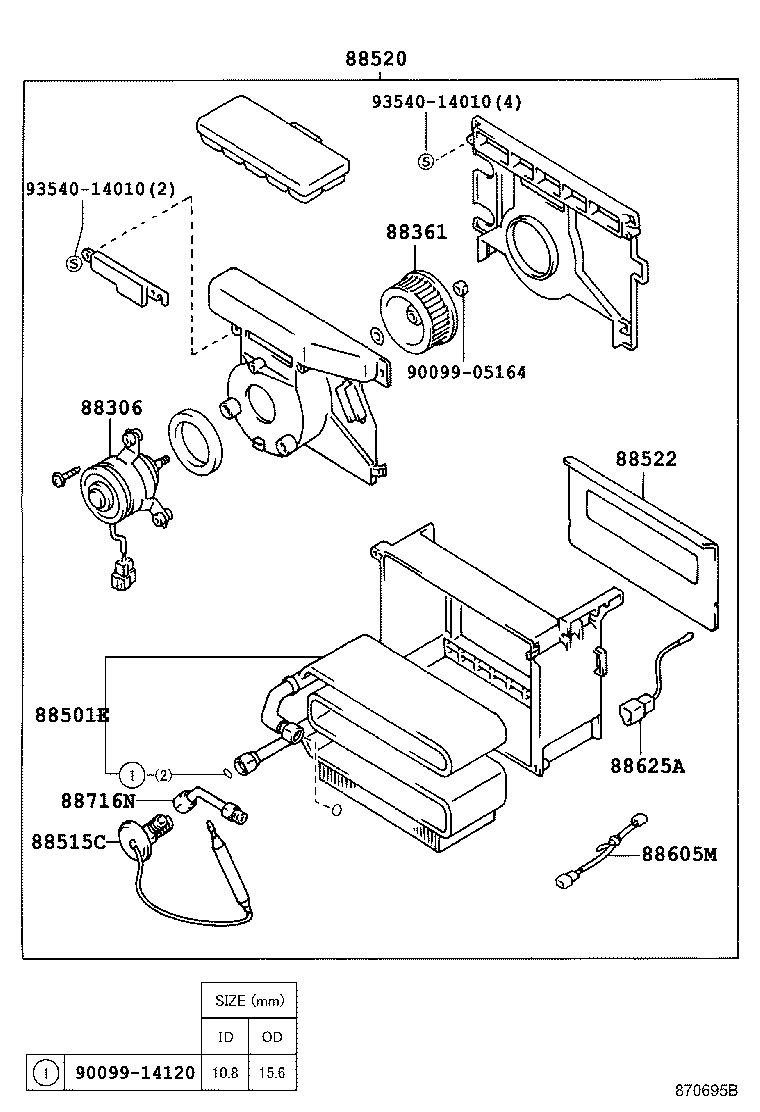

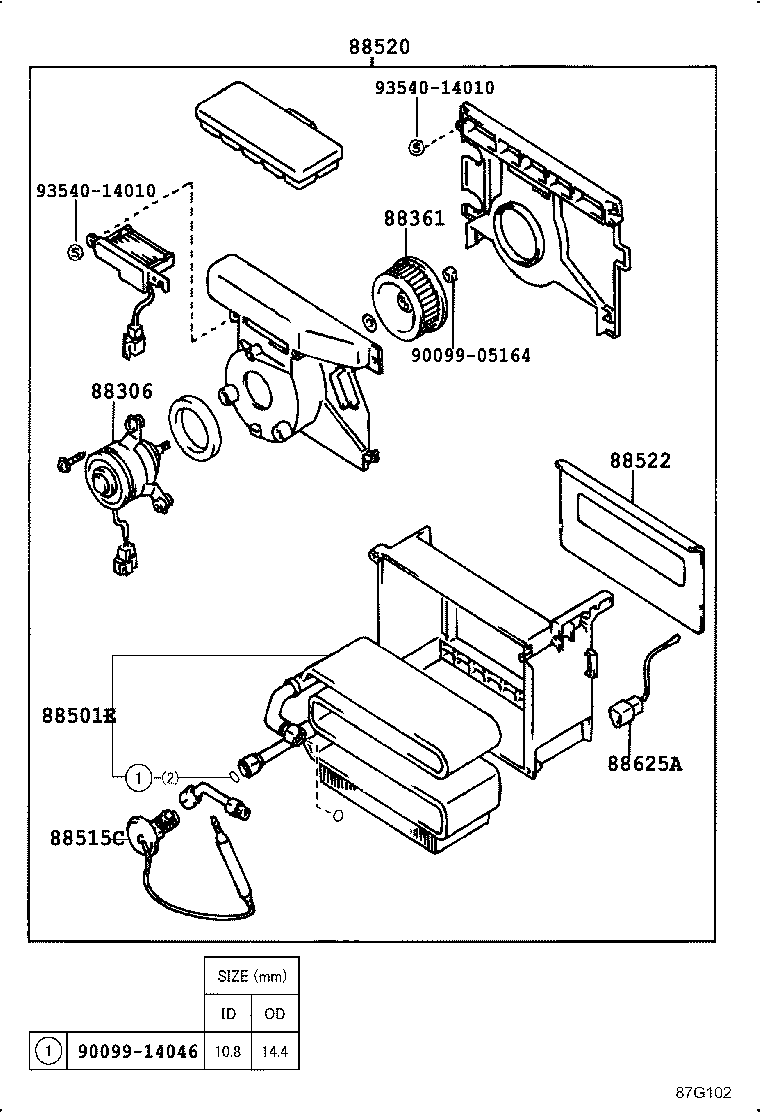

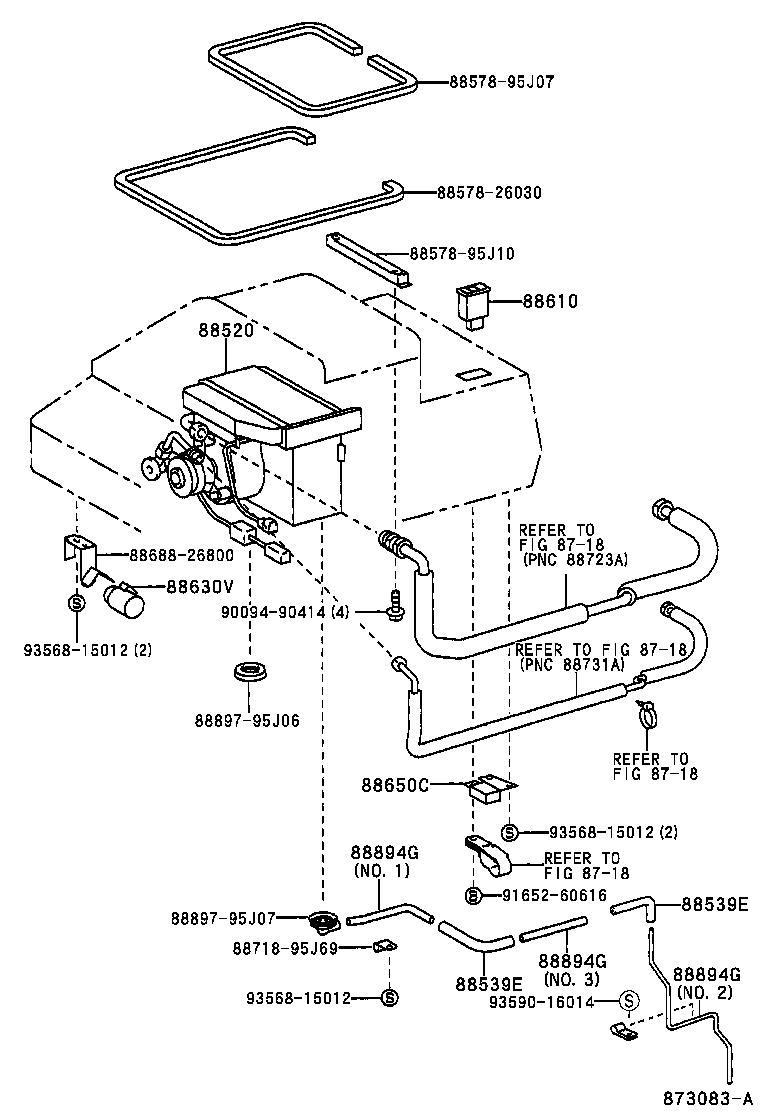

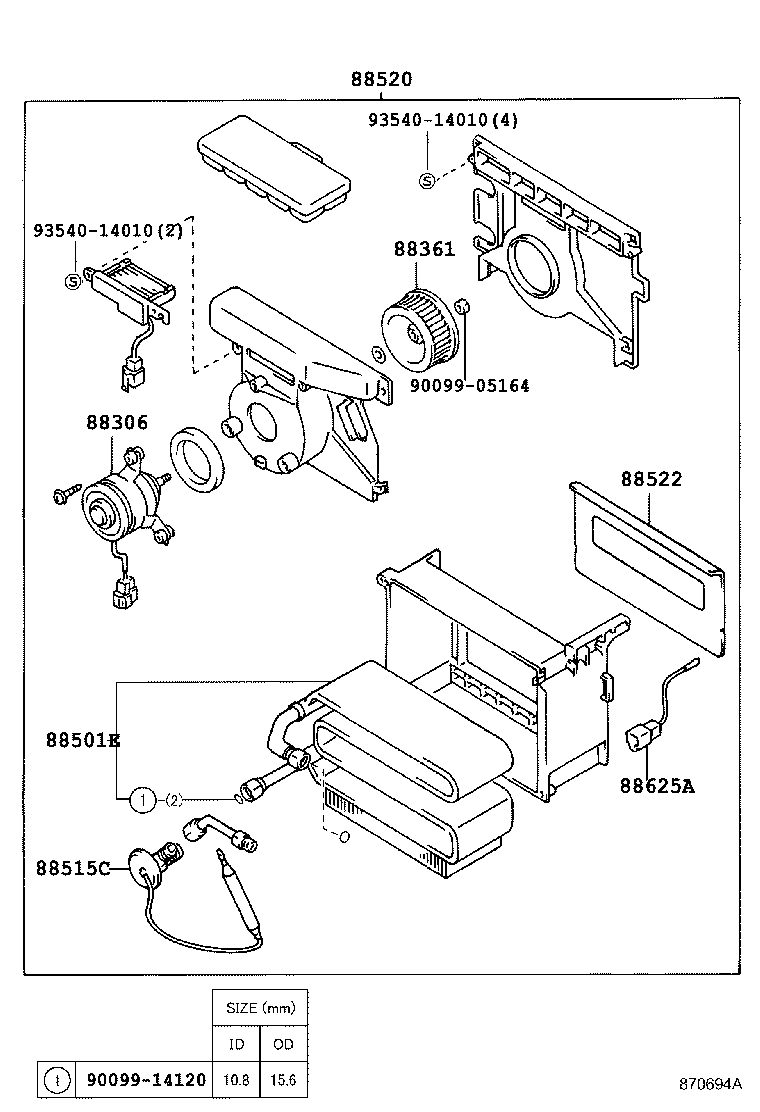

Illustrations

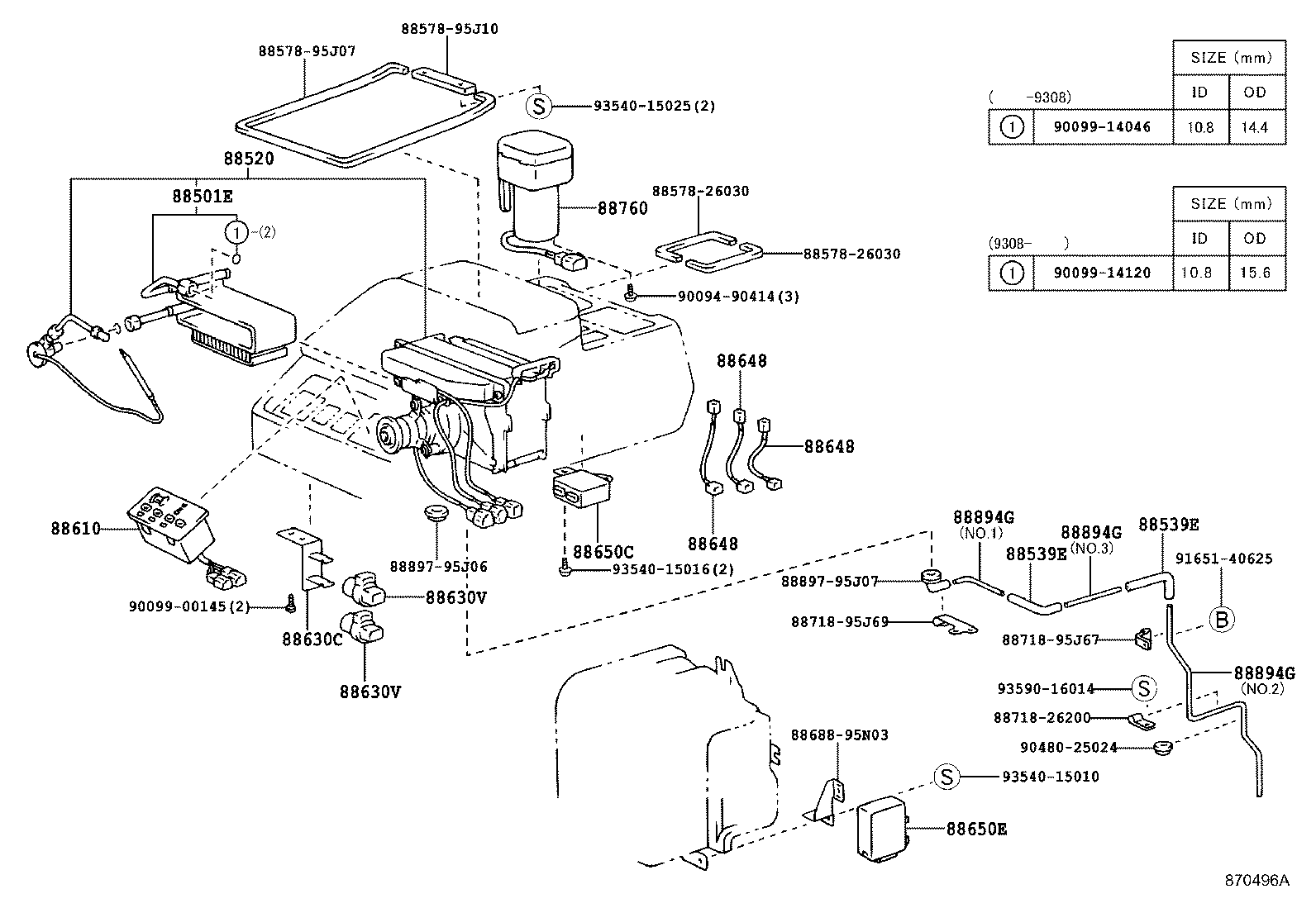

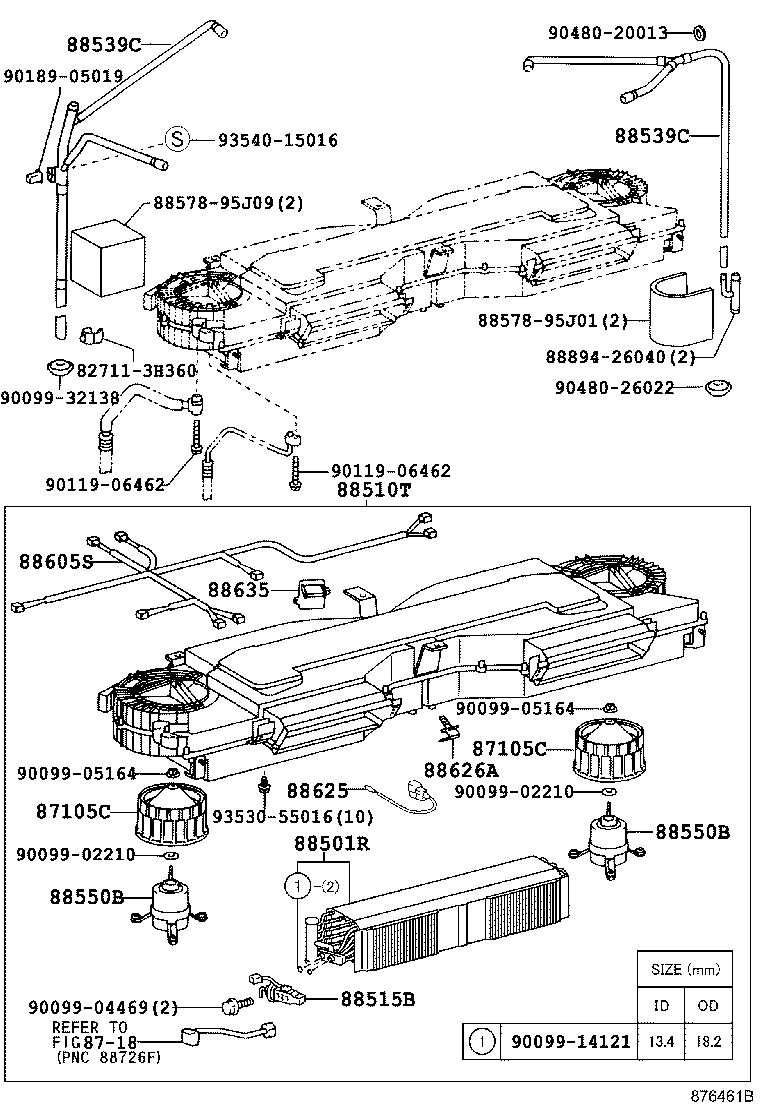

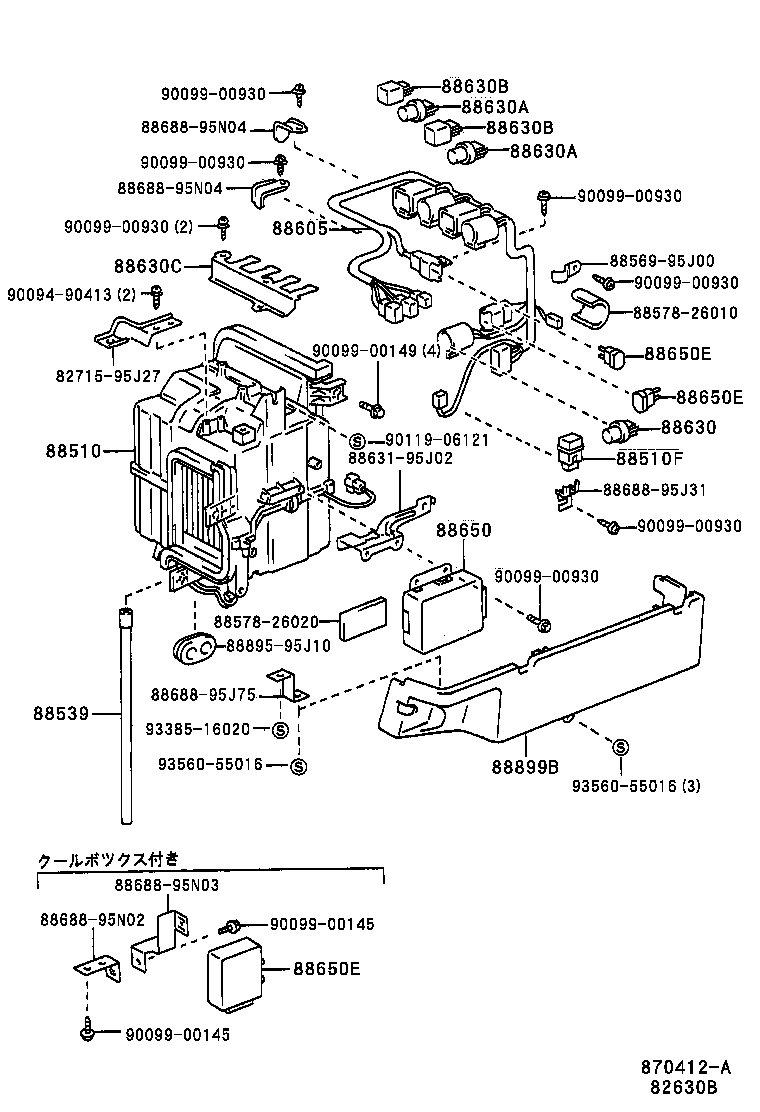

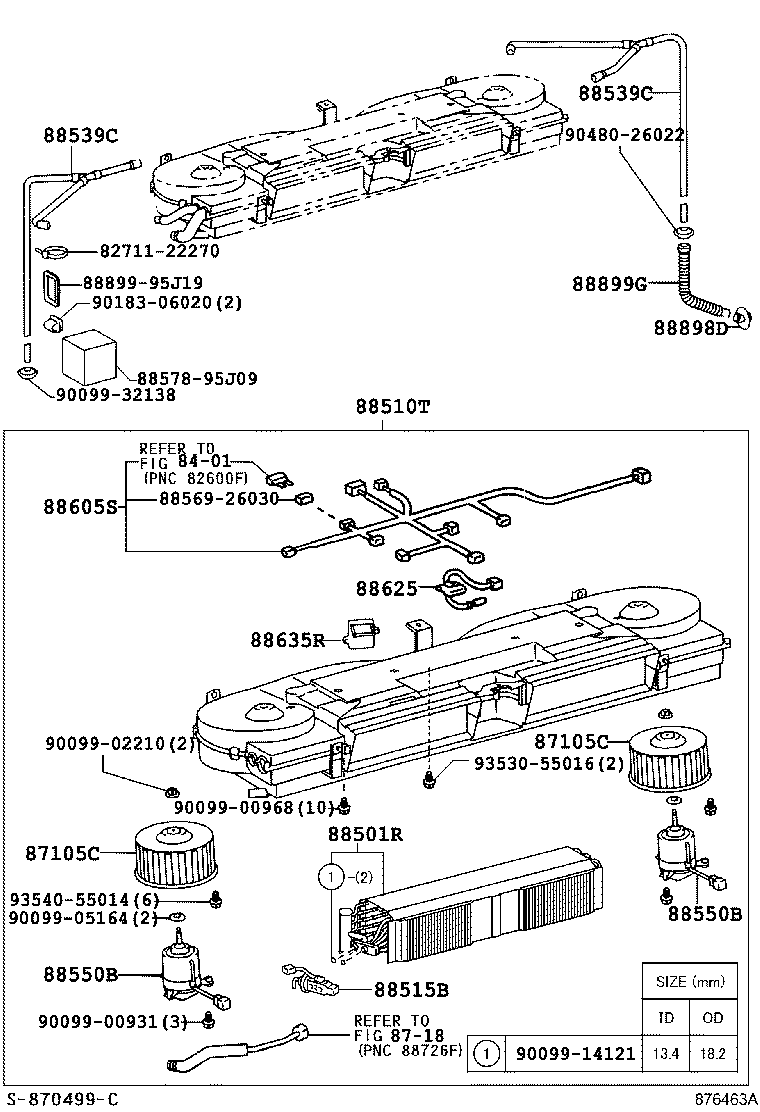

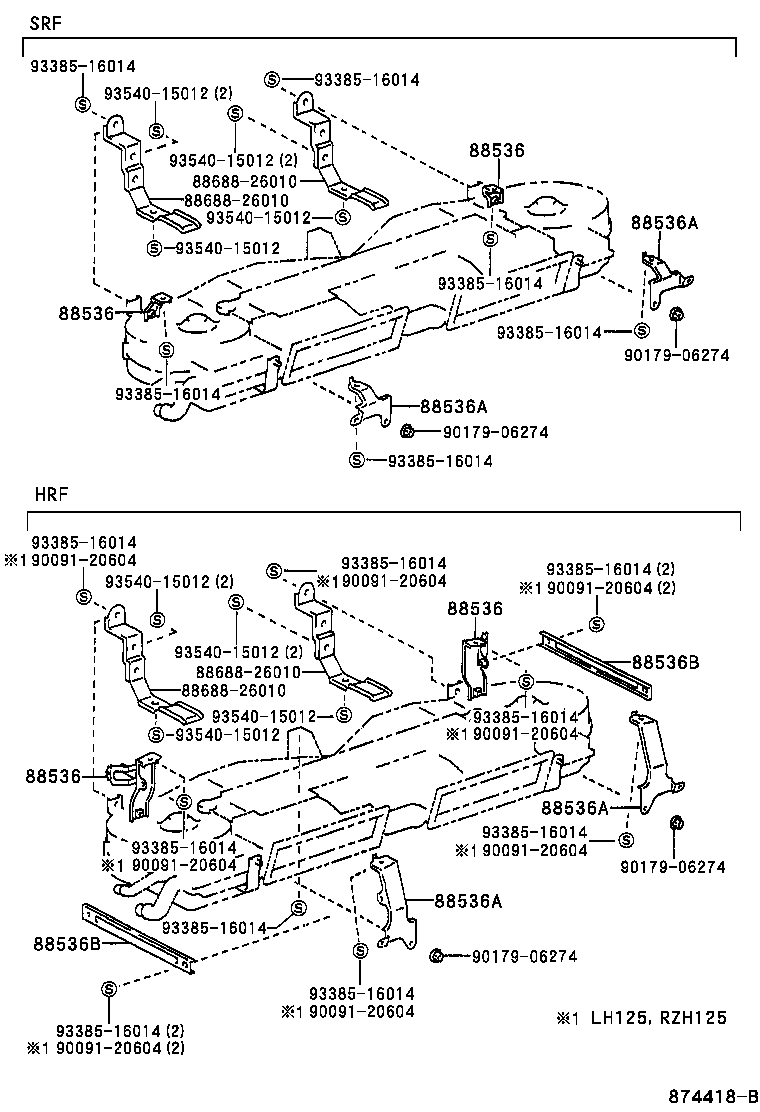

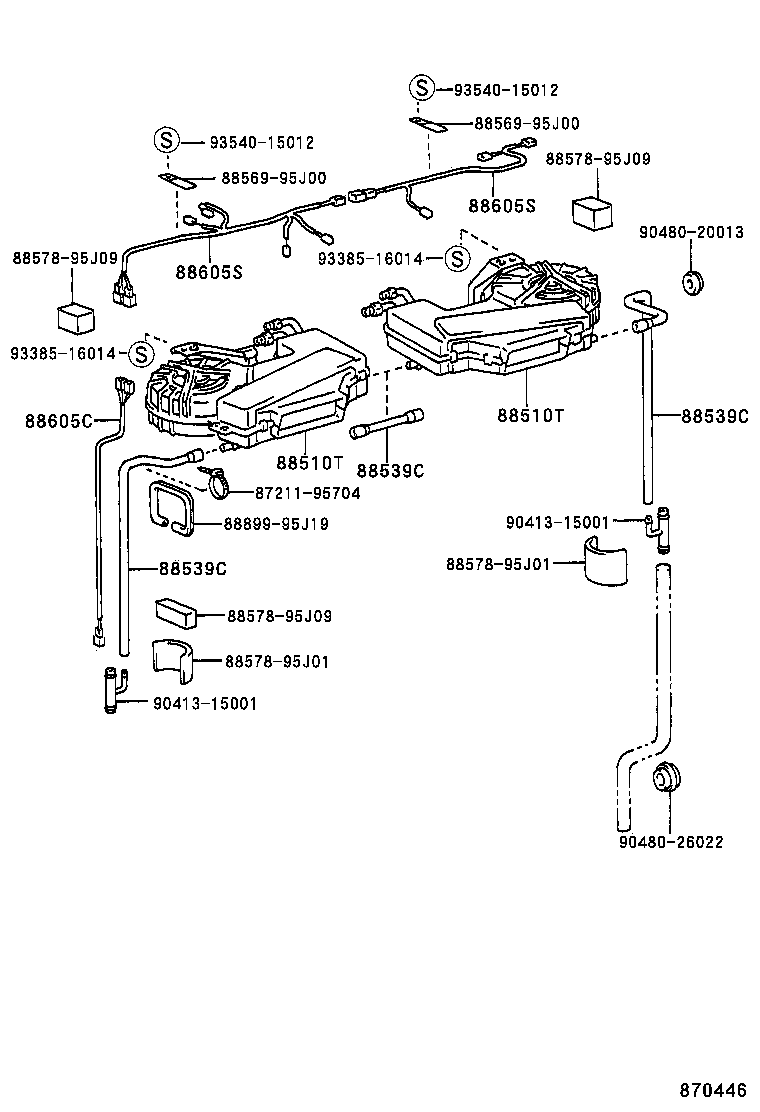

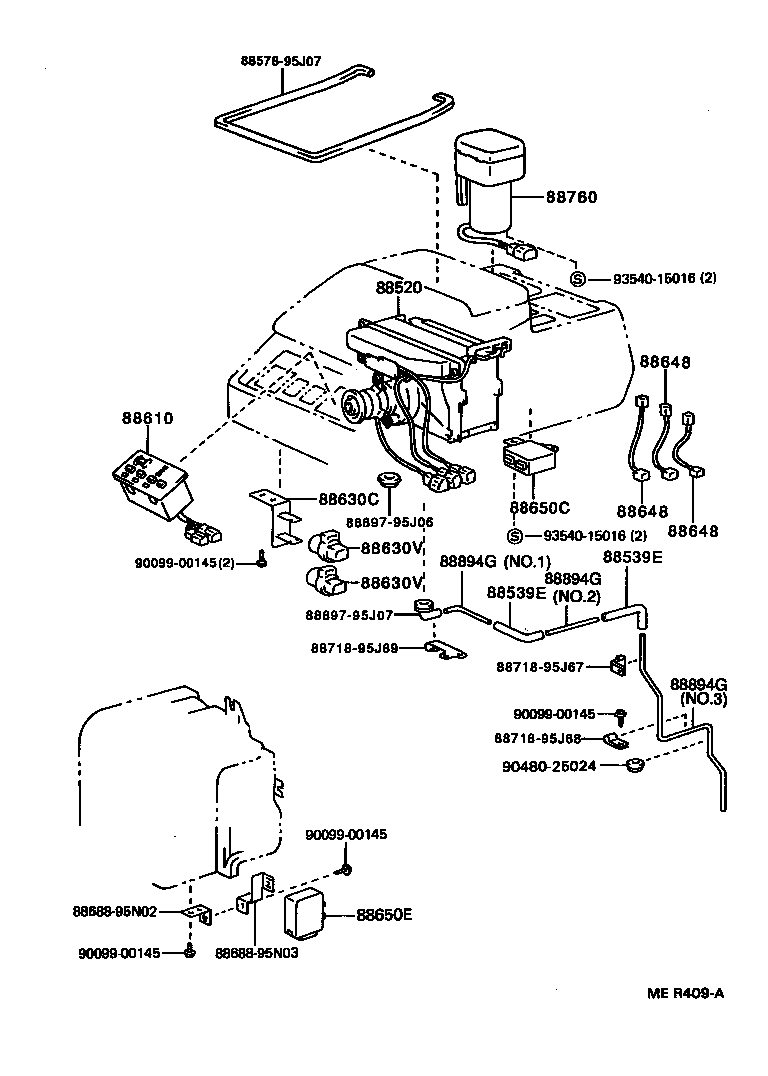

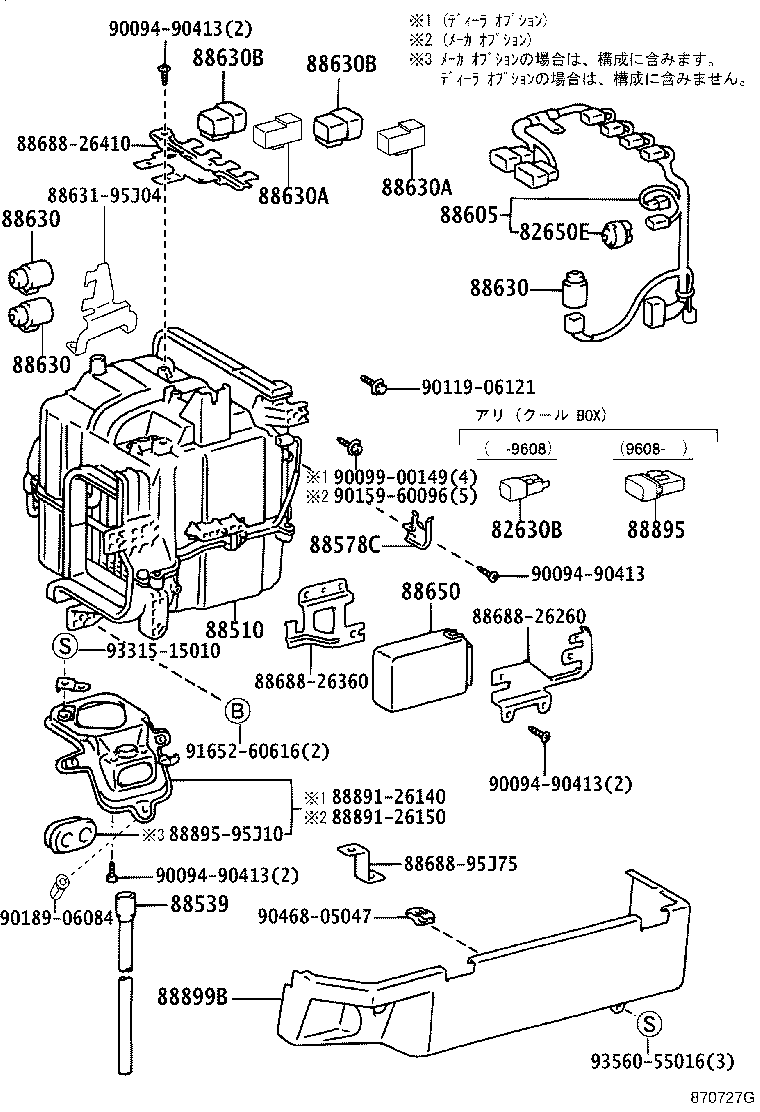

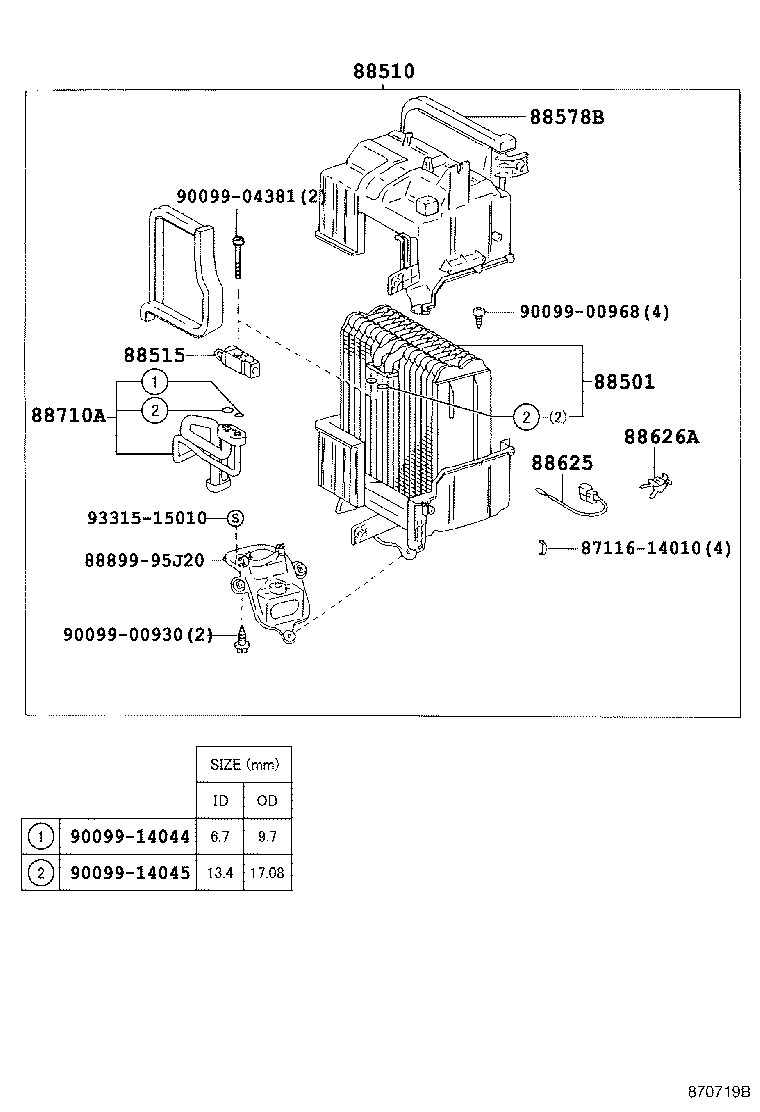

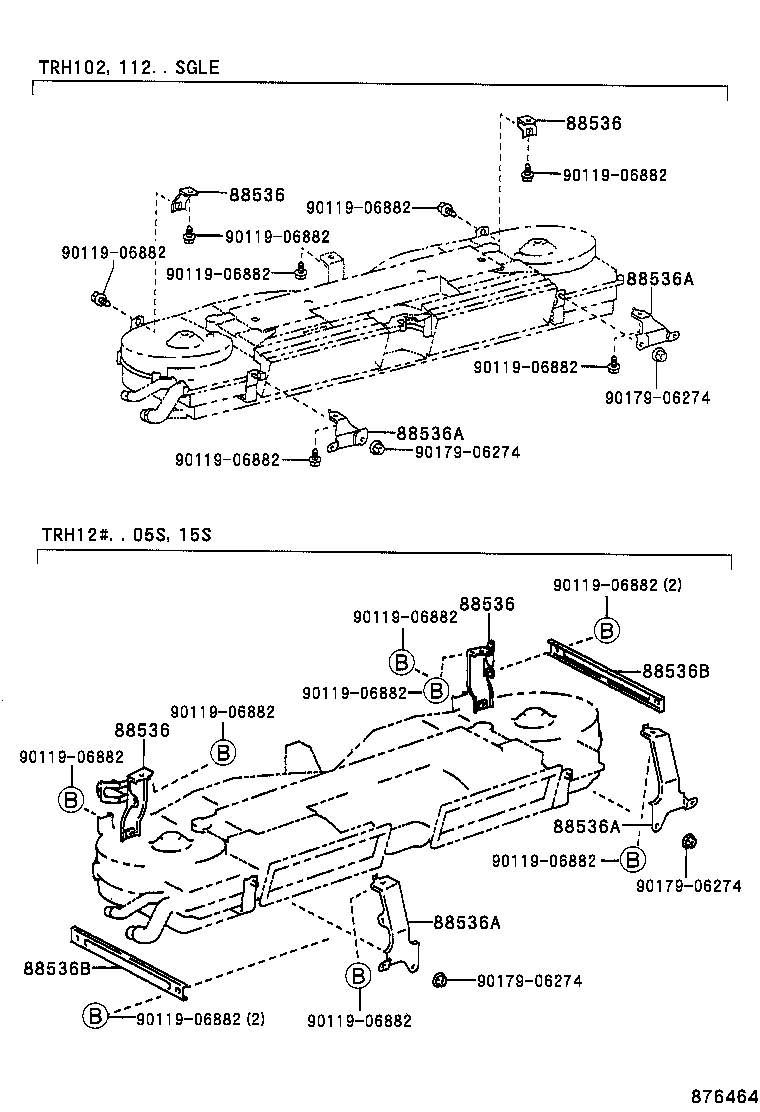

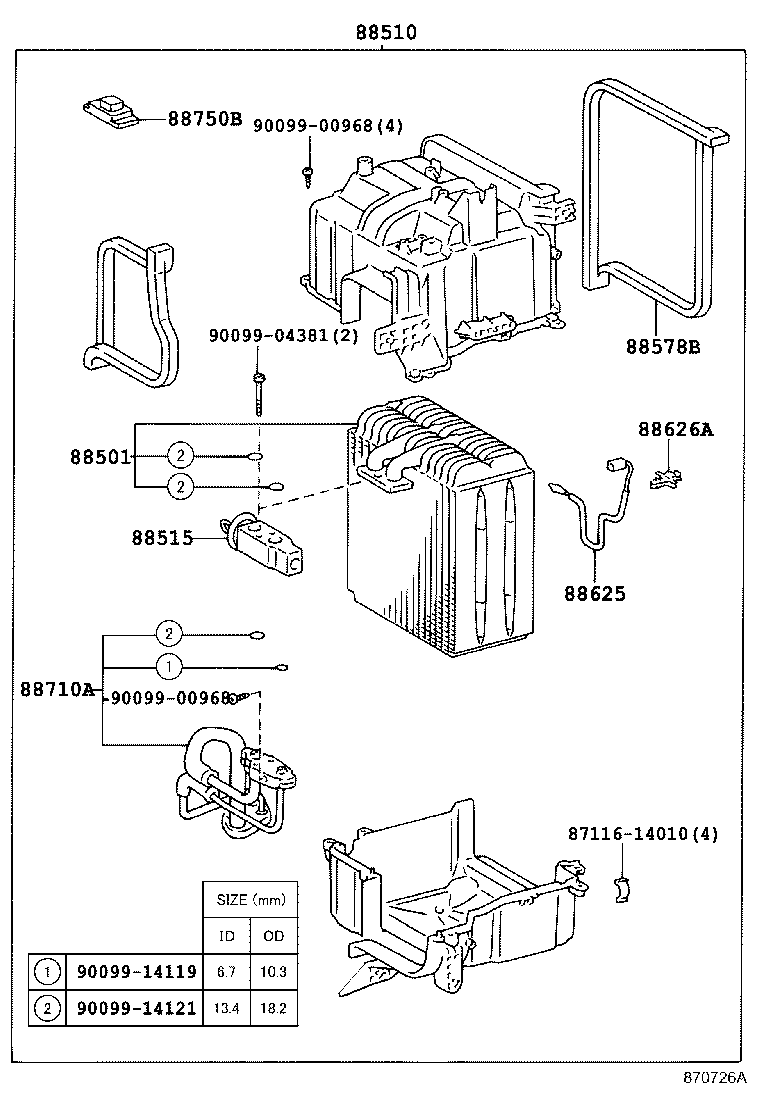

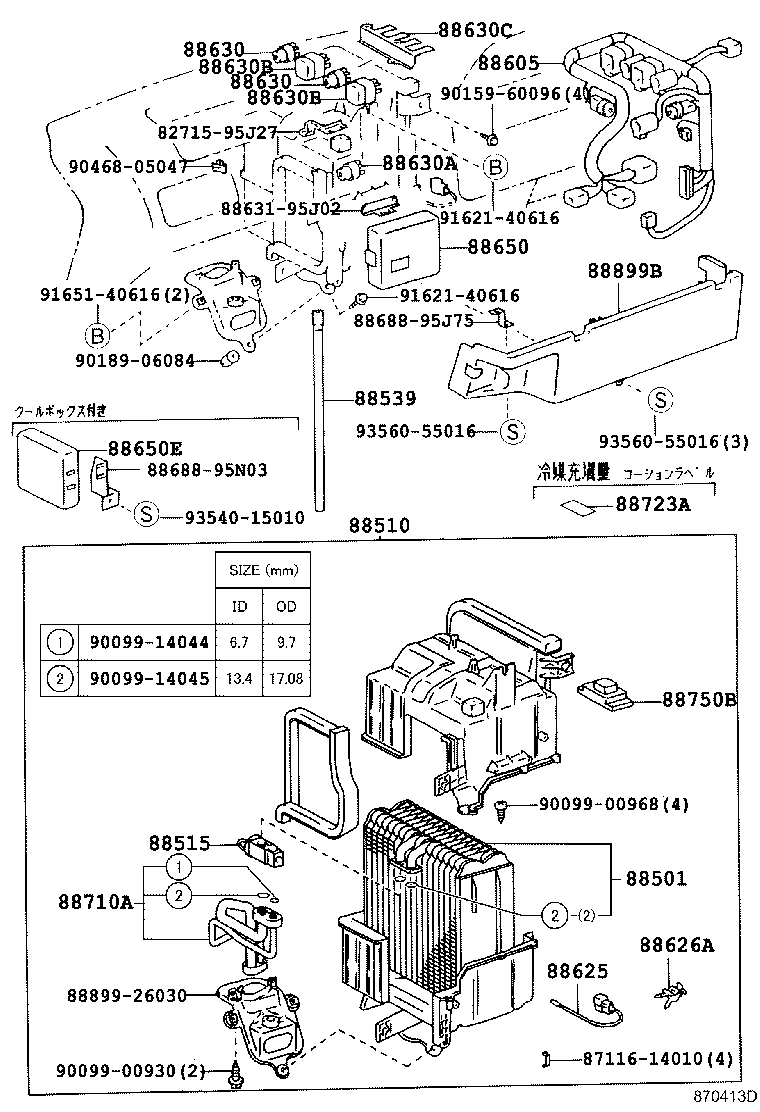

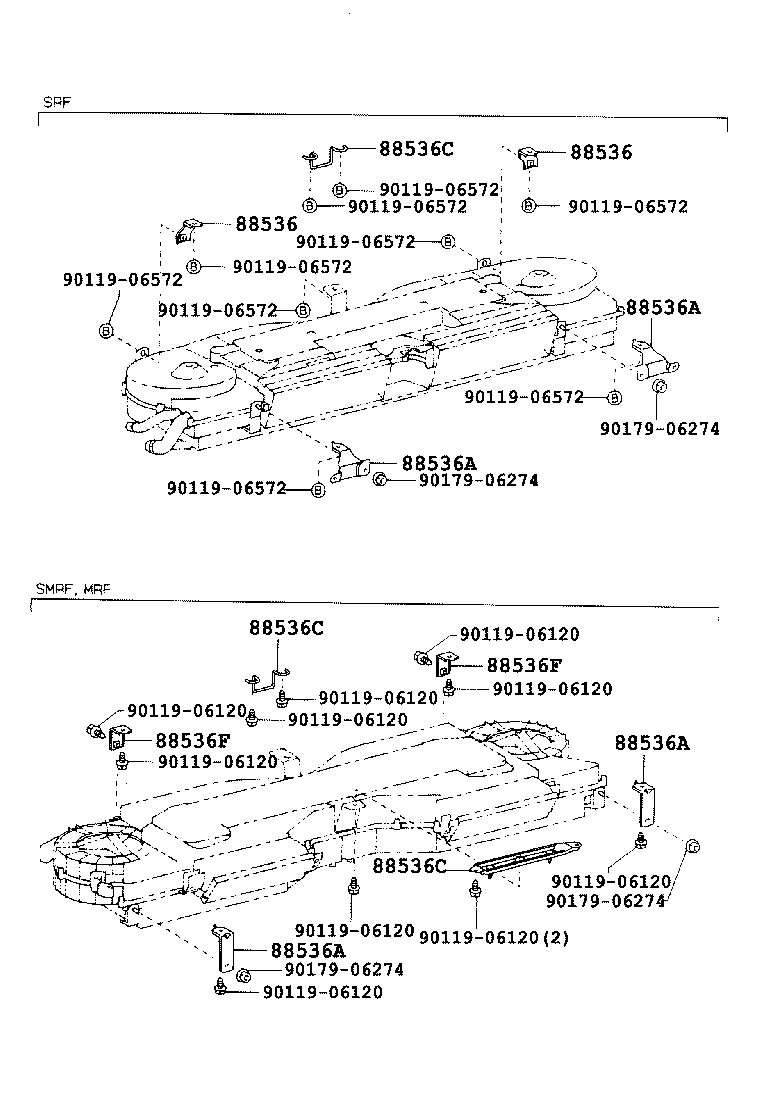

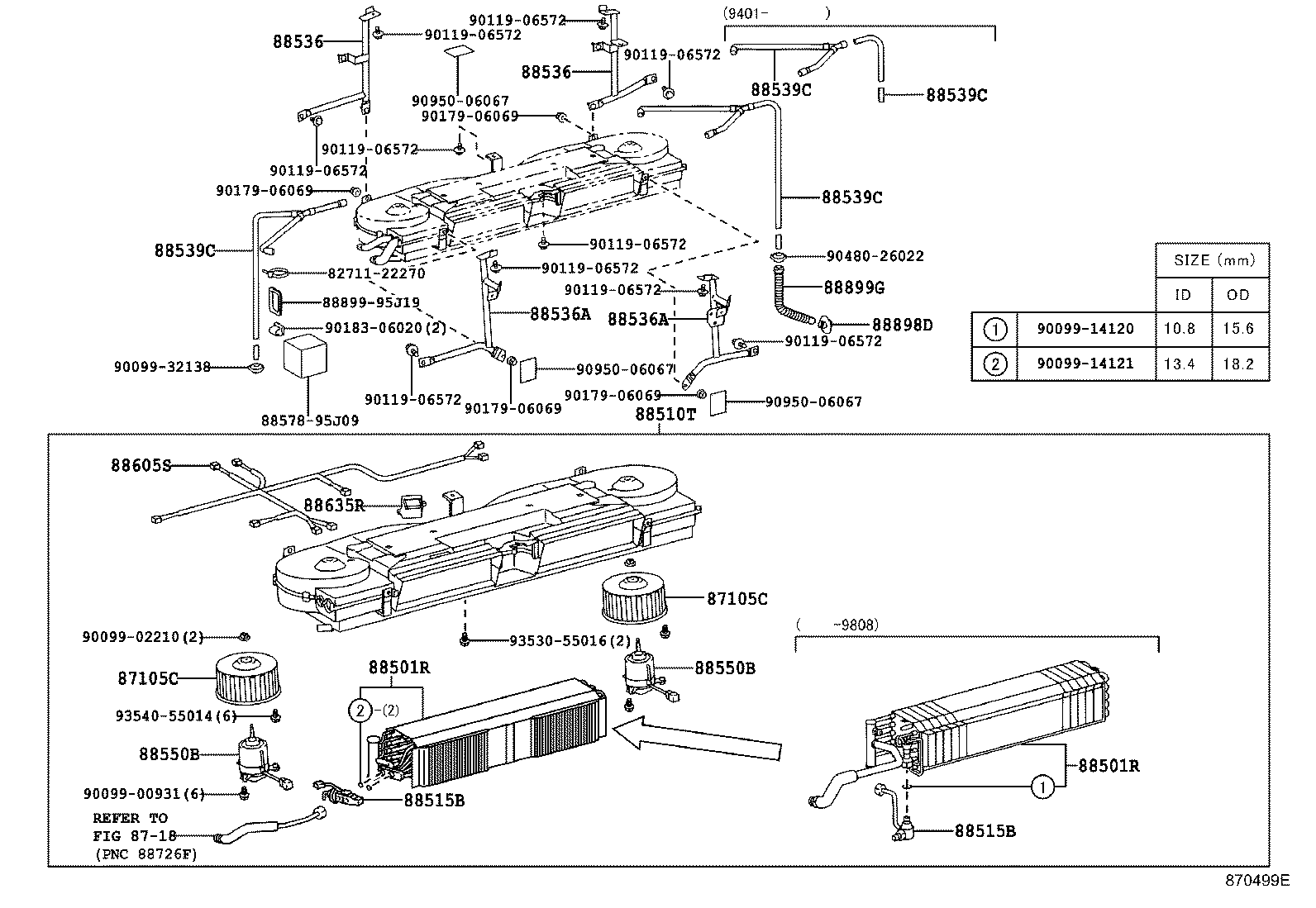

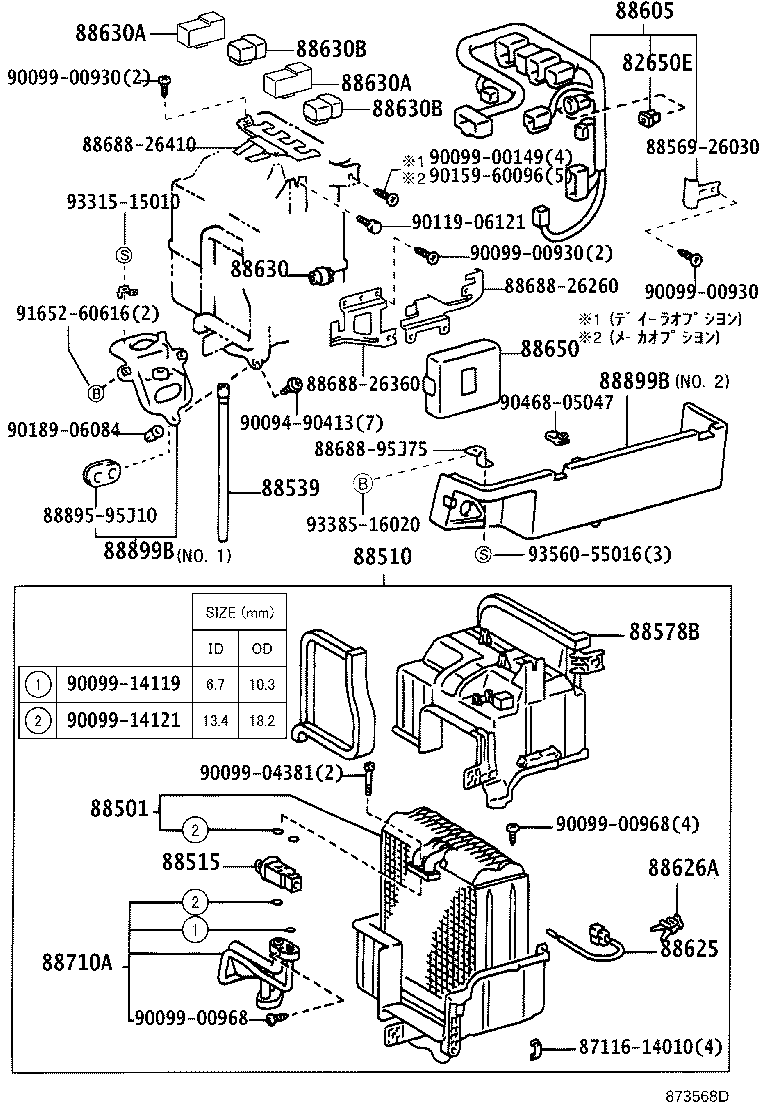

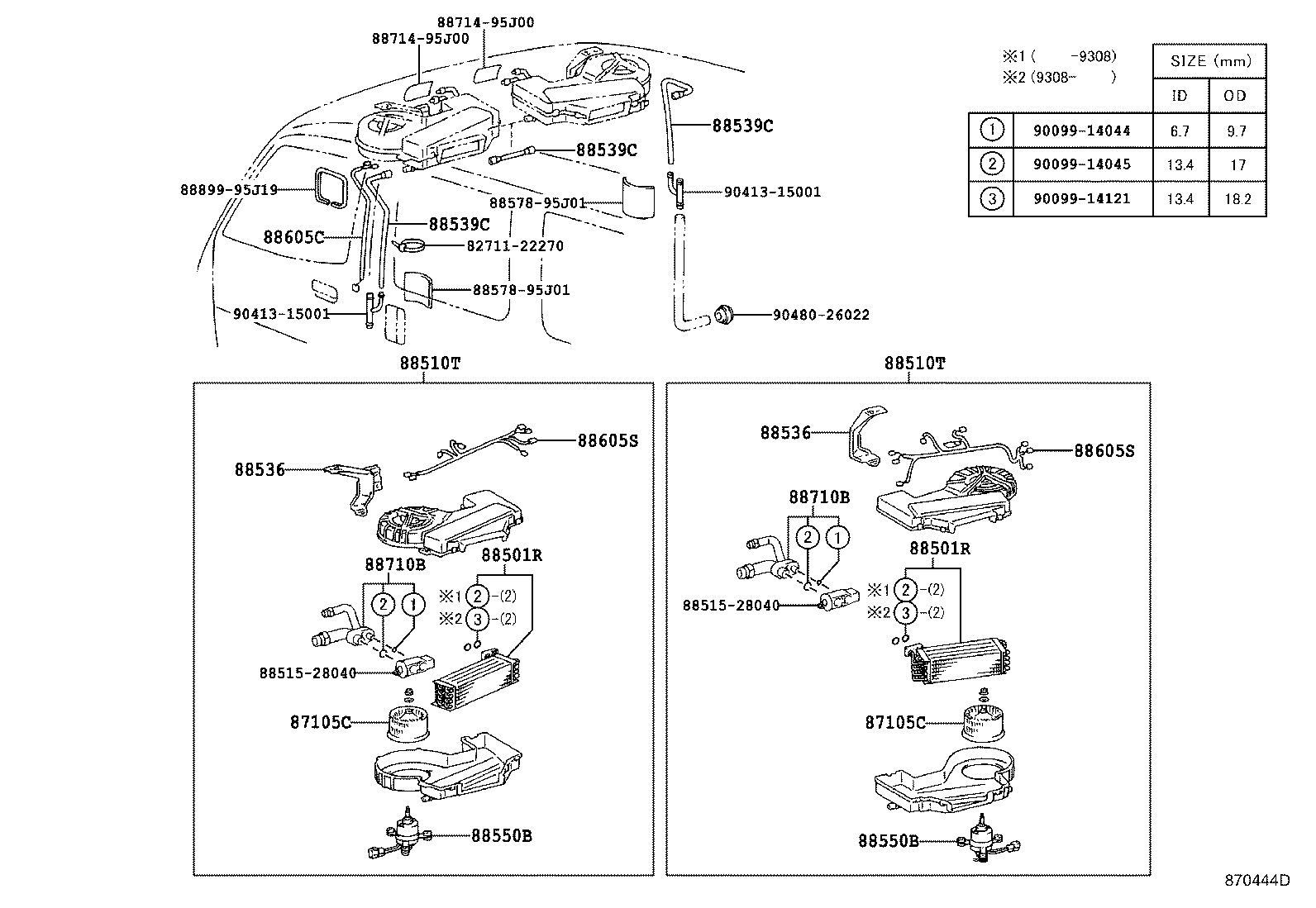

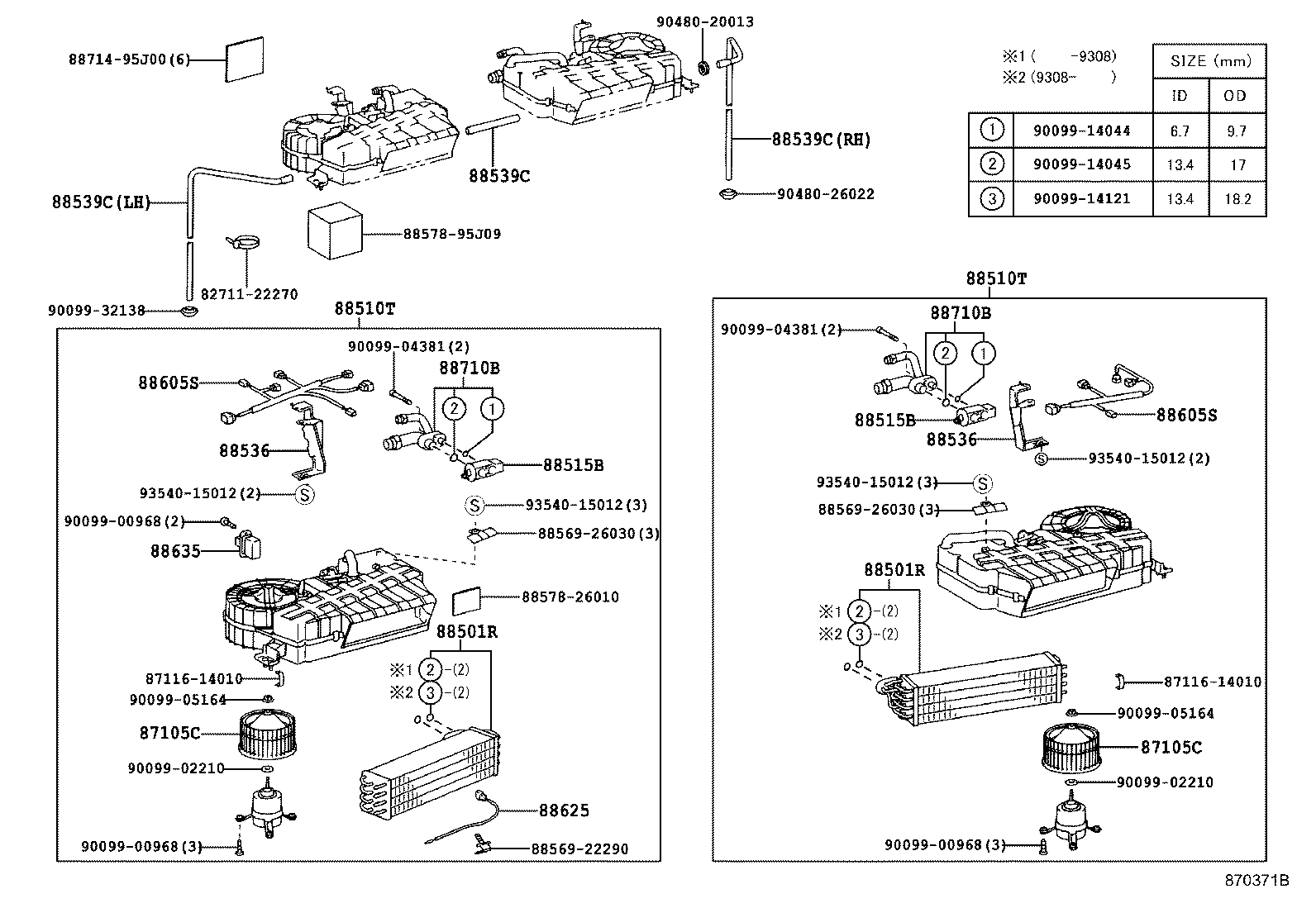

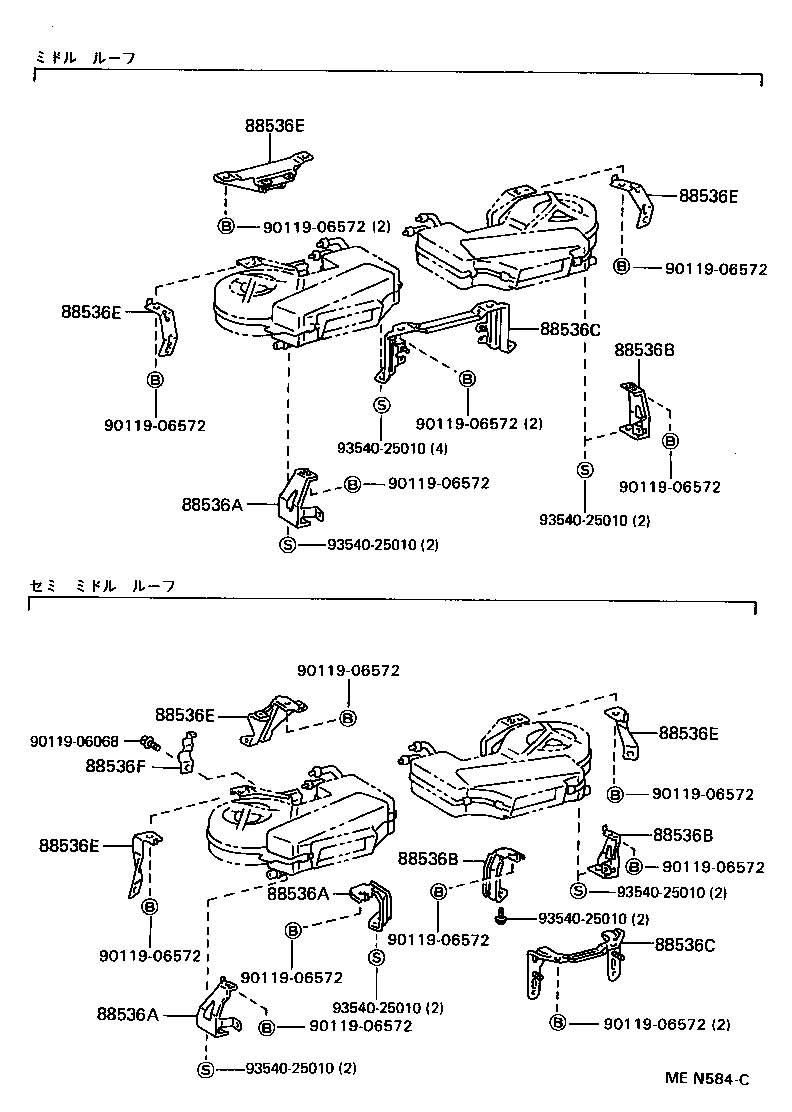

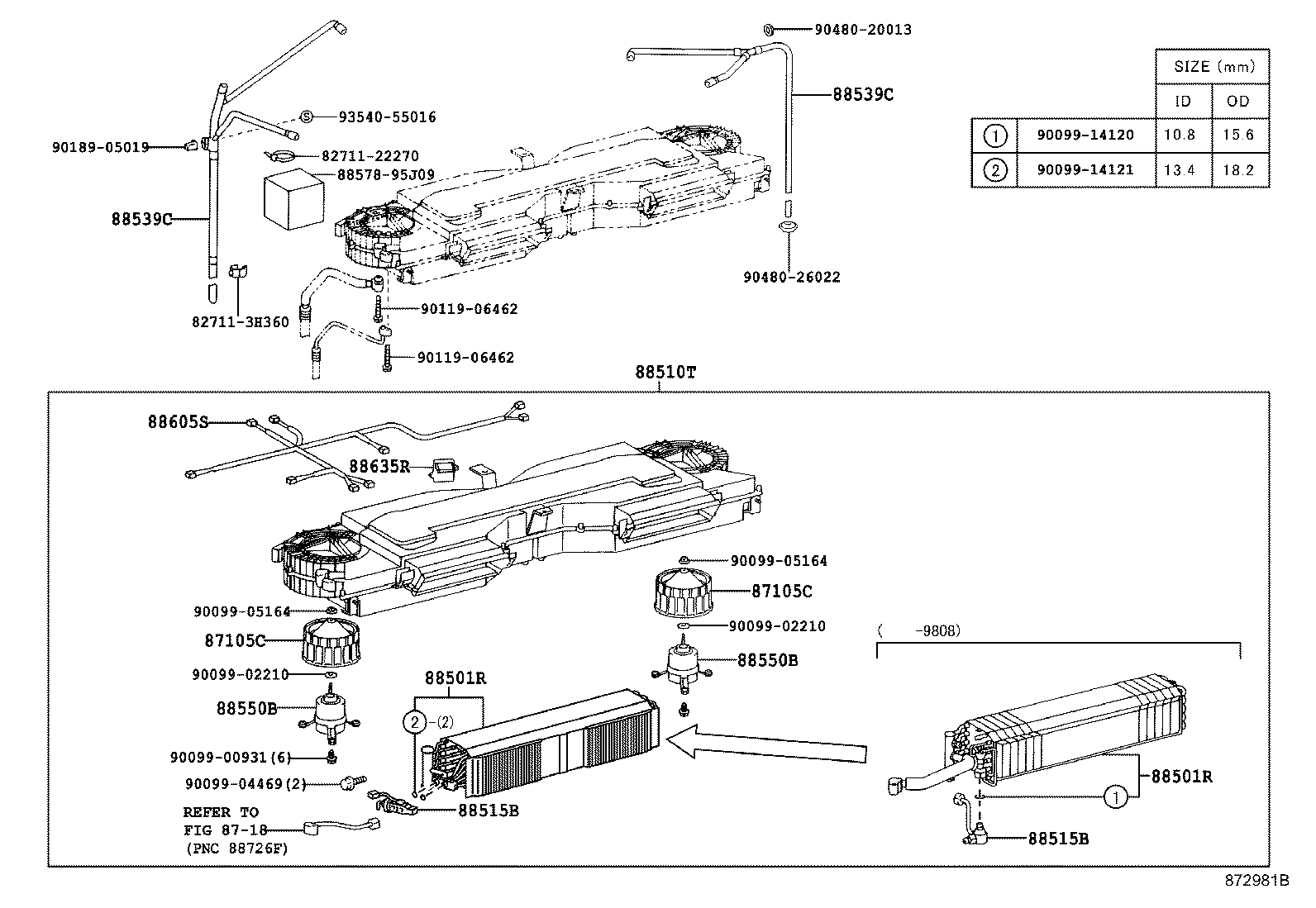

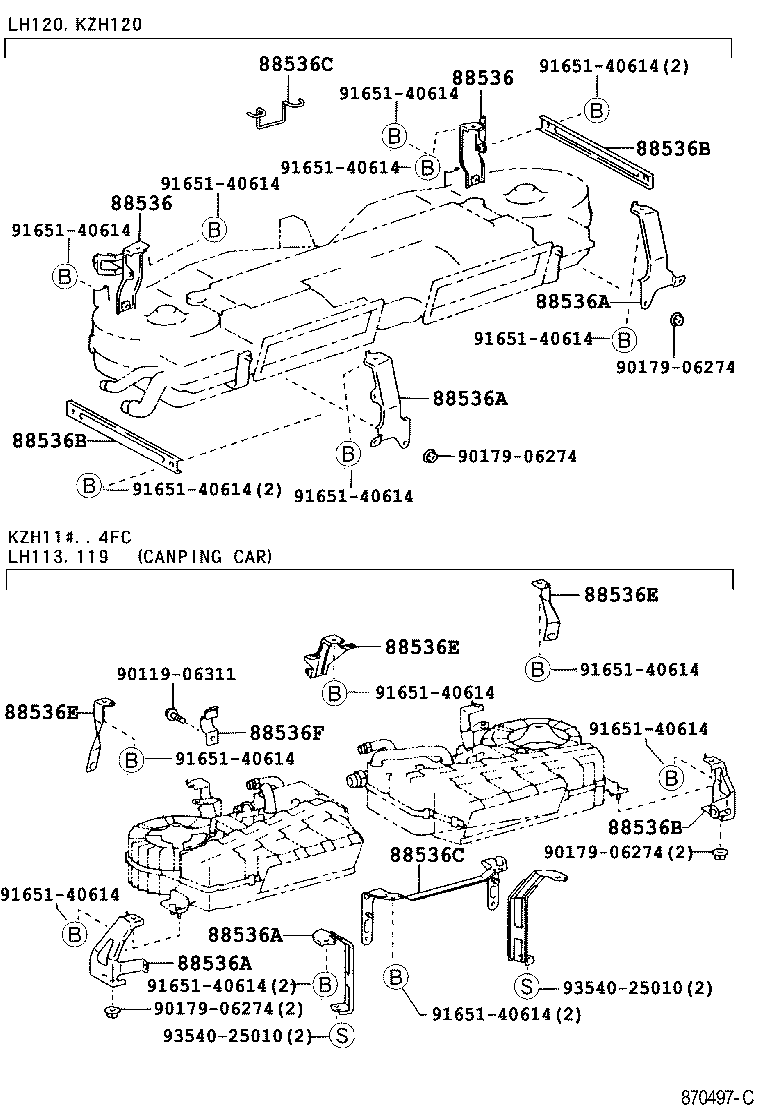

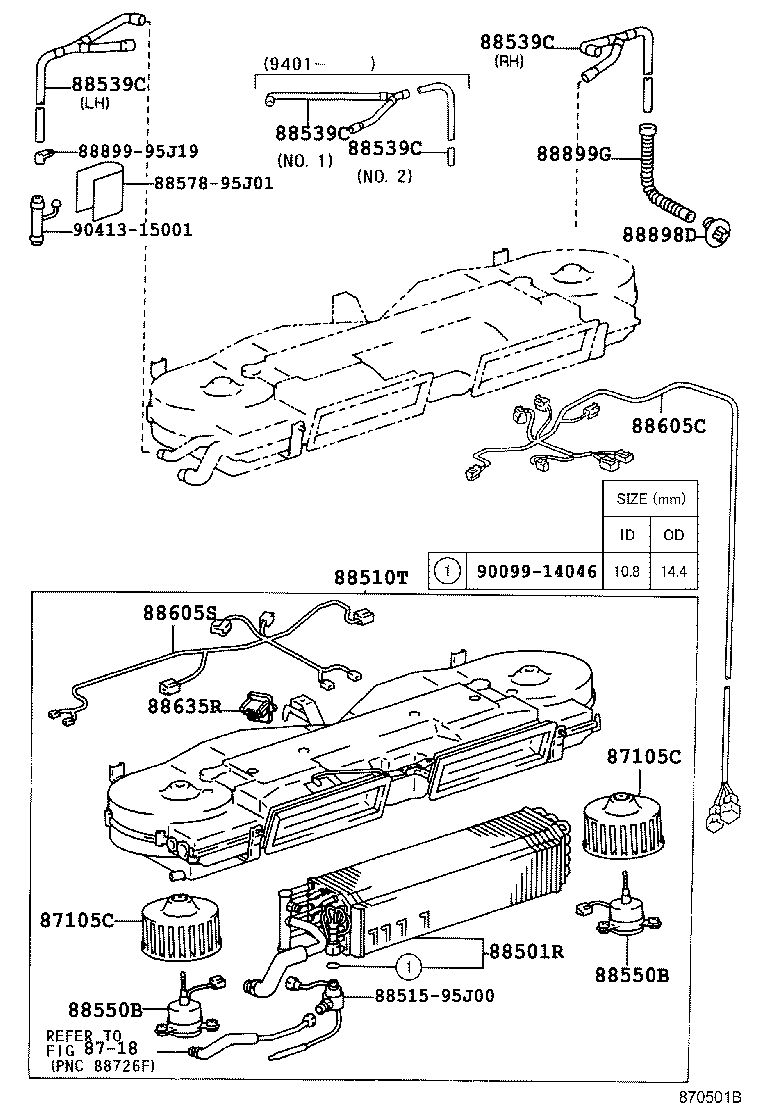

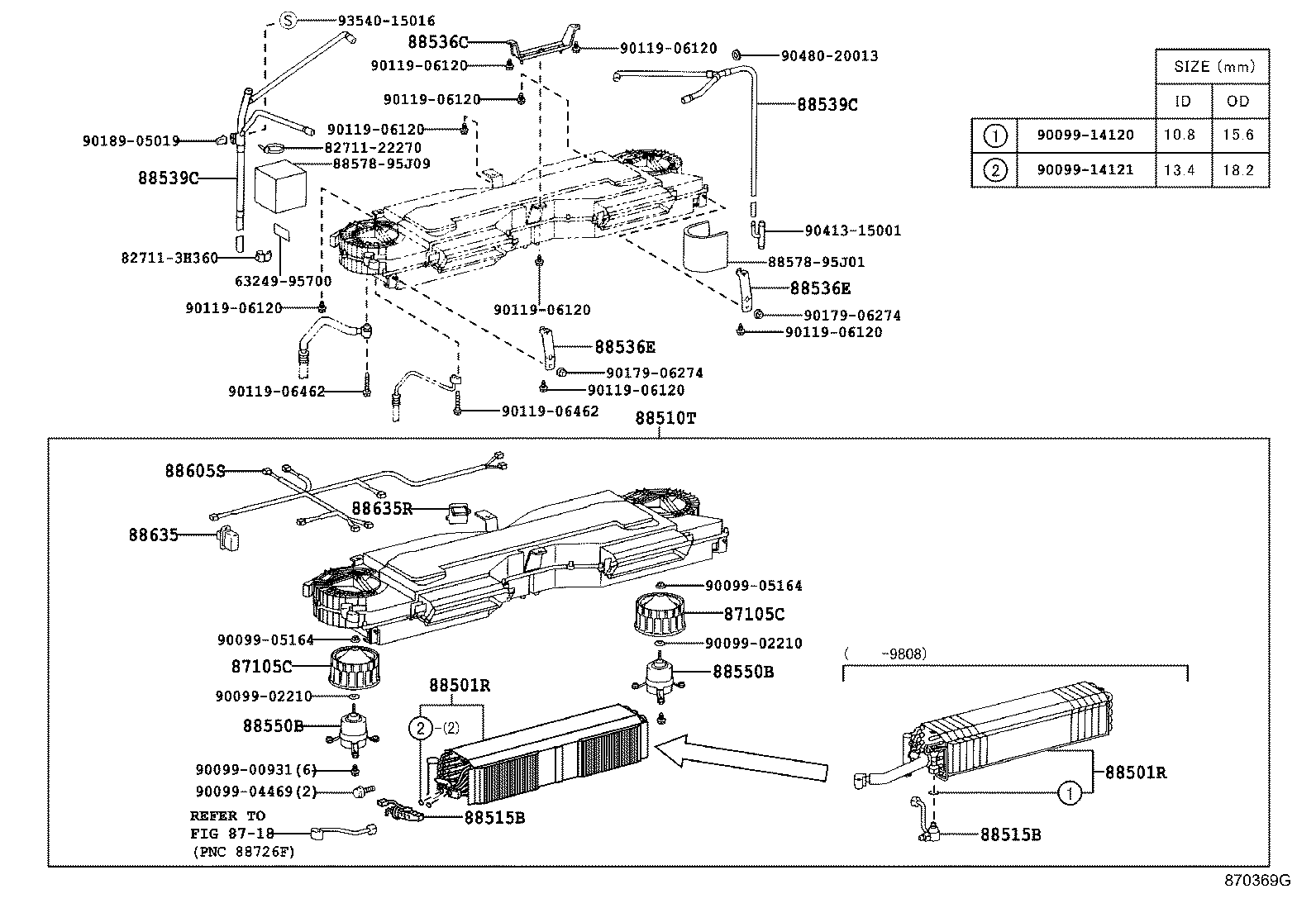

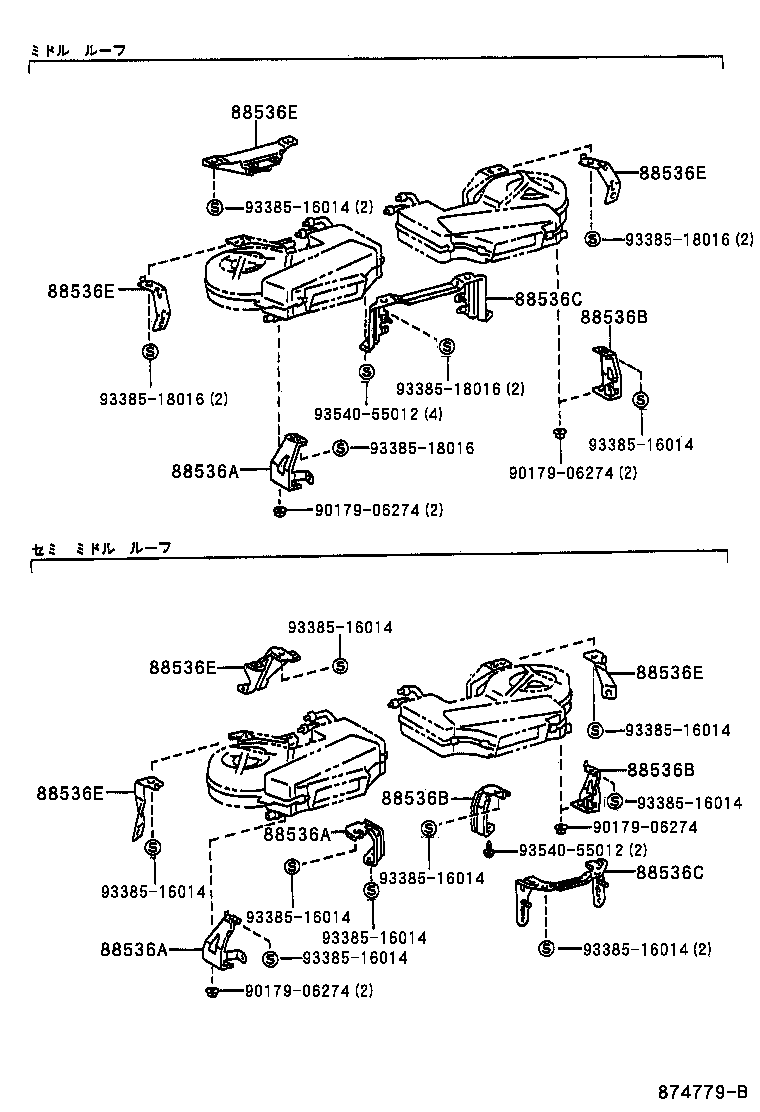

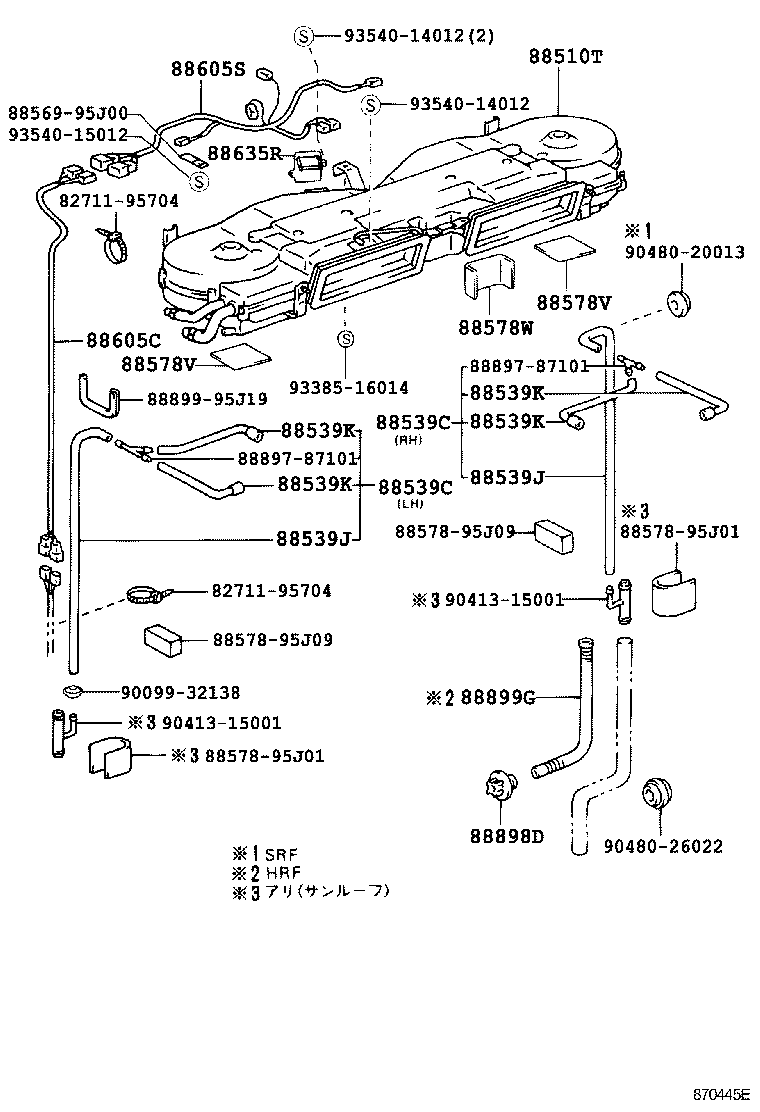

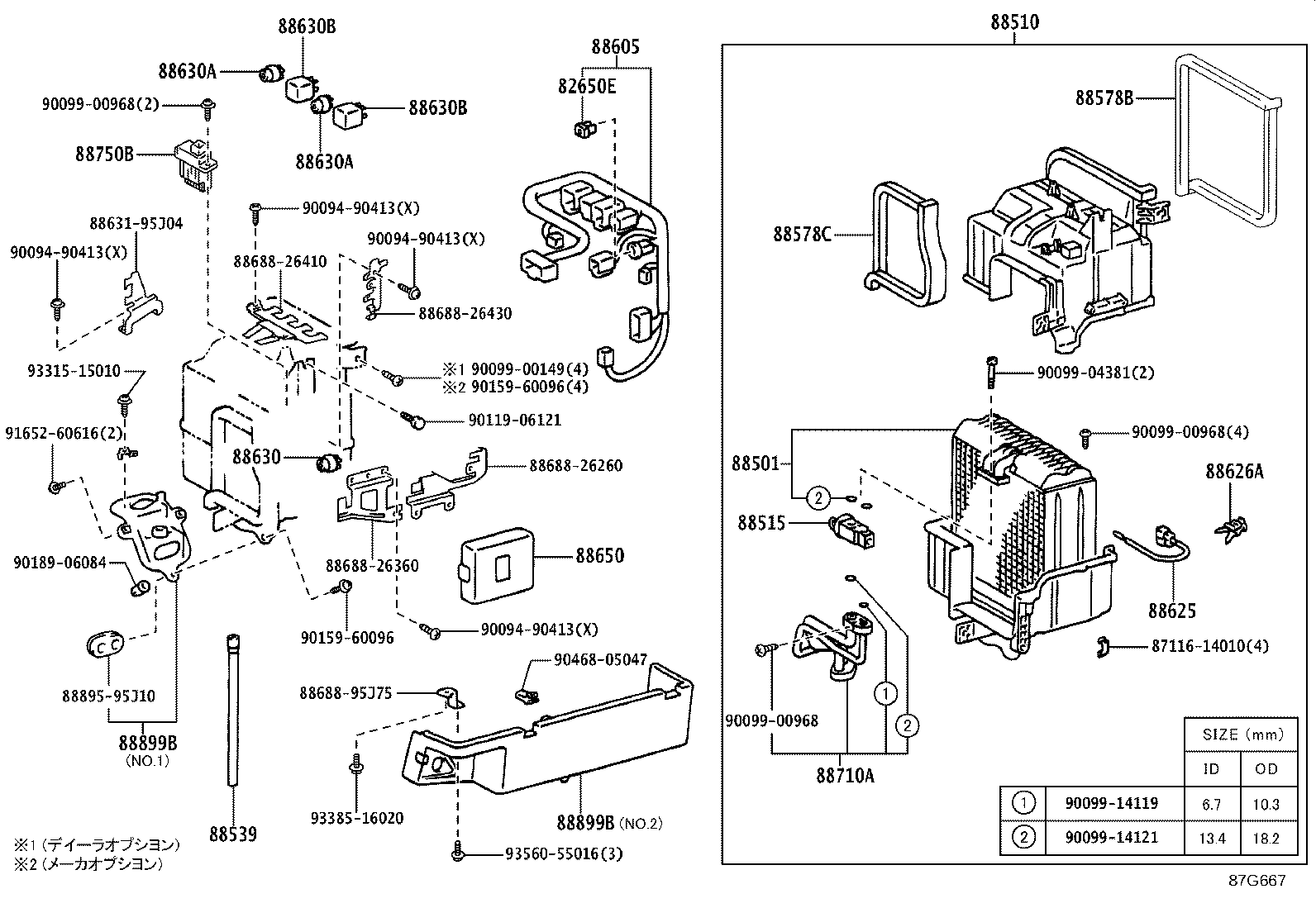

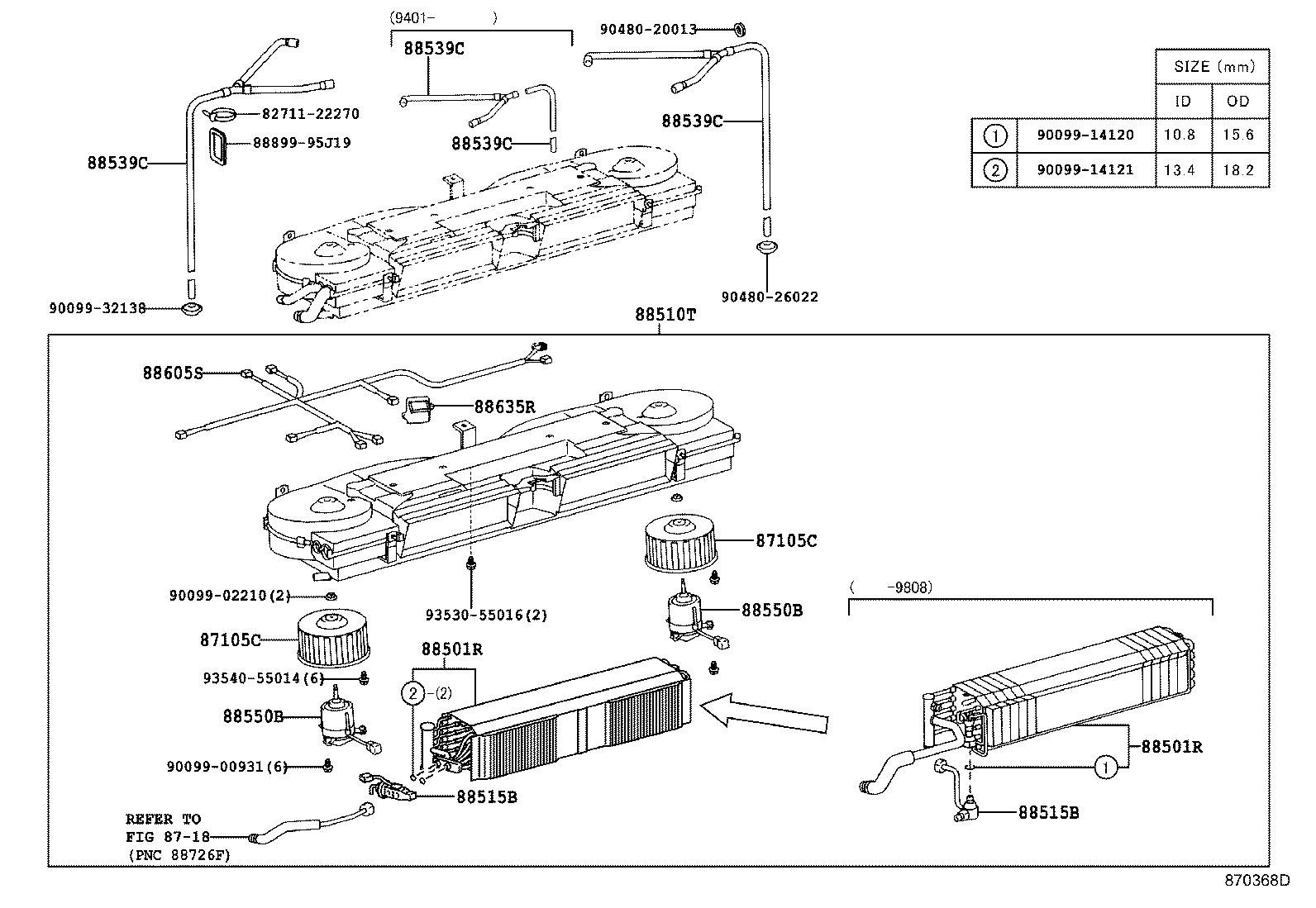

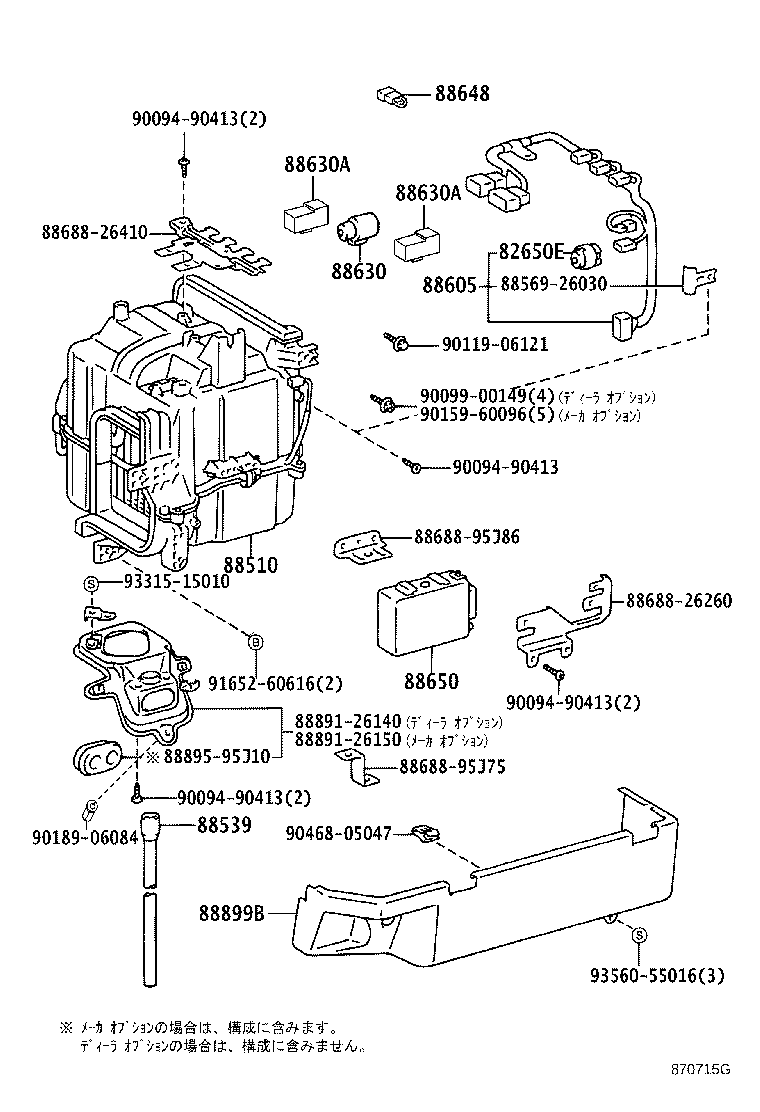

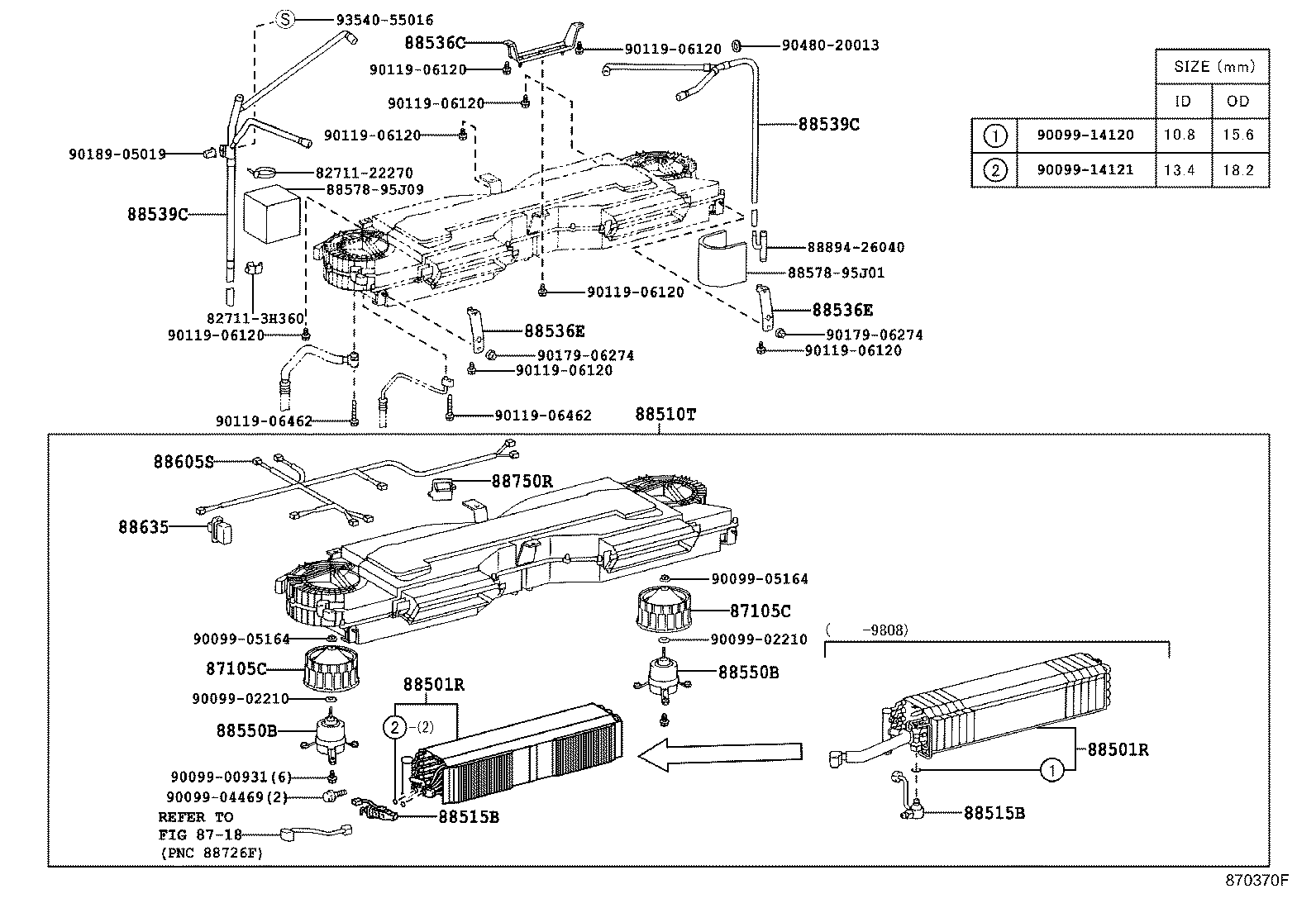

Figure 870411 870411 1989-08 → 1993-08 Figure 870412A 870412A 1989-08 → 1993-08 Figure 870719B 870719B 1989-08 → 1993-08 Figure 870413D 870413D 1989-08 → 1995-08 Figure 87G667 87G667 1995-08 → 1998-08 Figure 87G667 87G667 1995-08 → 1998-08 Figure 87G667 87G667 1995-08 → 1998-08 Figure 87G667 87G667 1995-08 → 1998-08 Figure 870715G 870715G 1993-08 → — Figure 870727G 870727G 1993-08 → — Figure 870726A 870726A 1993-08 → — Figure 873568D 873568D 1998-08 → — Figure 870445E 870445E 1989-08 → — Figure 870446 870446 1989-08 → — Figure 870444D 870444D 1989-08 → — Figure 870501B 870501B 1989-08 → 1993-08 Figure 870368D 870368D 1993-08 → — Figure 872981B 872981B 1993-08 → — Figure 870369G 870369G 1993-08 → — Figure 870370F 870370F 1995-08 → — Figure 870499E 870499E 1993-08 → — Figure 870371B 870371B 1991-03 → — Figure 876461B 876461B 2003-08 → — Figure 876463A 876463A 2003-08 → — Figure 874779B 874779B 1989-08 → — Figure 874418B 874418B 1989-08 → — Figure MEN584C MEN584C 1989-08 → 1993-08 Figure 875815A 875815A 1993-08 → — Figure 870497C 870497C 1989-08 → — Figure 876462 876462 1998-07 → — Figure 876464 876464 1998-07 → — Figure MER409A MER409A 1989-08 → 1996-08 Figure 870496A 870496A 1989-08 → 1996-08 Figure 873083A 873083A 1996-08 → — Figure 87G102 87G102 1989-08 → 1993-08 Figure 870694A 870694A 1993-08 → 1996-08 Figure 870695B 870695B 1996-08 → —

Part groups

PNCDescription
82630B Holder Assy, Fuse
82650E Breaker Assy, Wiring Circuit
87105C Fan Sub-assy, Blower, Rear
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88501 Evaporator Sub-assy, Cooler, NO.1
88501E Evapolator Sub-assy, Cooler (COOL BOX)
88501R Evaporator Sub-assy (REAR)
88510 Unit Assy, Cooler
88510F Holder, Fuse
88510T Unit Assy, Cooling (REAR)
88515 Valve, Cooler Expansion
88515B Valve, Rear Cooling Unit Expansion
88515C Valve, Cooling Box Expansion
88520 Box Assy, Cooling
88522 Door, Cooling Unit
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88536C Bracket, Cooling Unit, NO.4
88536E Bracket, Cooling Unit, NO.5
88536F Bracket, Cooling Unit, NO.6
88539 Hose, Cooler Unit Drain, NO.1
88539C Hose, Cooler Unit Drain, NO.2
88539E Hose, Cooler Unit Drain, NO.3
88539J Hose, Drain Cooler
88539K Hose, Drain Cooler
88550B Motor Assy, Blower
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88578V Packing, Cooling Unit, NO.3
88578W Packing, Cooling Unit, NO.4
88605 Harness Sub-assy, Cooler Wiring, NO.1
88605C Harness Sub-assy, Cooler Wiring, NO.2
88605M Harness Sub-assy, Wiring
88605S Harness Sub-assy, Wiring Air Conditioner
88610 Switch Assy, Cooler Control
88625 Thermistor, Cooler, NO.1
88625A Thermistor, Cooler NO.2
88626A Holder, Thermistor
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88630B Relay Assy, Cooler
88630C Bracket, Cooler Relay
88630V Relay Assy
88635 Resistor, Cooler Unit Blower
88635R Resistor, Blower
88648 Wiring, Cooler, NO.1
88650 Amplifier Assy, Cooler Stabilizer
88650C Amplifier Sub-assy, Airconditioner
88650E Amplifier Assy, Air Conditioner, NO.1
88710A Tube Assy, Air Conditioner
88710B Tube Assy, Air Conditioner
88716N Pipe, Cooler Refrigerant Liquid, N
88723A Label, Cooler Service Caution
88750B Transistor Assy, Blower Resistor
88750R Transistor Assy, Blower Resistor(REAR)
88760 Box Assy, Pot
88894G Connector, Drain Hose
88895 Holder, Fuse
88898D Grommet
88899B Cover, Cooler Control
88899G Moulding, Protector
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
