Heating & Air Conditioning - Control & Air Duct

56 part groups · 28 illustrations

Illustrations

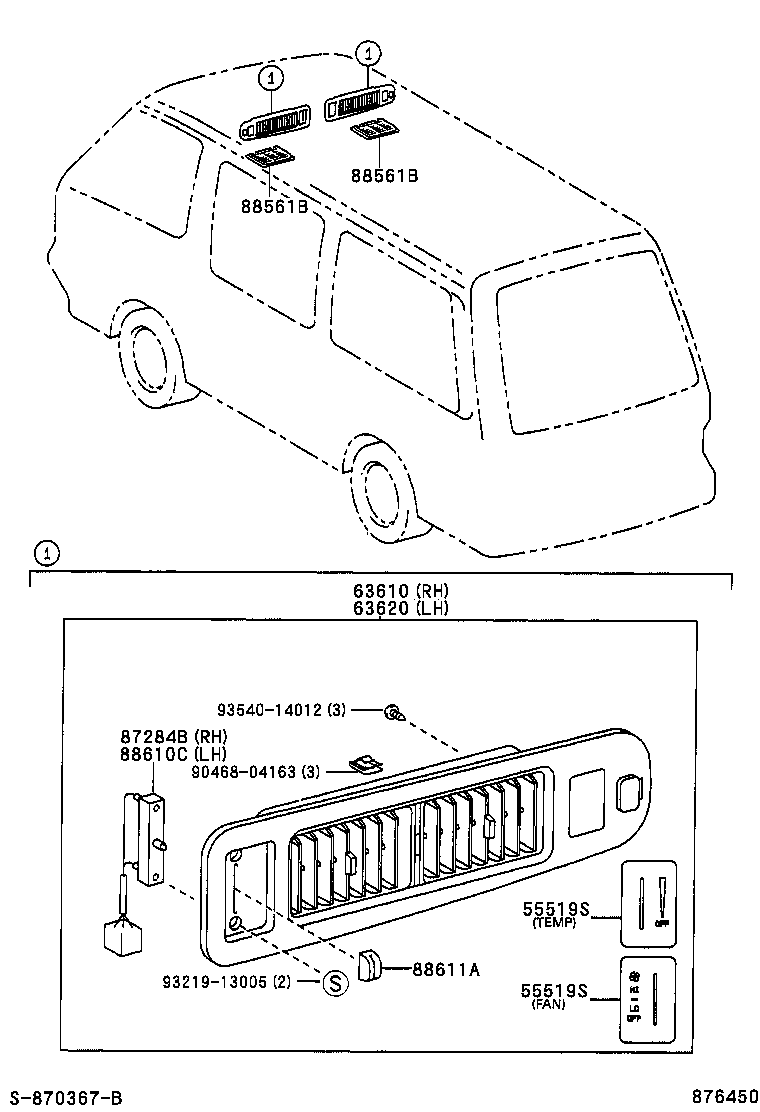

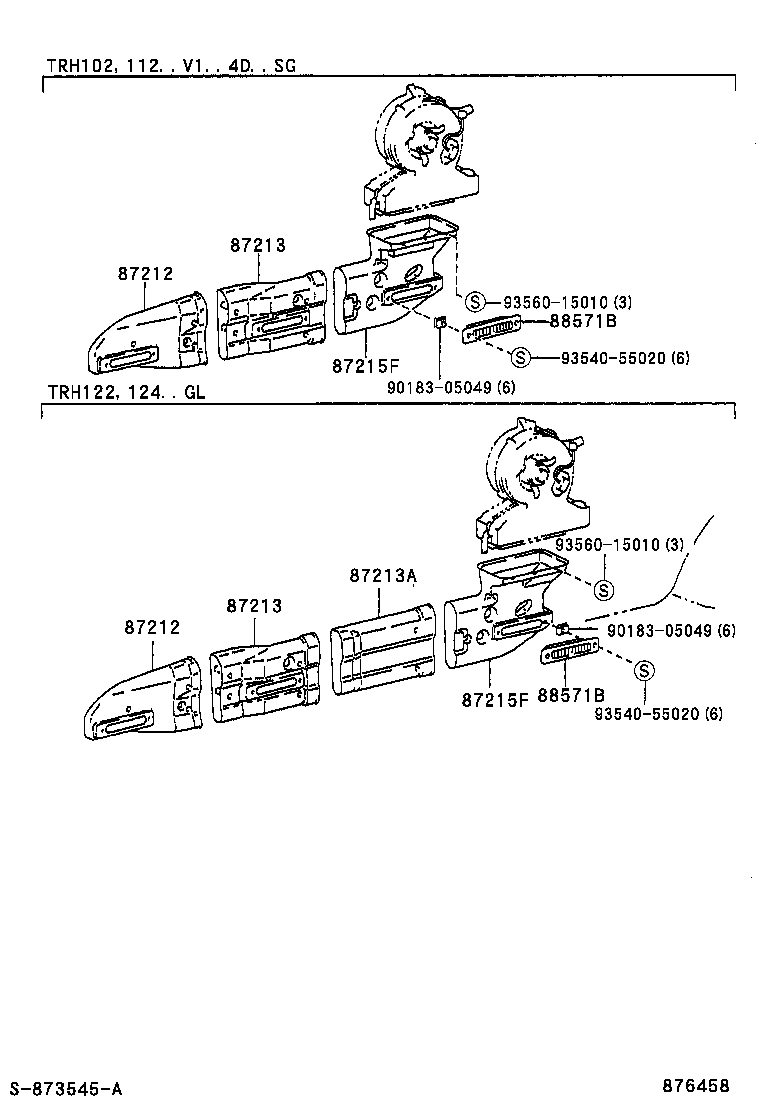

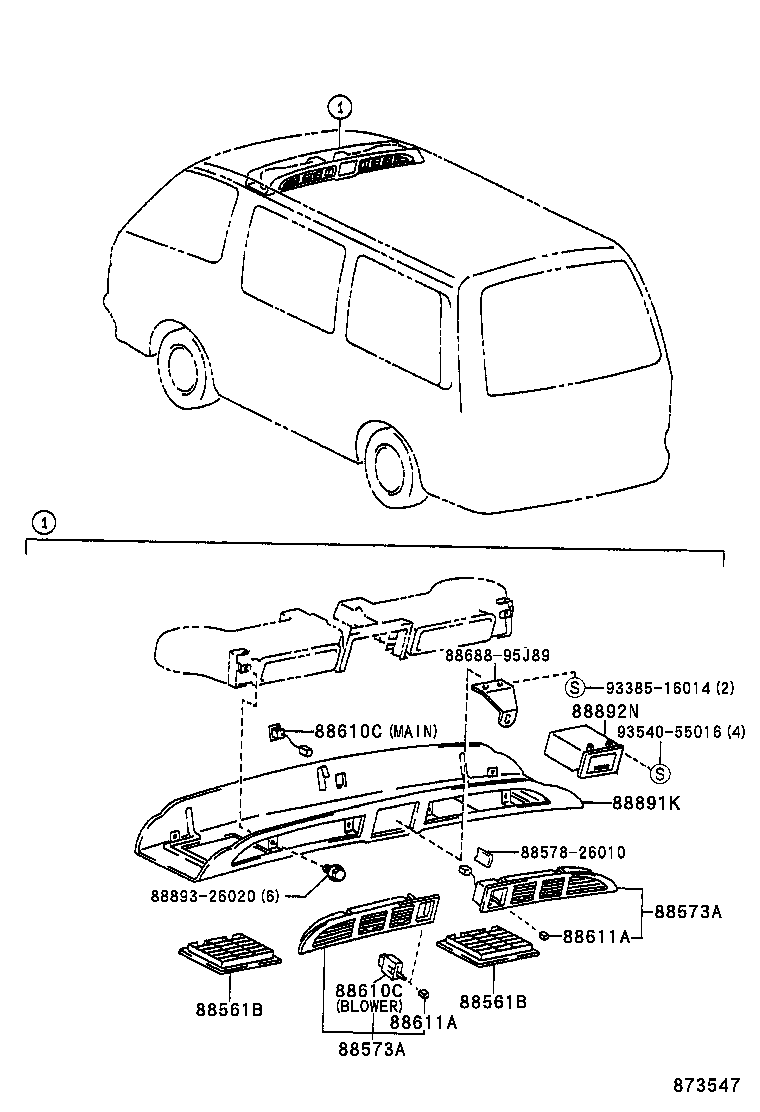

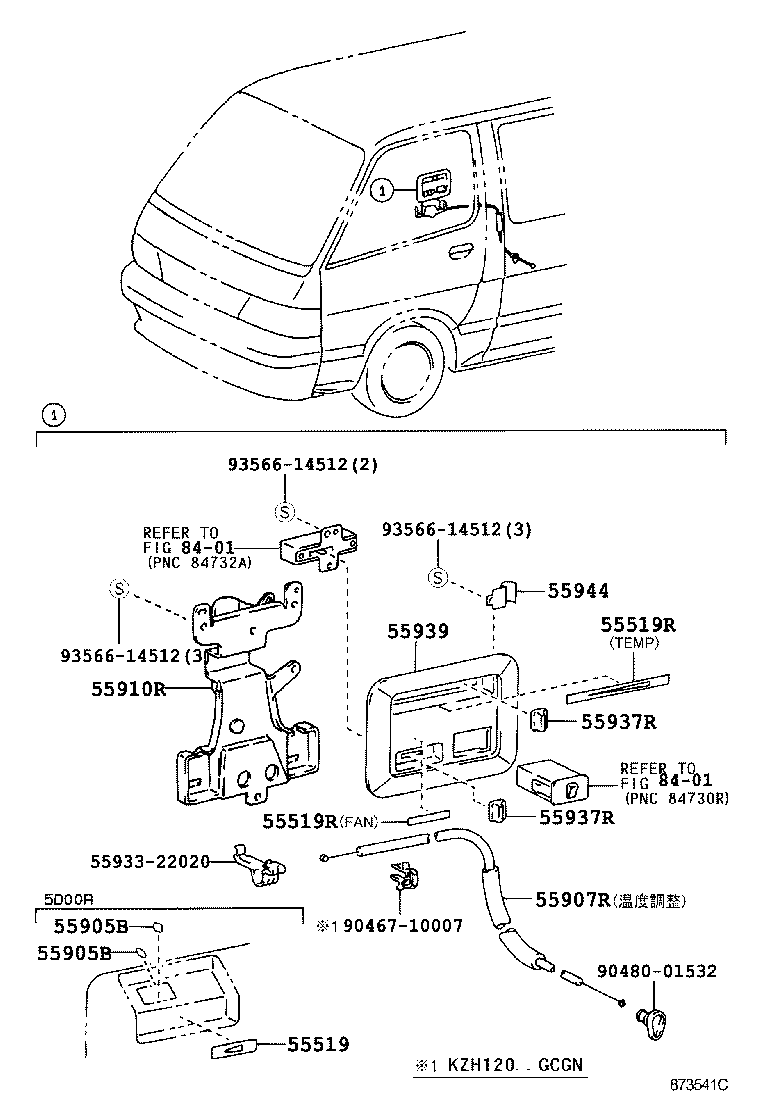

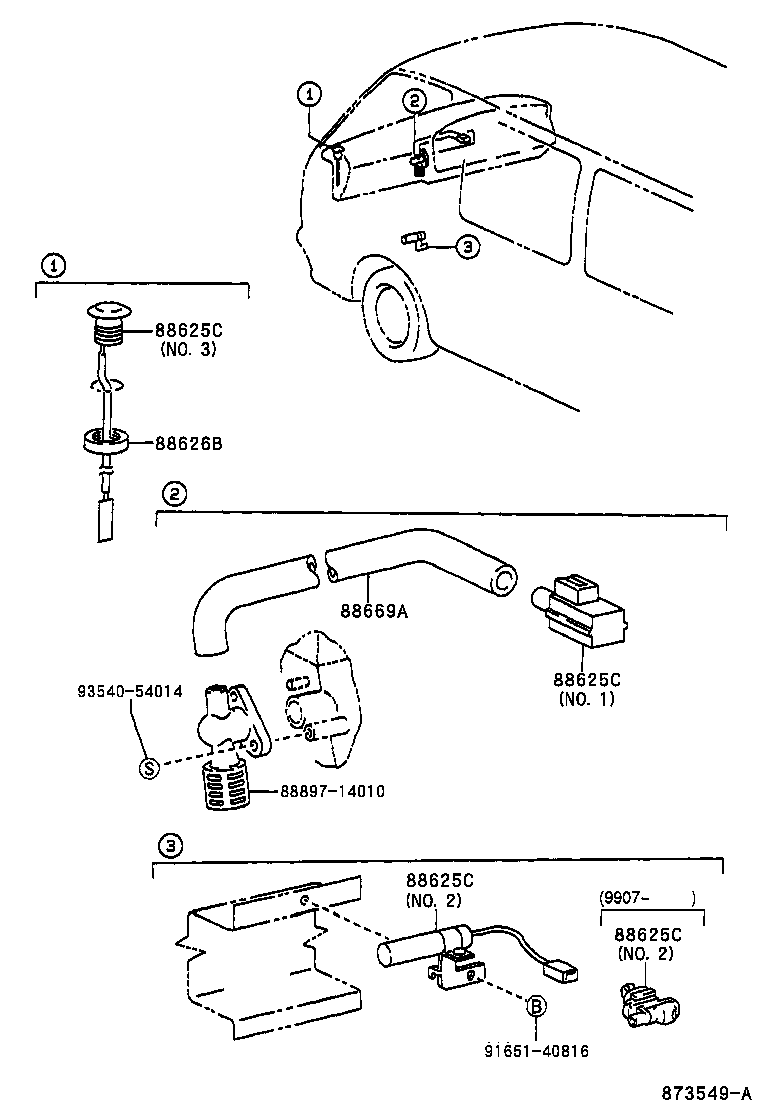

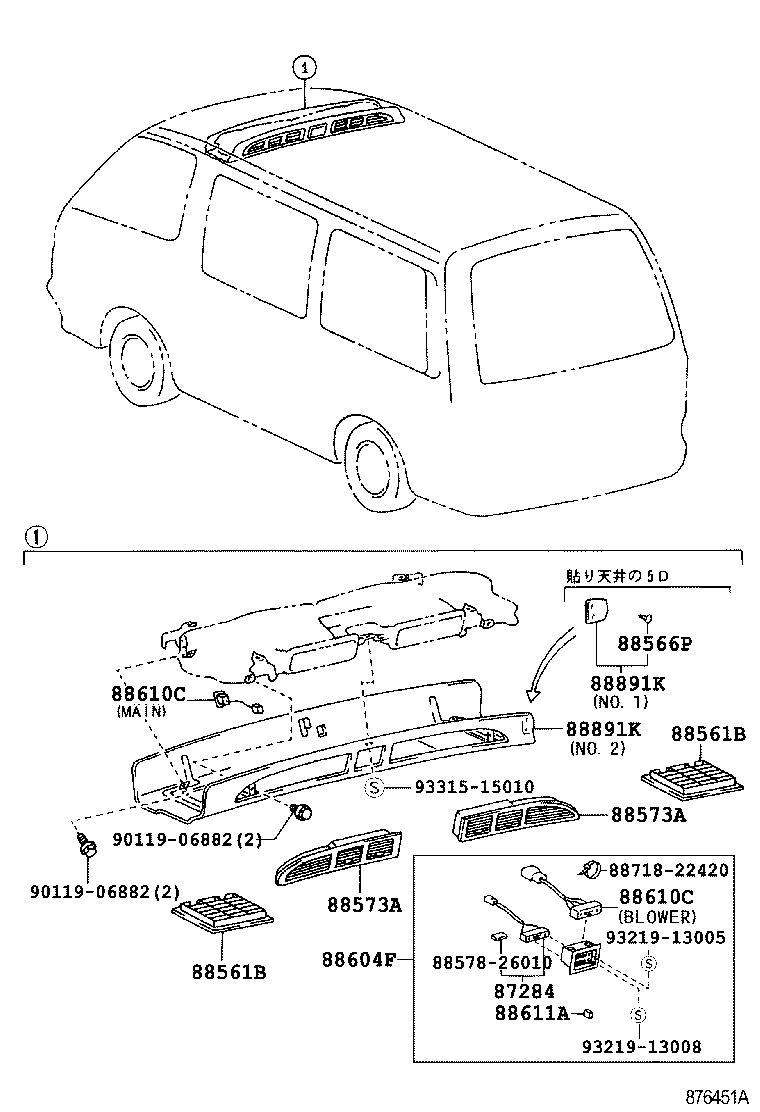

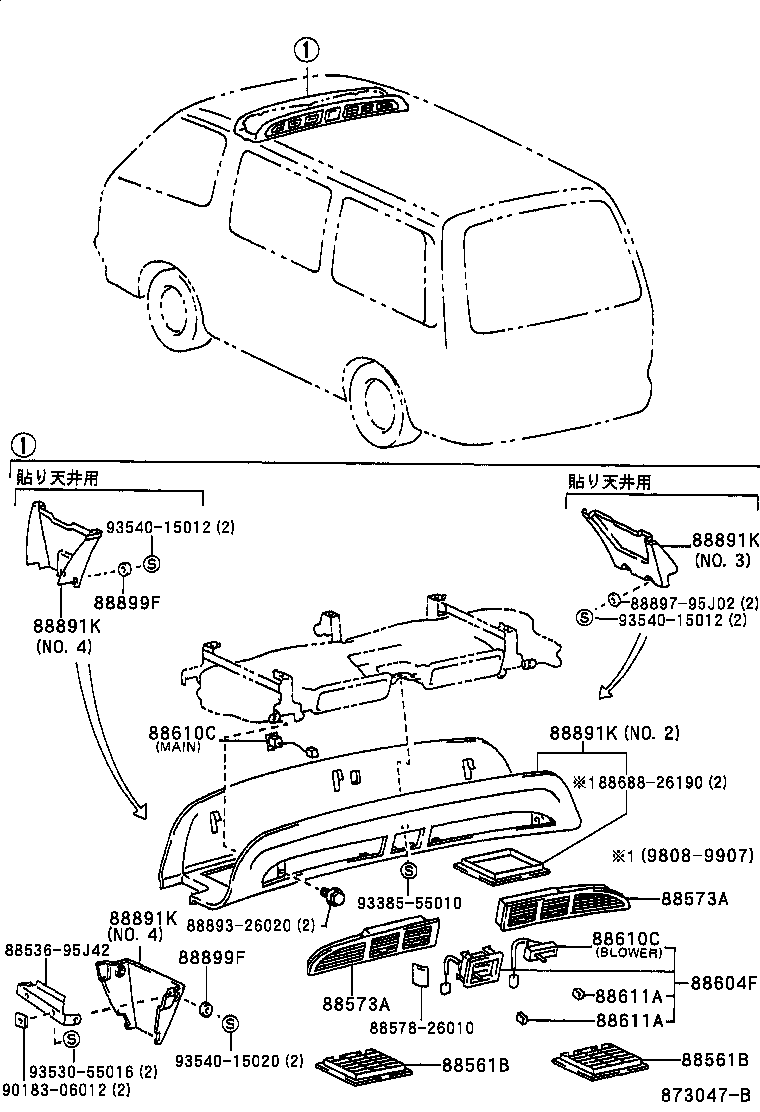

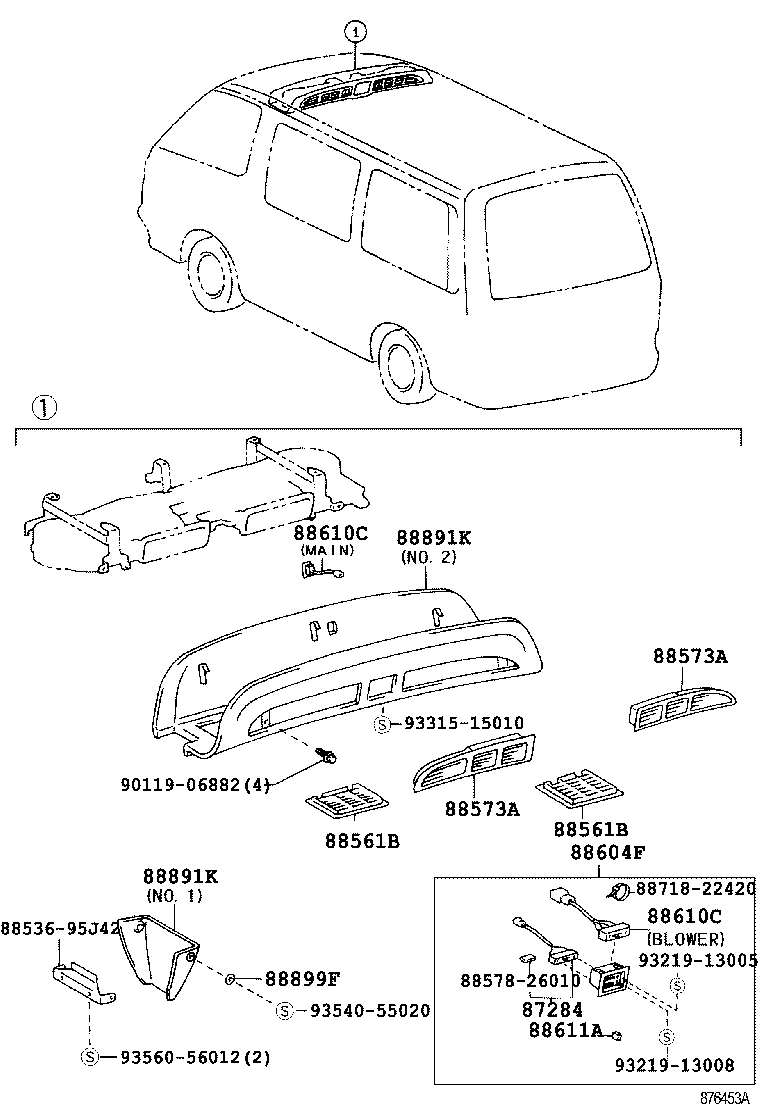

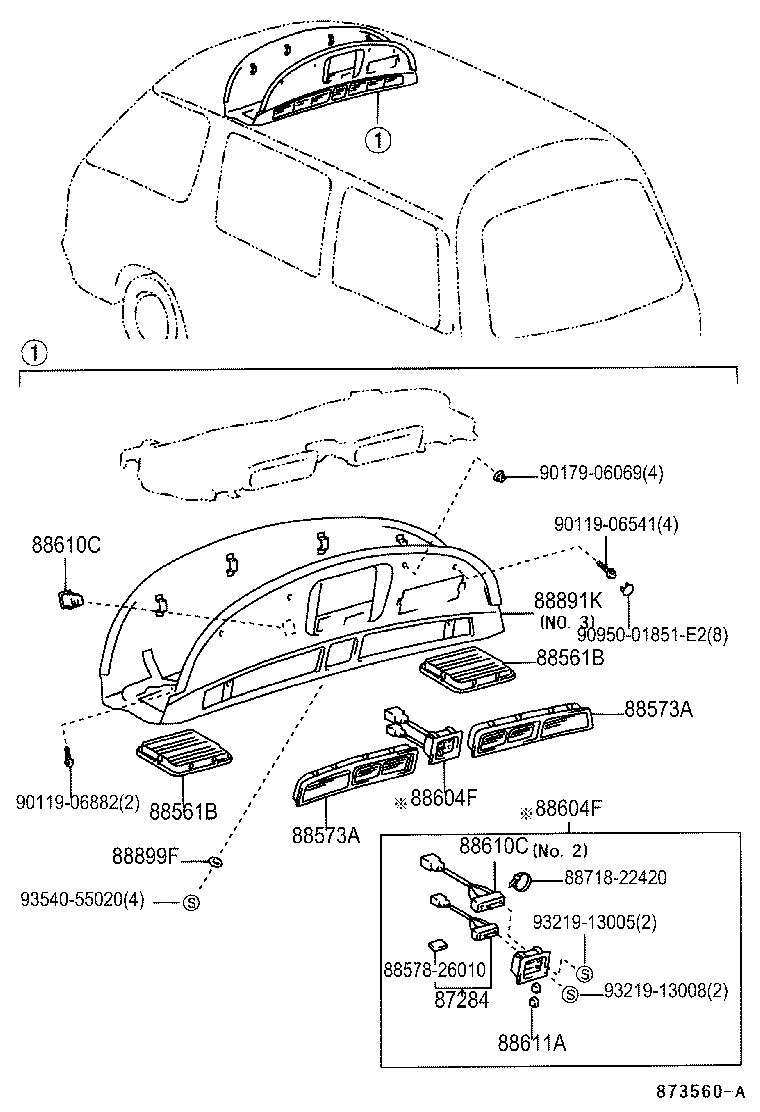

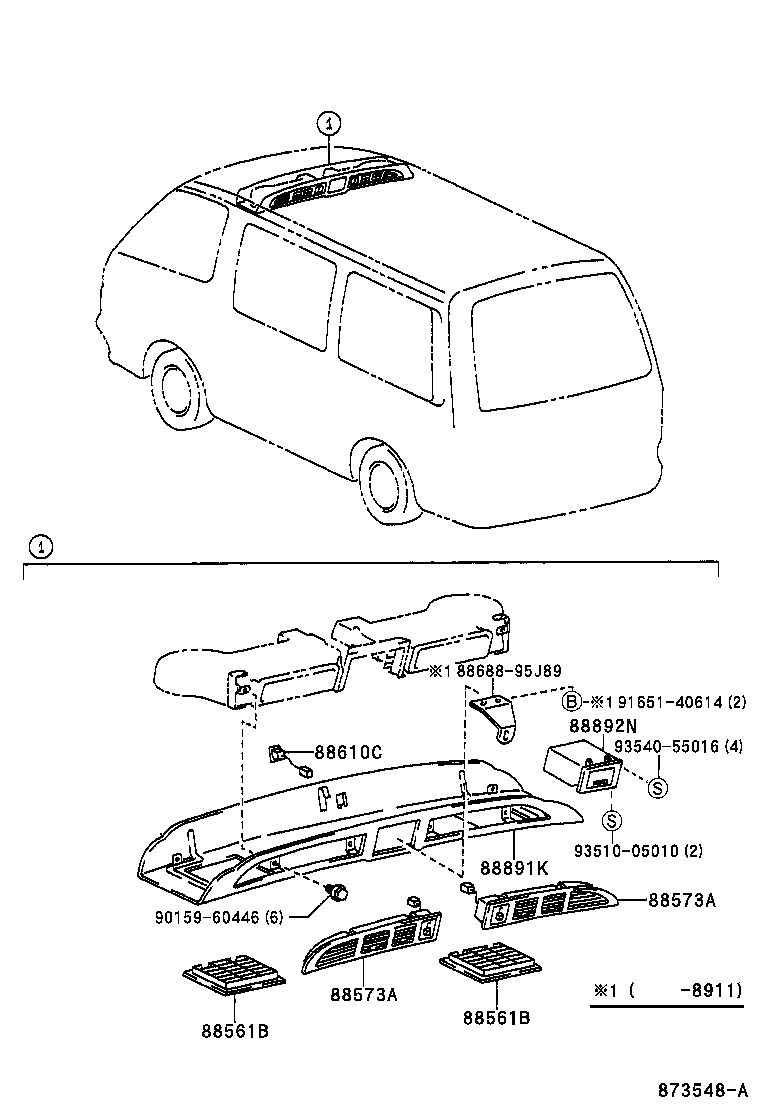

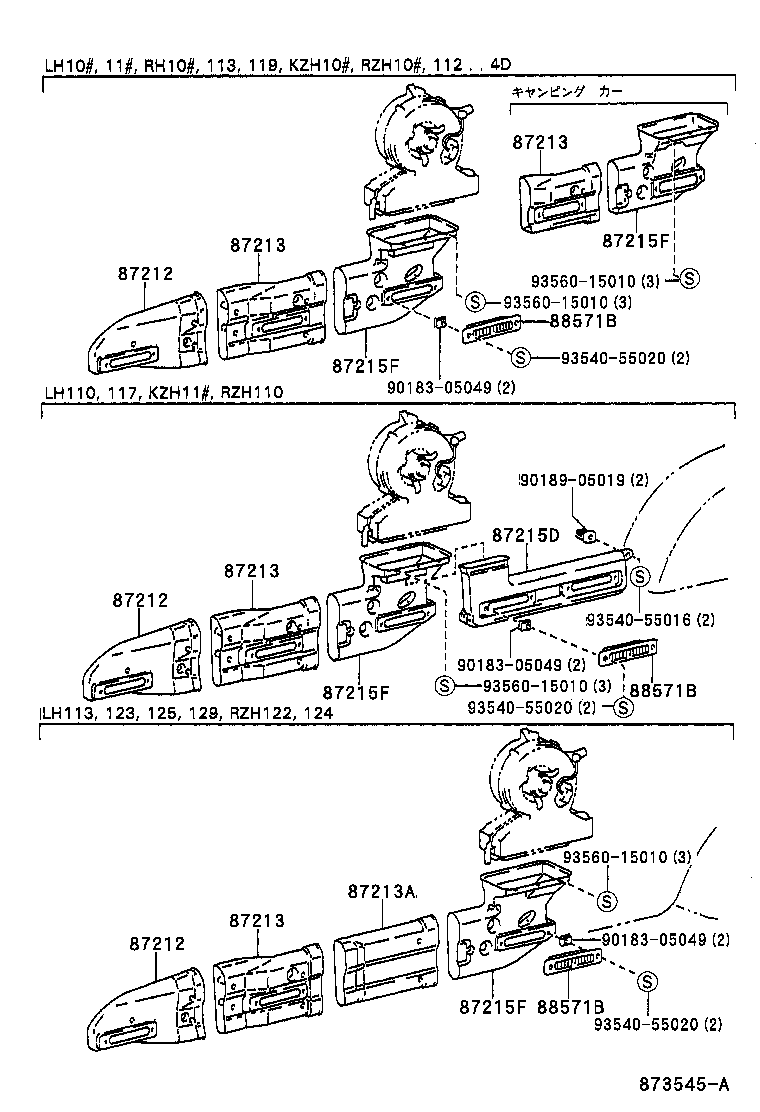

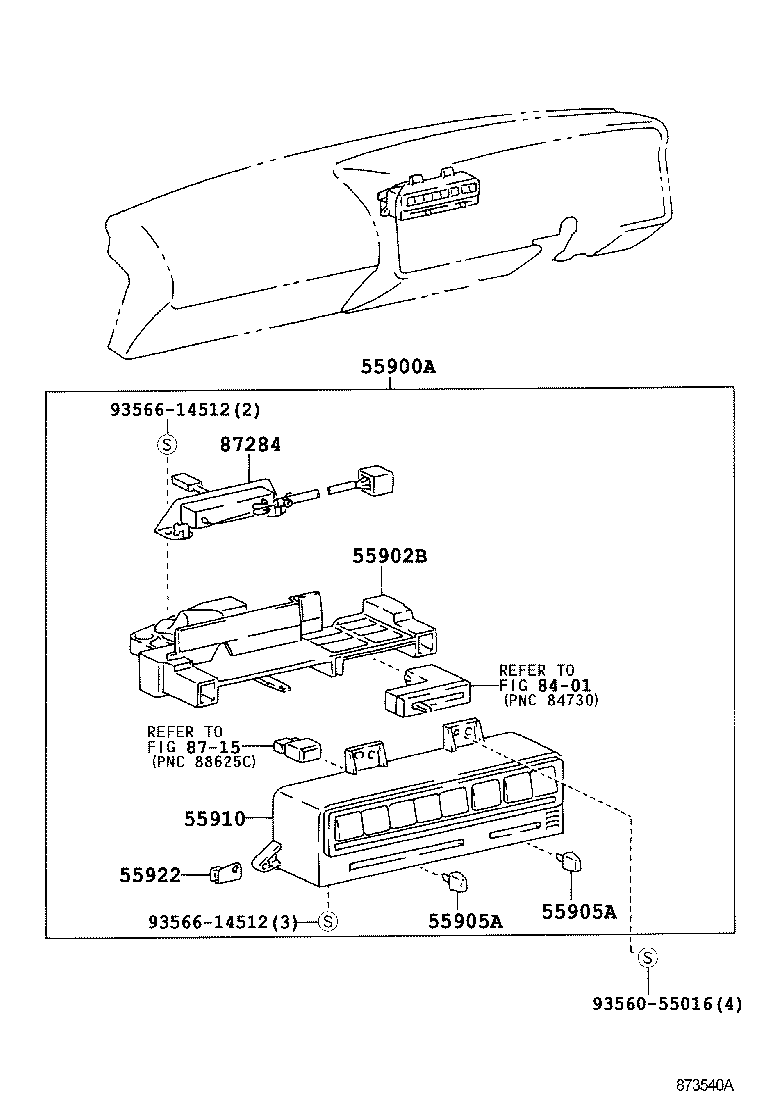

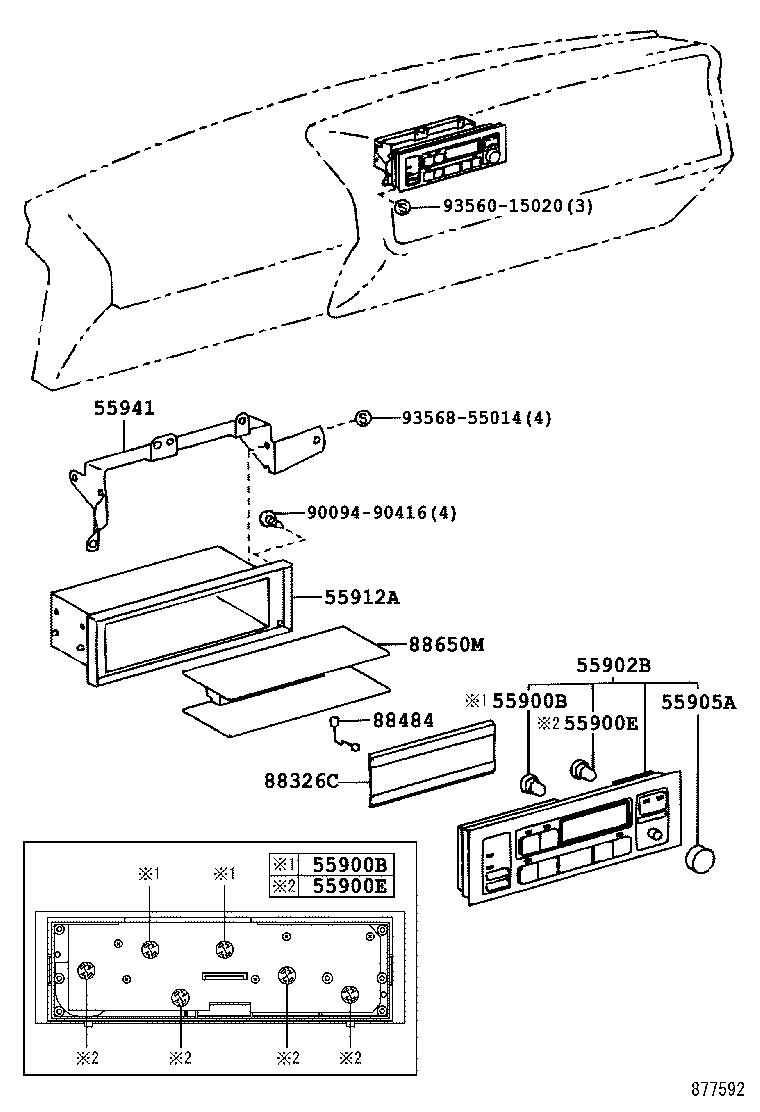

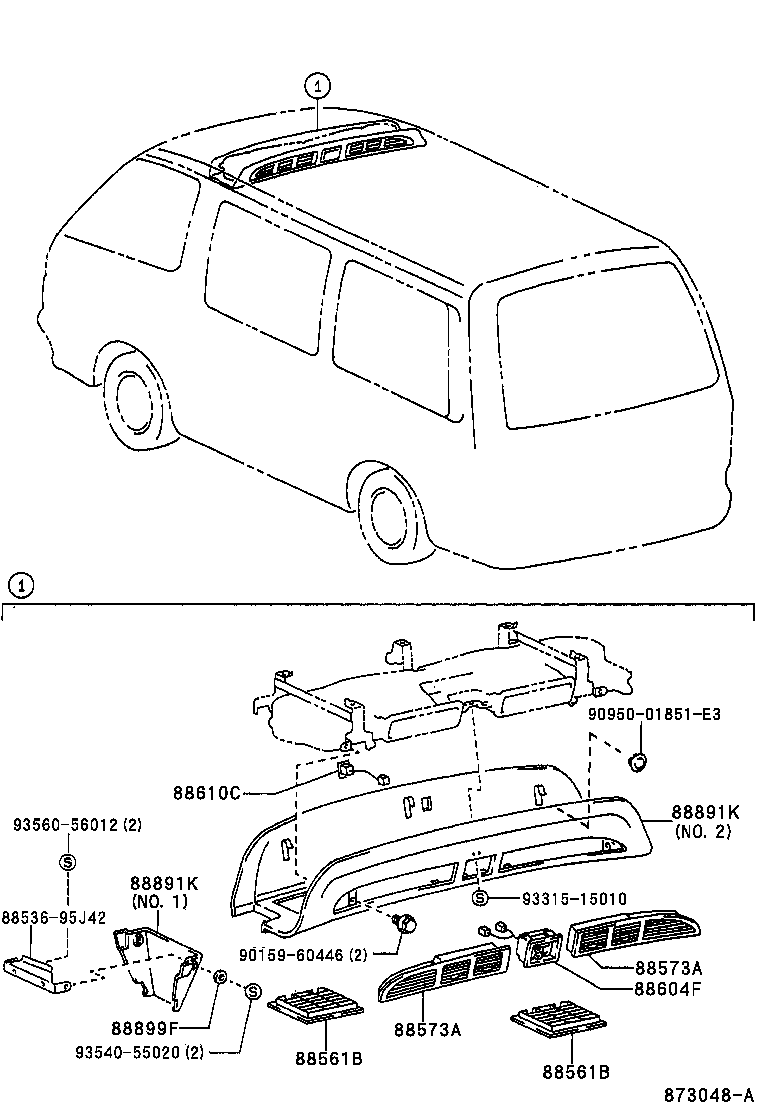

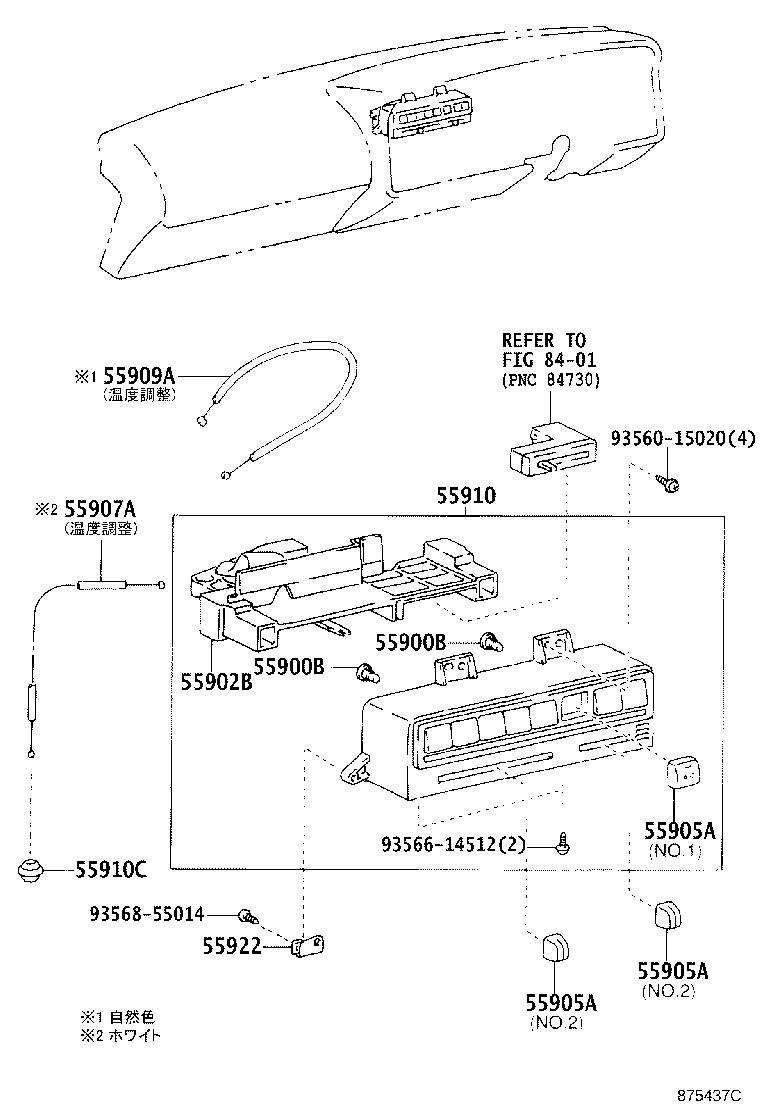

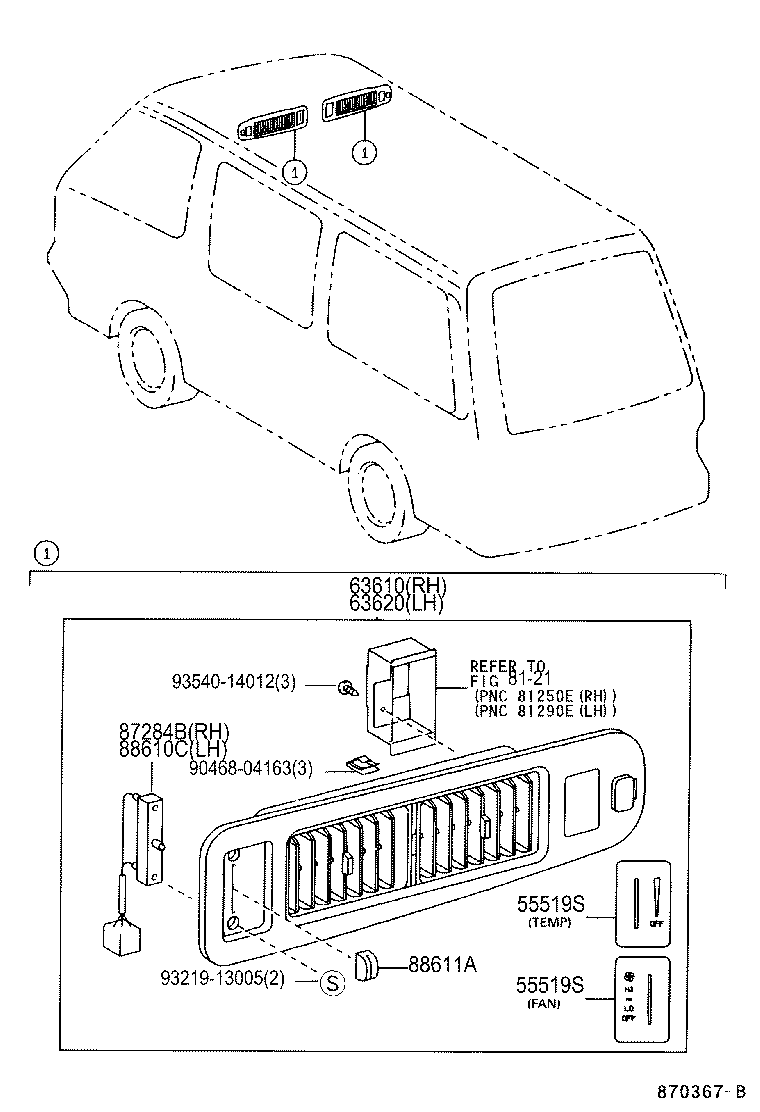

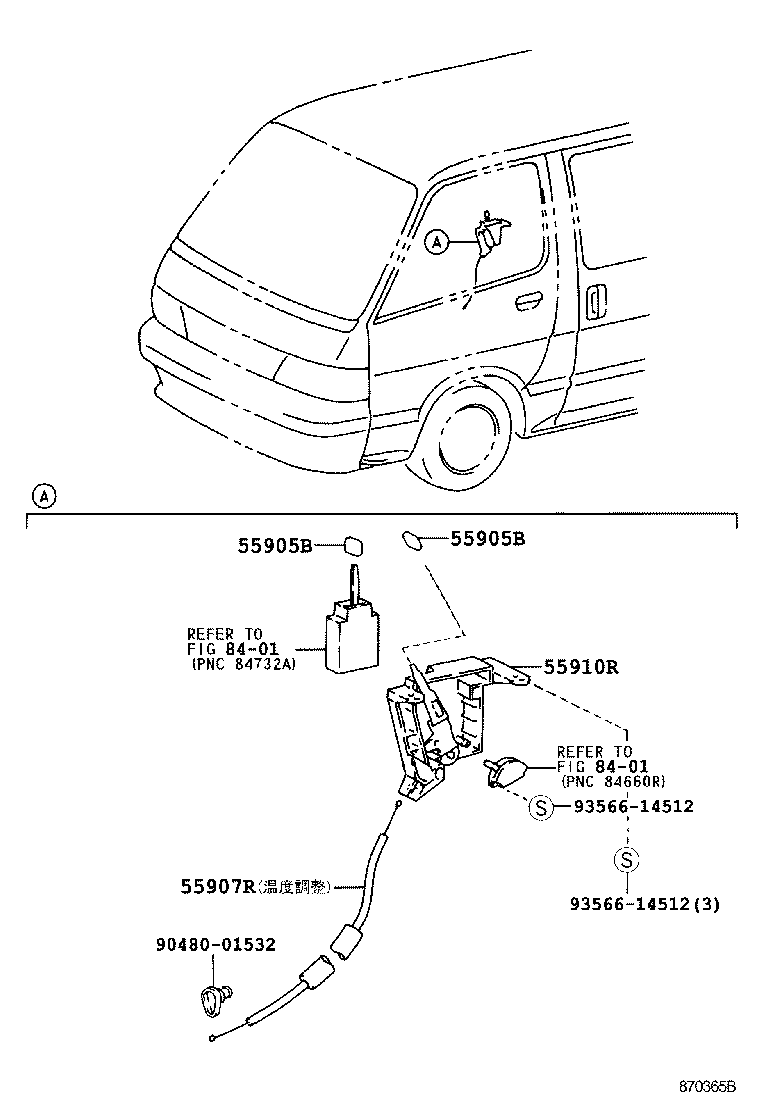

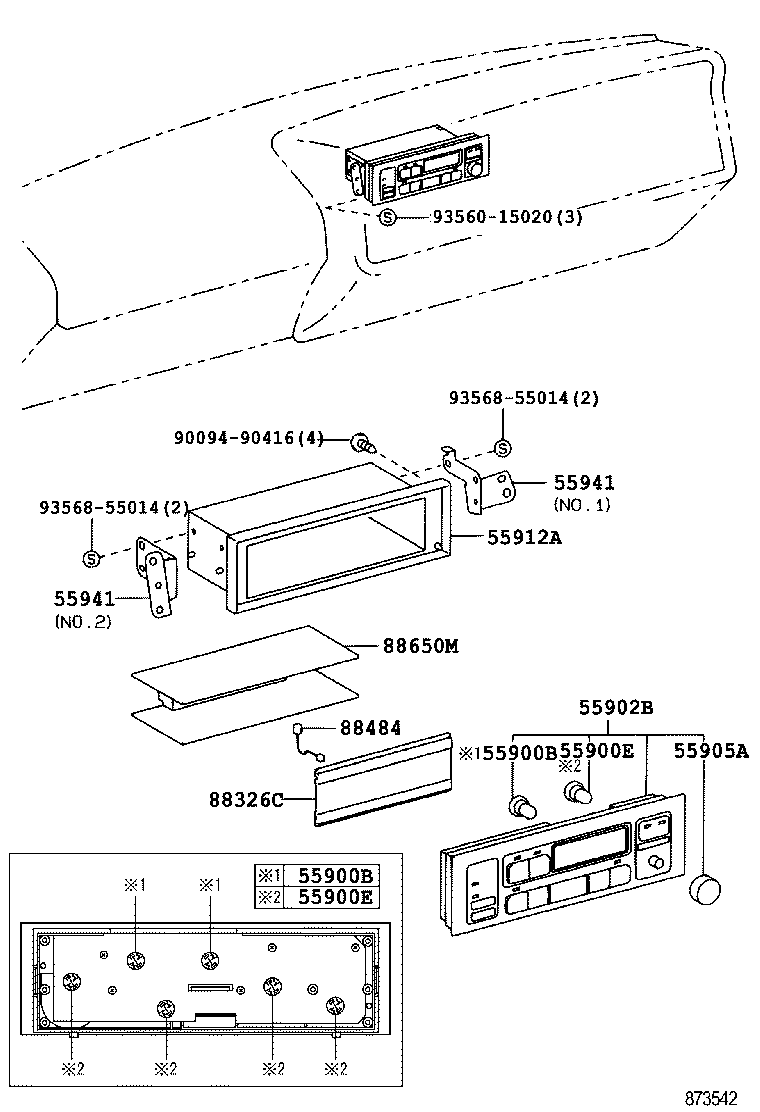

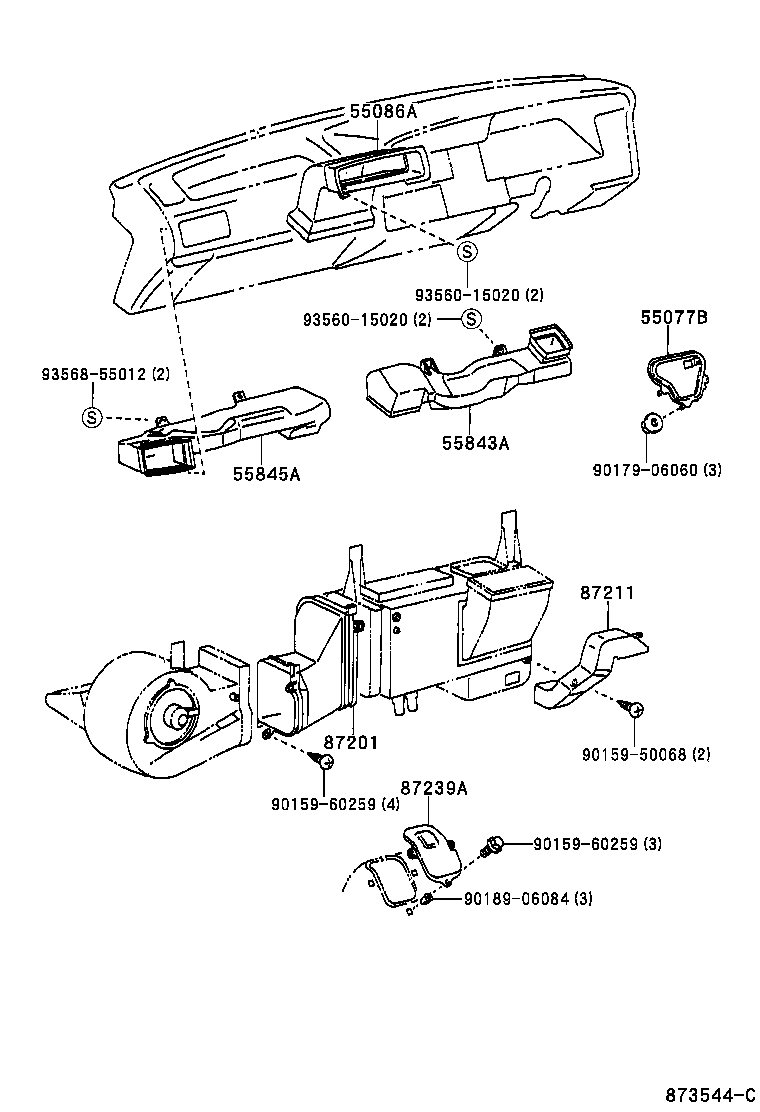

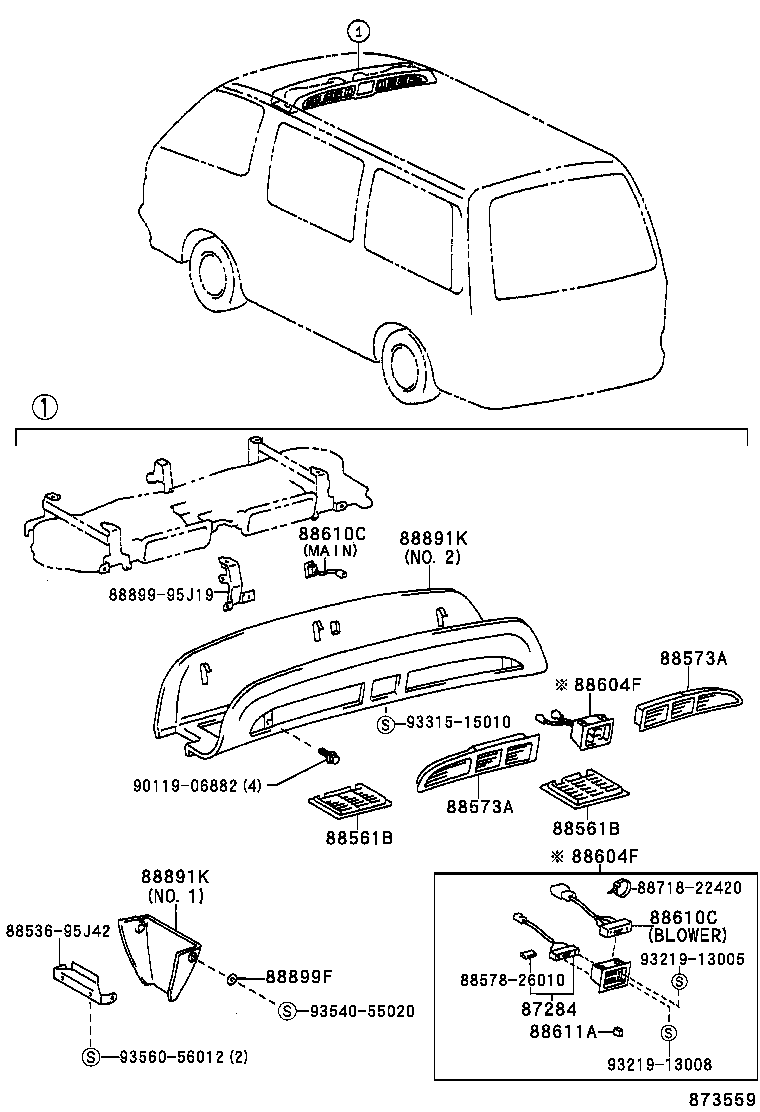

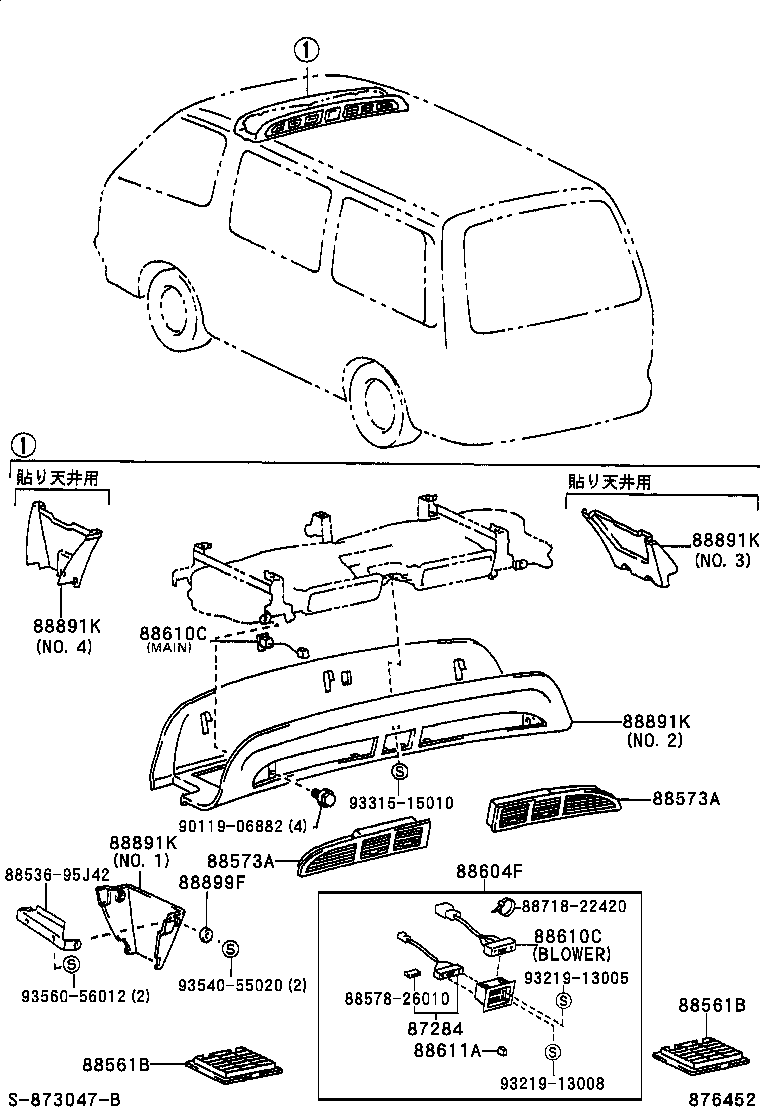

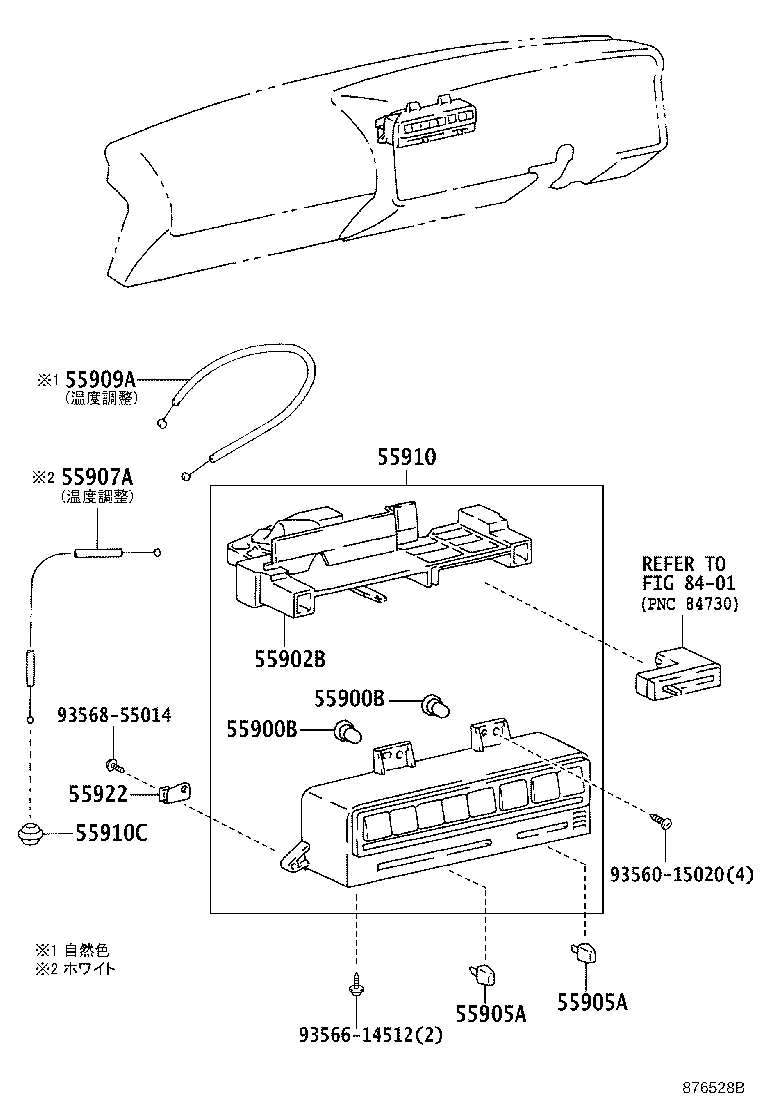

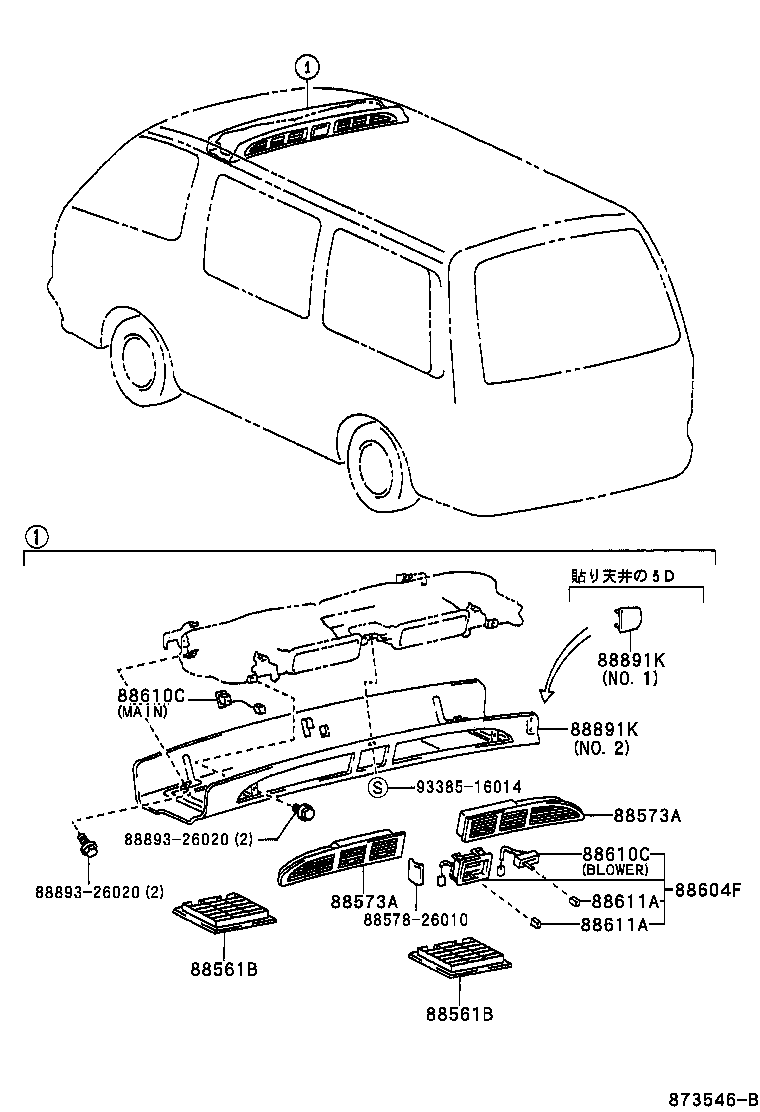

Figure 873284F 873284F 1989-08 → — Figure 873284F 873284F 2003-08 → — Figure 873540A 873540A 1989-08 → 1995-08 Figure 877592A 877592A 1995-08 → 1999-07 Figure 873542D 873542D 1999-07 → — Figure 875437C 875437C 2001-08 → — Figure 876528B 876528B 2003-08 → — Figure 873541C 873541C 1989-08 → — Figure 873541C 873541C 2003-08 → — Figure 870365B 870365B 1989-08 → — Figure 873543A 873543A 1993-08 → — Figure 873544C 873544C 1989-08 → — Figure 873544C 873544C 2003-08 → — Figure 873545A 873545A 1989-08 → — Figure 876458 876458 2003-08 → — Figure 873546B 873546B 1989-08 → — Figure 873047B 873047B 1989-08 → — Figure 873547 873547 1989-08 → — Figure 873548A 873548A 1989-08 → — Figure 873048A 873048A 1989-08 → — Figure 870367B 870367B 1989-08 → — Figure 873559 873559 1989-08 → — Figure 873560A 873560A 1998-08 → 2001-08 Figure 876450 876450 2003-08 → — Figure 876451A 876451A 2003-08 → — Figure 876452 876452 2003-08 → — Figure 876453A 876453A 2003-08 → — Figure 873549A 873549A 1989-08 → —

Part groups

PNCDescription
55077B Cover Sub-assy, Heater Air Duct Hole
55086A Duct Sub-assy, Heater TO Register, Center
55519 Plate, Heater Control Name
55519R Plate, Heater Control Name
55519S Label, Rear Cooler Control Information
55538A Cover, Cooler Switch Hole
55843A Duct, Heater TO Register, NO.1
55845A Duct, Heater TO Register, NO.3
55900A Control & Accessory Assy, Heater
55900B Bulb, Air Conditioner Control
55900E Bulb, Air Conditioner Control, NO.2
55902B Control Sub-assy, Heater
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55907A Cable Sub-assy, Water Valve Control
55907R Cable Sub-assy, Temperature Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55910 Control Assy, Heater OR Boost Ventilator
55910C Grommet(FOR HEATER CONTROL CABLE)
55910R Control Assy, Heater
55912A Housing, Heater Control
55922 Bracket, Heater Control Base
55937R Knob, Heater Control Lever
55939 Ornament, Heater Control
55941 Bracket, Heater Control
55944 Plate, Heater Control Support
63610 Register Assy, Air Outlet, NO.1
63620 Register Assy, Air Outlet, NO.2
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87213A Duct, Air Rear NO.2
87215D Duct, Air, Rear NO.4
87215F Duct, Air, Rear NO.3
87239A Cover, Heater Inlet Hole
87284 Resistor Sub-assy, Variable
87284B Resister Set, Air Conditioner Variable
88326C Plate, Cover
88484 Wire, Cooler, NO.1
88561B Grille, Cooler Air Inlet
88566P Clip, Cooler Air Duct
88571B Grille, Air Outlet
88573A Base, Grille
88604F Panel Sub-assy, Cooler Control
88610C Switch Assy, Cooler Control
88611A Knob, Cooler Control Switch
88625C Thermistor, Cooler
88626B Holder, Thermistor
88650M Computer Assy, Air Conditioner
88669A Hose (FOR COOLER THERMISTOR)
88891K Cover, Cooler
88892N Cover, Cooler, NO.2
88899F Spacer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
