Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

34 part groups · 40 illustrations

Illustrations

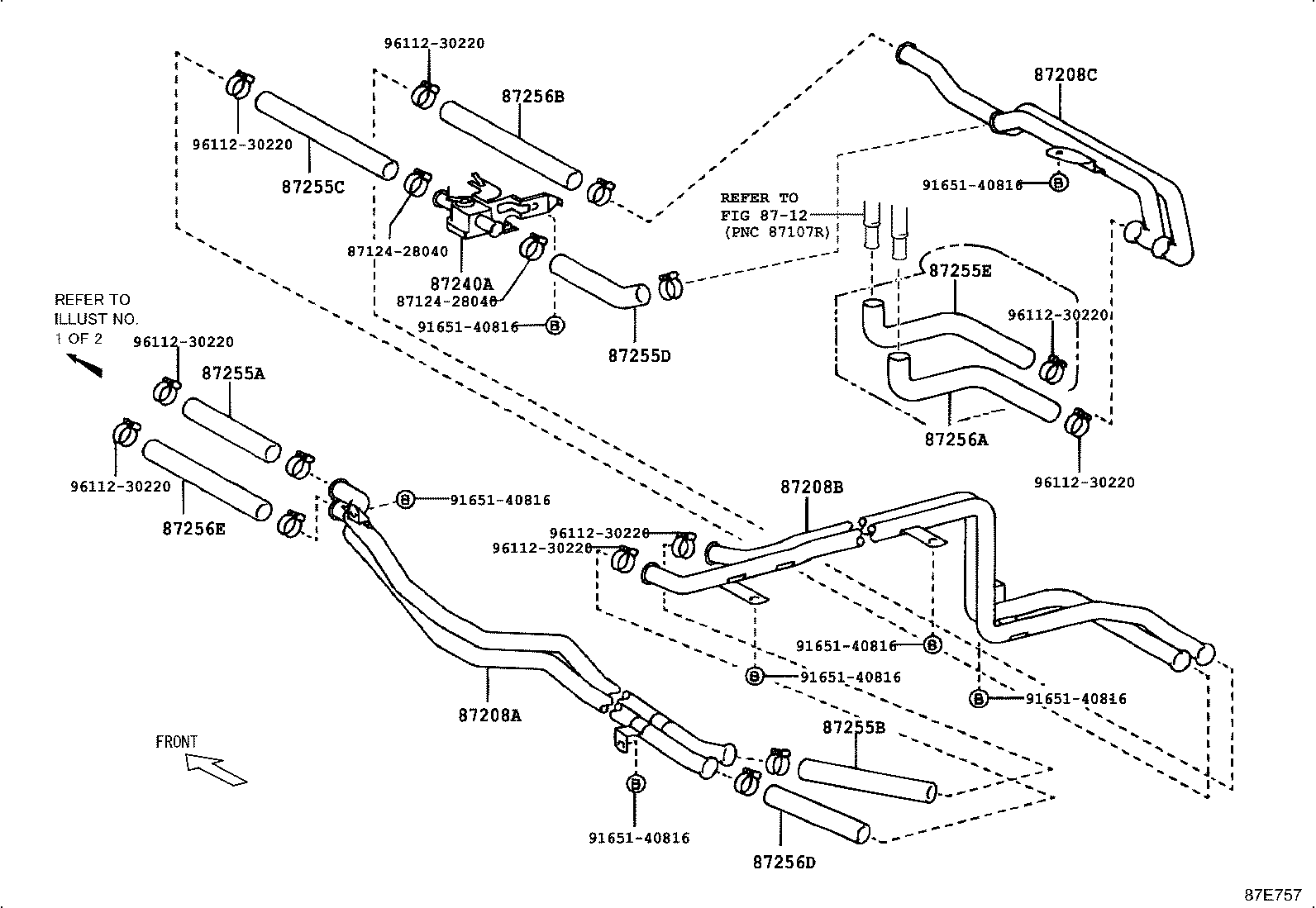

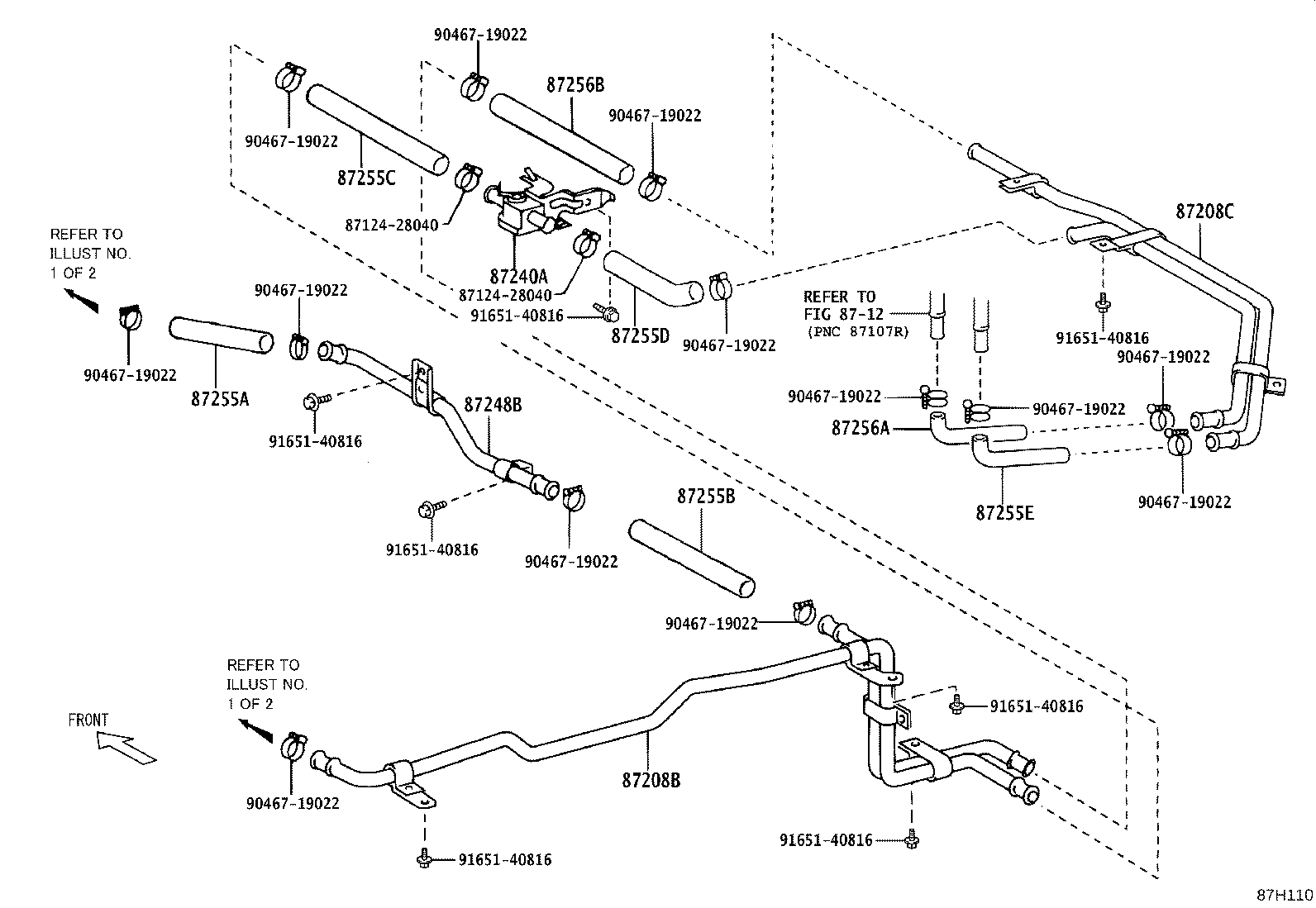

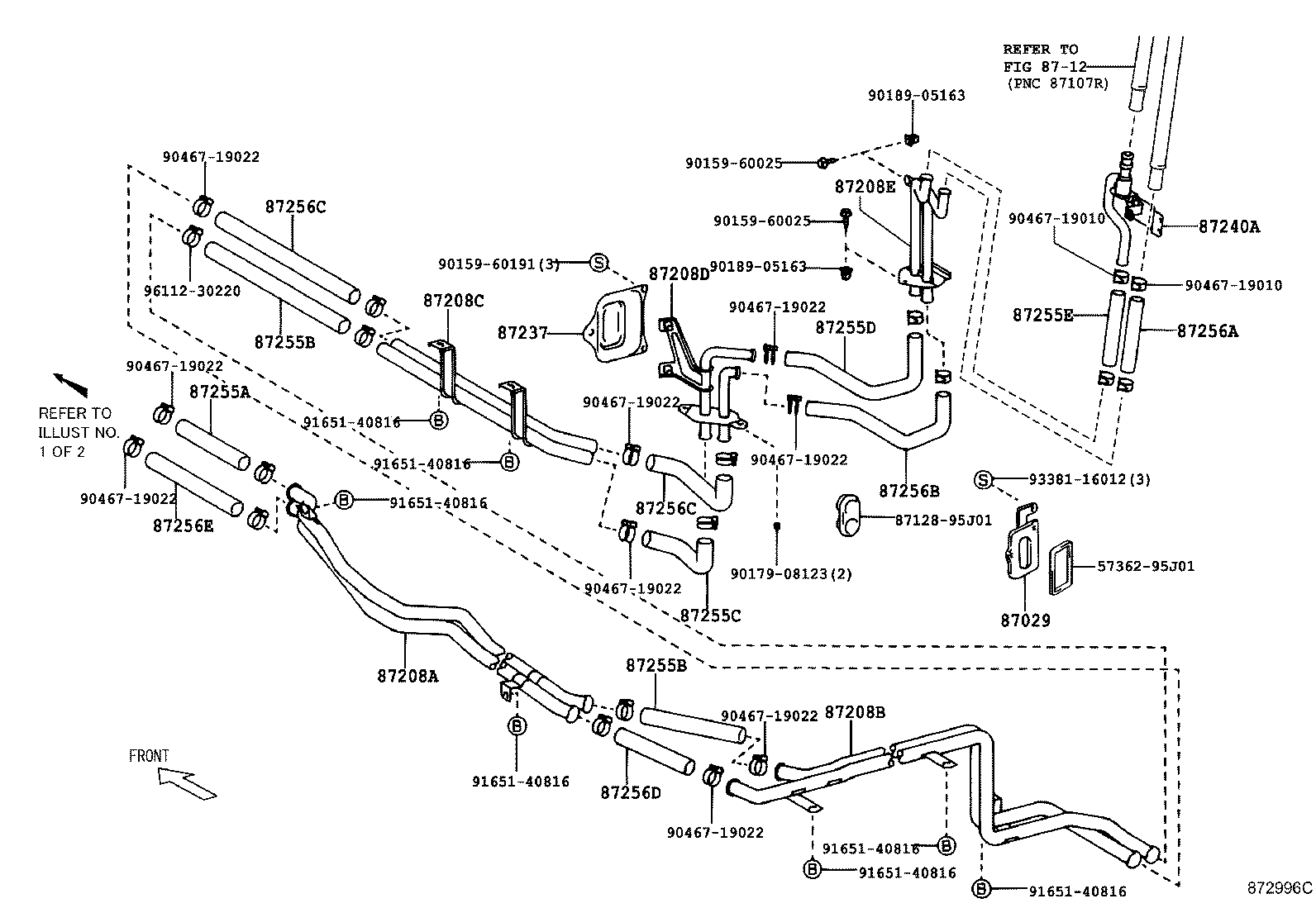

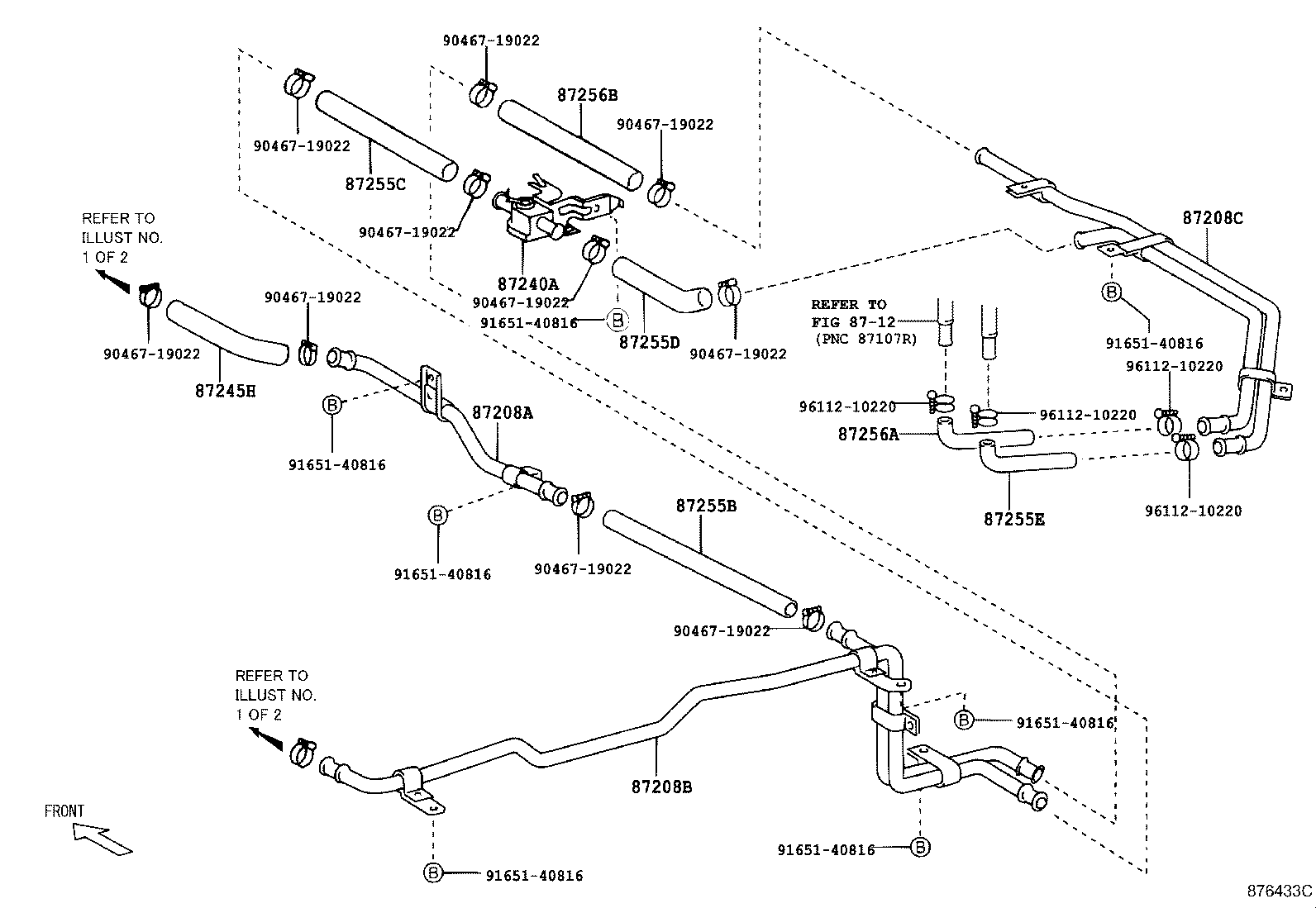

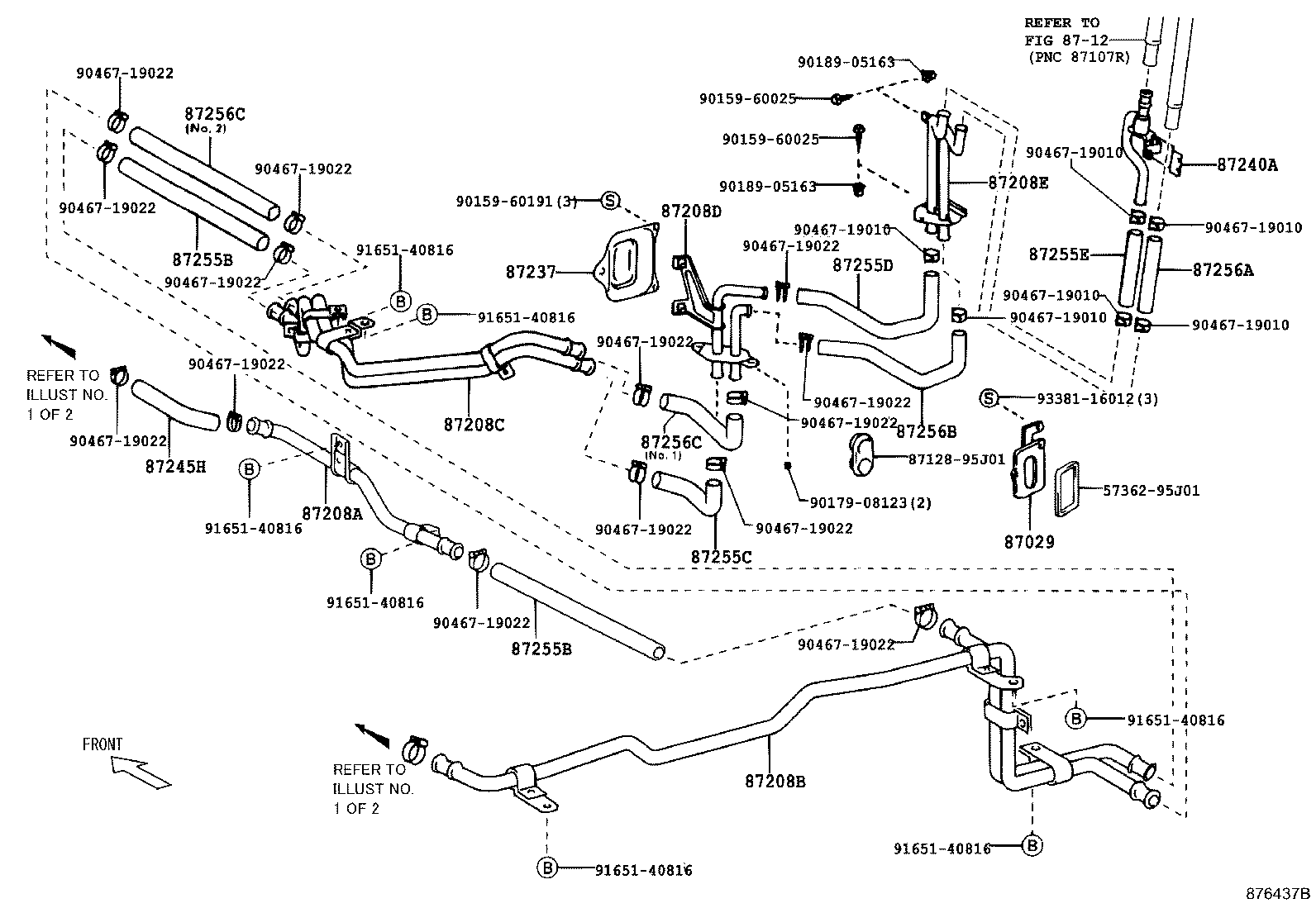

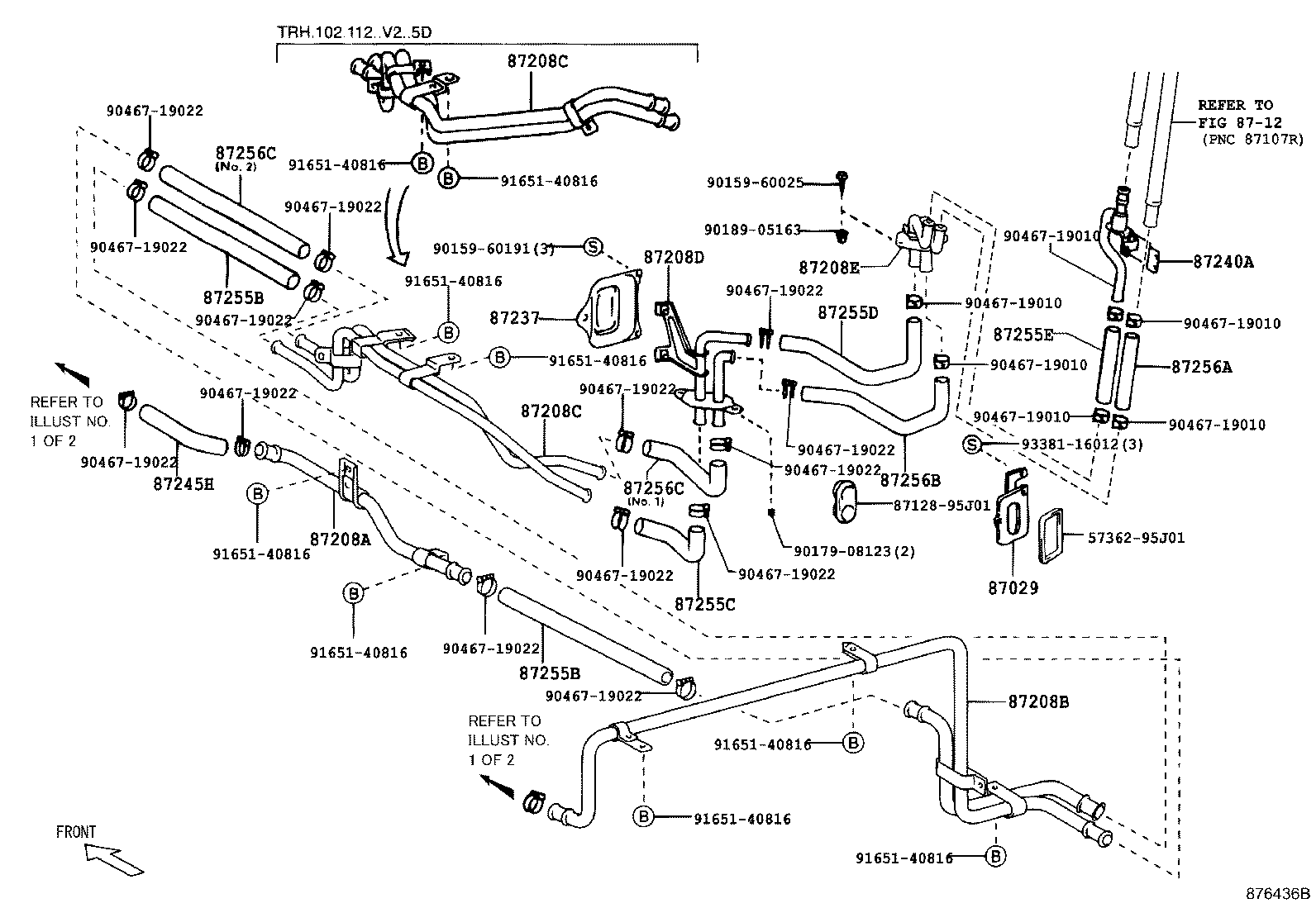

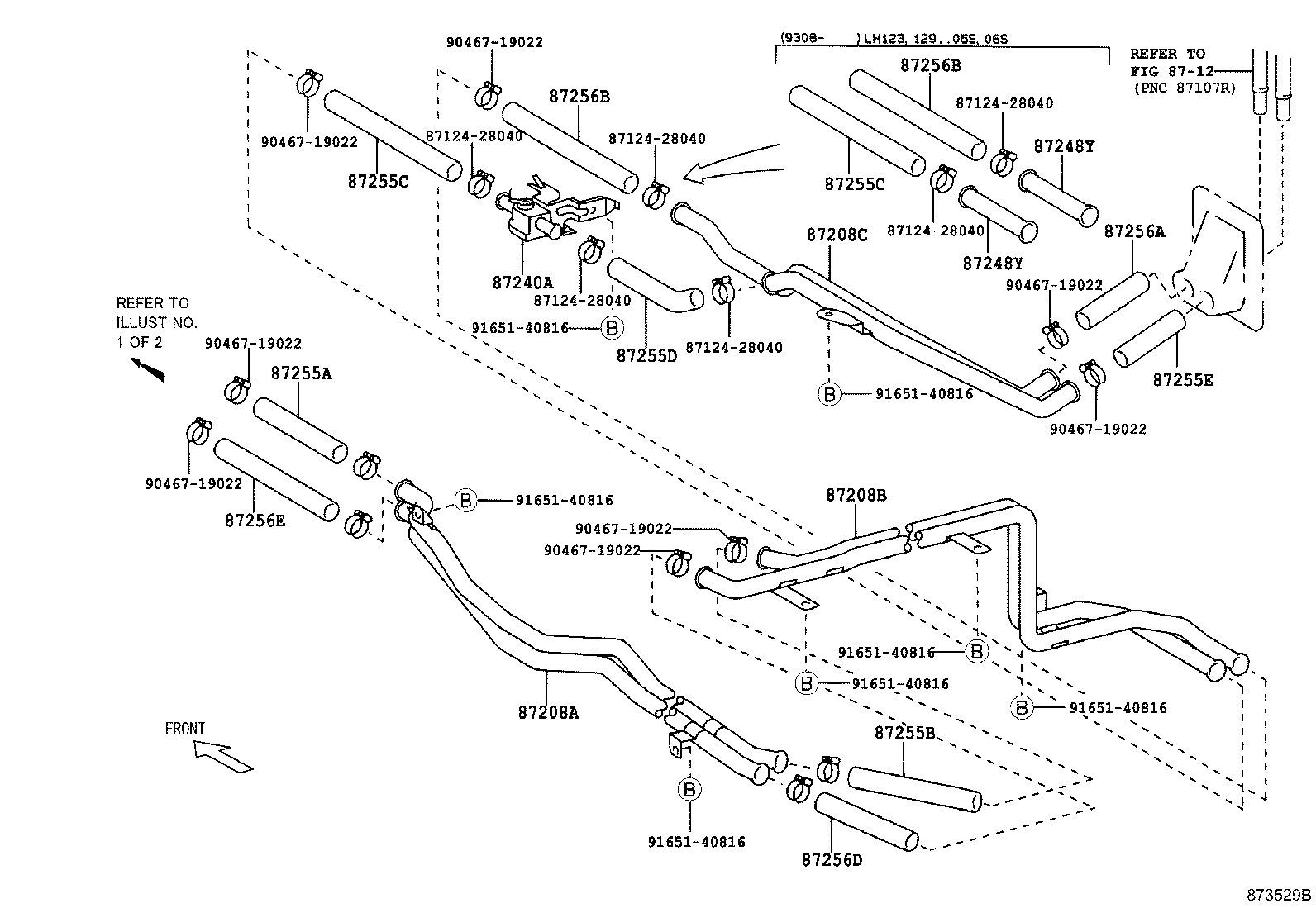

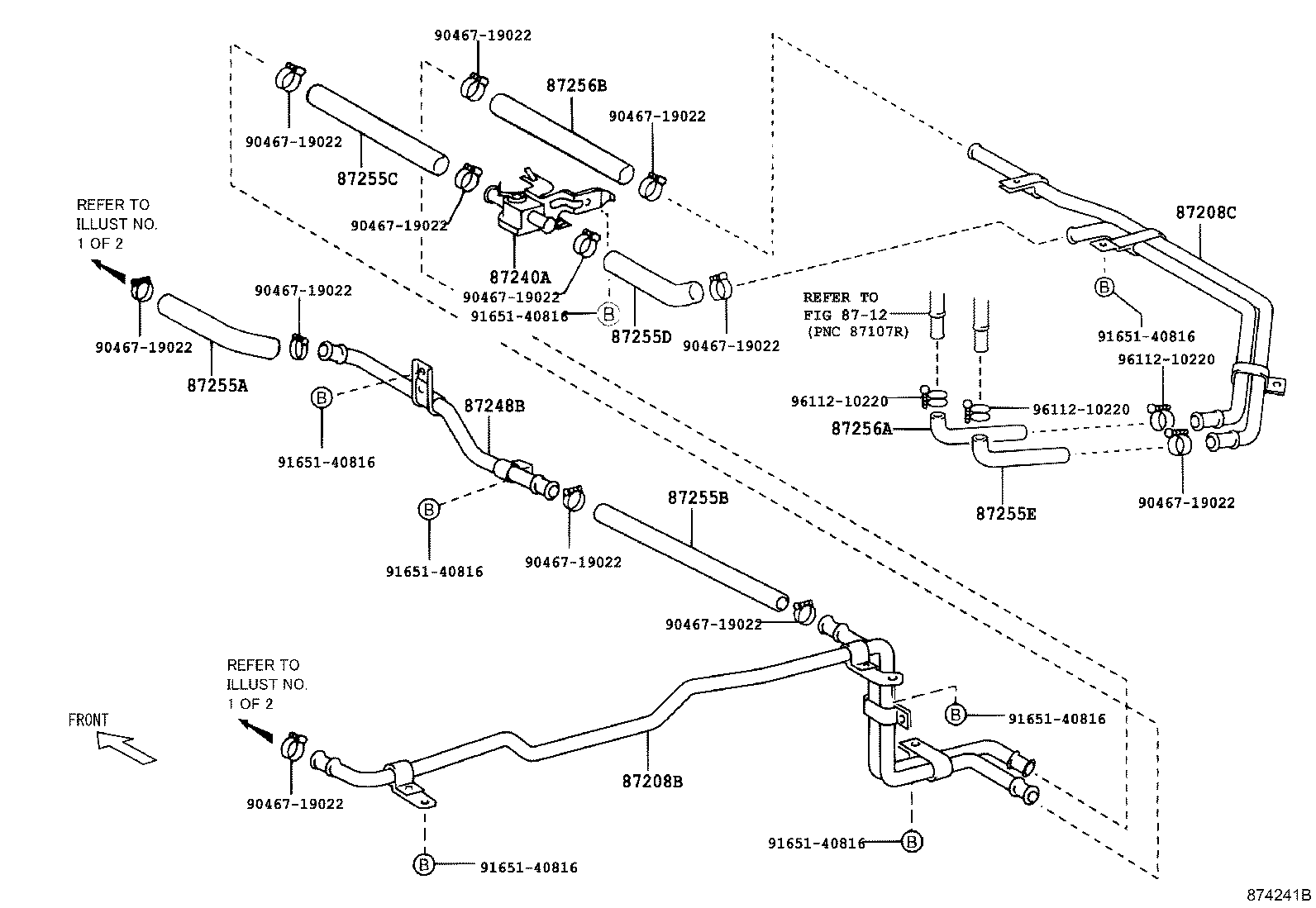

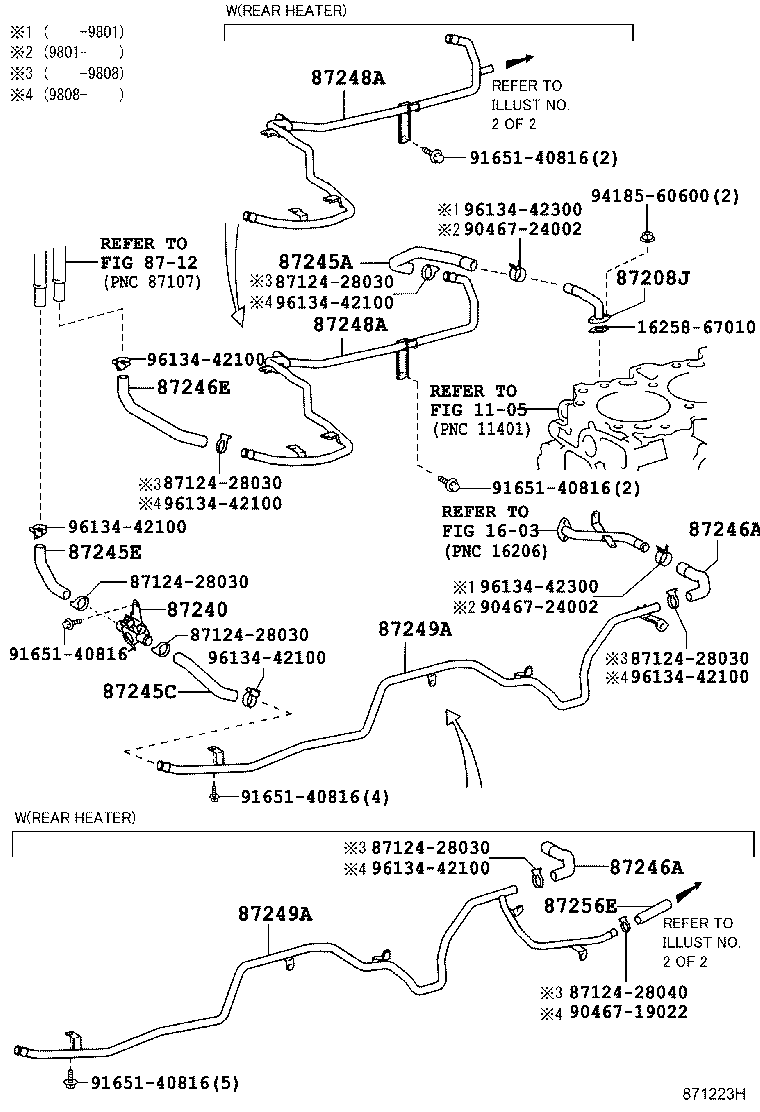

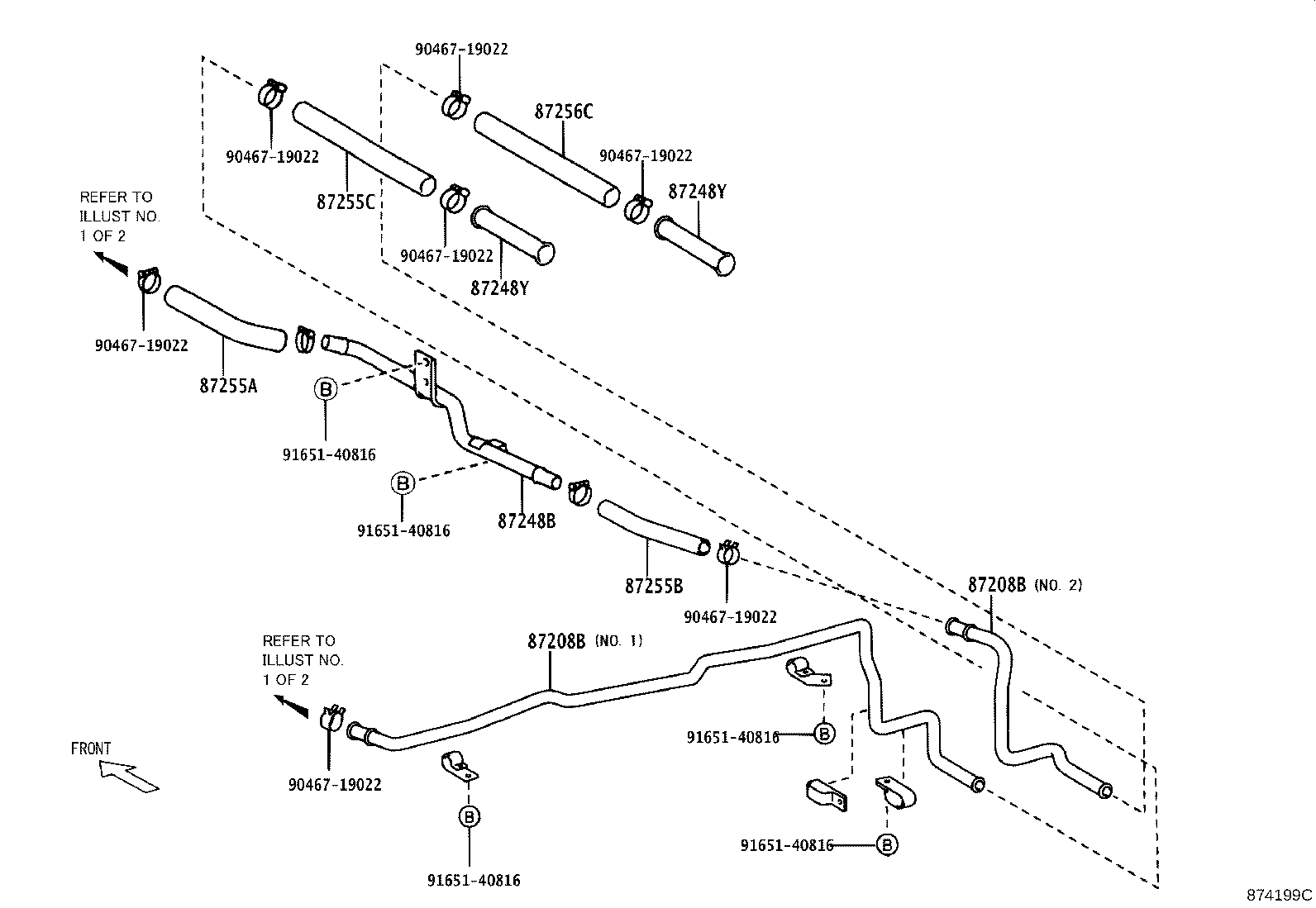

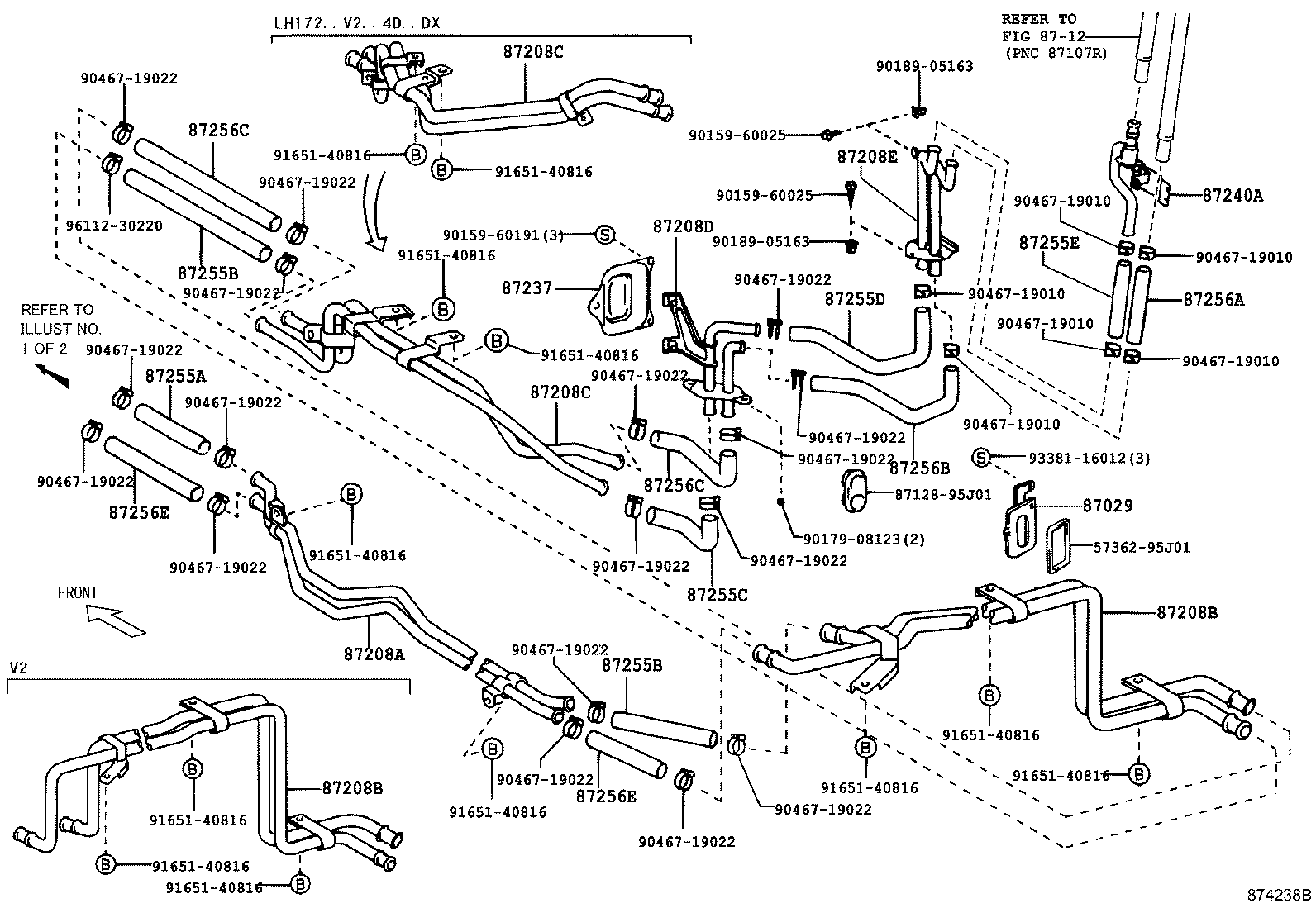

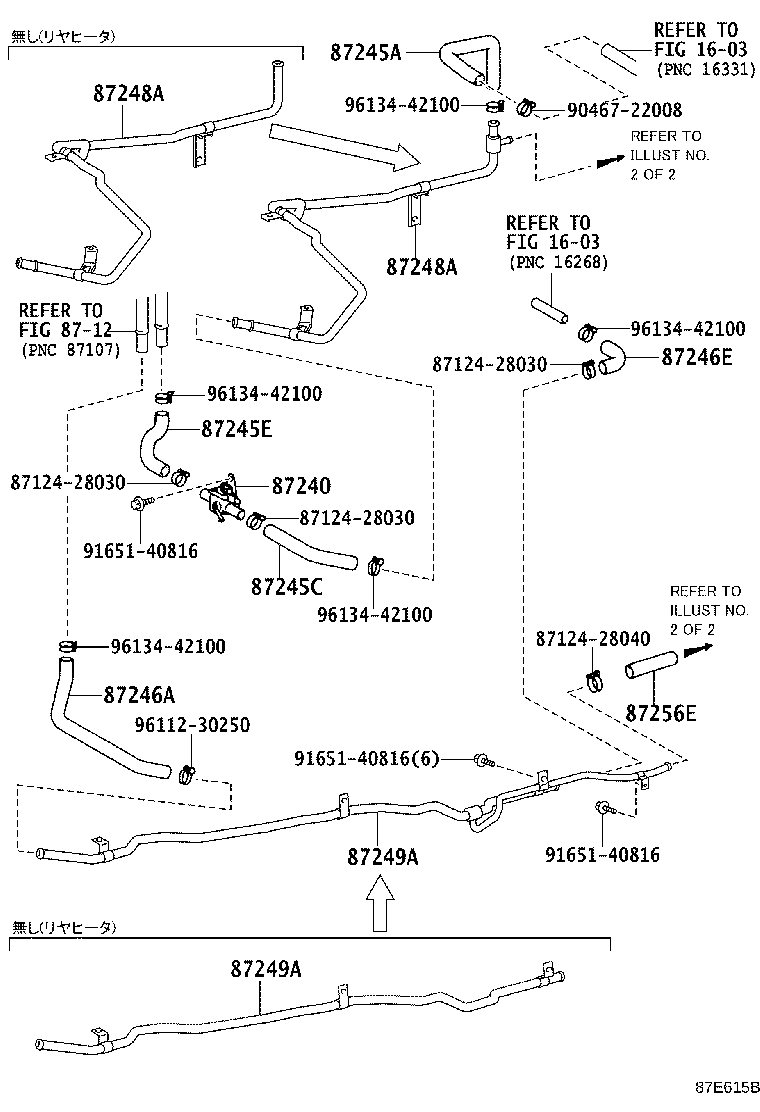

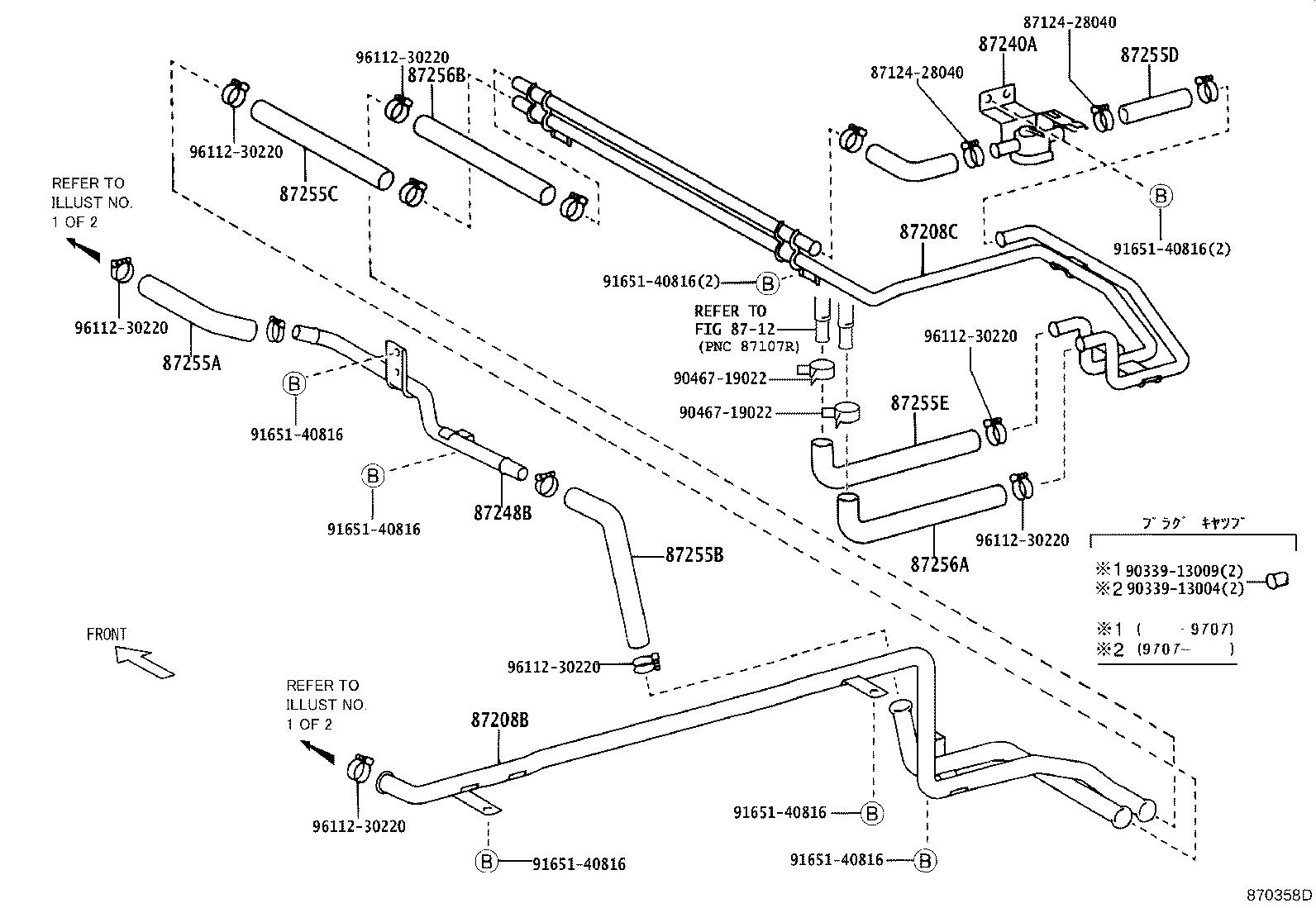

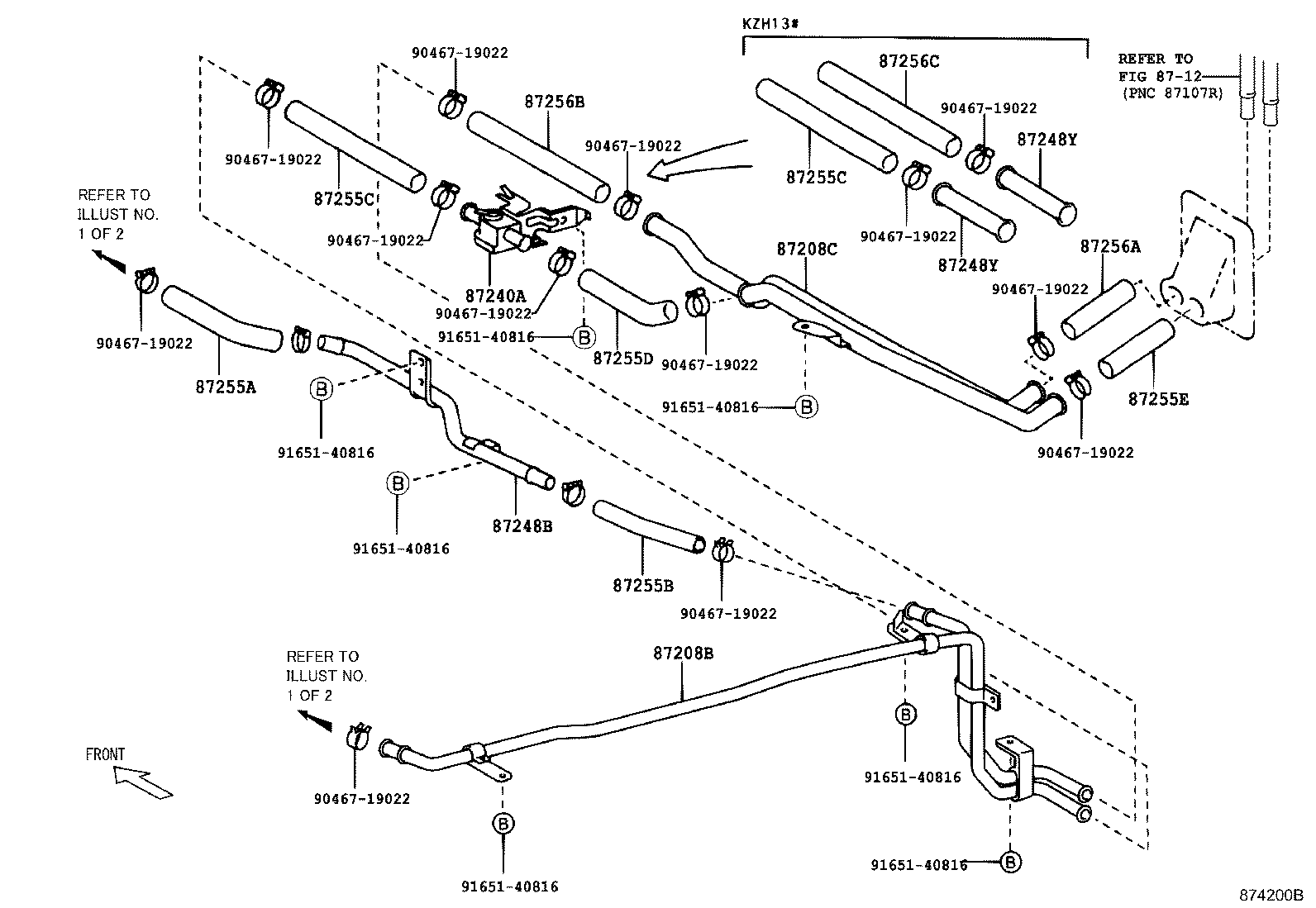

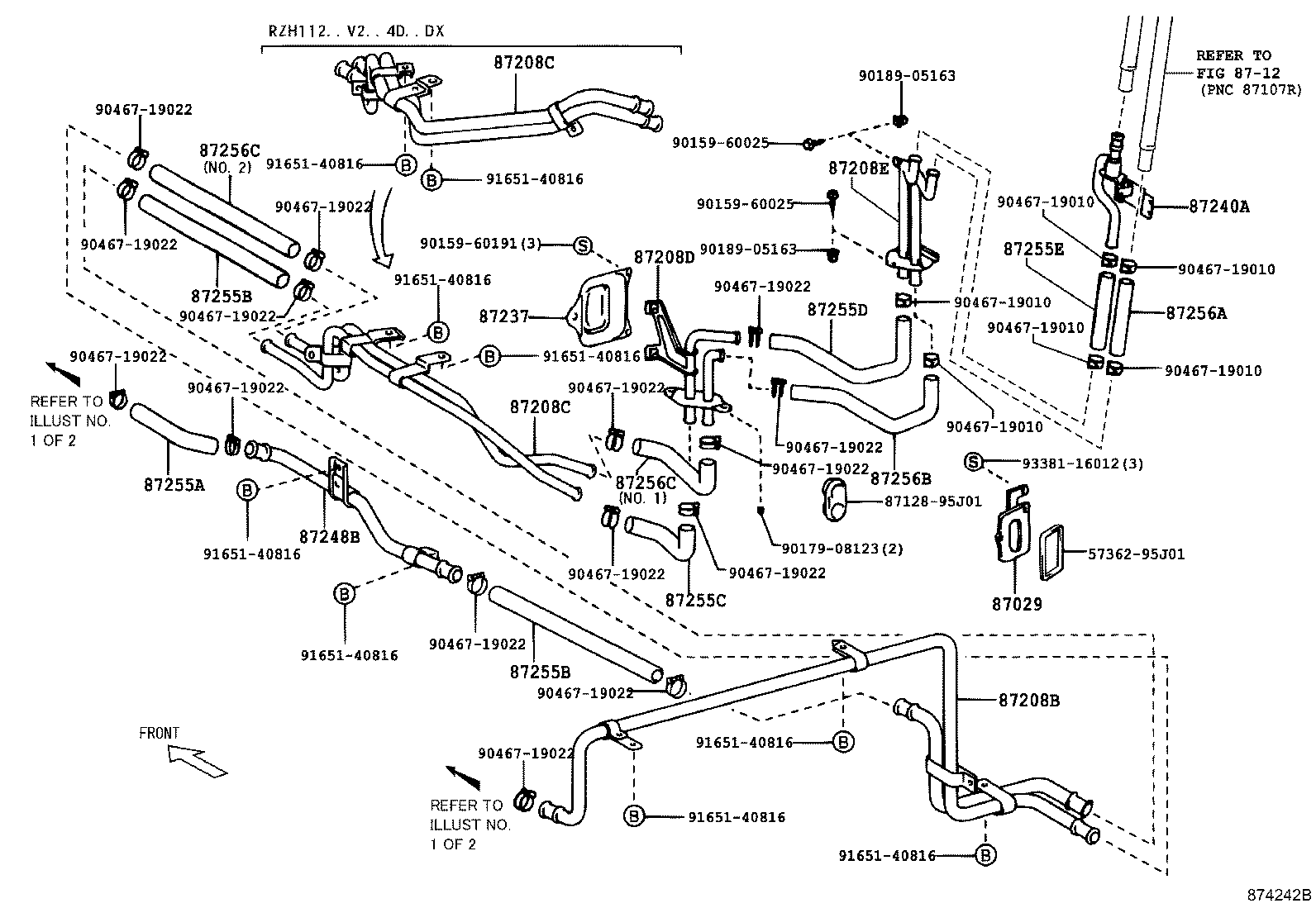

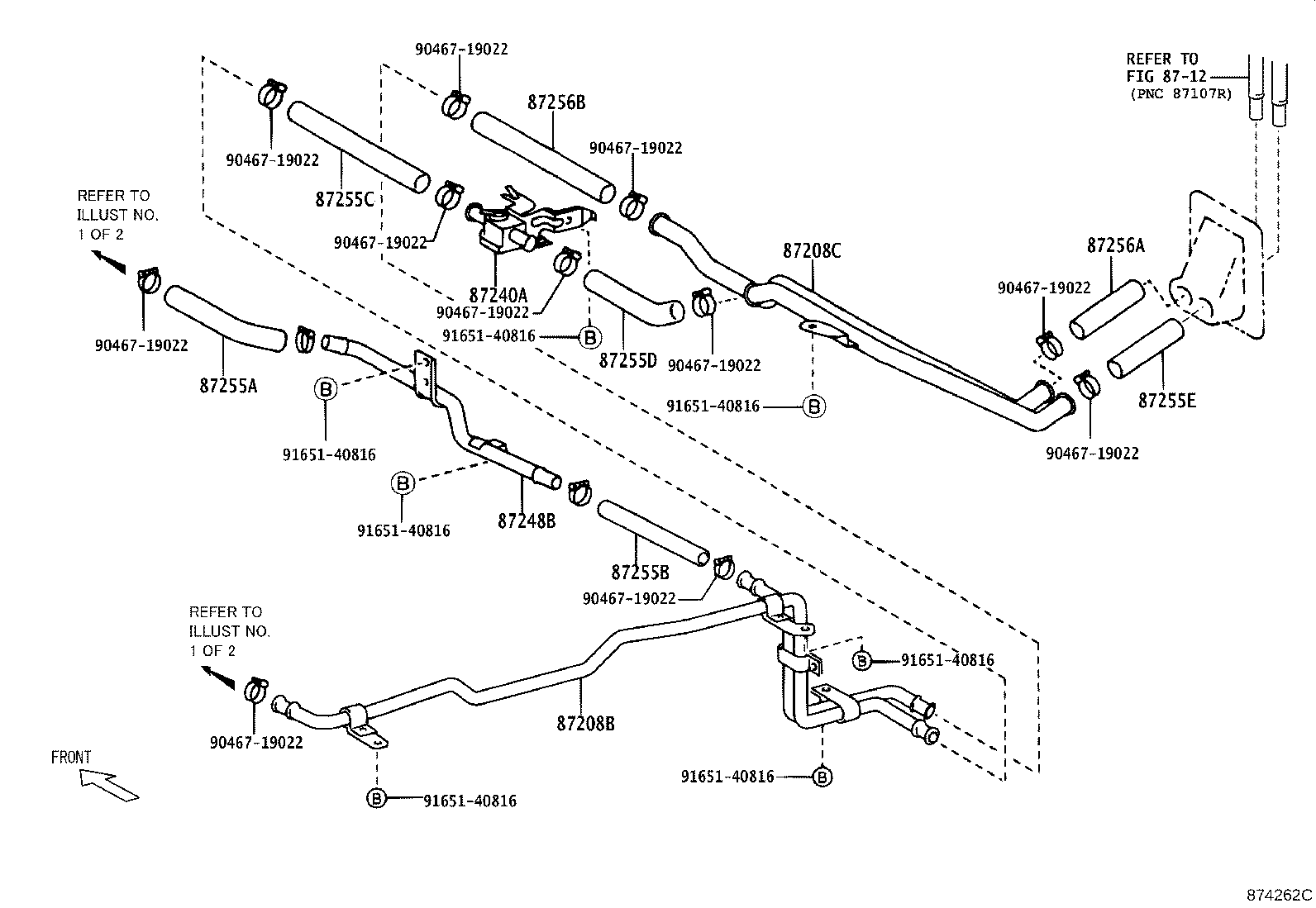

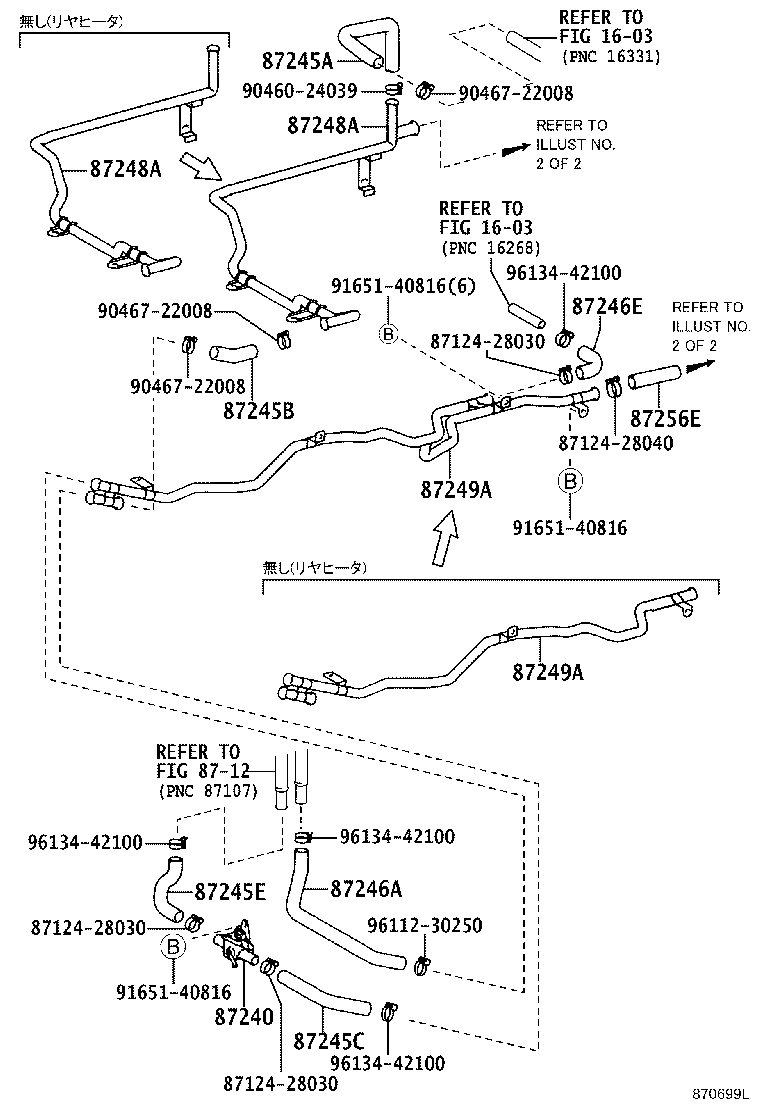

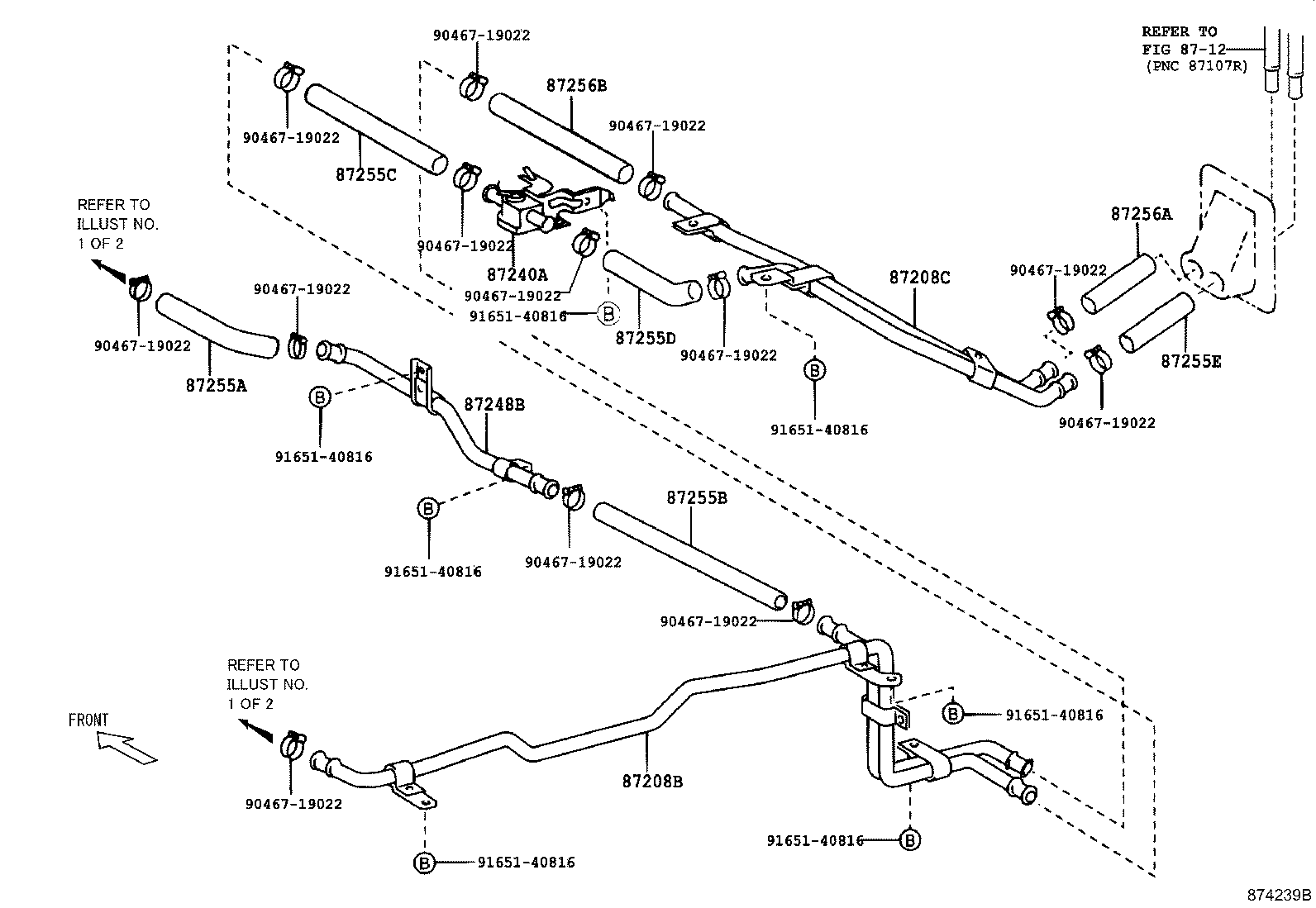

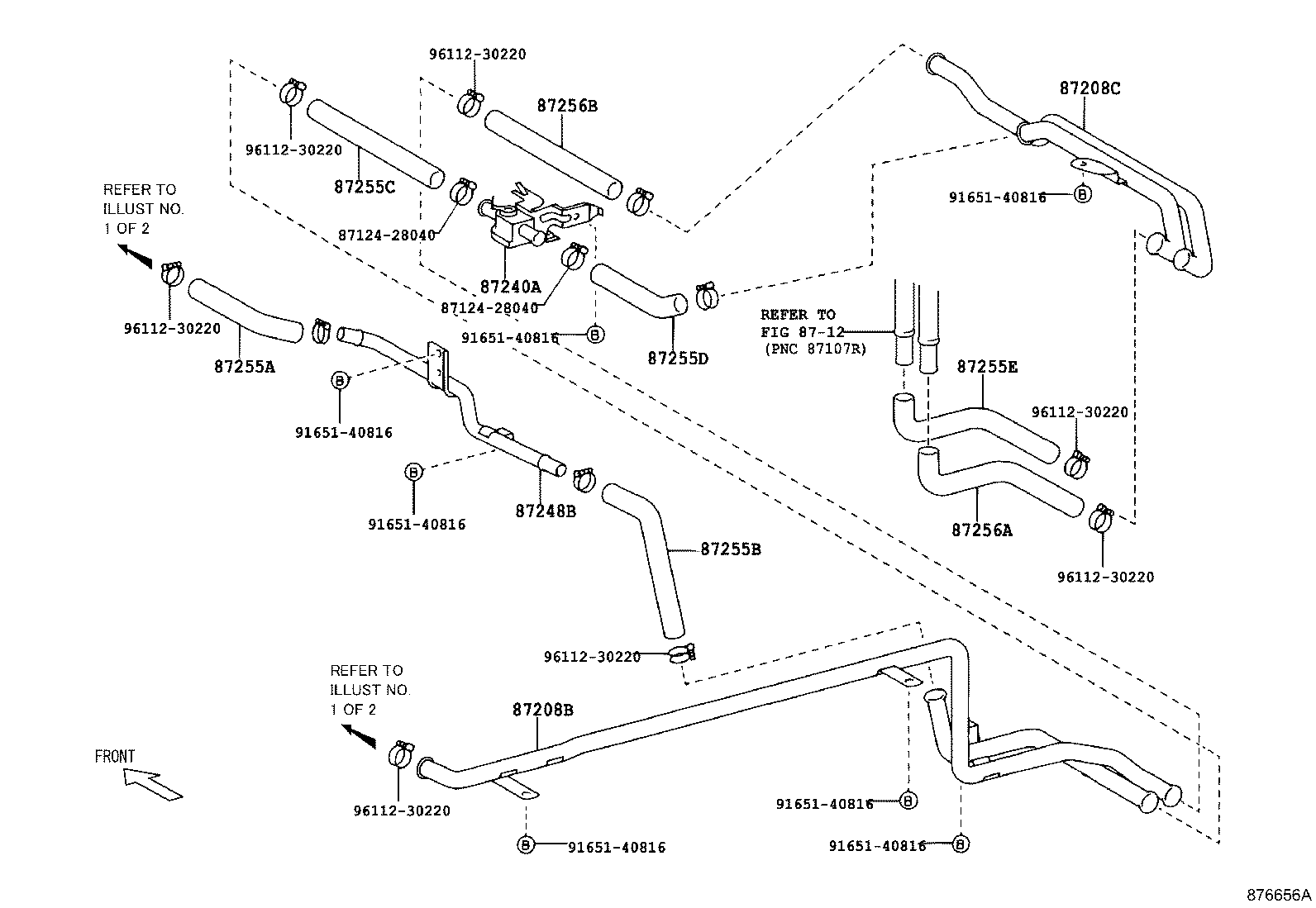

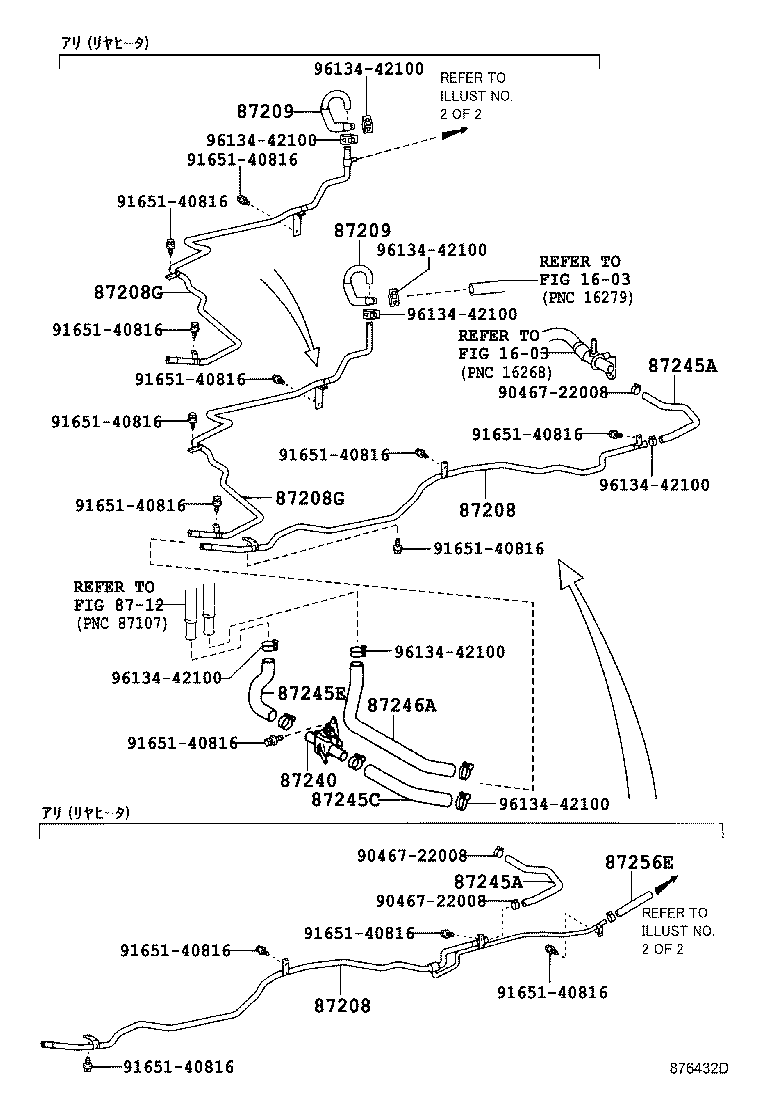

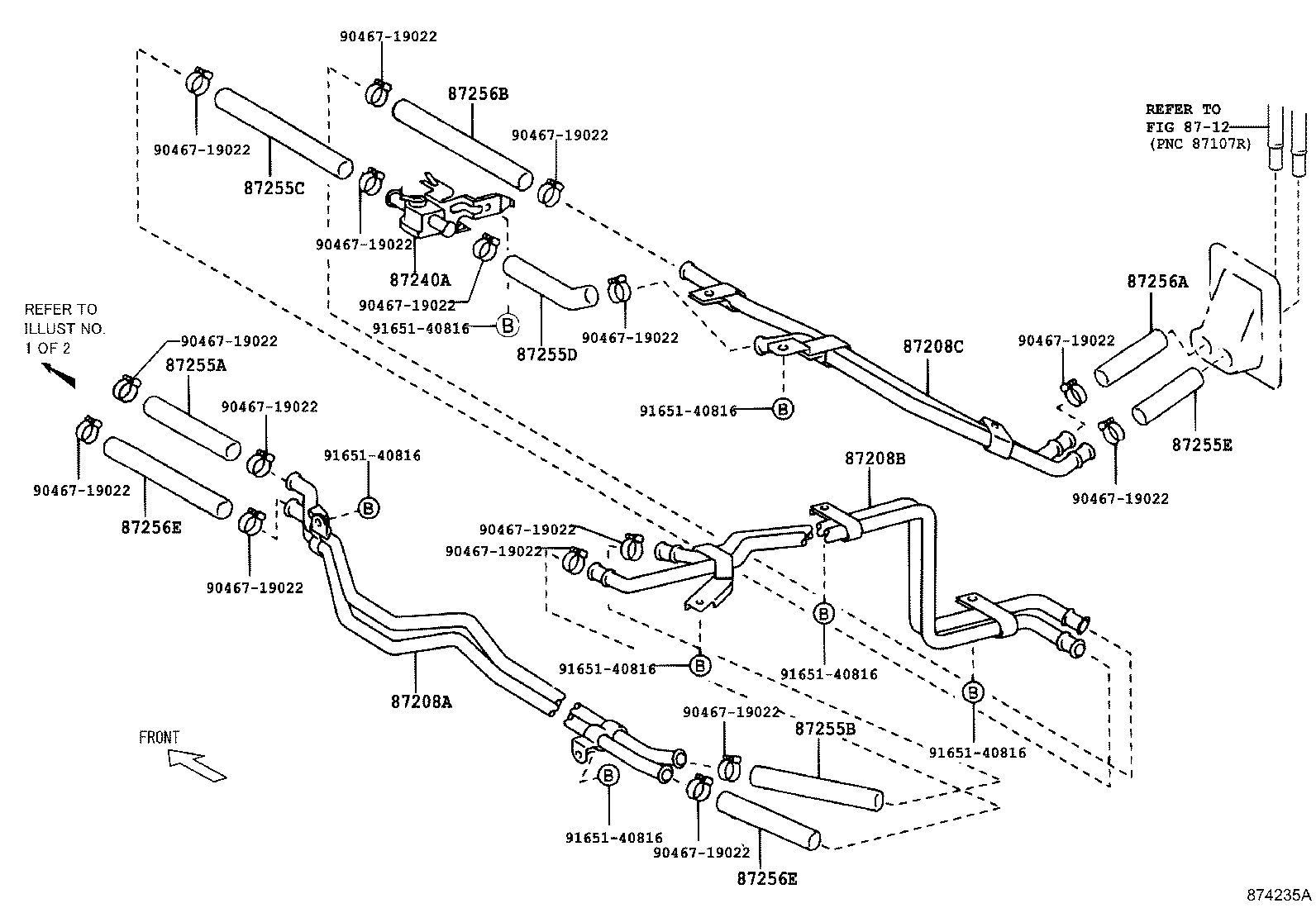

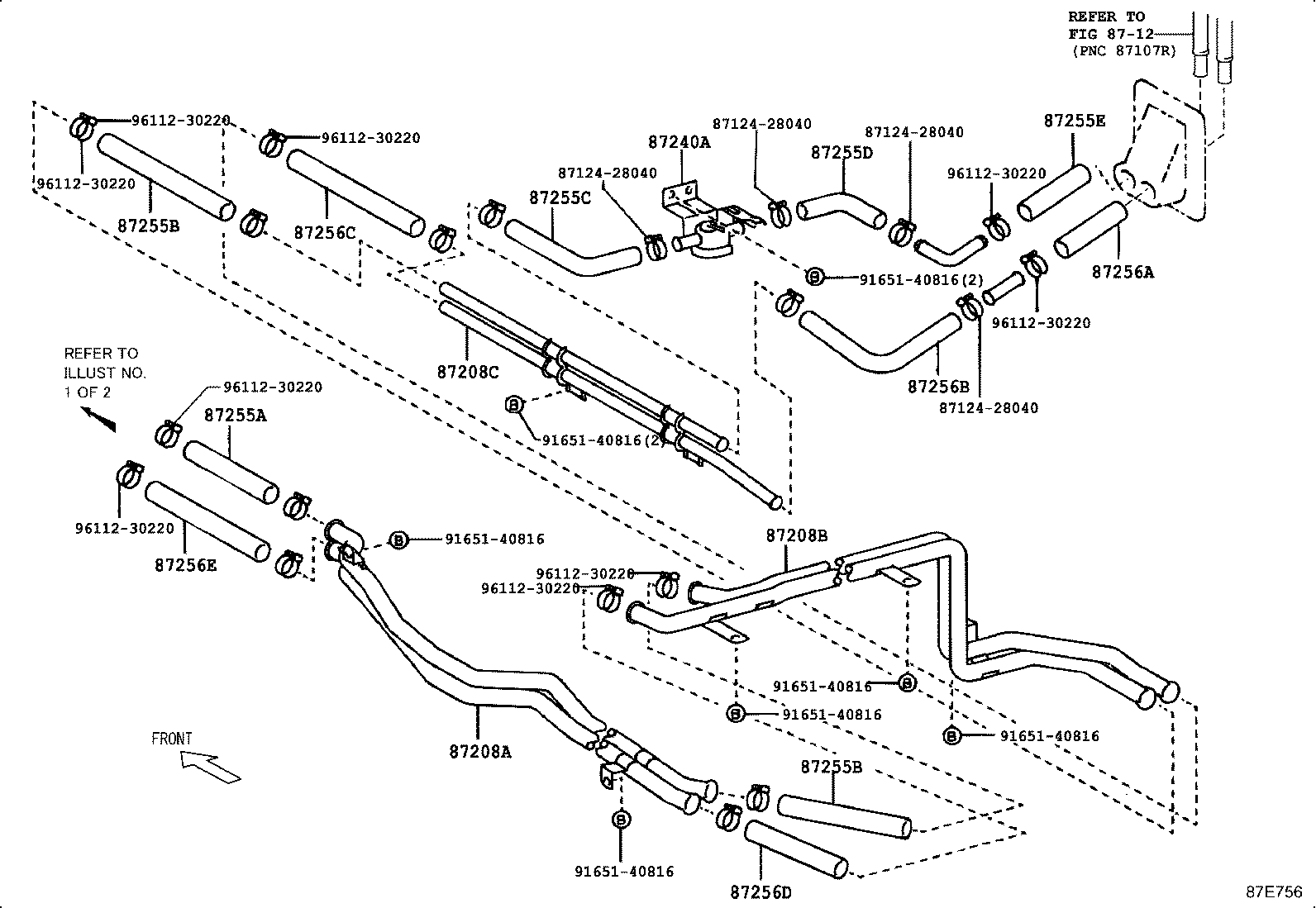

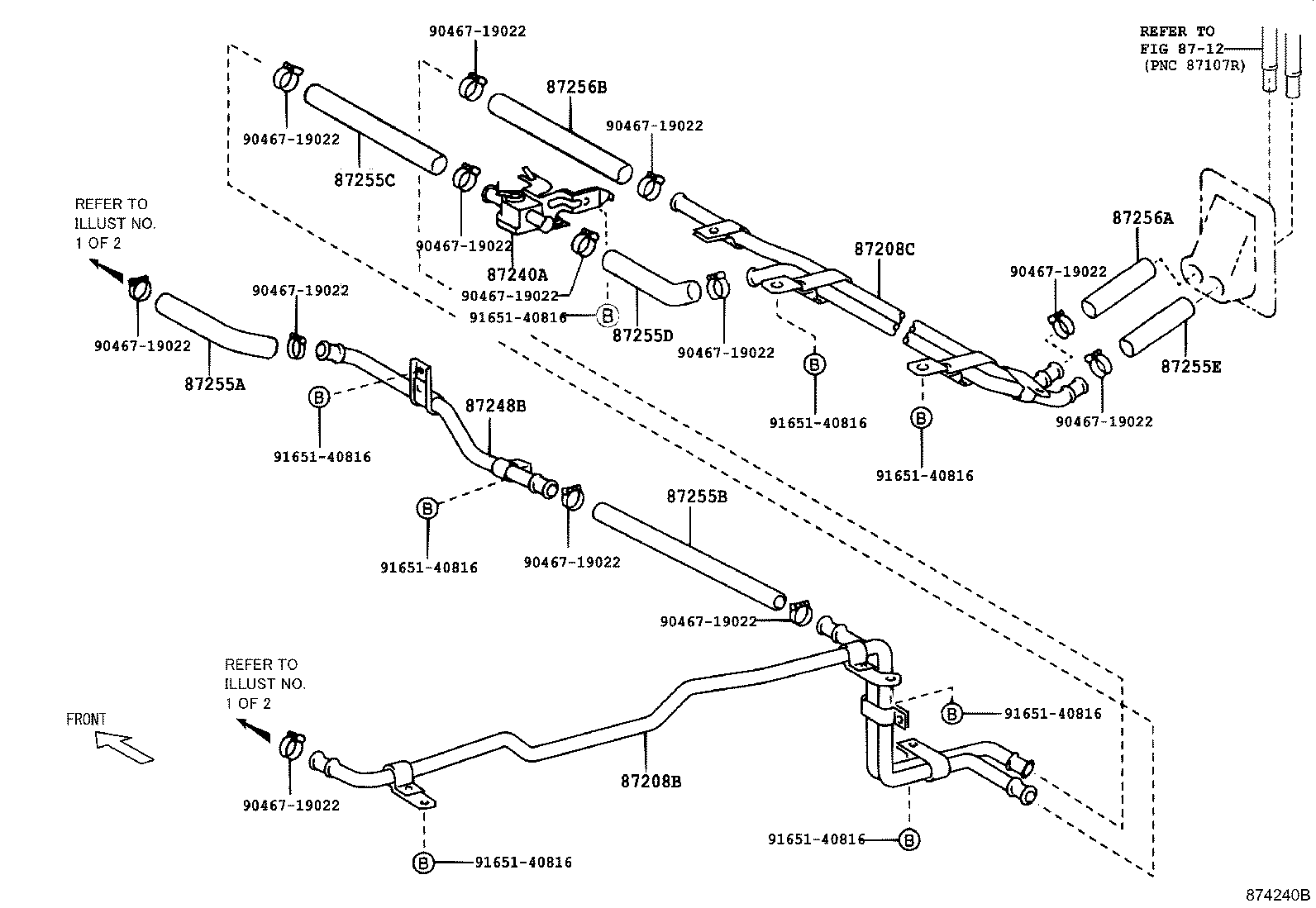

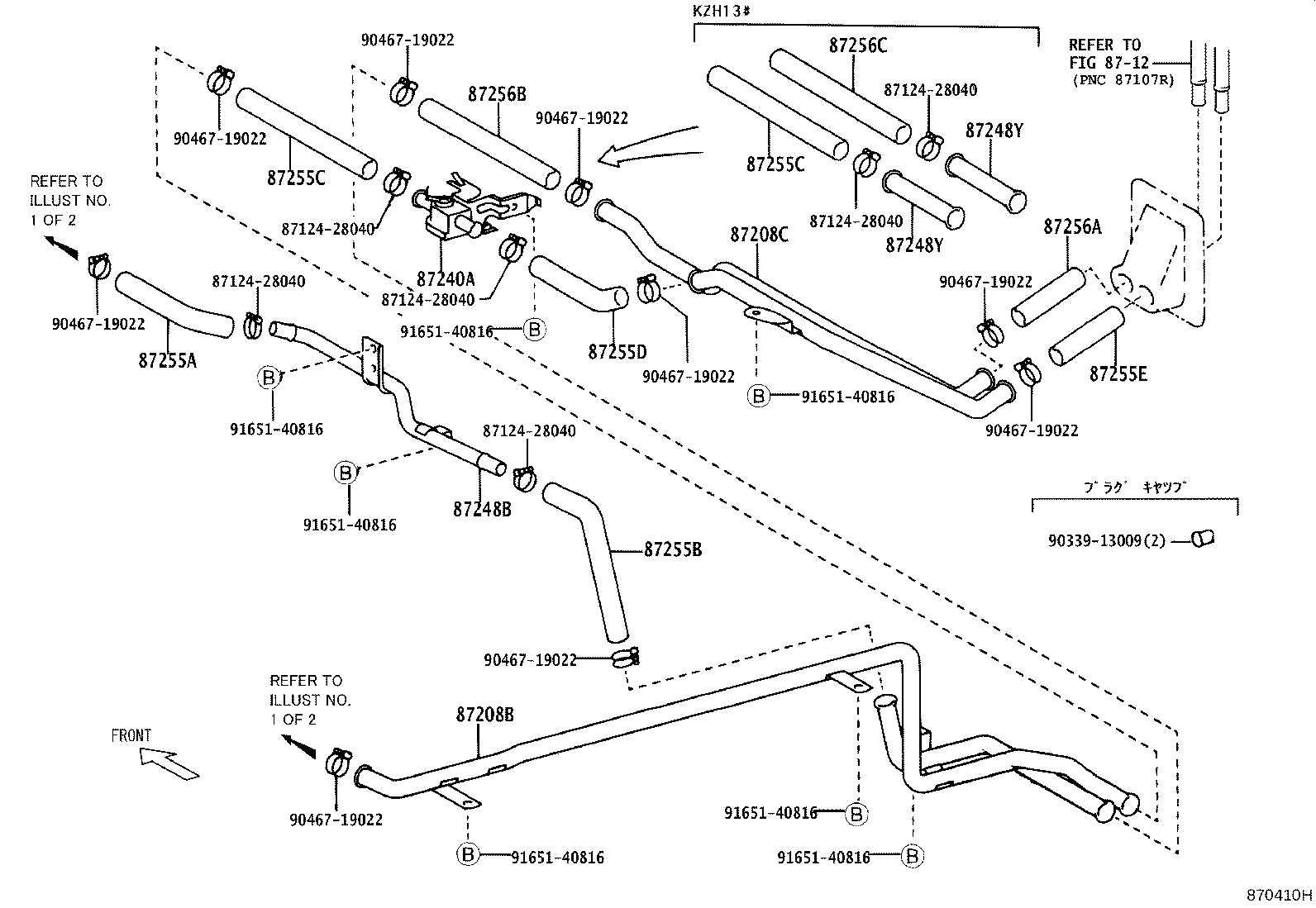

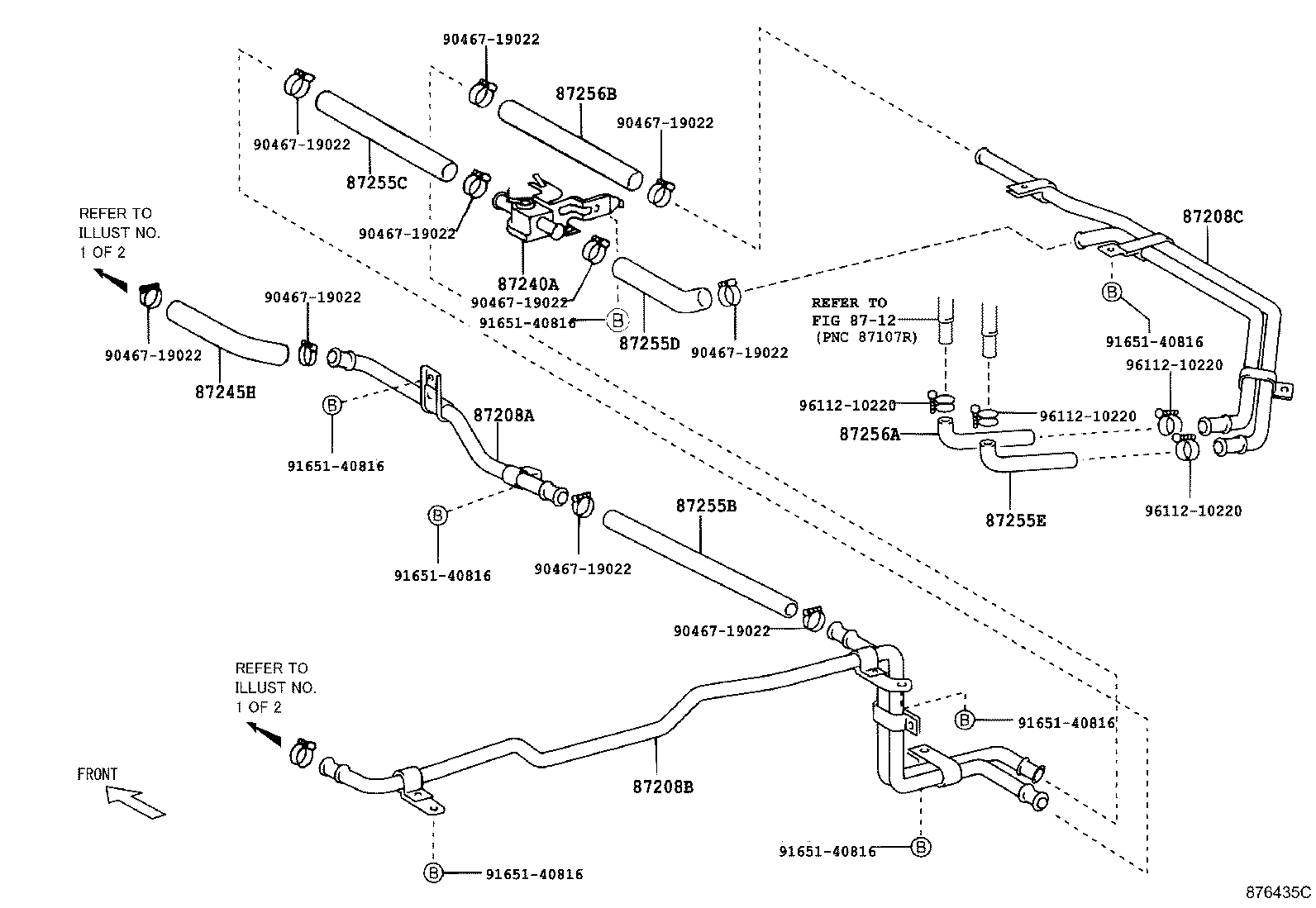

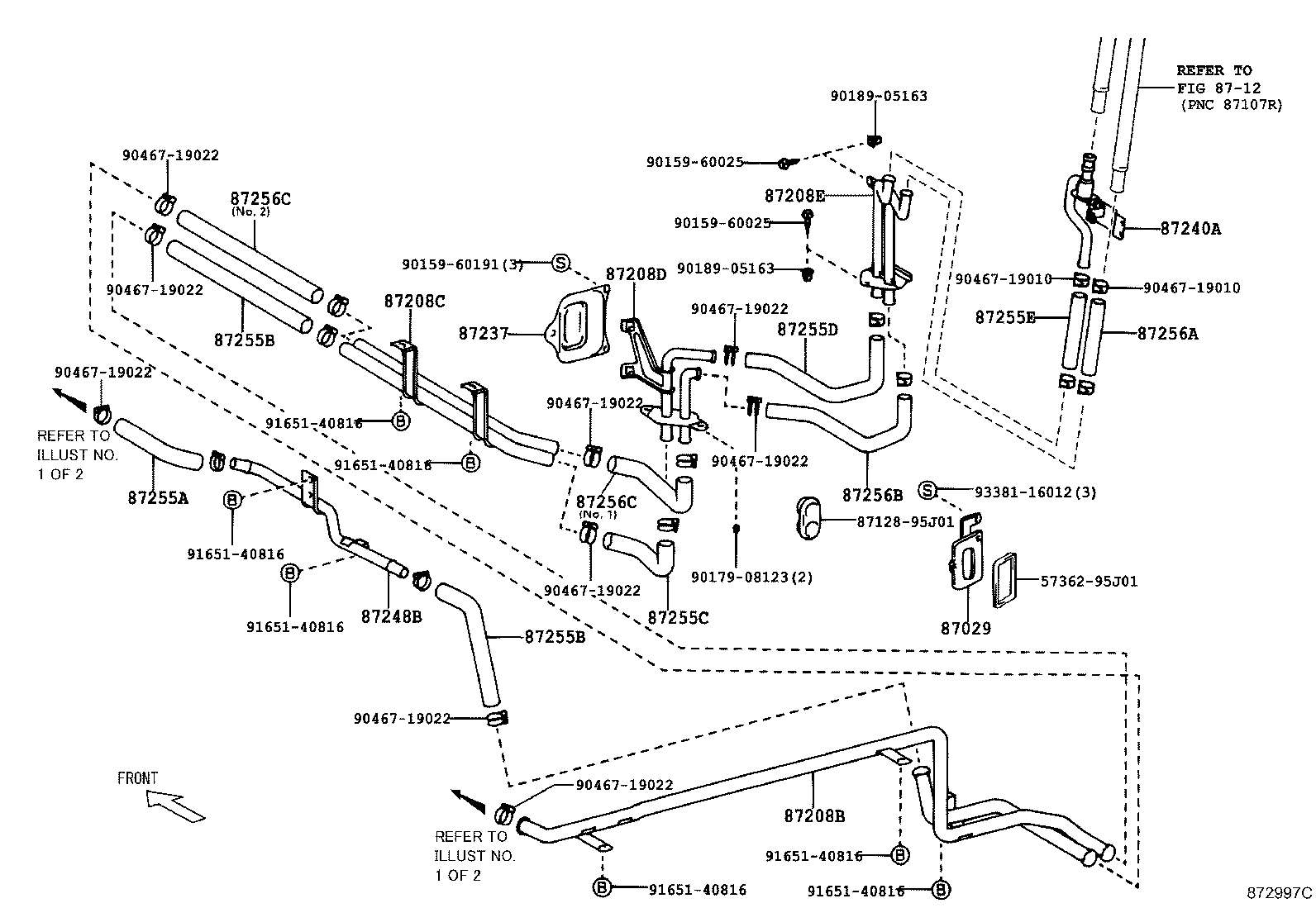

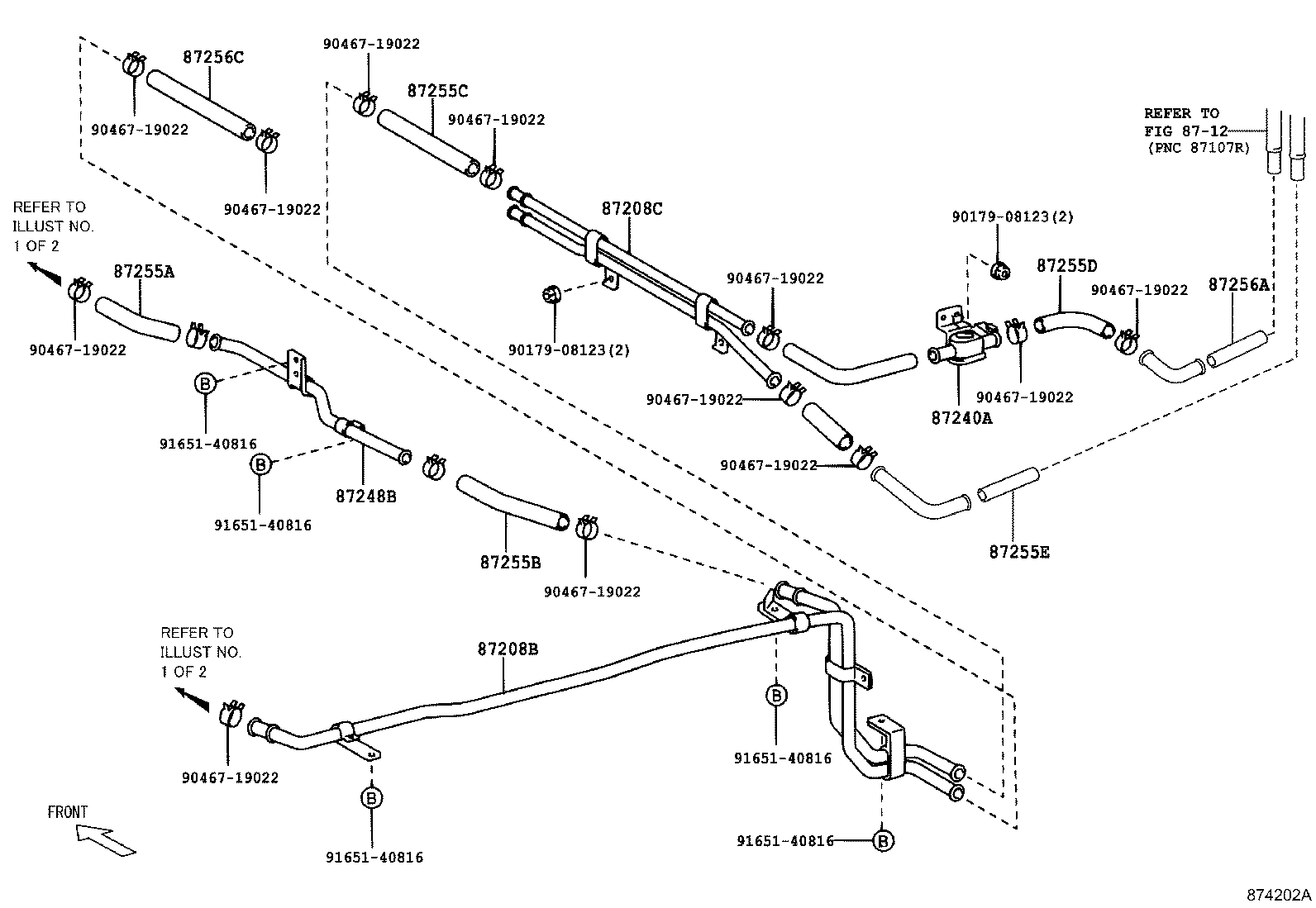

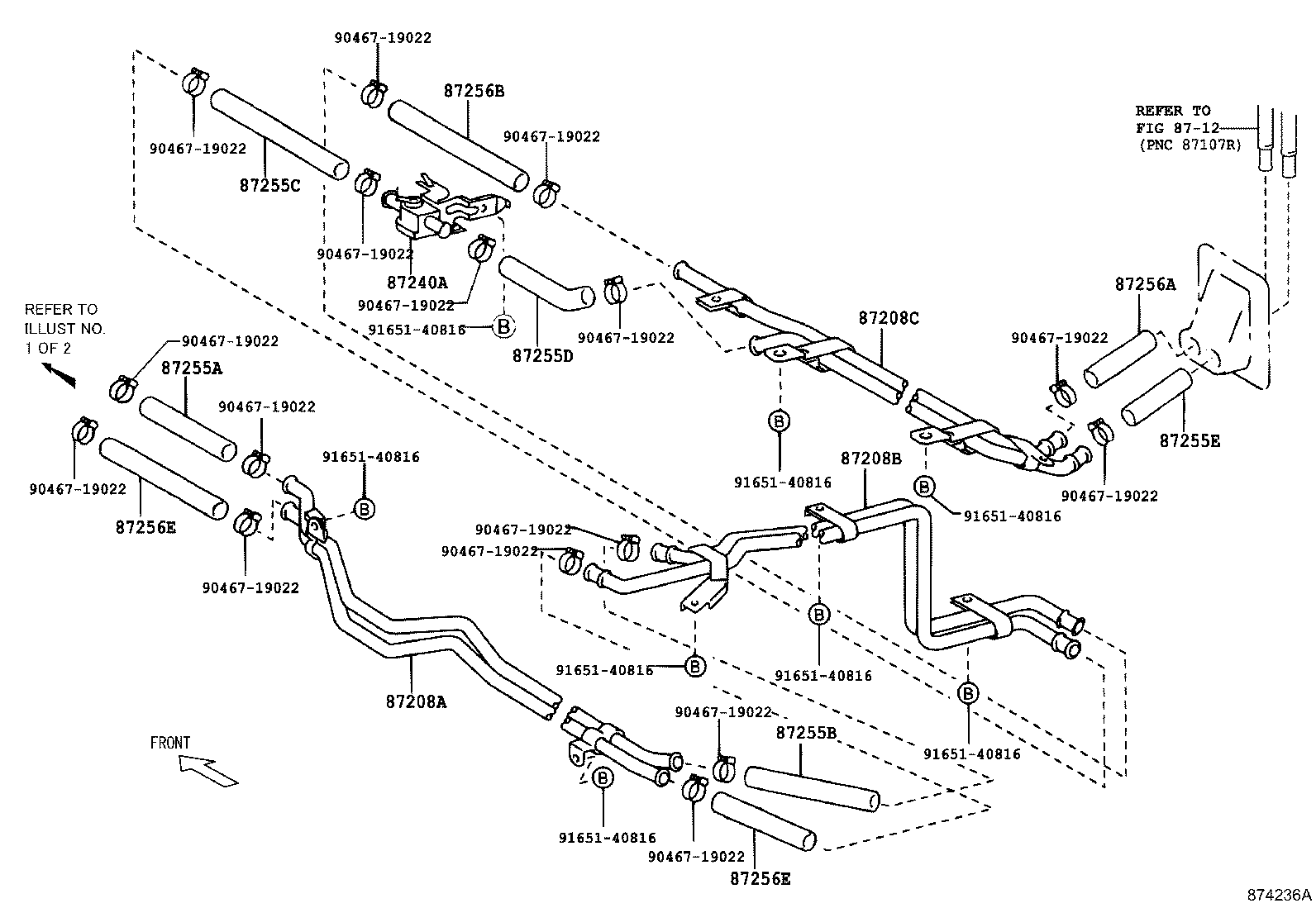

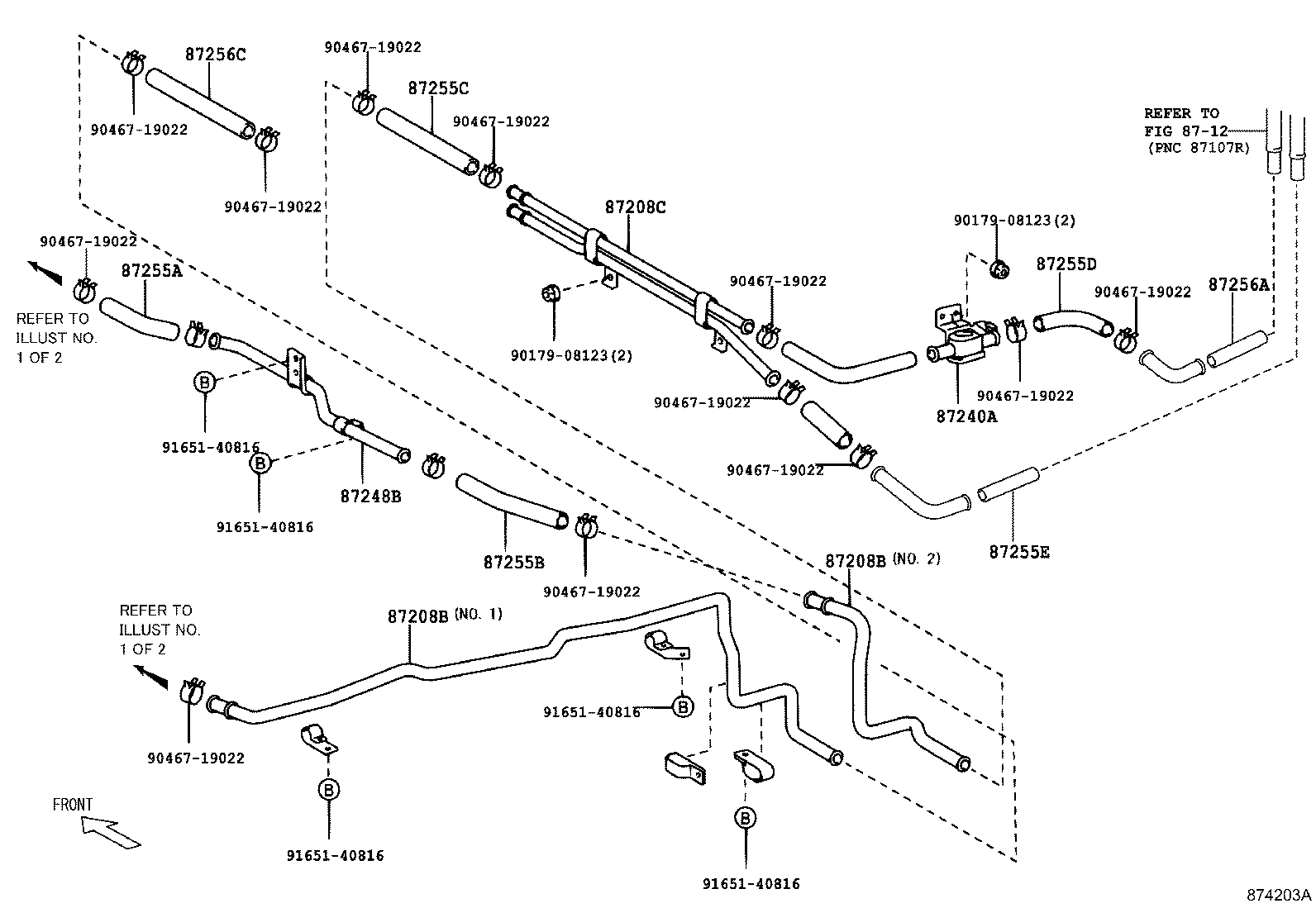

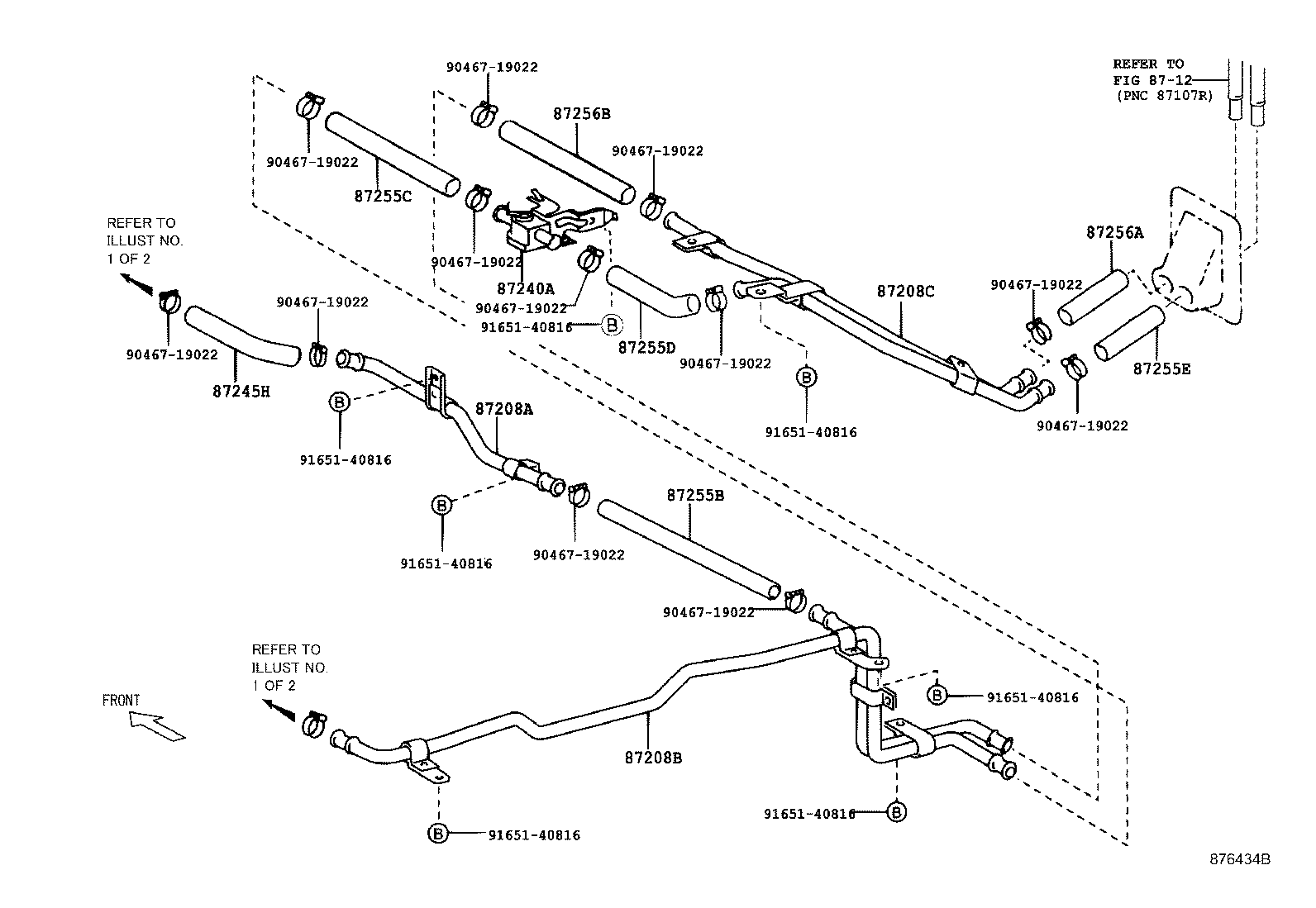

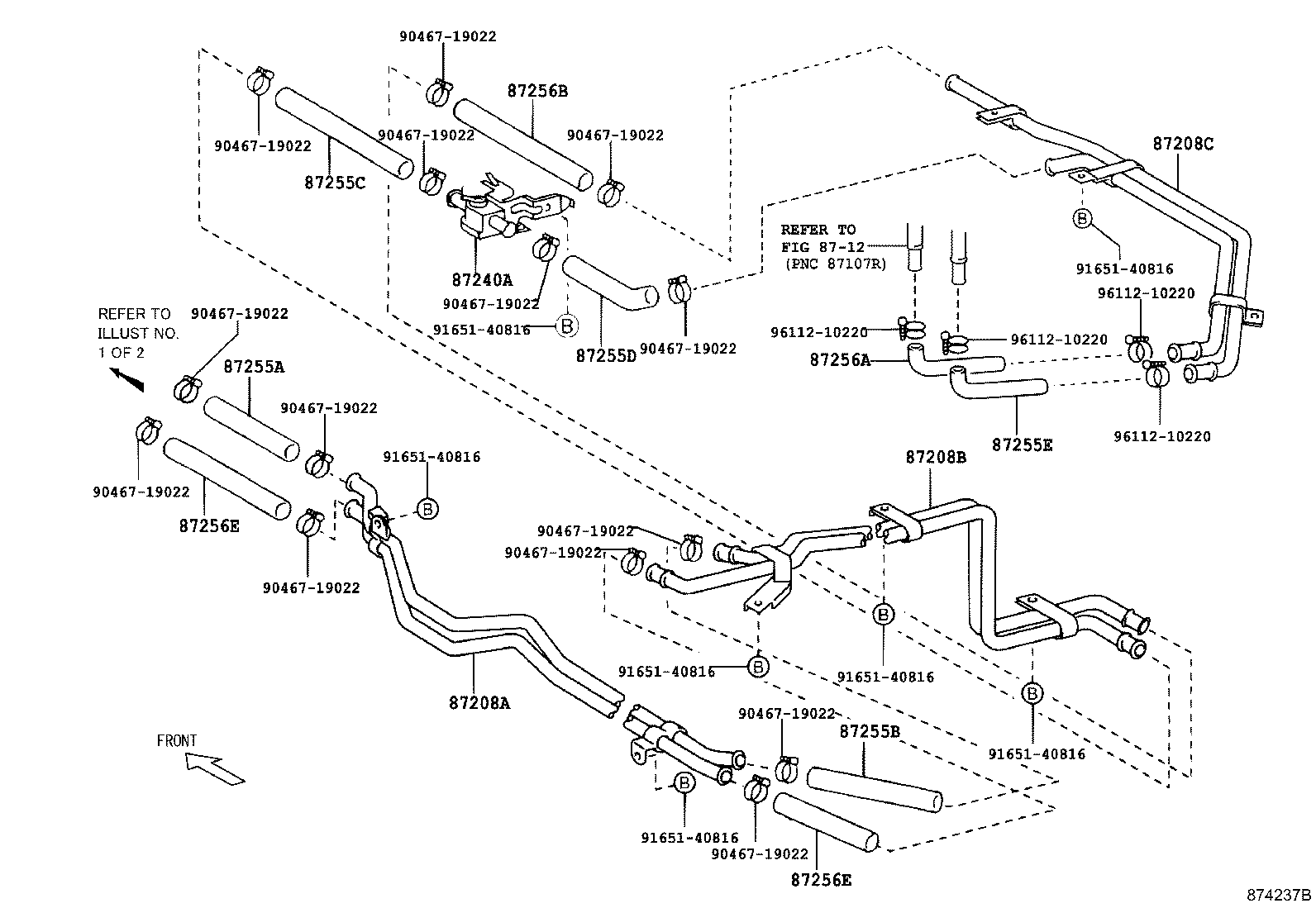

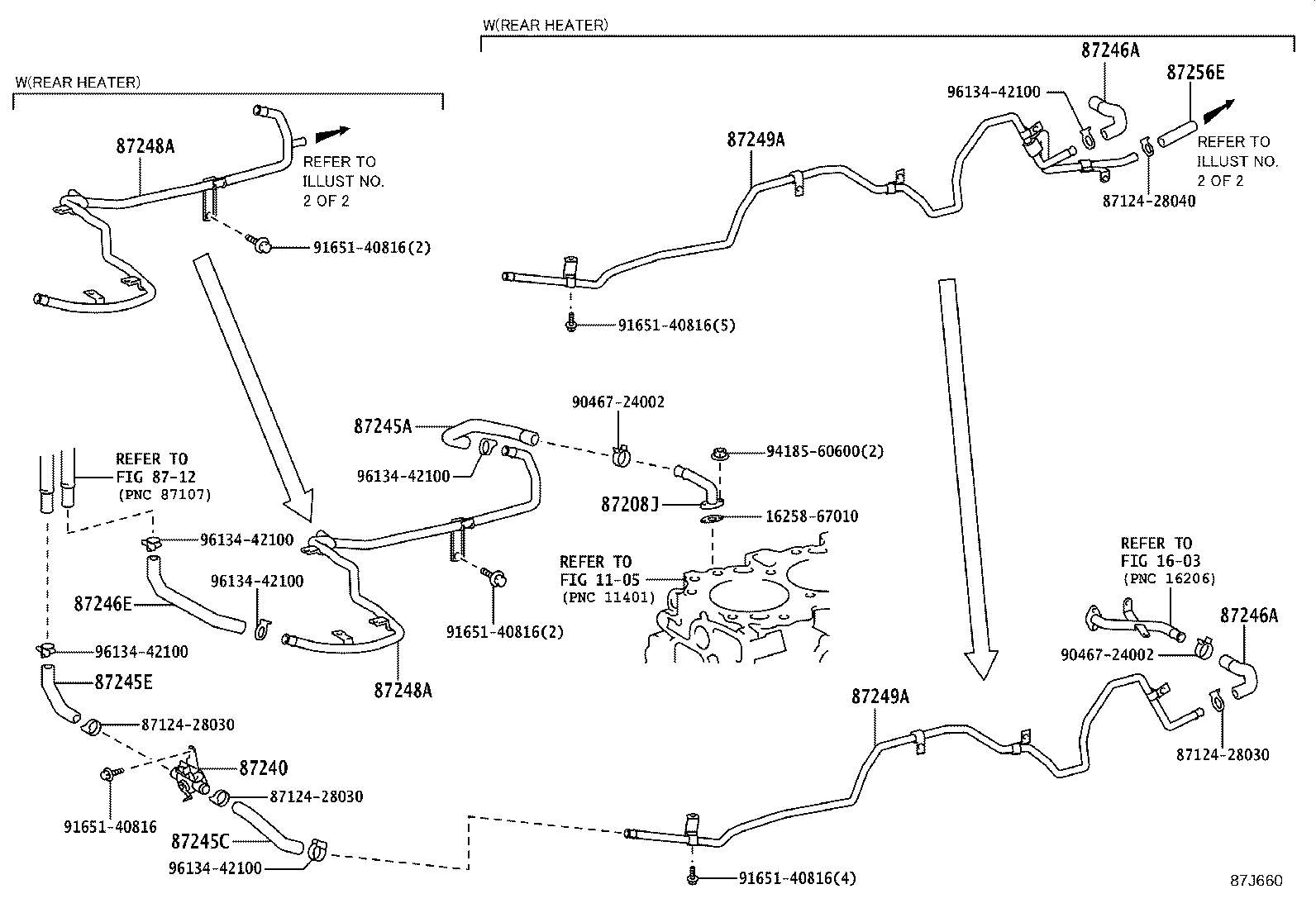

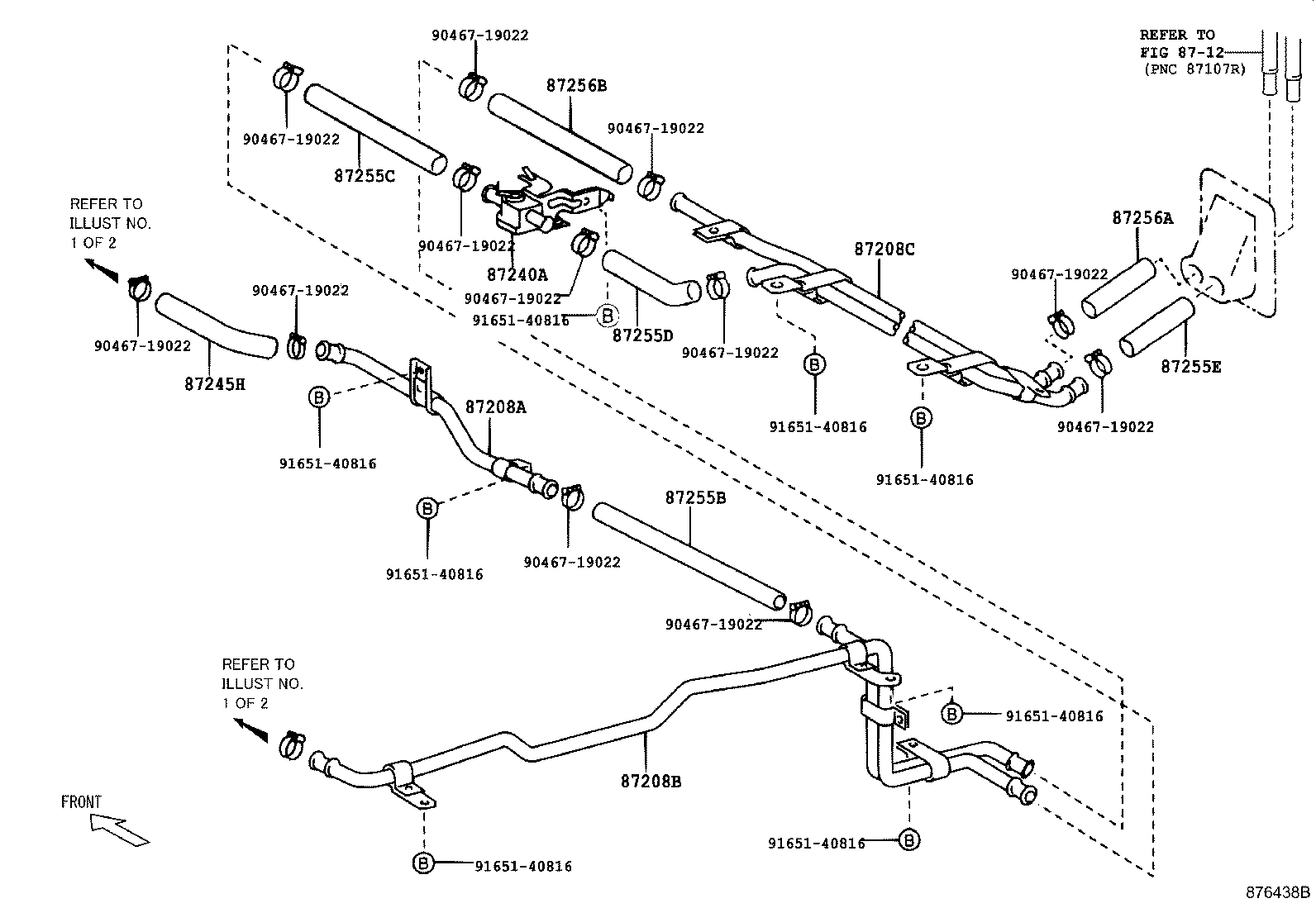

Figure 870701G 870701G 1989-08 → — Figure 870699L 870699L 1989-08 → 1999-07 Figure 87E615B 87E615B 1999-07 → — Figure 871223H 871223H 1993-08 → 1999-07 Figure 87J660 87J660 1999-07 → — Figure 876432D 876432D 2003-08 → — Figure 873529B 873529B 1989-08 → 1998-08 Figure 874235A 874235A 1998-08 → — Figure 874236A 874236A 1998-08 → — Figure 87E756 87E756 1990-05 → — Figure 87E756 87E756 1998-08 → — Figure 872996C 872996C 1989-08 → 1995-08 Figure 872996C 872996C 1995-08 → 1998-08 Figure 874238B 874238B 1998-08 → — Figure 87E757 87E757 1989-08 → — Figure 874237B 874237B 1998-08 → — Figure 870410H 870410H 1989-08 → 1998-08 Figure 870410H 870410H 1989-08 → — Figure 87H110 87H110 1993-08 → — Figure 874200B 874200B 1998-08 → 1999-07 Figure 874199C 874199C 1999-07 → — Figure 874262C 874262C 1999-07 → — Figure 874202A 874202A 1998-08 → 1999-07 Figure 874203A 874203A 1999-07 → — Figure 874239B 874239B 1998-08 → — Figure 874240B 874240B 1998-08 → — Figure 874240B 874240B 2000-12 → — Figure 872997C 872997C 1989-08 → 1998-08 Figure 874242B 874242B 1989-08 → — Figure 874242B 874242B 1998-08 → — Figure 874242B 874242B 2000-12 → — Figure 876656A 876656A 1989-08 → 1998-08 Figure 874241B 874241B 1998-08 → — Figure 870358D 870358D 1989-11 → — Figure 876434B 876434B 2003-08 → — Figure 876437B 876437B 2003-08 → — Figure 876436B 876436B 2003-08 → — Figure 876438B 876438B 2003-08 → — Figure 876433C 876433C 2003-08 → — Figure 876435C 876435C 2003-08 → —

Part groups

PNCDescription
87029 Cover Sub-assy, Heater Inlet Hole
87208 Pipe Sub-assy, Heater Water
87208A Pipe Sub-assy, Heater Water, A
87208B Pipe Sub-assy, Heater Water, B
87208C Pipe Sub-assy, Heater Water, C
87208D Pipe Sub-assy, Heater Water, D
87208E Pipe Sub-assy, Heater Water, E
87208G Pipe Sub-assy, Heater Water, G
87208J Pipe Sub-assy, Heater Water, J
87209 Hose Sub-assy, Water
87237 Cover, Heater Piping
87240 Valve Assy, Heater Water
87240A Valve Assy, Rear Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248Y Pipe, Heater Water, NO.2
87249A Pipe, Heater Water Outlet, A
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255D Hose, Rear Heater Water Inlet, D
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87256D Hose, Rear Heater Water Outlet, D
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
