Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Vacuum Piping

20 part groups · 14 illustrations

Illustrations

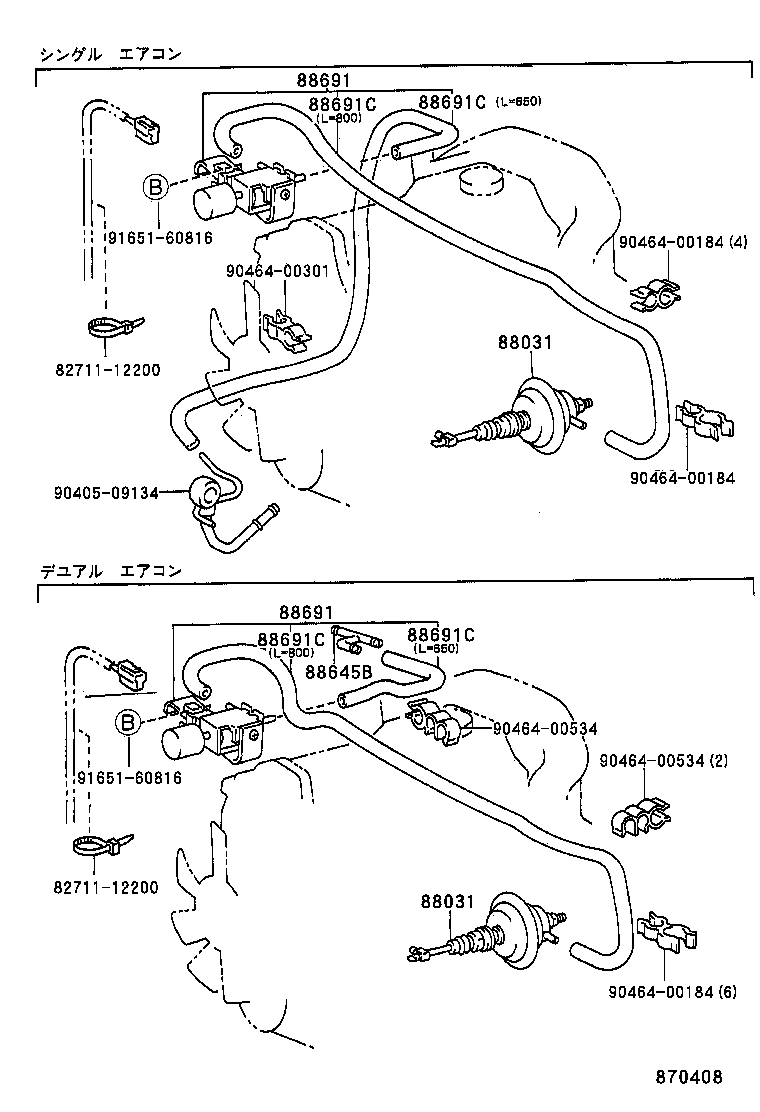

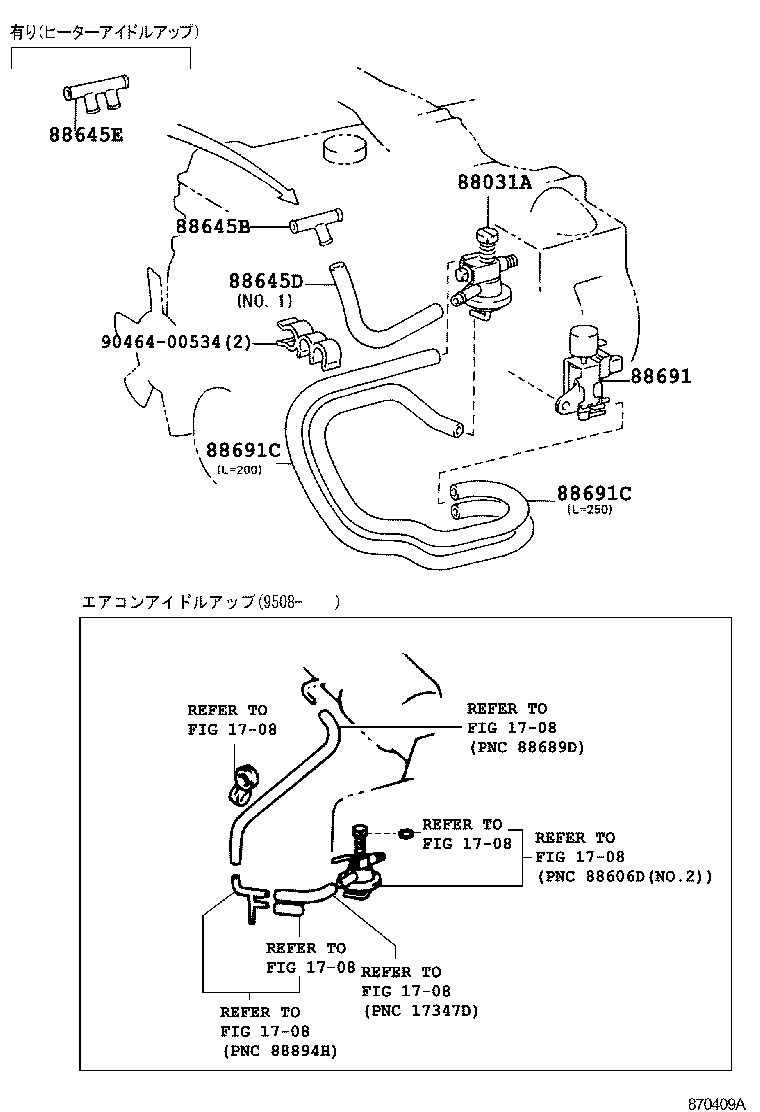

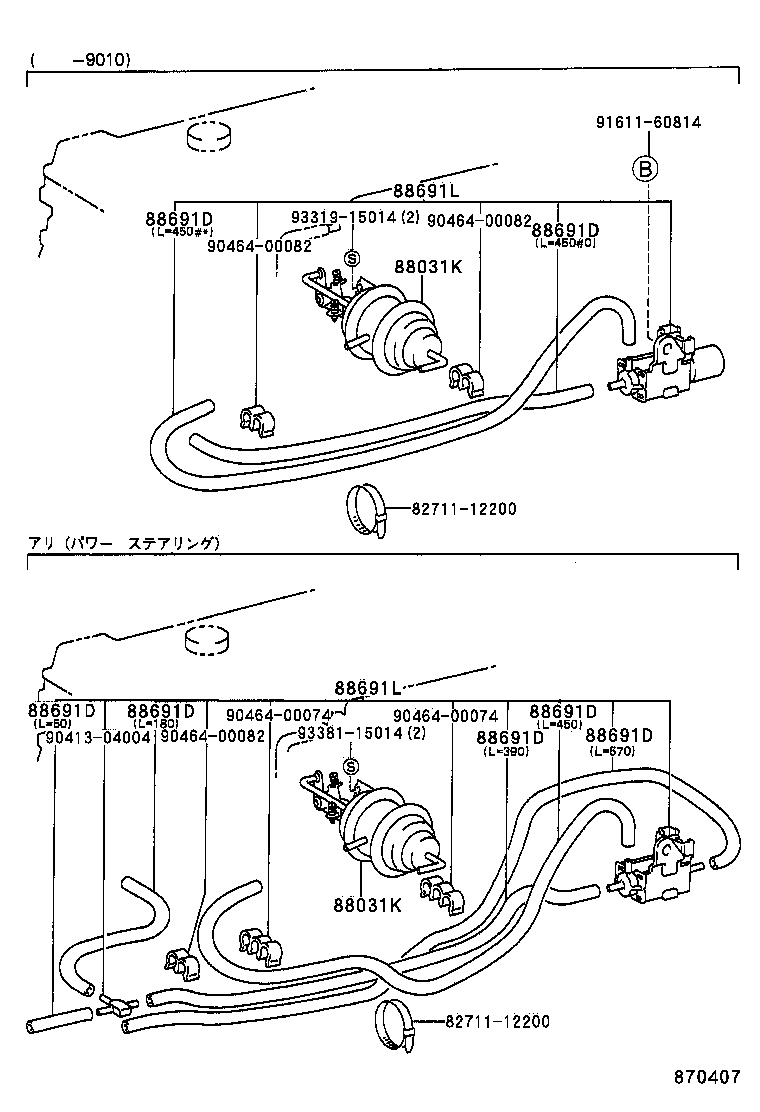

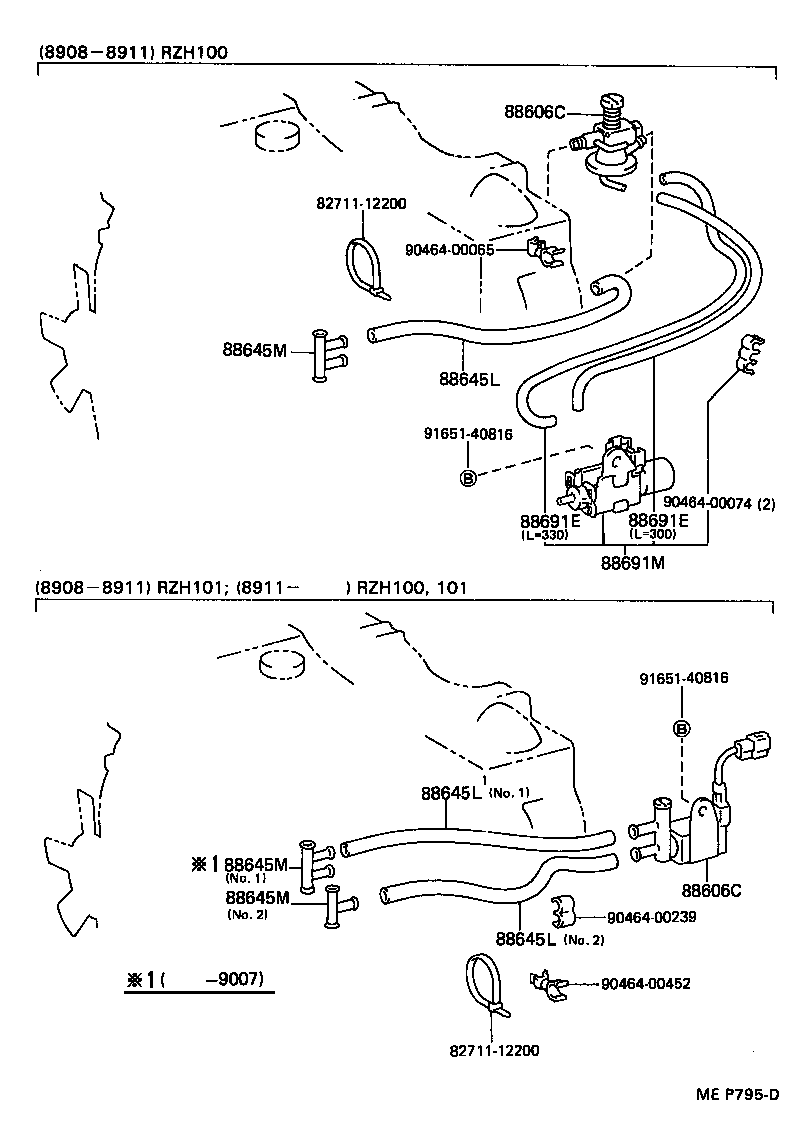

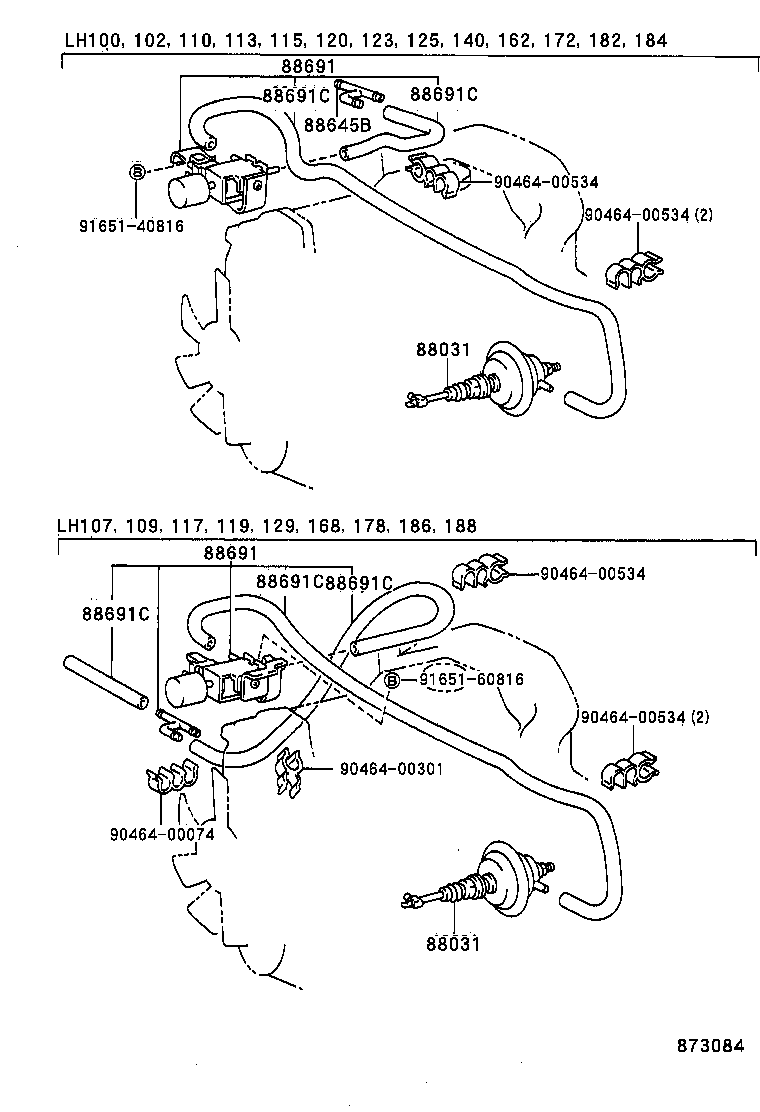

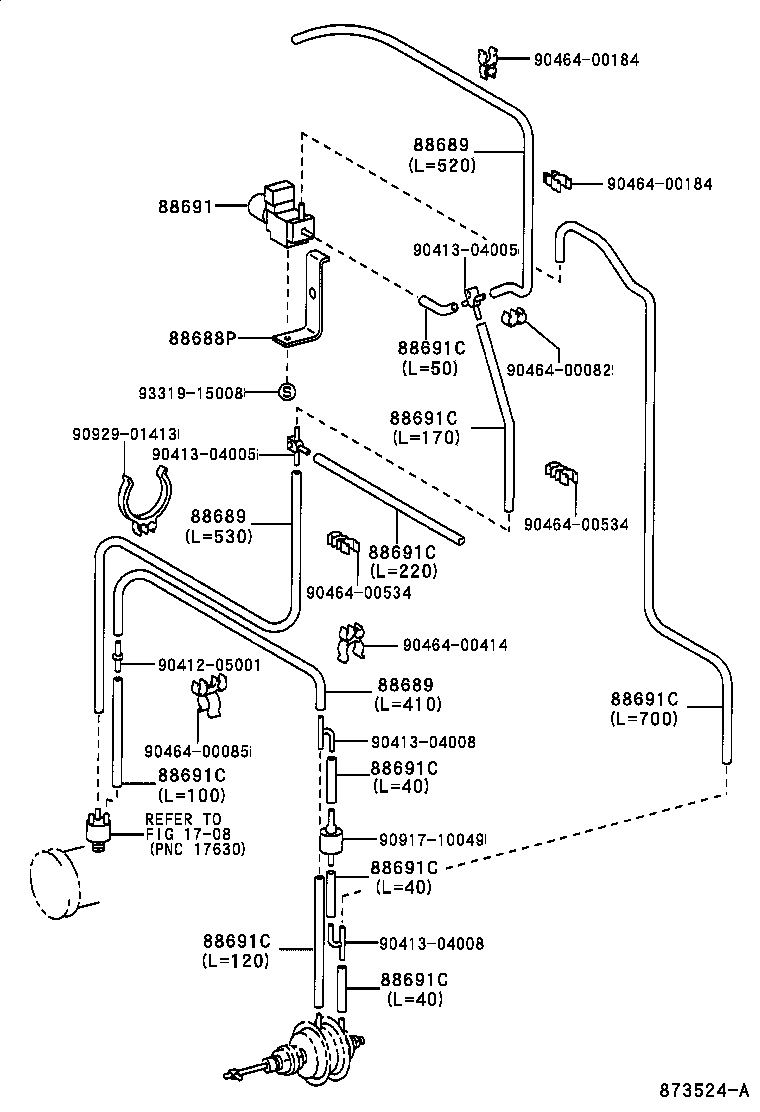

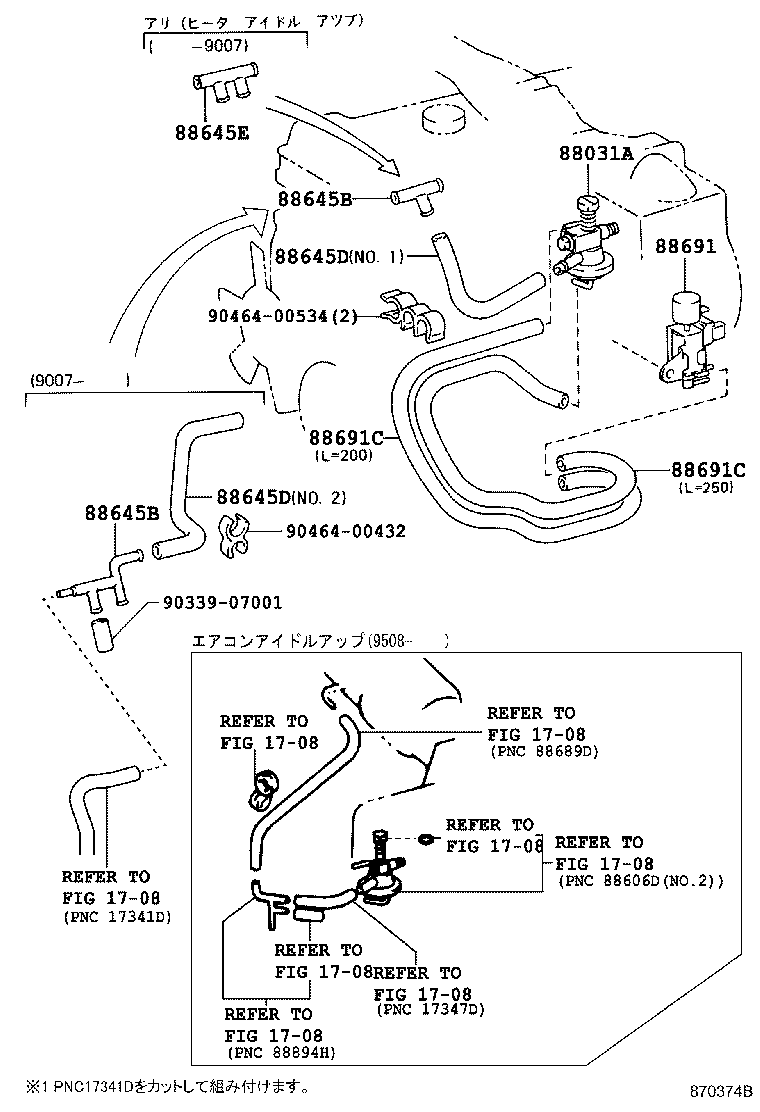

Figure 870406D 870406D 1989-08 → — Figure 870406D 870406D 1989-08 → — Figure 870406D 870406D 1989-08 → — Figure 870407 870407 1989-08 → — Figure 870408 870408 1989-08 → — Figure MER415 MER415 1989-08 → — Figure 873524A 873524A 1998-08 → — Figure 873525A 873525A 1998-08 → — Figure 879712 879712 1989-08 → — Figure 870409A 870409A 1989-08 → — Figure 873084 873084 1989-08 → — Figure 870374B 870374B 1989-08 → — Figure MER418 MER418 1989-08 → — Figure MEP795D MEP795D 1989-08 → —

Part groups

PNCDescription
88031 Actuator Set, Idle-up
88031A Diaphragm Sub-assy, Idle-up Actuator
88031K Actuator Set, Idle-up
88606B Diaphragm Sub-assy, Cooler
88606C Diaphragm Sub-assy, Vacuum
88645A Union (FOR IDLE UP DEVICE)
88645B Joint, NO.1 (FOR IDLE UP DIVICE)
88645D Hose (FOR IDLE UP DEVICE)
88645E Joint, NO.2 (FOR IDLE UP DEVICE)
88645K Hose (FOR IDLE UP DEVICE)
88645L Hose (FOR IDLE UP DIVICE)
88645M Joint, Vacuum
88688P Bracket (FOR MAGNET VALVE)
88689 Hose, Damper Control Diaphragm Vacuum
88691 Valve, Magnet (FOR IDLE UP DEVICE)
88691C Hose, Vacuum (FOR IDLE UP DEVICE), NO.1
88691D Hose, Vacuum (FOR IDLE UP DIVICE), NO.2
88691E Hose, Vacuum (FOR IDLE UP DIVICE), NO.3
88691L Valve, Magnet (FOR IDLE UP DEVICE)
88691M Valve, Magnet (FOR IDLE UP DEVICE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
