Toyota Hiace/Regiusace

1989-08 → 2005-01 · chassis KZH1##,LH1##,RZH1##,TRH1## · catalogue 711140 · Japan

Discontinued model Data version 2005-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

63 part groups · 67 illustrations

Illustrations

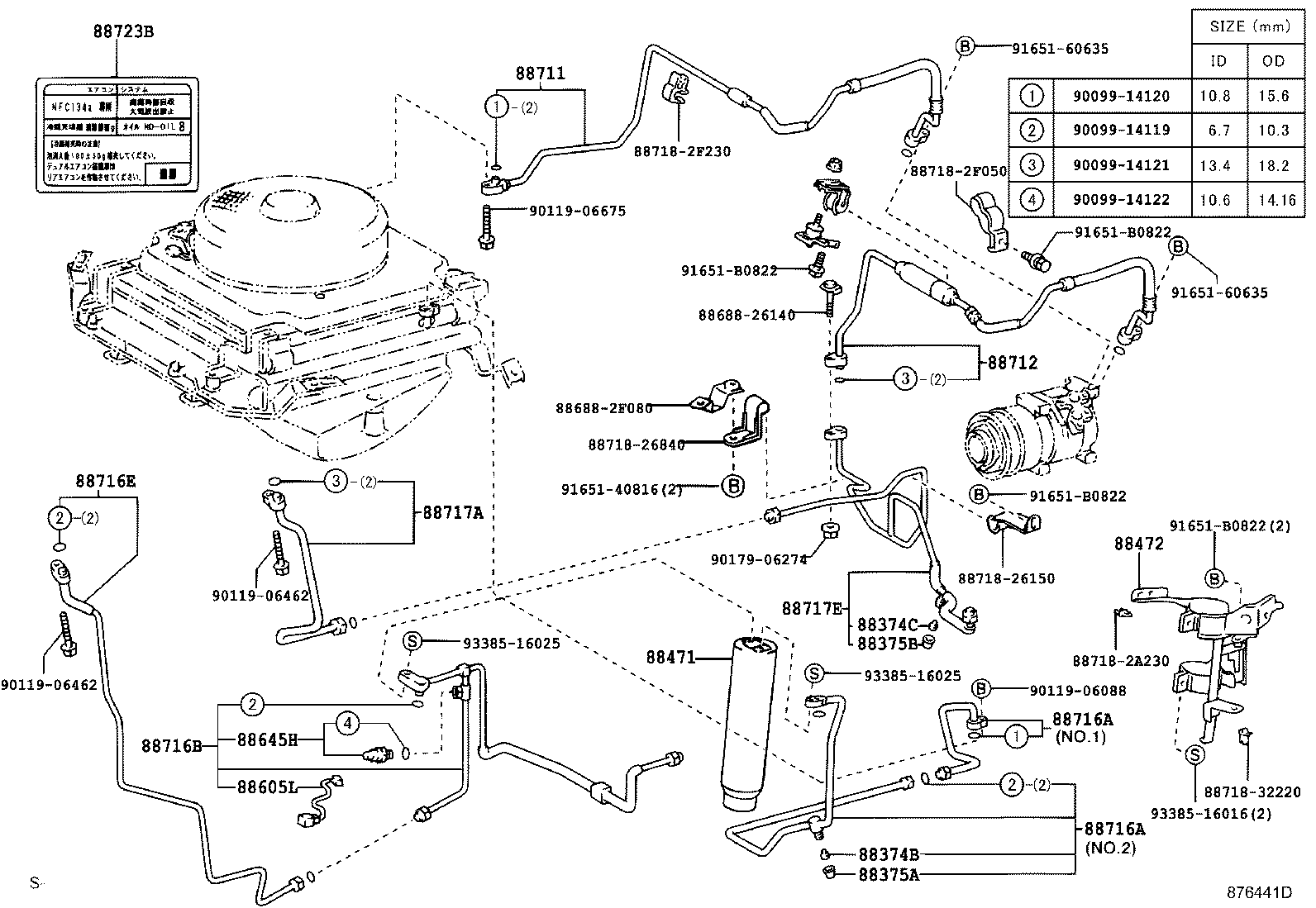

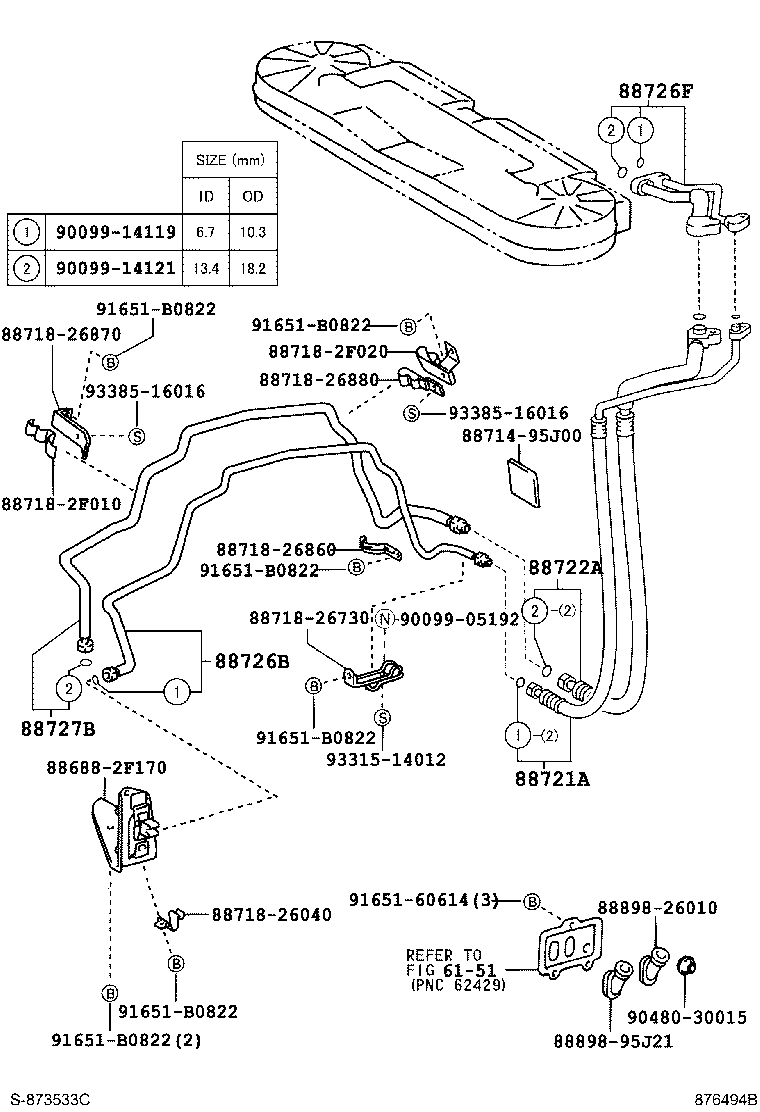

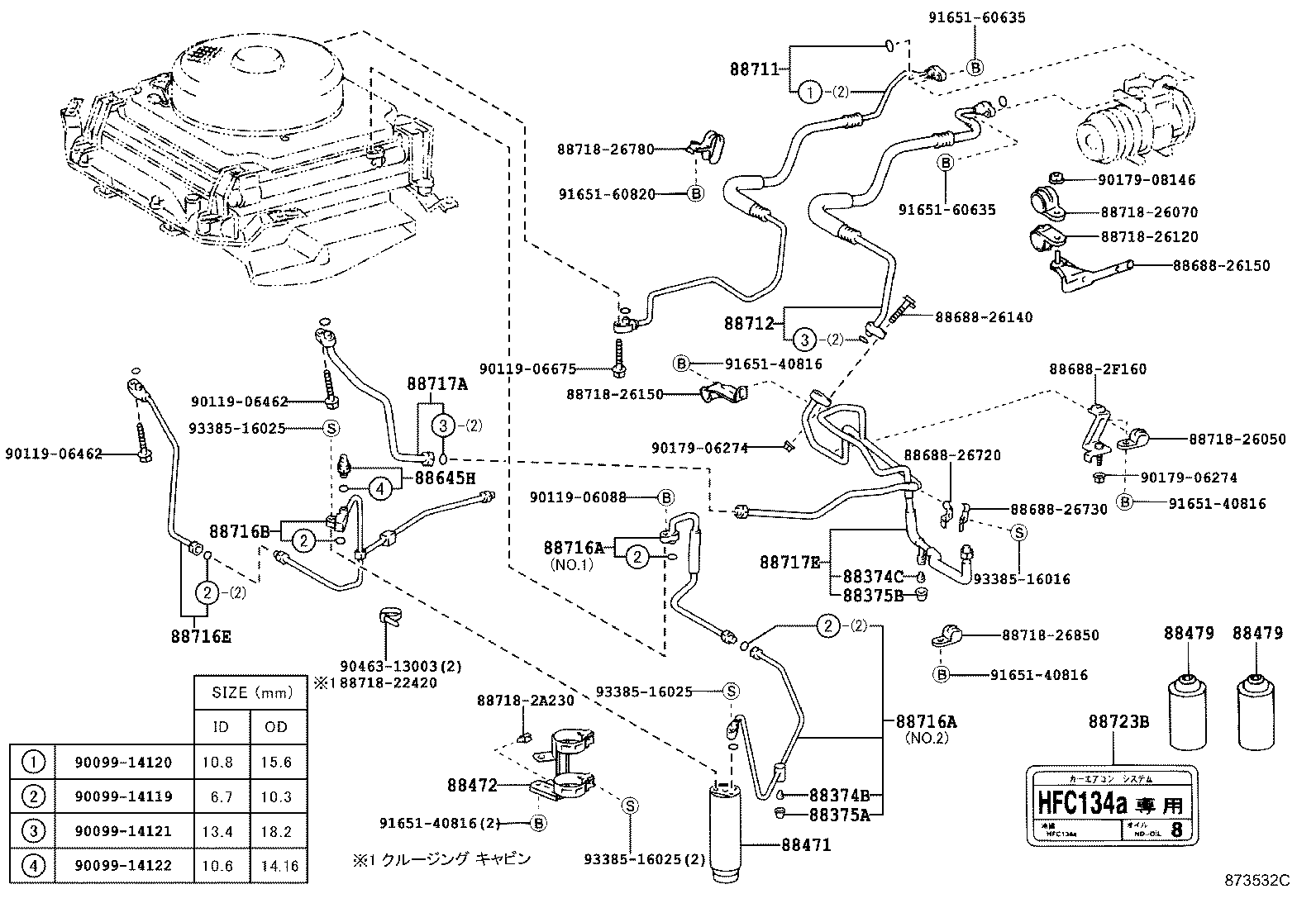

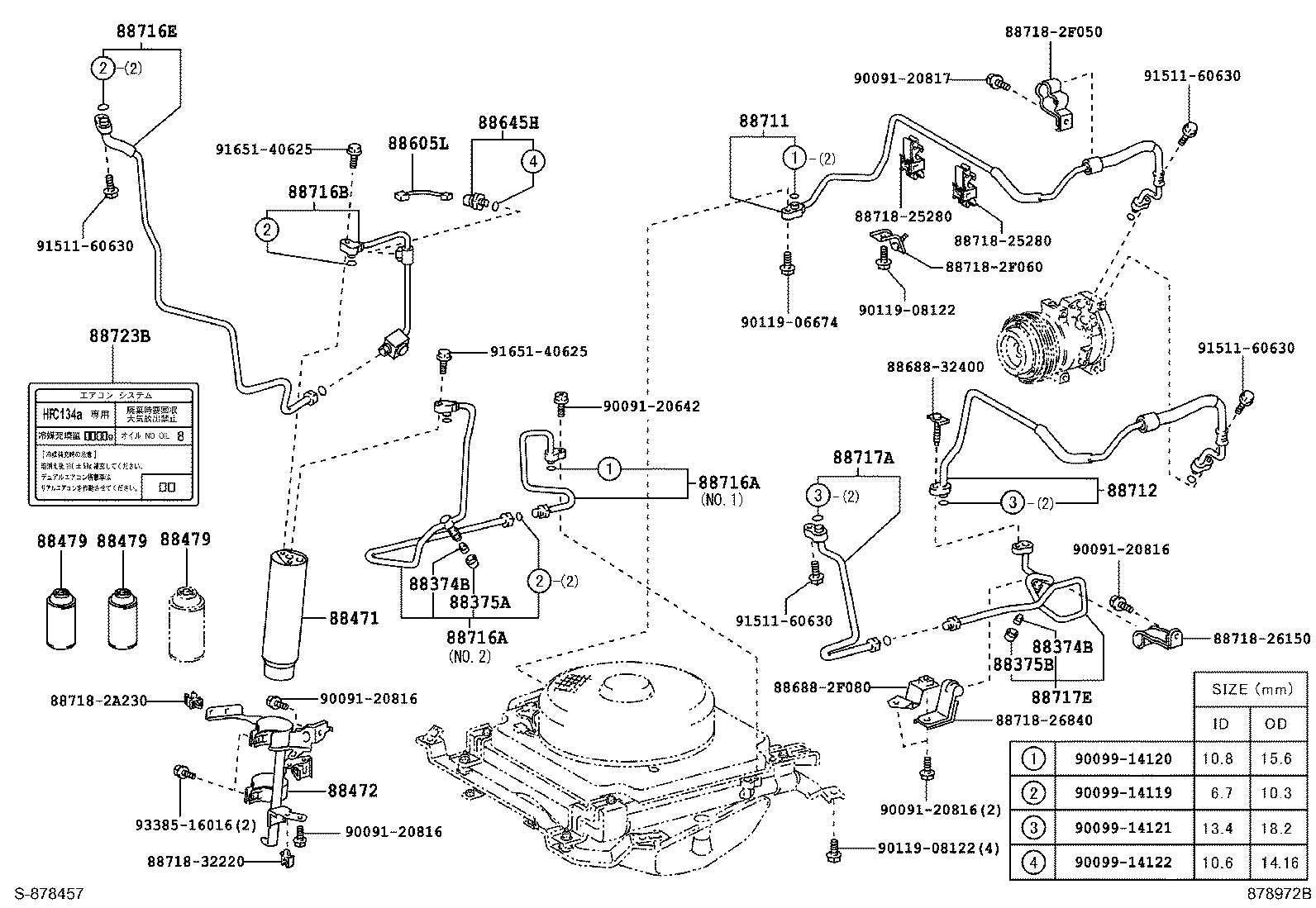

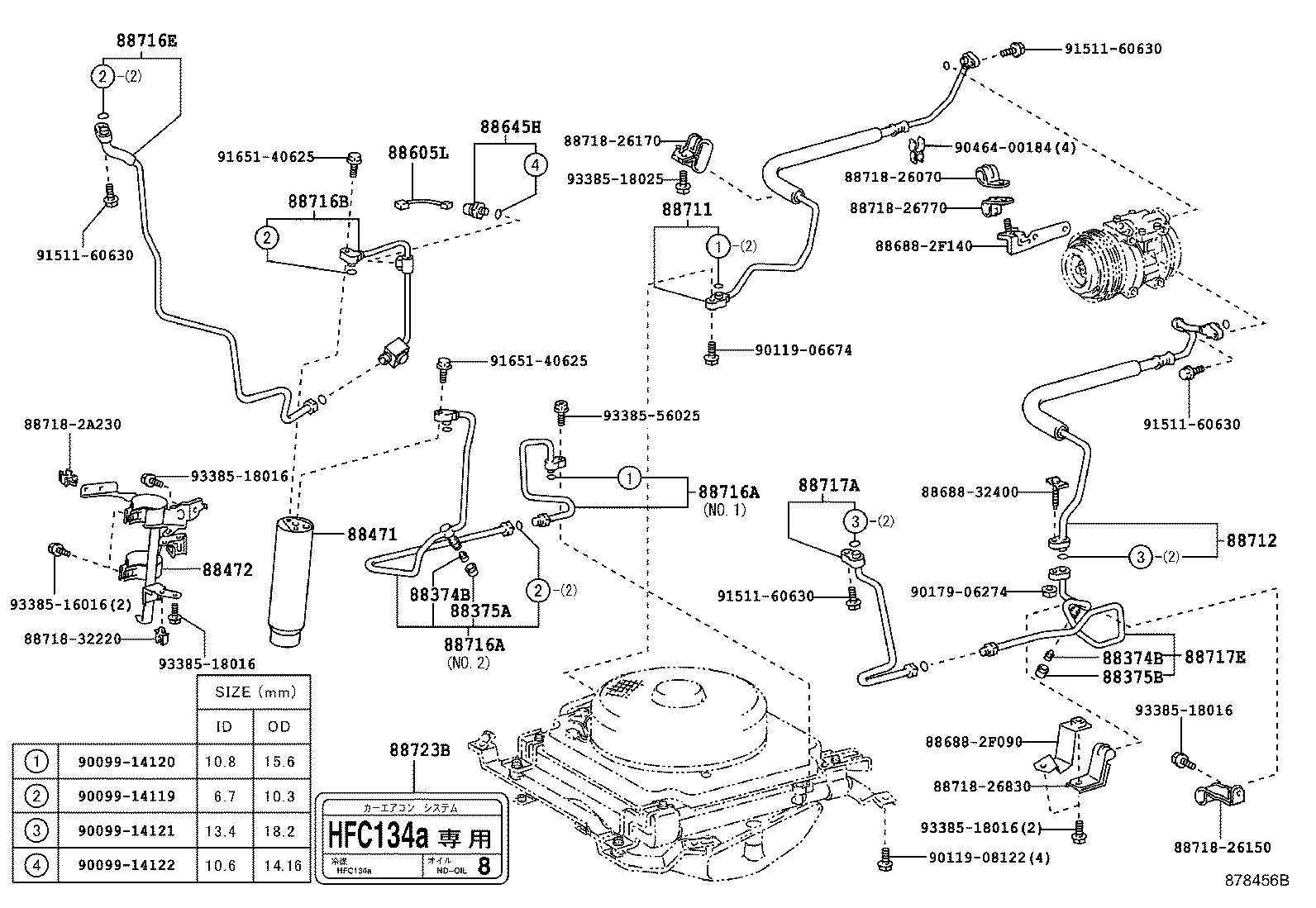

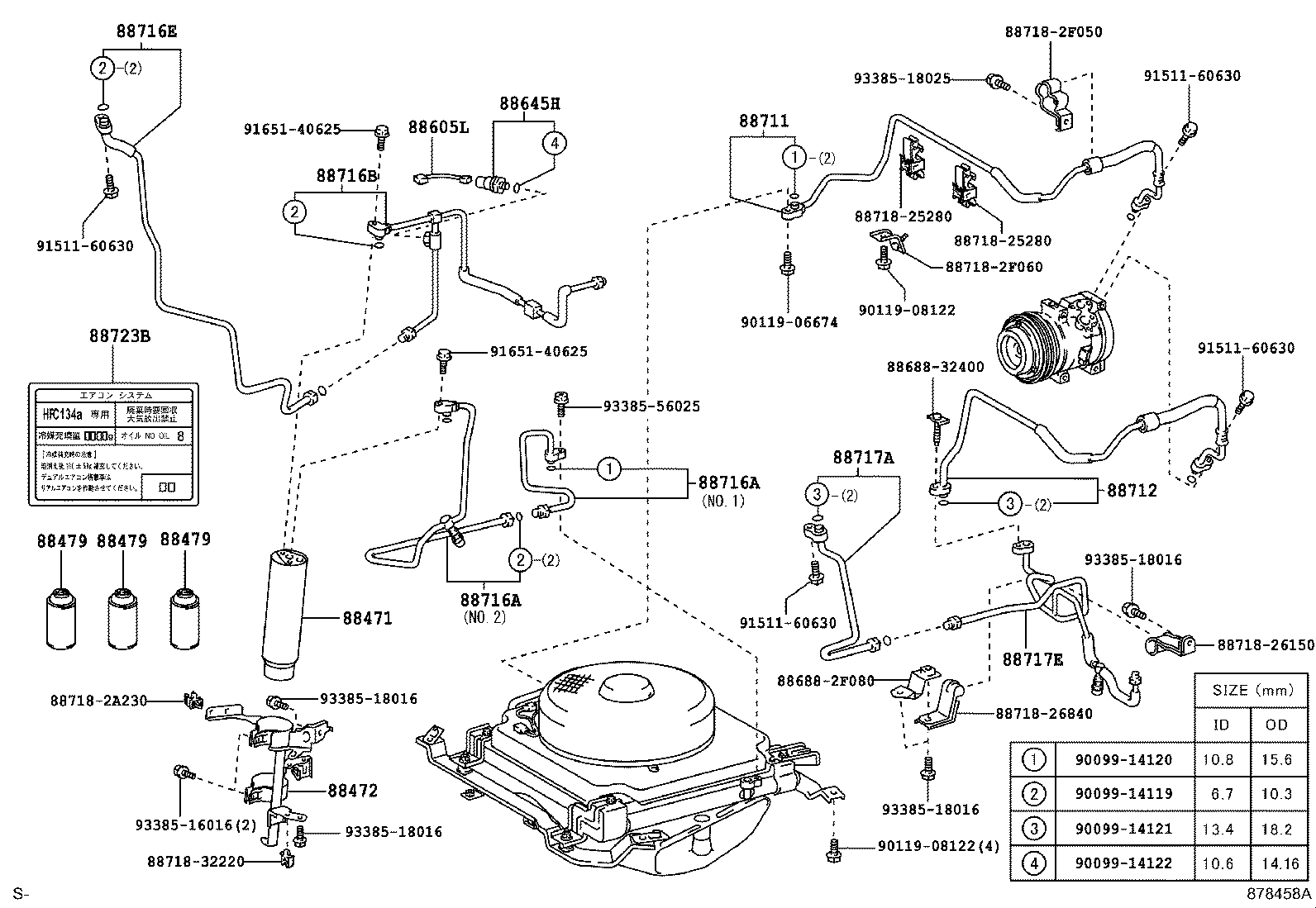

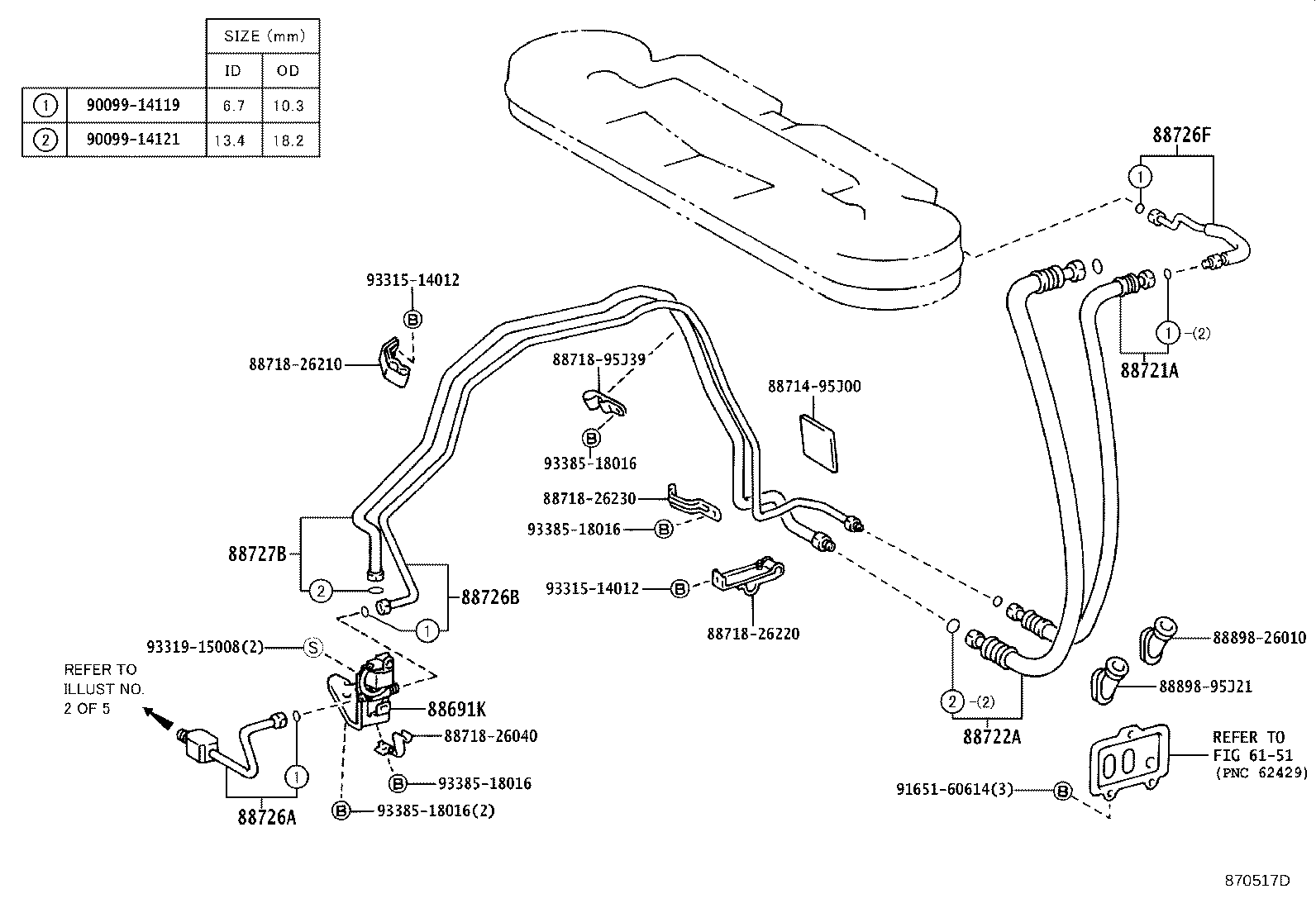

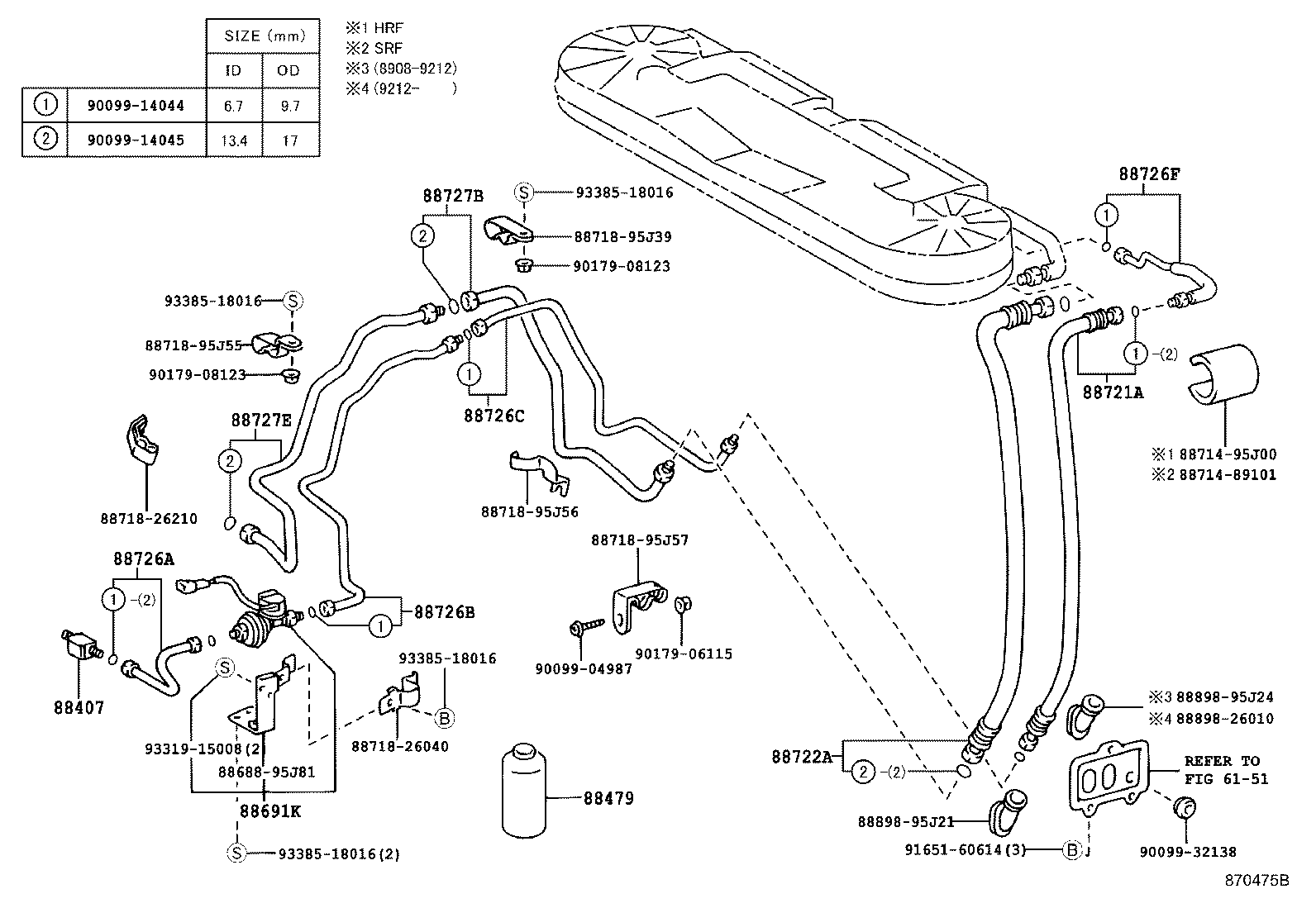

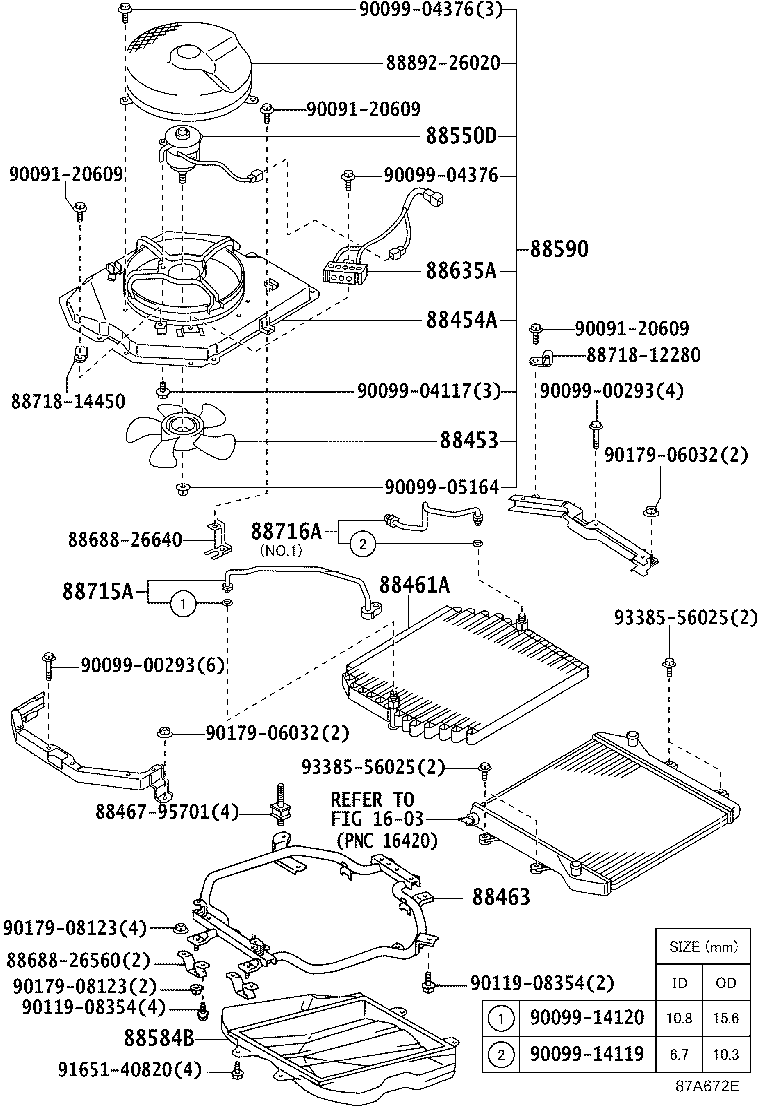

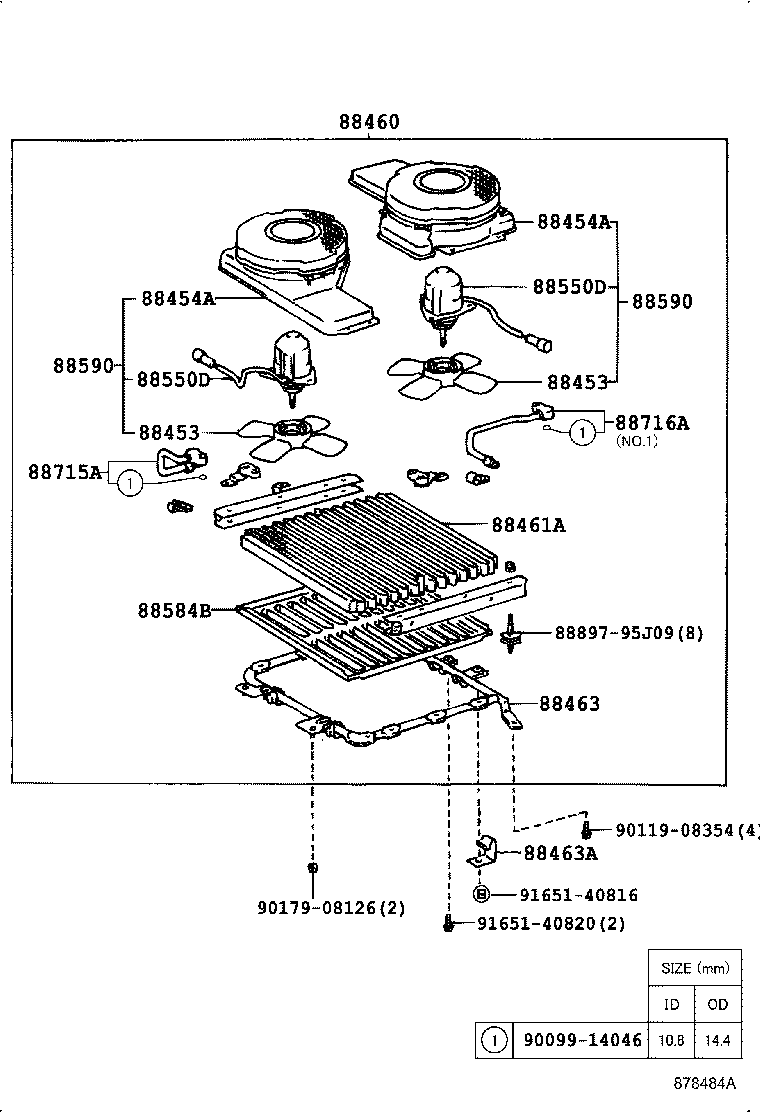

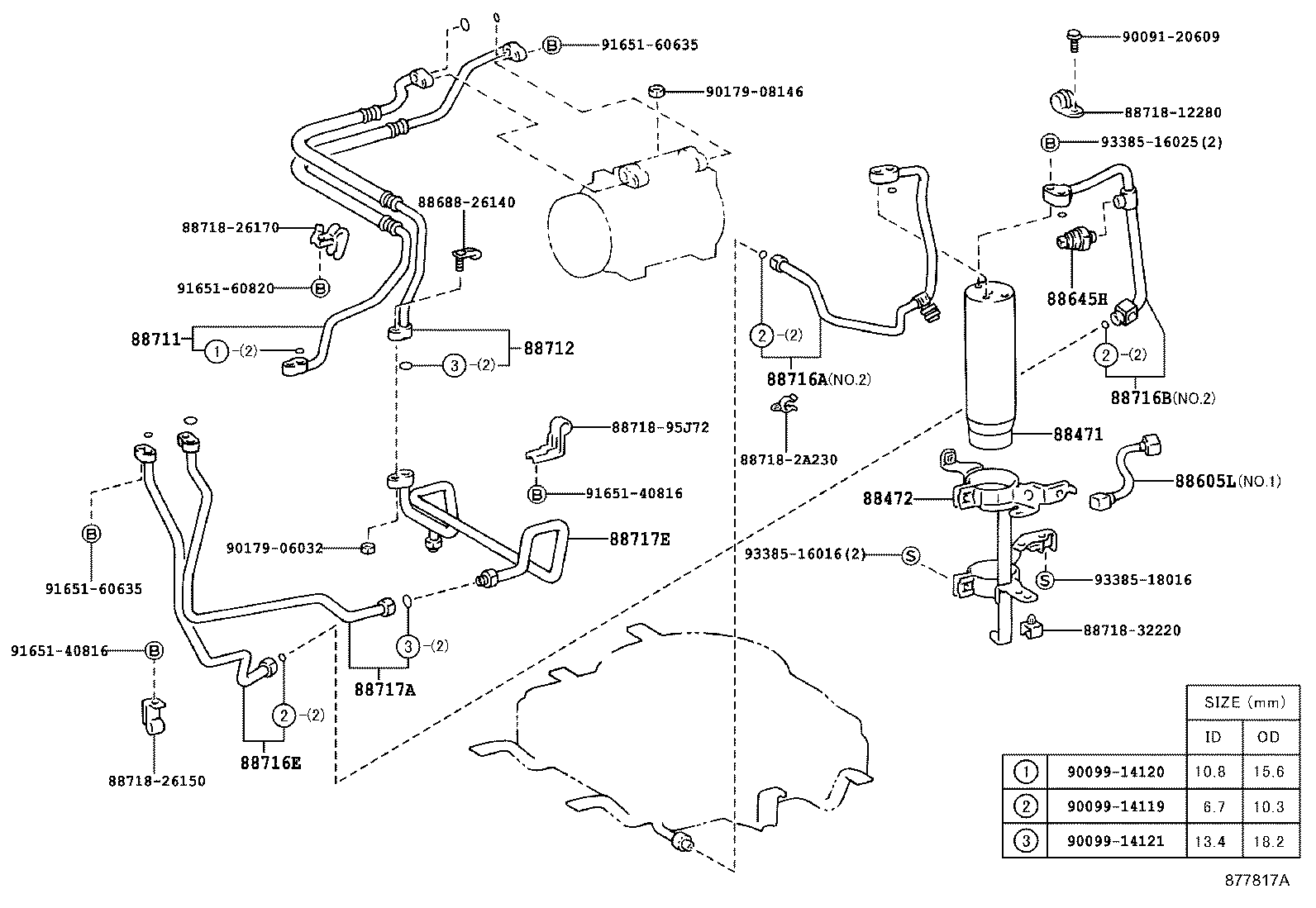

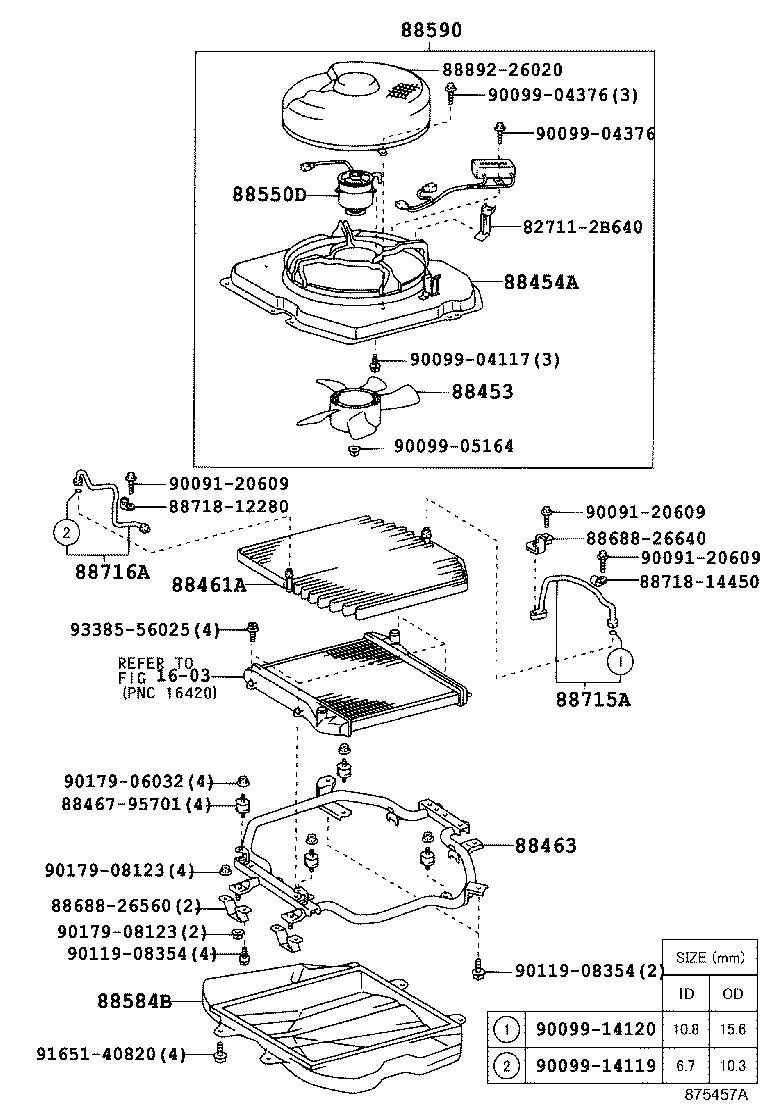

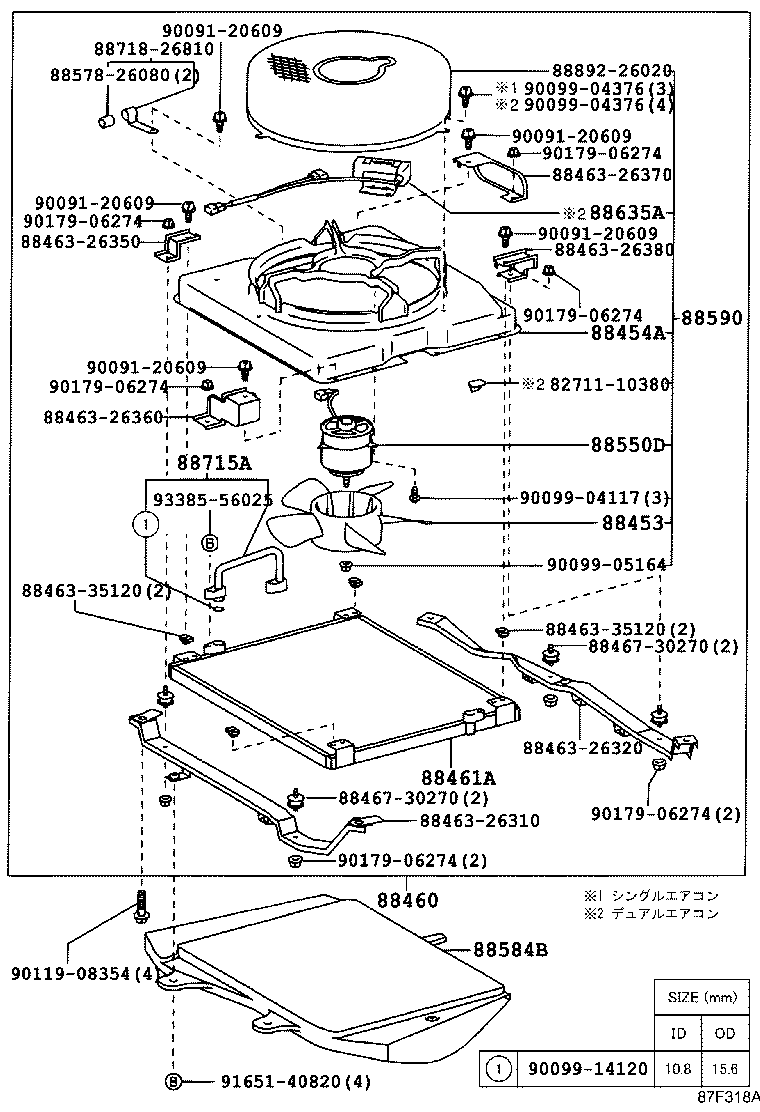

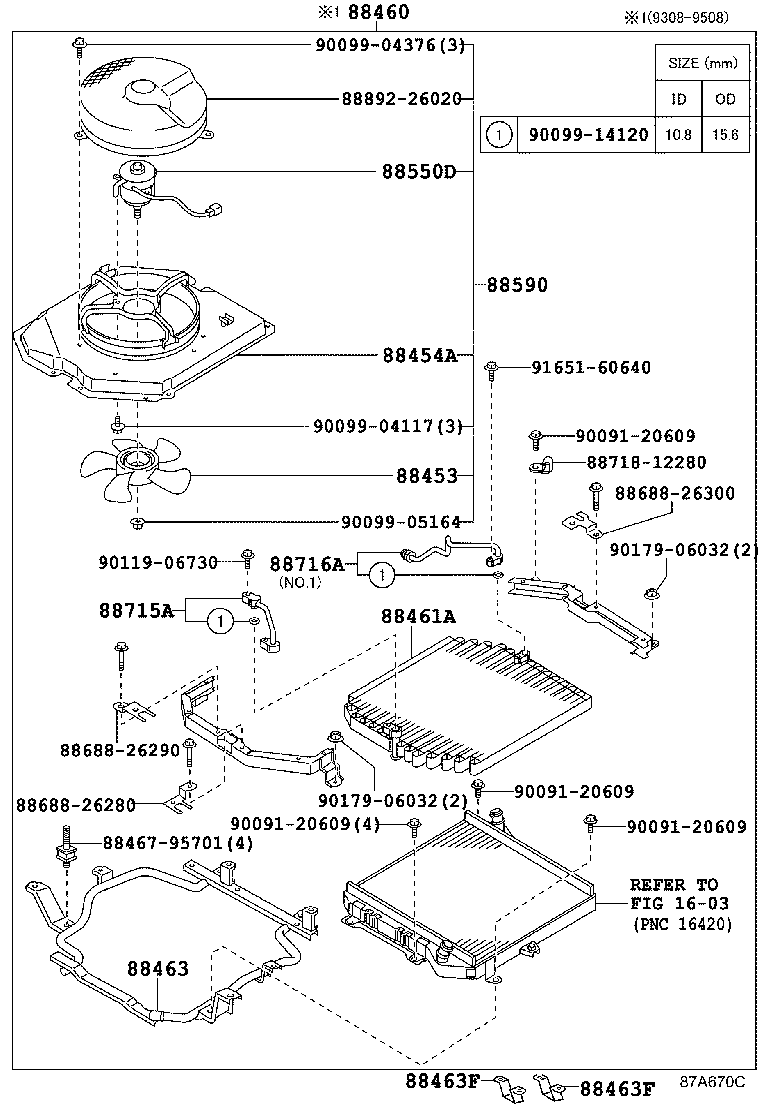

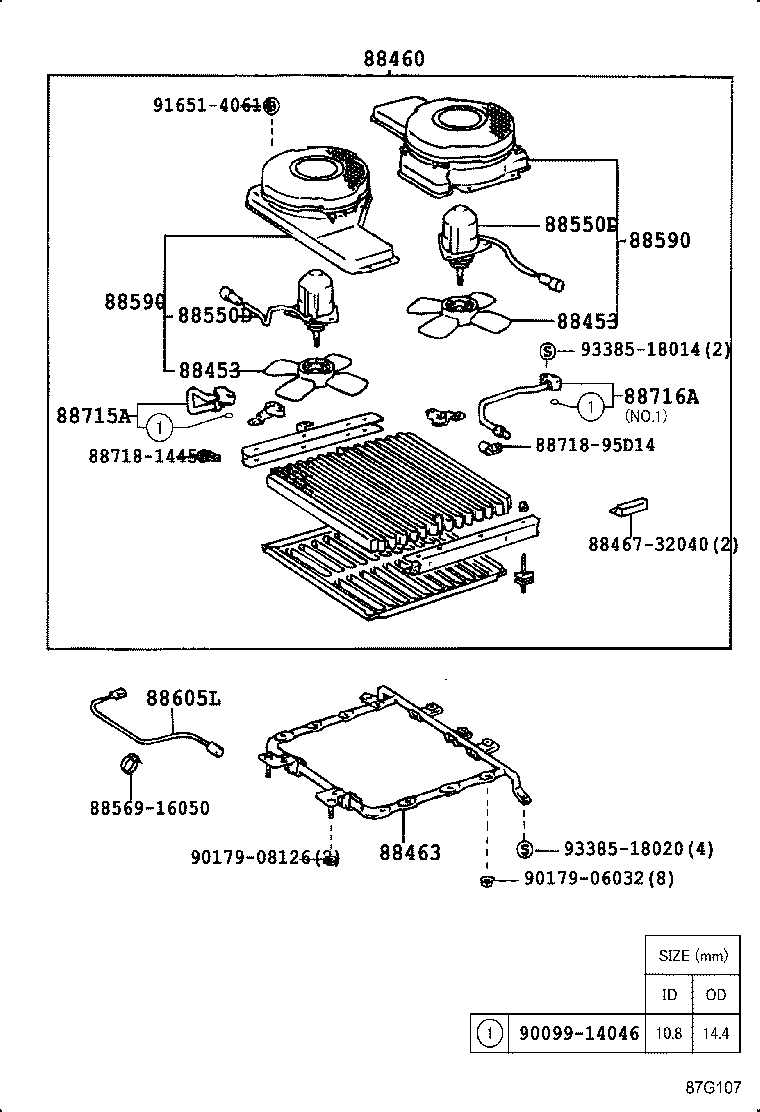

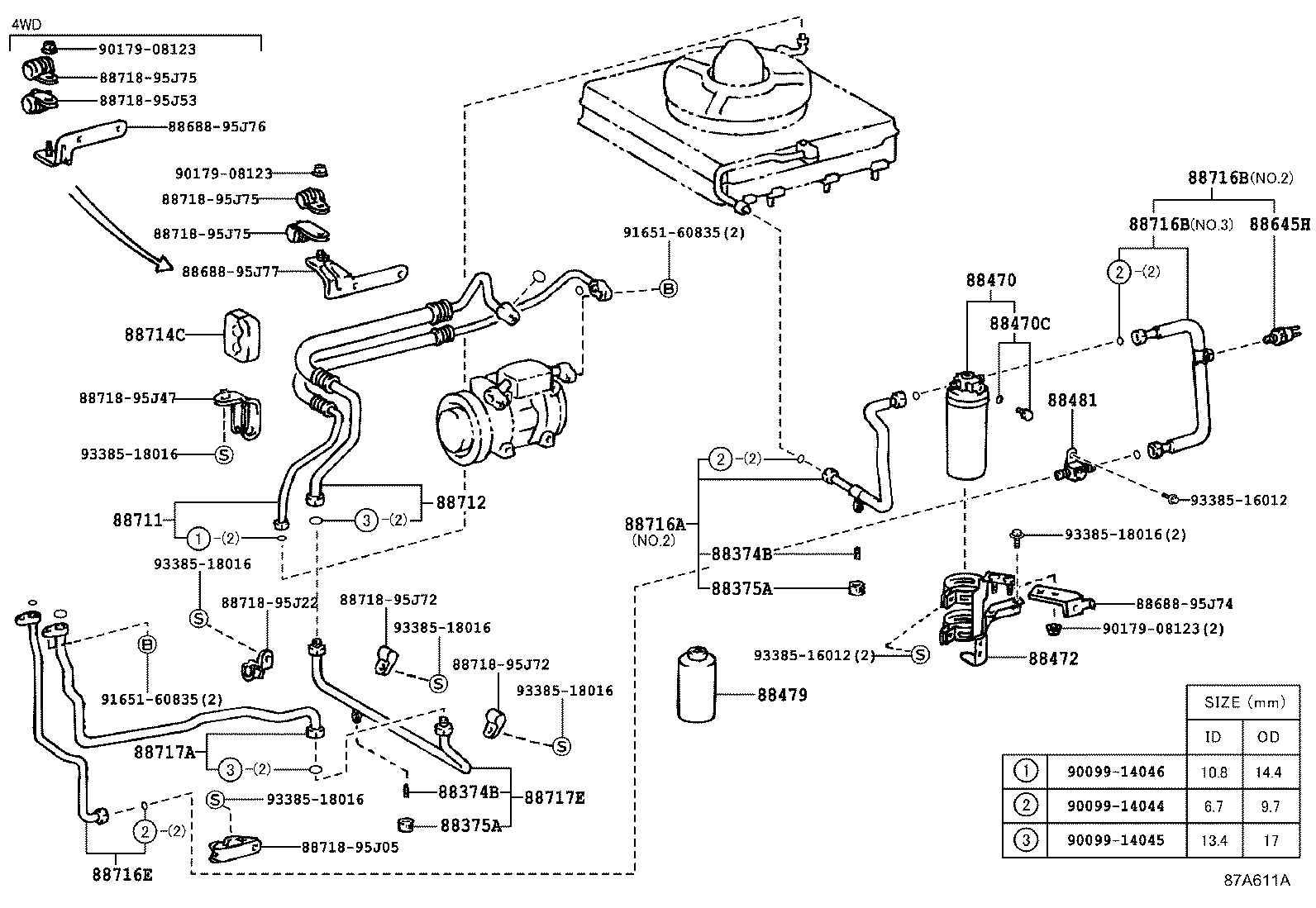

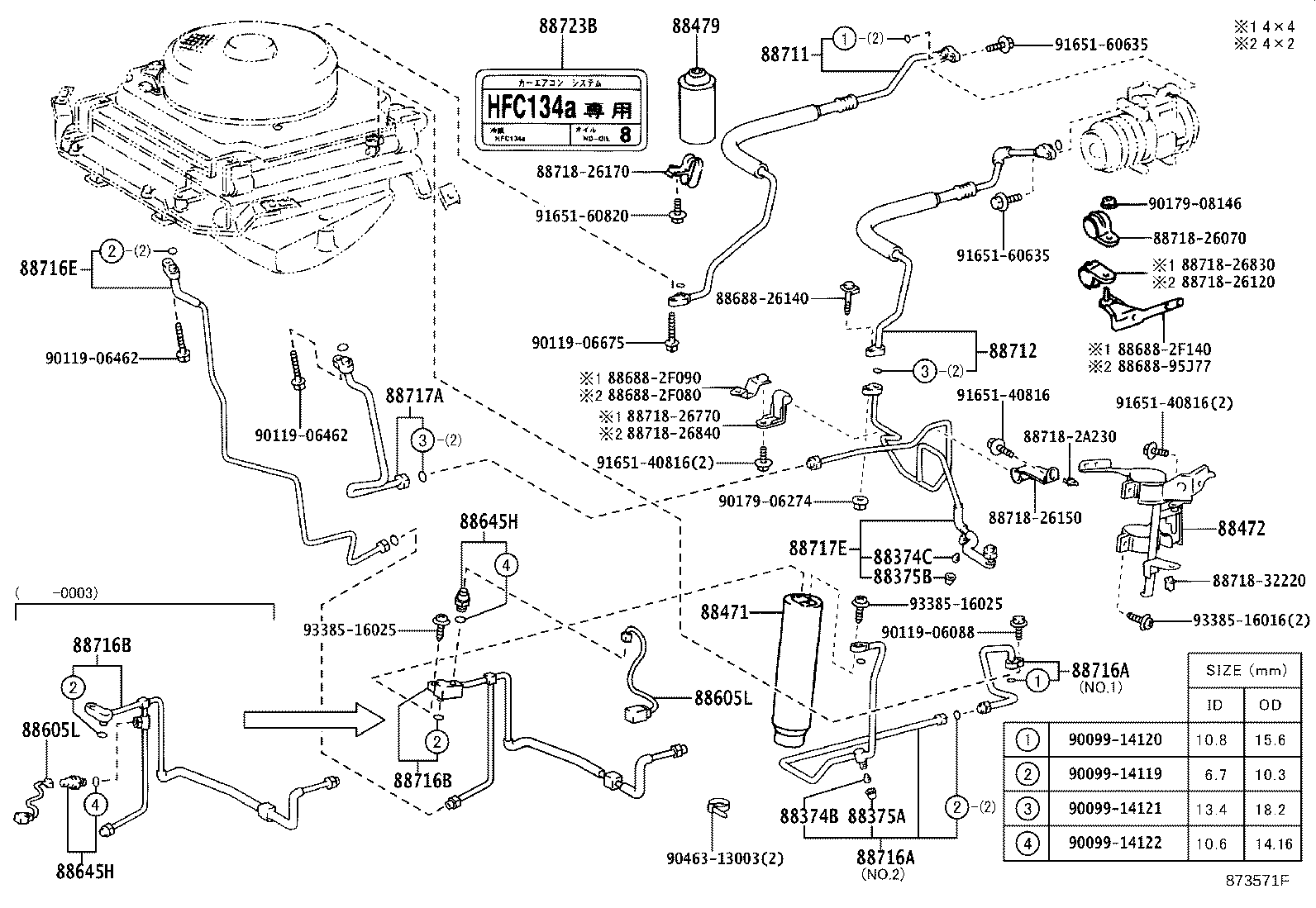

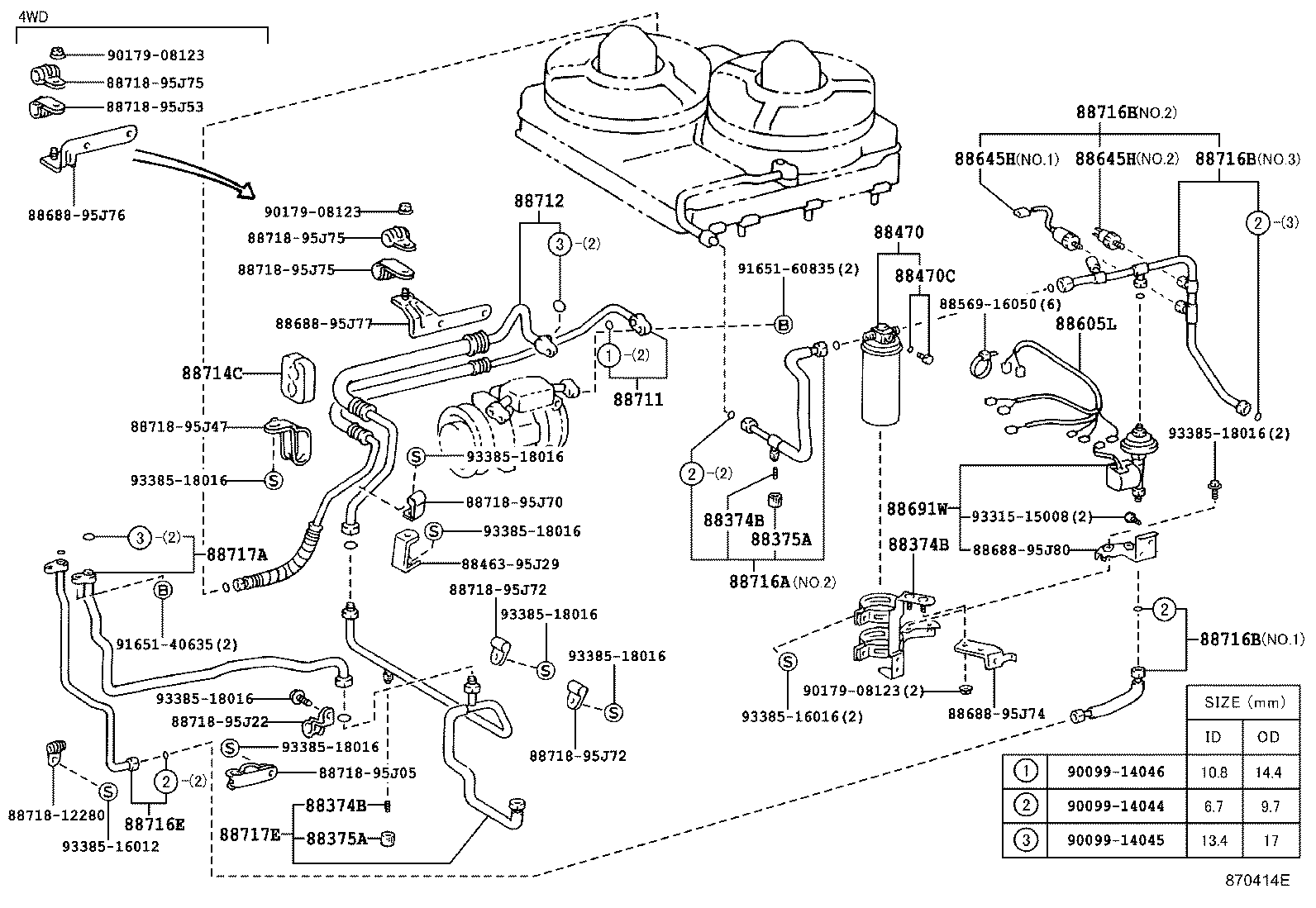

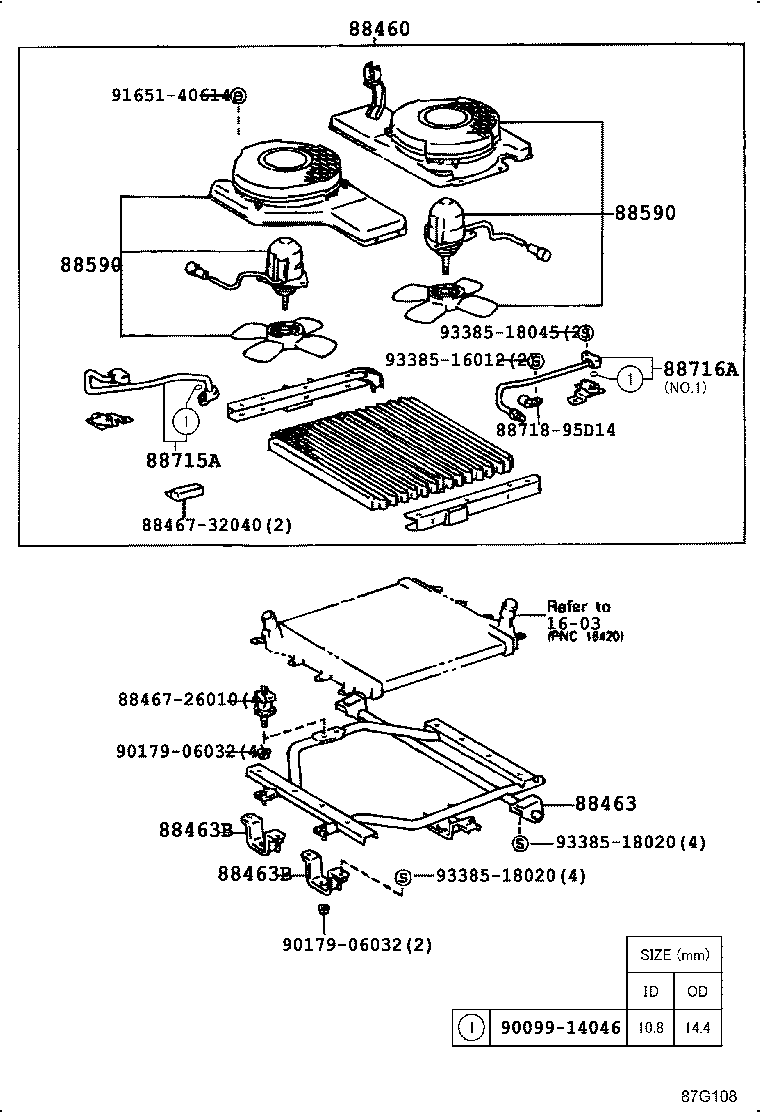

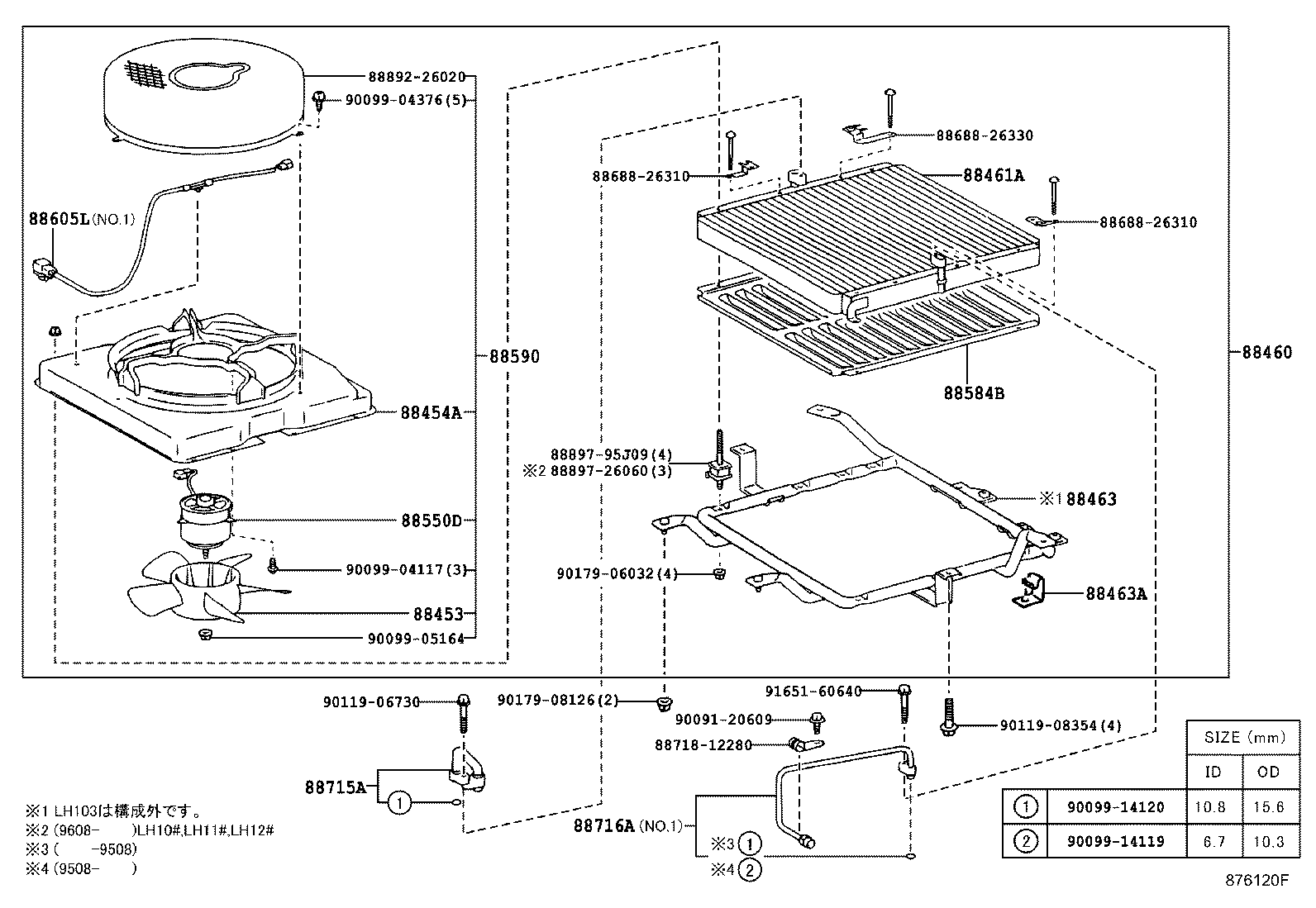

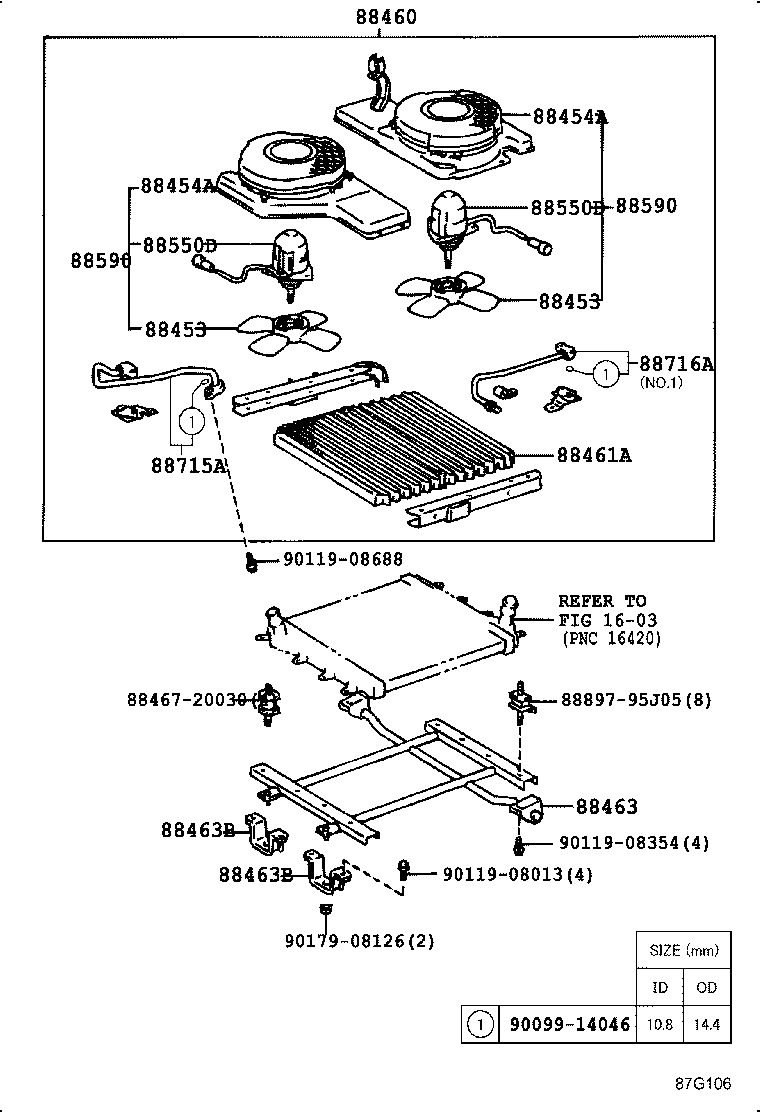

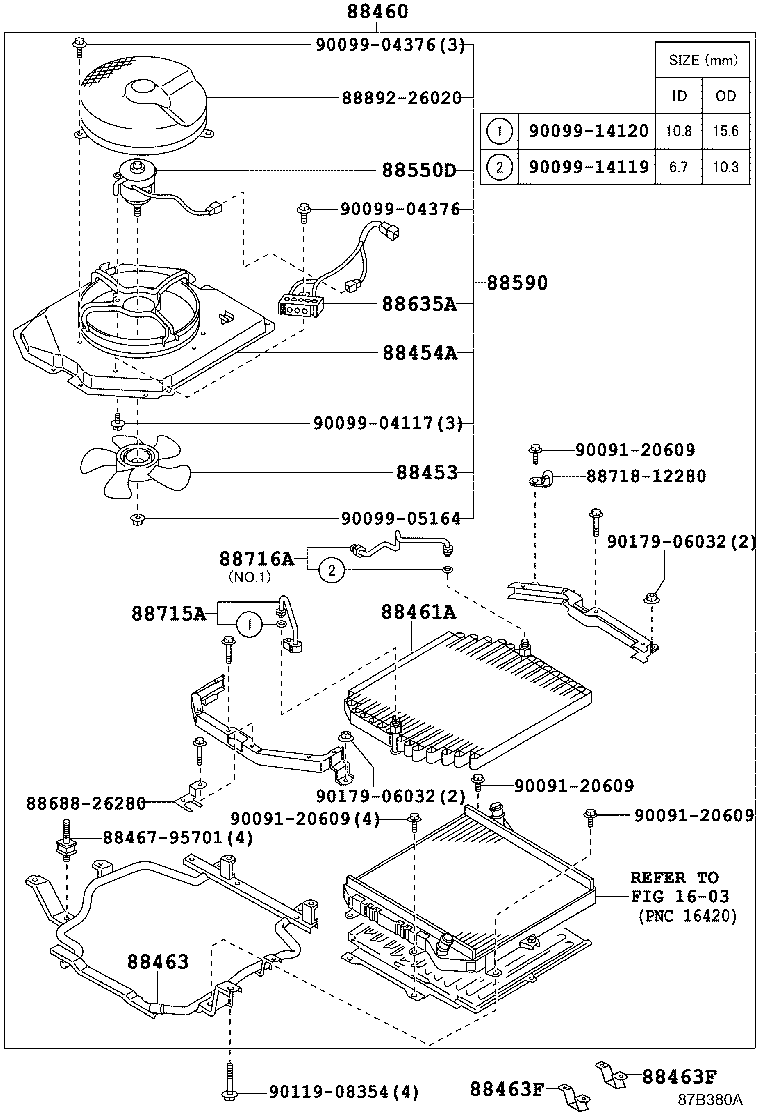

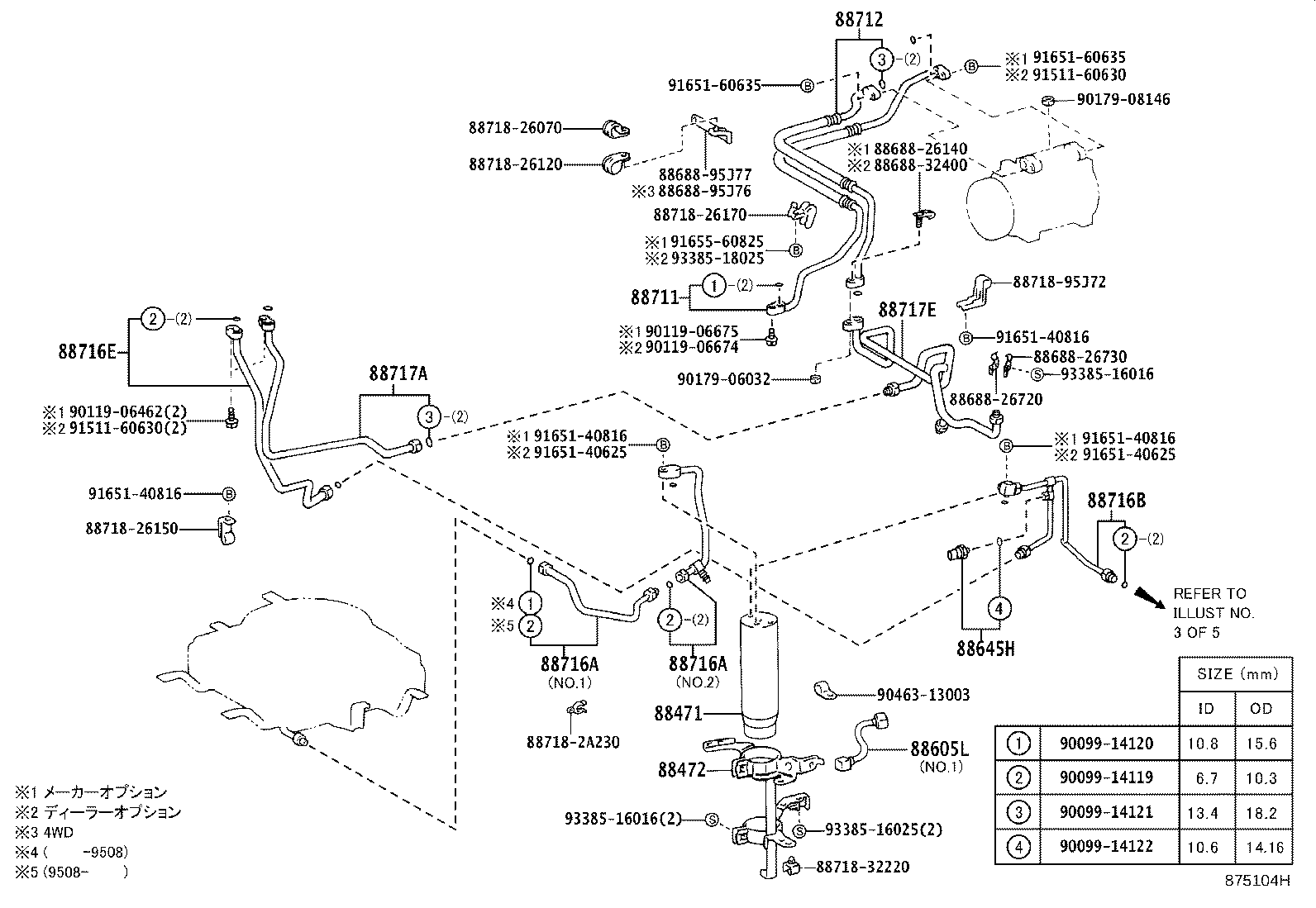

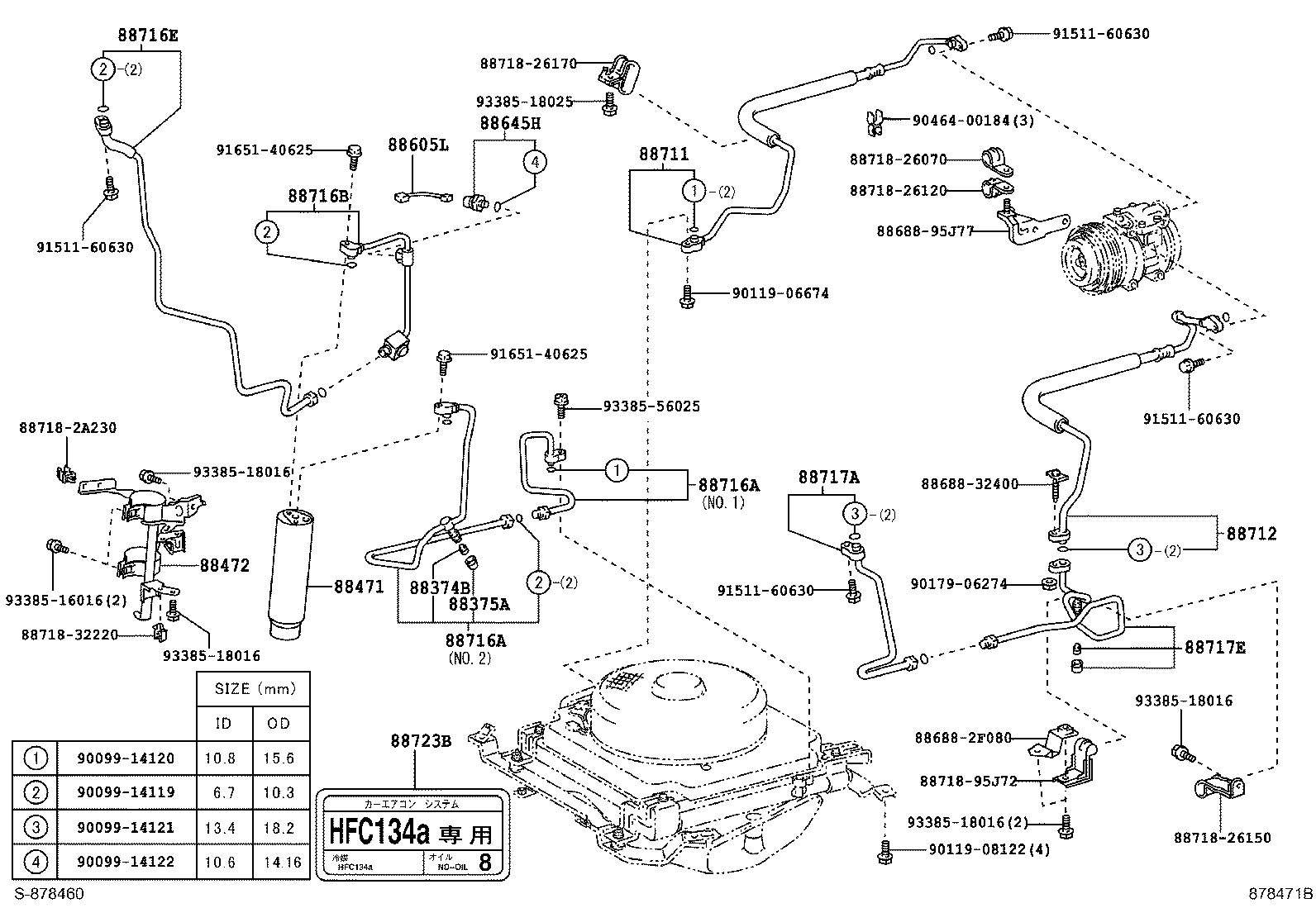

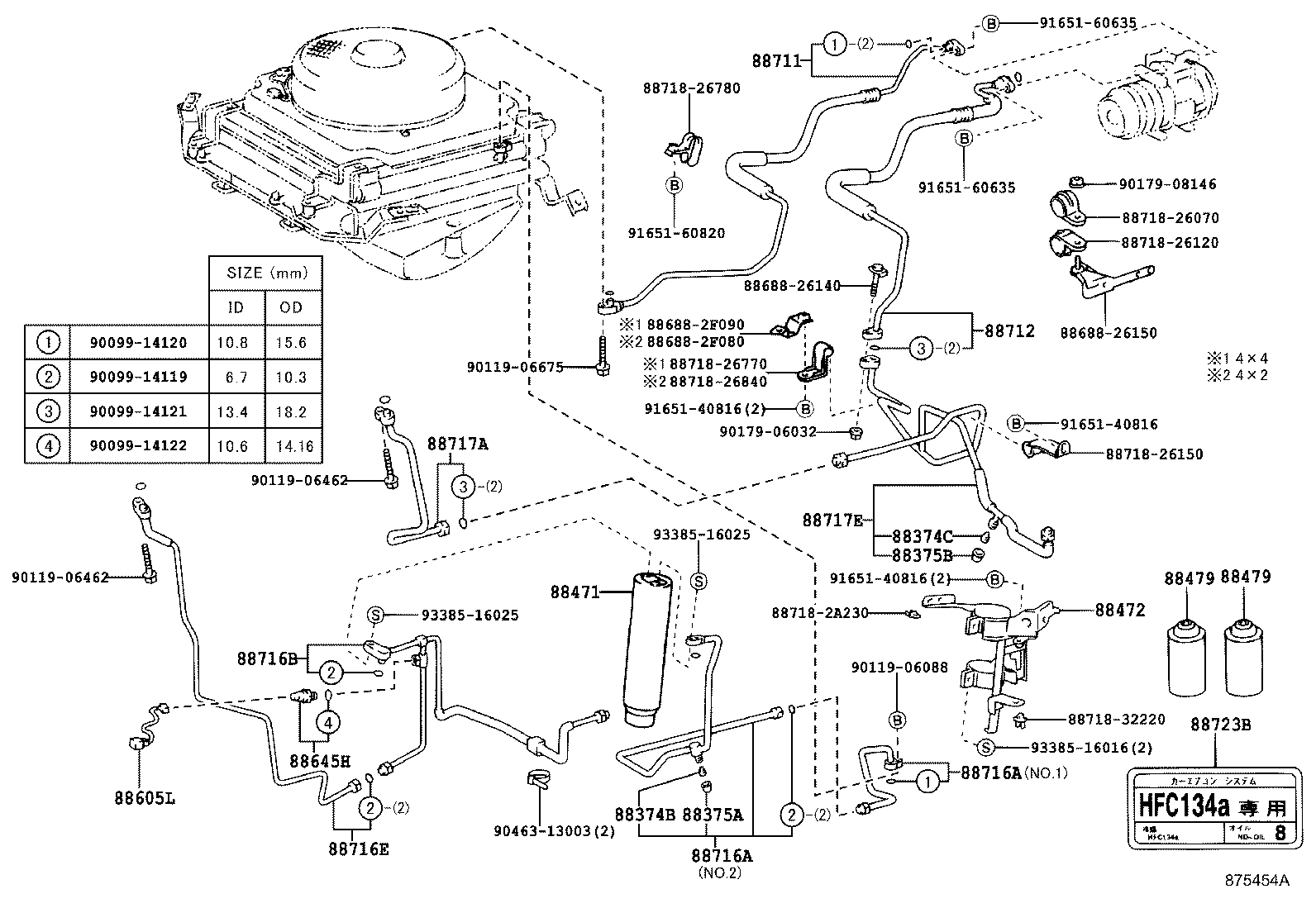

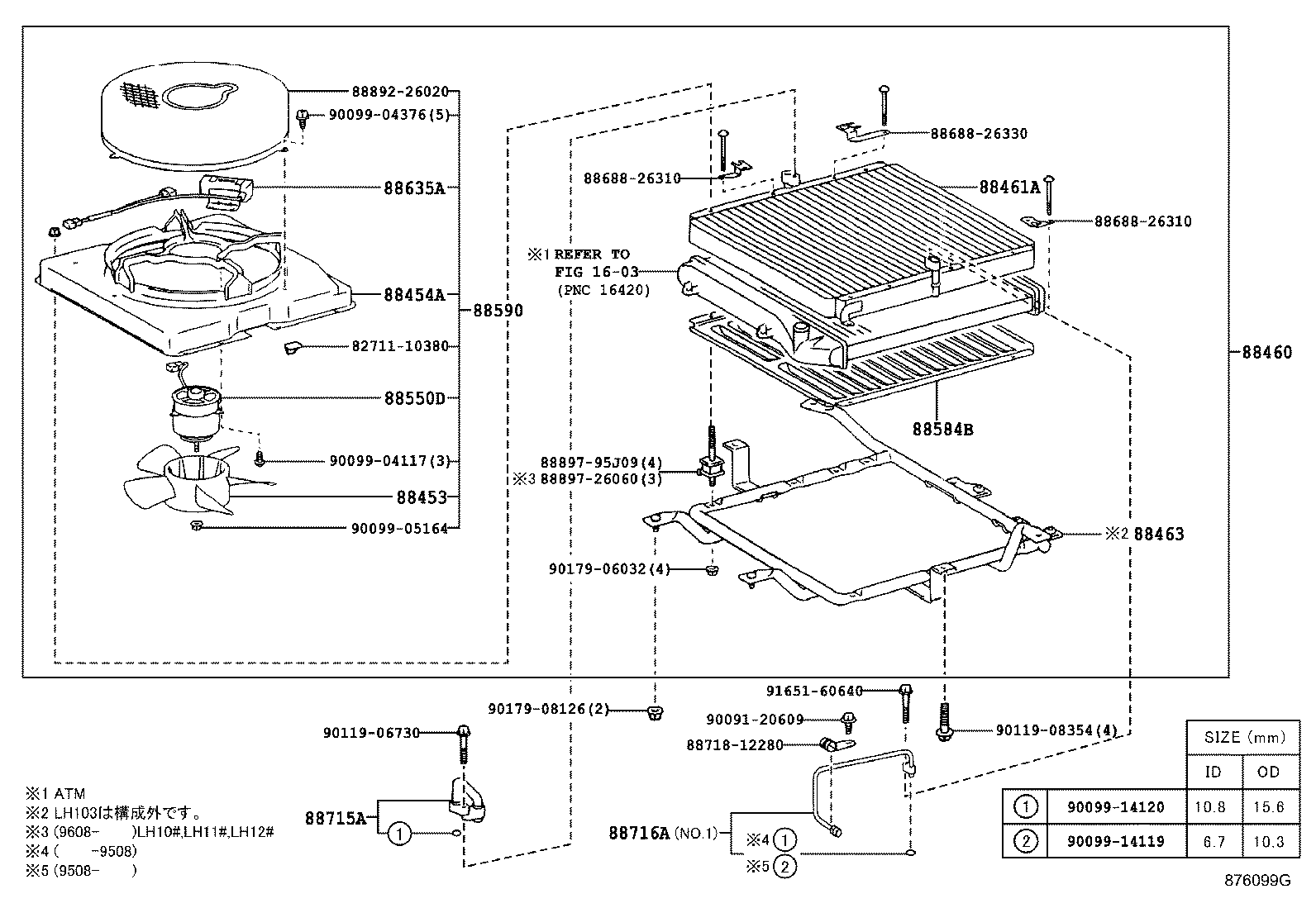

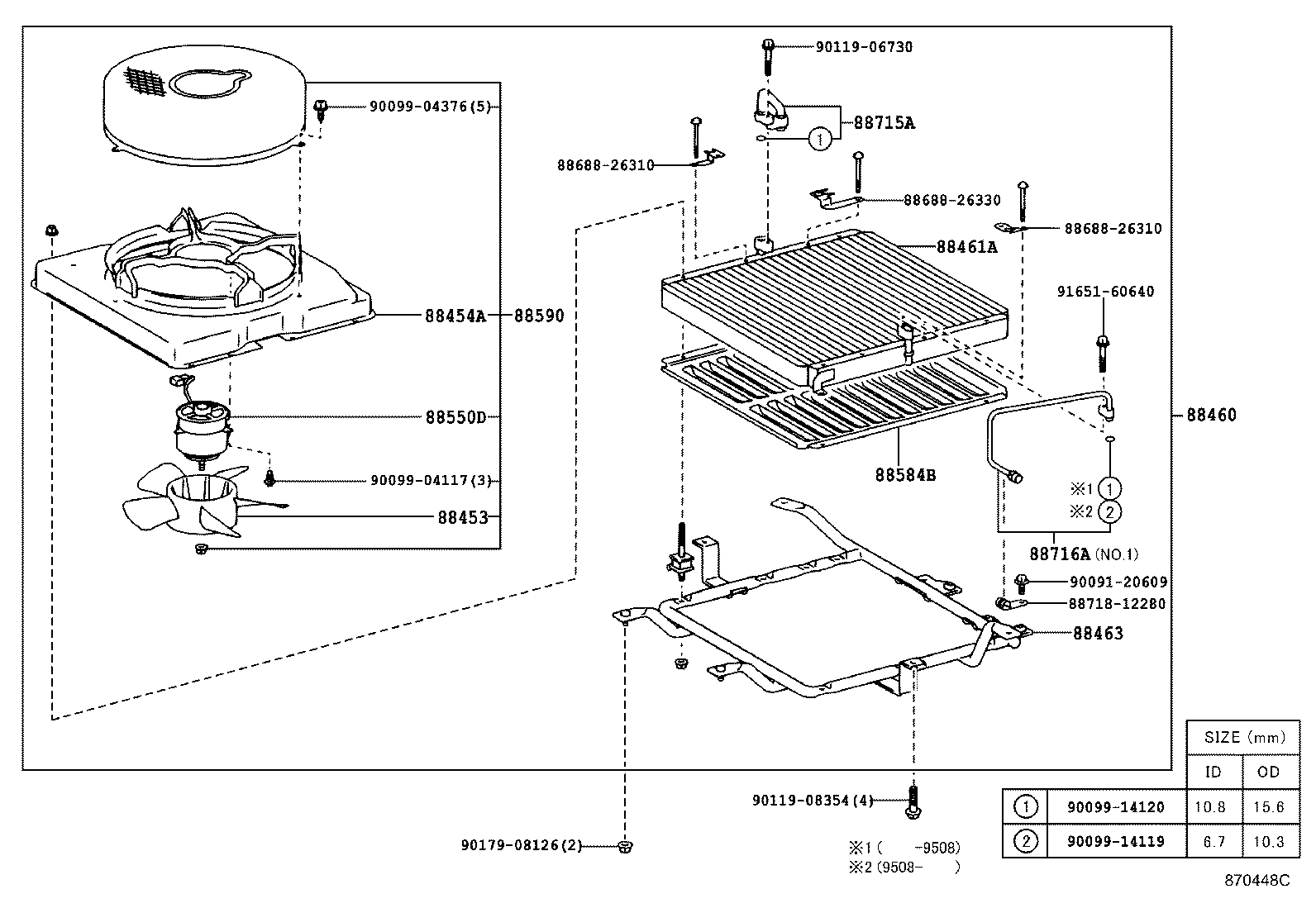

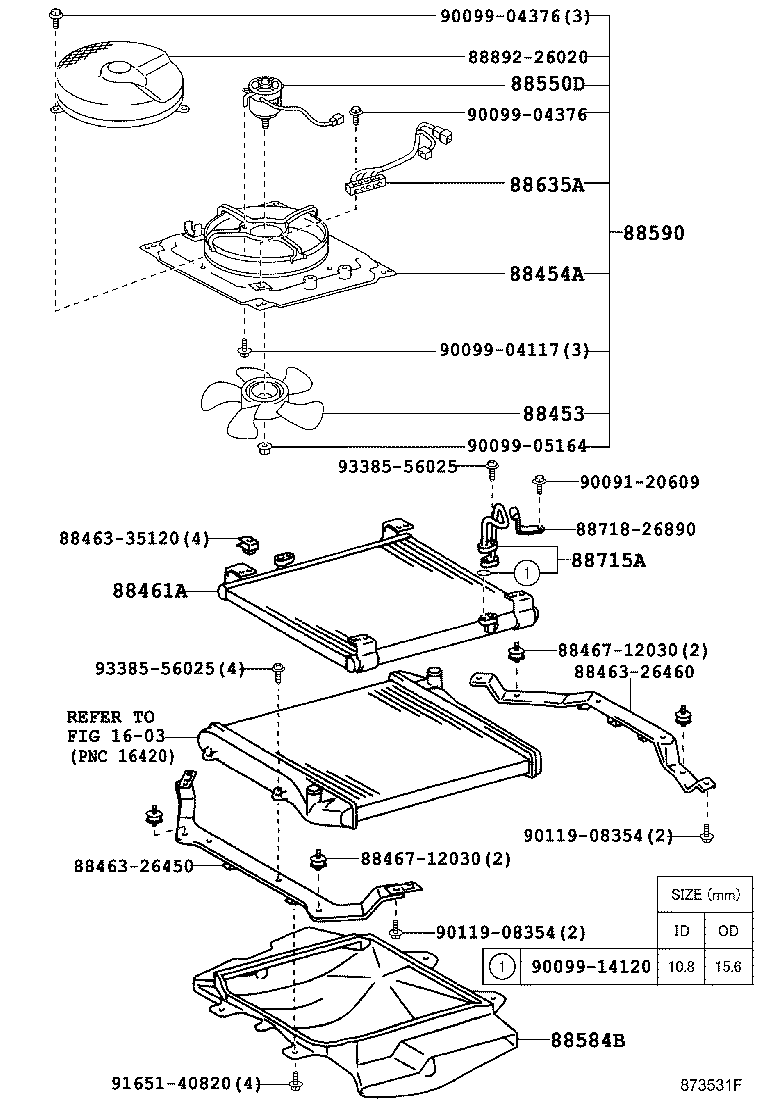

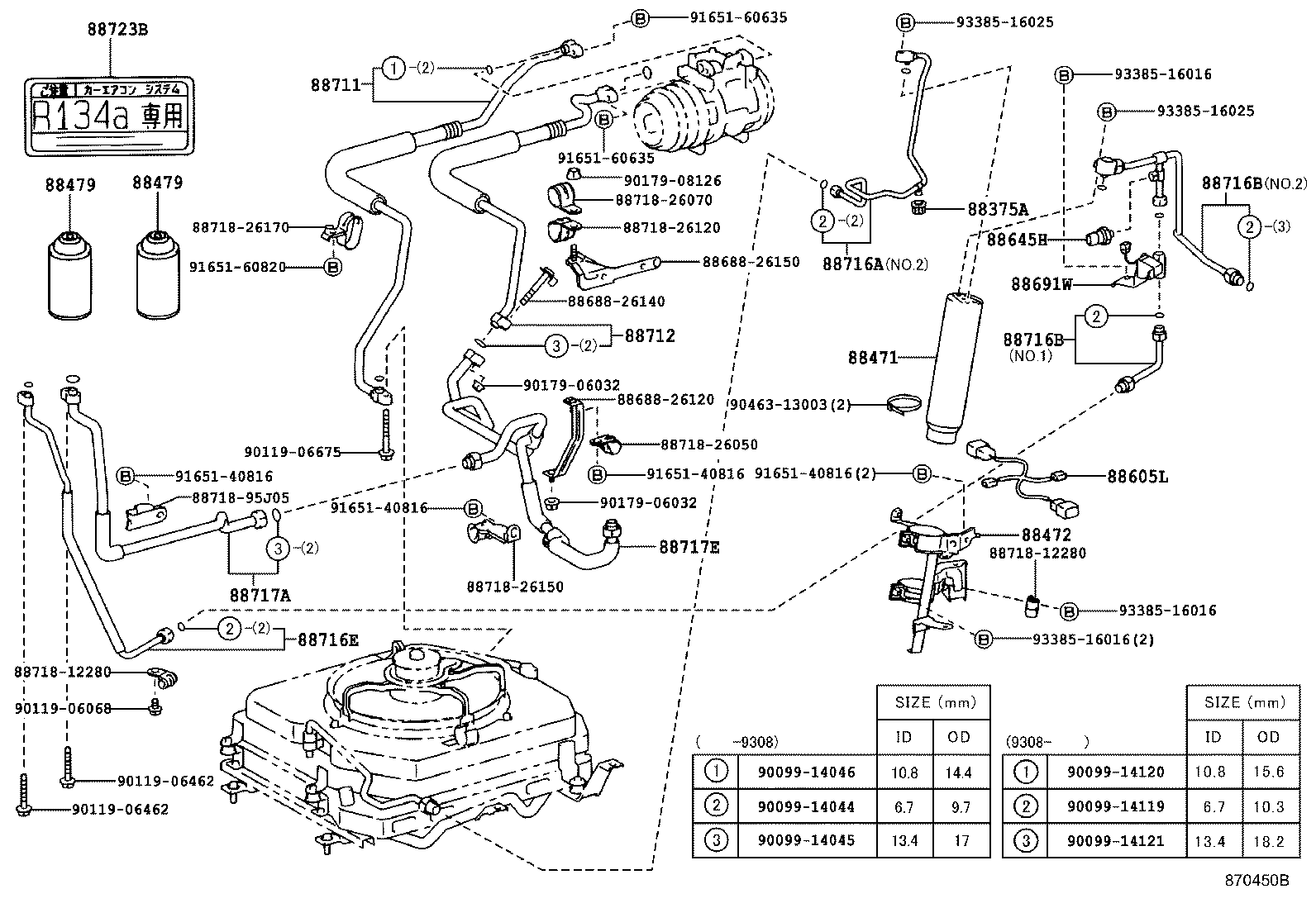

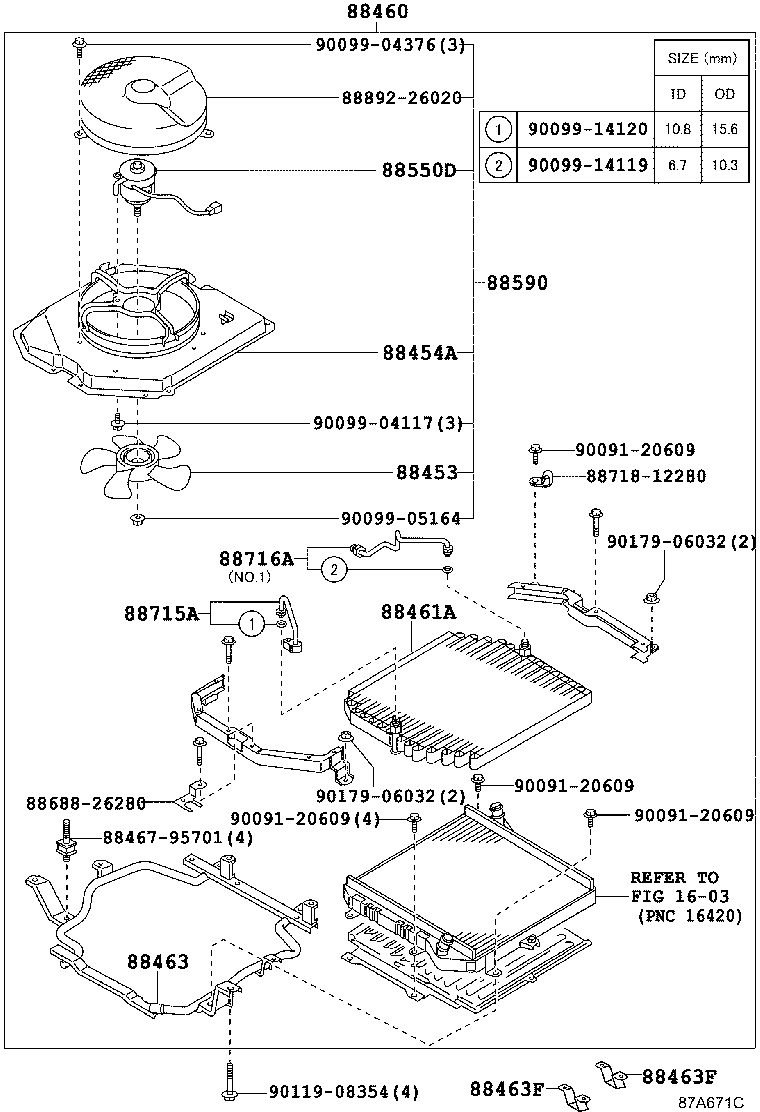

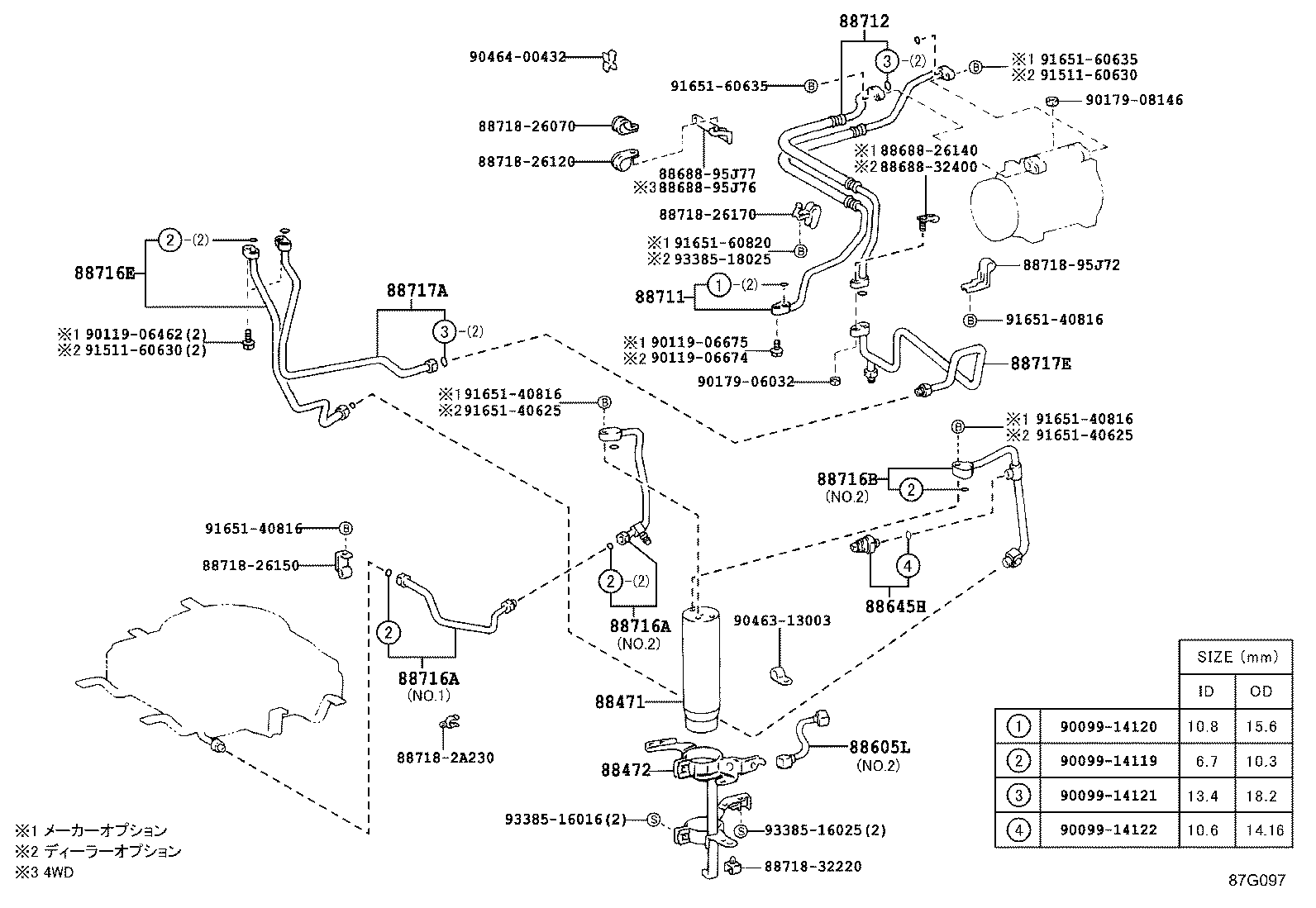

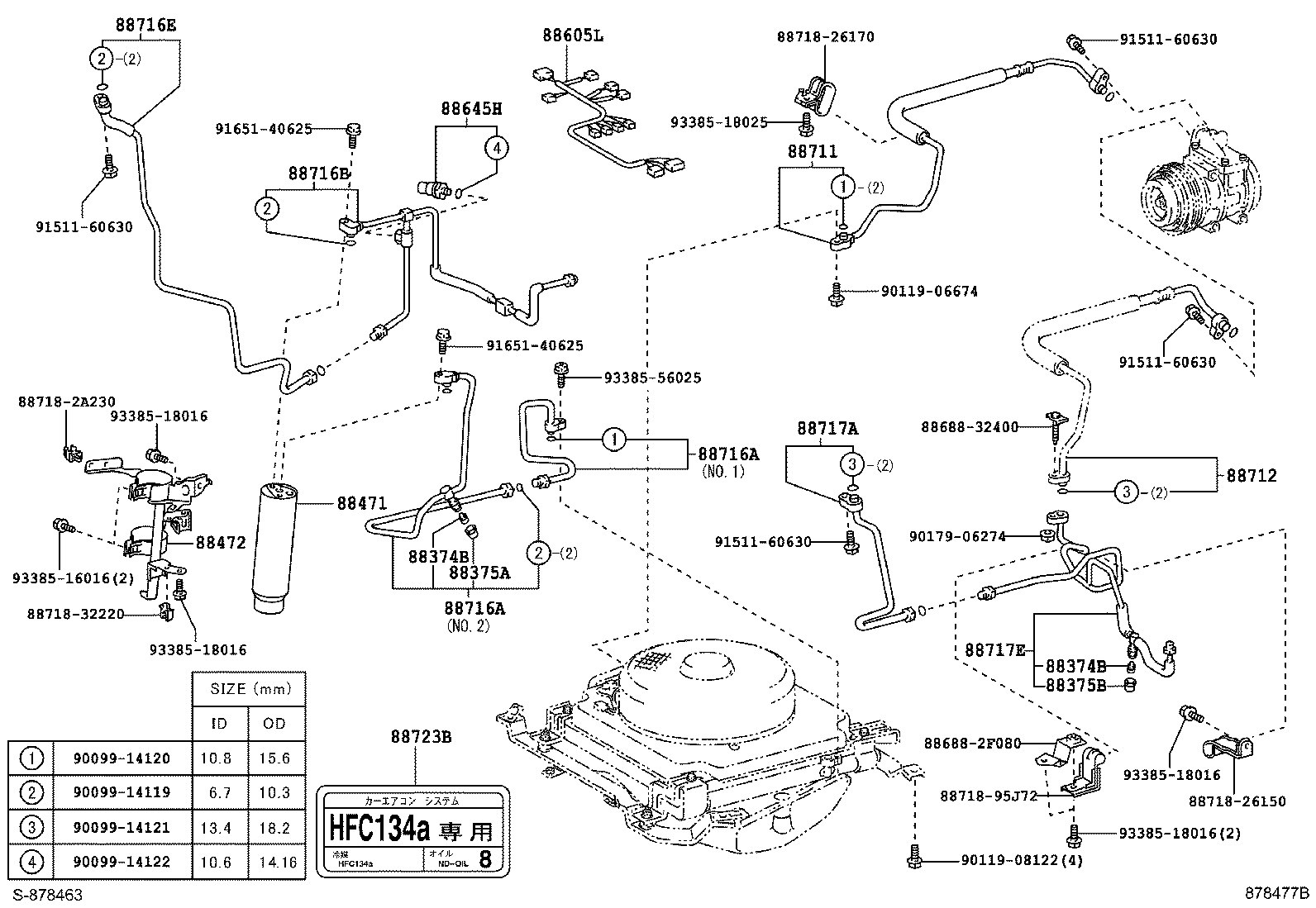

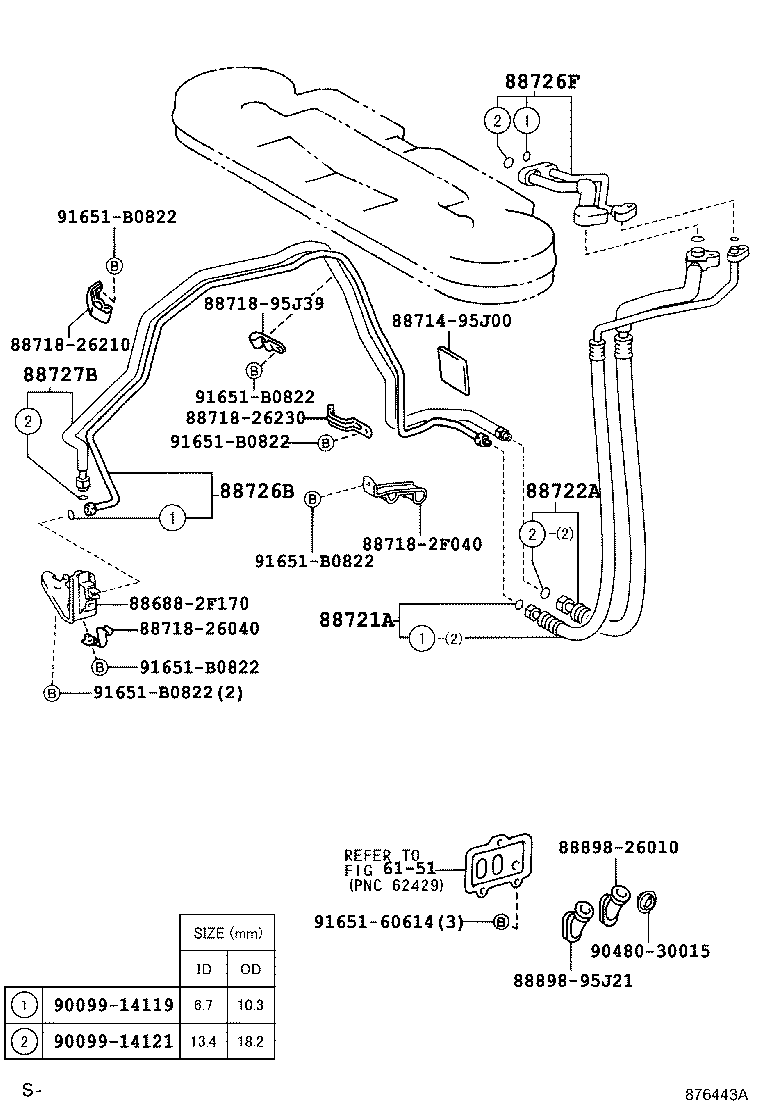

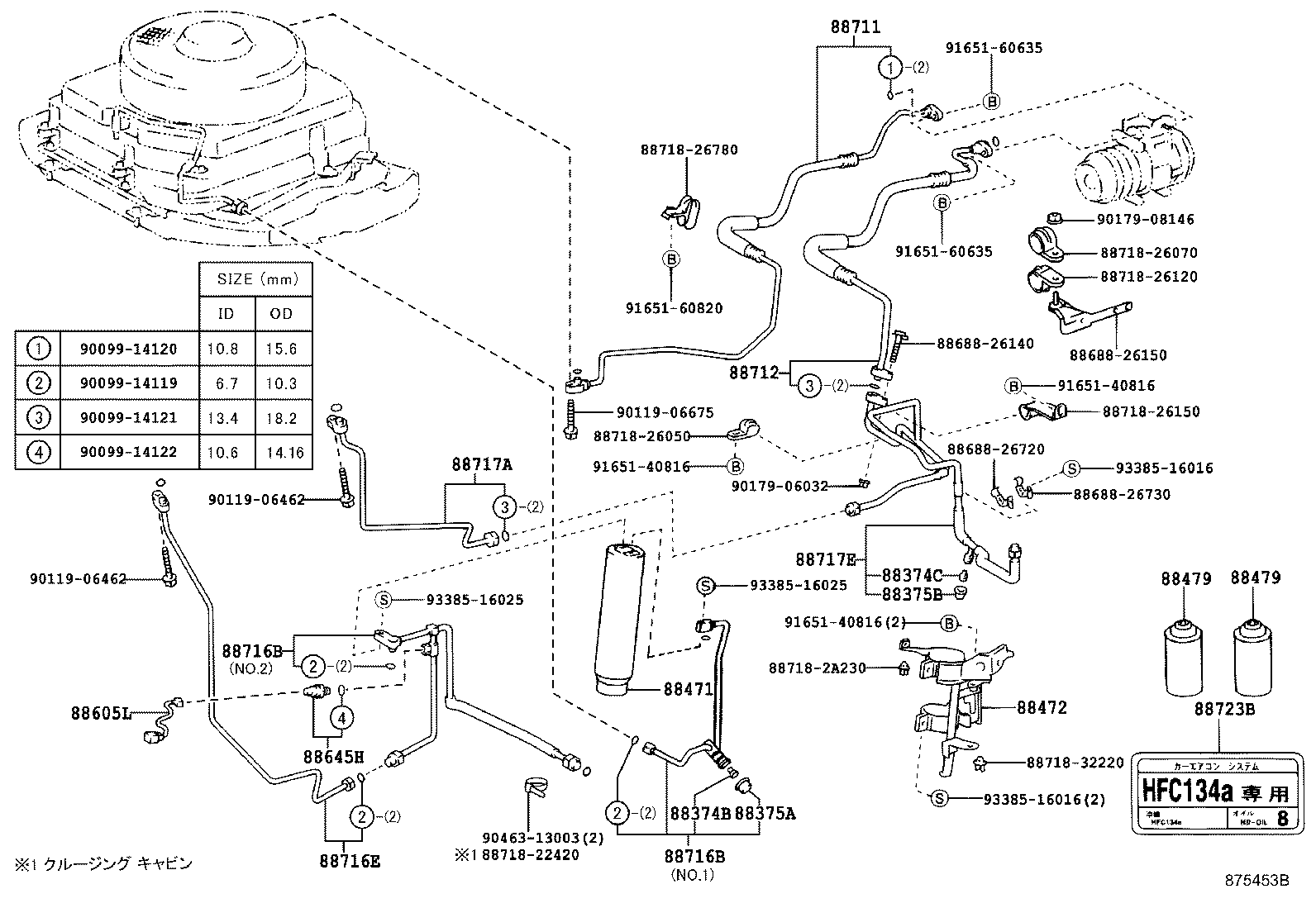

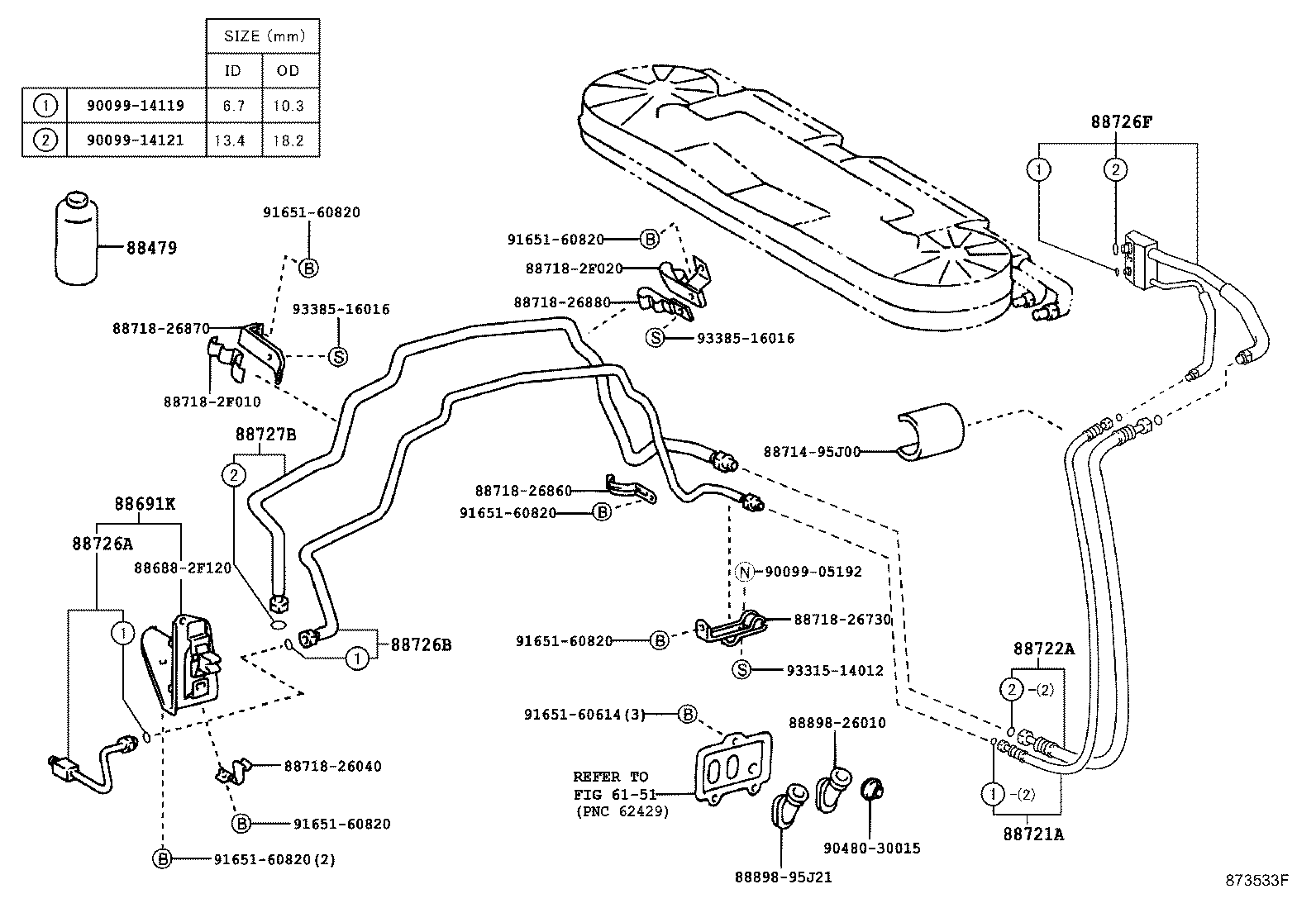

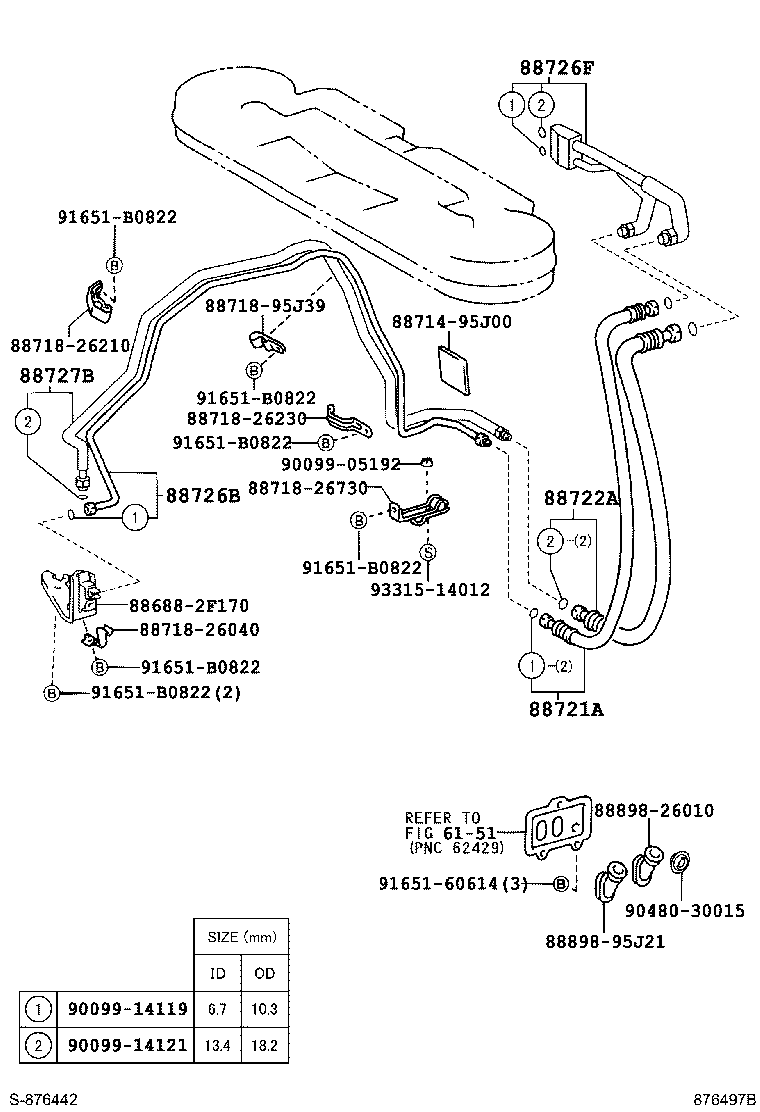

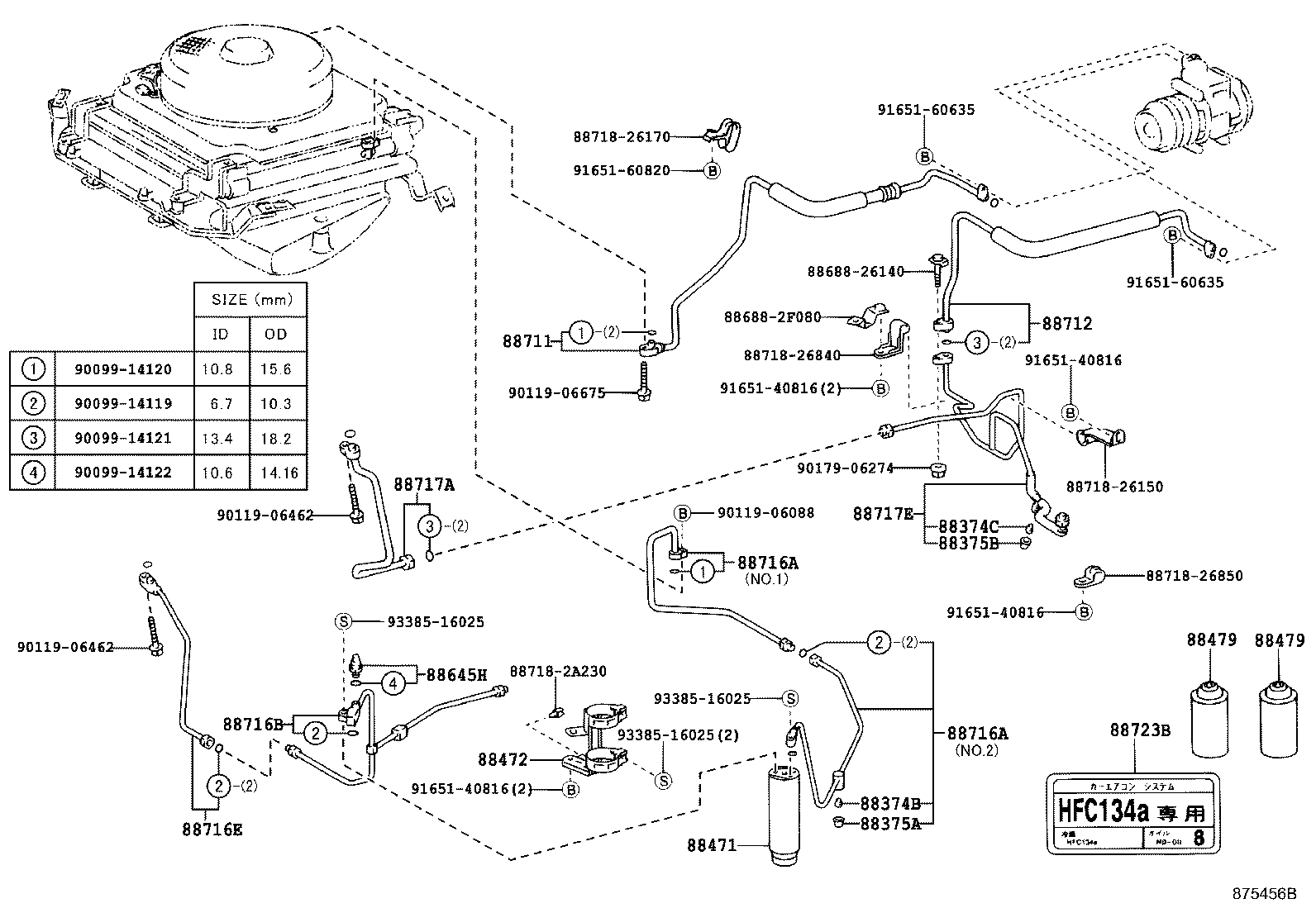

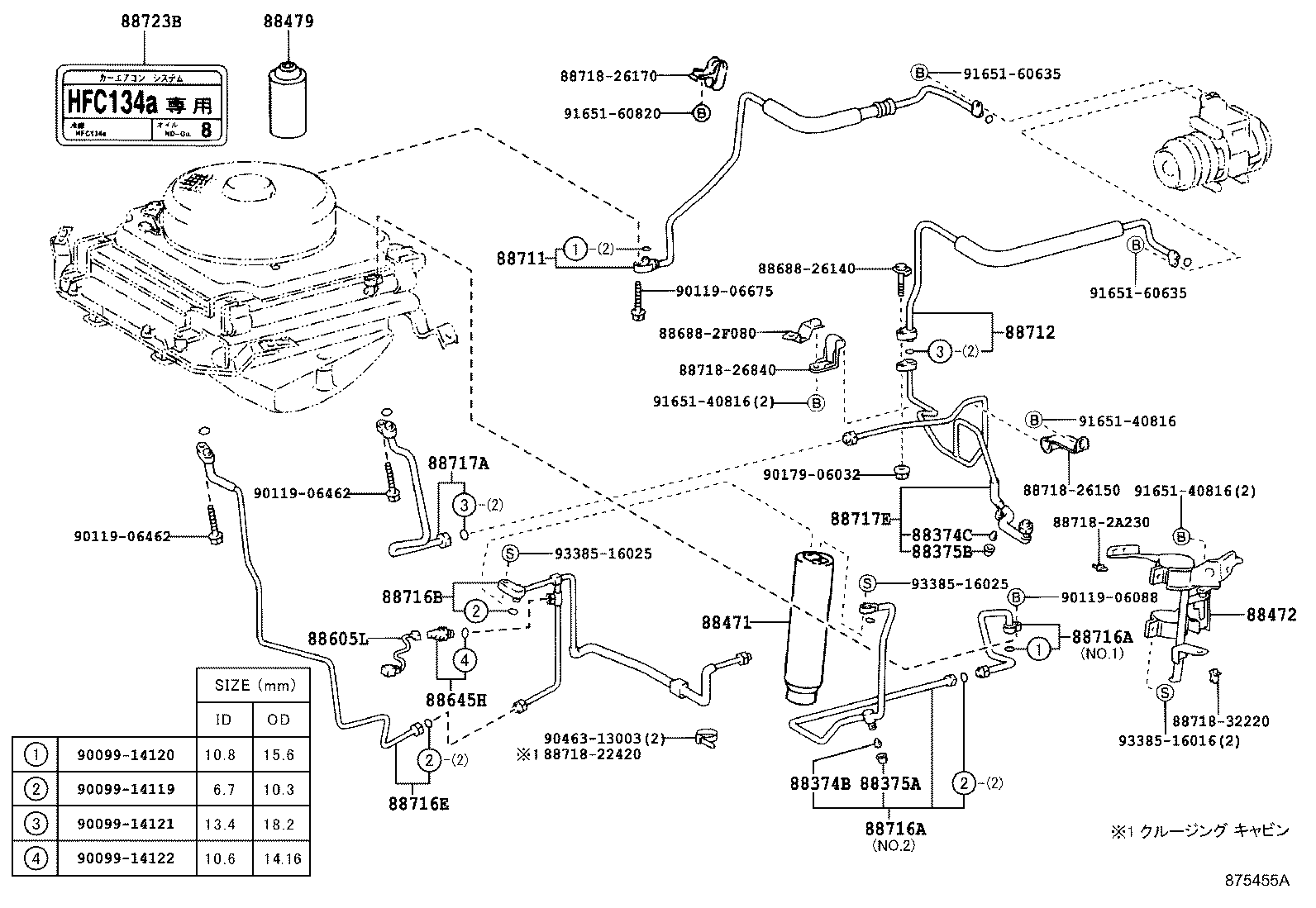

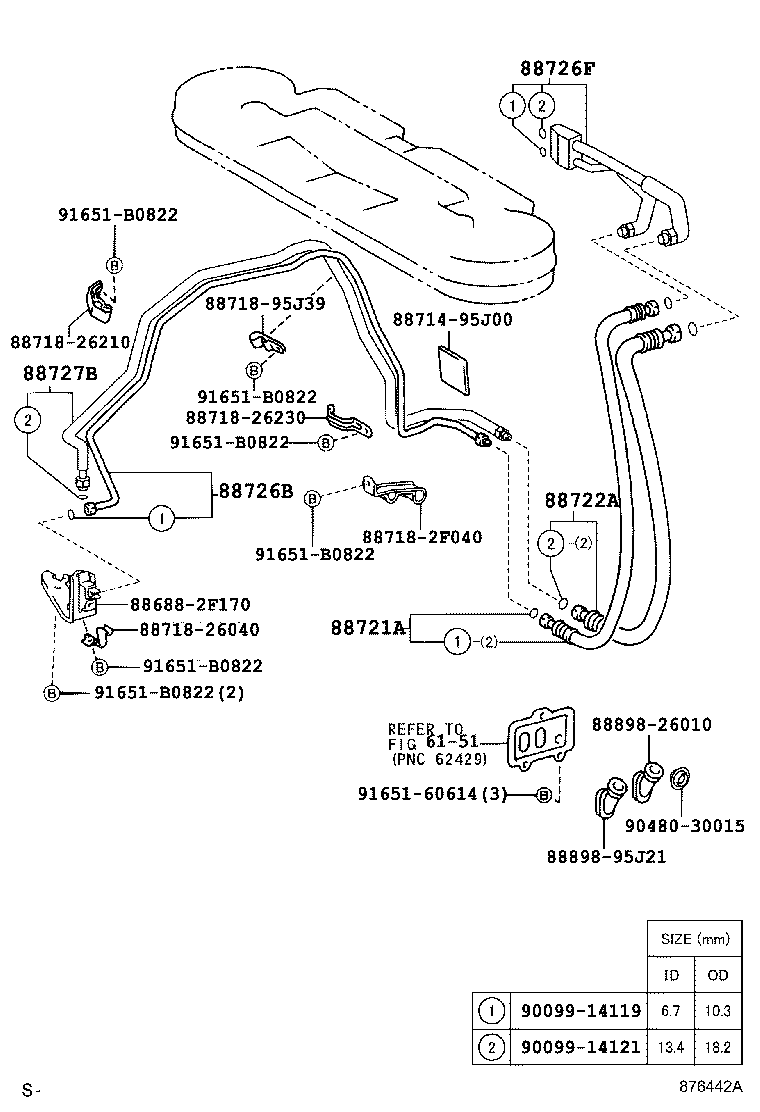

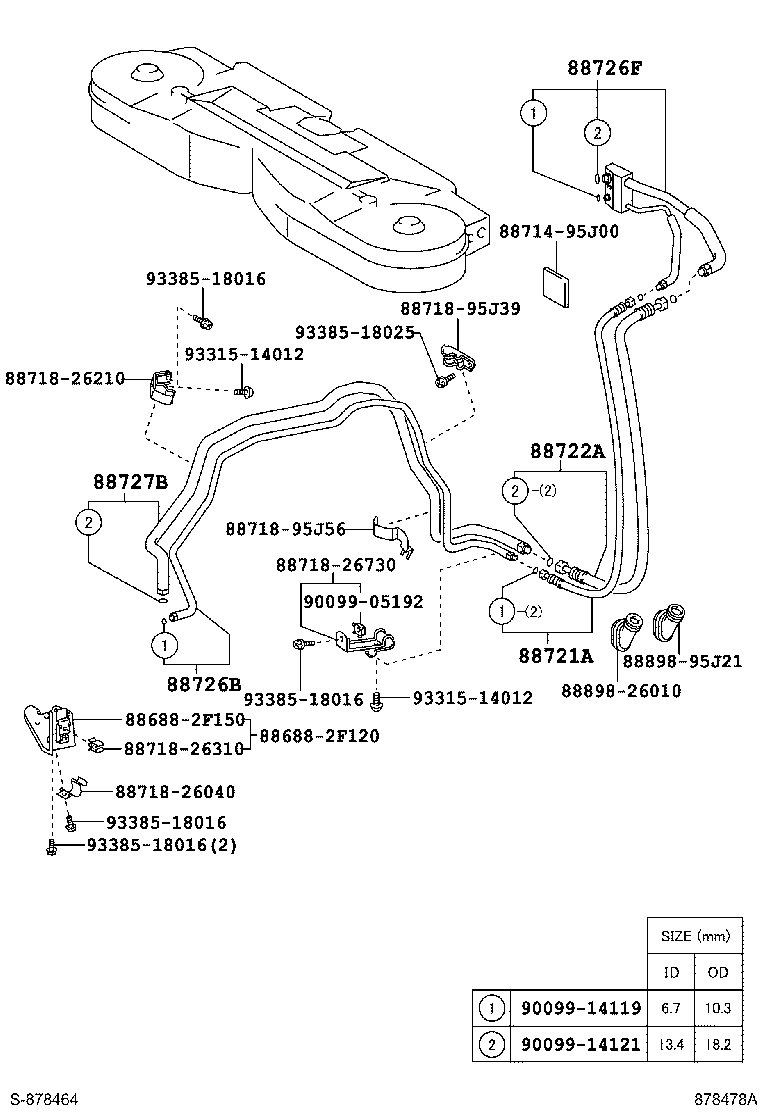

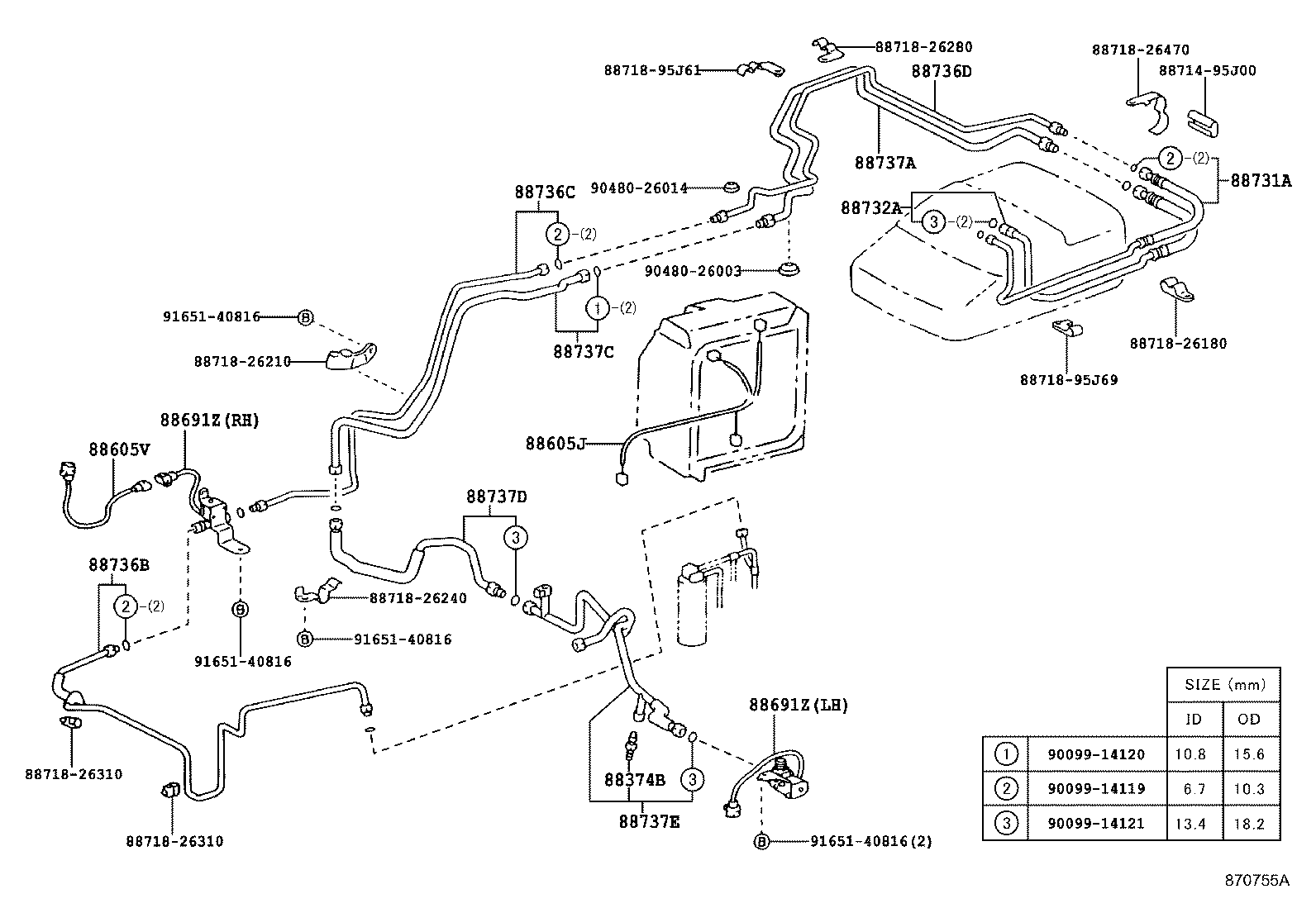

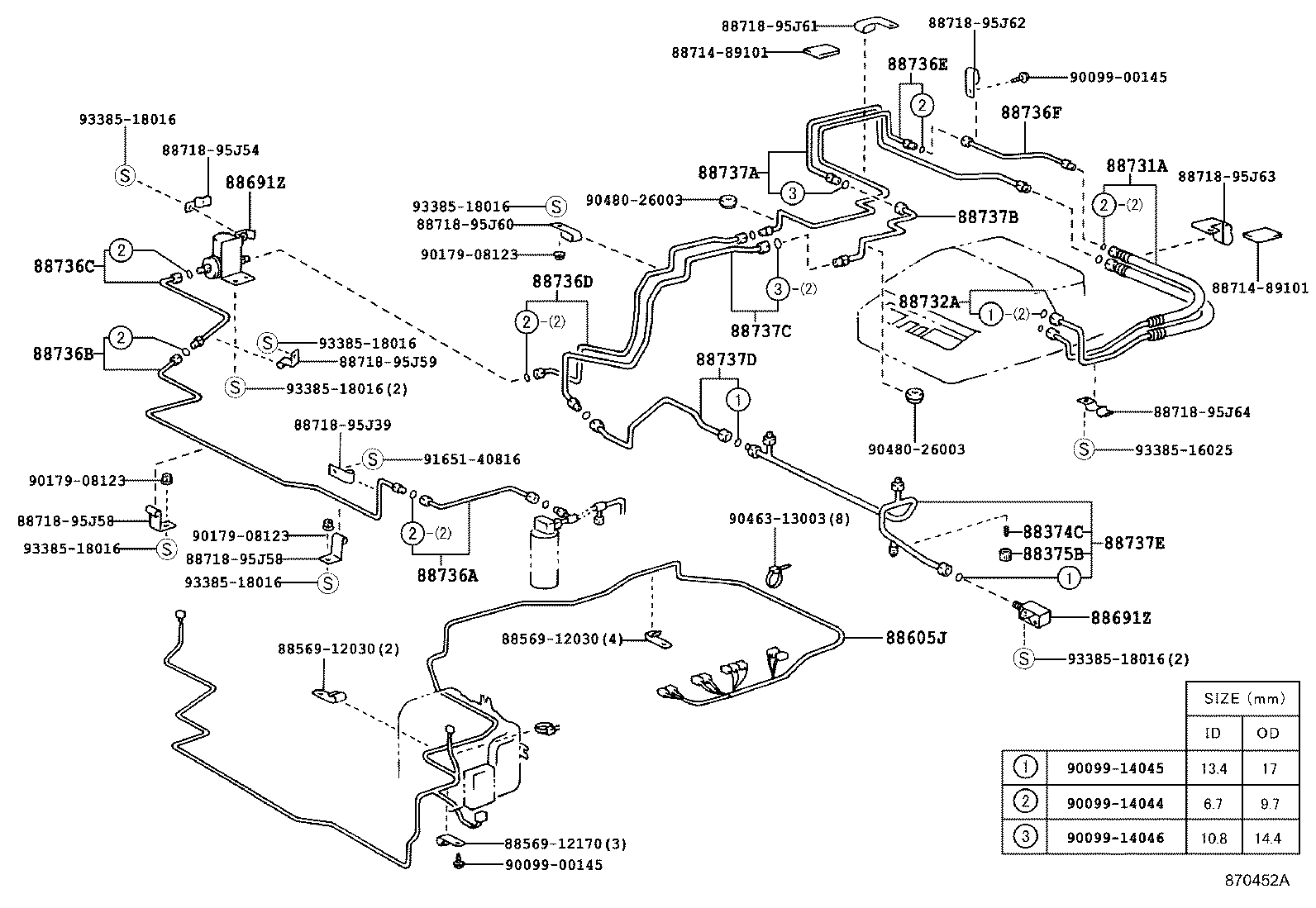

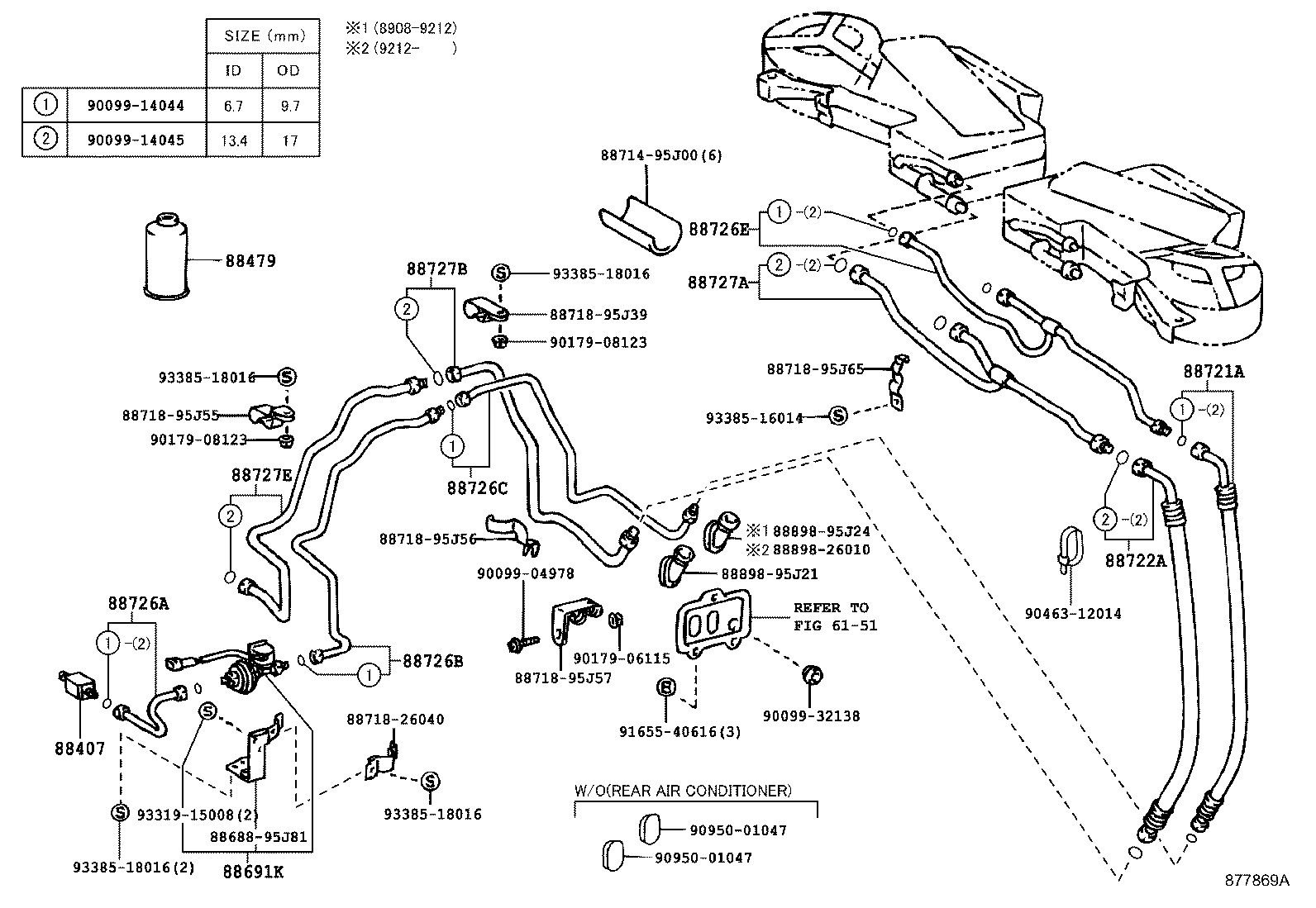

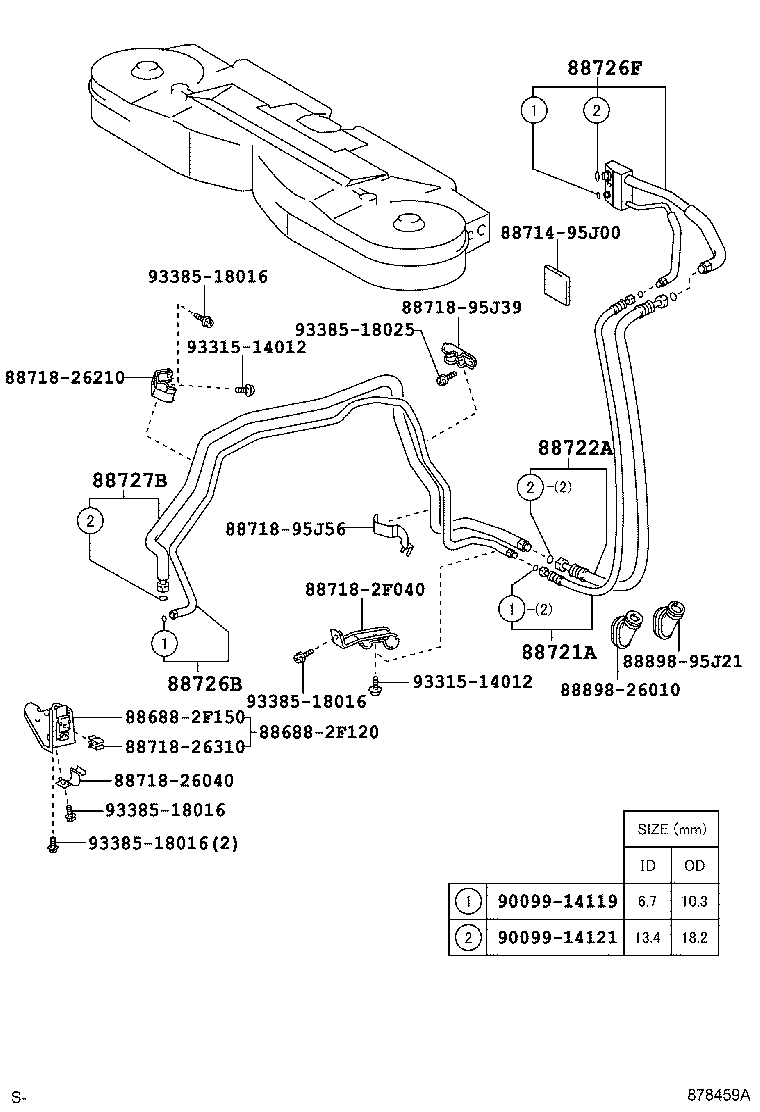

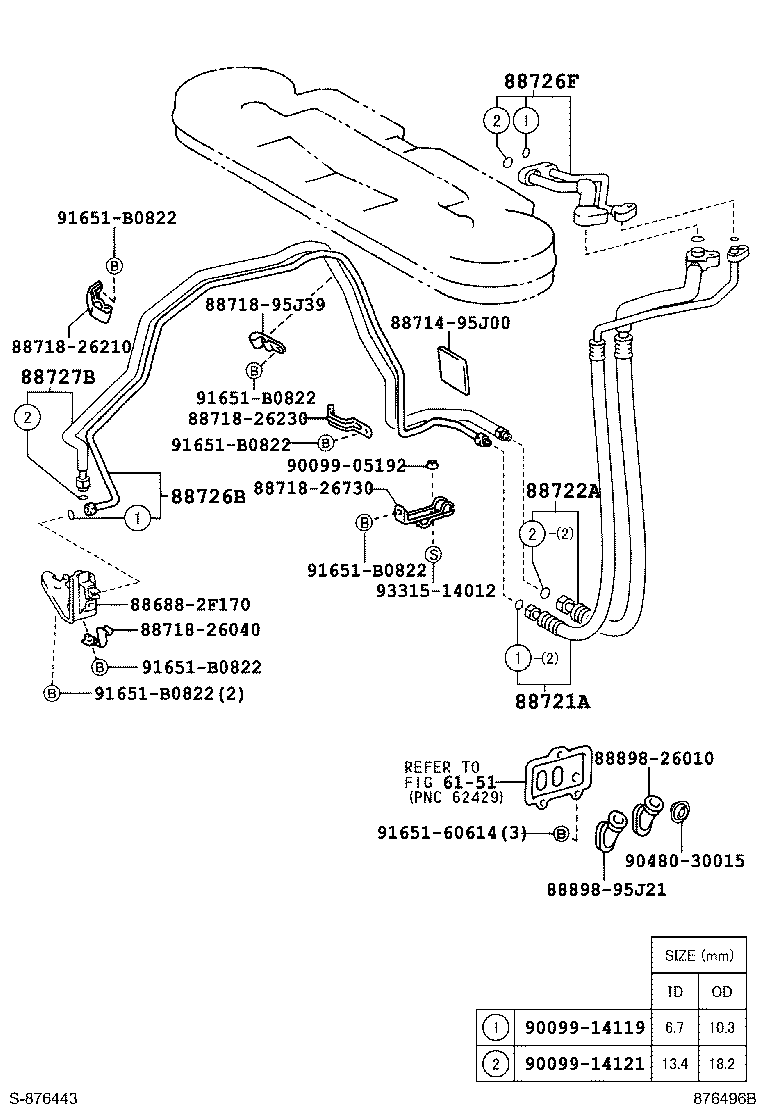

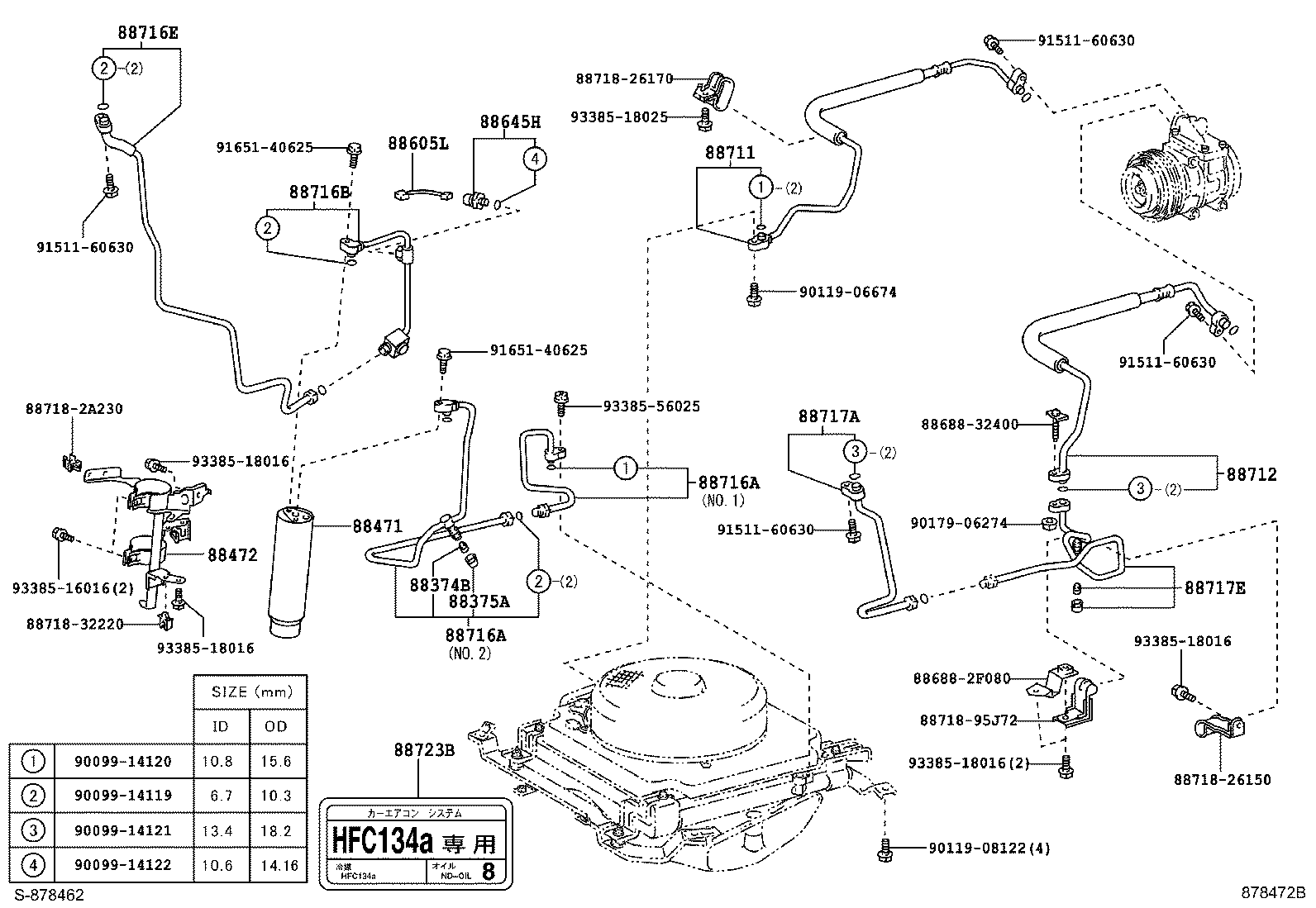

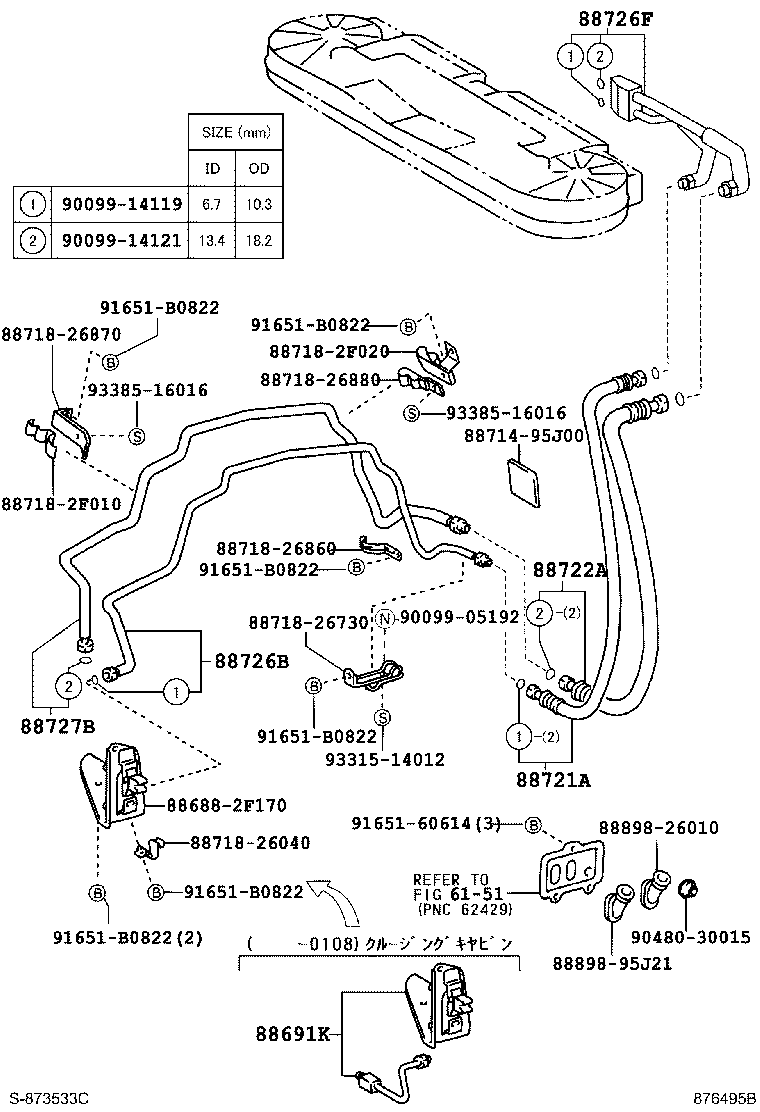

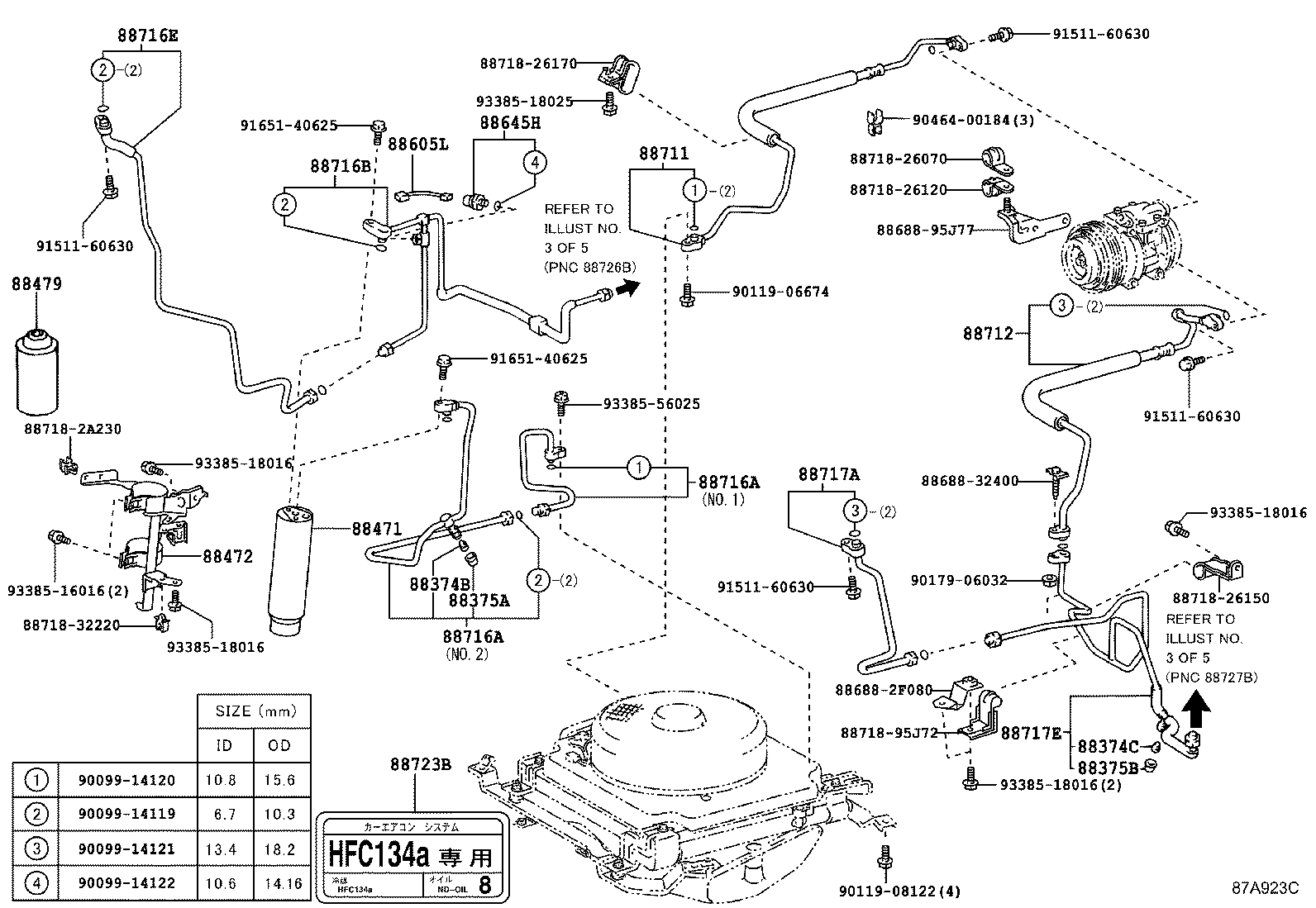

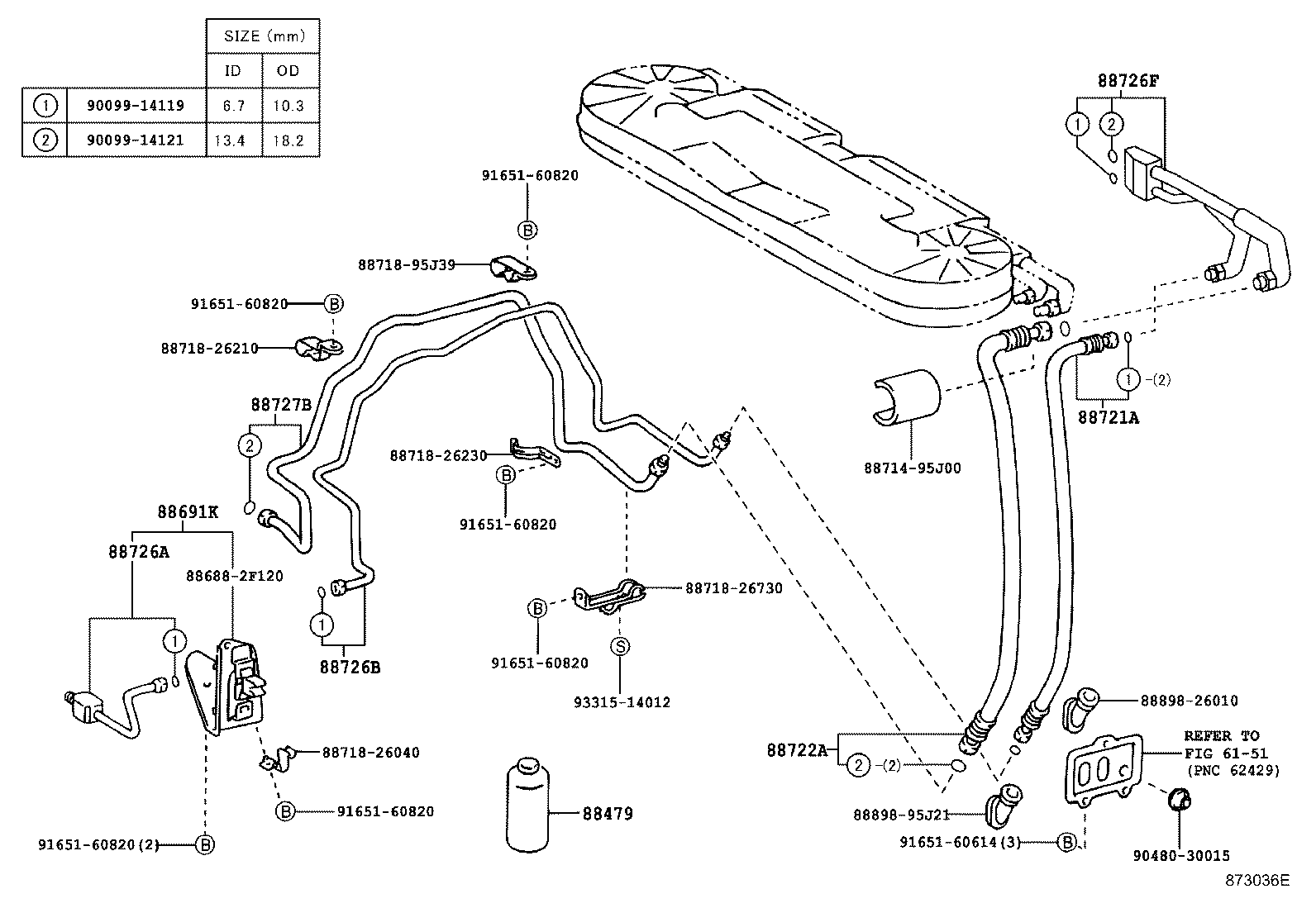

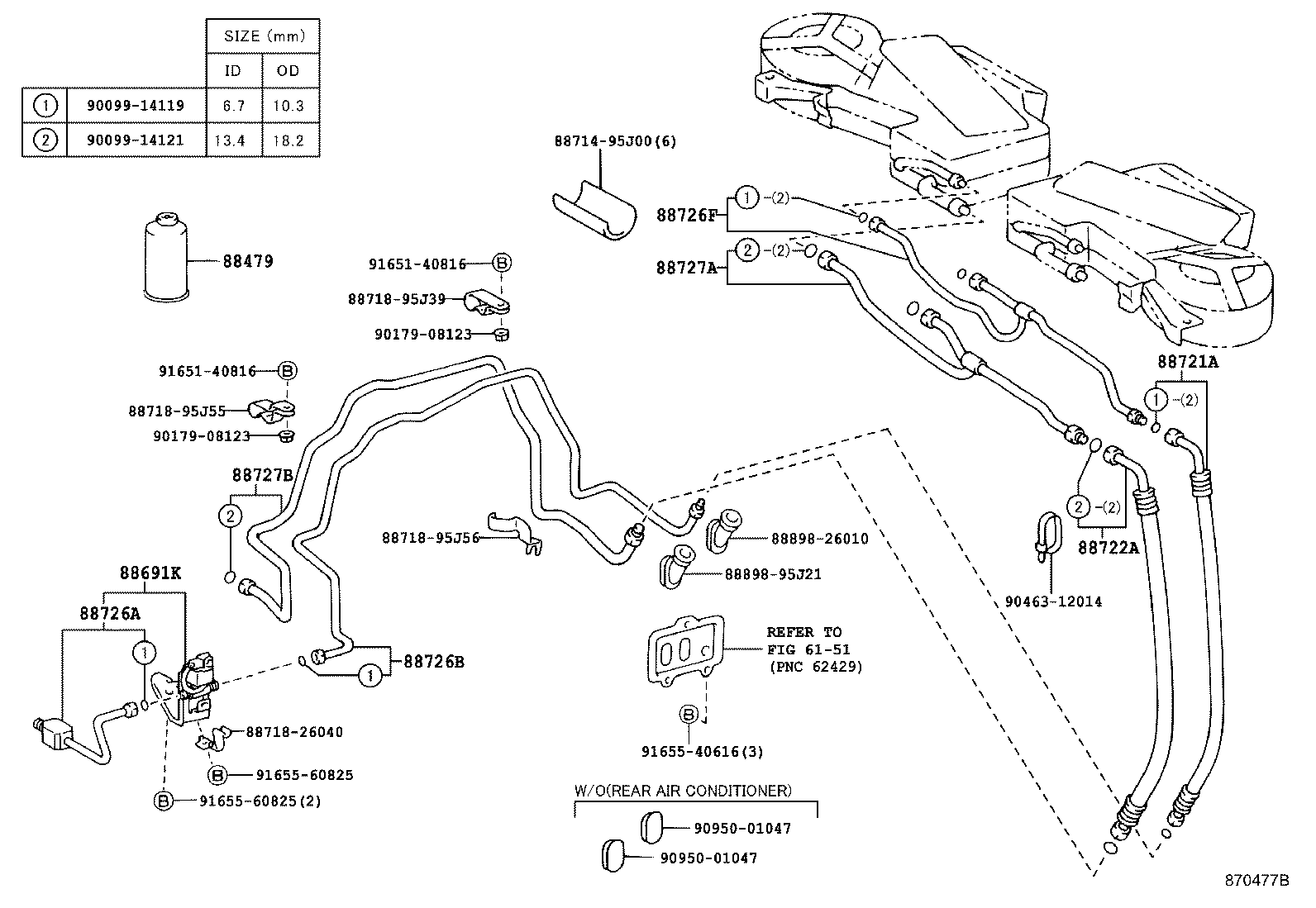

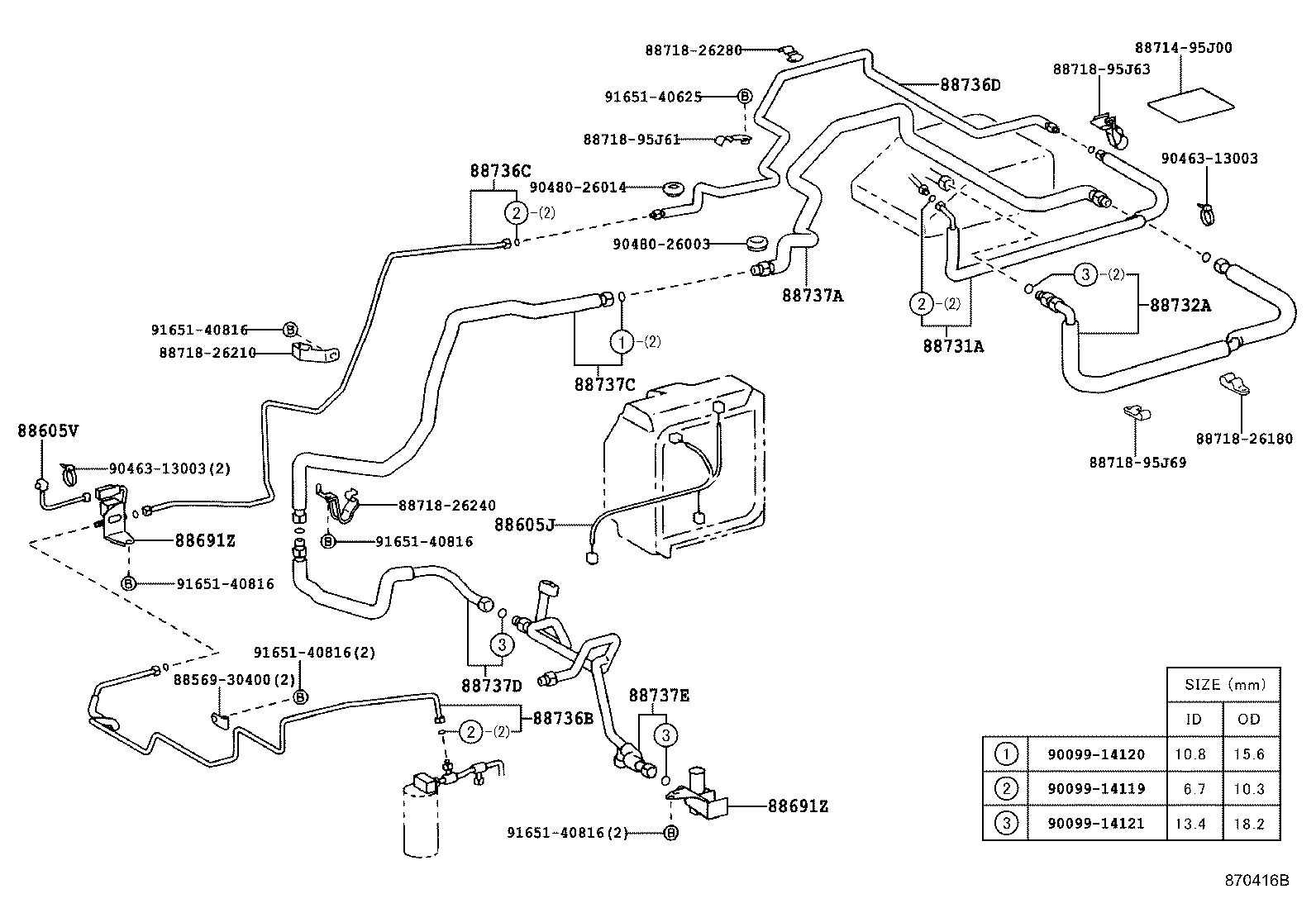

Figure 870447A 870447A 1989-08 → 1993-08 Figure 878484A 878484A 1989-08 → 1993-08 Figure 87G106 87G106 1989-08 → 1993-08 Figure 87G107 87G107 1989-08 → 1993-08 Figure 87G108 87G108 1989-08 → 1993-08 Figure 87A670C 87A670C 1993-08 → 1995-08 Figure 870448C 870448C 1993-08 → 1998-08 Figure 876120F 876120F 1993-08 → 1998-08 Figure 876099G 876099G 1993-08 → 1999-07 Figure 87B380A 87B380A 1993-08 → 1996-08 Figure 87A671C 87A671C 1995-08 → 1996-08 Figure 87A672E 87A672E 1996-08 → 1999-08 Figure 875457A 875457A 1996-08 → 1998-08 Figure 873060I 873060I 1998-08 → 1999-07 Figure 873060I 873060I 1998-08 → — Figure 873060I 873060I 2003-08 → — Figure 87F318A 87F318A 1998-08 → 1999-07 Figure 87F318A 87F318A 1998-08 → — Figure 87F318A 87F318A 1998-08 → — Figure 87F318A 87F318A 2003-08 → — Figure 873531F 873531F 1999-07 → — Figure 87A611A 87A611A 1989-08 → 1993-08 Figure 870414E 870414E 1989-08 → 1993-08 Figure 877817A 877817A 1993-08 → 1995-08 Figure 870450B 870450B 1989-08 → 1998-08 Figure 87G097 87G097 1995-08 → 1998-08 Figure 875104H 875104H 1993-08 → 1998-08 Figure 875453B 875453B 1998-08 → 1999-07 Figure 875454A 875454A 1998-08 → 1999-07 Figure 873571F 873571F 1998-08 → — Figure 878471B 878471B 1998-08 → 2004-08 Figure 87A923C 87A923C 1998-08 → 2004-08 Figure 878456B 878456B 1998-08 → 2004-08 Figure 875455A 875455A 1998-08 → 1999-07 Figure 875455A 875455A 1998-08 → — Figure 878472B 878472B 1998-08 → 2003-08 Figure 878472B 878472B 2000-12 → 2003-08 Figure 878477B 878477B 1998-08 → 2003-08 Figure 878477B 878477B 2000-12 → 2003-08 Figure 873532C 873532C 1999-07 → — Figure 875456B 875456B 1999-07 → — Figure 876441D 876441D 2003-08 → — Figure 878457C 878457C 2003-08 → 2004-07 Figure 878457C 878457C 2003-08 → — Figure 878972B 878972B 2004-07 → — Figure 878458A 878458A 2003-08 → — Figure 870475B 870475B 1989-08 → 1993-08 Figure 870517D 870517D 1993-08 → — Figure 877869A 877869A 1989-08 → 1993-08 Figure 870477B 870477B 1993-08 → 1995-08 Figure 870477B 870477B 1995-08 → 2001-08 Figure 873533F 873533F 1998-08 → 1999-07 Figure 873036E 873036E 1998-08 → 1999-07 Figure 876494B 876494B 1999-07 → — Figure 876495B 876495B 1999-07 → — Figure 876496B 876496B 1999-07 → — Figure 876497B 876497B 1999-07 → — Figure 876497B 876497B 1999-07 → — Figure 878478A 878478A 1998-08 → 2003-08 Figure 878478A 878478A 2000-12 → 2003-08 Figure 876443A 876443A 2003-08 → — Figure 876442A 876442A 2003-08 → — Figure 878459A 878459A 2003-08 → — Figure 870452A 870452A 1989-08 → 1993-08 Figure 870416B 870416B 1993-08 → 1995-08 Figure 870755A 870755A 1995-08 → 1999-07 Figure 870510A 870510A 1989-08 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88407 Glass Sub-assy, Sight
88453 Fan, Cooling (FOR CONDENSER)
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88461A Core, Cooler Condenser
88463 Bracket, Cooler Condenser, NO.1
88463A Bracket, Cooler Condenser, NO.2
88463B Bracket, Cooler Condenser, NO.3
88463F Bracket, Cooler Condenser, NO.7
88470 Receiver & Dryer Assy, Cooler
88470C Bolt, Fuse
88471 Tank, Receiver Air Conditioner
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88481 Glass, Sight
88550D Motor Assy, Blower
88584B Guide, Cooler Air
88590 Blower Assy, W/Shroud
88605J Harness Sub-assy, Air Conditioner Wiring
88605L Harness Sub-assy, Wiring Air Conditioner
88605V Harness Sub-assy, Wiring Air Conditioner
88635A Resistor, Blower (FOR COOLER CONDENSER MOTOR)
88645H Switch, Pressure NO.1
88691K Valve Assy, Magnet
88691W Valve, Magnet
88691Z Valve, Magnet (COOL BOX)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717E Pipe, Cooler Refrigerant Suction, E
88721A Hose, Liquid, A
88722A Hose, Suction, A
88723B Label, Cooler Service Caution
88726A Pipe, Cooler Refrigerant Liquid, A
88726B Pipe, Cooler Refrigerant Liquid, B
88726C Pipe, Cooler Refrigerant Liquid, C
88726E Pipe, Cooler Refrigerant Liquid, E
88726F Pipe, Cooler Refrigerant Liquid, F
88727A Pipe, Cooler Refrigerant Suction, A
88727B Pipe, Cooler Refrigerant Suction, B
88727E Pipe, Cooler Refrigerant Suction, E
88731A Hose, Liquid, A(FOR COOL BOX)
88732A Hose, Suction, A(FOR COOL BOX)
88736A Tube, Liquid, A(FOR COOL BOX)
88736B Tube, Liquid, B(FOR COOL BOX)
88736C Tube, Liquid, C(FOR COOL BOX)
88736D Tube, Liquid, D(FOR COOL BOX)
88736E Tube, Liquid, E(FOR COOL BOX)
88736F Tube, Liquid, F(FOR COOL BOX)
88737A Tube, Suction, A(FOR COOL BOX)
88737B Tube, Suction, B(FOR COOL BOX)
88737C Tube, Suction, C(FOR COOL BOX)
88737D Tube, Suction, D(FOR COOL BOX)
88737E Tube, Suction, E(FOR COOL BOX)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
