Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 8 illustrations

Illustrations

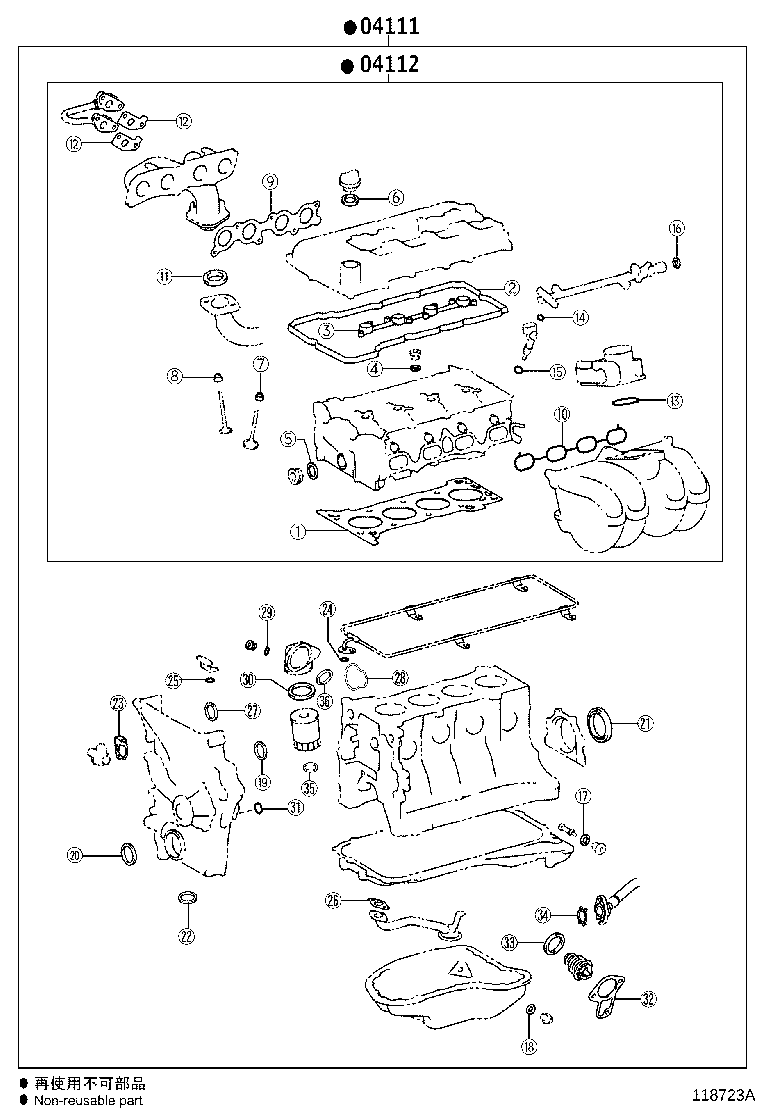

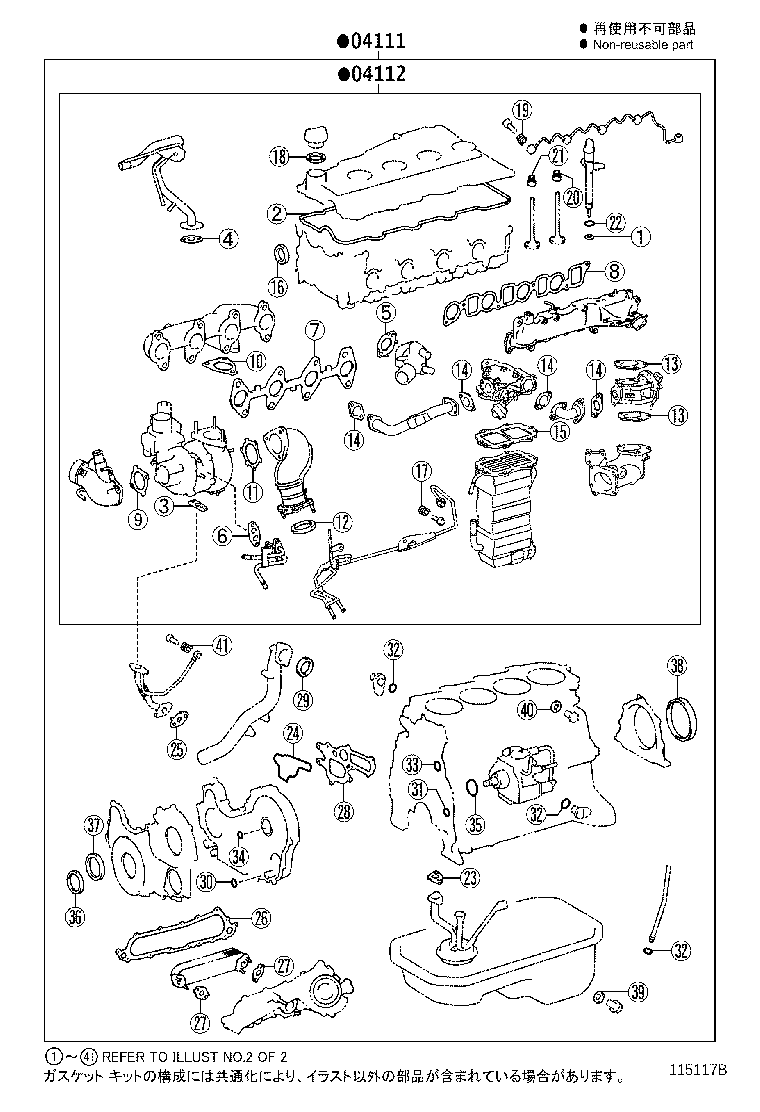

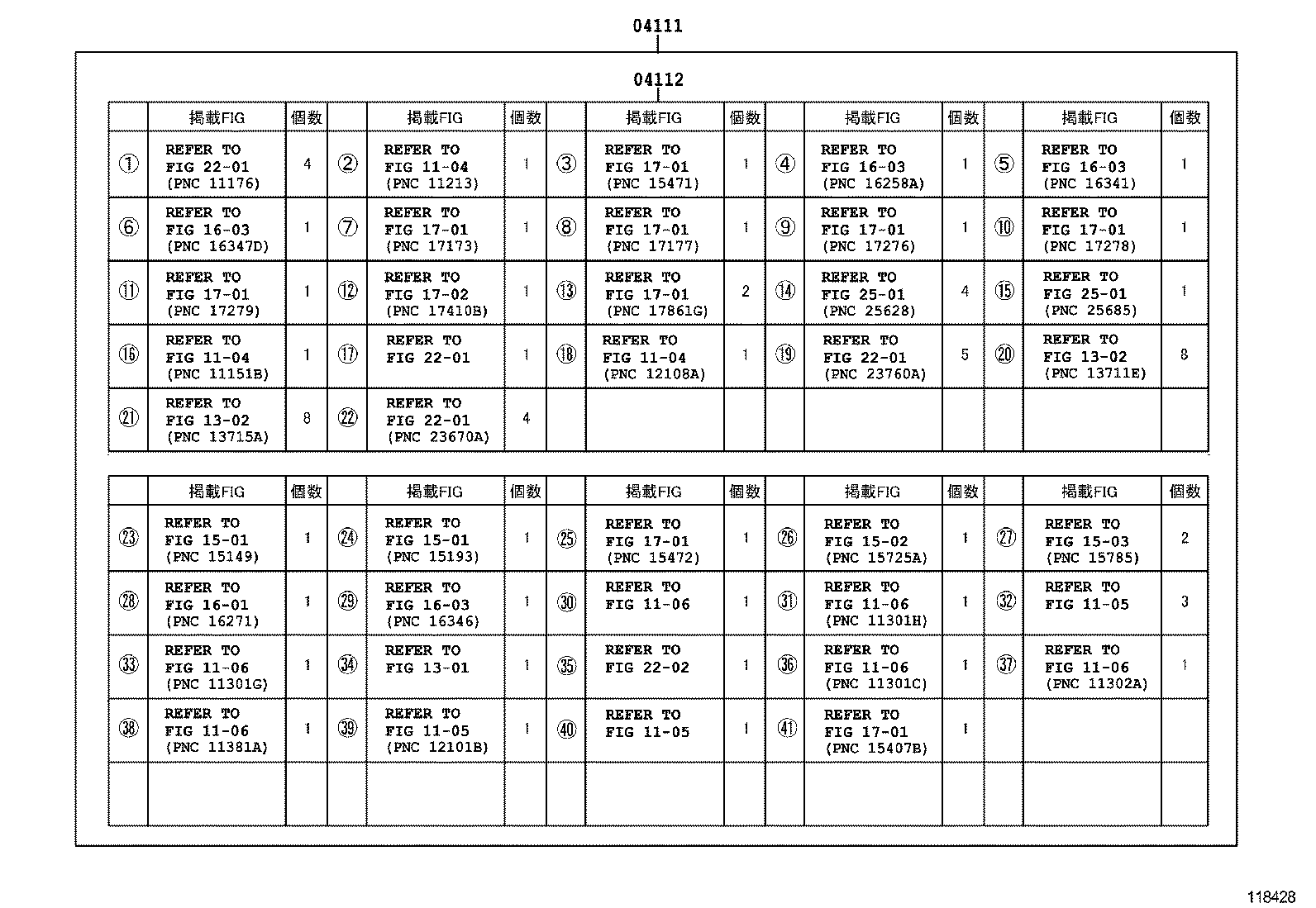

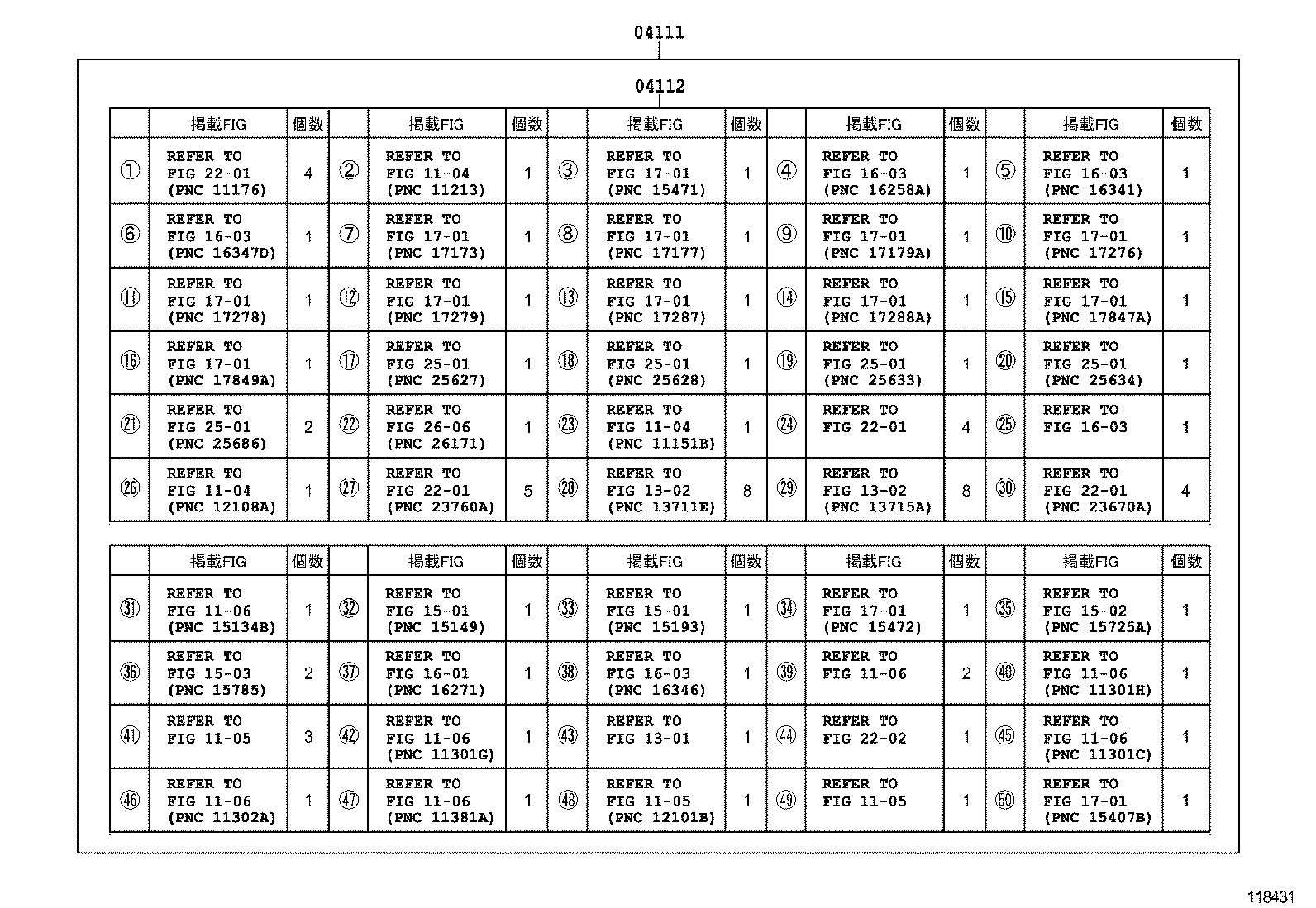

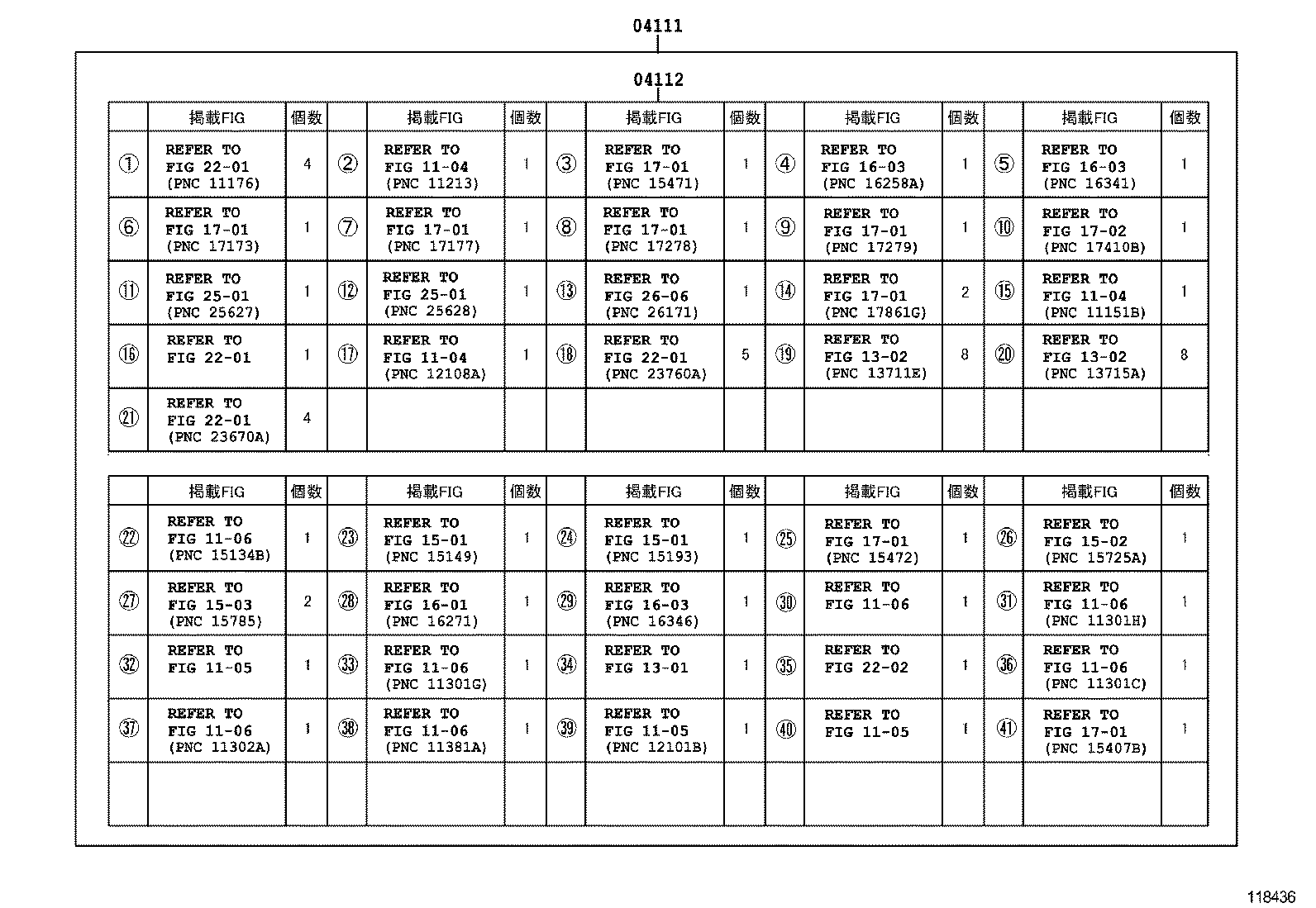

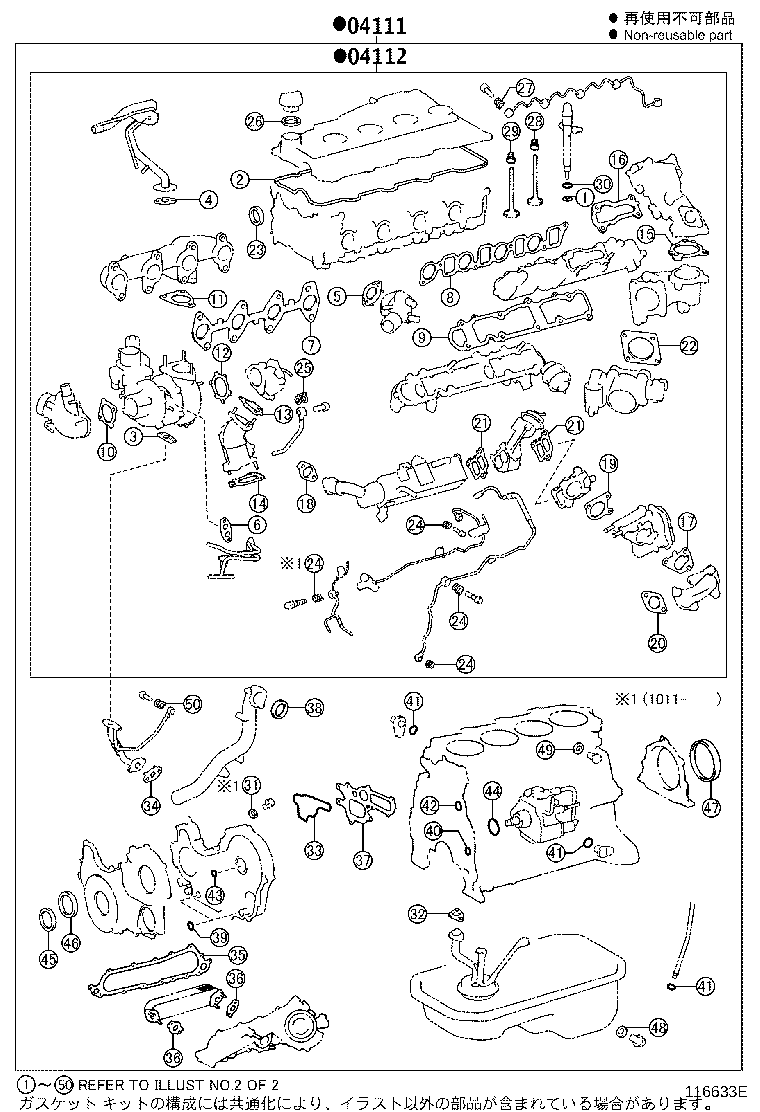

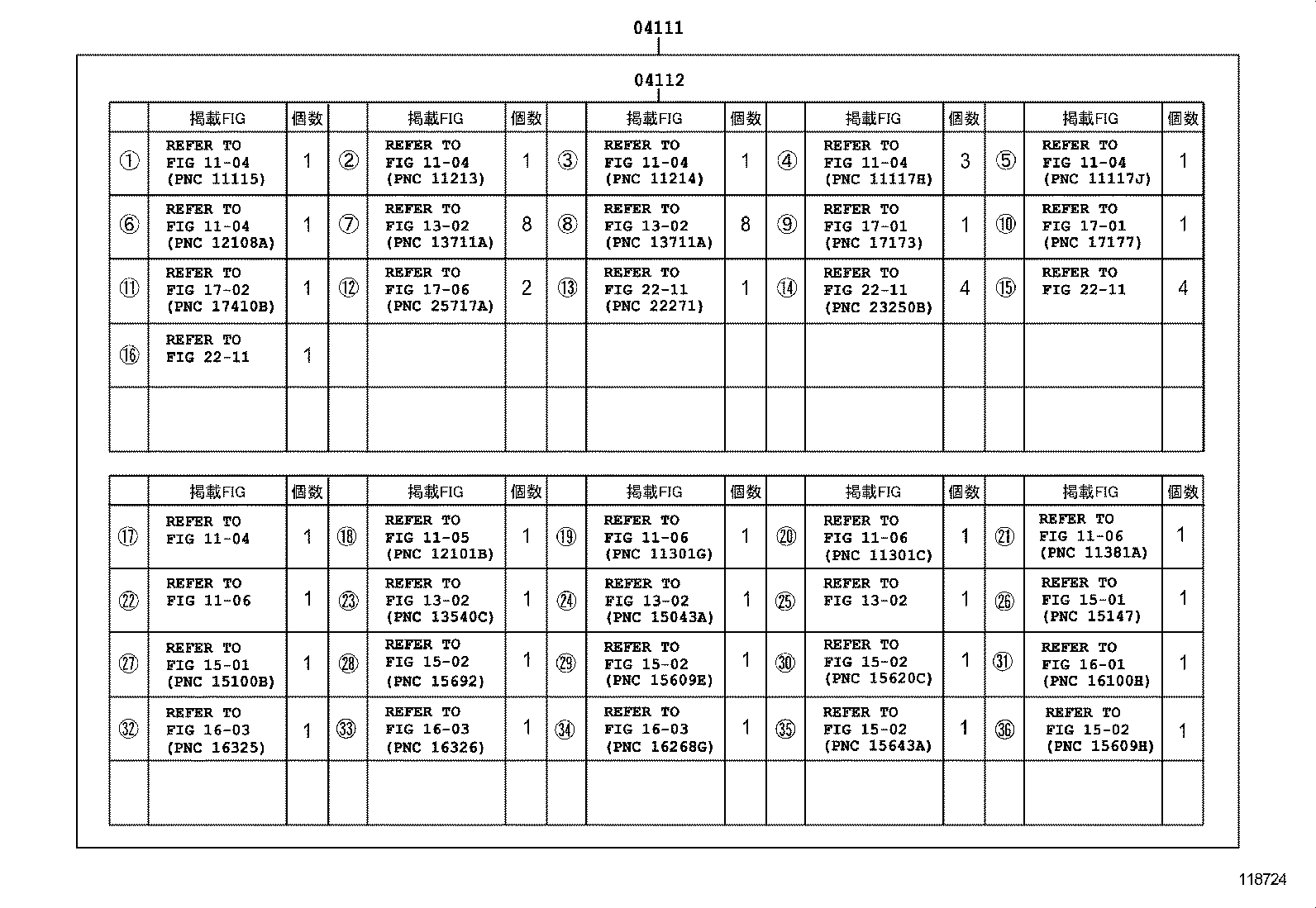

Figure 113494A 113494A 2004-08 → 2007-09 Figure 118436 118436 2004-08 → 2007-09 Figure 115117B 115117B 2007-09 → 2010-08 Figure 118428 118428 2007-09 → 2010-08 Figure 116633E 116633E 2010-08 → — Figure 118431 118431 2010-08 → — Figure 118723A 118723A 2004-08 → — Figure 118724 118724 2004-08 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
