Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

9 part groups · 3 illustrations

Illustrations

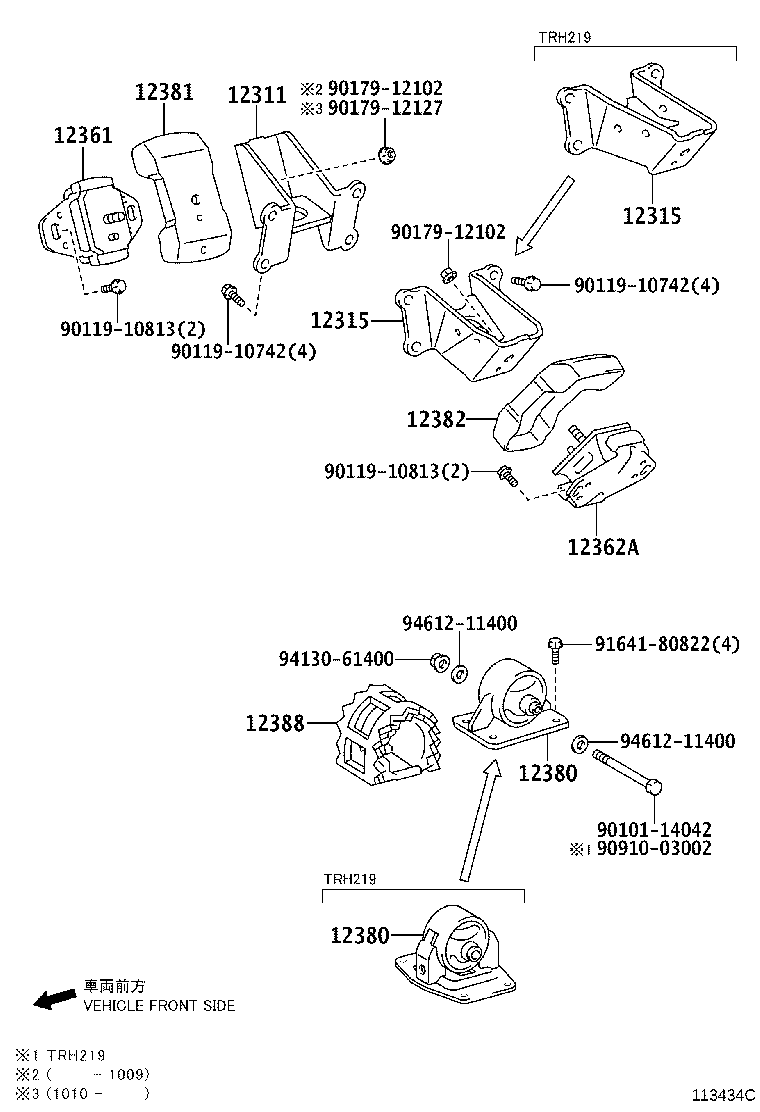

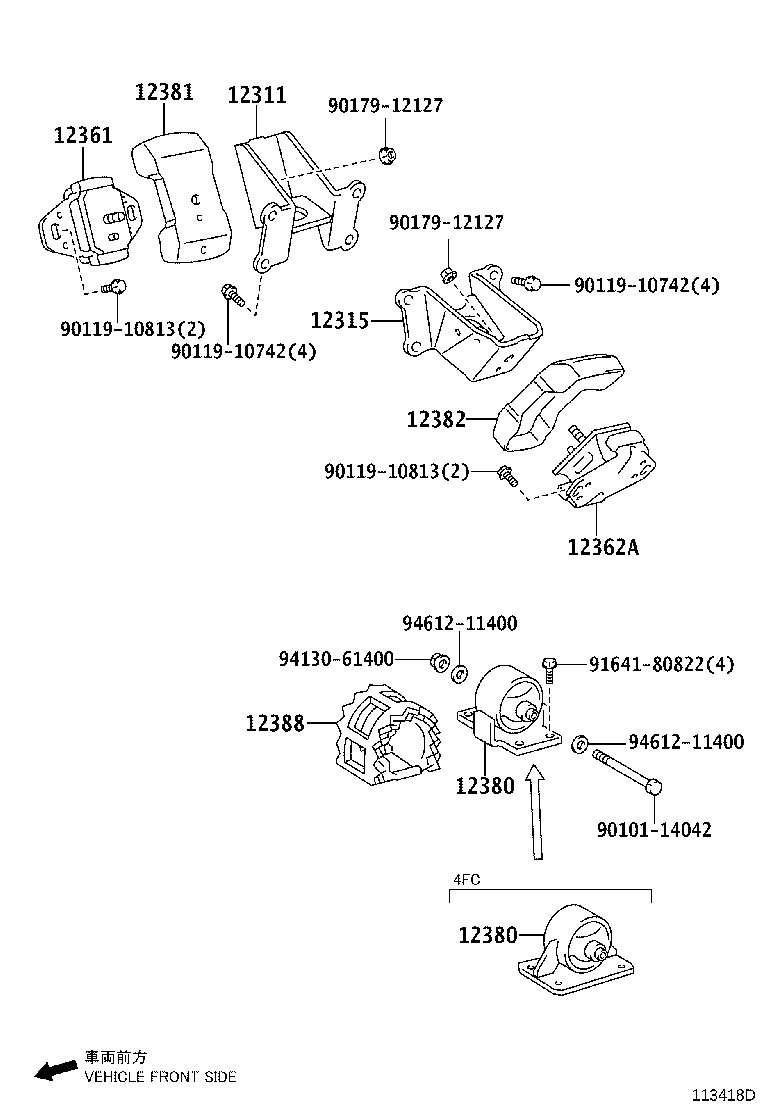

Figure 113405G 113405G 2004-08 → — Figure 113418D 113418D 2004-08 → — Figure 113434C 113434C 2004-08 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12315 Bracket, Engine Mounting, Front NO.1 LH
12360 Insulator Assy, Engine Mounting, Front
12361 Insulator, Engine Mounting, Front
12362A Insulator, Engine Mounting, Front LH
12380 Insulator Assy, Engine Mounting, Rear
12381 Stabilizer, Engine Mounting
12382 Stabilizer, Engine Mounting, LH
12388 Stopper, Engine Mounting Bracket, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
