Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Oil Pump

10 part groups · 2 illustrations

Illustrations

Figure 151769B

151769B 2004-08 → —

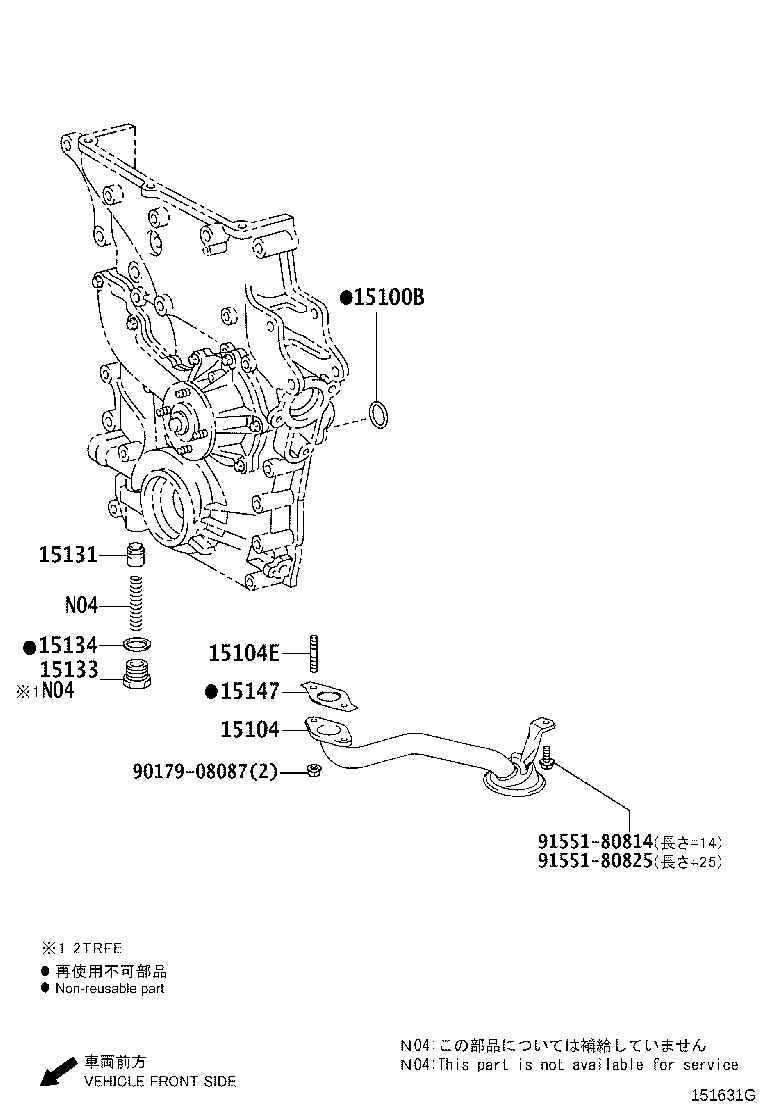

Figure 151631G

151631G 2004-08 → —

Part groups

PNC	Description
15100B	Ring, O(FOR OIL PUMP)
15104	Strainer Sub-assy, Oil
15104E	Bolt, Stud(FOR OIL STRAINER)
15131	Valve, Oil Pump Relief
15132	Spring, Oil Pump Relief Valve
15133	Plug, Oil Pump Relief Valve
15134	Gasket, Oil Pump Relief Valve
15147	Gasket, Oil Strainer
15149	Gasket, Oil Strainer Flange
15193	Gasket, Oil Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
