Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

22 part groups · 9 illustrations

Illustrations

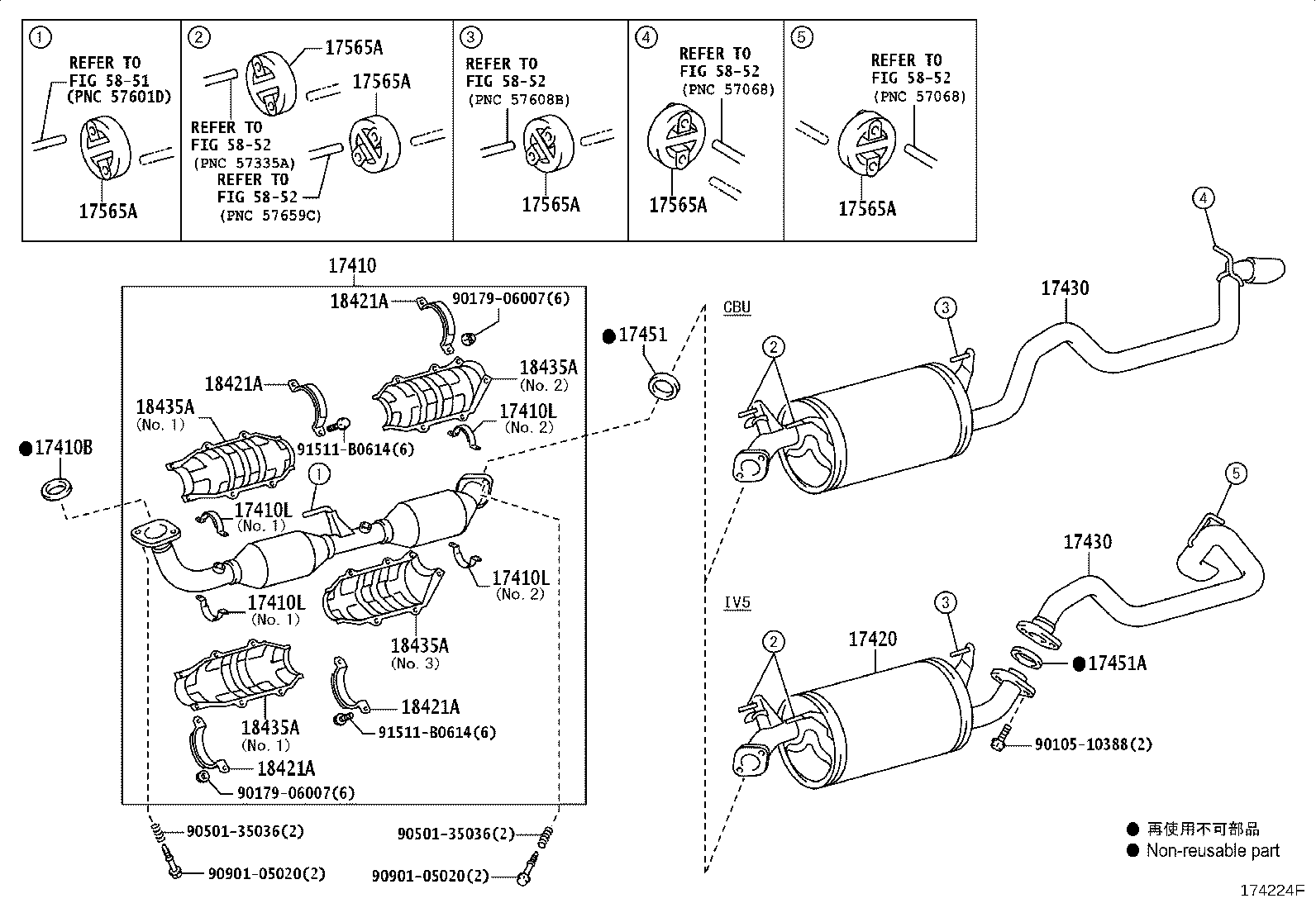

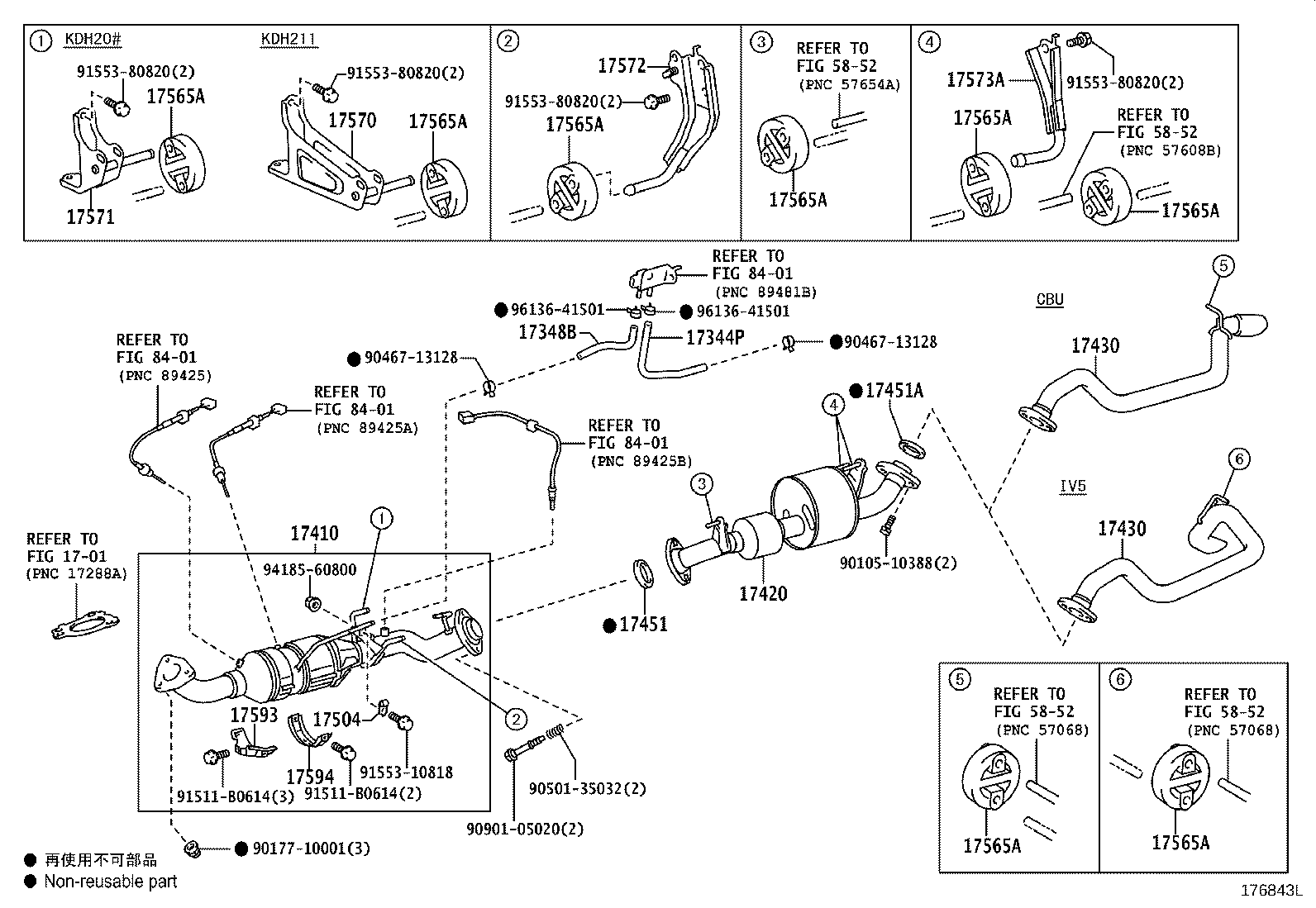

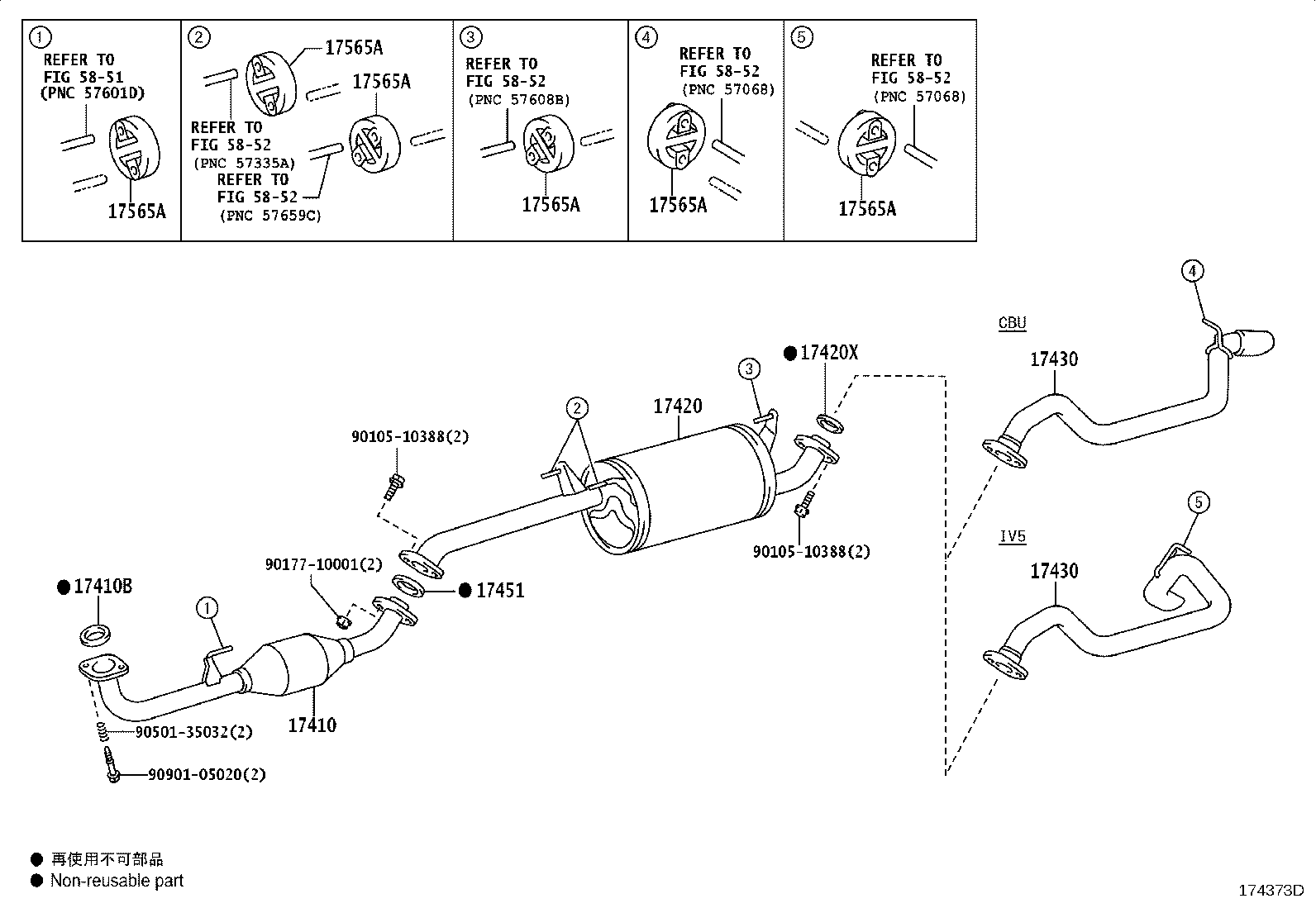

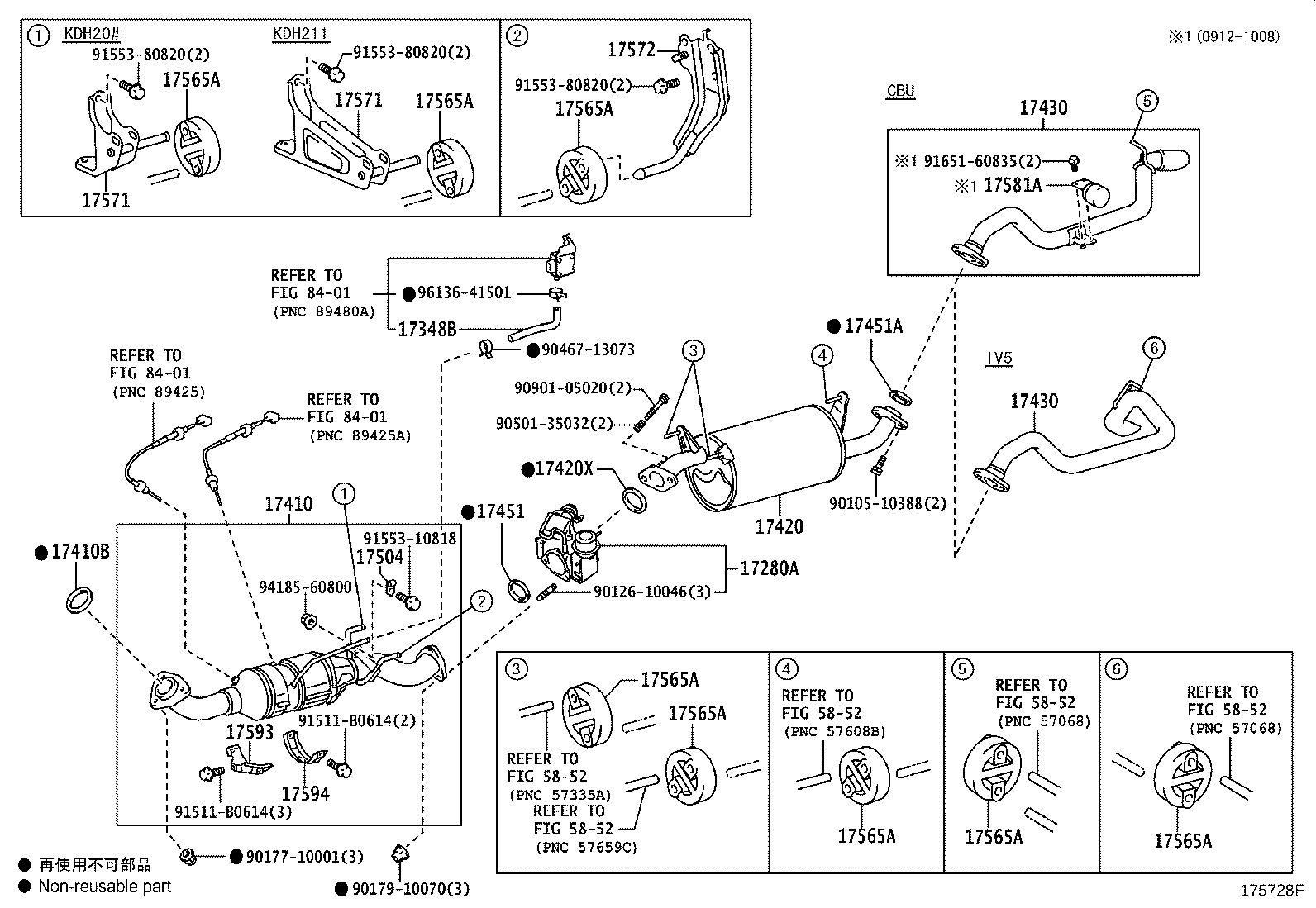

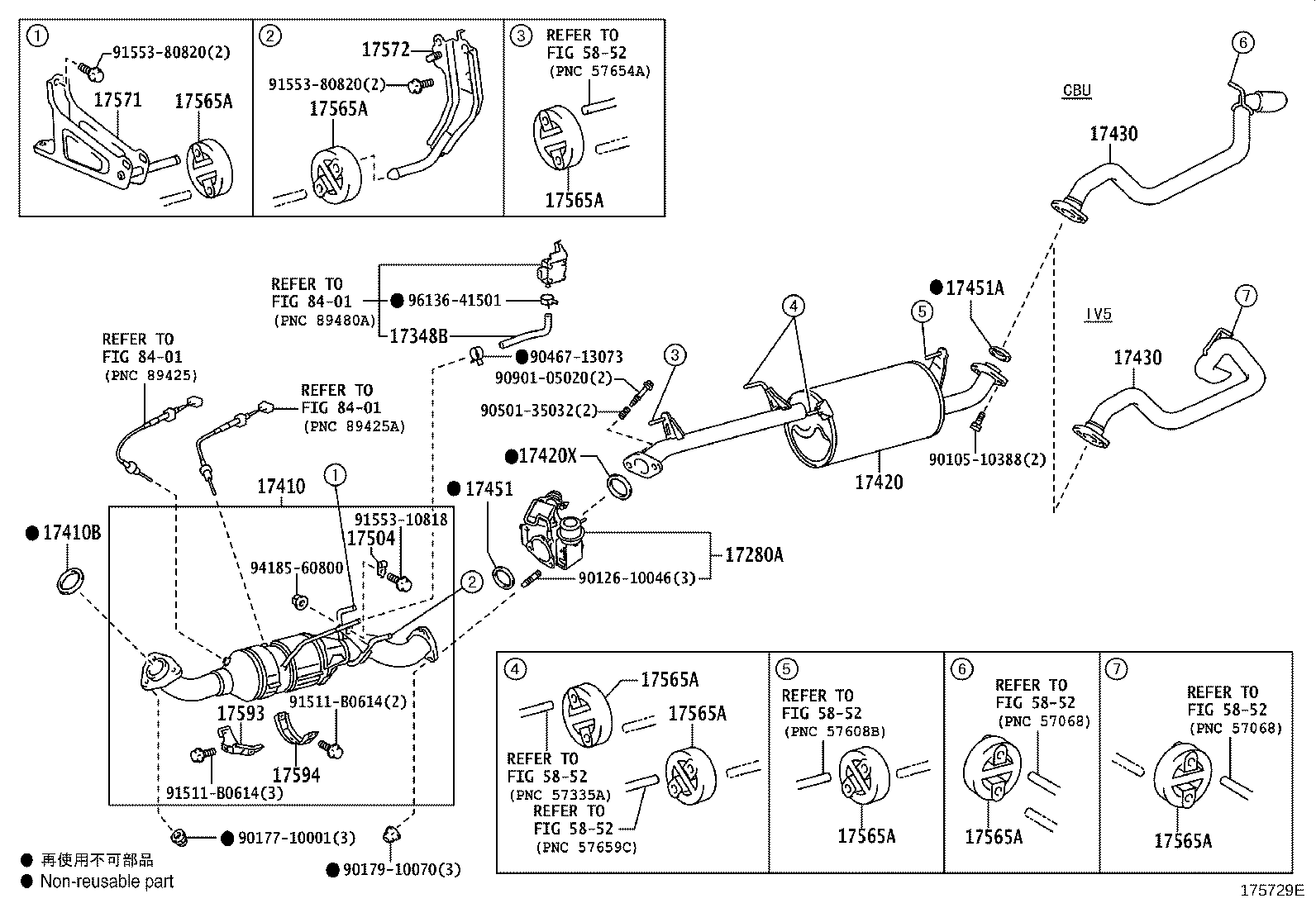

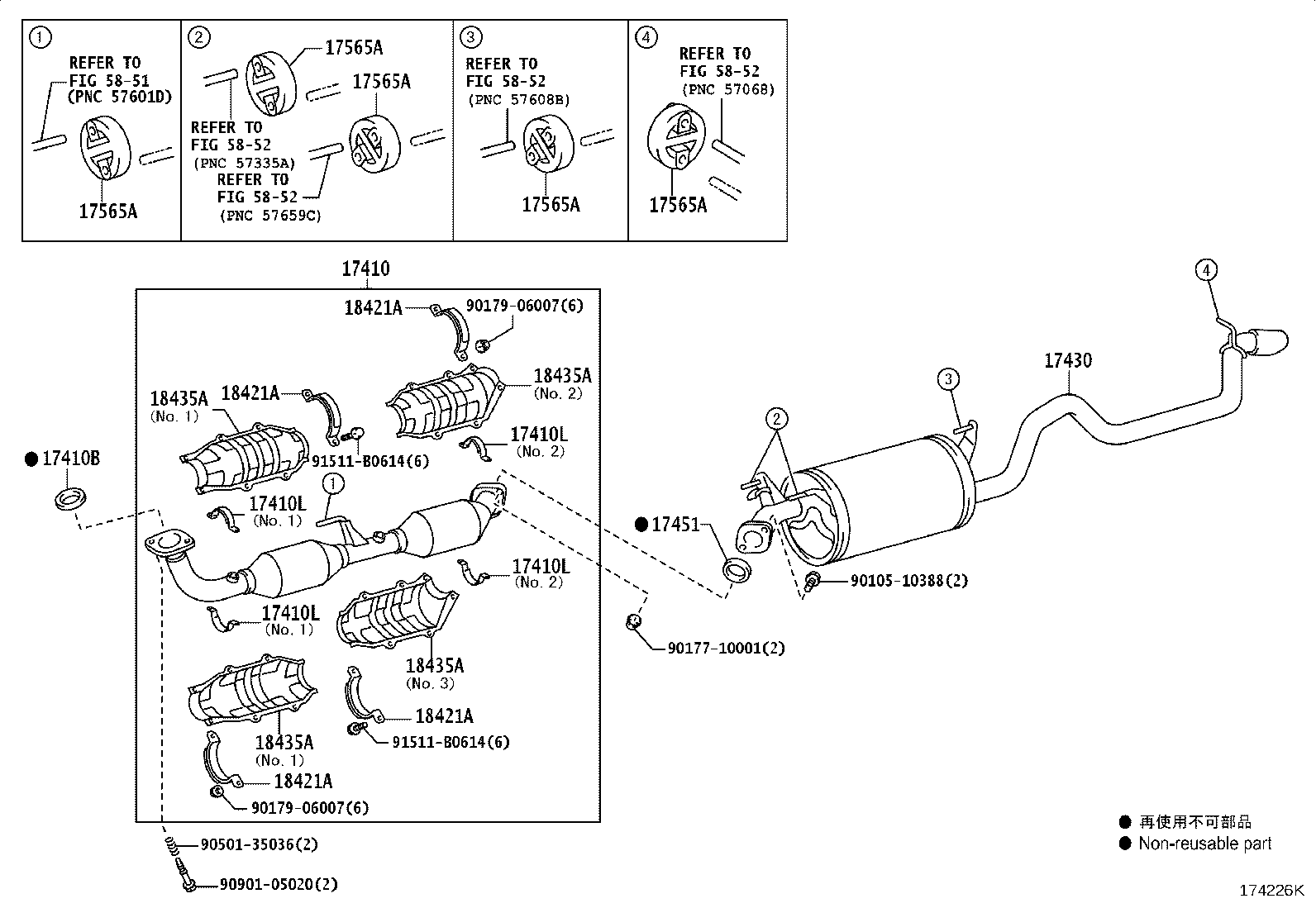

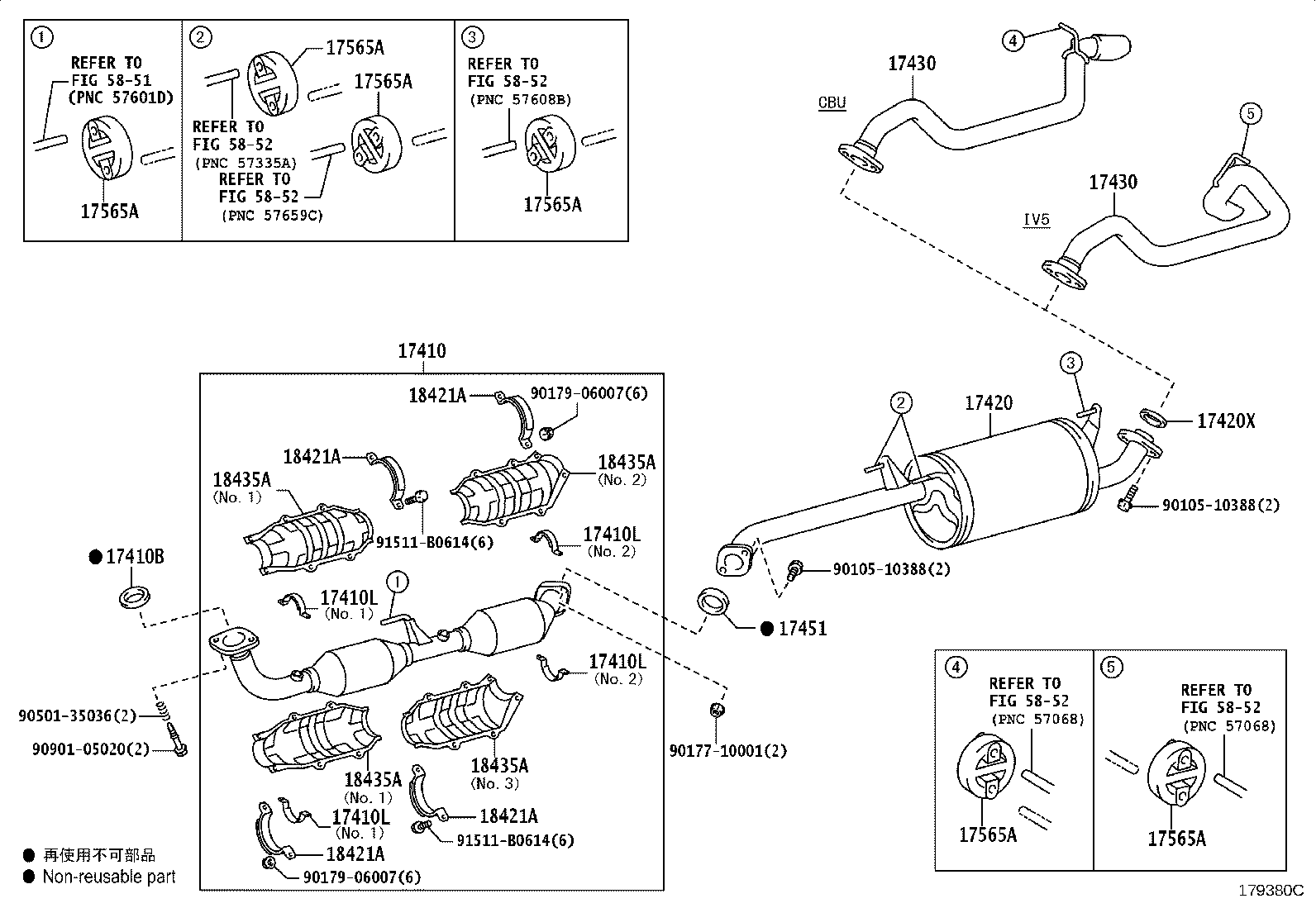

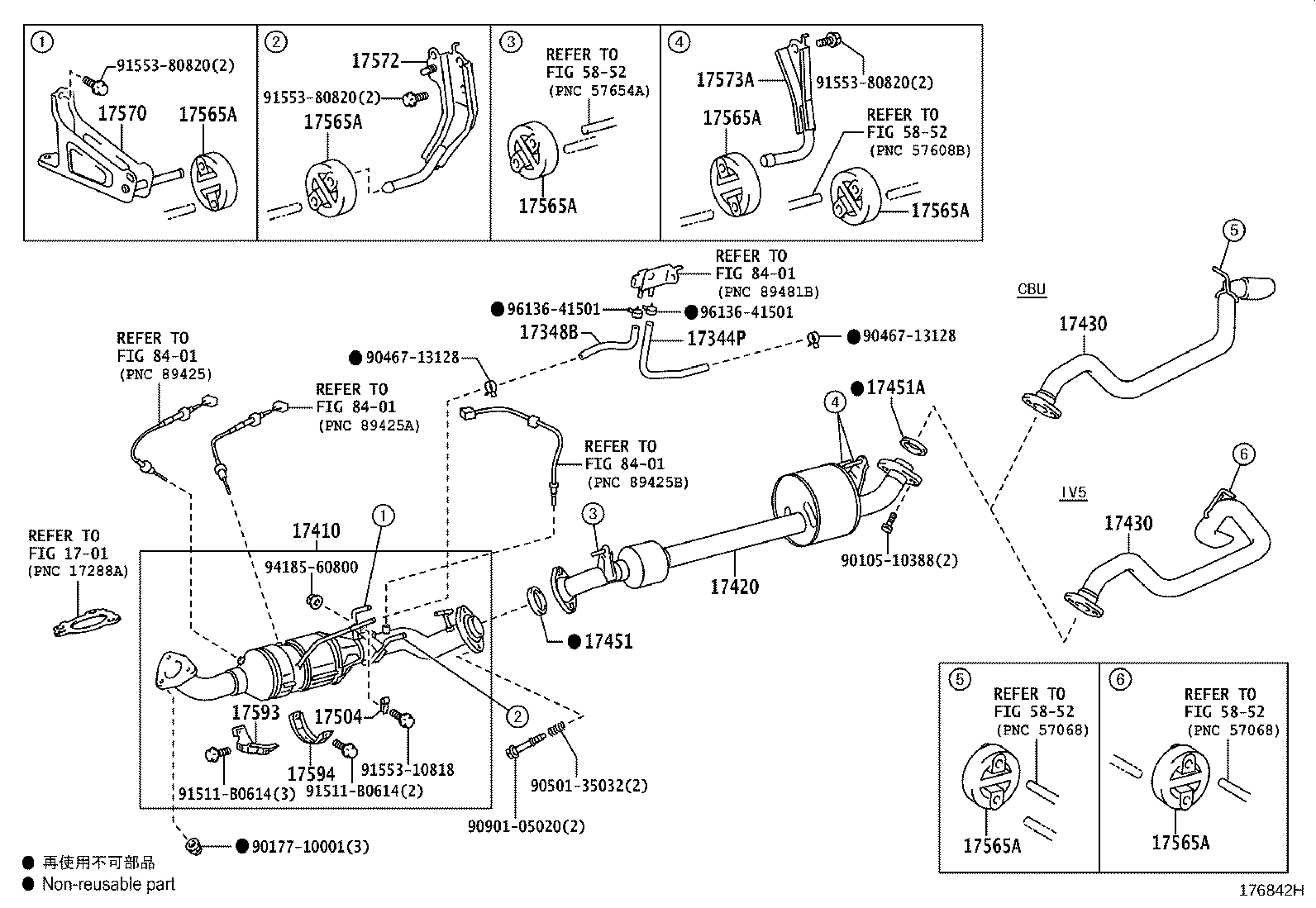

Figure 174227F 174227F 2004-08 → 2007-09 Figure 174373D 174373D 2005-01 → 2007-09 Figure 174224F 174224F 2004-08 → — Figure 174226K 174226K 2004-08 → — Figure 179380C 179380C 2005-01 → — Figure 175728F 175728F 2007-09 → 2010-08 Figure 175729E 175729E 2007-09 → 2010-08 Figure 176843L 176843L 2010-08 → — Figure 176842H 176842H 2010-08 → —

Part groups

PNCDescription
17280A Valve Assy, Exhaust Gas Control
17344P Hose, Air, NO.4(FOR EXHAUST PIPE)
17348B Hose, Air, NO.8(FOR EXHAUST PIPE)
17410 Pipe Assy, Exhaust, Front
17410B Gasket, Exhaust Pipe
17410L Stay, Exhaust Pipe Protector (FOR FRONT)
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17451A Gasket, Exhaust Pipe, NO.2
17504 Bracket Sub-assy, Catalytic Converter
17565A Support, Exhaust Pipe, NO.4
17570 Bracket Assy, Exhaust Pipe Support
17571 Bracket, Exhaust Pipe Support, NO.1
17572 Bracket, Exhaust Pipe NO.1 Support
17573A Bracket, Exhaust Pipe Support, NO.3
17581A Damper, Exhaust Pipe
17593 Protector, Exhaust Pipe, NO.1
17594 Protector, Exhaust Pipe, NO.2
18421A Stay, Converter Protector, LH
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
