Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

25 part groups · 6 illustrations

Illustrations

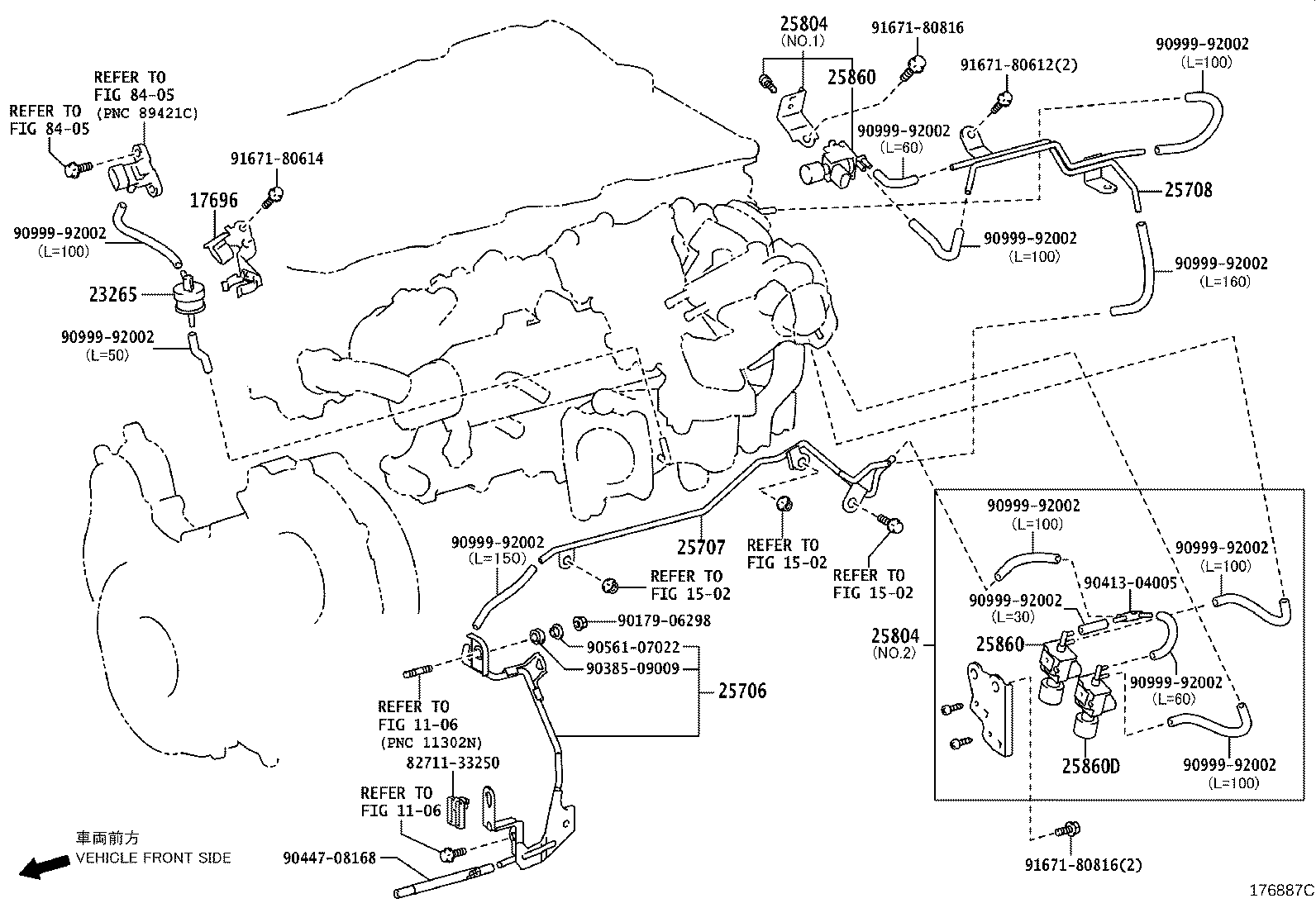

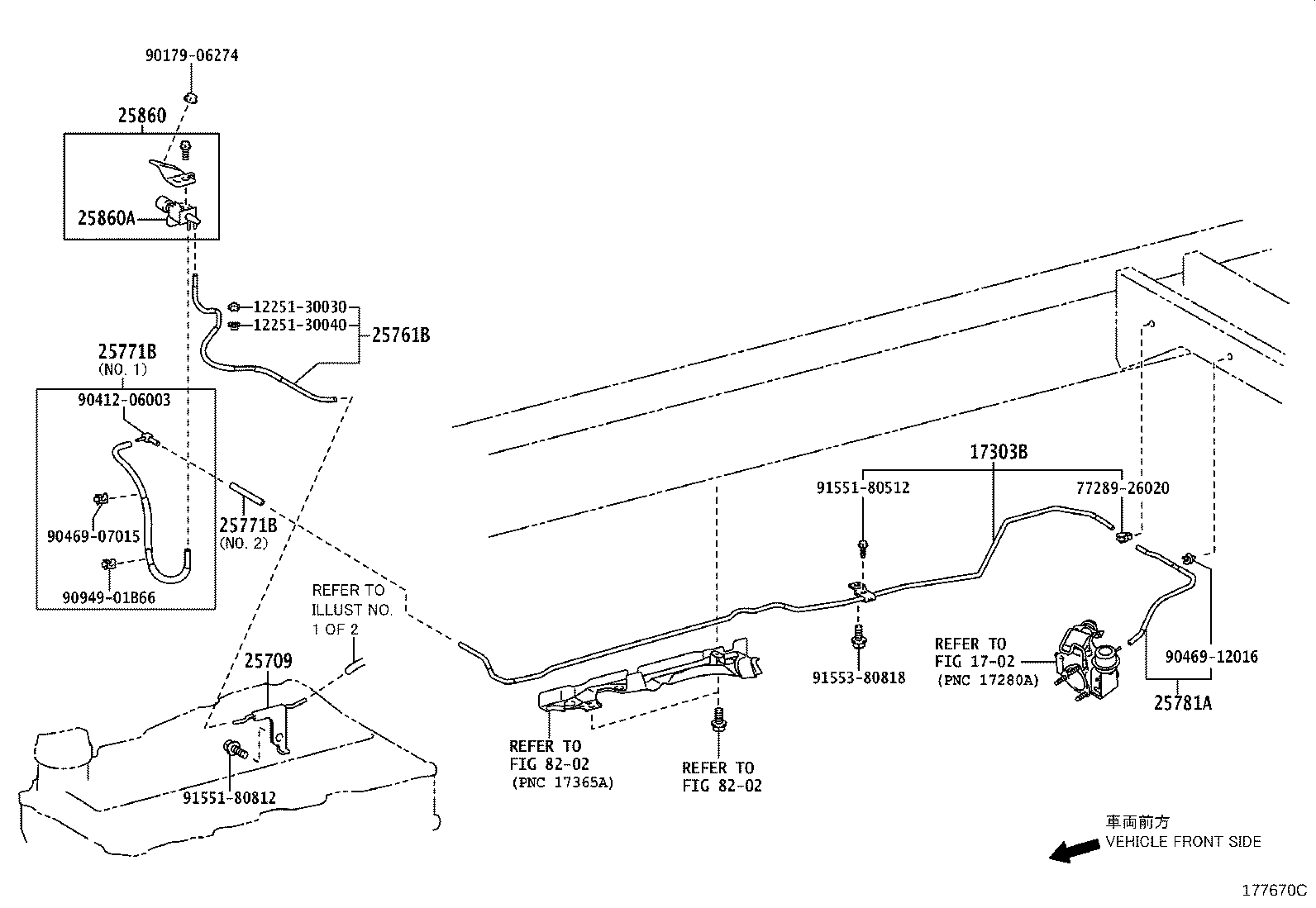

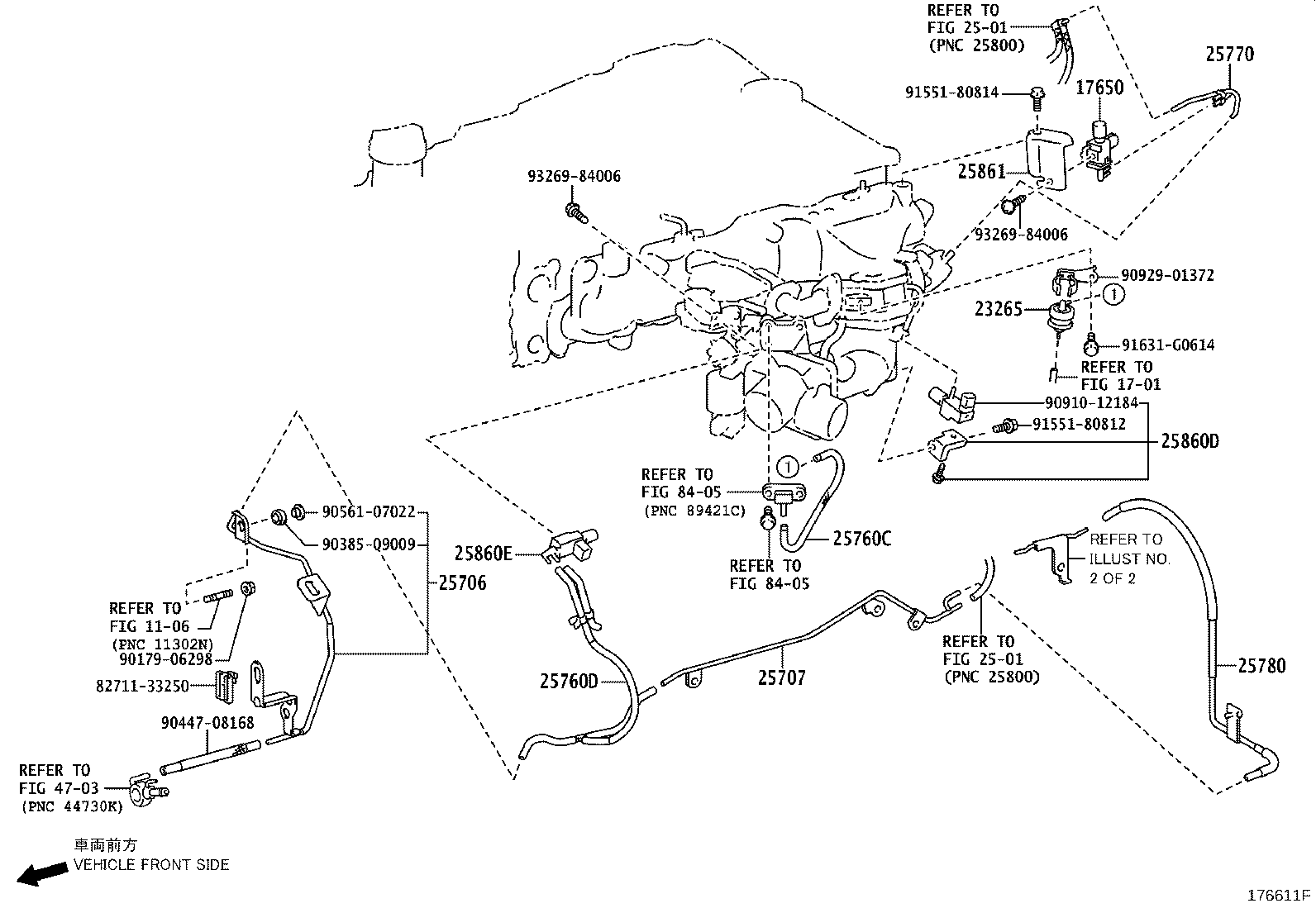

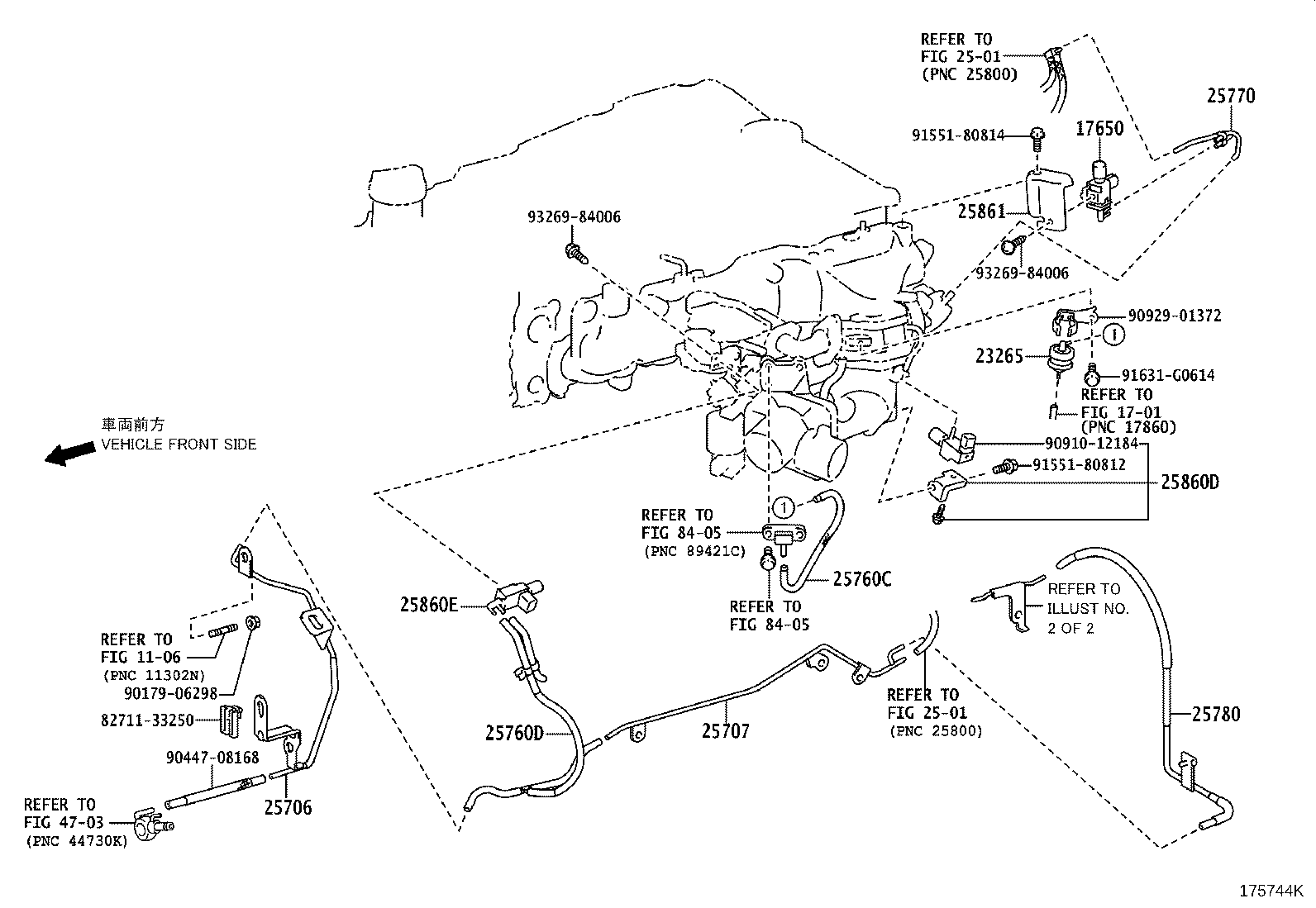

Figure 174257C 174257C 2004-08 → 2007-09 Figure 175744K 175744K 2007-09 → 2009-08 Figure 176611F 176611F 2009-08 → 2010-08 Figure 177670C 177670C 2007-09 → 2010-08 Figure 176887C 176887C 2010-08 → — Figure 174260E 174260E 2004-08 → —

Part groups

PNCDescription
17303B Pipe Sub-assy, Air, NO.1
17650 Valve Assy, Vacuum Switching
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
23820 Hose Assy, Fuel Vapor Feed
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25709 Valve Sub-assy, High Altitude Compensator
25760 Hose Assy, Vacuum Transmitting
25760C Hose Assy, Vacuum Transmitting, NO.3
25760D Hose Assy, Vacuum Transmitting, NO.4
25761B Hose, Vaccum Transmitting, NO.1
25770 Hose Assy, Vacuum Transmitting, NO.2
25771B Hose, Vaccum Transmitting, NO.2
25780 Hose Assy, Vacuum Transmitting, NO.3
25781A Hose, Vacuum Transmitting, NO.3
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860A Valve, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25860E Valve, Vacuum Switching, NO.2
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
