Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Starter

28 part groups · 8 illustrations

Illustrations

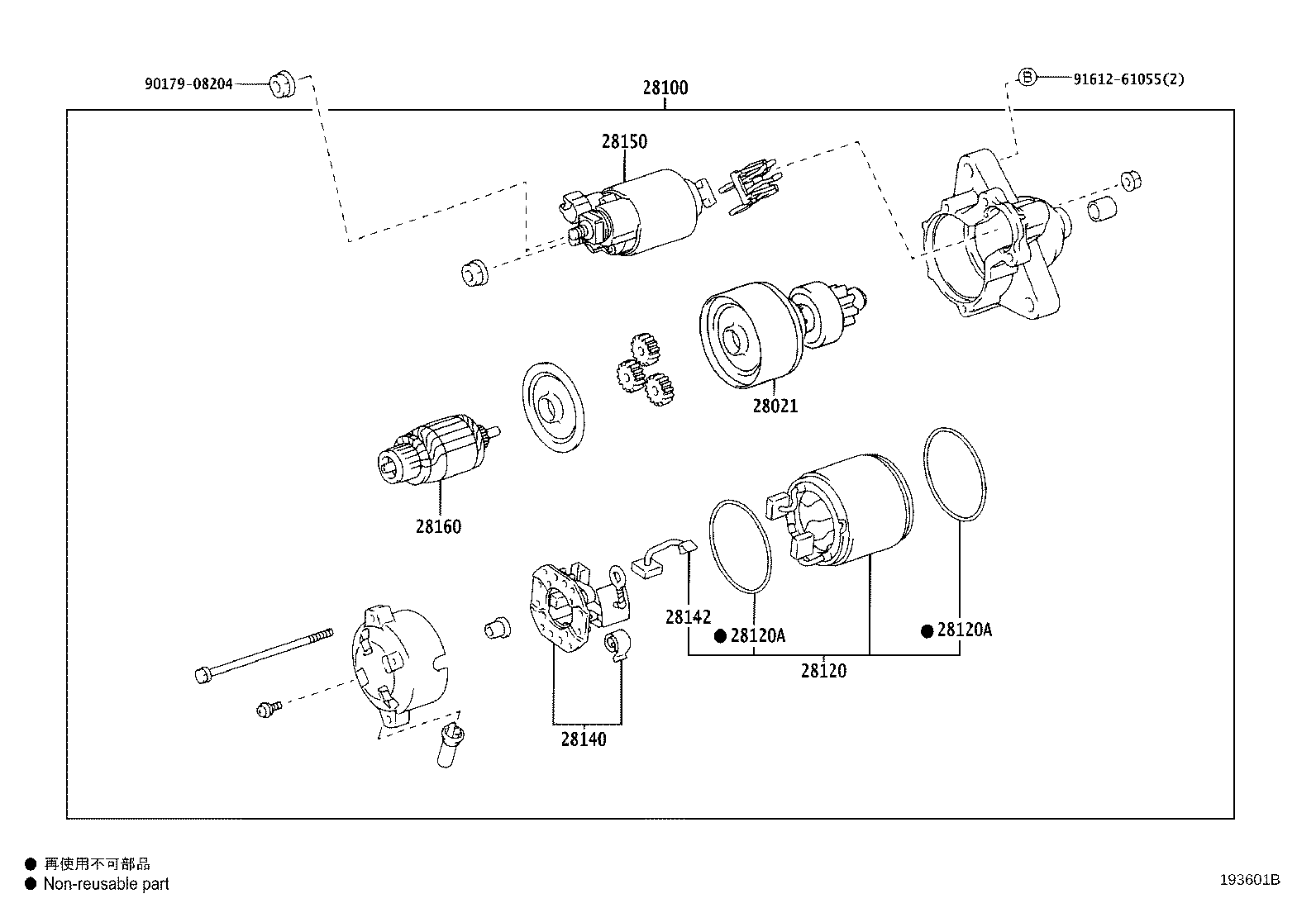

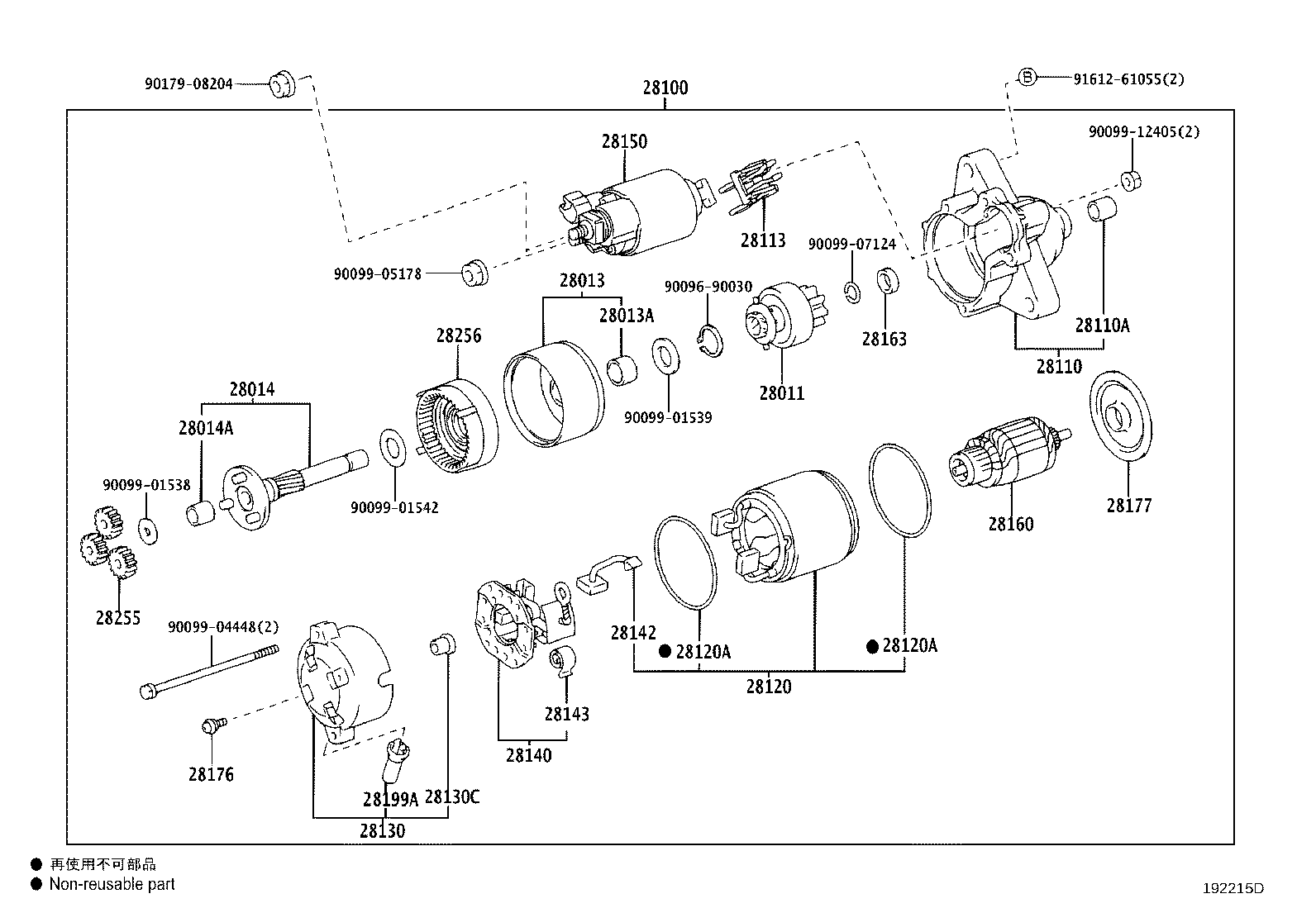

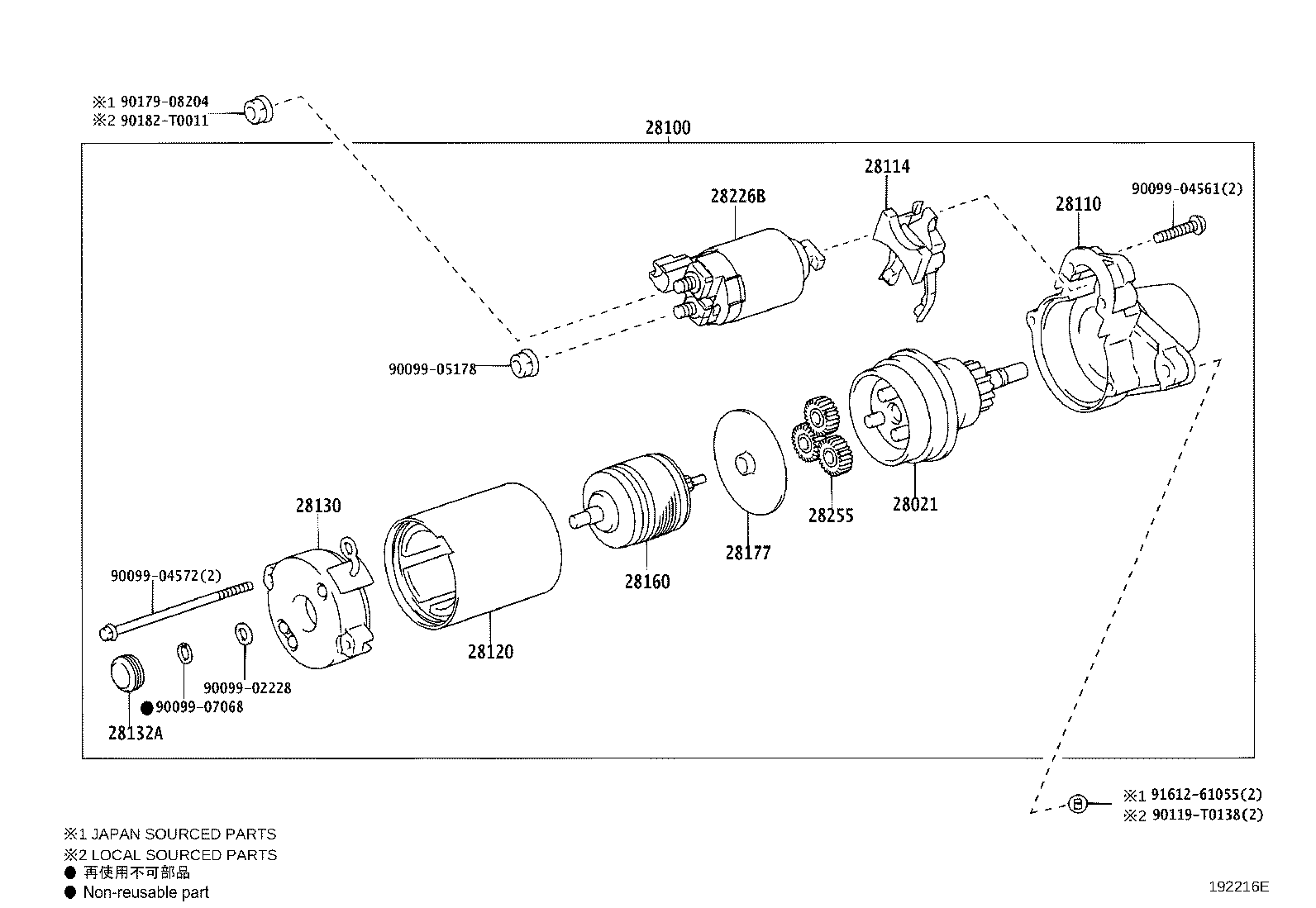

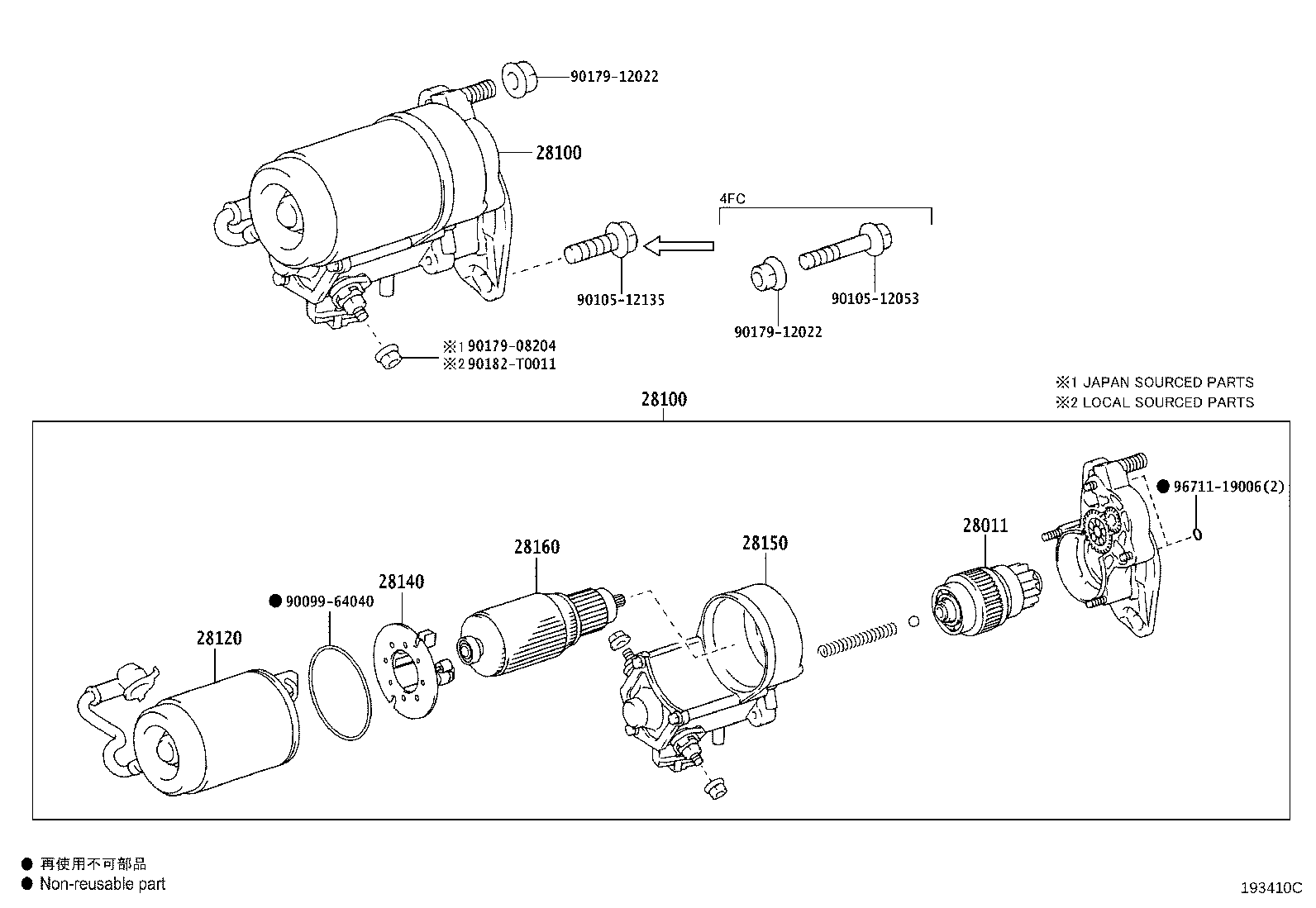

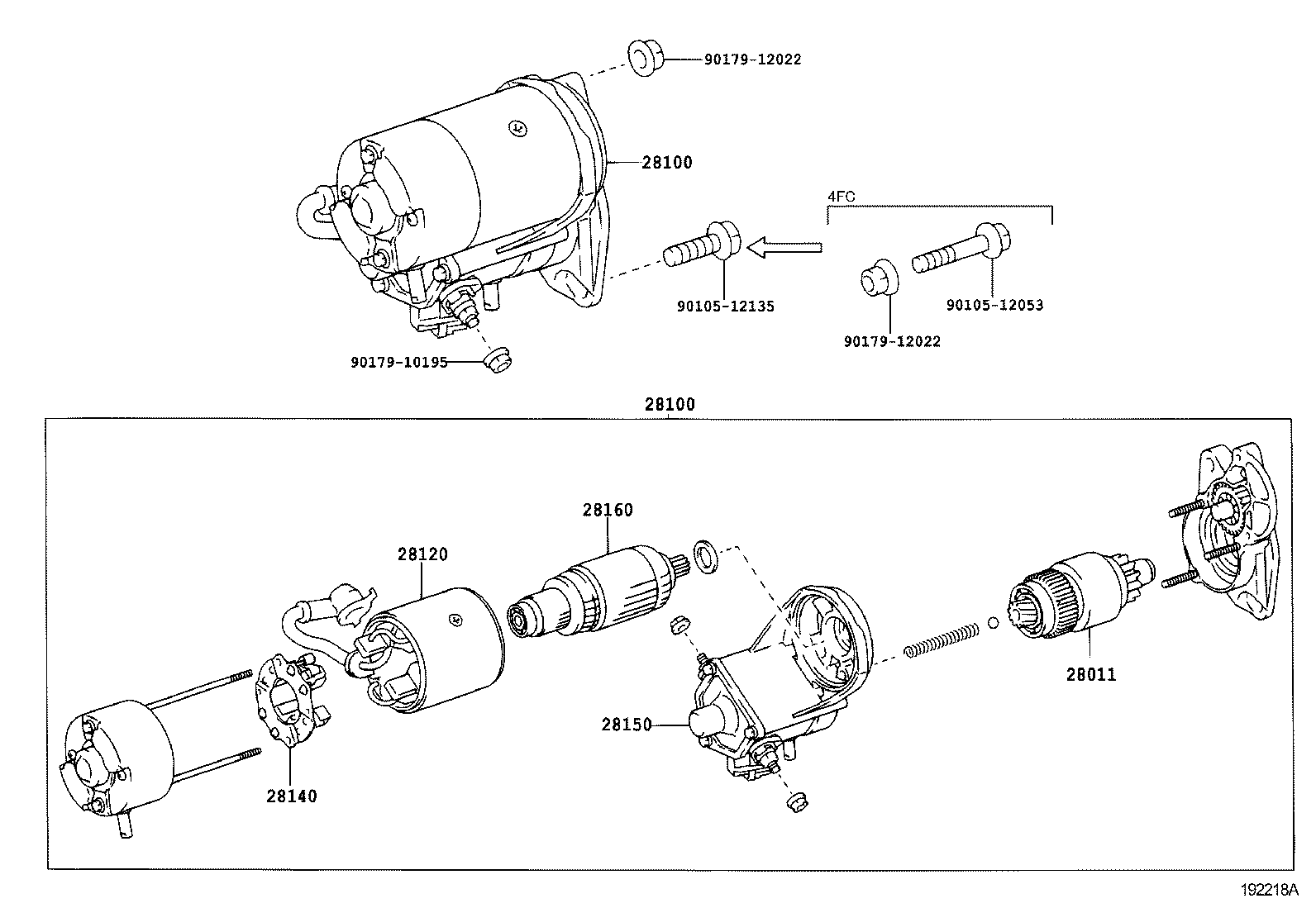

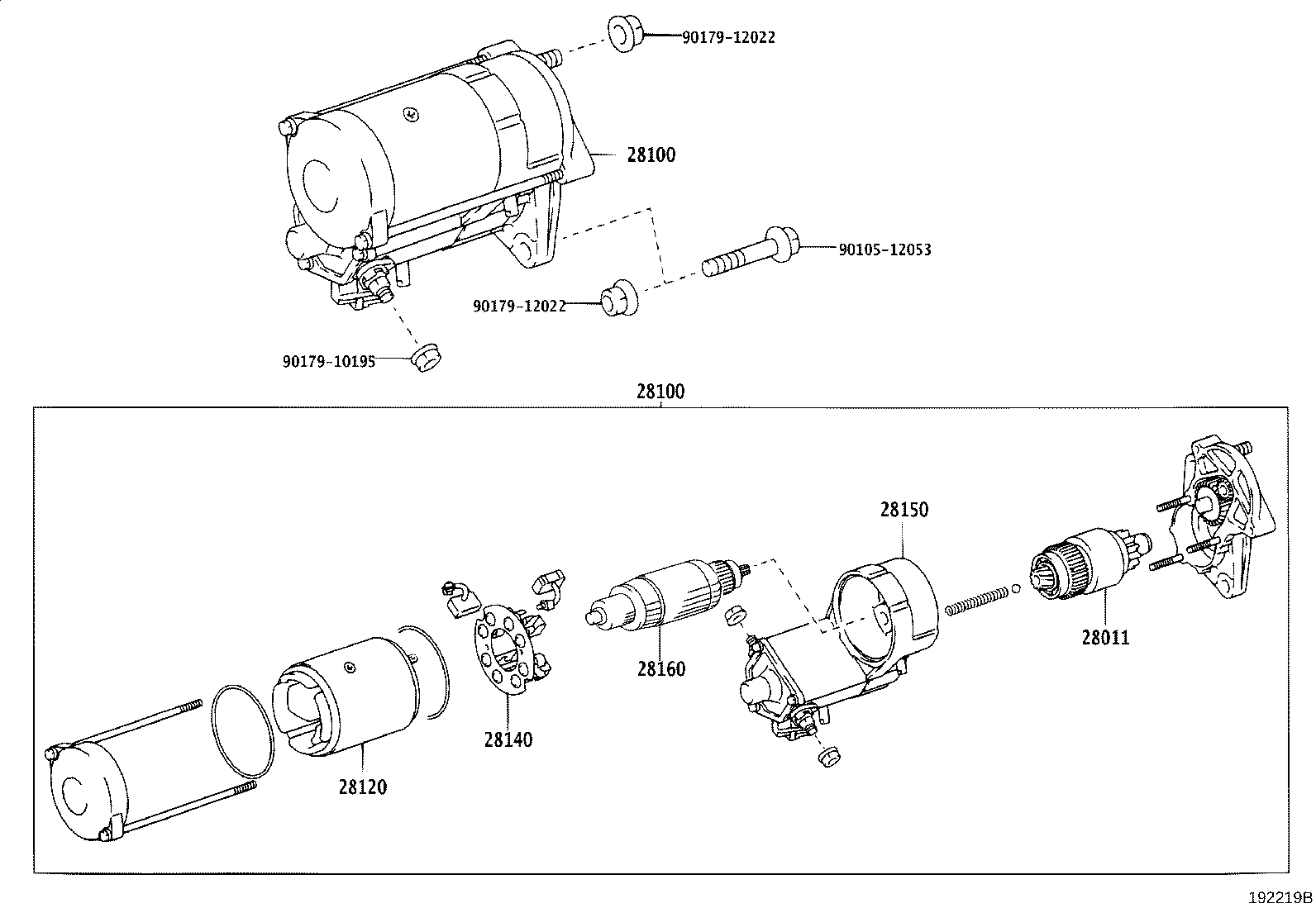

Figure 192217 192217 2004-08 → 2007-09 Figure 192215D 192215D 2004-08 → 2011-01 Figure 193601B 193601B 2011-01 → — Figure 192216E 192216E 2004-08 → — Figure 192218A 192218A 2004-08 → — Figure 192219B 192219B 2004-08 → 2010-08 Figure 193410C 193410C 2007-09 → — Figure 193410C 193410C 2010-08 → —

Part groups

PNCDescription
28011 Clutch Sub-assy, Starter
28013 Bearing, Starter Center & Shock Absorber, NO.1
28013A Bearing, Starter Center & Shock Absorber, NO.2
28014 Shaft Sub-assy, Planet Carrier
28014A Bush OR Bearing, Planet Carrier Shaft
28021 Clutch Sub-assy, Starter Center Bearing
28100 Starter Assy
28110 Housing Assy, Starter Drive
28110A Bearing(FOR STARTER HOUSING)
28113 Lever, Starter Pinion Drive
28114 Pin, Starter Drive Lever Set
28120 Yoke Assy, Starter
28120A Ring, O(FOR STARTER YOKE)
28130 Frame Assy, Starter Commutator End
28130C Bearing, Starter Flange
28132A Cover, Starter Commutator End Frame
28140 Holder Assy, Starter Brush
28142 Brush, Starter
28143 Spring, Starter Brush
28150 Switch Assy, Magnet Starter
28160 Armature Assy, Starter
28163 Nut OR Collar, Pinion Stop, Starter
28176 Screw, Starter
28177 Plate(FOR STARTER ARMATURE)
28199A Protector, Dust Starter
28226B Starter Kit, Repair Service
28255 Gear, Planet
28256 Gear, Starter Internal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
