Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Nozzle

23 part groups · 3 illustrations

Illustrations

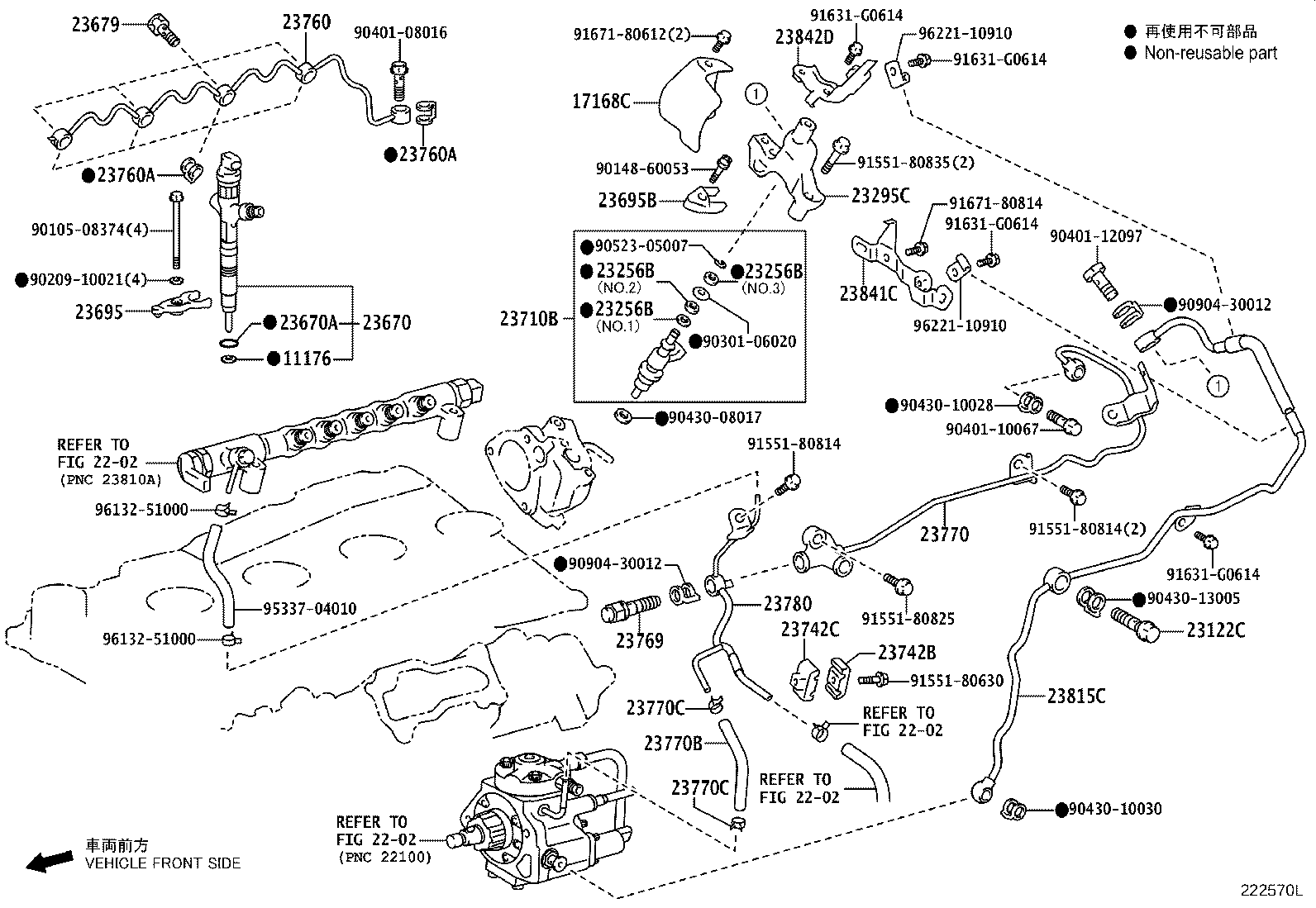

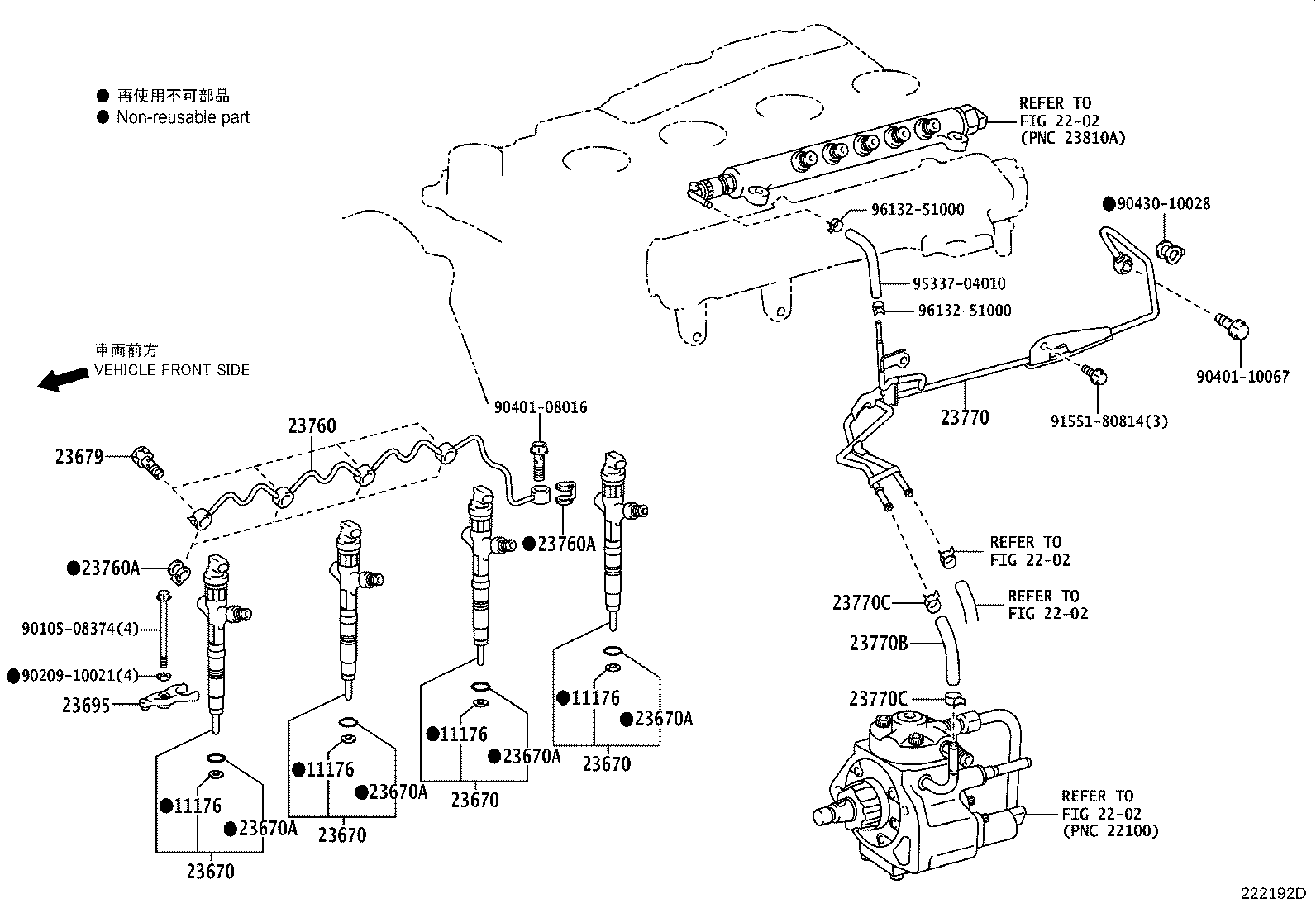

Figure 221702I 221702I 2004-08 → 2007-09 Figure 222192D 222192D 2007-09 → 2010-08 Figure 222570L 222570L 2010-08 → —

Part groups

PNCDescription
11176 Seat, Injection Nozzle
17168C Insulator, Exhaust Manifold Heat, NO.2
23122C Valve, Check
23256B Ring, Fuel Injector Back-up, NO.1
23295C Holder, Injector
23670 Injector Assy
23670A Ring, O(FOR INJECTOR ASSY)
23679 Screw, Injector Follow
23695 Clamp, Nozzle Holder, NO.1
23695B Clamp, Nozzle Holder, NO.2
23710B Injector Assy, Exhaust Fuel Addition
23742B Clamp, Injection Pipe, NO.2
23742C Clamp, Injection Pipe, NO.3
23760 Pipe Assy, Nozzle Leakage
23760A Gasket
23769 Valve, Fuel Check
23770 Pipe Assy, Nozzle Leakage, NO.2
23770B Hose, Fuel
23770C Clamp OR Clip(FOR FUEL HOSE SET)
23780 Pipe, Nozzle Leakage, NO.3
23815C Pipe, Fuel, NO.3
23841C Clamp, Fuel Pipe, NO.1
23842D Clamp, Fuel Pipe, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
