Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Injection Pump Assembly

19 part groups · 8 illustrations

Illustrations

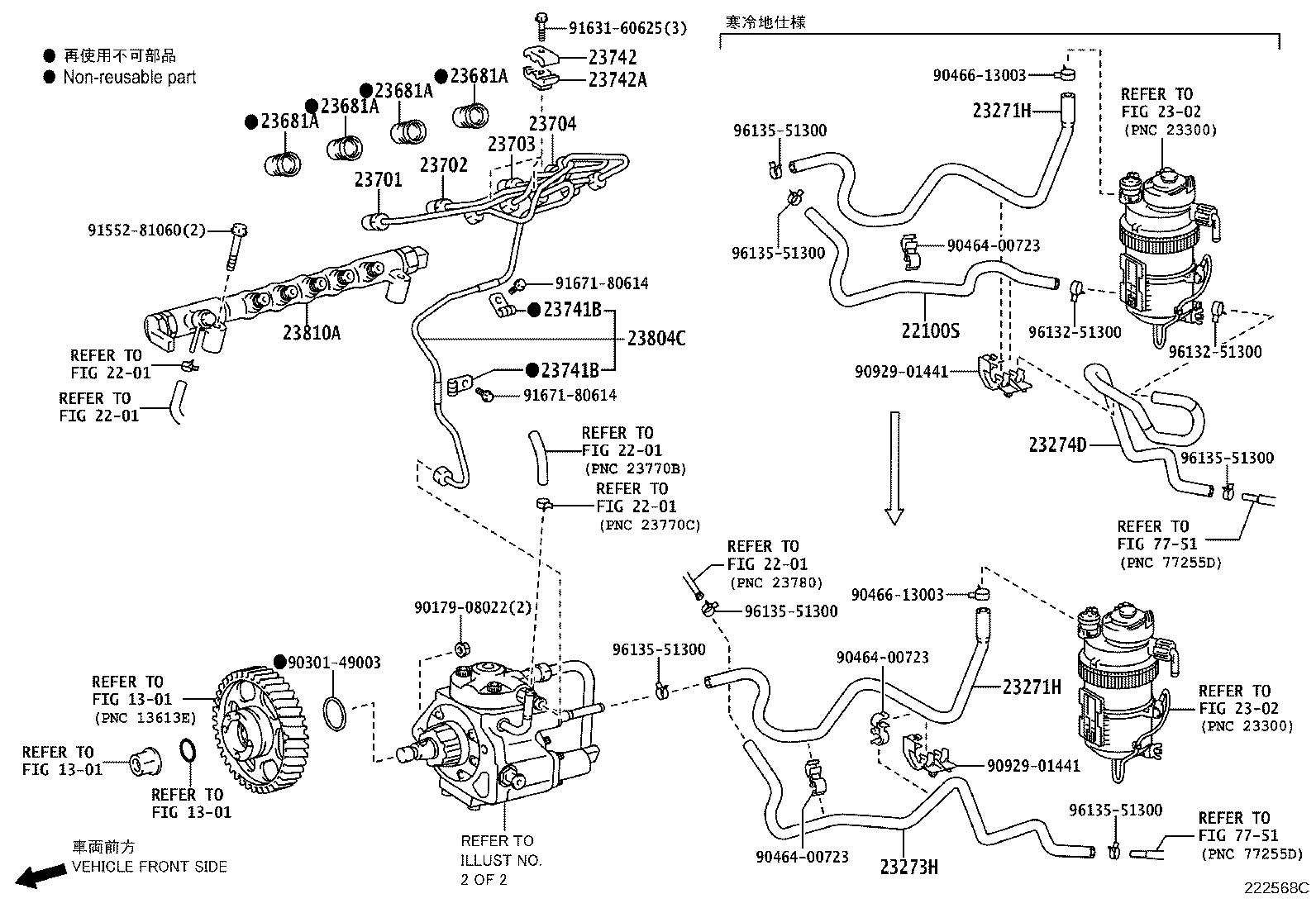

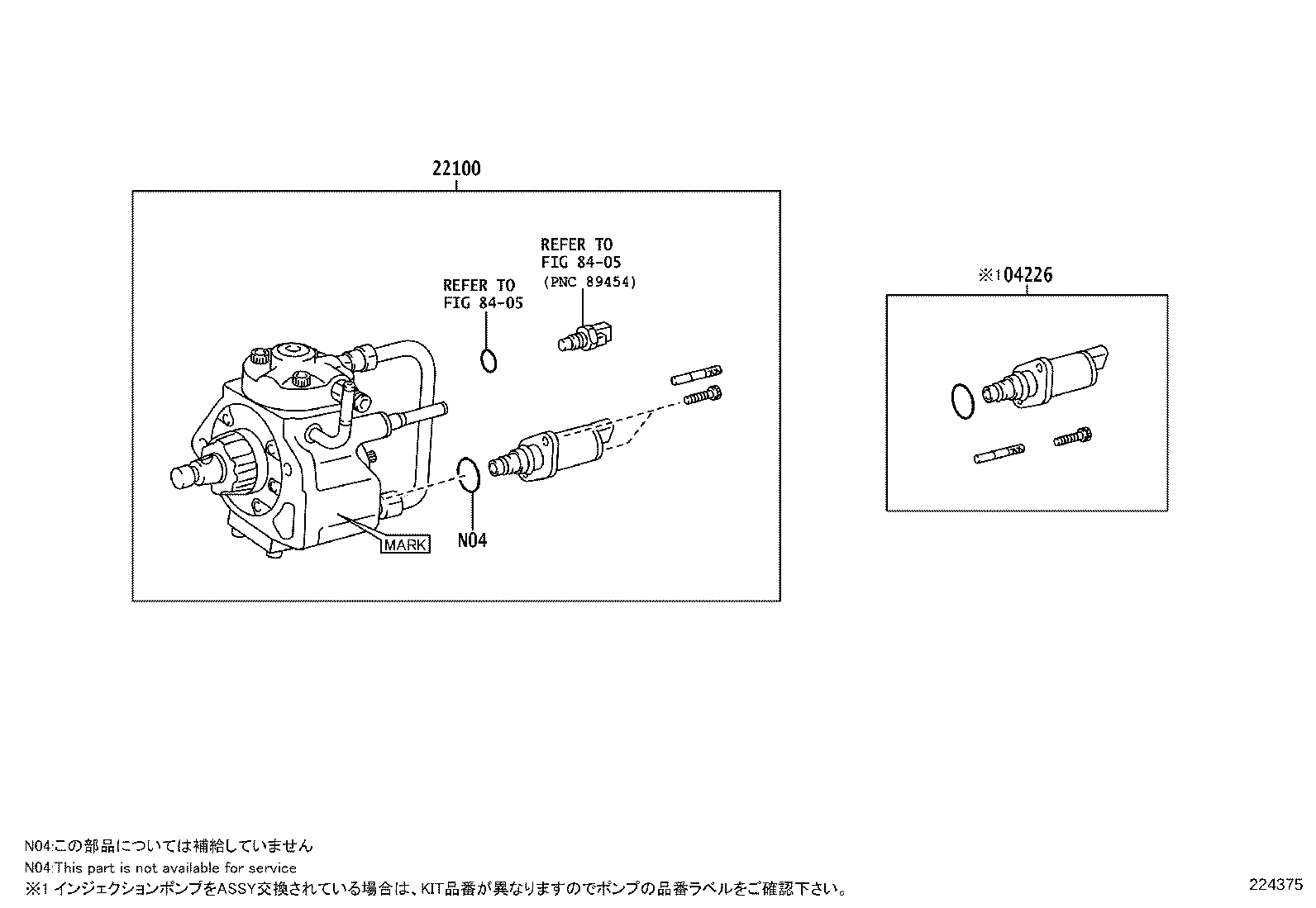

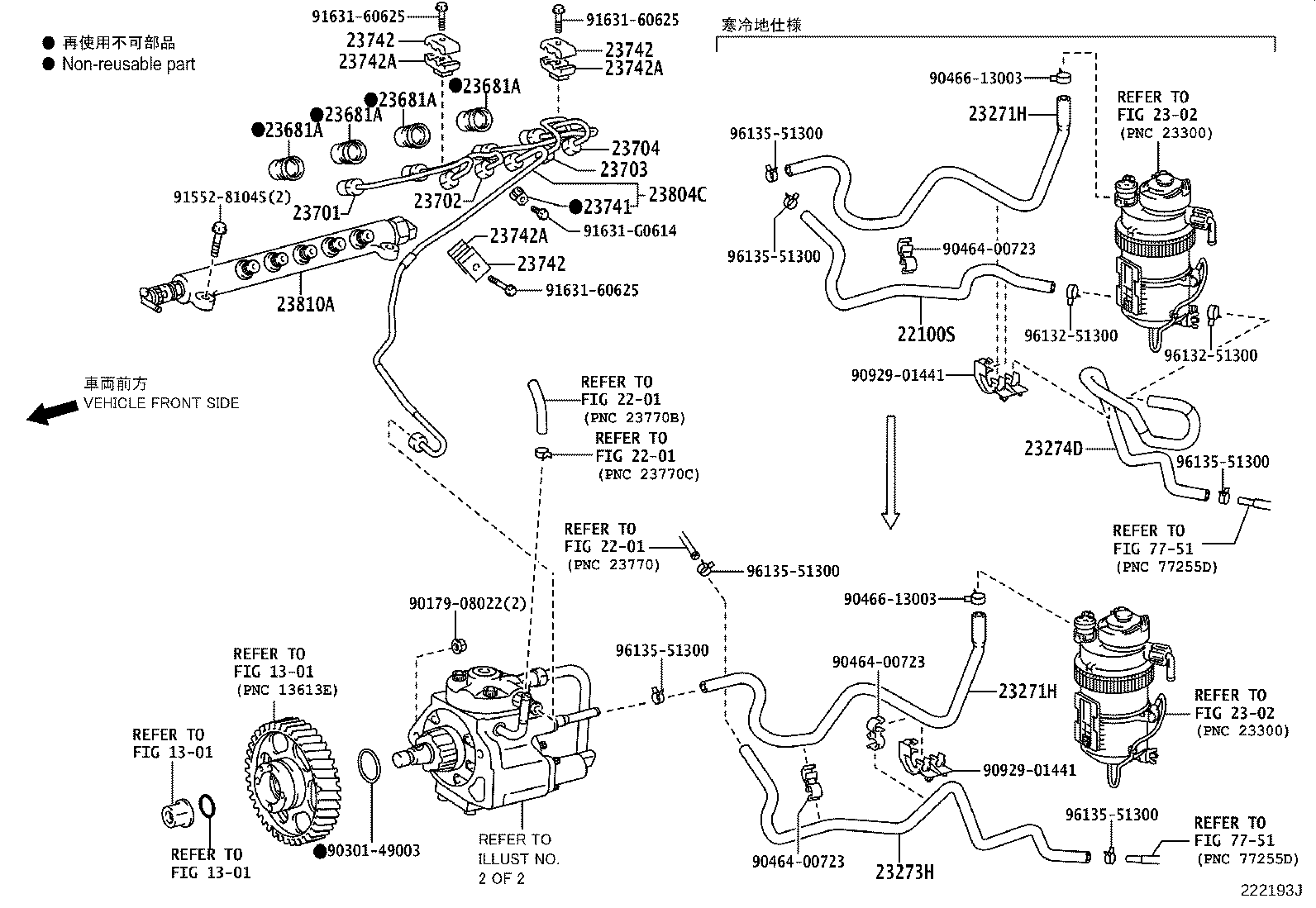

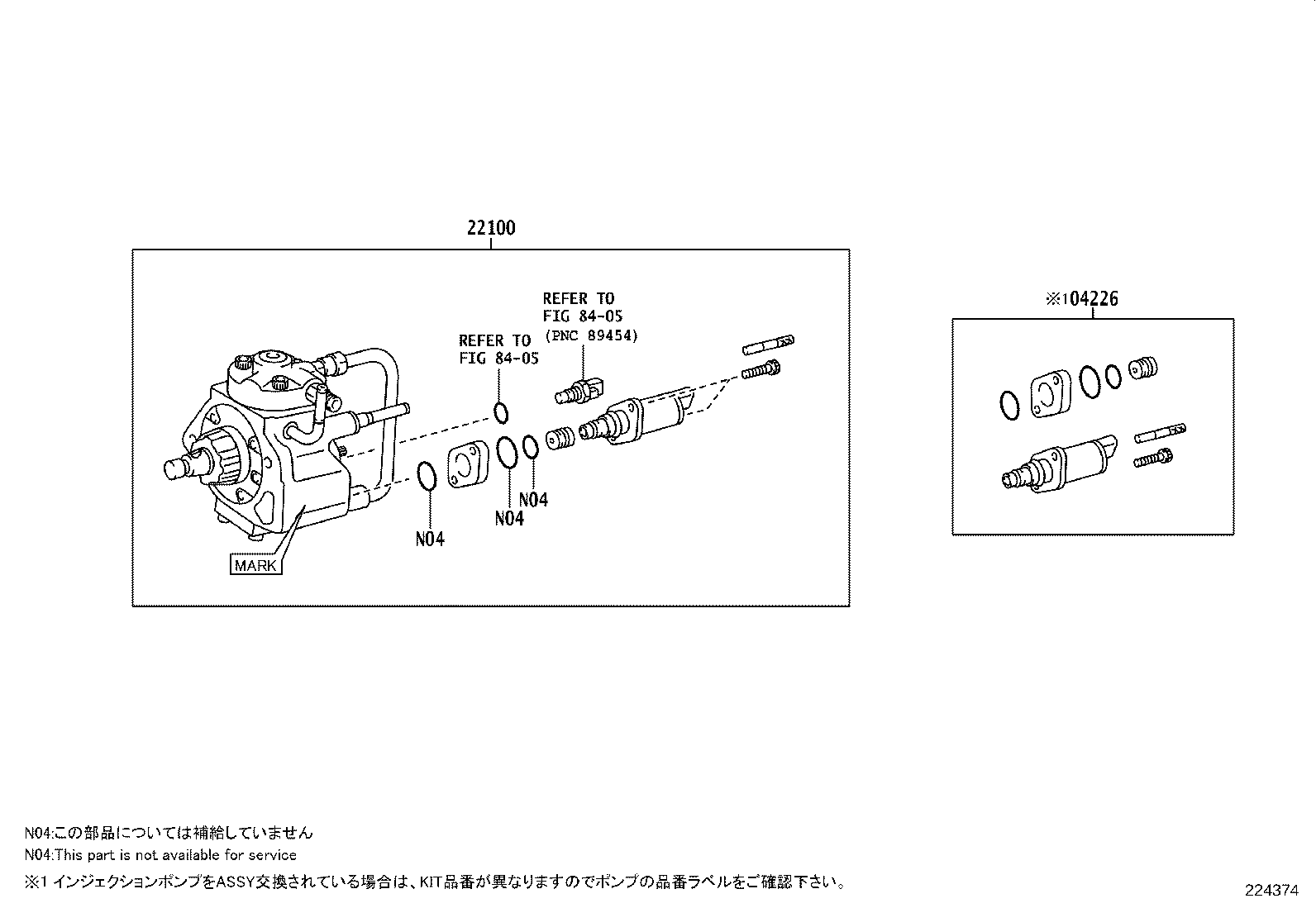

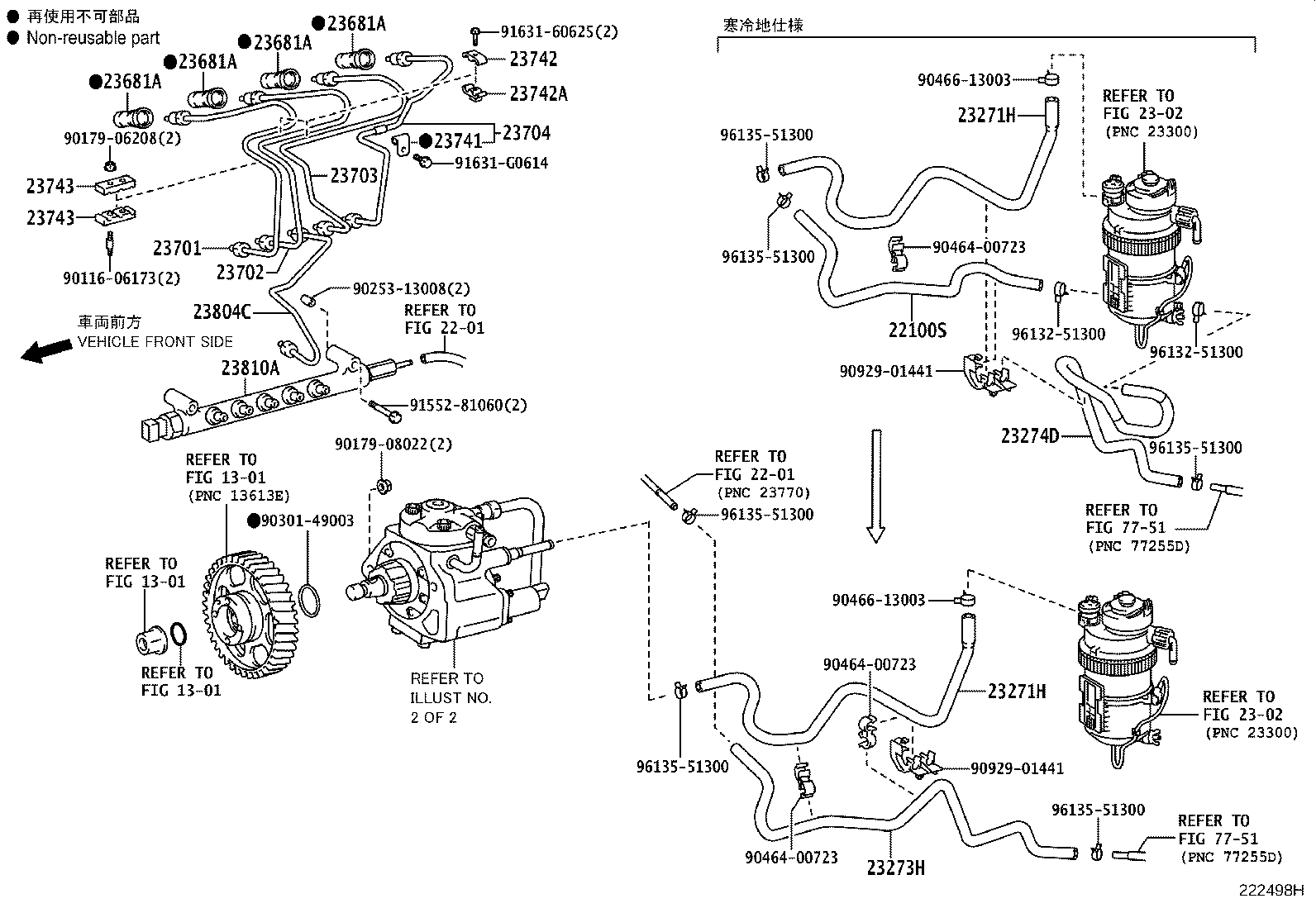

Figure 221703P 221703P 2004-08 → 2006-10 Figure 224374 224374 2004-08 → 2006-10 Figure 222498H 222498H 2006-10 → 2007-09 Figure 224375 224375 2006-10 → 2007-09 Figure 222193J 222193J 2007-09 → 2010-08 Figure 224376 224376 2007-09 → 2010-08 Figure 222568C 222568C 2010-08 → — Figure 224377 224377 2010-08 → —

Part groups

PNCDescription
04226 Valve Kit, Suction Control
22100 Pump Assy, Injection OR Supply
22100S Hose, Fuel(FOR INJECTION PUMP TO FUEL PIPE)
22160B Screw
23271H Hose, Fuel, NO.1
23273H Hose, Fuel, NO.2
23274D Hose, Fuel, NO.3
23681A Seal, Nozzle Holder
23701 Pipe Sub-assy, Injection, NO.1
23702 Pipe Sub-assy, Injection, NO.2
23703 Pipe Sub-assy, Injection, NO.3
23704 Pipe Sub-assy, Injection, NO.4
23741 Clamp, Injection Pipe, NO.1
23741B Clamp, Injection Pipe
23742 Clamp, Injection Pipe, NO.2
23742A Clamp, Injection Pipe, NO.3
23743 Clamp, Injection Pipe, NO.3
23804C Pipe Sub-assy, Fuel Inlet
23810A Rail Assy, Common
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
