Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

2 part groups · 3 illustrations

Illustrations

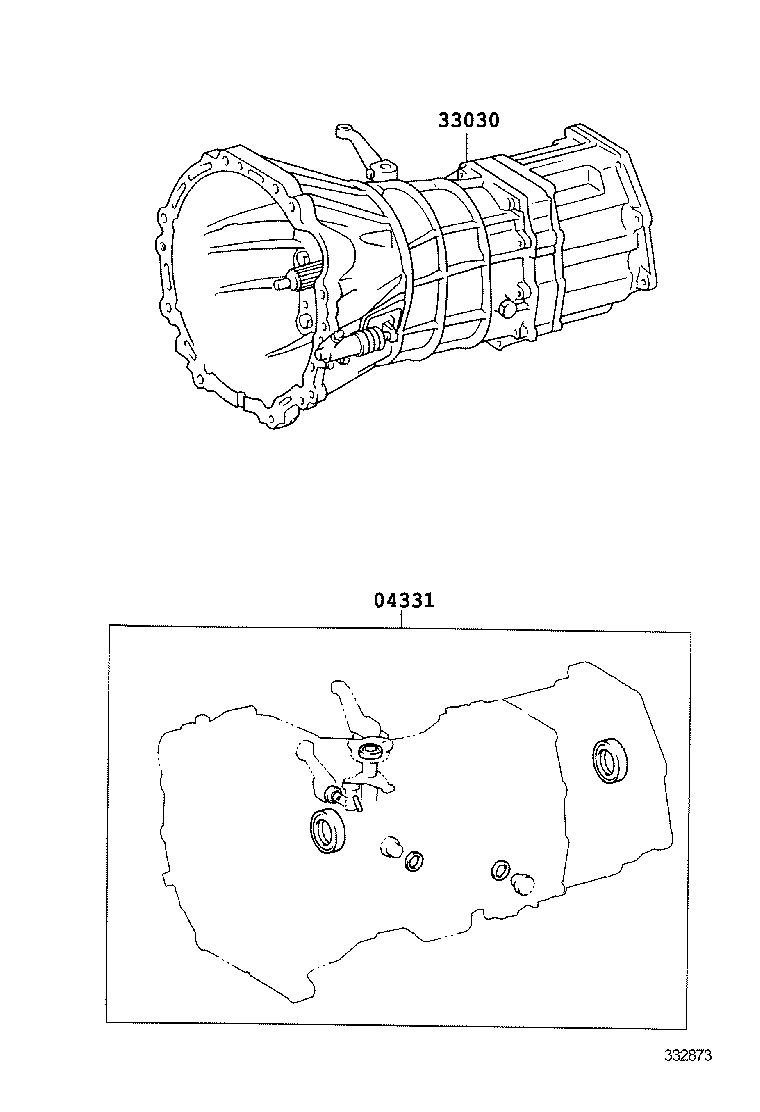

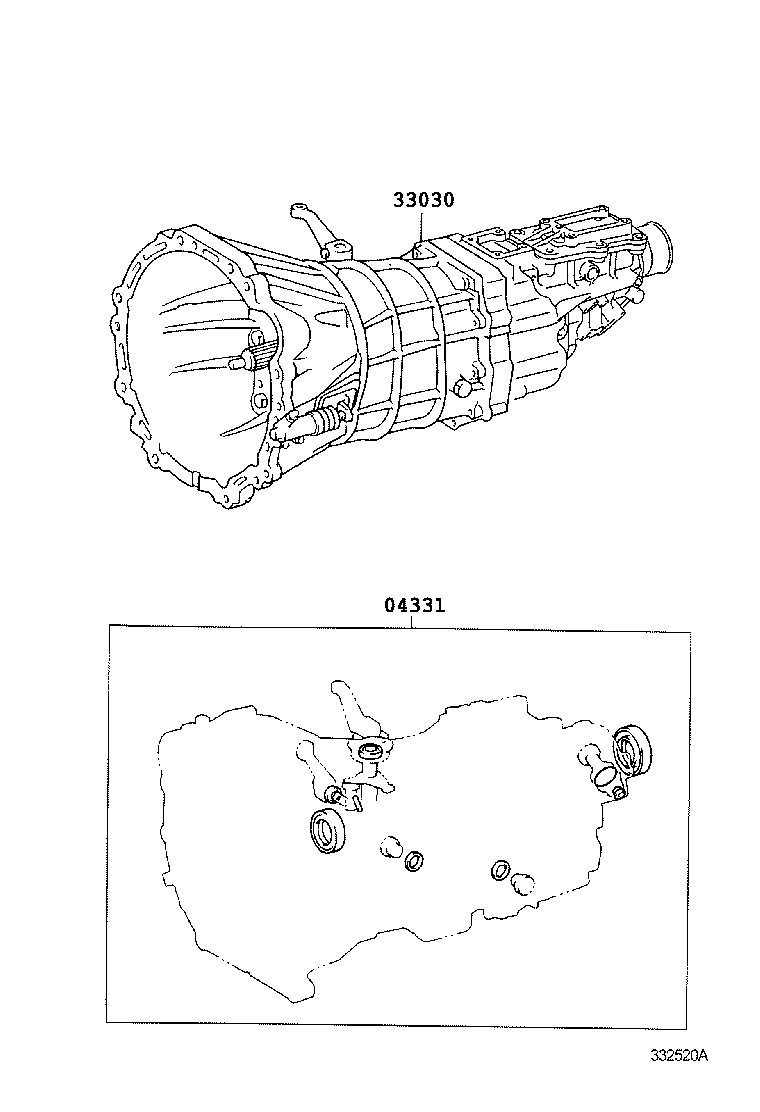

Figure 332519C 332519C 2004-08 → — Figure 332520A 332520A 2004-08 → — Figure 332873 332873 2004-08 → —

Part groups

PNCDescription
04331 Gasket Kit, Manual Transmission Overhaul
33030 Transmission Unit Assy, Manual
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
