Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Valve Body & Oil Strainer (ATM)

37 part groups · 6 illustrations

Illustrations

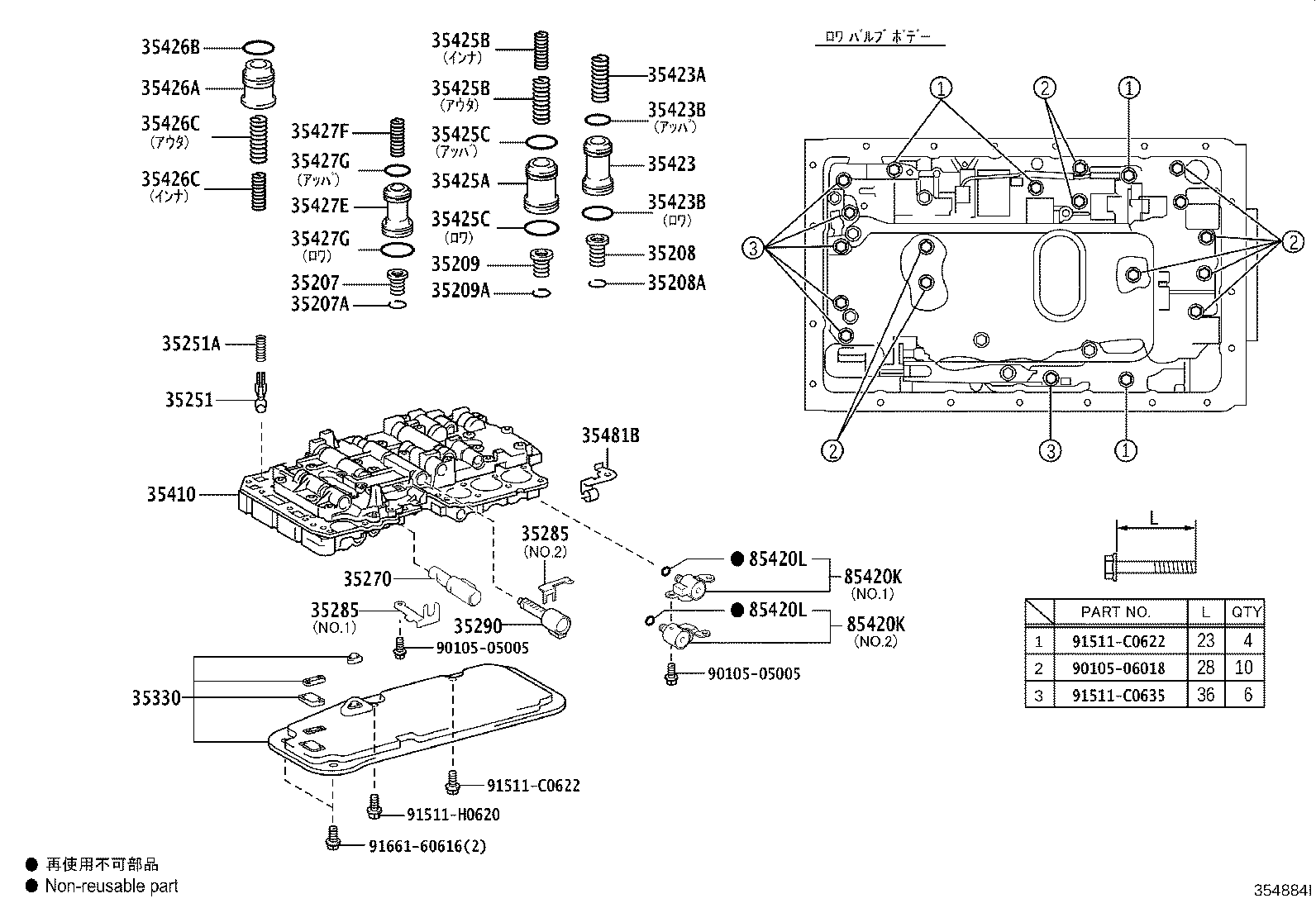

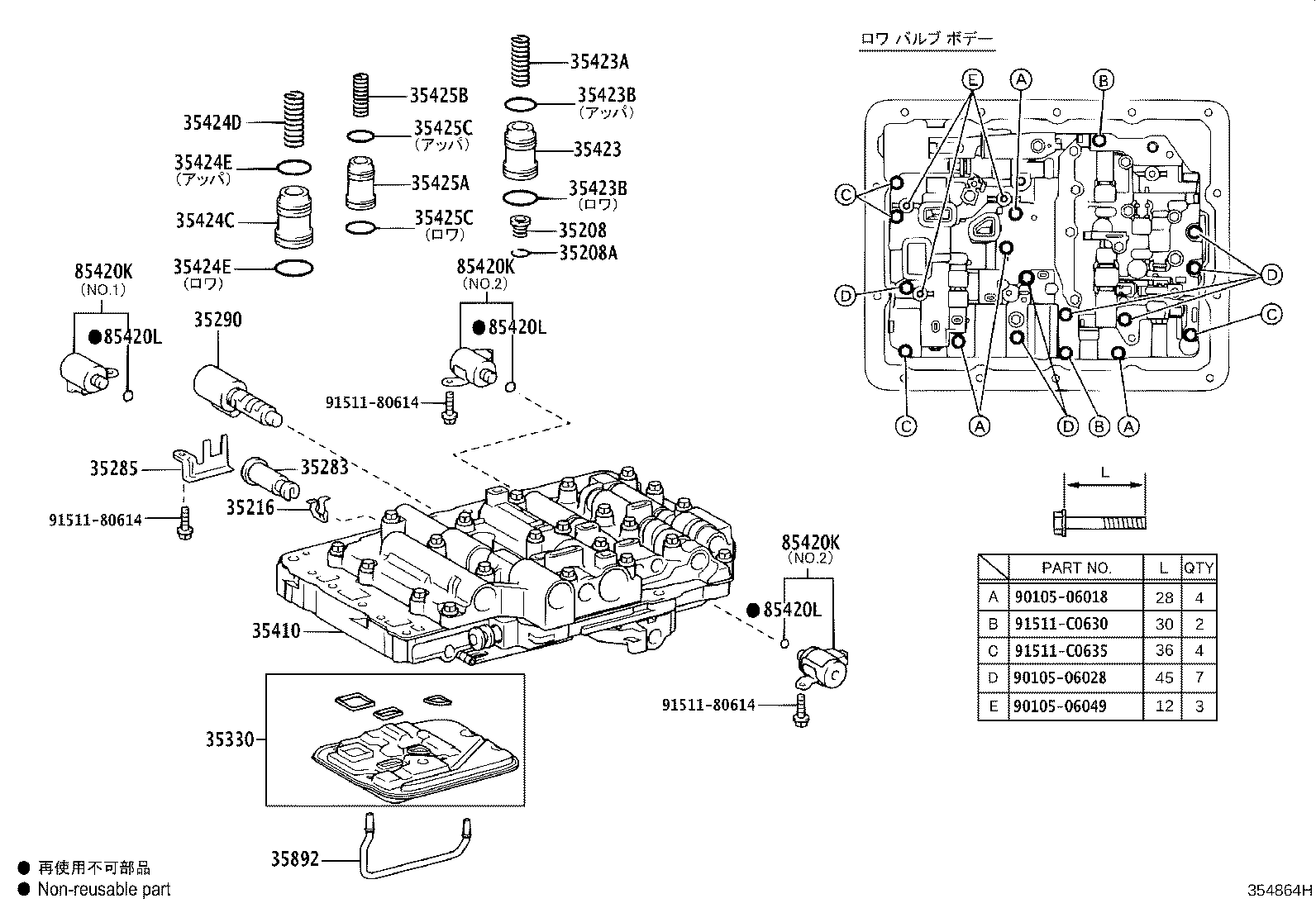

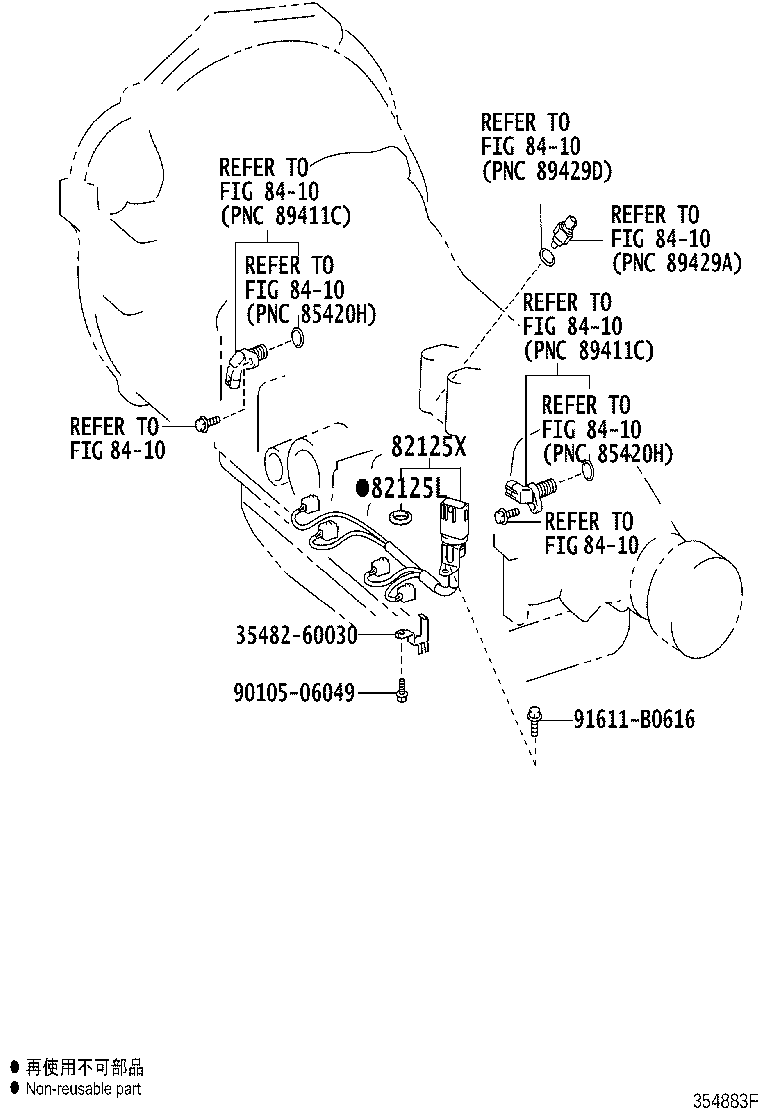

Figure 354865F 354865F 2004-08 → 2007-09 Figure 354884I 354884I 2004-08 → — Figure 354884I 354884I 2007-09 → — Figure 354864H 354864H 2004-08 → — Figure 354883F 354883F 2004-08 → — Figure 354881C 354881C 2004-08 → —

Part groups

PNCDescription
35207 Spring Sub-assy, B-0 Accumulator
35207A Ring, Hole Snap (FOR B-0 ACCUMULATOR SPRING)
35208 Spring Sub-assy, B-2 Accumulator
35208A Ring, Hole Snap (FOR B-2 ACCUMULATOR SPRING)
35209 Spring Sub-assy, C-2 Accumulator
35209A Ring, Hole Snap (FOR C-2 ACCUMULATOR SPRING)
35216 Stopper, Valve Sleeve
35251 Body, Check Ball
35251A Spring, Compression (FOR CHECK BALL BODY)
35270 Solenoid Assy, Shift Control
35283 Sleeve, Lock UP Control Solenoid
35285 Plate, Solenoid Lock
35290 Solenoid Assy, Line Pressure Control
35330 Strainer Assy, Valve Body Oil
35410 Body Assy, Transmission Valve
35423 Piston, B-2 Accumulator
35423A Spring, Compression (FOR B-2 ACCUMULATOR PISTON)
35423B Ring, O (FOR B-2 ACCUMULATOR PISTON)
35424C Piston, C-1 Accumulator
35424D Spring, Compression (FOR C-1 ACCUMULATOR PISTON)
35424E Ring, O (FOR C-1 ACCUMULATOR PISTON)
35425A Piston, C-2 Accumulator
35425B Spring, Compression (FOR C-2 ACCUMULATOR PISTON)
35425C Ring, O (FOR C-2 ACCUMULATOR PISTON)
35426A Piston, C-0 Accumulator
35426B Ring, O (FOR C-0 ACCUMULATOR PISTON)
35426C Spring, Compression (FOR C-0 ACCUMULATOR PISTON)
35427E Piston, B-0 Accumulator
35427F Spring, Compression (FOR B-0 ACCUMULATOR PISTON)
35427G Ring, O (FOR B-0 ACCUMULATOR PISTON)
35481B Clamp, Valve Body Wire Harness
35892 Tube, Overdrive Brake
82125J Wire, Transmission
82125L Ring, O(FOR TRANSMISSION WIRE)
82125X Wire, Transmission, With Temperature Sensor
85420K Solenoid Assy, Transmission
85420L Ring, O(FOR TRANSMISSION SOLENOID)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
