Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Hub

20 part groups · 2 illustrations

Illustrations

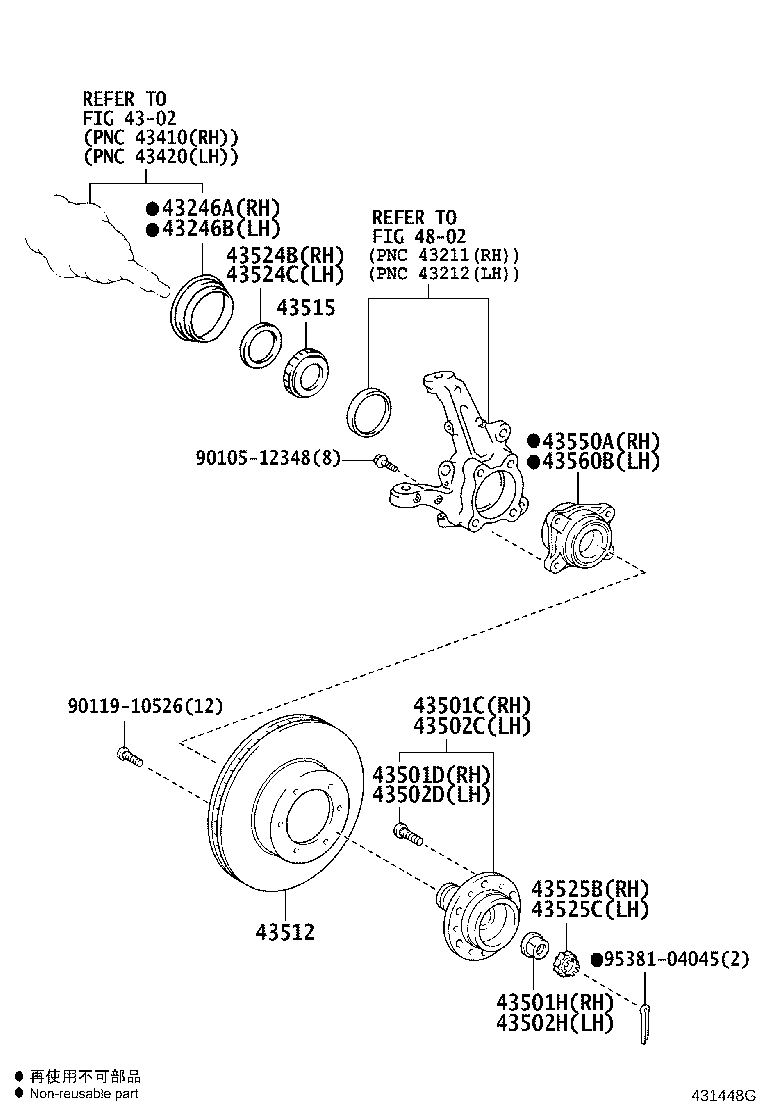

Figure 431447G 431447G 2004-08 → — Figure 431448G 431448G 2004-08 → —

Part groups

PNCDescription
43246A Deflector, Front Wheel Bearing Dust, NO.1 RH
43246B Deflector, Front Wheel Bearing Dust, NO.1 LH
43442D Cap, Knuckle Grease Retainer, RH
43442E Cap, Knuckle Grease Retainer, LH
43501C Hub Sub-assy, Front Axle, RH
43501D Bolt, Hub (FOR FRONT AXLE RH)
43501H Nut (FOR FRONT AXLE SHAFT RH)
43502C Hub Sub-assy, Front Axle, LH
43502D Bolt, Hub (FOR FRONT AXLE LH)
43502H Nut (FOR FRONT AXLE SHAFT LH)
43512 Disc, Front
43515 Rotor, Skid Control, Front
43521C Nut, Front Wheel Adjusting, RH
43521D Nut, Front Wheel Adjusting, LH
43524B Spacer, Front Wheel Inner Bearing, RH
43524C Spacer, Front Wheel Inner Bearing, LH
43525B Cap, Front Wheel Adjusting Lock, RH
43525C Cap, Front Wheel Adjusting Lock, LH
43550A Bearing (FOR FRONT AXLE HUB RH)
43560B Bearing (FOR FRONT AXLE HUB LH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
