Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vane Pump & Reservoir (POWER STEERING)

12 part groups · 2 illustrations

Illustrations

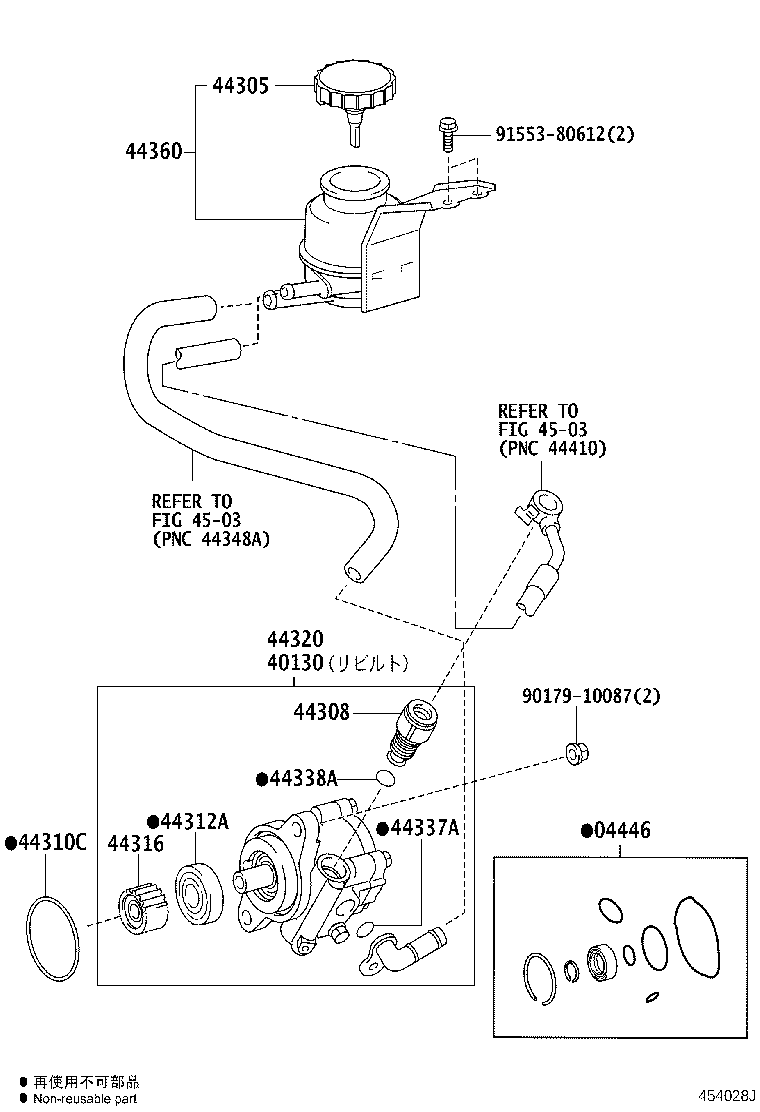

Figure 454027K 454027K 2004-08 → — Figure 454028J 454028J 2004-08 → —

Part groups

PNCDescription
04446 Gasket Kit, Power Steering Pump
40130 Pump Assy,Vane Rebuilt
44305 Cap Sub-assy, Vane Pump Oil Reservoir
44308 Union Sub-assy, Pressure Port
44310C Ring, O(FOR VANE PUMP)
44312A Bearing(FOR VANE PUMP SHAFT)
44316 Gear, Vane Pump
44320 Pump Assy, Vane
44337A Ring, O(FOR POWER STEERING SUCTION PORT)
44338A Ring, O(FOR PRESSURE PORT UNION)
44360 Reservoir Assy, Vane Pump Oil
44399 Cover, Vane Pump Oil Reservoir
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
