Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

9 part groups · 5 illustrations

Illustrations

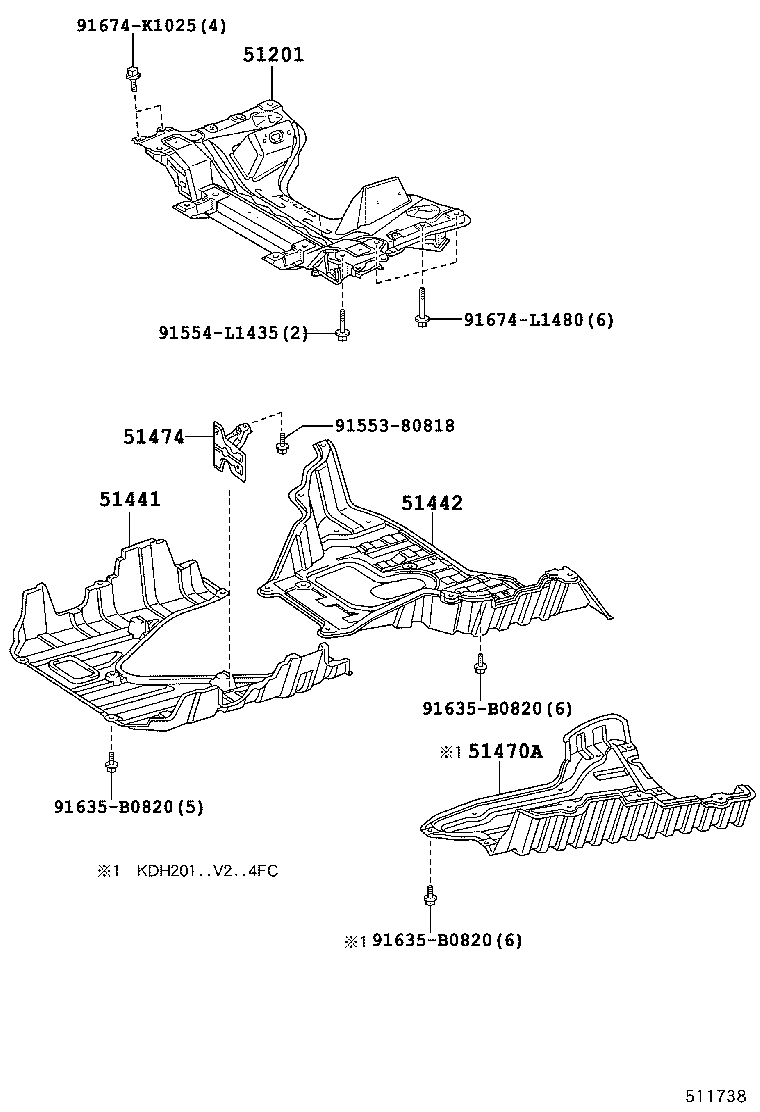

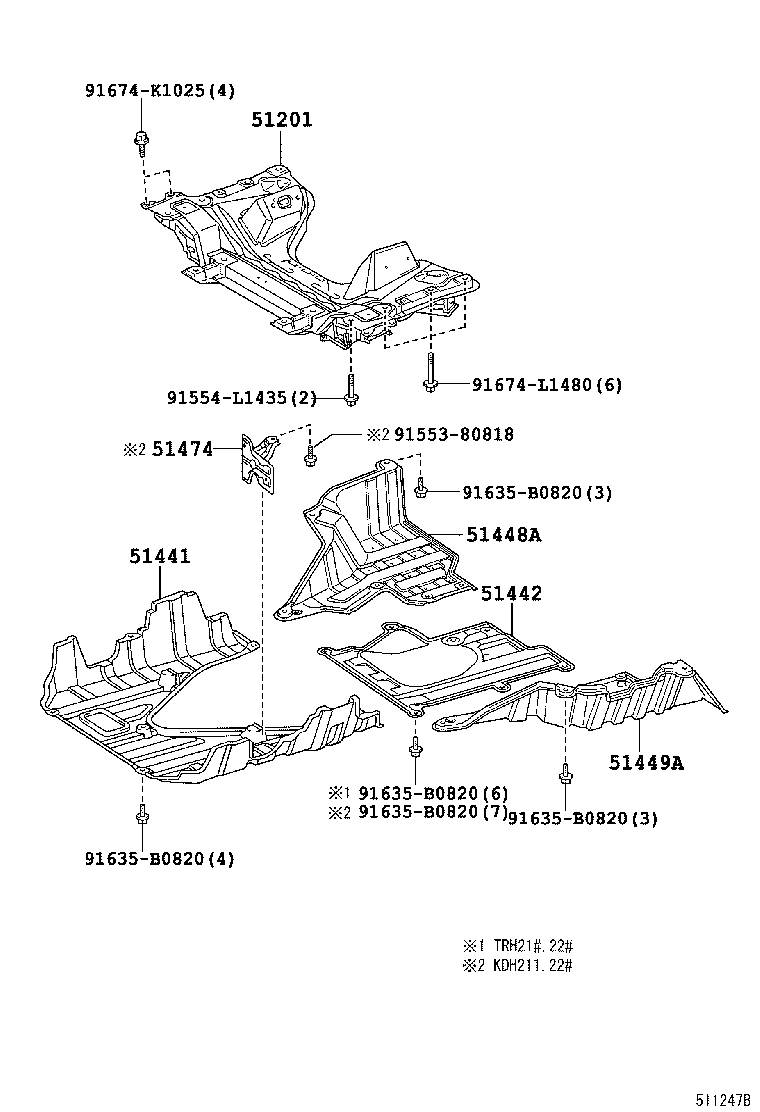

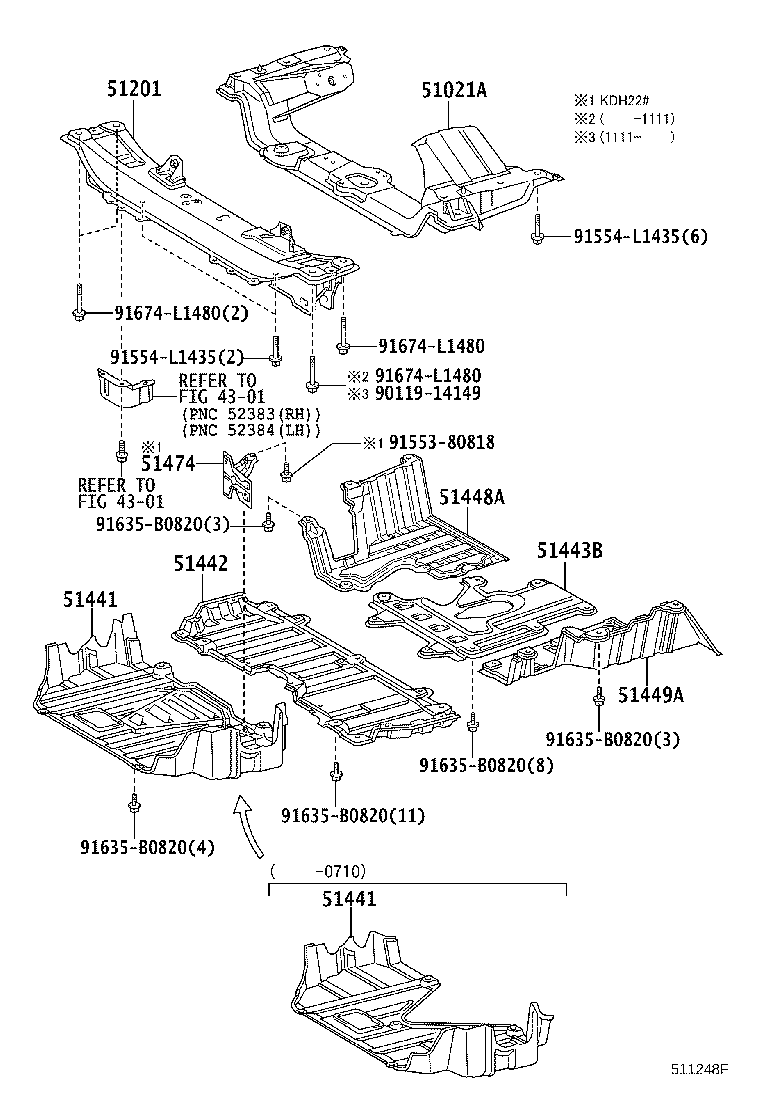

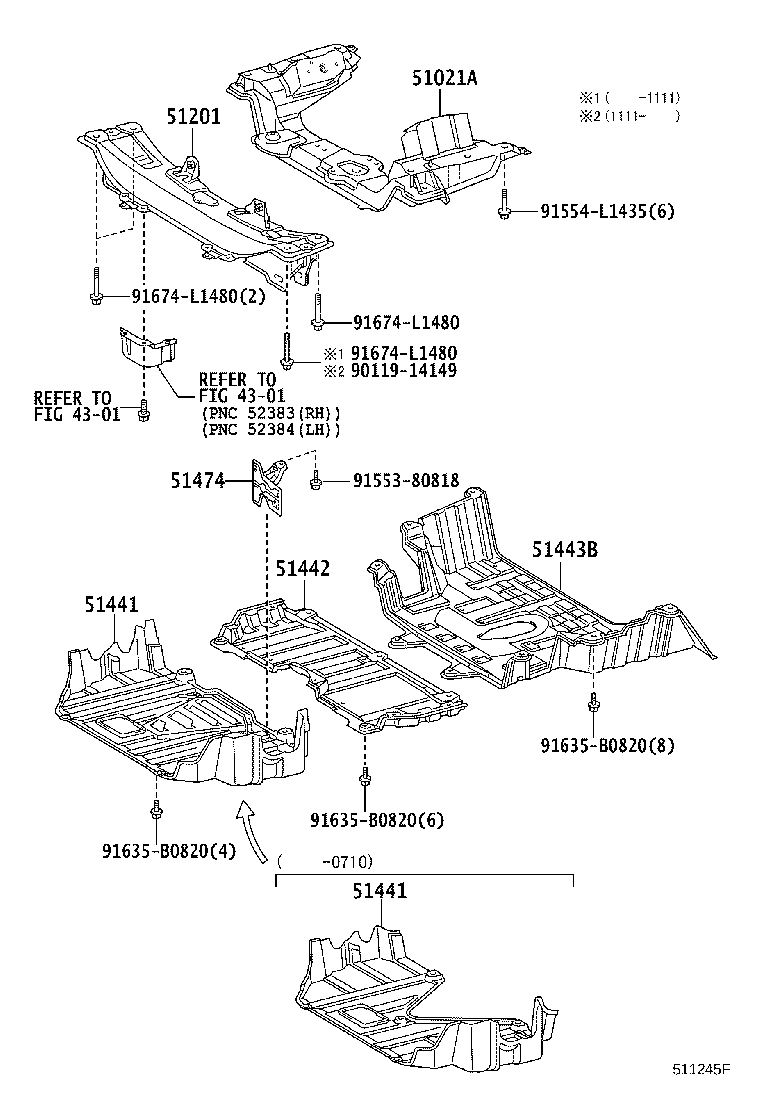

Figure 511246B 511246B 2004-08 → — Figure 511245F 511245F 2004-08 → — Figure 511247B 511247B 2004-08 → — Figure 511248F 511248F 2004-08 → — Figure 511738 511738 2007-09 → —

Part groups

PNCDescription
51021A Member Sub-assy, Engine Front Support
51201 Crossmember Sub-assy, Front Suspension
51441 Cover, Engine Under, NO.1
51442 Cover, Engine Under, NO.2
51443B Cover, Engine Under, NO.3
51448A Cover, Engine Side Under, RH
51449A Cover, Engine Side Under, LH
51470A Cover Assy, Transmission Under, LH
51474 Cover Sub-assy, Engine Side, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
