Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Insulator

6 part groups · 3 illustrations

Illustrations

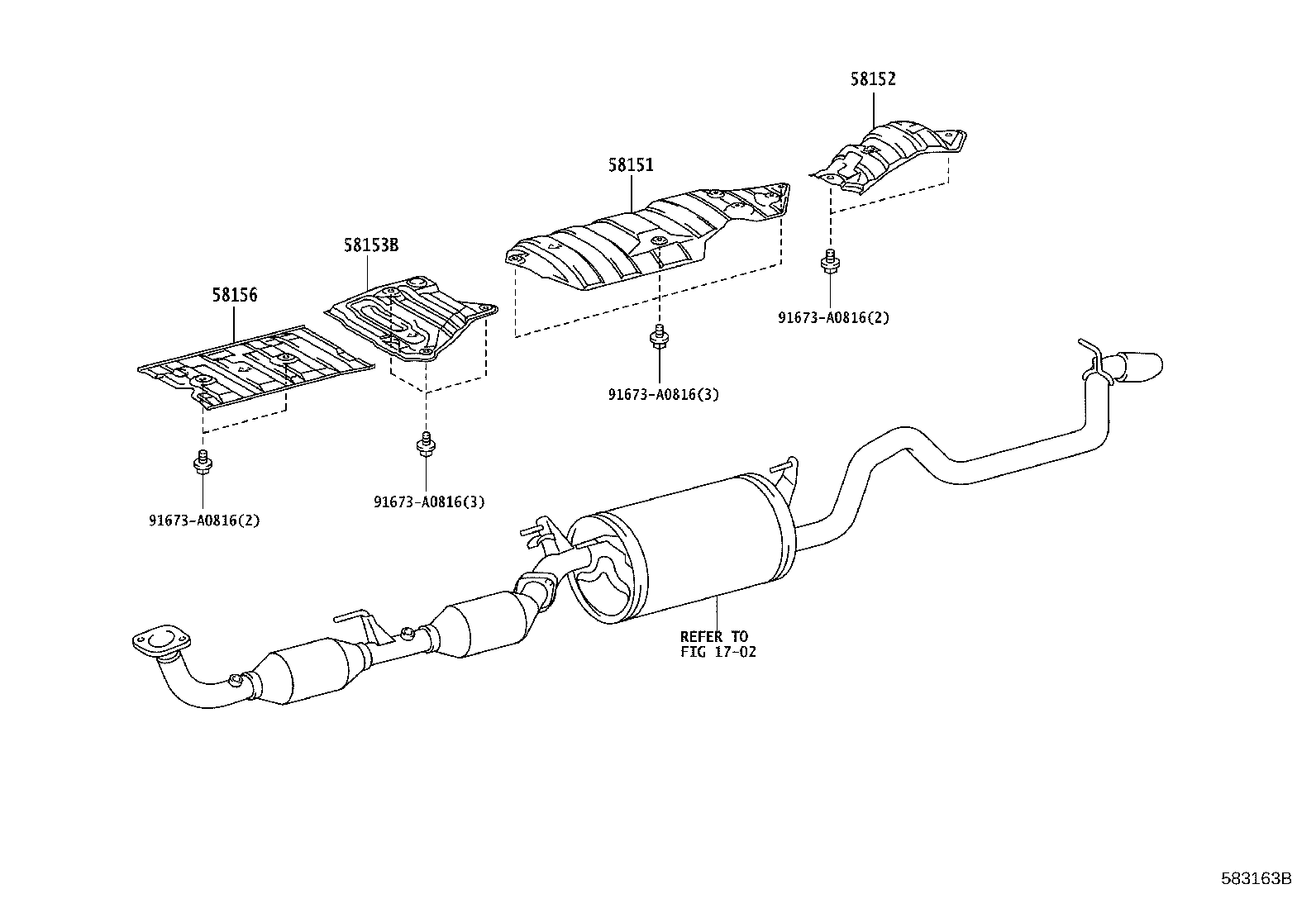

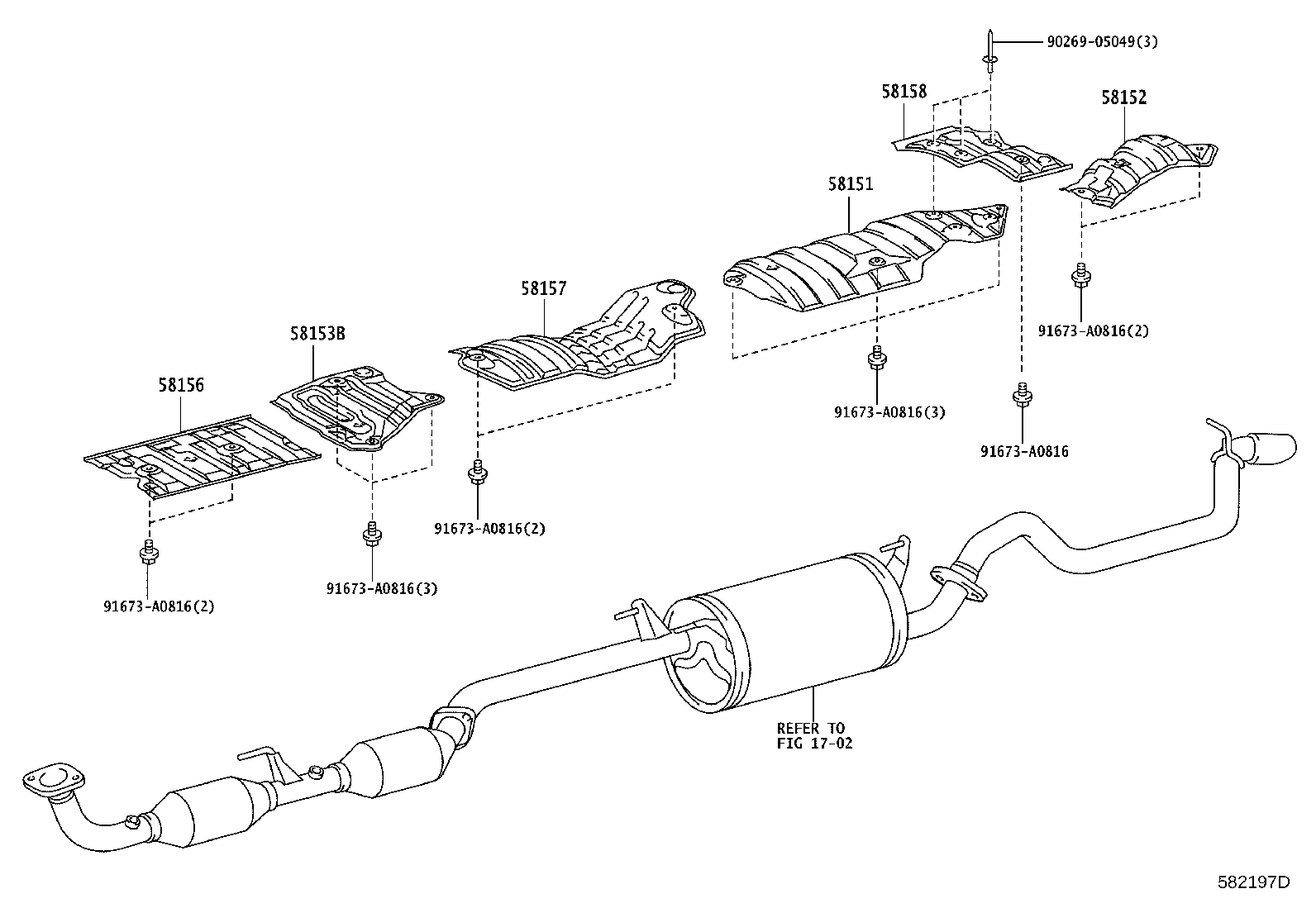

Figure 582145F 582145F 2004-08 → — Figure 583163B 583163B 2004-08 → — Figure 582197D 582197D 2005-01 → —

Part groups

PNCDescription
58151 Insulator, Front Floor Heat, NO.1
58152 Insulator Sub-assy, Center Floor Heat, NO.2
58153B Insulator, Floor Heat, NO.3
58156 Insulator, Front Floor Heat, NO.4
58157 Insulator, Front Floor Heat, NO.5
58158 Insulator, Front Floor Heat, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
