Toyota Hiace/Regiusace
2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan
Supported model
Data version 2014-06

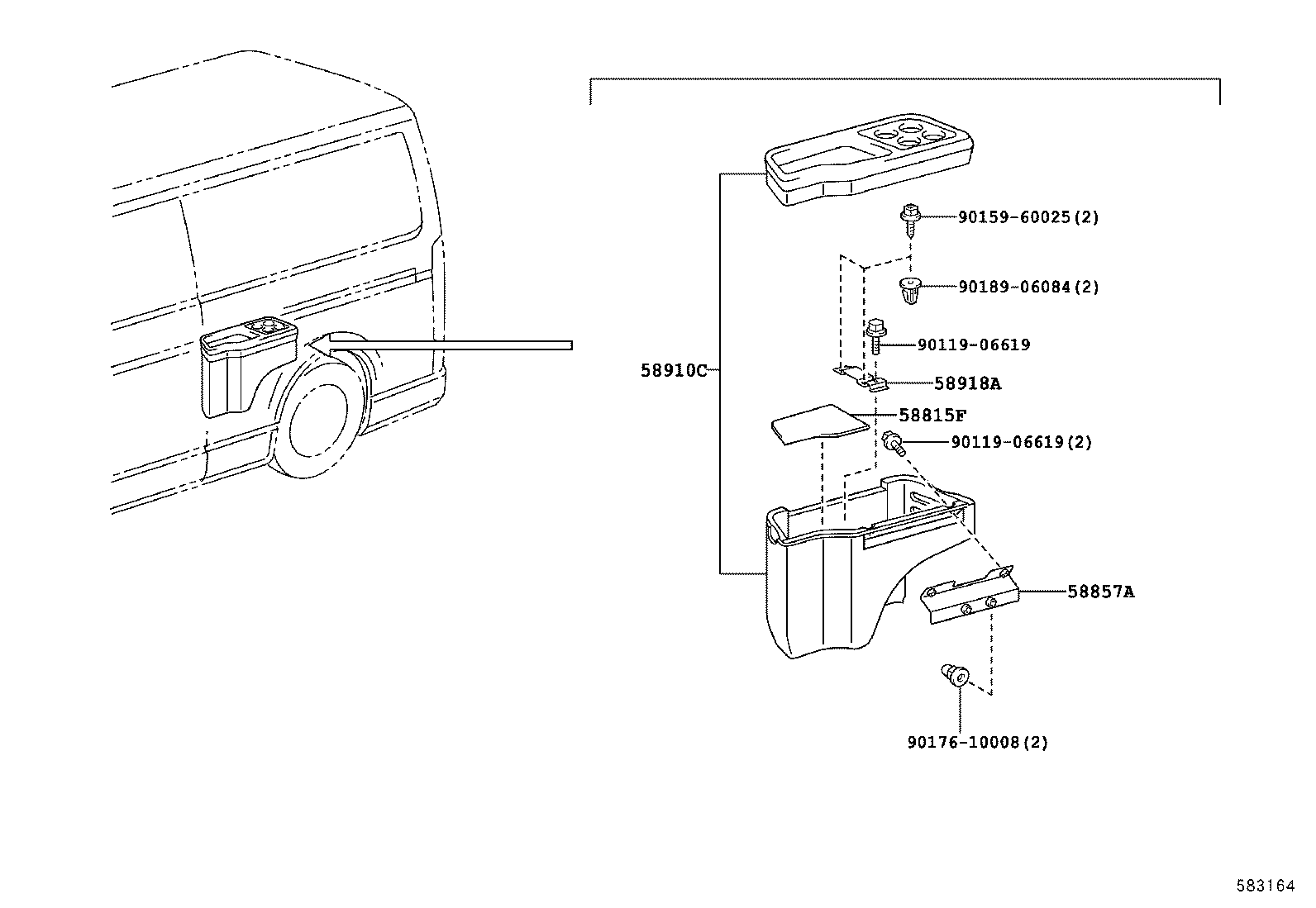

Console Box & Bracket
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 58810J | Box Assy, Console |
| 58815A | Carpet, Console Box |
| 58815B | Carpet, Console Box |
| 58815F | Carpet, Console Box |
| 58839A | Cover, Console Box Hole |
| 58857A | Bracket, Console Support, Upper NO.1 |
| 58905 | Door Sub-assy, Console Compartment |
| 58908A | Lock Sub-assy, Console Compartment Door |
| 58910C | Box Assy, Console, Rear |
| 58918A | Bracket, Box Support |
| 58959B | Cushion, Console Compartment Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
