Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Inside Trim Board

37 part groups · 19 illustrations

Illustrations

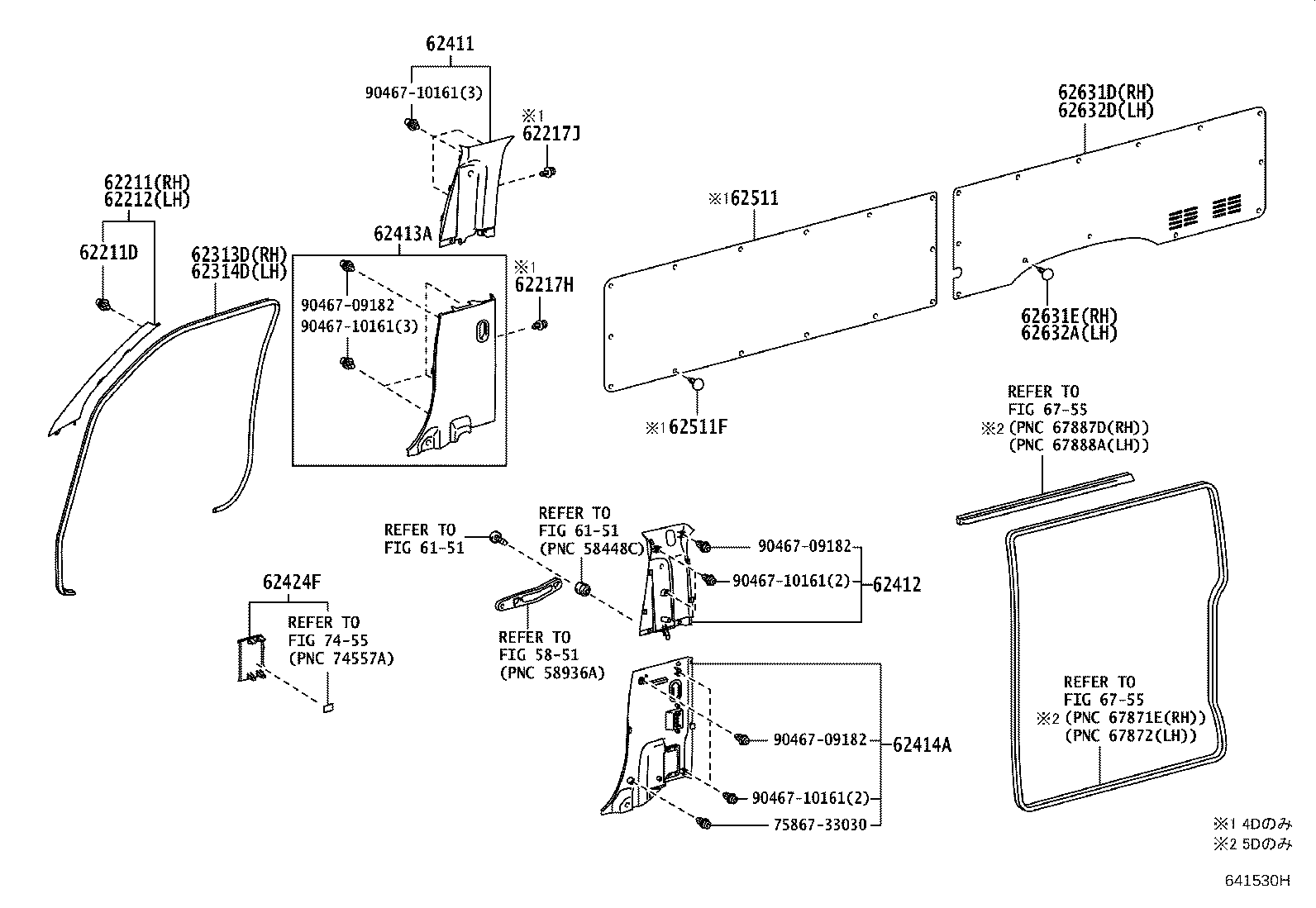

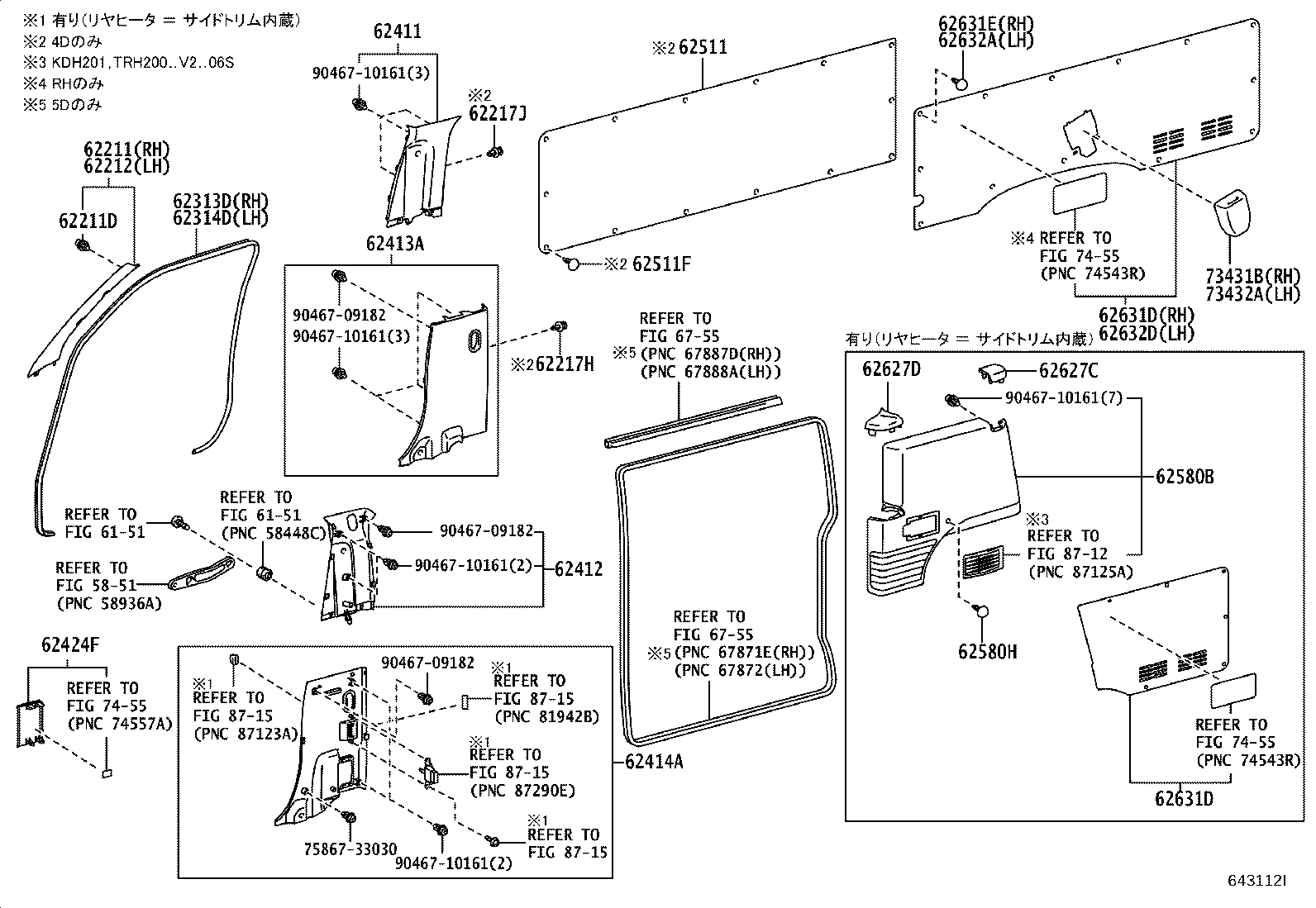

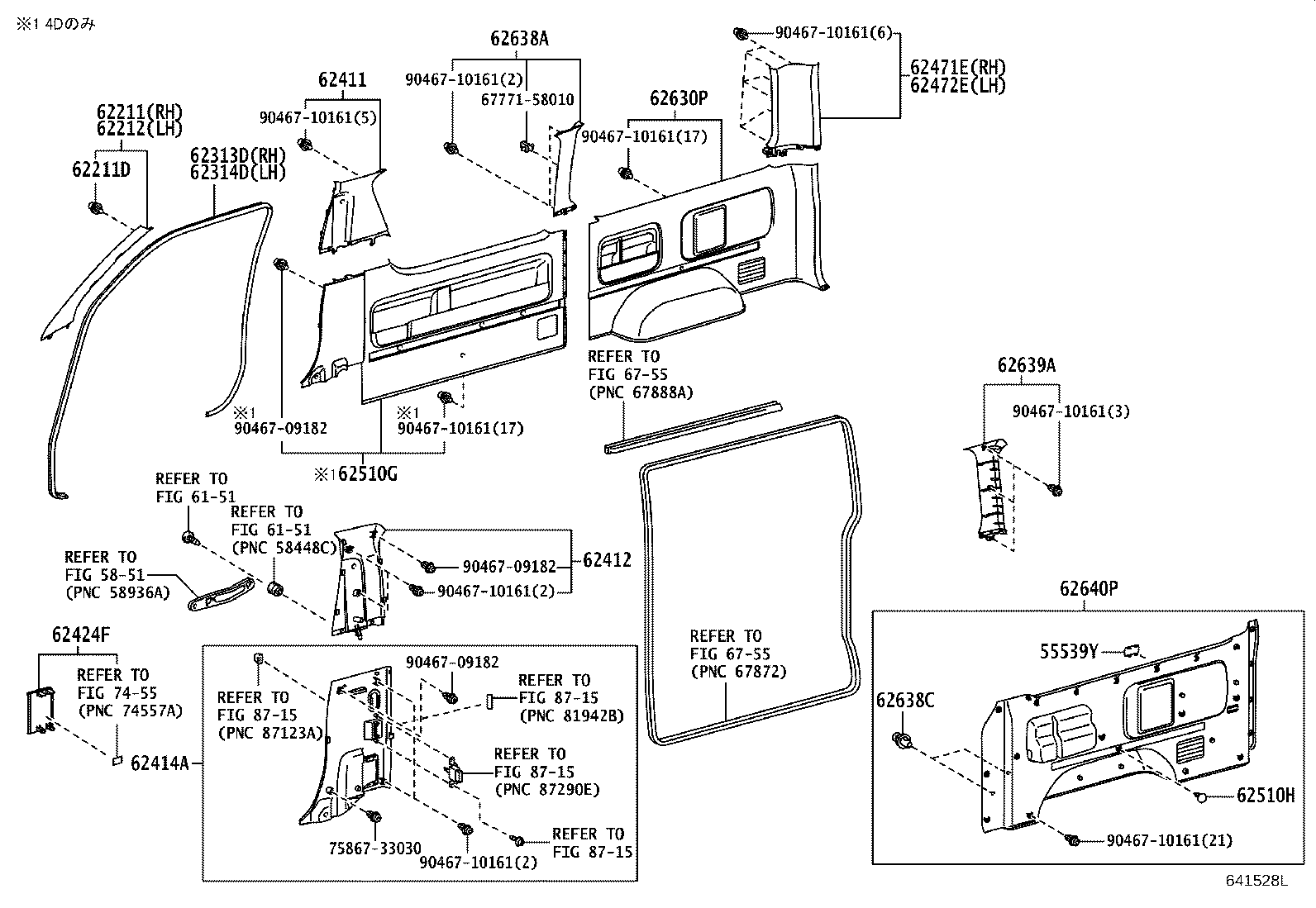

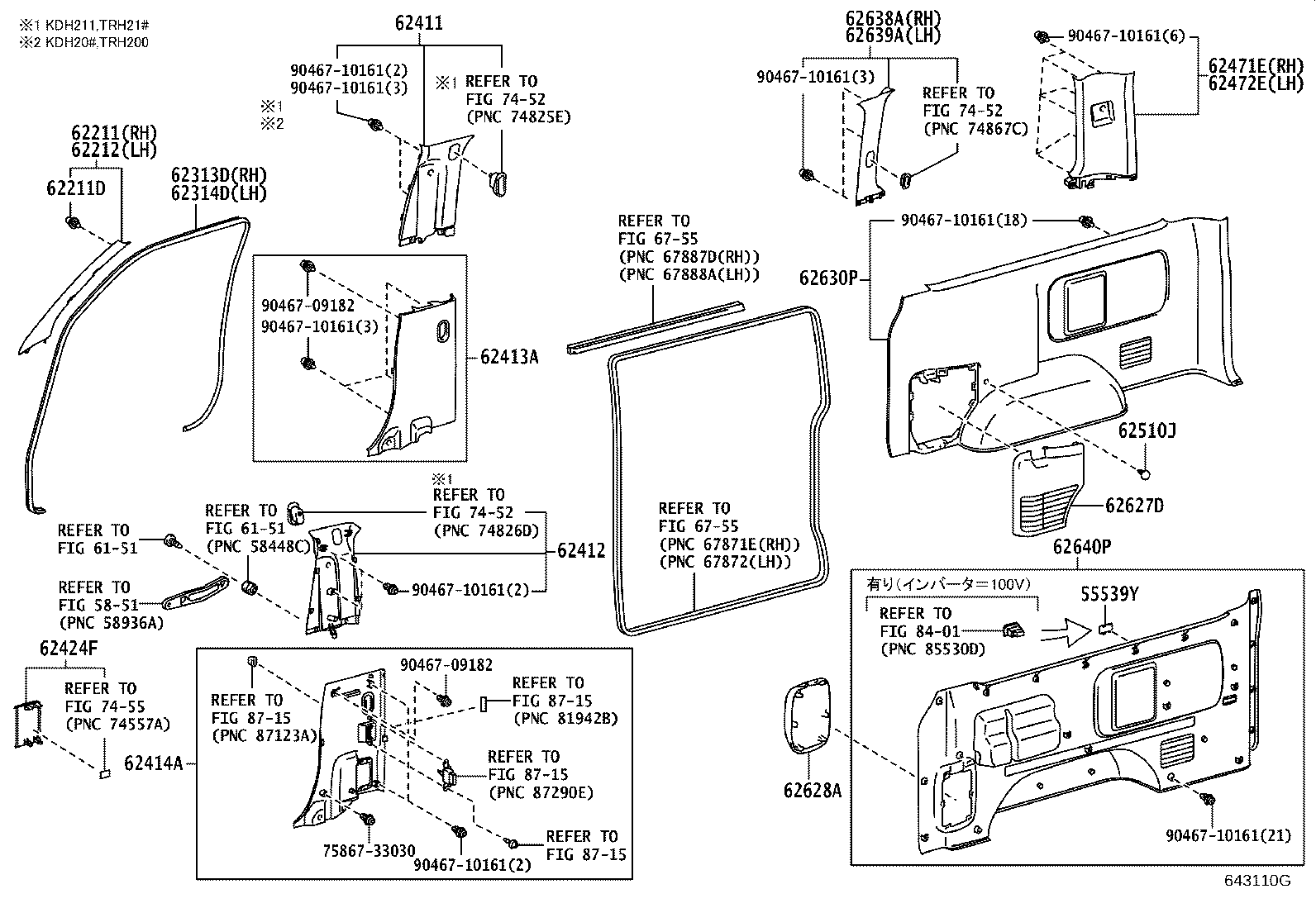

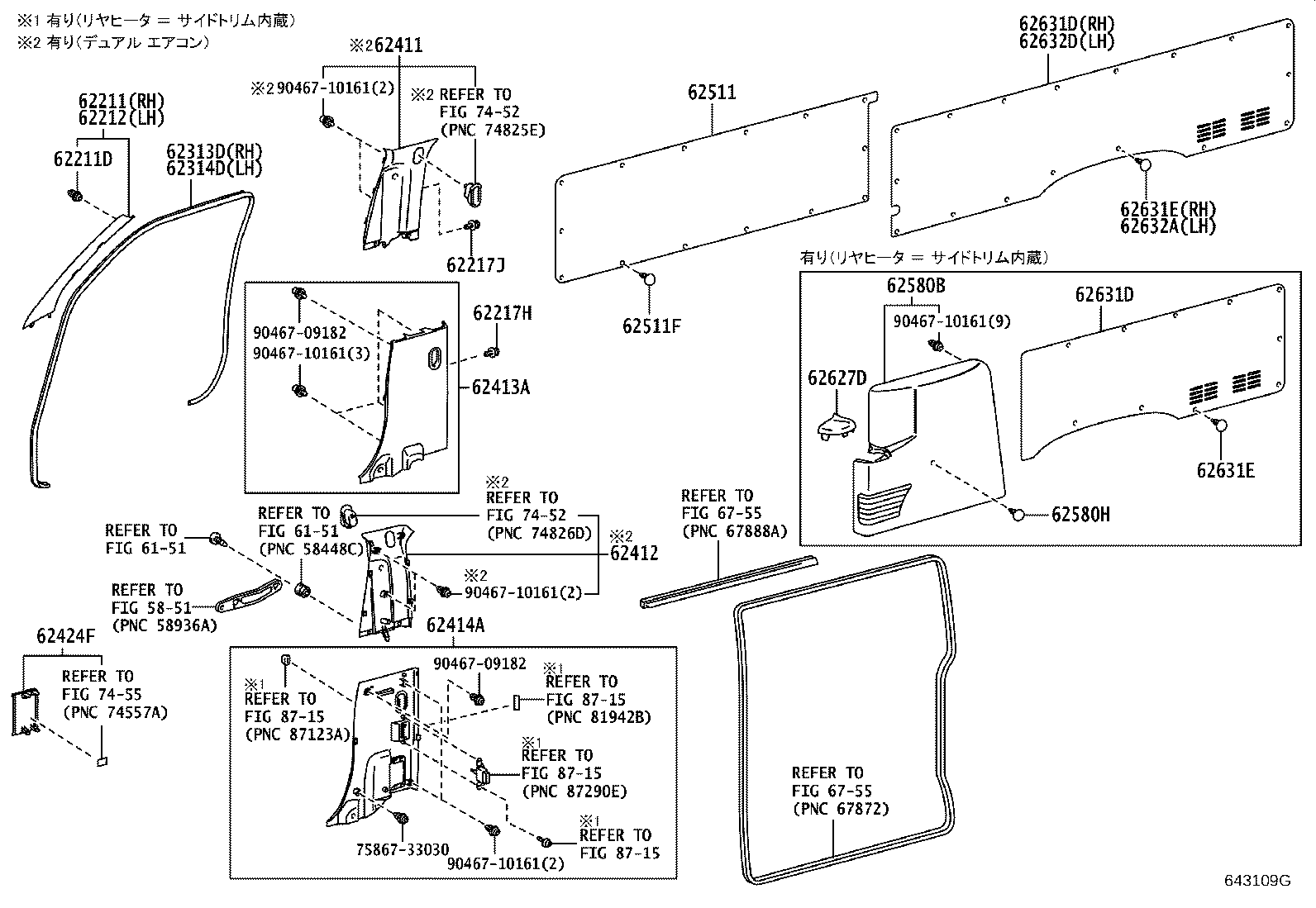

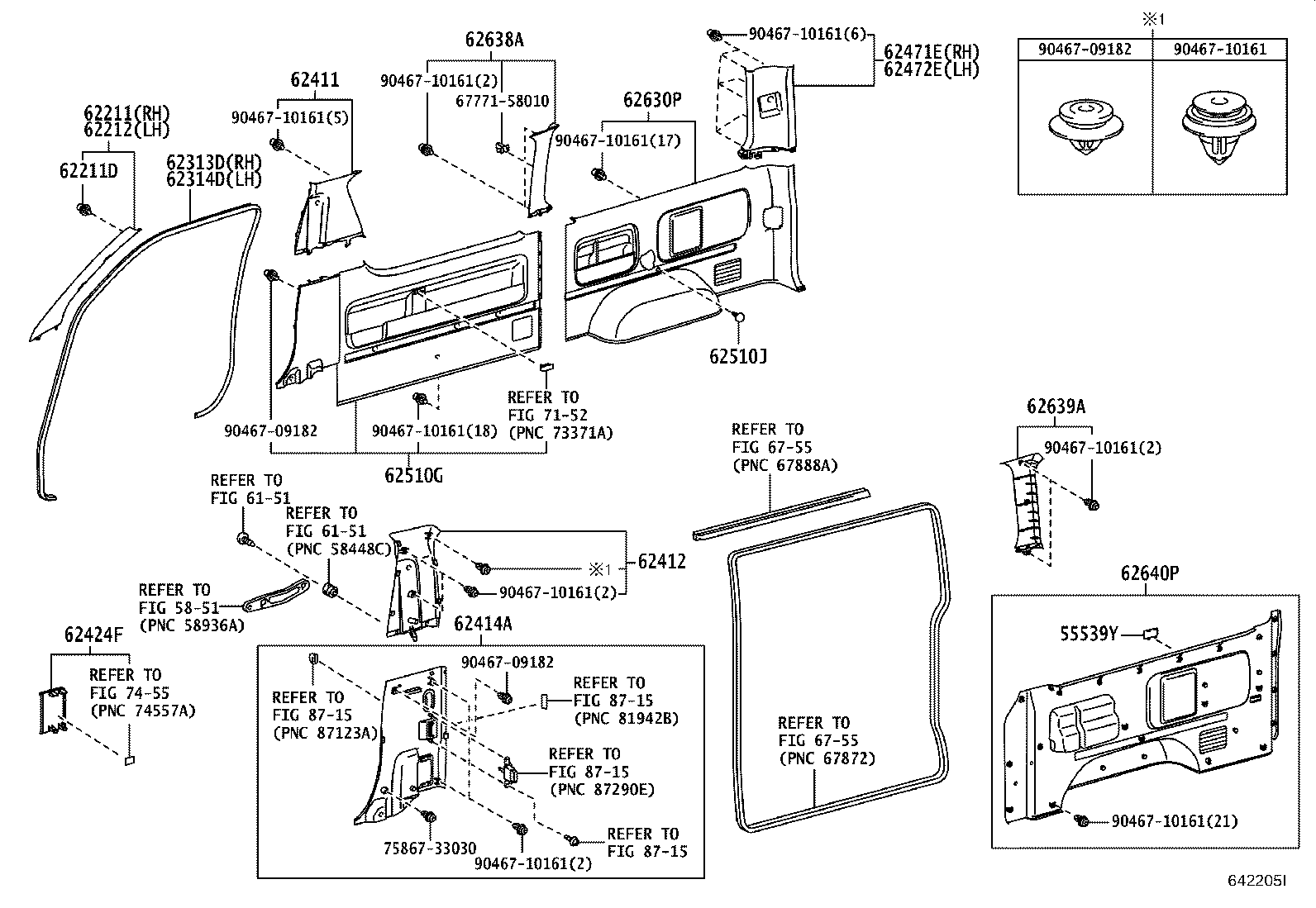

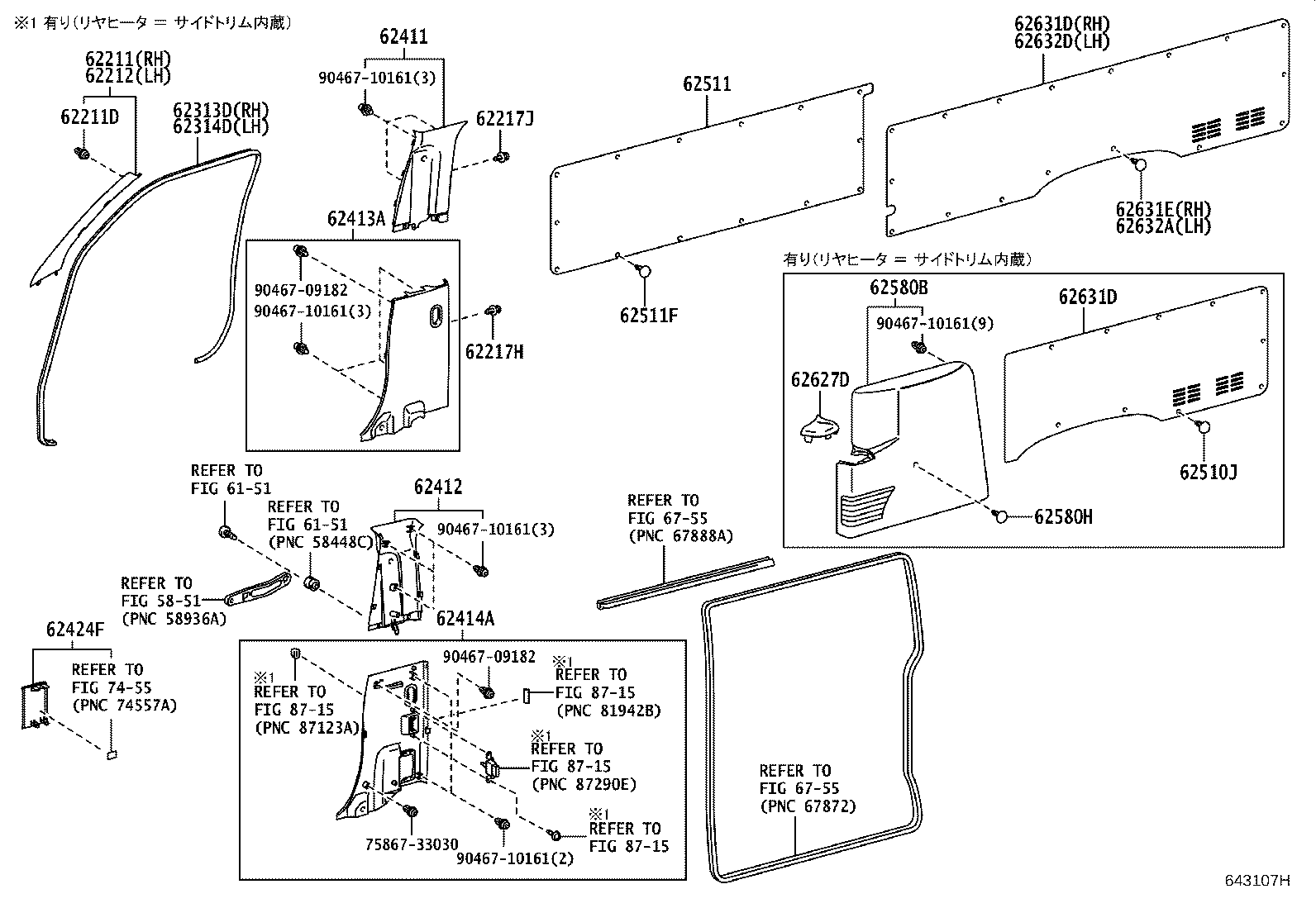

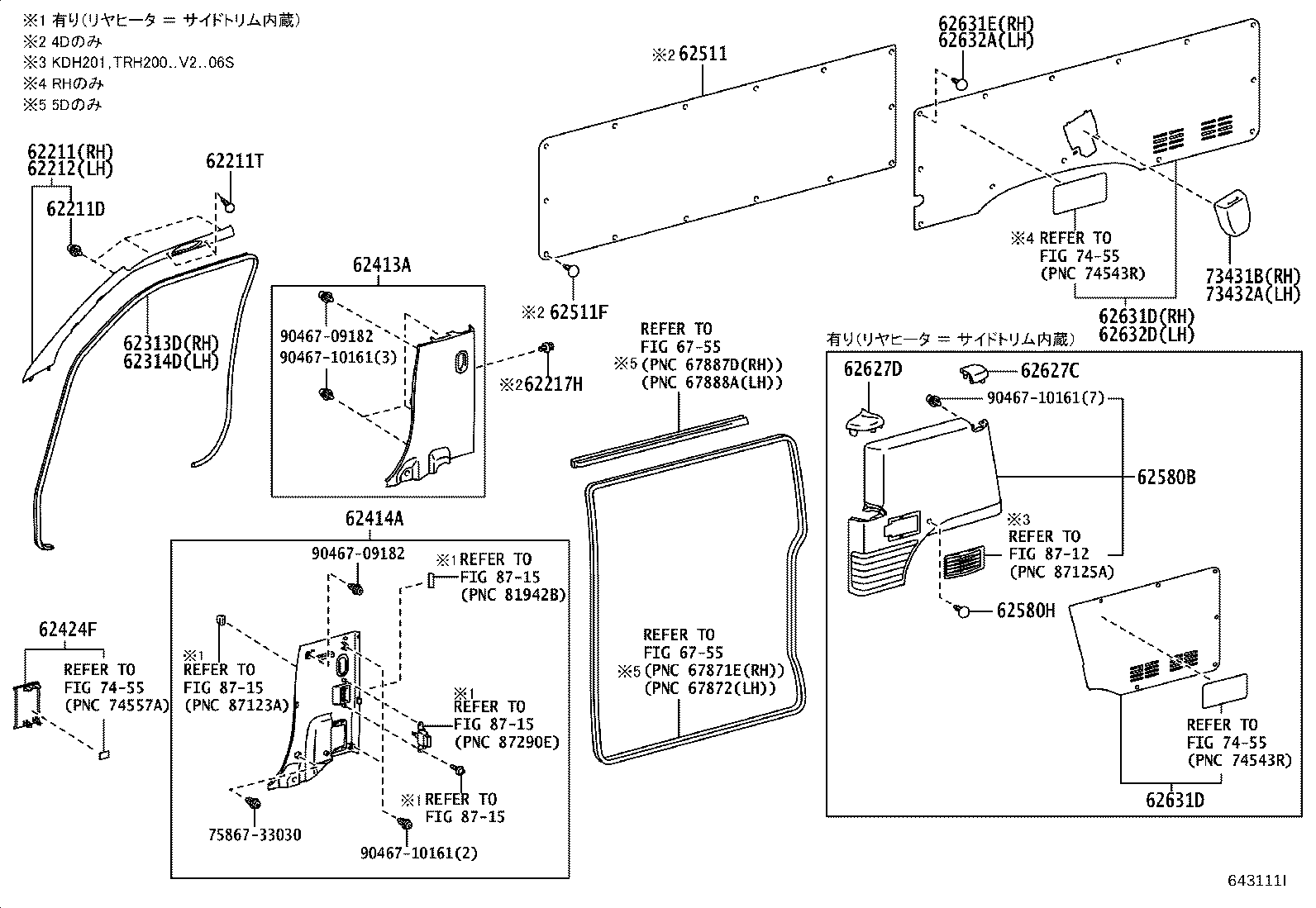

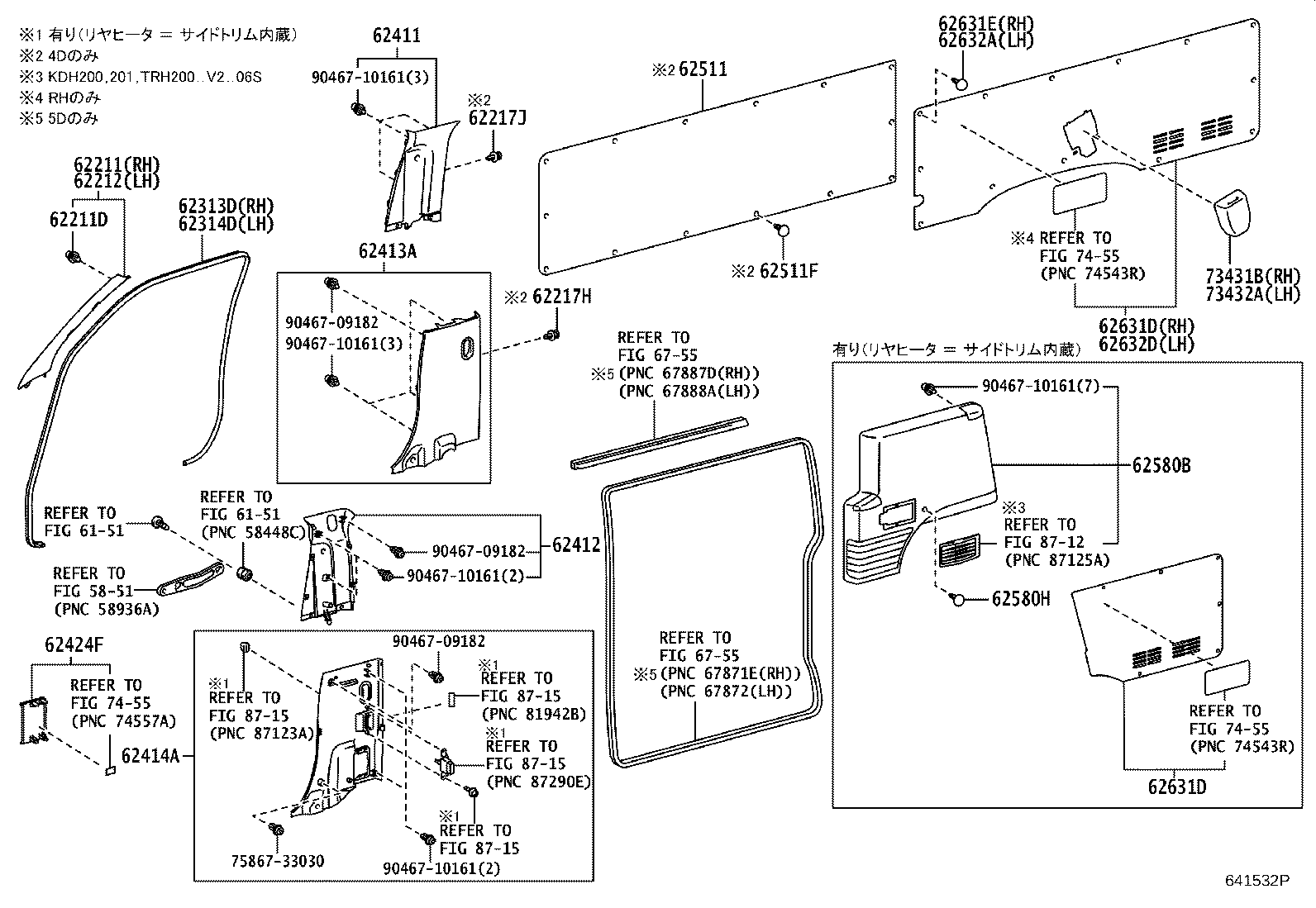

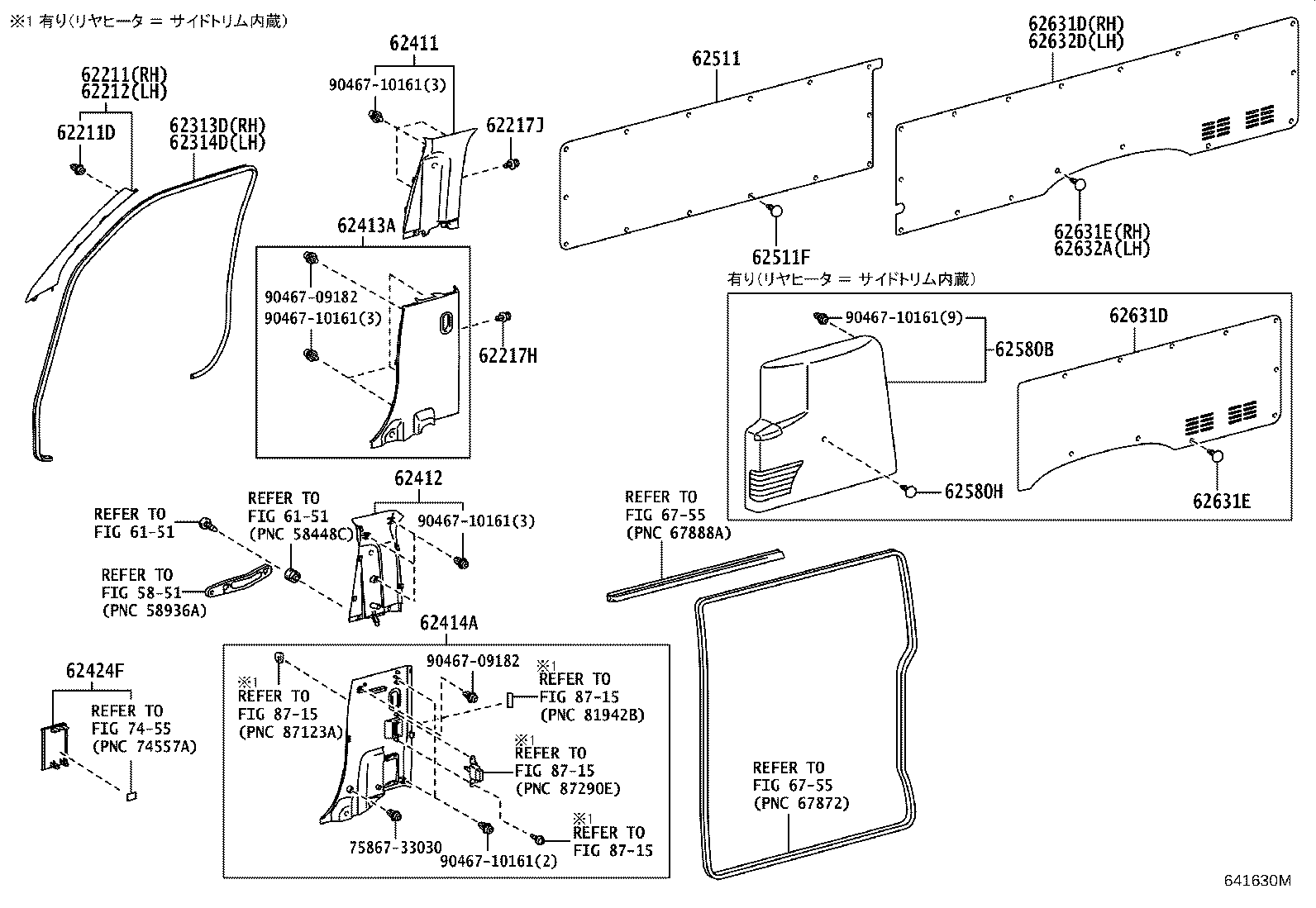

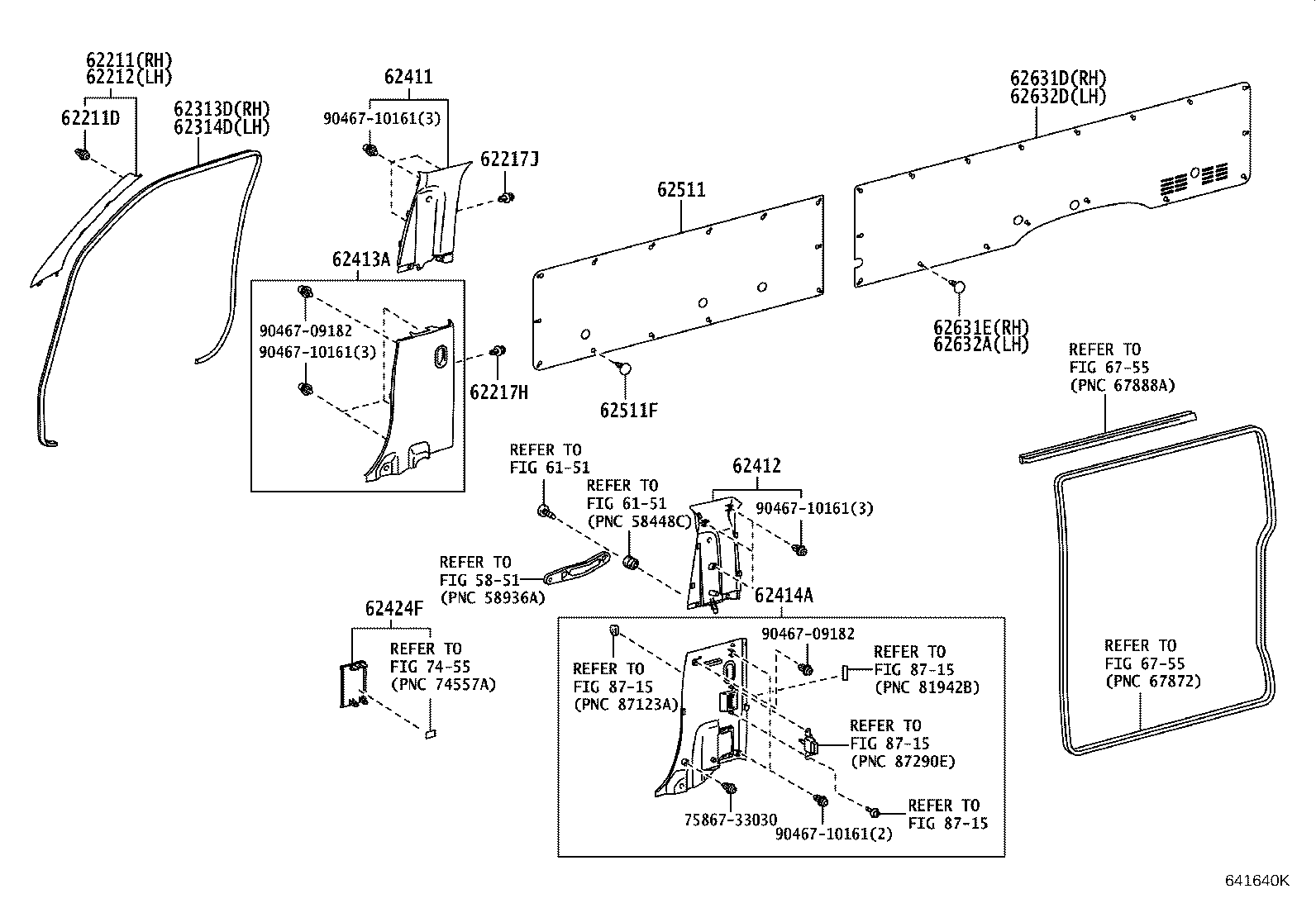

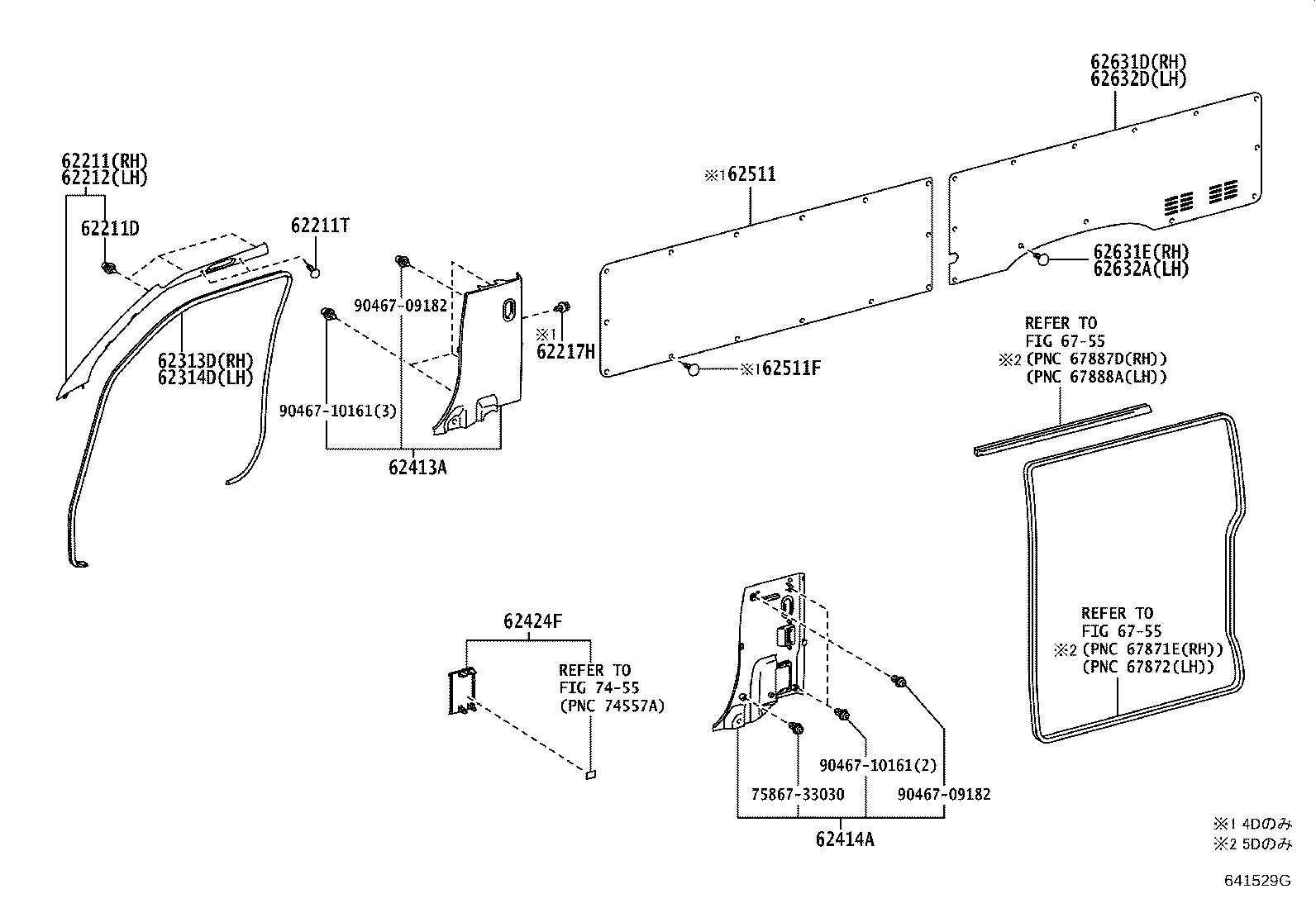

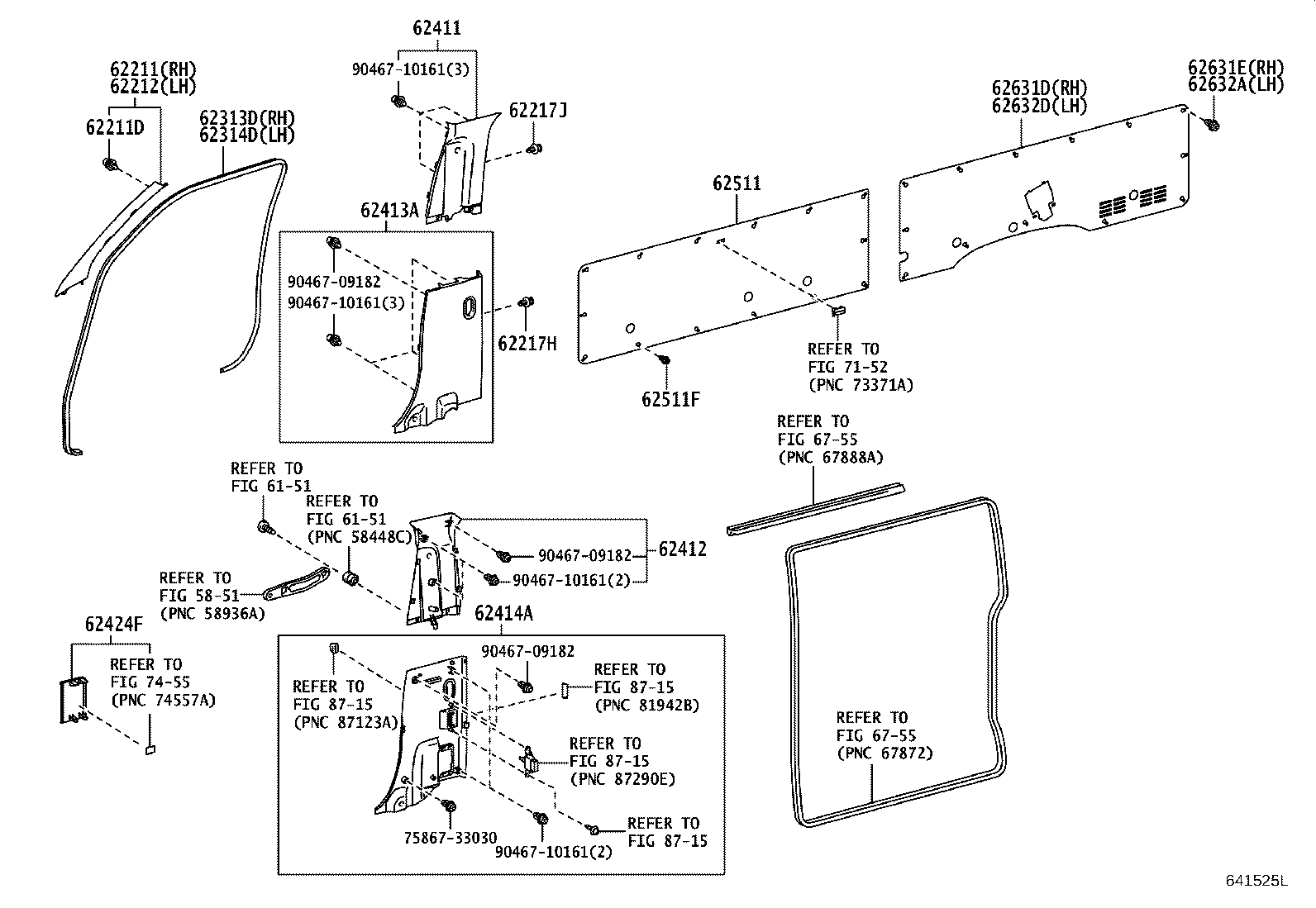

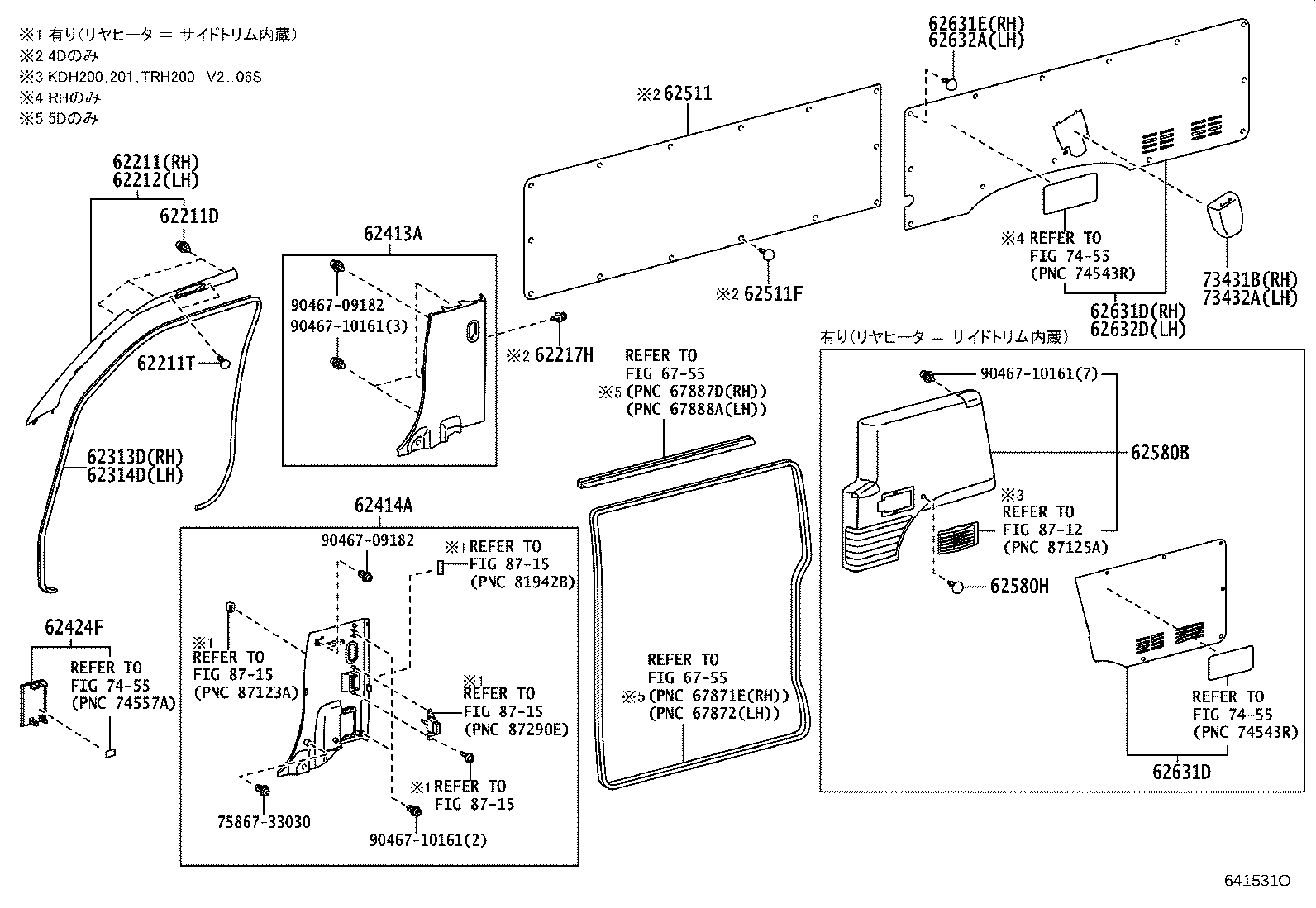

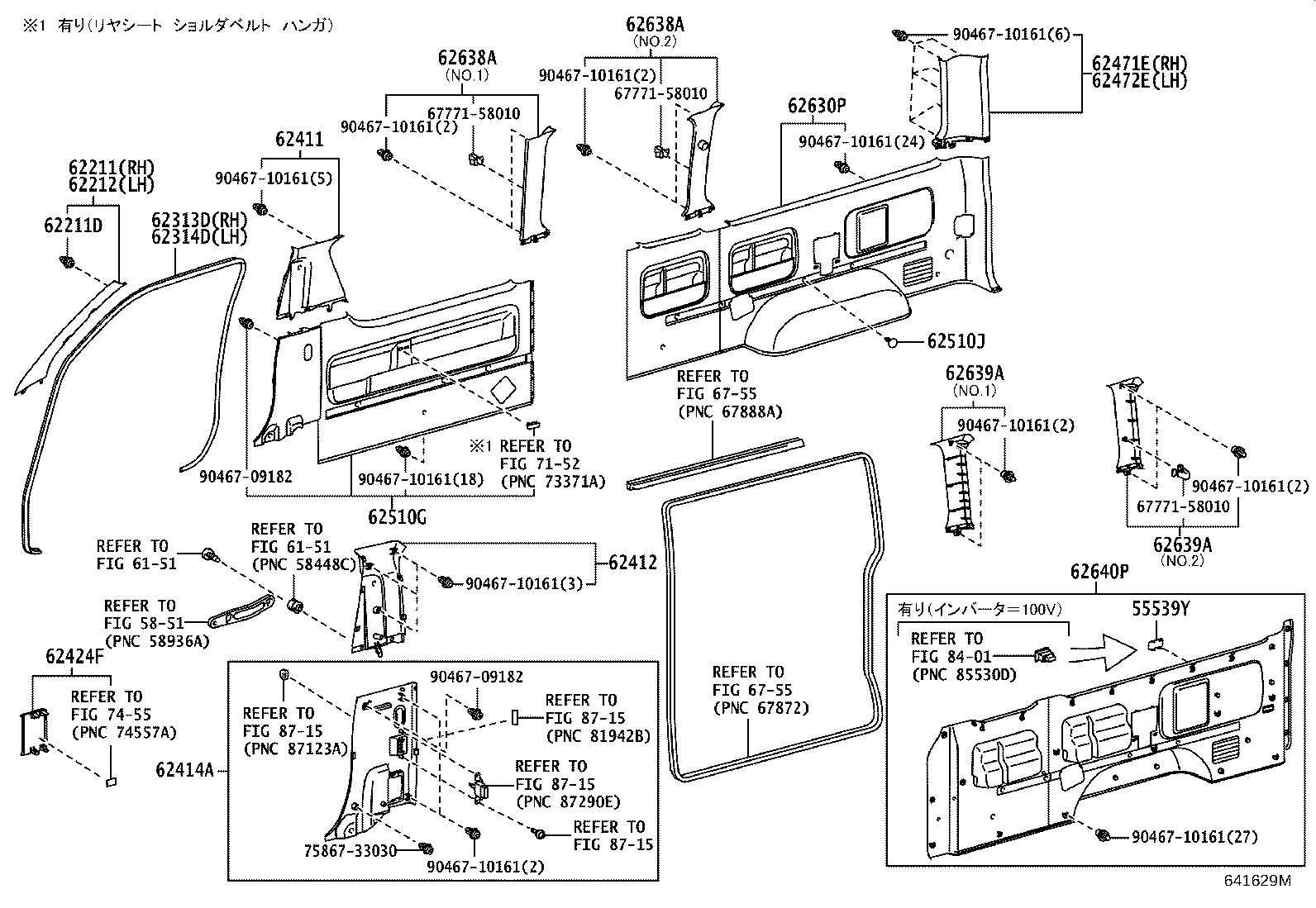

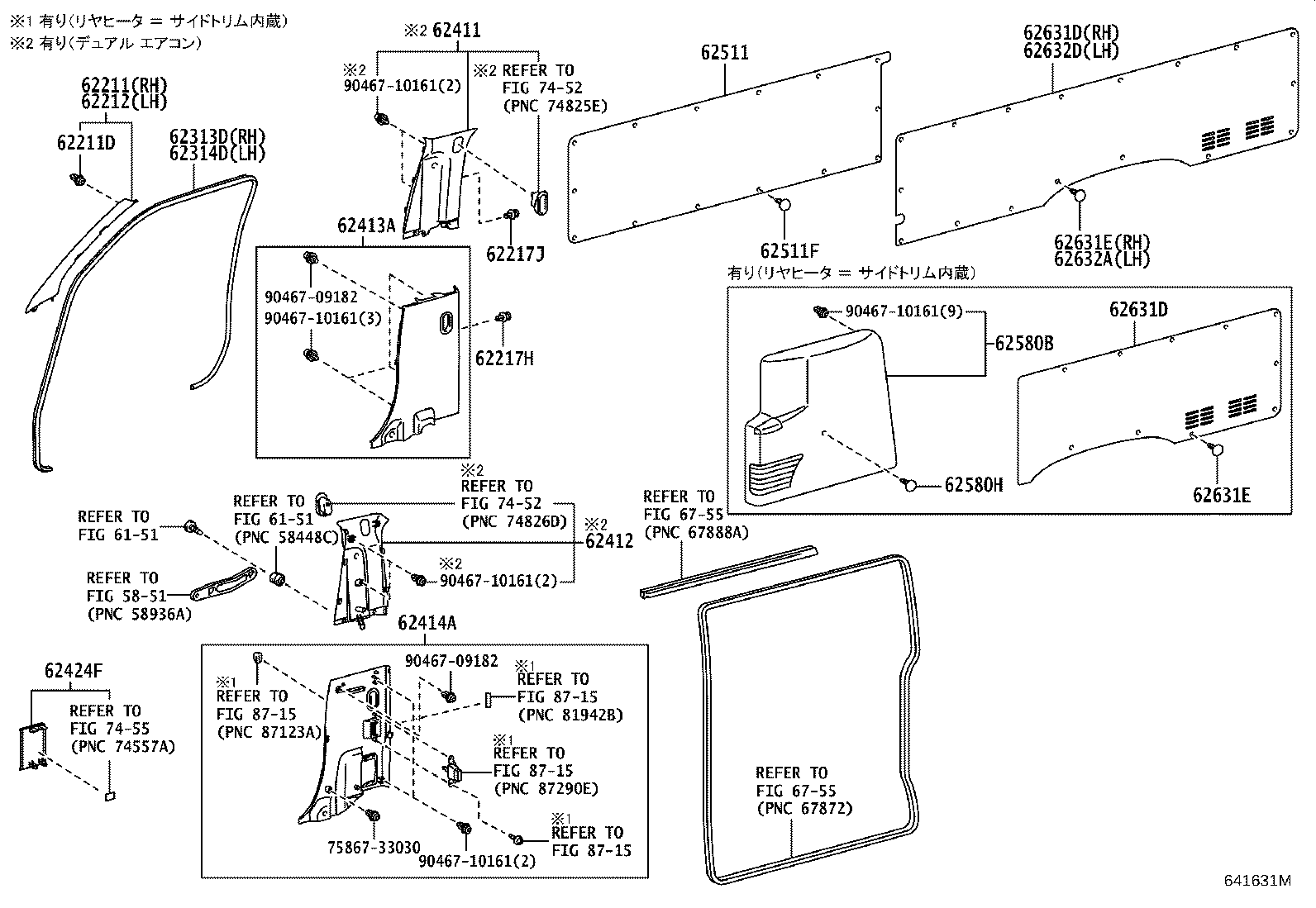

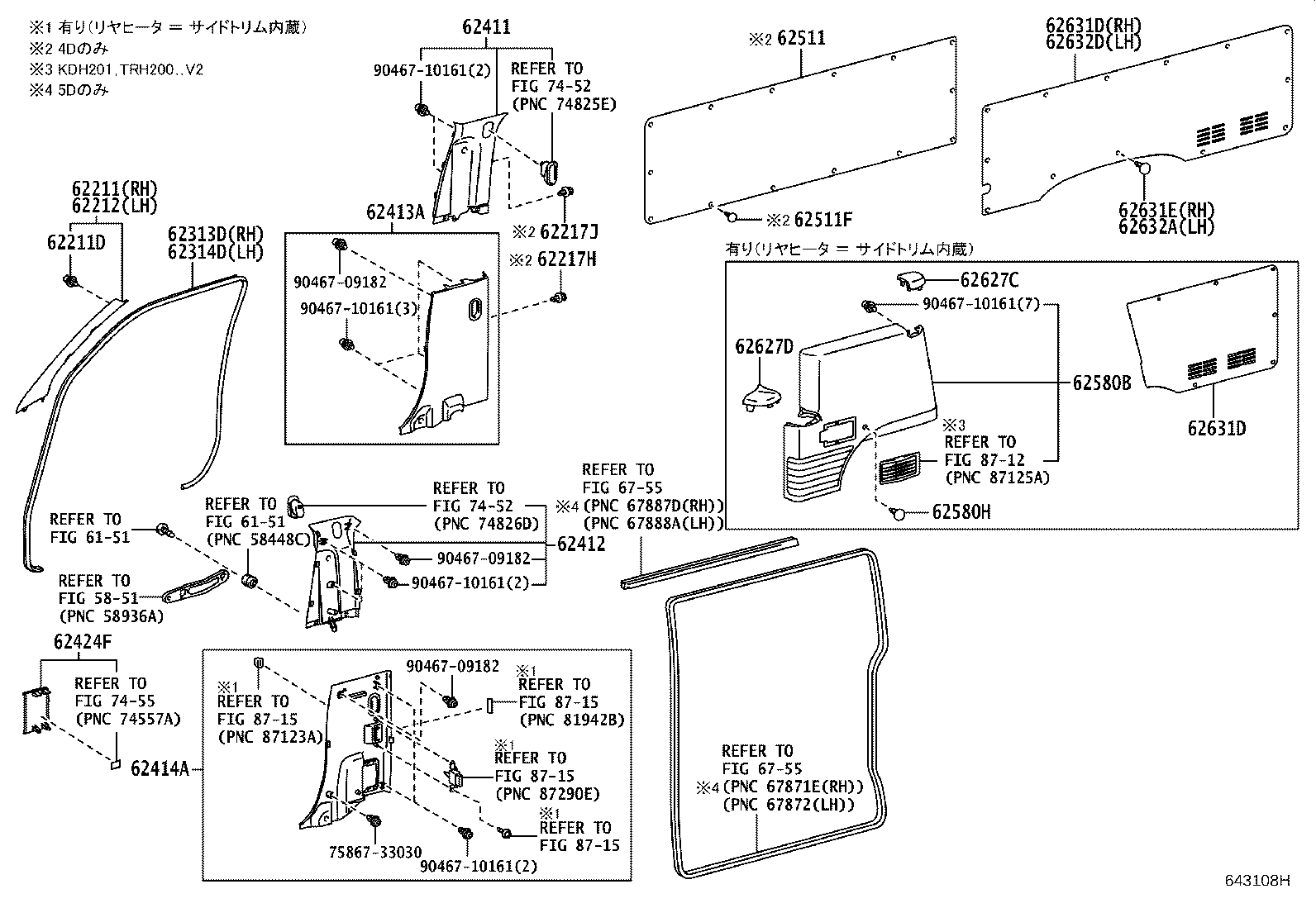

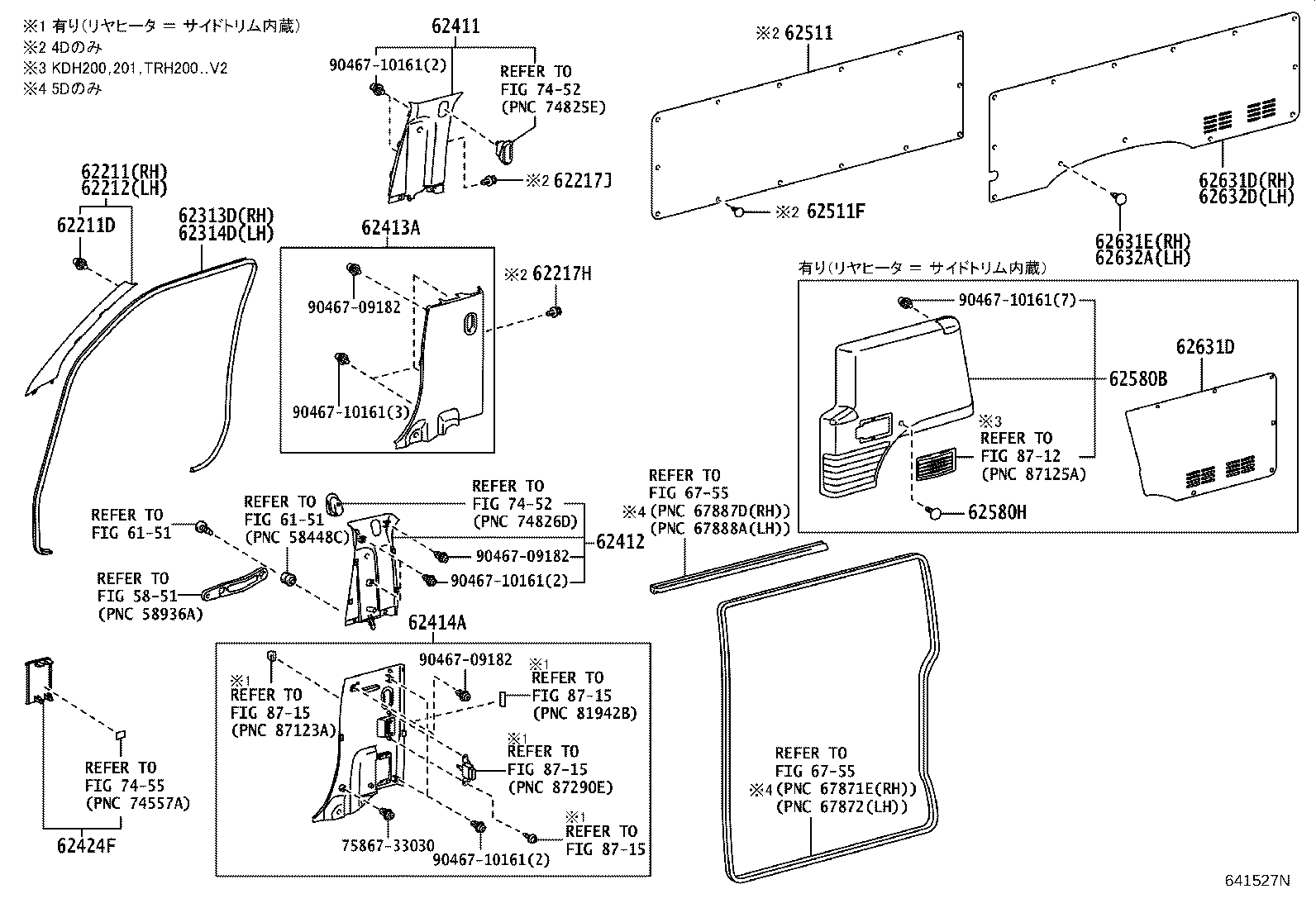

Figure 641526L 641526L 2004-08 → 2012-05 Figure 641527N 641527N 2004-08 → 2012-05 Figure 641531O 641531O 2004-08 → 2012-05 Figure 641532P 641532P 2004-08 → 2012-05 Figure 641630M 641630M 2005-01 → 2012-05 Figure 641631M 641631M 2005-01 → 2012-05 Figure 641525L 641525L 2004-08 → — Figure 641528L 641528L 2004-08 → — Figure 641529G 641529G 2004-08 → — Figure 641530H 641530H 2004-08 → — Figure 641629M 641629M 2005-01 → — Figure 641640K 641640K 2005-01 → — Figure 642205I 642205I 2007-09 → — Figure 643107H 643107H 2012-05 → — Figure 643108H 643108H 2012-05 → — Figure 643109G 643109G 2012-05 → — Figure 643110G 643110G 2012-05 → — Figure 643111I 643111I 2012-05 → — Figure 643112I 643112I 2012-05 → —

Part groups

PNCDescription
55539Y Cover, Spare Switch Hole
62211 Garnish, Front Pillar, RH
62211D Clip(FOR FRONT BODY PILLAR GARNISH)
62211T Clip(FOR FRONT PILLAR GARNISH)
62212 Garnish, Front Pillar, LH
62217H Clip, Center Piller Garnish
62217J Clip, Center Piller Garnish
62313D Trim, Front Door Opening, RH
62314D Trim, Front Door Opening, LH
62411 Garnish, Center Pillar, RH
62412 Garnish, Center Pillar, LH
62413A Garnish, Center Pillar, Lower RH
62414A Garnish, Center Pillar, Lower LH
62424F Cover, Center Pillar Garnish, Lower LH
62471E Garnish, Roof Side, Inner Upper RH
62472E Garnish, Roof Side, Inner Upper LH
62510G Trim Assy, Side NO.1, RH
62510H Clip(FOR QUARTER TRIM FRONT PANEL)
62510J Retainer, Quarter Trim
62511 Board, Quarter Inside Trim, RH
62511F Retainer (FOR QUARTER INSIDE TRIM BOARD)
62580B Board Assy, Side Heater Cover, RH
62580H Retainer, Side Heater Cover, RH
62627C Cover, Side Trim, NO.1
62627D Cover, Side Trim, RH
62628A Cover, Side Trim, LH
62630P Panel Assy, Quarter Trim, Rear RH
62631D Board, Quarter Trim, Rear RH
62631E Retainer, Quater Trim
62632A Retainer(FOR QUARTER INSIDE TRIM BOARD)
62632D Board, Quarter Trim, Rear LH
62638A Garnish, Quarter Pillar, RH
62638C Fastener(FOR QUARTER PILLAR GARNISH)
62639A Garnish, Quarter Pillar, LH
62640P Panel Assy, Quarter Trim, Rear LH
73431B Cover, Rear Seat Belt Retractor, RH
73432A Cover, Rear Seat Belt Retractor, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
