Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

28 part groups · 23 illustrations

Illustrations

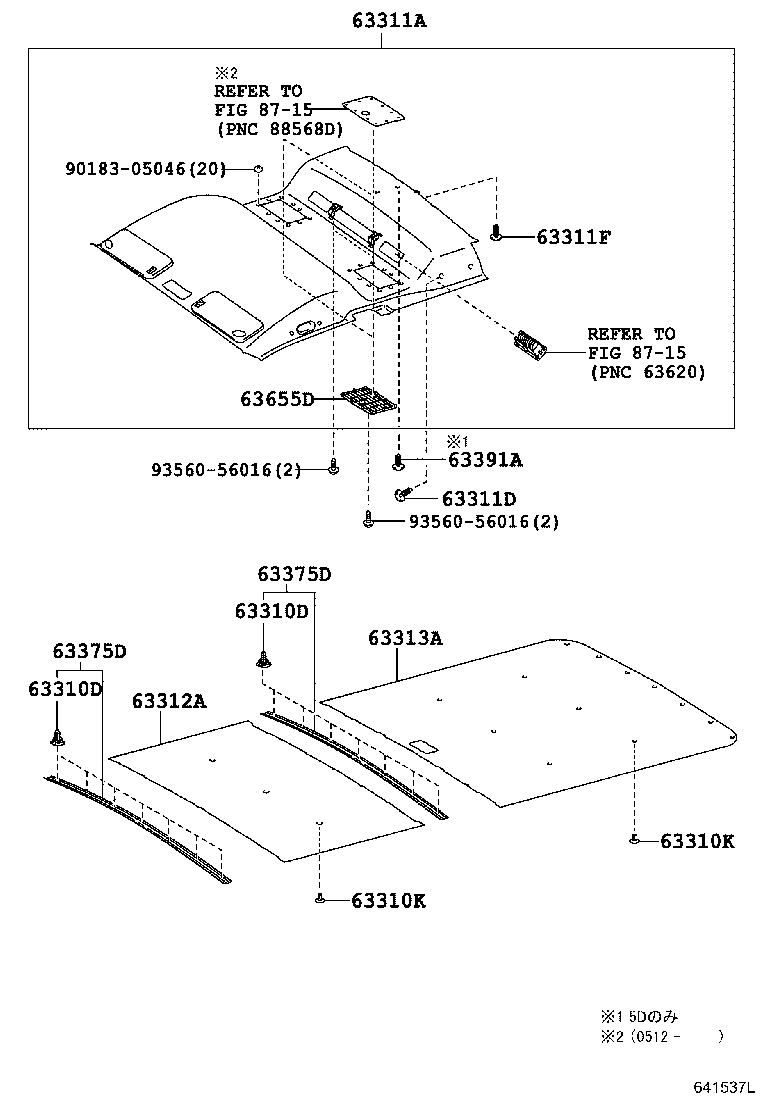

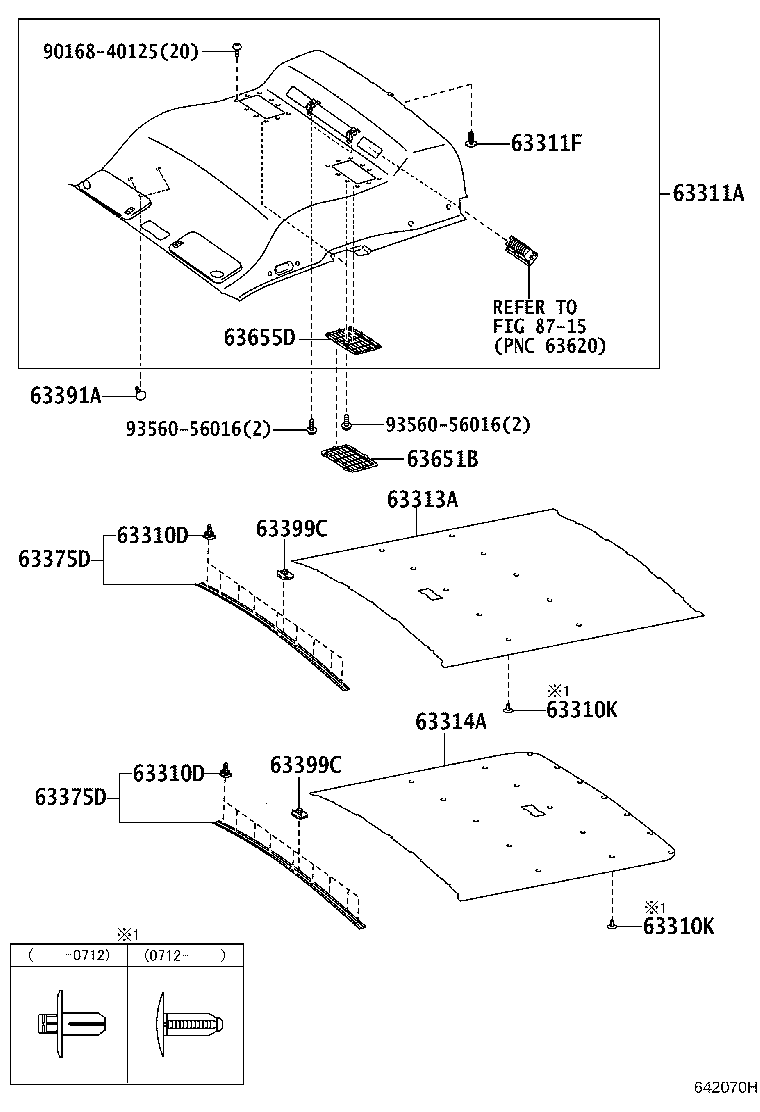

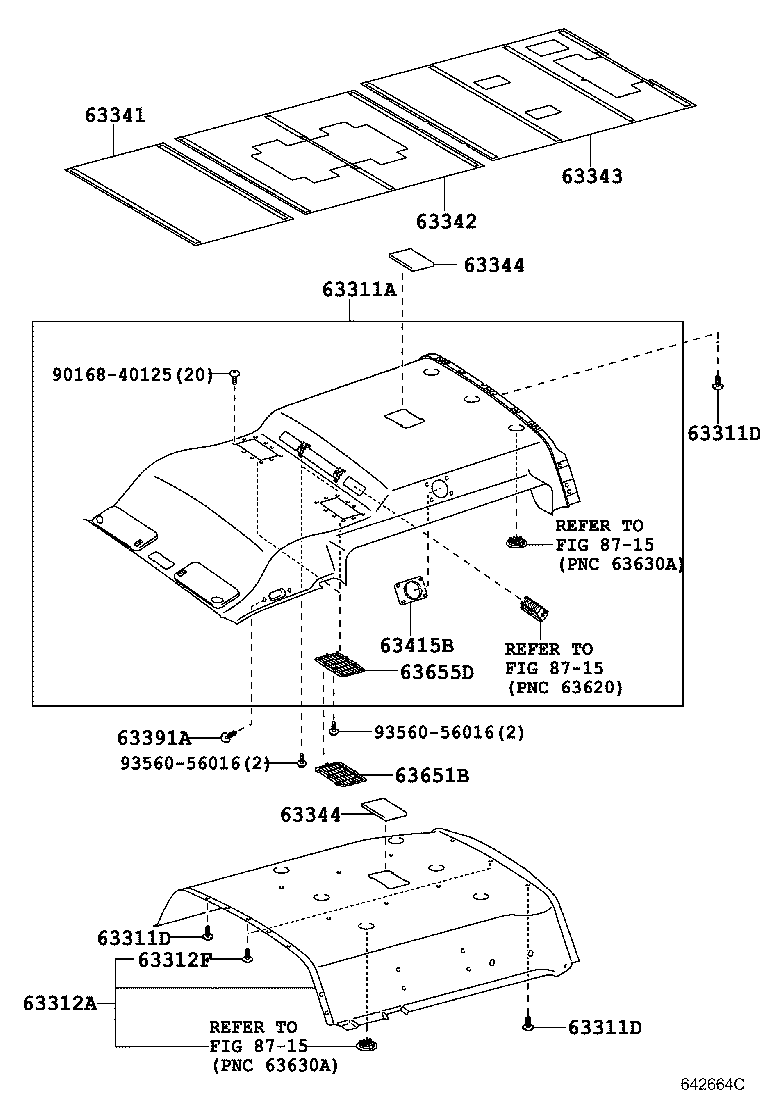

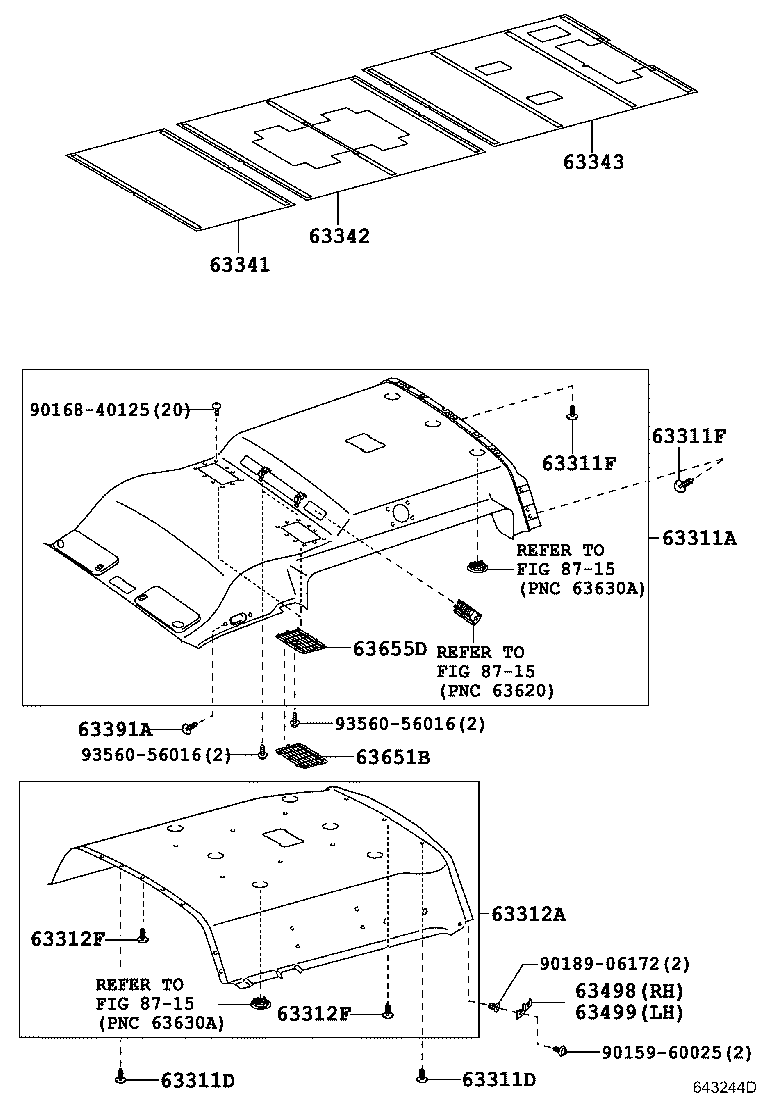

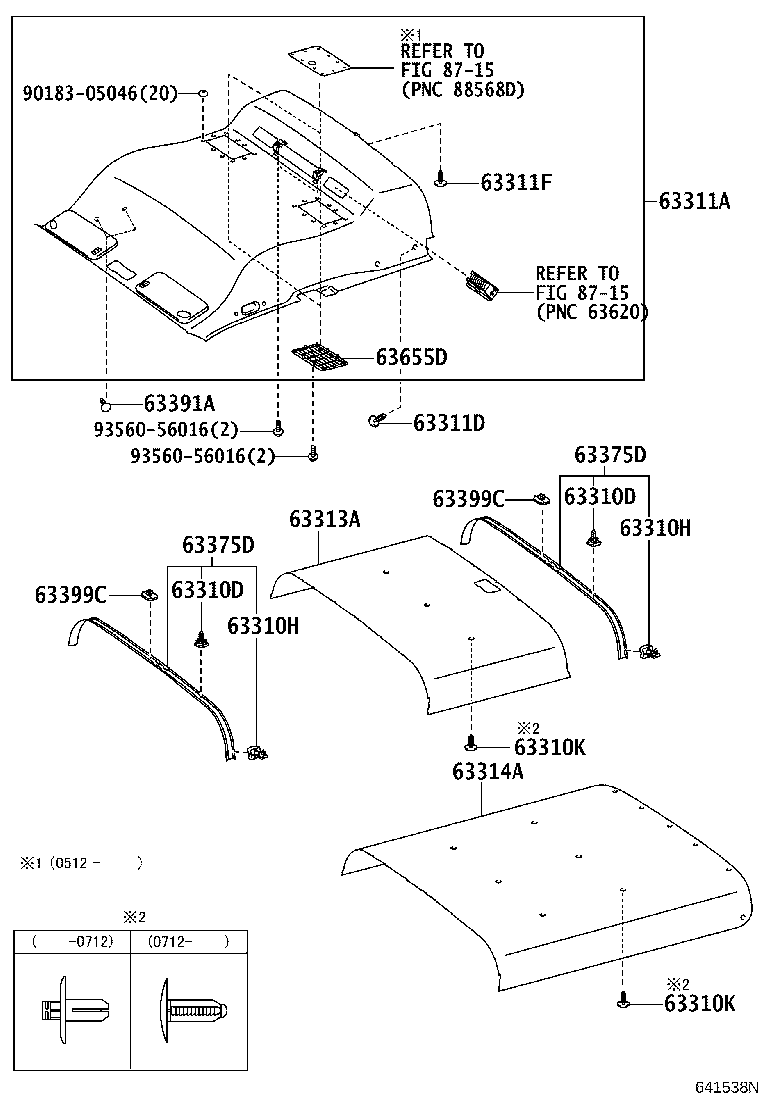

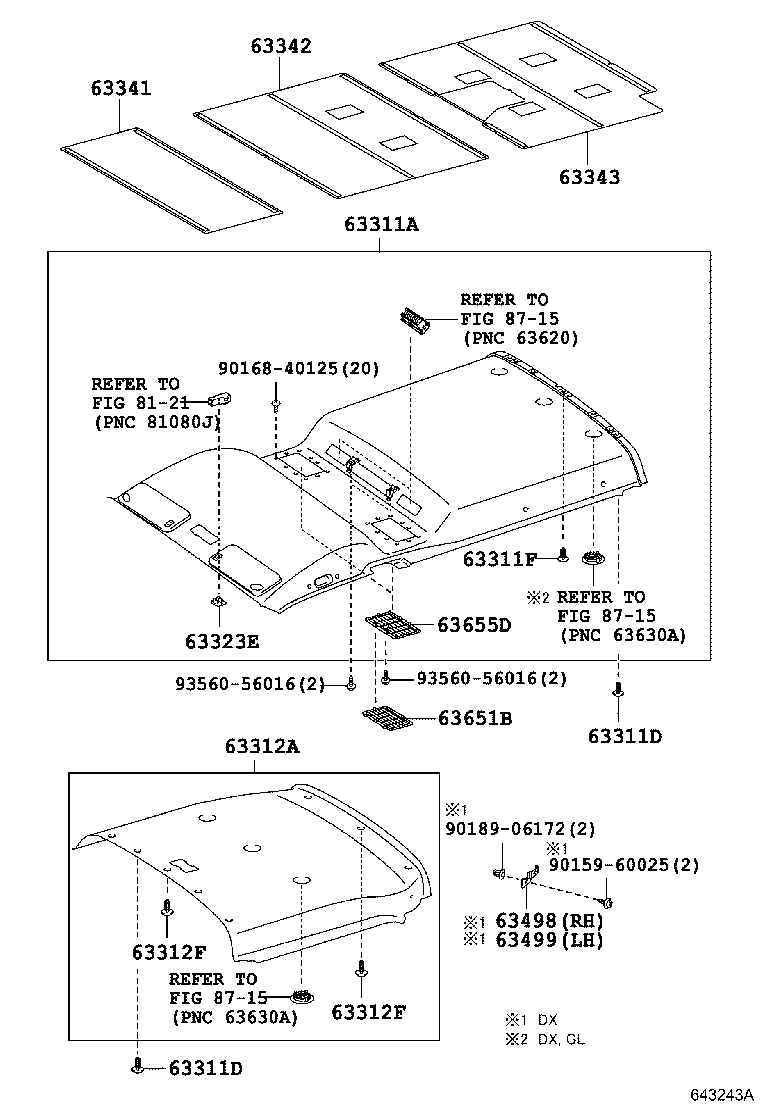

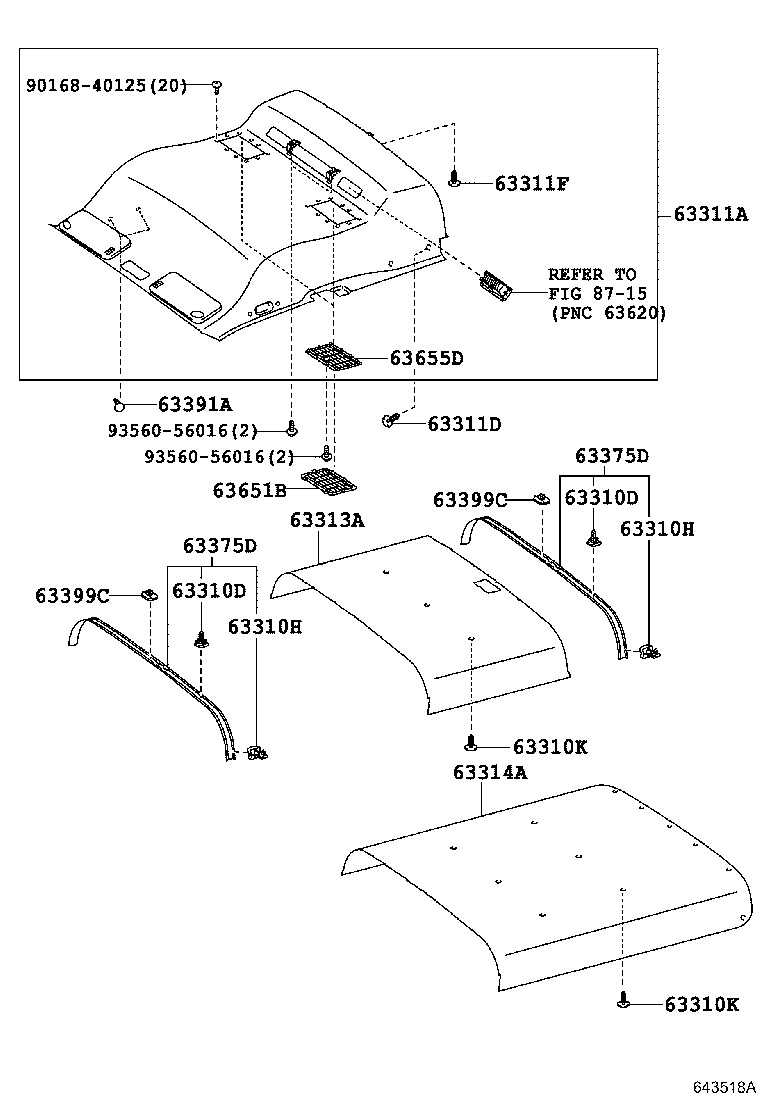

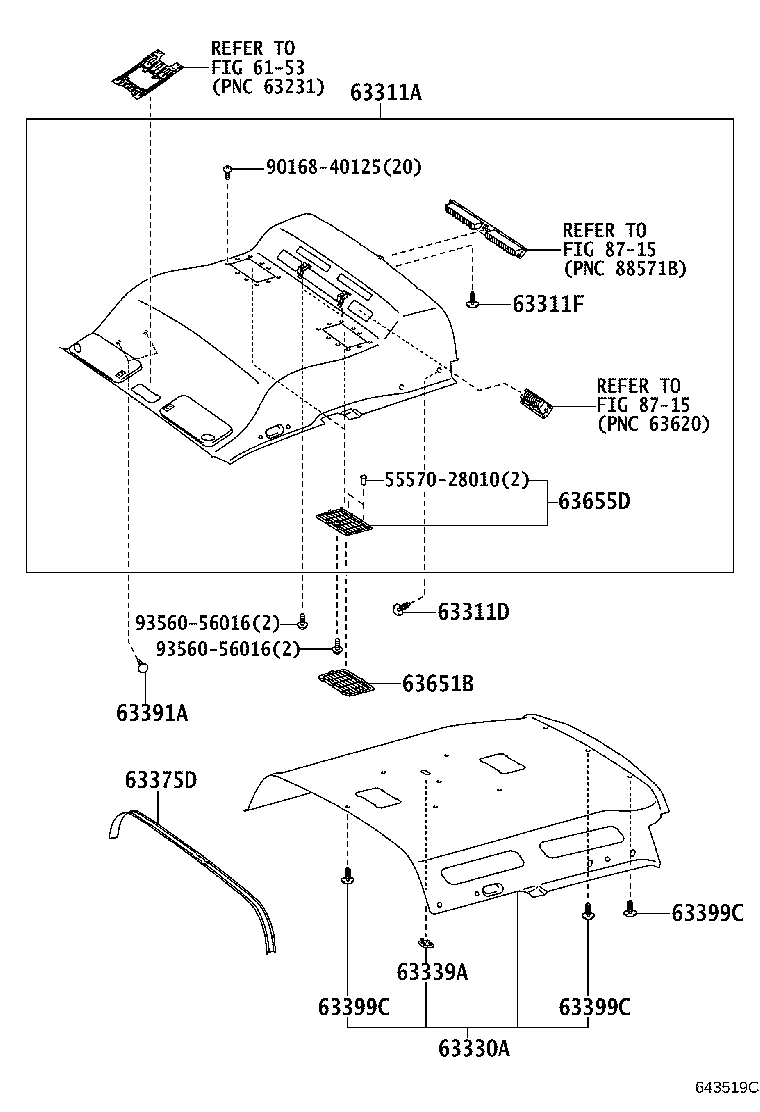

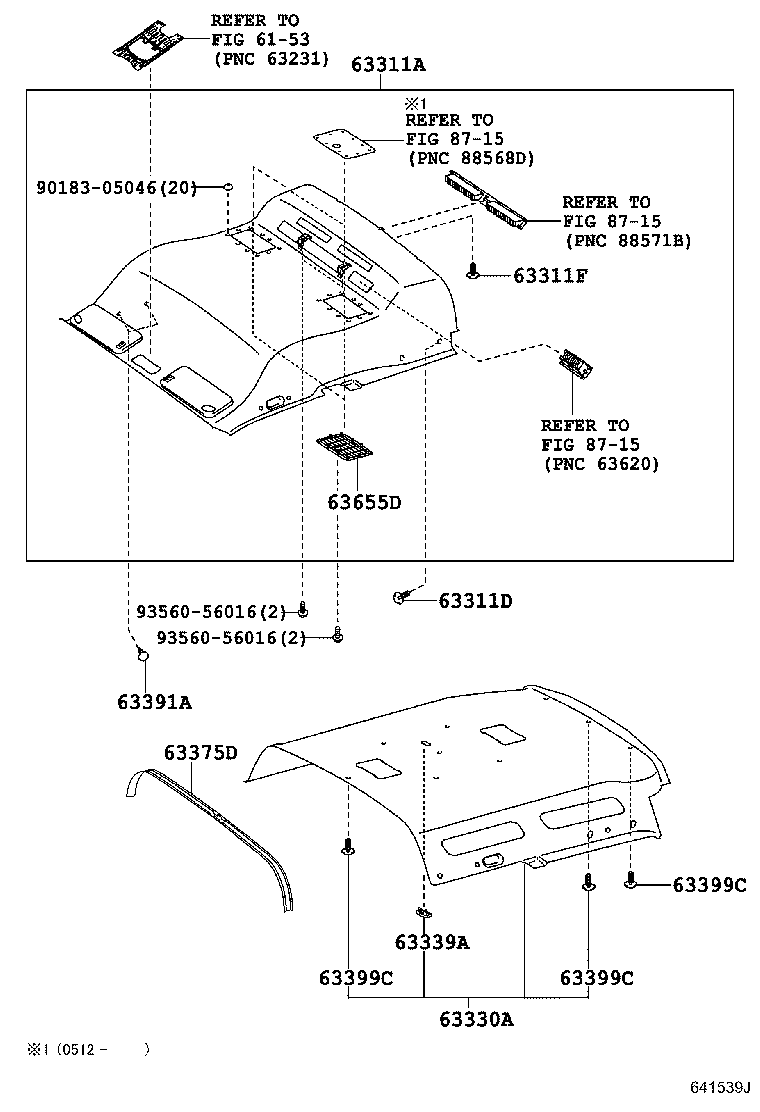

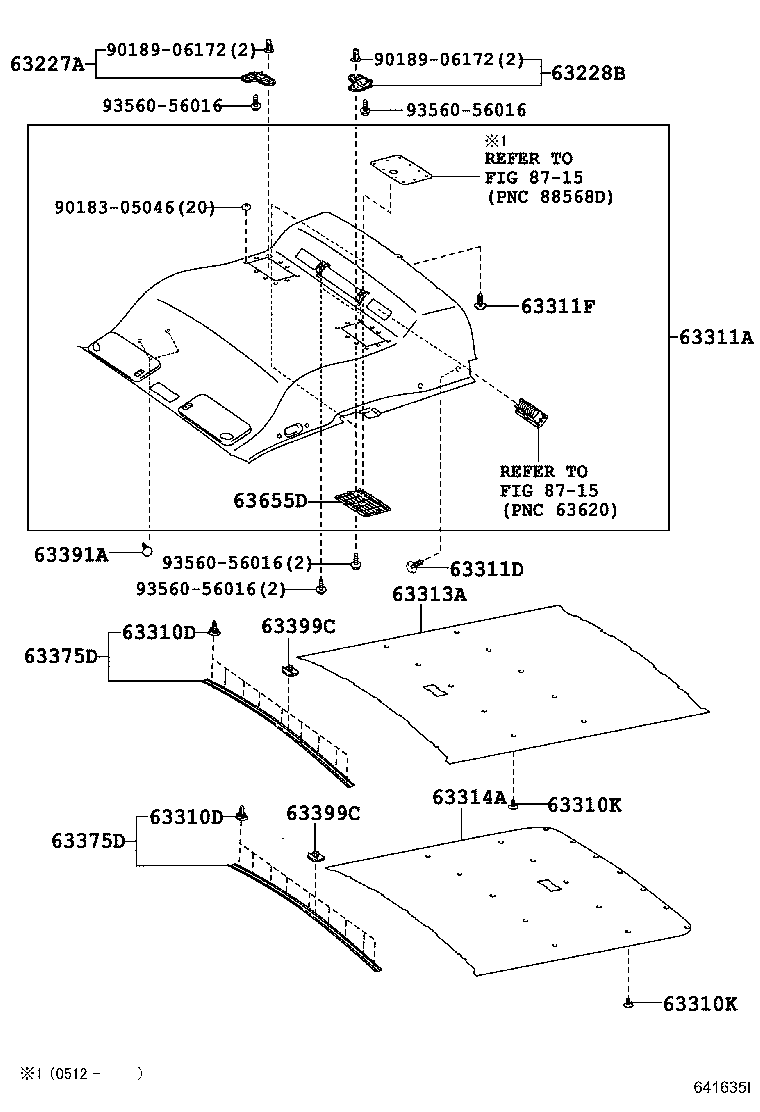

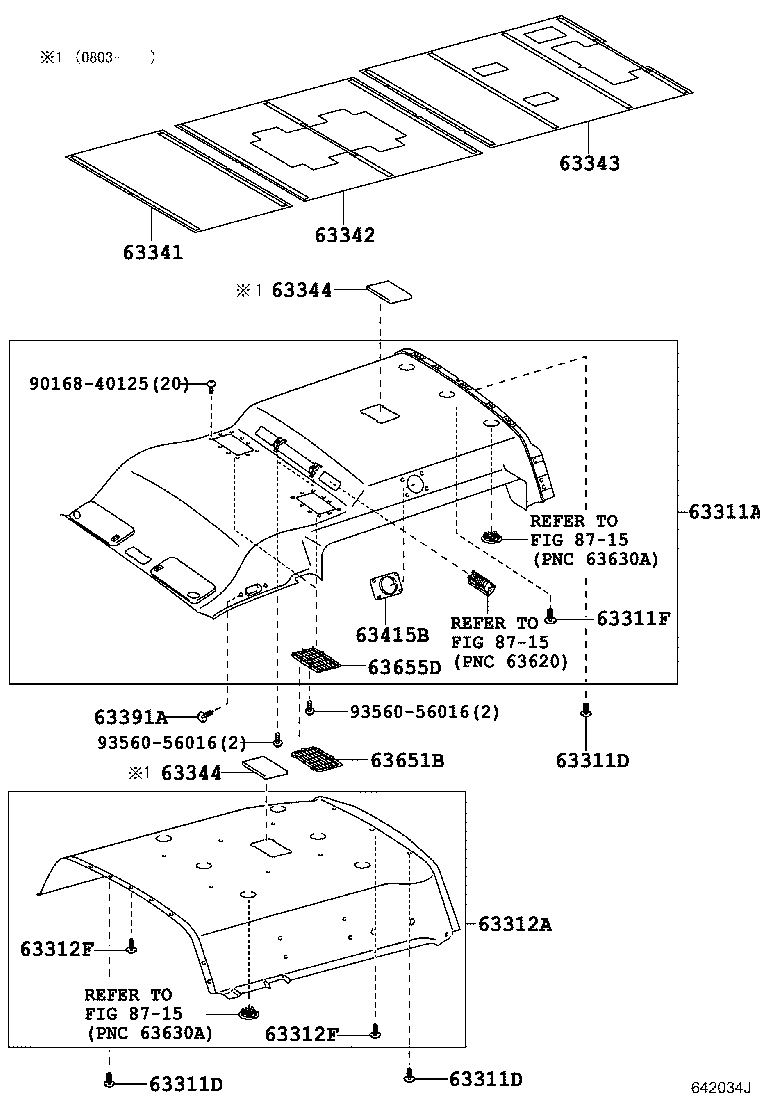

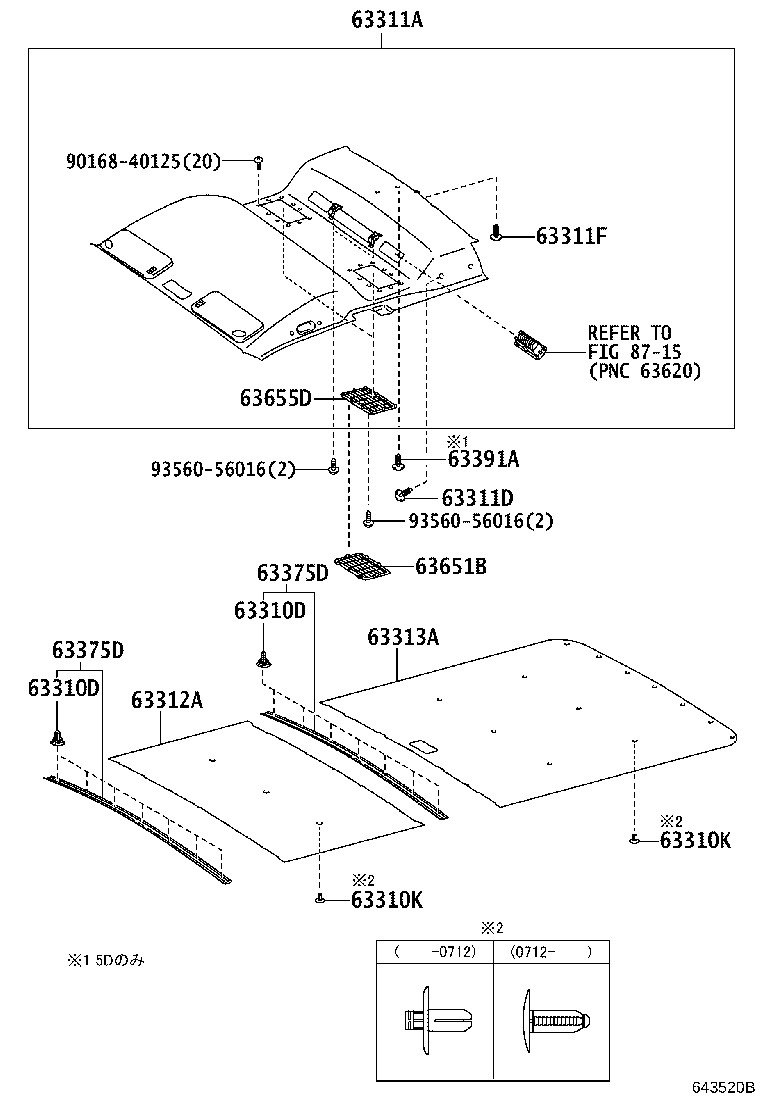

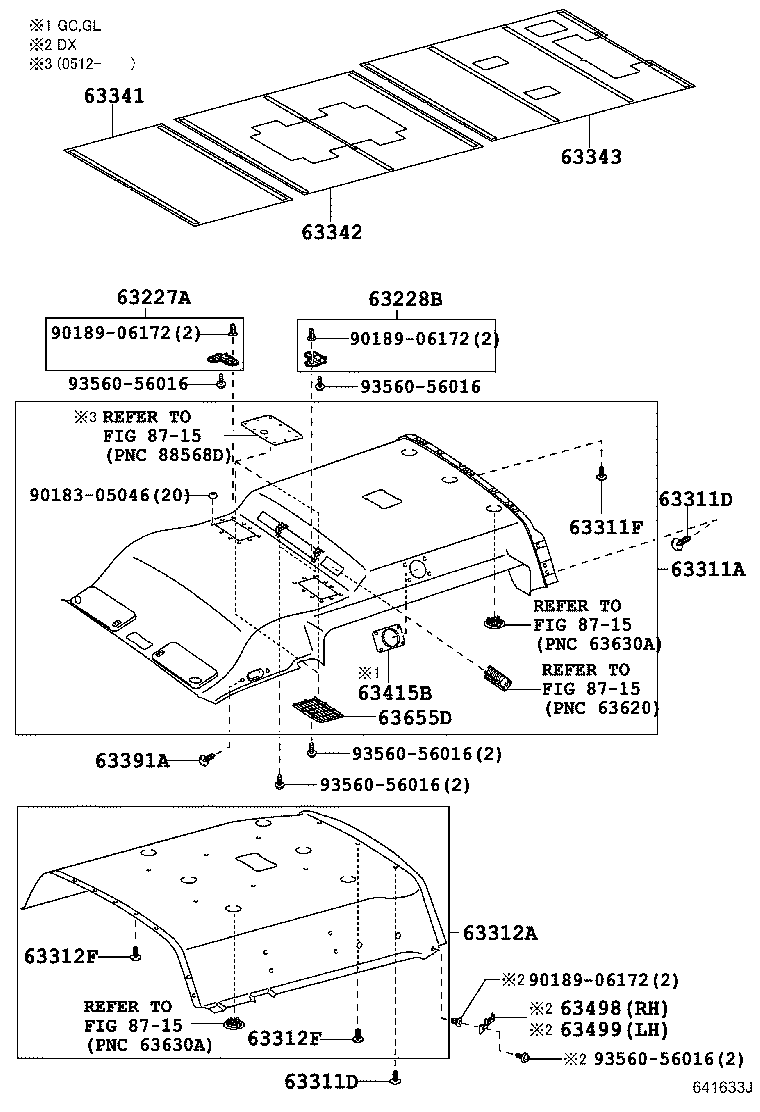

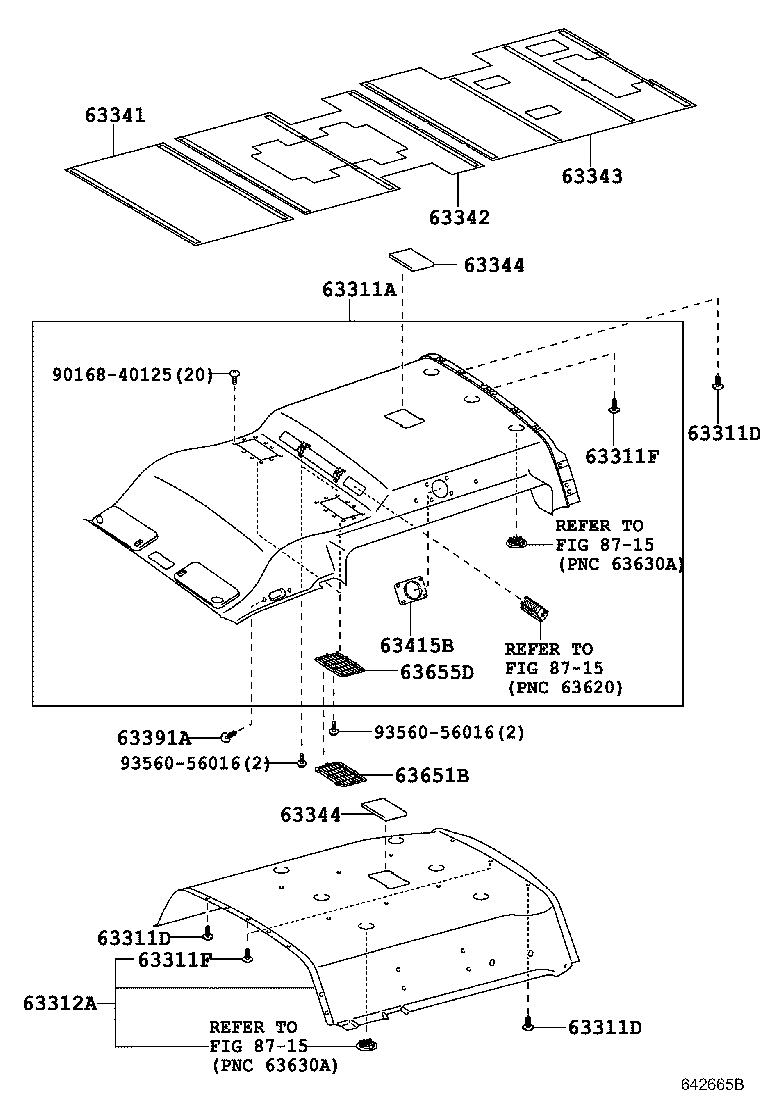

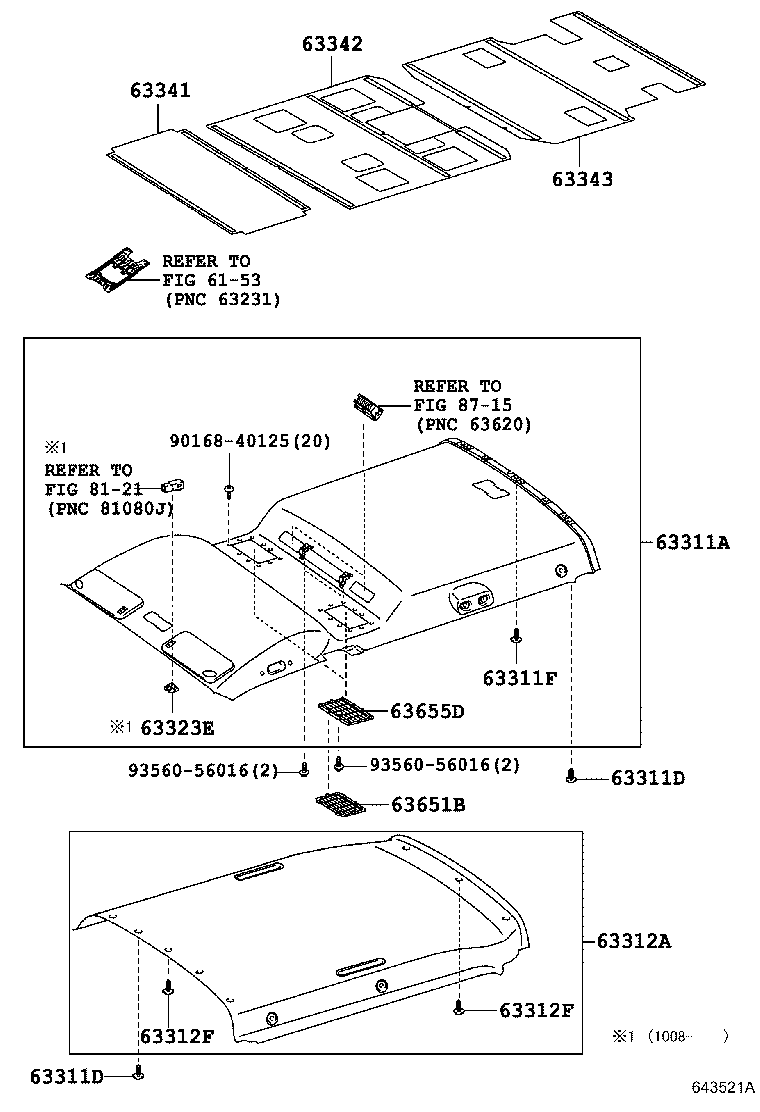

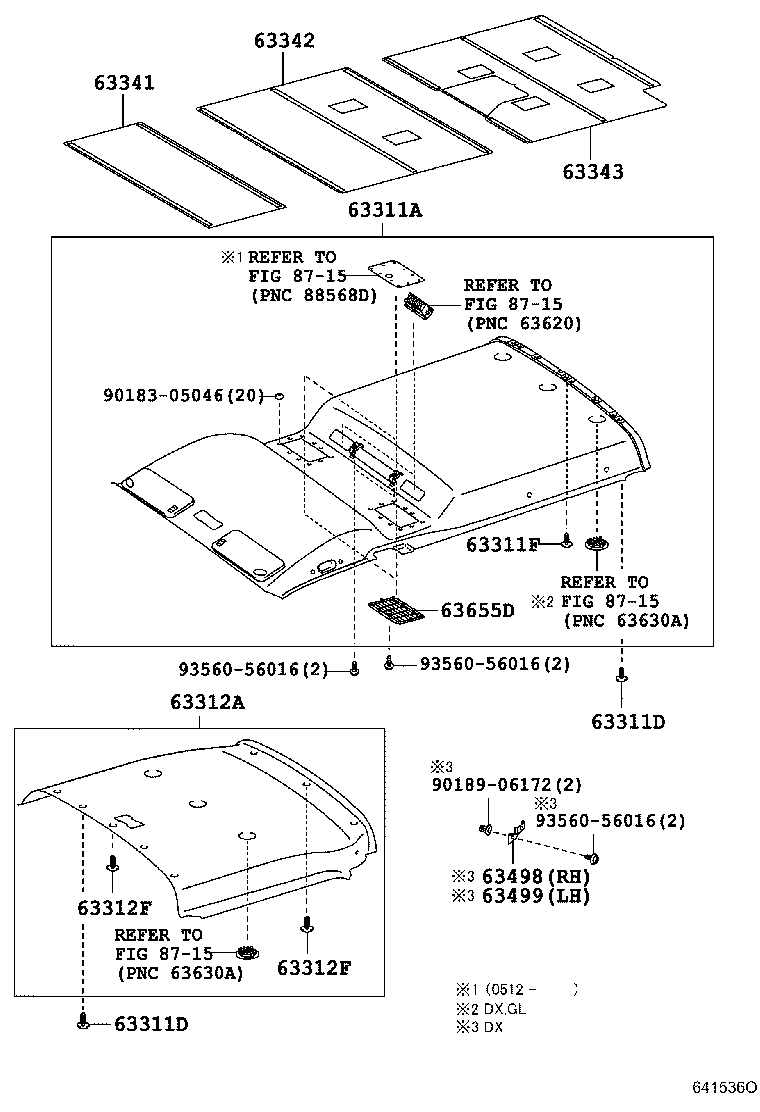

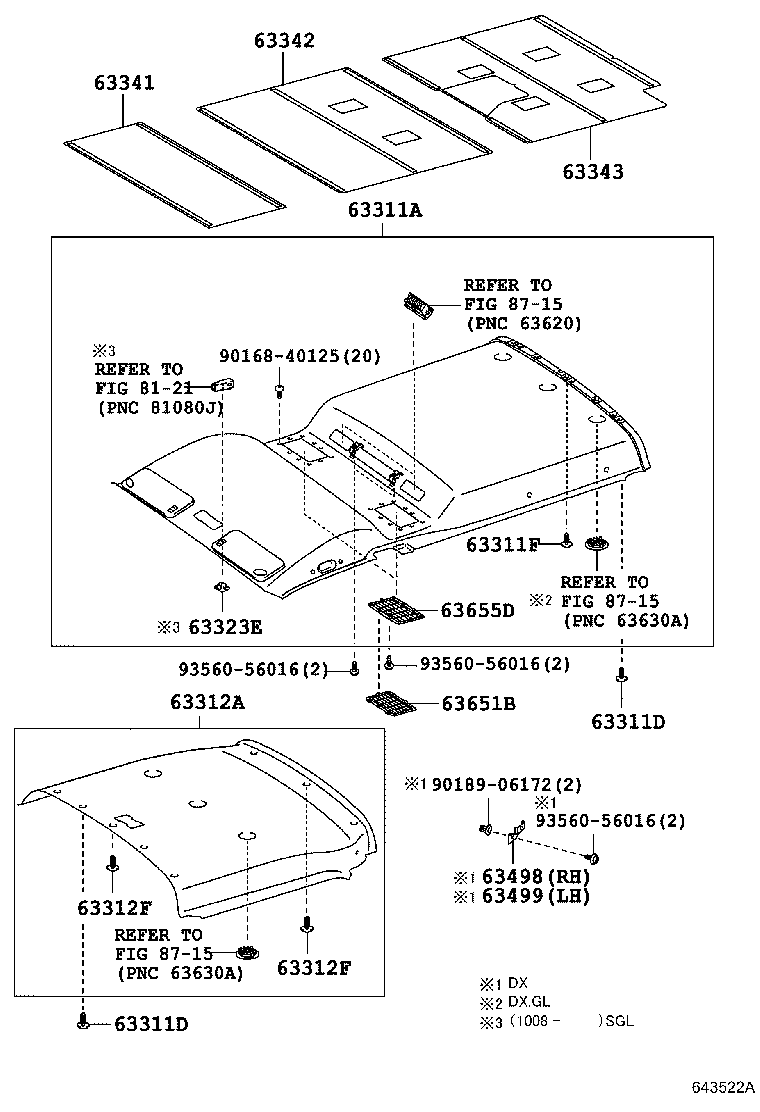

Figure 641534N 641534N 2004-08 → 2007-09 Figure 641536O 641536O 2004-08 → 2007-09 Figure 641537L 641537L 2004-08 → 2007-09 Figure 641539J 641539J 2004-08 → 2007-09 Figure 641540M 641540M 2004-08 → 2007-09 Figure 641538N 641538N 2004-08 → 2008-08 Figure 641635I 641635I 2005-01 → 2006-11 Figure 641633J 641633J 2005-01 → 2006-11 Figure 641533C 641533C 2004-08 → — Figure 641535C 641535C 2004-08 → — Figure 641634C 641634C 2005-01 → — Figure 642070H 642070H 2006-11 → — Figure 643244D 643244D 2006-11 → — Figure 642034J 642034J 2006-11 → — Figure 643519C 643519C 2007-09 → — Figure 643520B 643520B 2007-09 → — Figure 643521A 643521A 2007-09 → — Figure 643522A 643522A 2007-09 → — Figure 643526A 643526A 2007-09 → — Figure 643518A 643518A 2008-08 → — Figure 642664C 642664C 2010-08 → — Figure 642665B 642665B 2010-08 → — Figure 643243A 643243A 2012-08 → —

Part groups

PNCDescription
63227A Bracket, Roof Headlining, Front RH
63228B Bracket, Roof Headlining, Front LH
63310D Clip, Roof Headlining
63310H Clip(FOR ROOF HEADLINING)
63310K Clip
63311A Headlining, Roof NO.1
63311D Clip(HEADLINING, ROOF, FRONT)
63311F Clip, Roof Headlining, NO.1
63312A Headlining, Roof, NO.2
63312F Clip, Roof Headlining, NO.2
63313A Headlining, Roof, NO.3
63314A Headlining, Roof, NO.4
63323E Case, Headlining Lamp
63330A Headlining Assy, Roof, Rear
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63375C Retainer, Roof Headlining Support, Center
63375D Moulding, Roof Headlining
63391A Clip(FOR ROOF HEADLINING TRIM)
63399C Clip, Roof Headlining
63415B Grille, Roof Speaker, RH
63498 Bracket, Roof Headlining, Rear RH
63499 Bracket, Roof Headlining, Rear LH
63651B Net, Air Intake
63655D Cover, Air Intake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
