Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

25 part groups · 2 illustrations

Illustrations

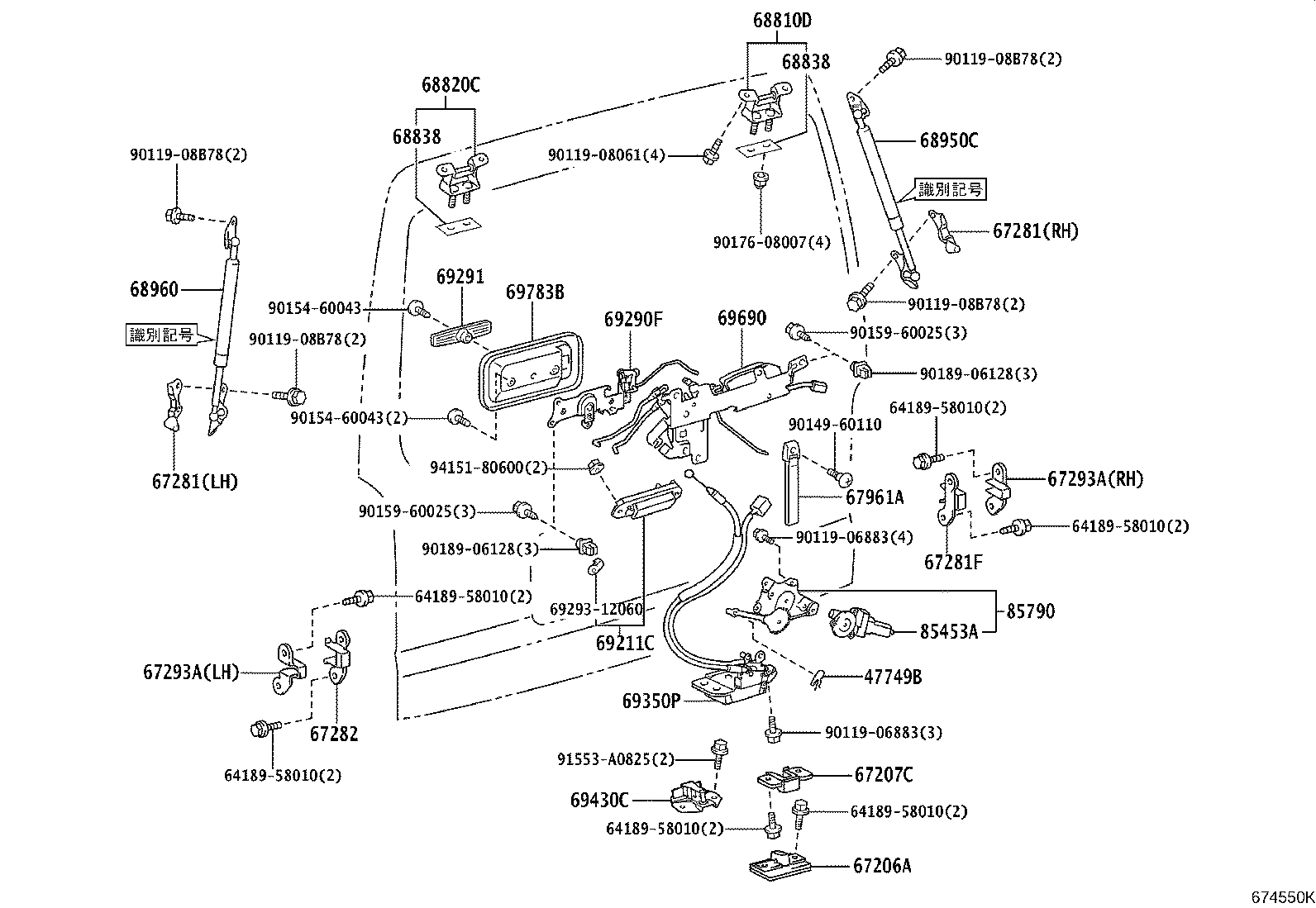

Figure 676560M 676560M 2004-08 → — Figure 674550K 674550K 2010-08 → —

Part groups

PNCDescription
47749B Clip, Pin Hold
67206A Bracket Sub-assy, Back Door Stopper
67207C Stopper Sub-assy, Back Door
67281 Plate, Back Door Stopper
67281F Stopper, Back Door, Lower
67282 Stopper, Back Door, NO.1
67293A Cushion, Back Door Stopper
67961A Strap, Back Door Pull
68810D Hinge Assy, Back Door, RH
68820C Hinge Assy, Back Door, LH
68838 Pad, Back Door Hinge, NO.1
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
69211C Handle, Back Door Outside
69290F Handle Assy, Back Door Inside
69291 Handle Assy, Back Door Inside
69350P Lock Assy, Back Door, W/Courtesy Lamp Switch
69358 Protector, Back Door Lock
69430C Striker Assy, Back Door Lock
69449A Shim, Back Door Lock Striker
69690 Control Assy, Back Door Remote
69705C Link Sub-assy, Back Door Lock Control
69783B Bezel, Back Door Inside Handle
85453A Motor, Door Control
85790 Motor Assy, Back Door Closer
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
