Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

239 part groups · 34 illustrations

Illustrations

713558K 2004-08 → —

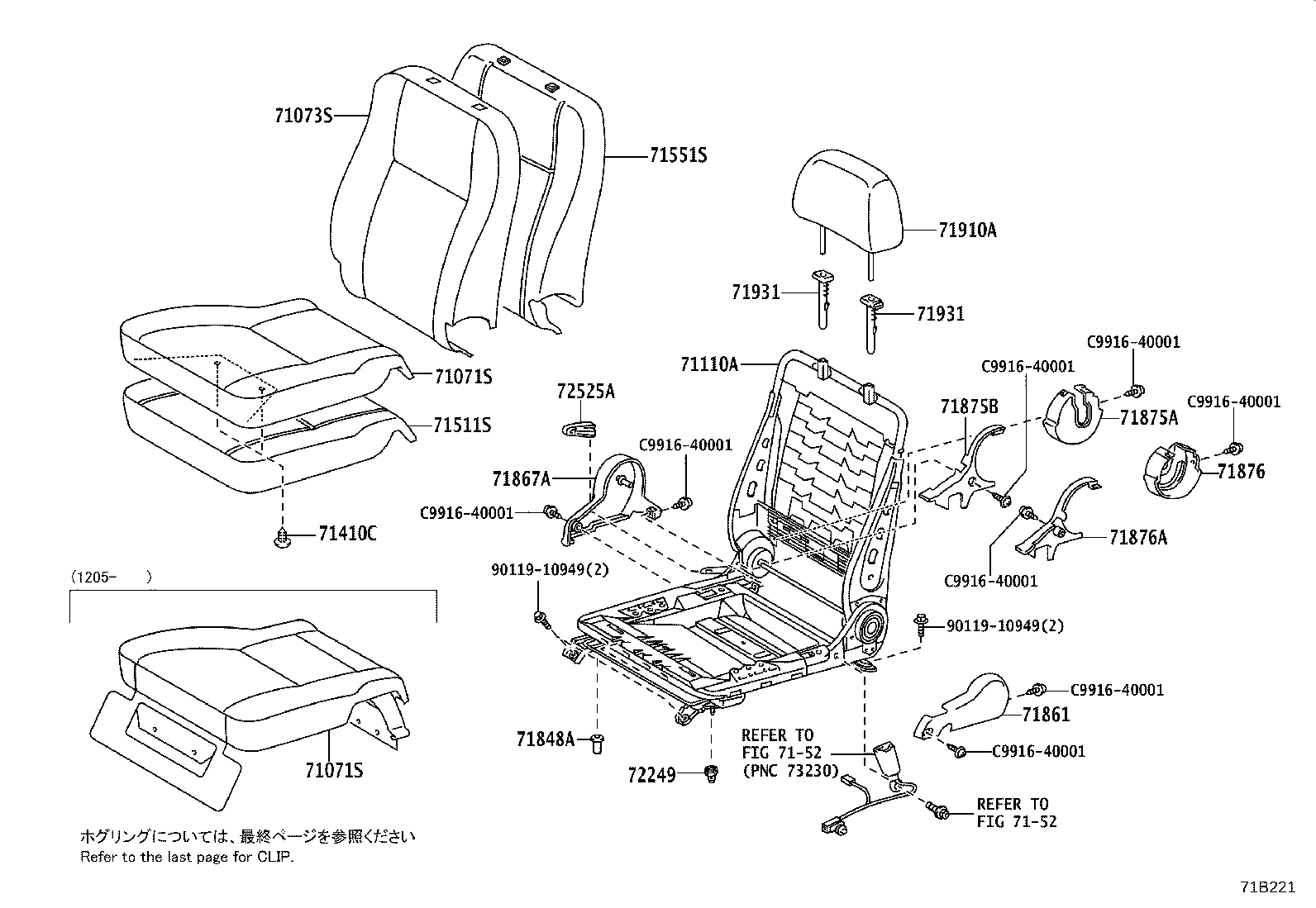

71B221 2004-08 → —

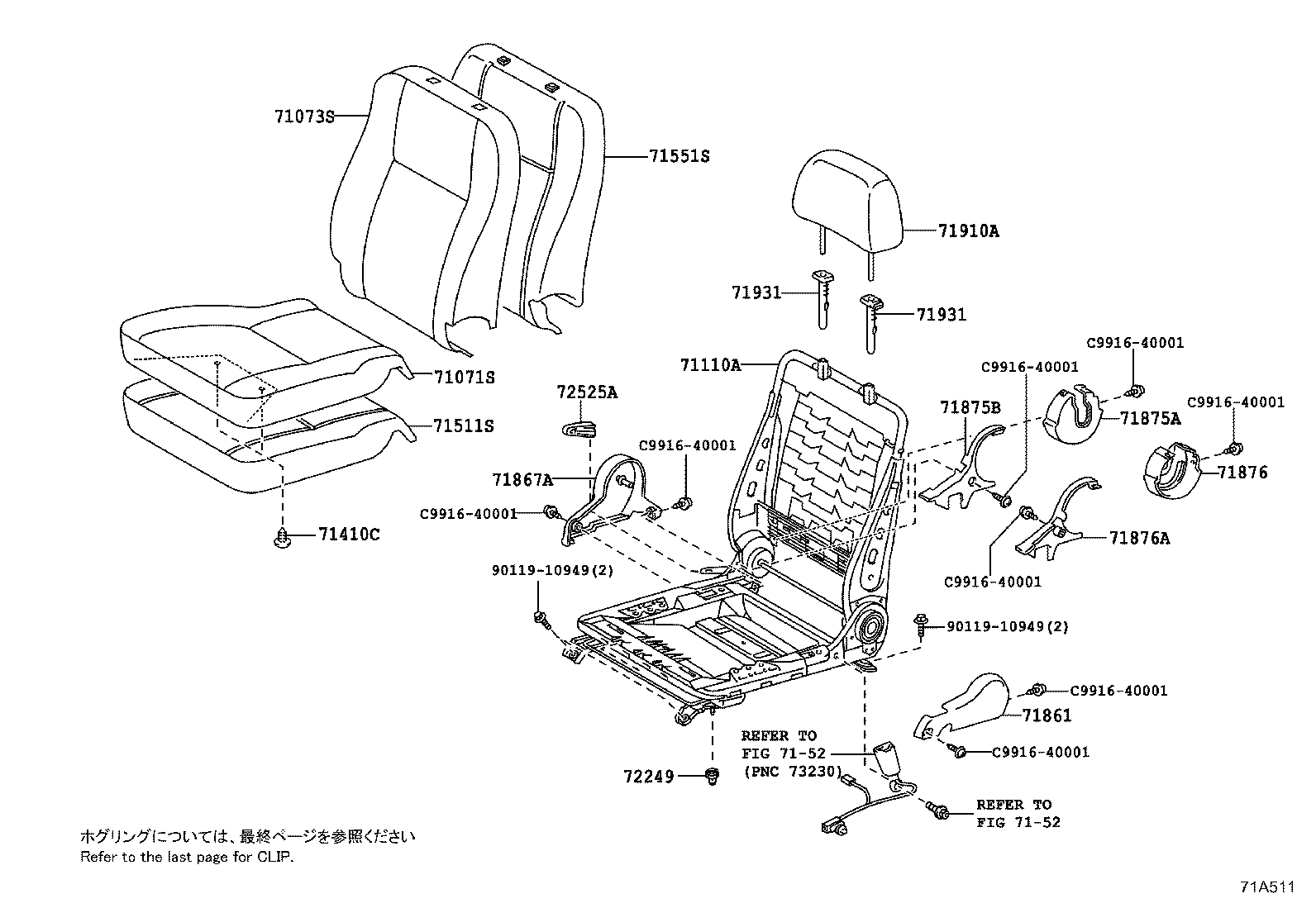

71A511 2004-08 → 2007-09

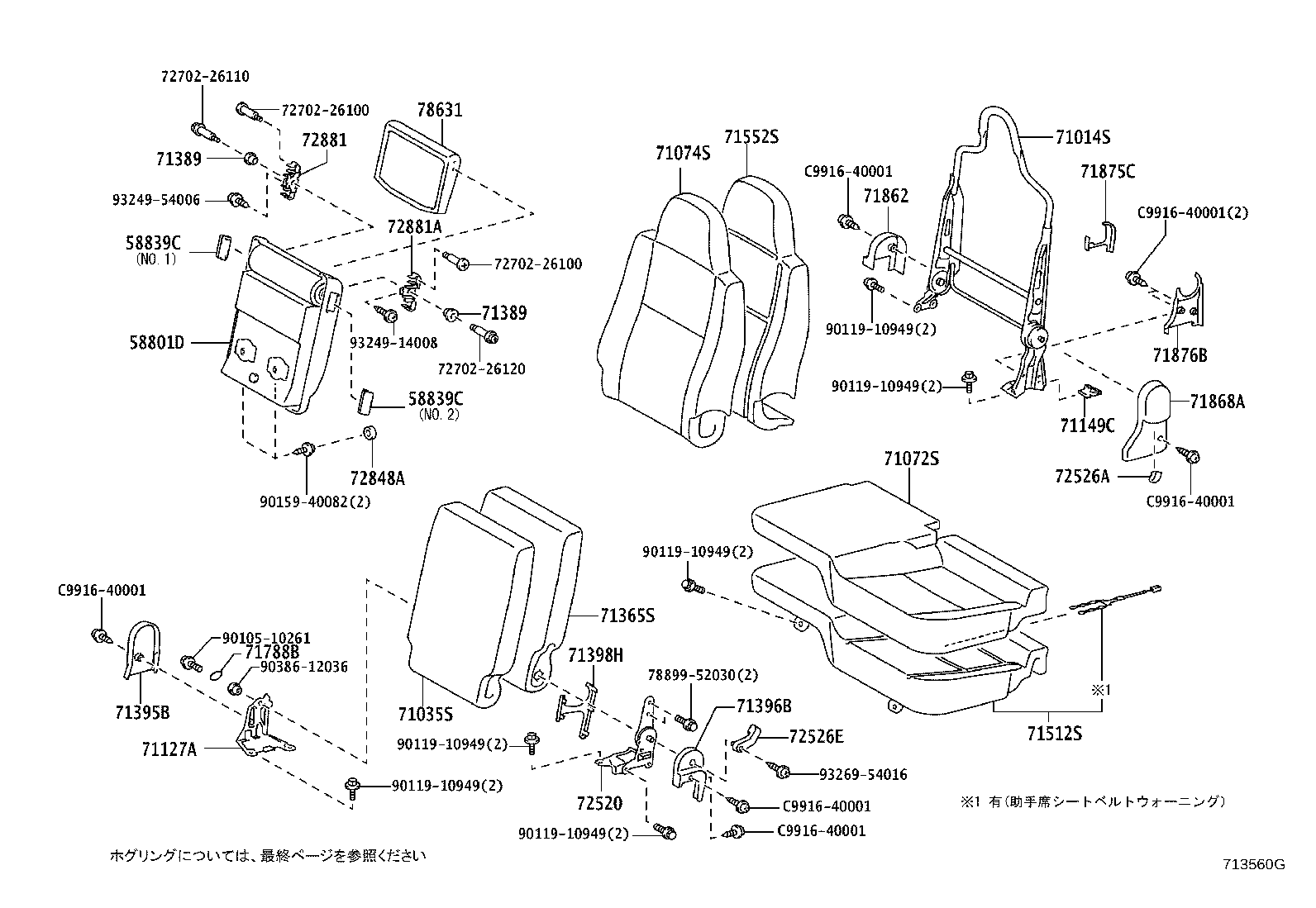

713560G 2004-08 → 2005-12

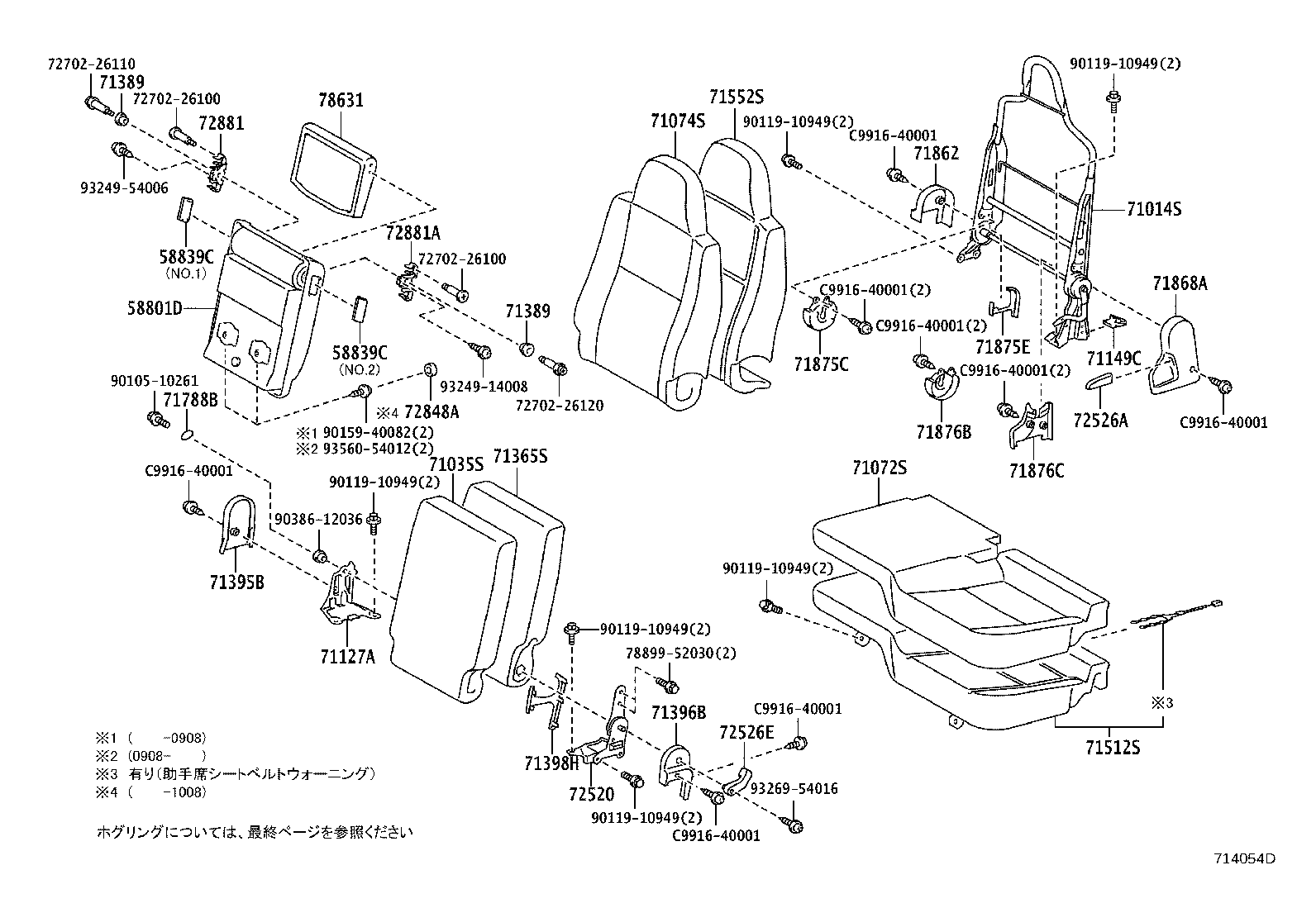

714054D 2005-12 → —

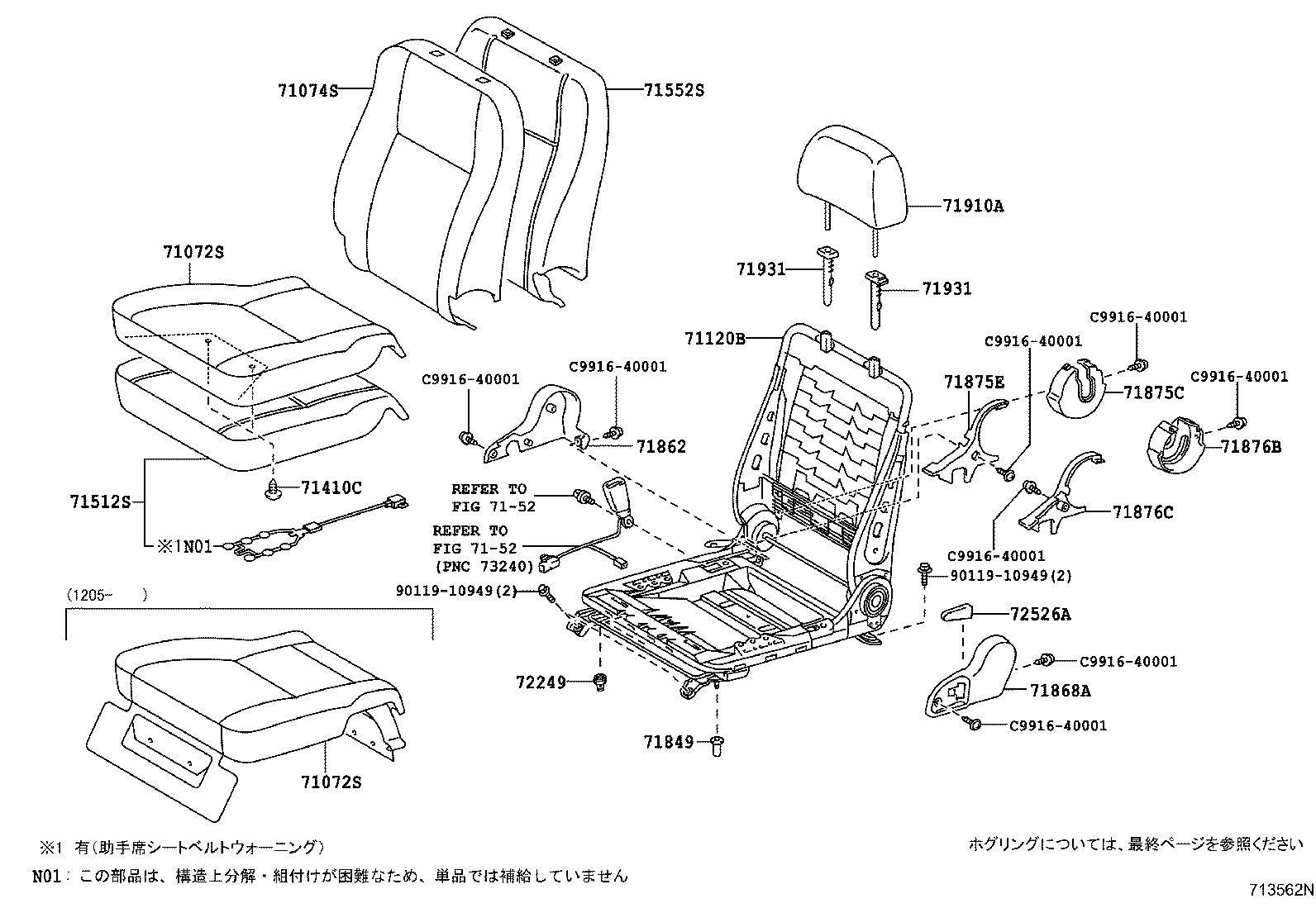

713562N 2004-08 → —

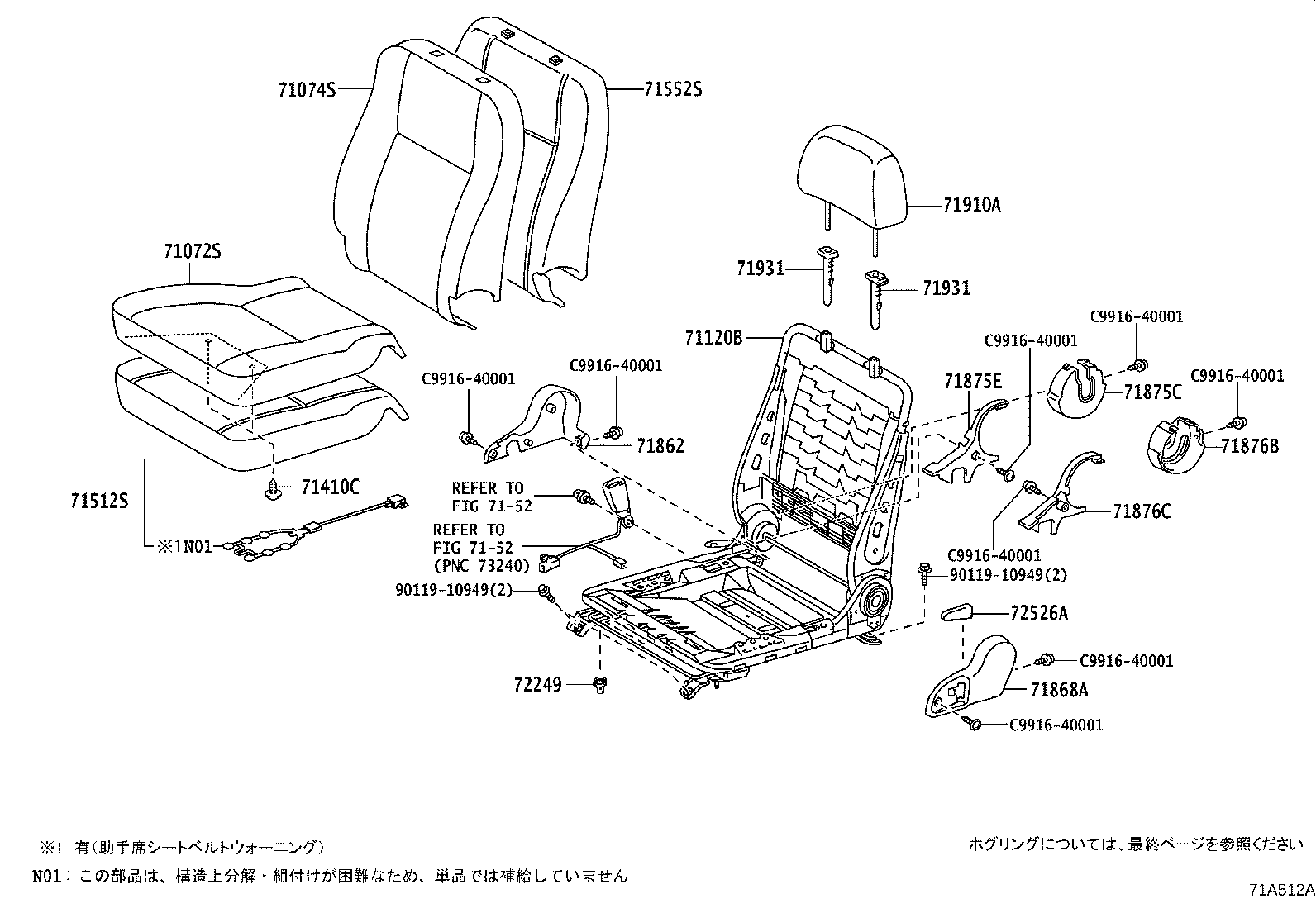

71A512A 2004-08 → 2007-09

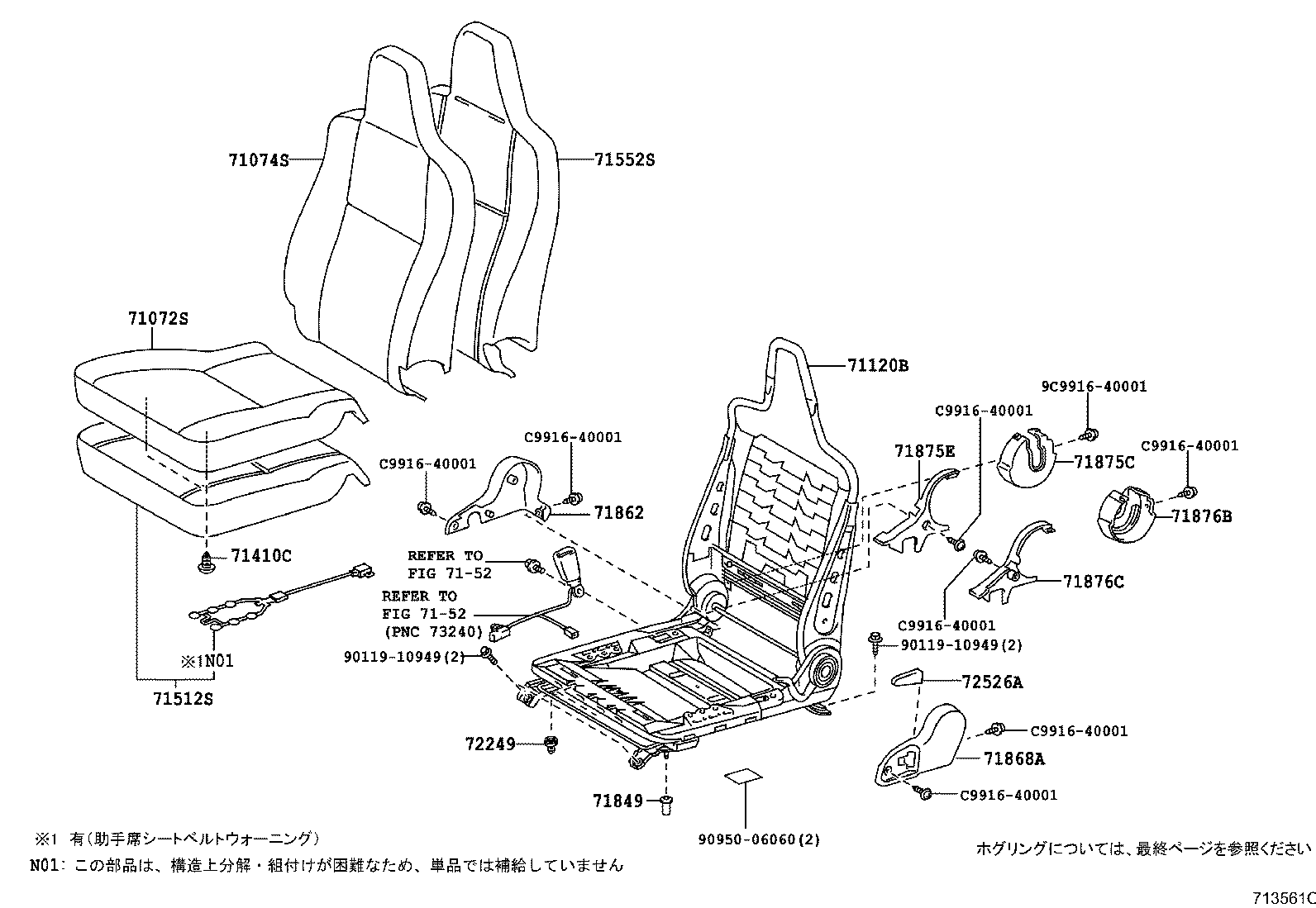

713561O 2004-08 → —

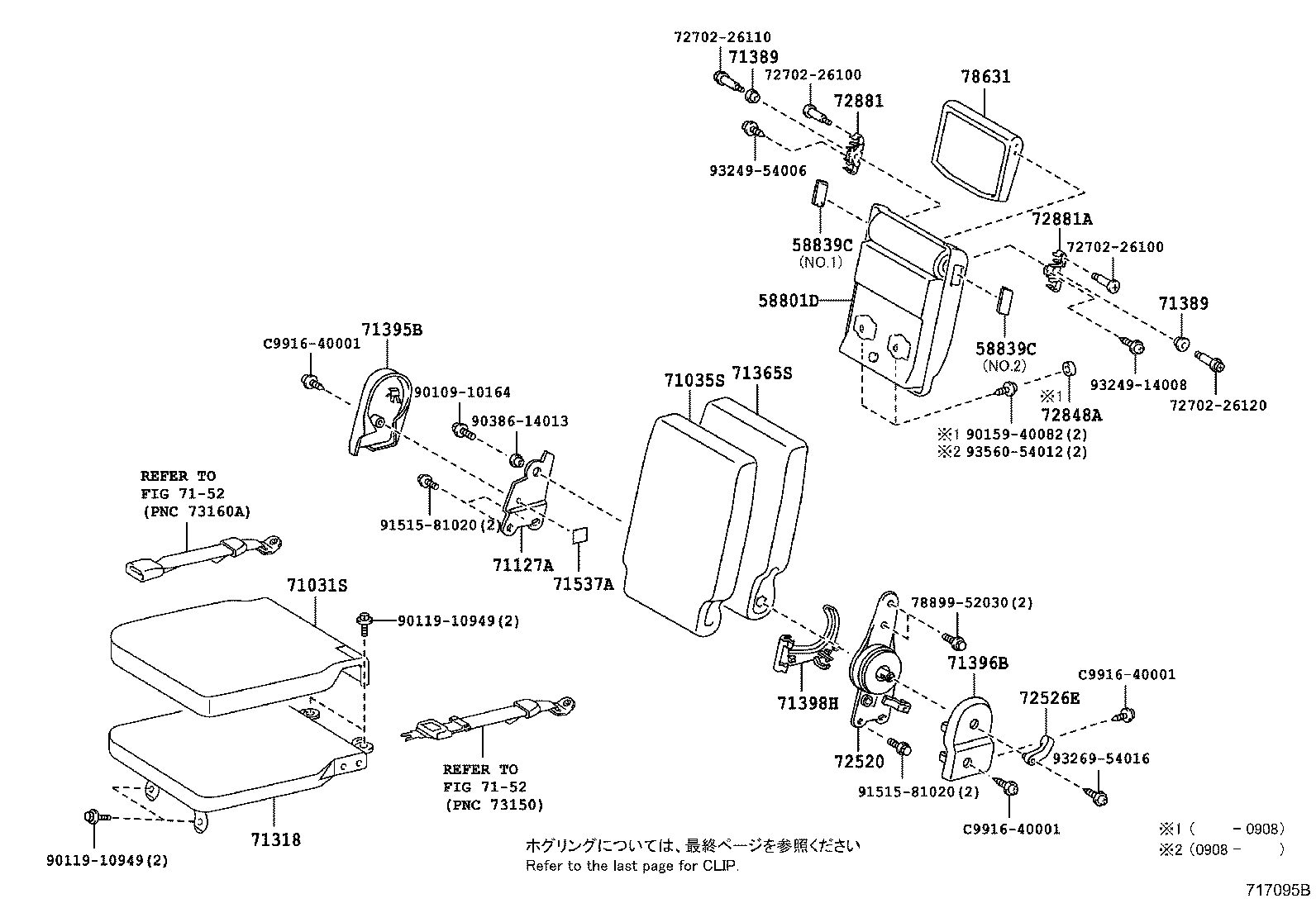

717095B 2005-01 → —

717095B 2005-10 → —

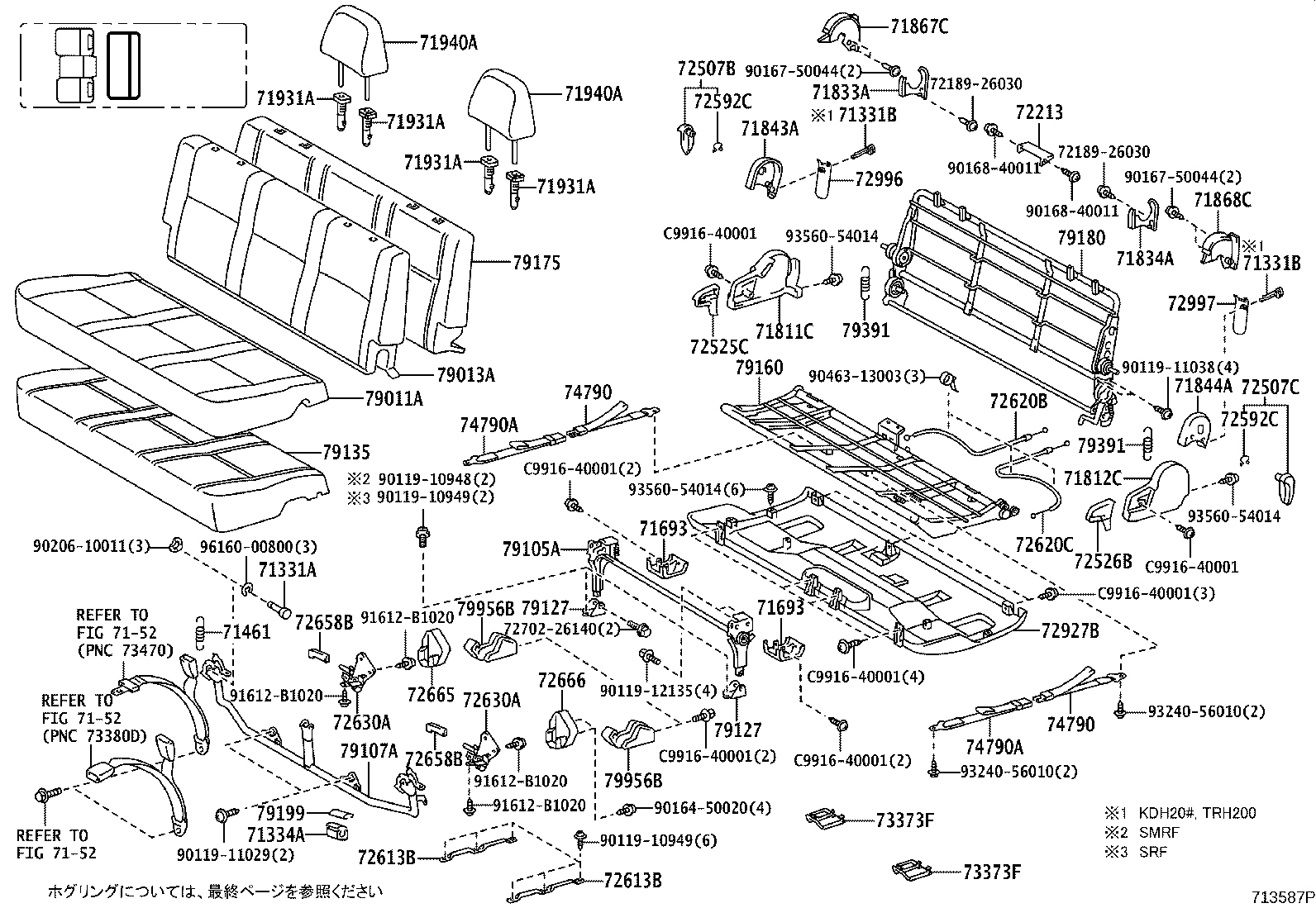

713587P 2004-08 → 2007-09

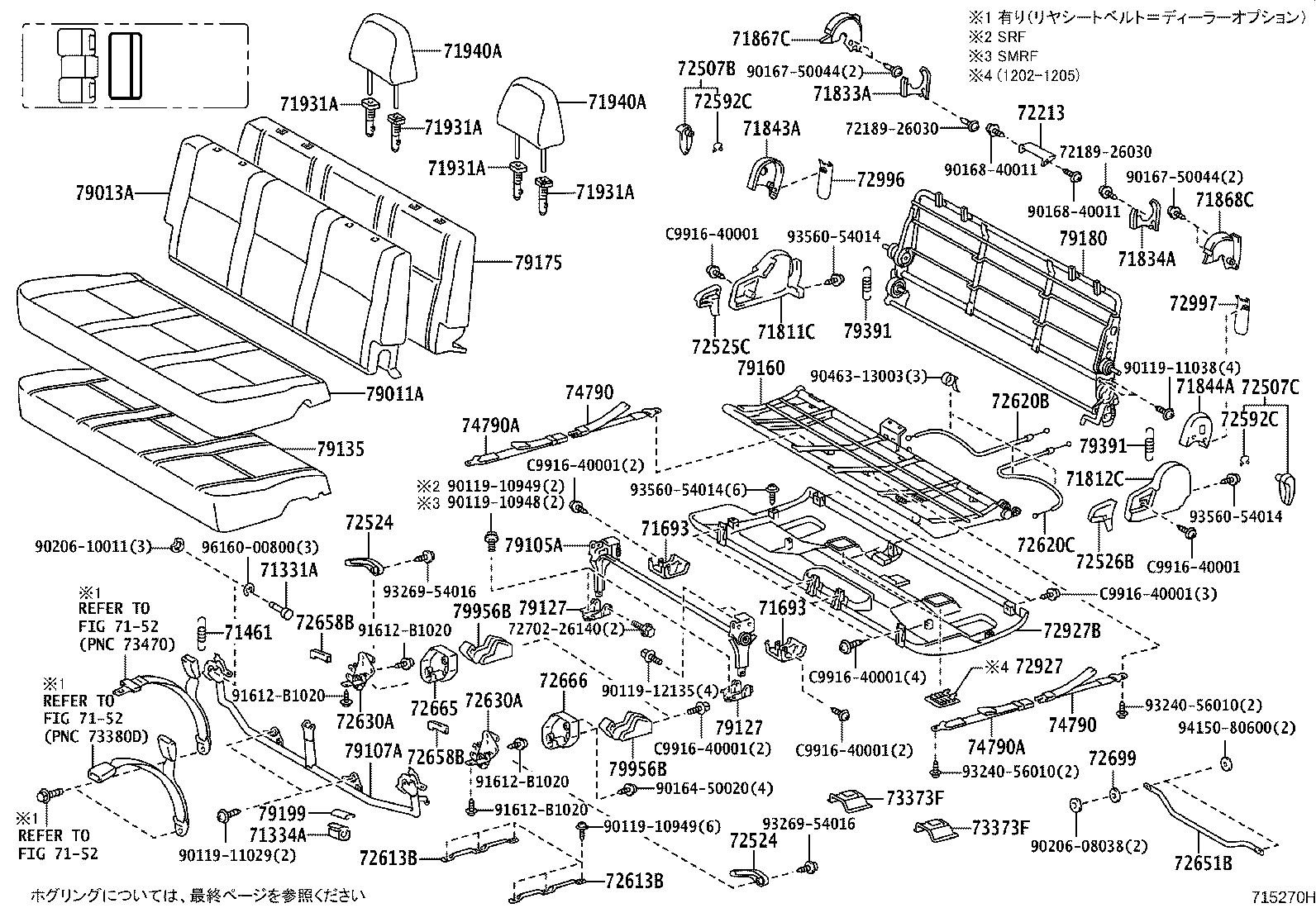

715270H 2007-09 → 2012-05

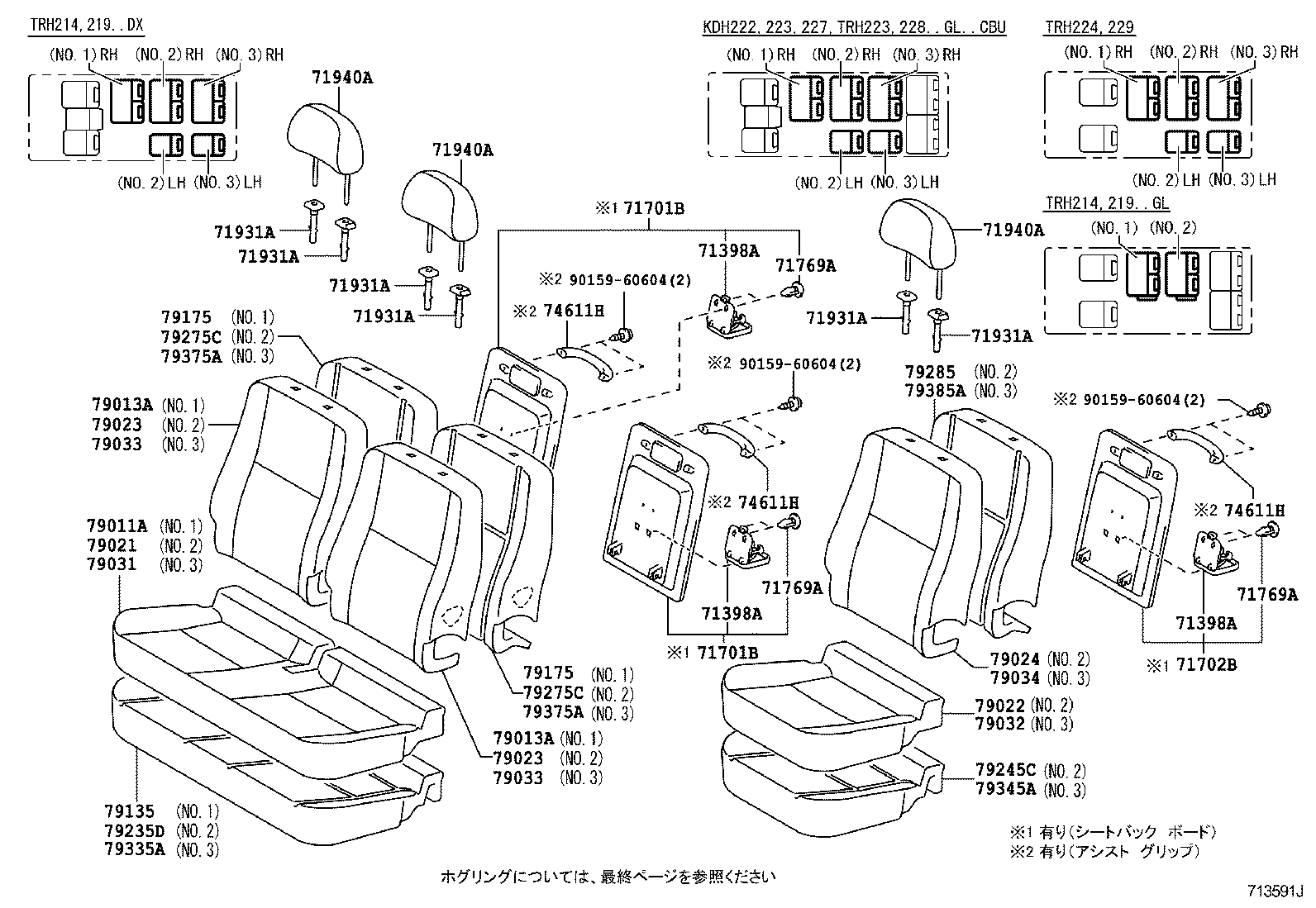

713591J 2004-08 → 2012-05

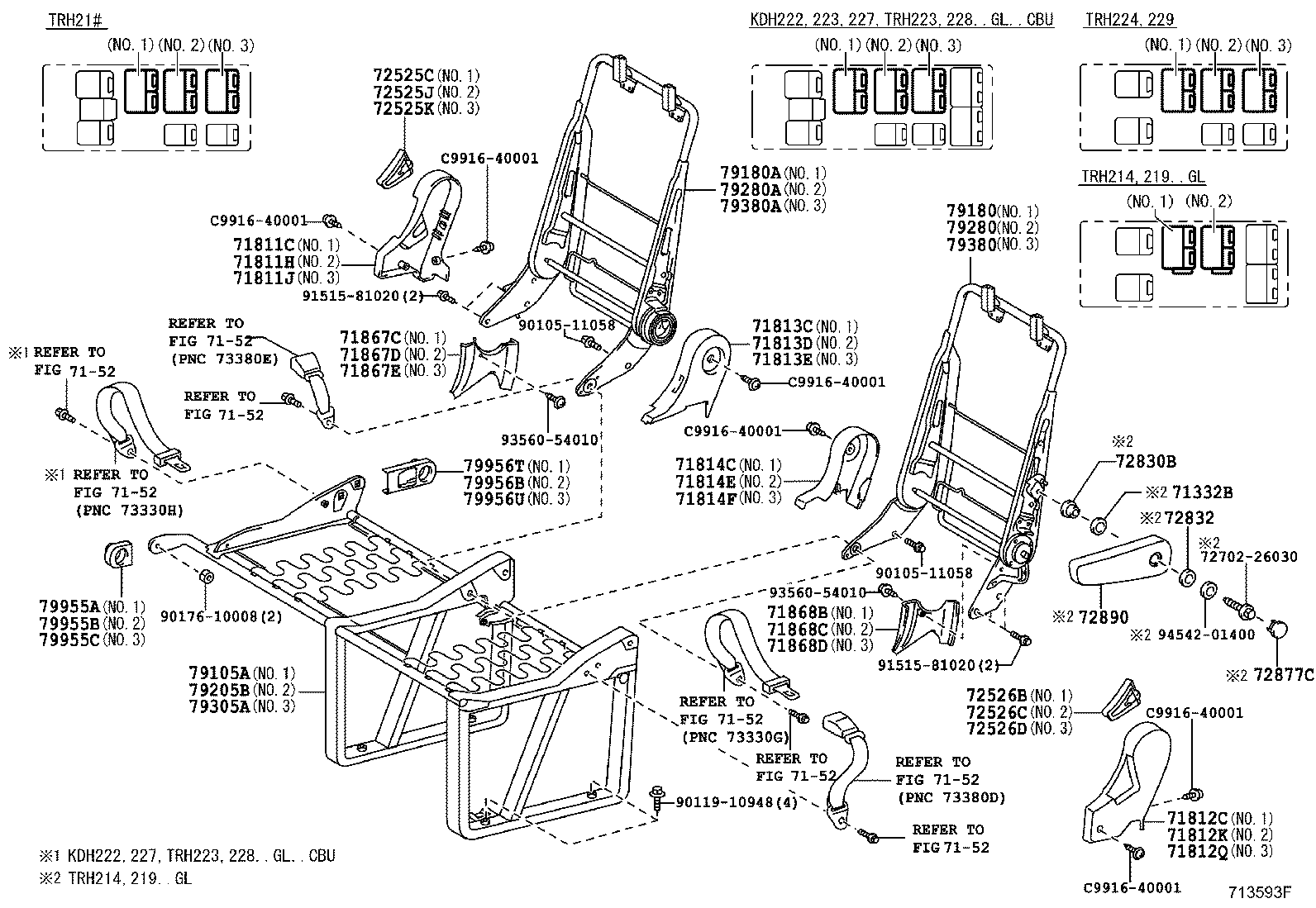

713593F 2004-08 → 2012-05

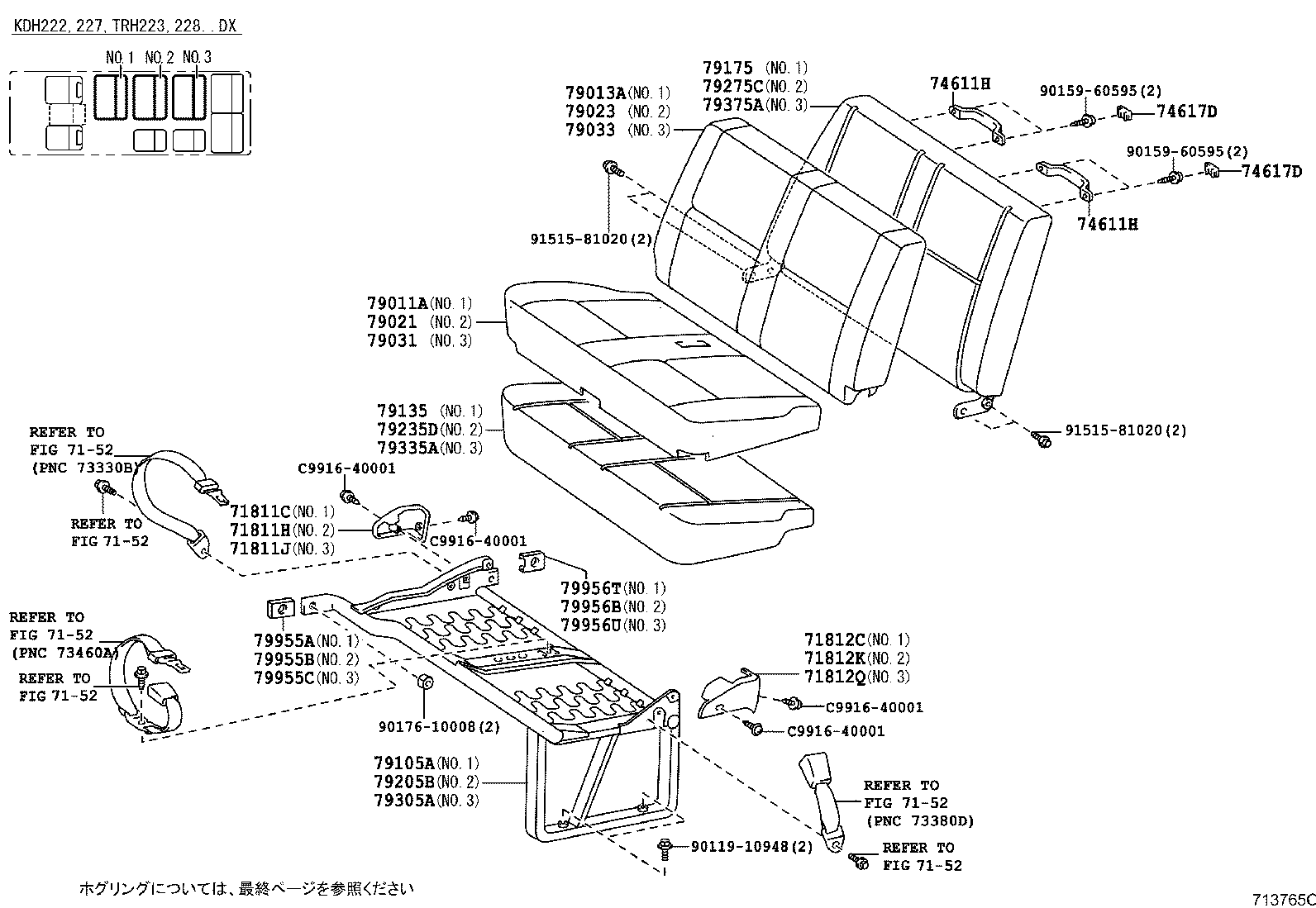

713765C 2005-01 → 2012-05

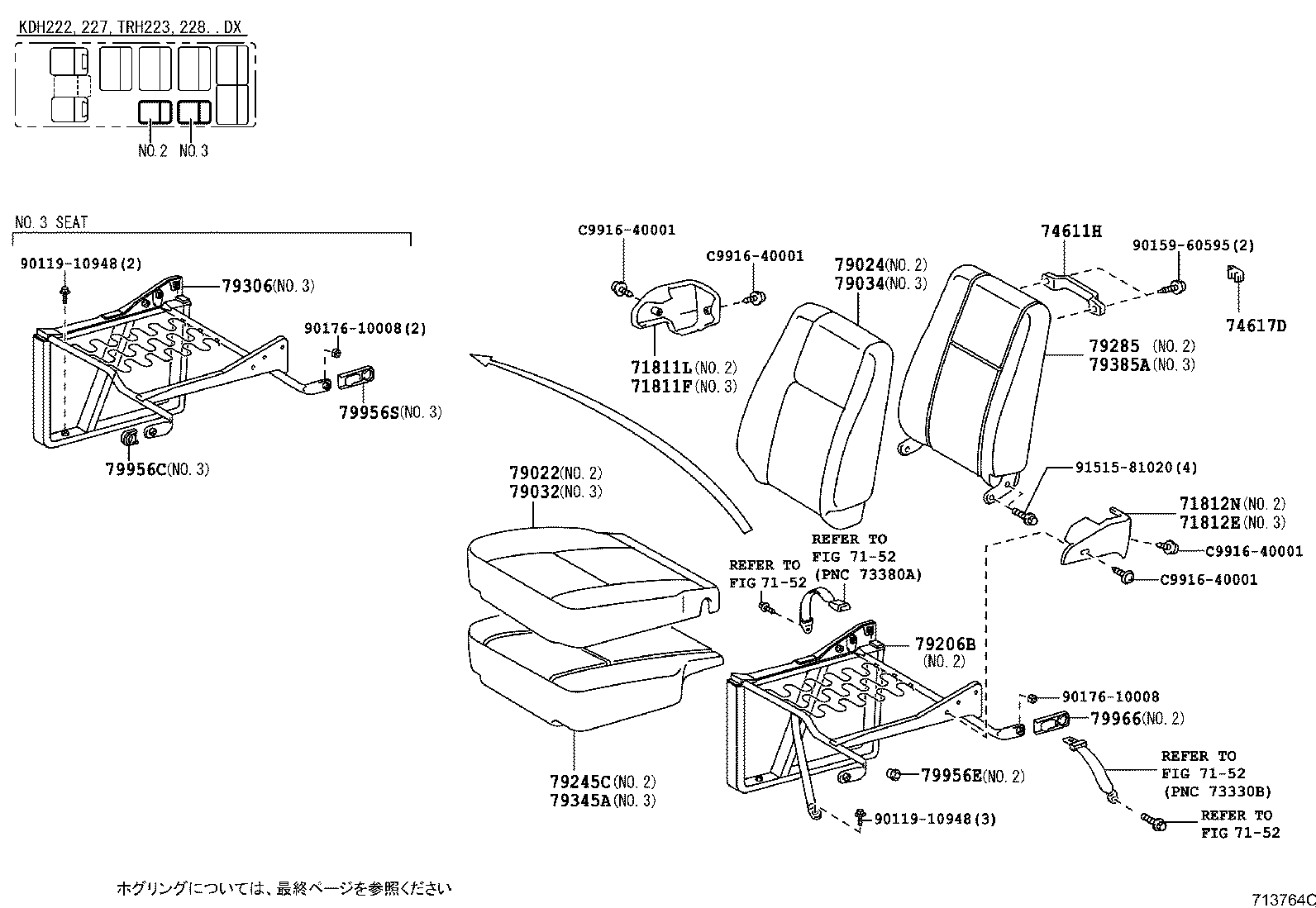

713764C 2005-01 → 2012-05

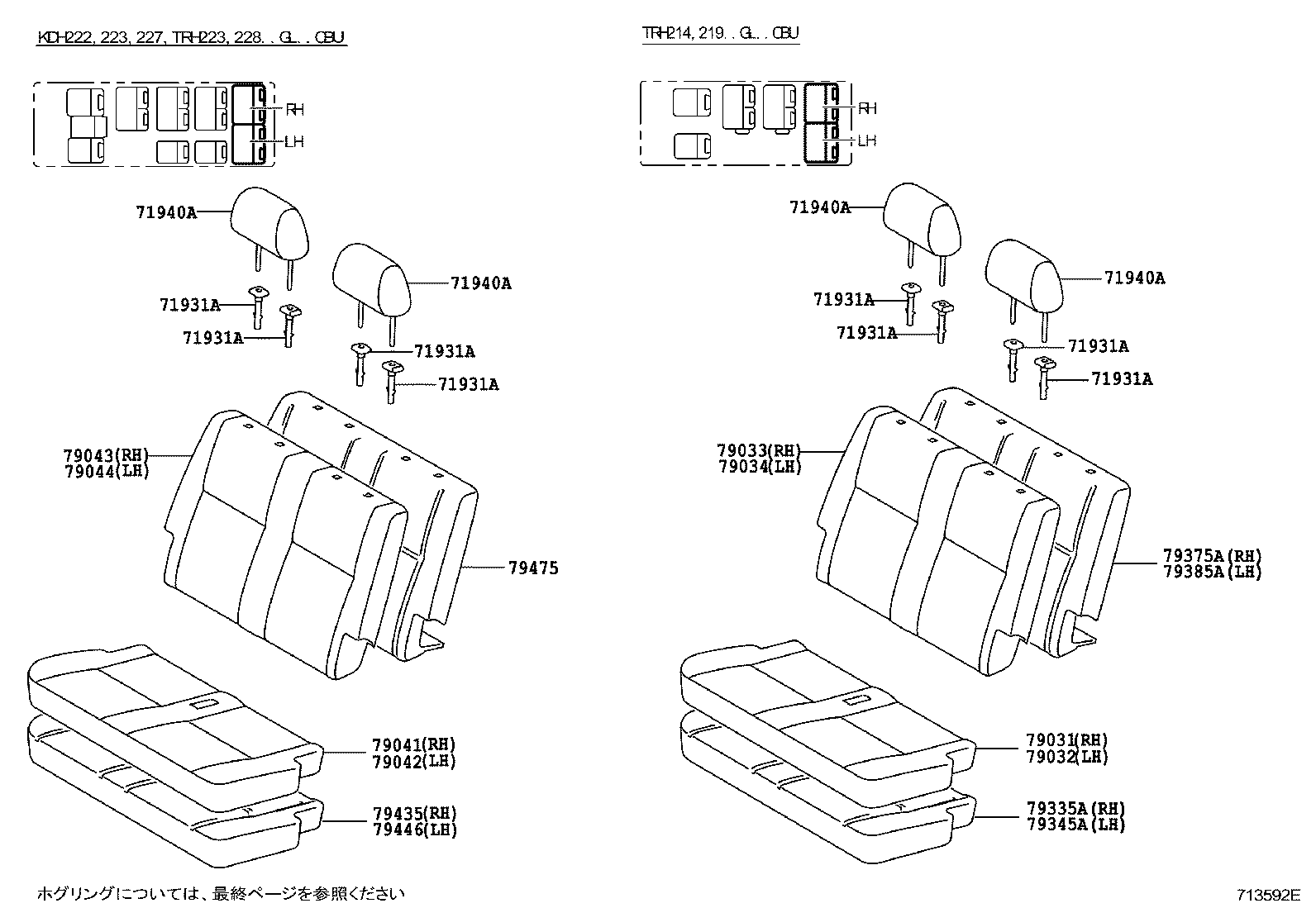

713592E 2004-08 → 2012-05

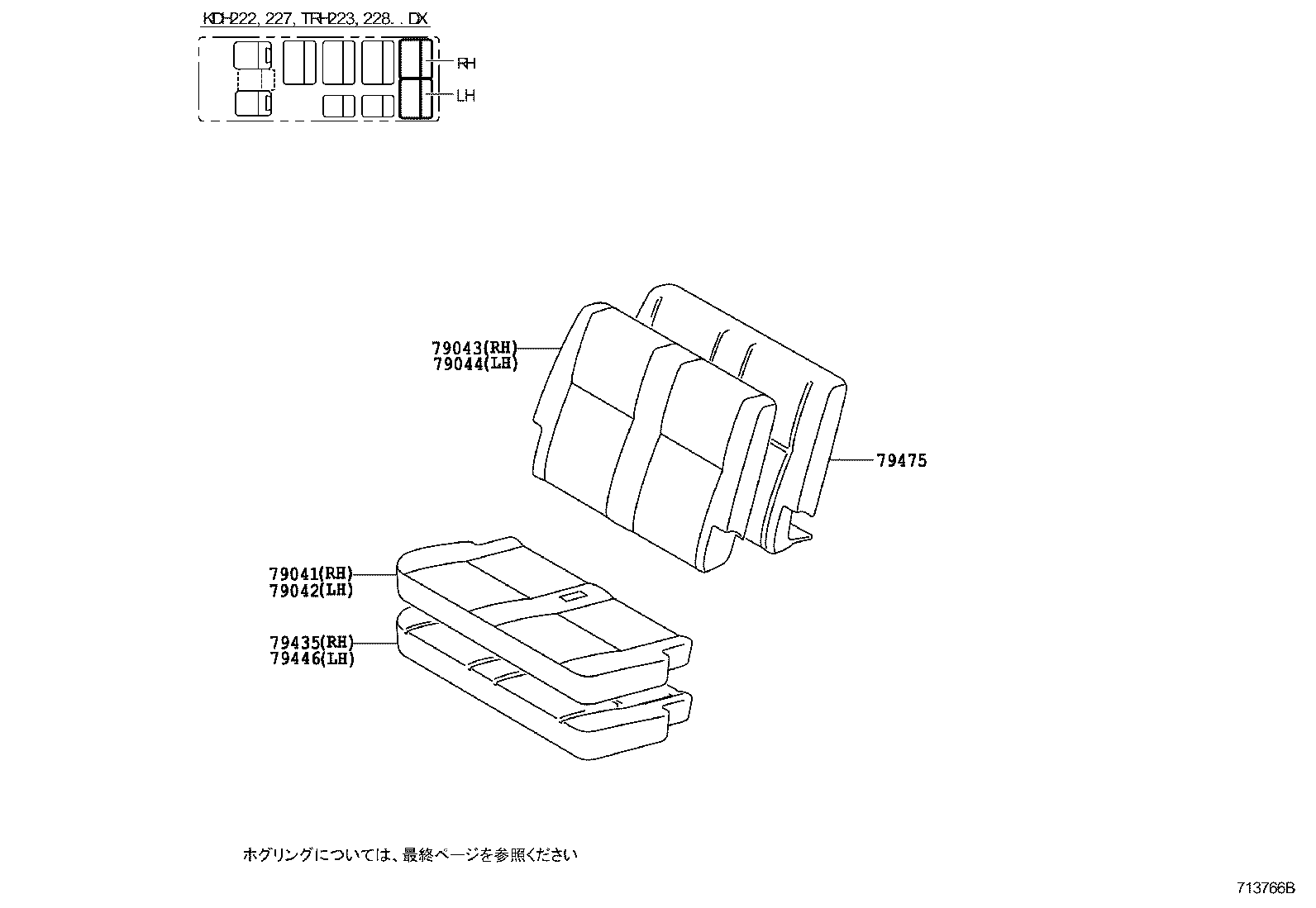

713766B 2005-01 → 2012-05

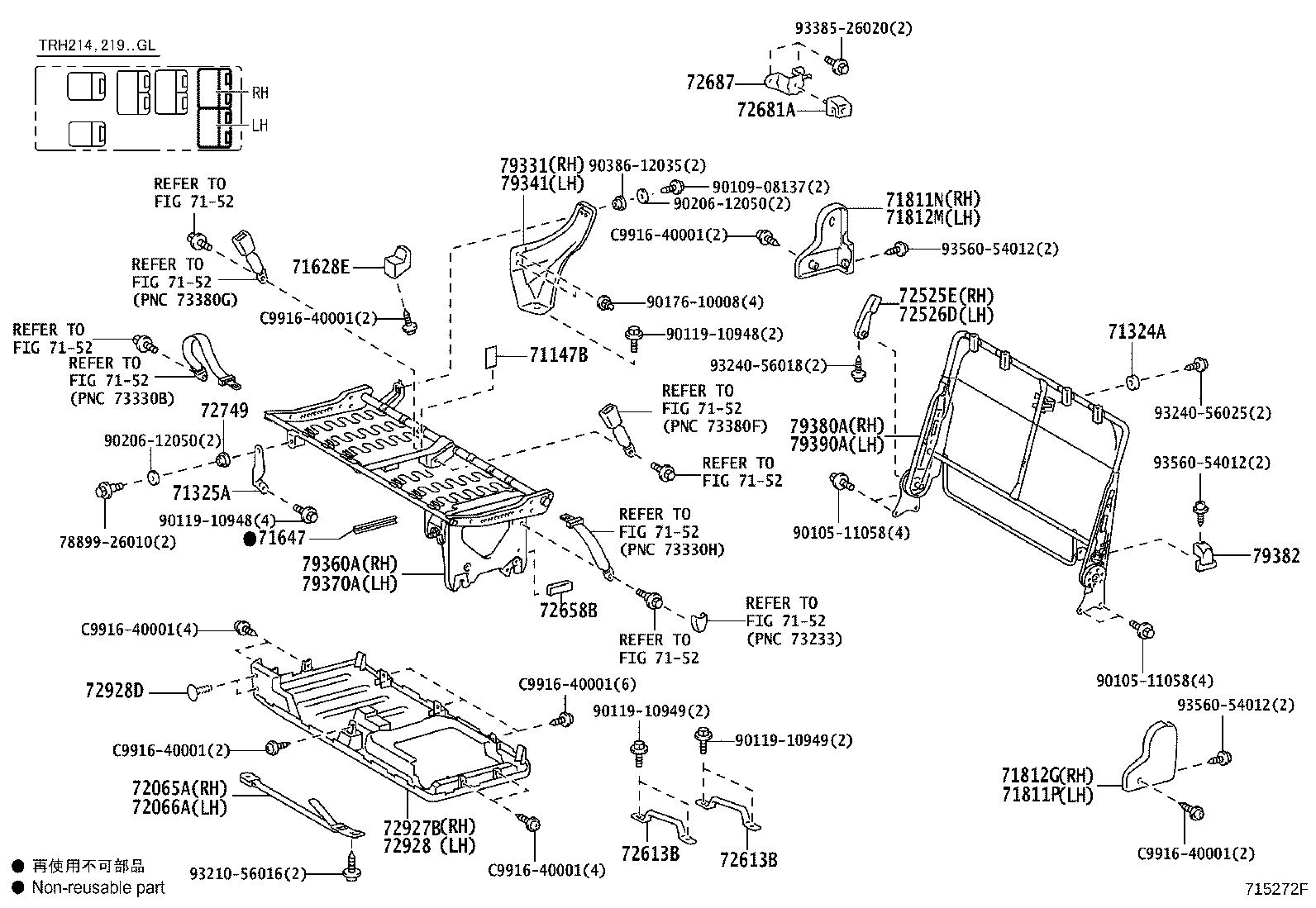

715272F 2007-09 → 2012-05

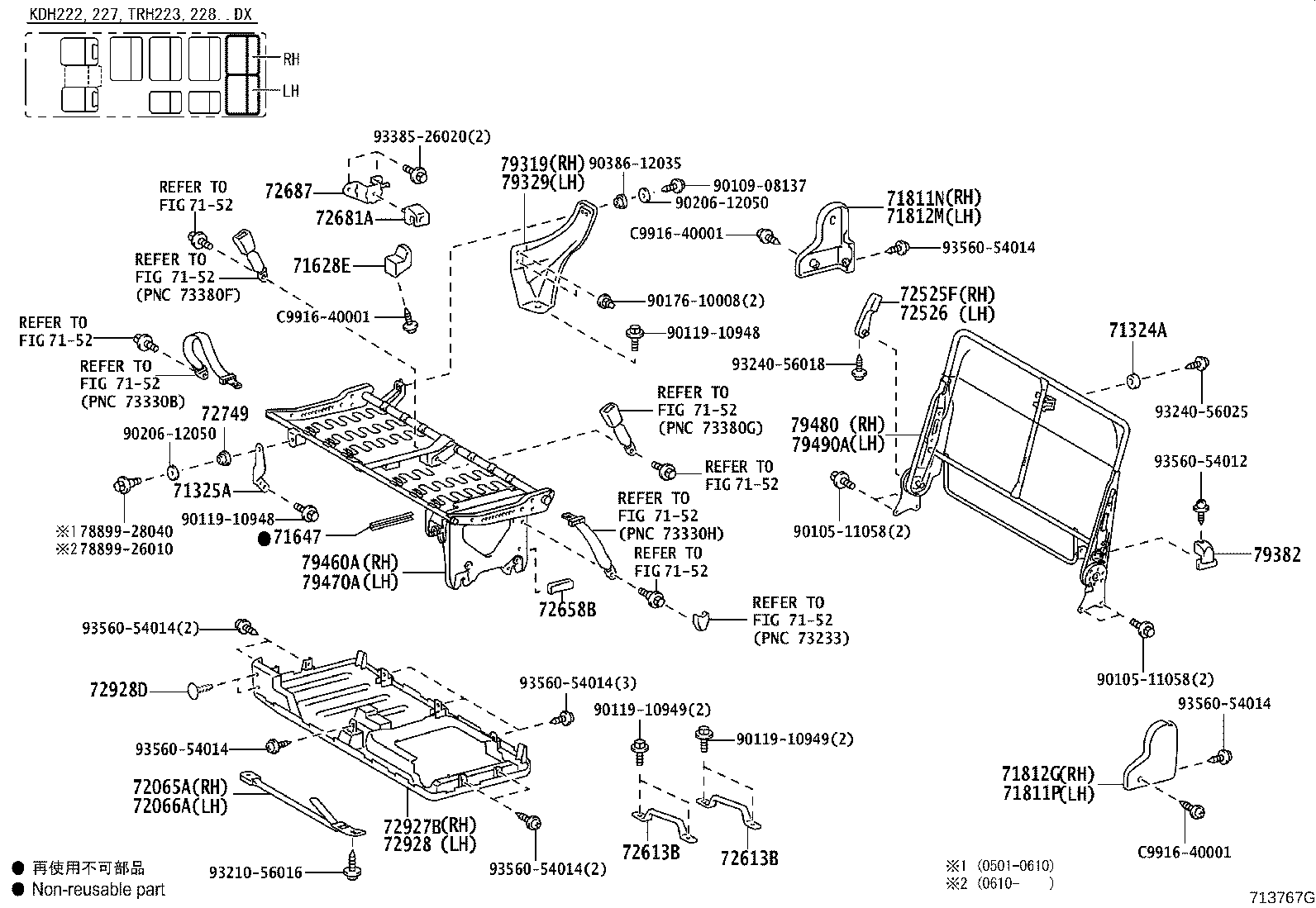

713767G 2005-01 → 2012-05

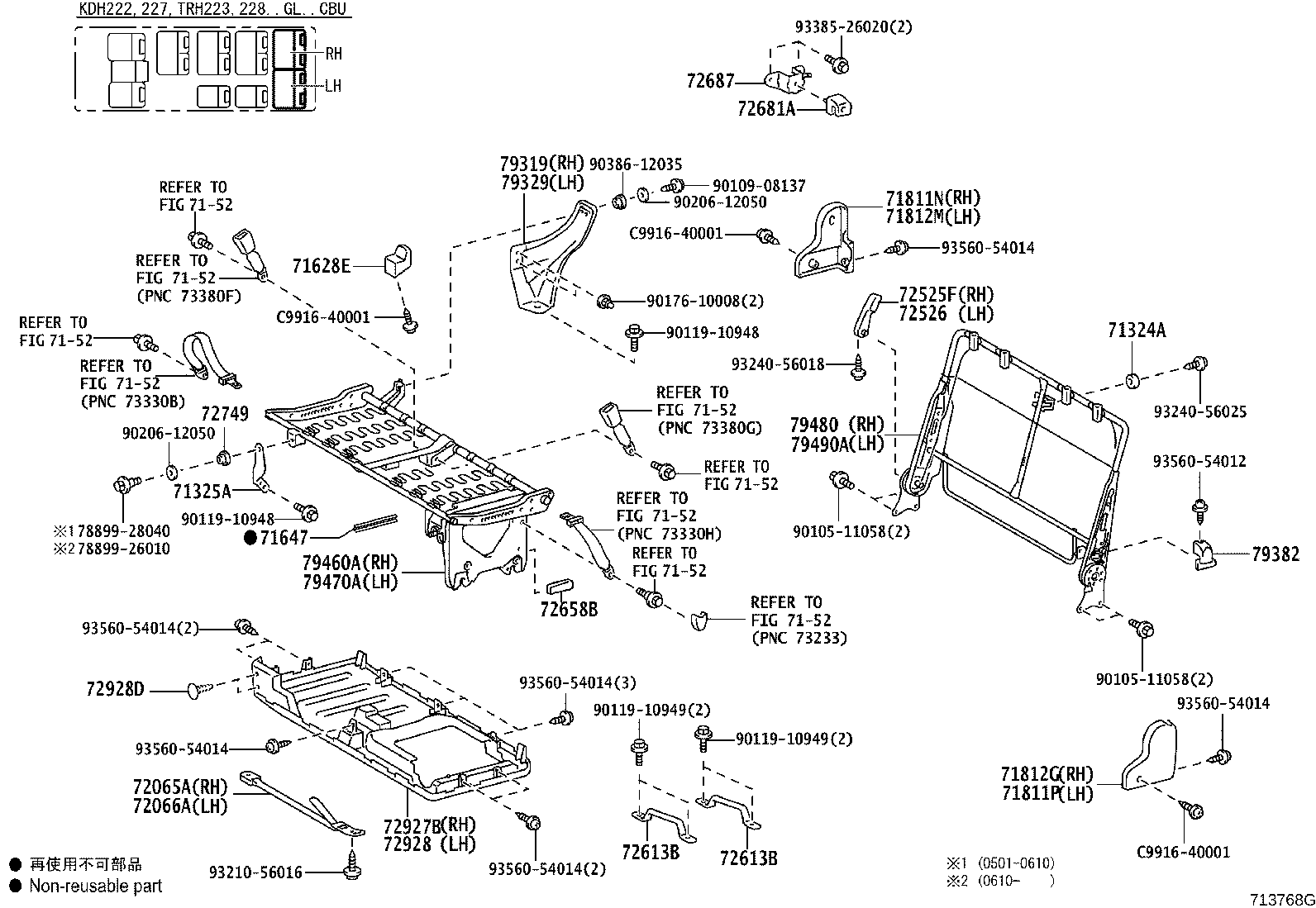

713768G 2005-01 → 2012-05

Part groups

PNC	Description
21791B	Ring, Snap
58801D	Box Assy, Console
58839C	Cover, Front Seatback Control Panel Hole
71014S	Frame Sub-assy, Front Seatback, LH
71031S	Cover Sub-assy, Center Seat Cushion
71035S	Cover, Front Seatback, Center
71071S	Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S	Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S	Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S	Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71110A	Frame Assy, Front Seat W/Adjuster, RH
71120B	Frame Assy, Front Seat W/Adjuster, LH
71127A	Plate, FR0NT Seat Cushion Cover Set
71147B	Silencer, Seat Spring
71149C	Cover, Front Seat Leg, LH (FOR LH SEAT)
71318	Pad, Center Seat Cushion
71324A	Cushion, Rear Seat
71325A	Hinge, Rear Seat Cushion Leg
71331A	Pin, Rear Seat Hinge
71331B	Pin, Rear Seat Hinge, RH
71332B	Spacer, Rear Seatback Hinge
71334A	Stopper, Rear Seat Leg
71334E	Stopper, Rear Seat Leg, NO.2
71365S	Pad, Center Seatback
71389	Spacer, Center Seat Hinge
71395B	Cover, Center Seat Hinge, RH
71396B	Cover, Center Seat Hinge, LH
71398A	Holder, Rear Seatback
71398H	Cover, Center Seat Hinge, Upper LH
71410C	Clip(FOR FRONT SEAT CUSHION)
71461	Spring, Rear Seat Cushion
71511S	Pad, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71512S	Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71537A	Protector, Front Seat Cushion
71551S	Pad, Front Seatback, RH(FOR SEPARATE TYPE)
71552S	Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71628E	Spacer, Rear Seat Cushion
71647	Protector, Rear Seat Cushion Edge
71693	Cover, Rear Seat Cushion Hinge, Lower RH
71695C	Protector, Rear Seat, NO.1
71701B	Board Sub-assy, Rear Seatback, RH
71702B	Board Sub-assy, Rear Seatback, LH
71769A	Clip, Rear Seatback Board
71788B	Washer, Front Seatback Board Setting
71811C	Cover, Reclining Adjuster, RH
71811F	Cover, Reclining Adjuster, RH
71811H	Cover, Reclining Adjuster, RH
71811J	Cover, Reclining Adjuster, RH
71811L	Cover, Reclining Adjuster, RH
71811N	Cover, Reclining Adjuster, RH
71811P	Cover, Reclining Adjuster, RH
71812C	Cover, Reclining Adjuster, LH
71812E	Cover, Reclining Adjuster, LH
71812G	Cover, Reclining Adjuster, LH
71812K	Cover, Reclining Adjuster, LH
71812M	Cover, Reclining Adjuster, LH
71812N	Cover, Reclining Adjuster, LH
71812Q	Cover, Reclining Adjuster, LH
71813C	Shield, Front Seatback, RH
71813D	Shield, Front Seatback, RH
71813E	Shield, Front Seatback, RH
71814C	Shield, Front Seatback, LH
71814E	Shield, Front Seatback, LH
71814F	Shield, Front Seatback, LH
71833A	Cover, Rear Seat Reclining, NO.1 RH
71834A	Cover, Rear Seat Reclining, NO.1 LH
71843A	Cover, Rear Seat Reclining, NO.2 RH
71844A	Cover, Rear Seat Reclining, NO.2 LH
71848A	Cap, Seat Adjuster Cover, RH
71849	Cap, Seat Adjuster Cover, LH
71861	Shield, Front Seat Cushion, Inner RH
71862	Shield, Front Seat Cushion, Inner LH
71867A	Shield, Front Seat Cushion, Inner NO.1 RH
71867C	Shield, Front Seat Cushion, Inner NO.1 RH
71867D	Shield, Front Seat Cushion, Inner NO.1 RH
71867E	Shield, Front Seat Cushion, Inner NO.1 RH
71867F	Shield, Front Seat Cushion, Inner NO.1 RH
71867G	Shield, Front Seat Cushion, Inner NO.1 RH
71867H	Shield, Front Seat Cushion, Inner NO.1 RH
71868A	Shield, Front Seat Cushion, Inner NO.1 LH
71868B	Shield, Rear Seat Cushion, Inner NO.1 LH
71868C	Shield, Rear Seat Cushion, Inner NO.1 LH
71868D	Shield, Rear Seat Cushion, Inner NO.1 LH
71868E	Shield, Rear Seat Cushion, Inner NO.1 LH
71868F	Shield, Rear Seat Cushion, Inner NO.1 LH
71868G	Shield, Rear Seat Cushion, Inner NO.1 LH
71875A	Cover, Reclining Adjuster Inside, RH
71875B	Cover, Reclining Adjuster Inside, RH
71875C	Cover, Reclining Adjuster Inside, RH
71875E	Cover, Reclining Adjuster Inside, RH
71876	Cover, Reclining Adjuster Inside, LH
71876A	Cover, Reclining Adjuster Inside, LH
71876B	Cover, Reclining Adjuster Inside, LH
71876C	Cover, Reclining Adjuster Inside, LH
71910A	Headrest Assy, Front Seat
71931	Support, Front Seat Headrest
71931A	Support, Rear Seat Headrest
71940A	Headrest Assy, Rear Seat
72065A	Hook Sub-assy,Rear Seat Cushion Lock,RH
72066A	Hook Sub-assy,Rear Seat Cushion Lock,LH
72213	Knob, Seat Track Adjusting Handle
72249	Guide, Seat Track Locking
72507A	Handle Sub-assy, Reclining Release
72507B	Handle Sub-assy, Reclining Release, RH
72507C	Handle Sub-assy, Reclining Release, LH
72507D	Handle Sub-assy, NO.2 Seat Reclining Release
72520	Adjuster Assy, Reclining Seatback, LH
72524	Handle, Reclining Adjuster Release
72525A	Handle, Reclining Adjuster Release, RH
72525C	Handle, Reclining Adjuster Release, NO.1 RH
72525D	Handle, Reclining Adjuster Release, NO.2 RH
72525E	Handle, Reclining Adjuster Release, NO.3 RH
72525F	Handle, Reclining Adjuster Release, NO.4 RH
72525J	Handle, Reclining Adjuster Release, RH
72525K	Handle, Reclining Adjuster Release, NO.5 RH
72526	Handle, Reclining Adjuster Release, LH
72526A	Handle, Reclining Adjuster Release, LH
72526B	Handle, Reclining Adjuster Release, NO.1 LH
72526C	Handle, Reclining Adjuster Release, NO.2 LH
72526D	Handle, Reclining Adjuster Release, NO.3 LH
72526E	Handle, Reclining Adjuster Release, LH
72592C	Ring, Shaft Snap
72613B	Striker, Rear Seat Lock
72620B	Cable Assy, Rear NO.1 Seat Lock
72620C	Cable Assy, Rear NO.1 Seat Lock
72630A	Lock Assy, Rear NO.1 Seat
72651B	Rod, Rear Seat Lock
72651F	Rod, Rear Seat Lock, NO.2
72658B	Knob, Rear Seat Lock Handle
72665	Cover, Rear Seatback Lock, RH
72666	Cover, Rear Seatback Lock, LH
72667	Bezel, Rear Seatback Lock, Upper
72668A	Bezel, Rear Seatback Lock, Lower
72681A	Hook, Rear Seat
72687	Bracket, Rear Seat Hook
72699	Plate, Rear Seat Lock Release
72749	Spacer, Rear Seat Reclining
72830B	Bush(FOR REAR SEAT CENTER ARMREST)
72832	Plate, Rear Seat Armrest
72848A	Cap, Seat Armrest, NO.1
72877C	Cover, Seat Armrest
72881	Support, Rear Seat Center Armrest, RH
72881A	Support, Rear Seat Center Armrest, LH
72890	Armrest Assy, Seat, C LH
72927	Cover, Rear Seat Cushion Under, RH
72927B	Cover, Rear Seat Cushion Under
72928	Cover, Rear Seat Cushion Under, LH
72928D	Clip (FOR REAR SEAT CUSHION UNDER COVER)
72996	Cover, Rear Seatback, RH
72997	Cover, Rear Seatback, LH
73373F	Cover, Rear Seat Shoulder Belt Hole
73375B	Cover, Rear Seat Shoulder Belt Hole, LH
74611H	Grip, Assist
74617D	Plug, Assist Grip
74790	Holder Assy, Warning Reflector
74790A	Holder Assy, Warning Reflector
78631	Table, Front Seat Side
79011A	Cover Sub-assy, NO.1 Seat Cushion
79013	Cover Sub-assy, NO.1 Seatback, RH
79013A	Cover Sub-assy, NO.1 Seatback
79021	Cover Sub-assy, NO.2 Seat Cushion, RH
79021A	Cover Sub-assy, NO.2 Seat Cushion
79022	Cover Sub-assy, NO.2 Seat Cushion, LH
79023	Cover Sub-assy, NO.2 Seatback, RH
79023A	Cover Sub-assy, NO.2 Seatback
79024	Cover Sub-assy, NO.2 Seatback, LH
79029A	Stay Sub-assy, NO.2 Seat
79031	Cover Sub-assy, NO.3 Seat Cushion, RH
79032	Cover Sub-assy, NO.3 Seat Cushion, LH
79033	Cover Sub-assy, NO.3 Seatback, RH
79033A	Cover Sub-assy, NO.3 Seatback
79034	Cover Sub-assy, NO.3 Seatback, LH
79041	Cover Sub-assy, NO.4 Seat Cushion, RH
79042	Cover Sub-assy, NO.4 Seat Cushion, LH
79043	Cover Sub-assy, NO.4 Seatback, RH
79044	Cover Sub-assy, NO.4 Seatback, LH
79105A	Leg Sub-assy, NO.1 Seat
79107A	Leg Sub-assy, NO.1 Seat, Rear
79107D	Leg Sub-assy, NO.2 Seat, Rear
79127	Bracket, NO.1 Seat Leg, Lower
79135	Pad, NO.1 Seat Cushion
79160	Spring Assy, NO.1 Seat Cushion
79175	Pad, NO.1 Seatback
79175E	Pad, NO.1 Seatback, RH
79180	Spring Assy, NO.1 Seatback
79180A	Spring Assy, NO.1 Seatback, RH
79189	Stopper, NO.1 Seat Leg
79199	Holder, NO.1 Seat Leg Stopper
79199A	Holder, NO.2 Seat Leg Stopper
79205B	Leg Sub-assy, NO.2 Seat, RH
79206B	Leg Sub-assy, NO.2 Seat, LH
79235	Pad, NO.2 Seat Cushion
79235D	Pad, NO.2 Seat Cushion, RH
79245C	Pad, NO.2 Seat Cushion, LH
79260	Spring Assy, NO.2 Seat Cushion
79275	Pad, NO.2 Seatback
79275C	Pad, NO.2 Seatback, RH
79280	Spring Assy, NO.2 Seatback
79280A	Spring Assy, NO.2 Seatback, RH
79285	Pad, NO.2 Seatback, LH
79288	Stopper, NO.2 Seat Cushion
79290A	Spring Assy, NO.2 Seatback, LH
79305A	Leg Sub-assy, NO.3 Seat, RH
79306	Leg Sub Assy, NO.3 Seat, LH
79319	Bracket, NO.3 Seat Leg, RR RH
79329	Bracket, NO.3 Seat Leg, RR LH
79331	Leg, NO.3 Seat, Outer RH
79335A	Pad, NO.3 Seat Cushion, RH
79341	Leg, NO.3 Seat, Outer LH
79345A	Pad, NO.3 Seat Cushion, LH
79360A	Spring Assy, NO.3 Seat Cushion, RH
79370A	Spring Assy, NO.3 Seat Cushion, LH
79375	Pad, NO.3 Seatback
79375A	Pad, NO.3 Seatback, RH
79380	Spring Assy, NO.3 Seatback
79380A	Spring Assy, NO.3 Seatback, RH
79382	Cover, NO.3 Seat Front Bracket, LH
79385A	Pad, NO.3 Seatback, LH
79390A	Spring Assy, NO.3 Seatback, LH
79391	Spring, Rear Seat Cushion
79435	Pad, NO.4 Seat Cushion
79446	Pad, 3RD Seat Cushion, NO.2
79460A	Spring Assy, NO.4 Seat Cushion, RH
79470A	Spring Assy, NO.4 Seat Cushion, LH
79475	Pad, NO.4 Seatback
79479A	Pad, NO.4 Seatback Headrest, LH
79480	Spring Assy, NO.4 Seatback
79490A	Spring Assy, NO.4 Seatback, LH
79655	Striker, NO.2 Seat Leg
79955A	Cover, Rear Seat Front Bracket, RH
79955B	Cover, NO.2 Seat Front Bracket, RH
79955C	Cover, Rear Seat Front Bracket, RH
79956B	Cover, Rear Seat Leg Side, RH
79956C	Cover, Rear Seat Leg Side, LH
79956E	Cap(FOR REAR SEAT LEG SIDE COVER)
79956S	Cover, Rear Seat Leg Side
79956T	Cover, Rear Seat Leg Side
79956U	Cover, Rear Seat Leg Side
79966	Cover, Rear Seat Leg Side, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
