Toyota Hiace/Regiusace
2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan
Supported model
Data version 2014-06

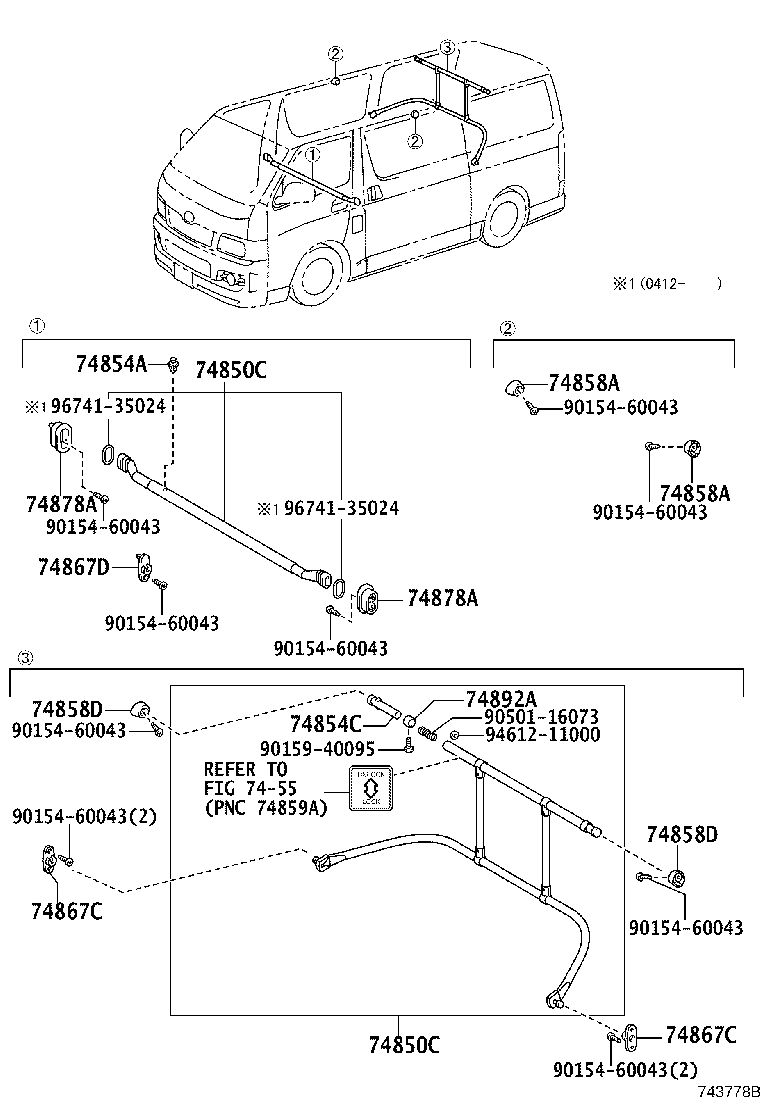

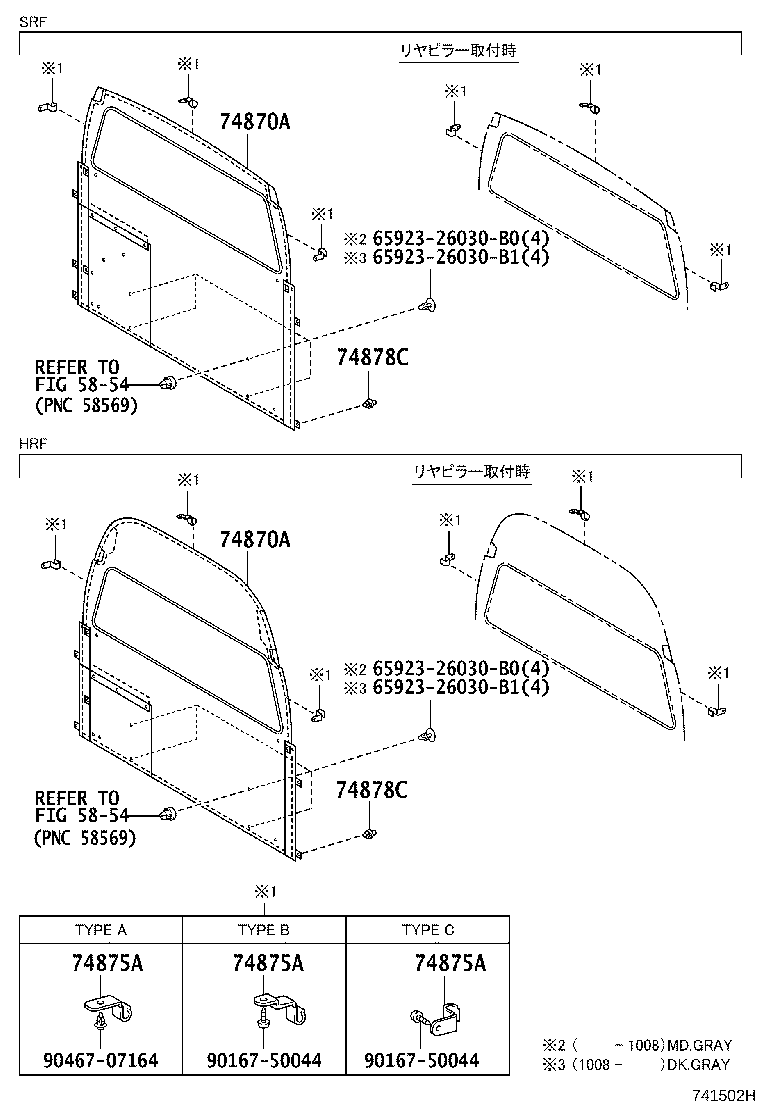

Separator & Separator Curtain
16 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 74810E | Bar Assy, Separator |
| 74825E | Bracket, Separator, RH |
| 74826D | Bracket, Separator, LH |
| 74850C | Bar Assy, Separator |
| 74854A | Stop, Separator |
| 74854C | Stop, Separator |
| 74858A | Bracket, Separator Bar, Upper |
| 74858D | Bracket, Rear Separator Bar, Upper |
| 74867C | Bracket, Separator Bar, Lower |
| 74867D | Bracket, Separator Bar, Lower |
| 74870A | Curtain Assy, Separator |
| 74875A | Plate, Curtain Rear Separator |
| 74878A | Bracket, Separator Bar, Lower |
| 74878C | Fastener, Separator Curtain |
| 74892A | Cover, Separator Bar, NO.2 |
| 74898 | Pad, Separator Bar |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
