Toyota Hiace/Regiusace
2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan
Supported model
Data version 2014-06

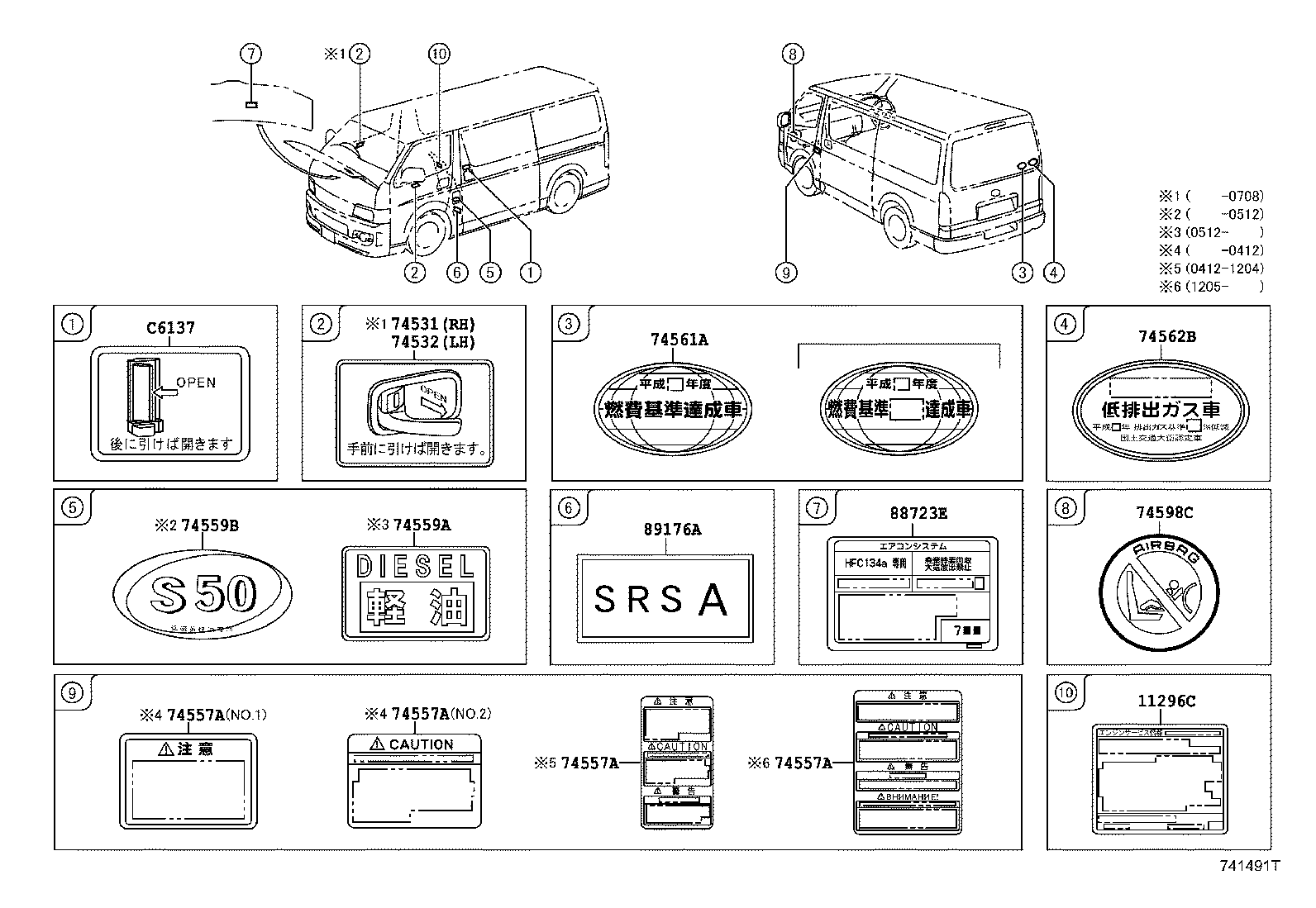

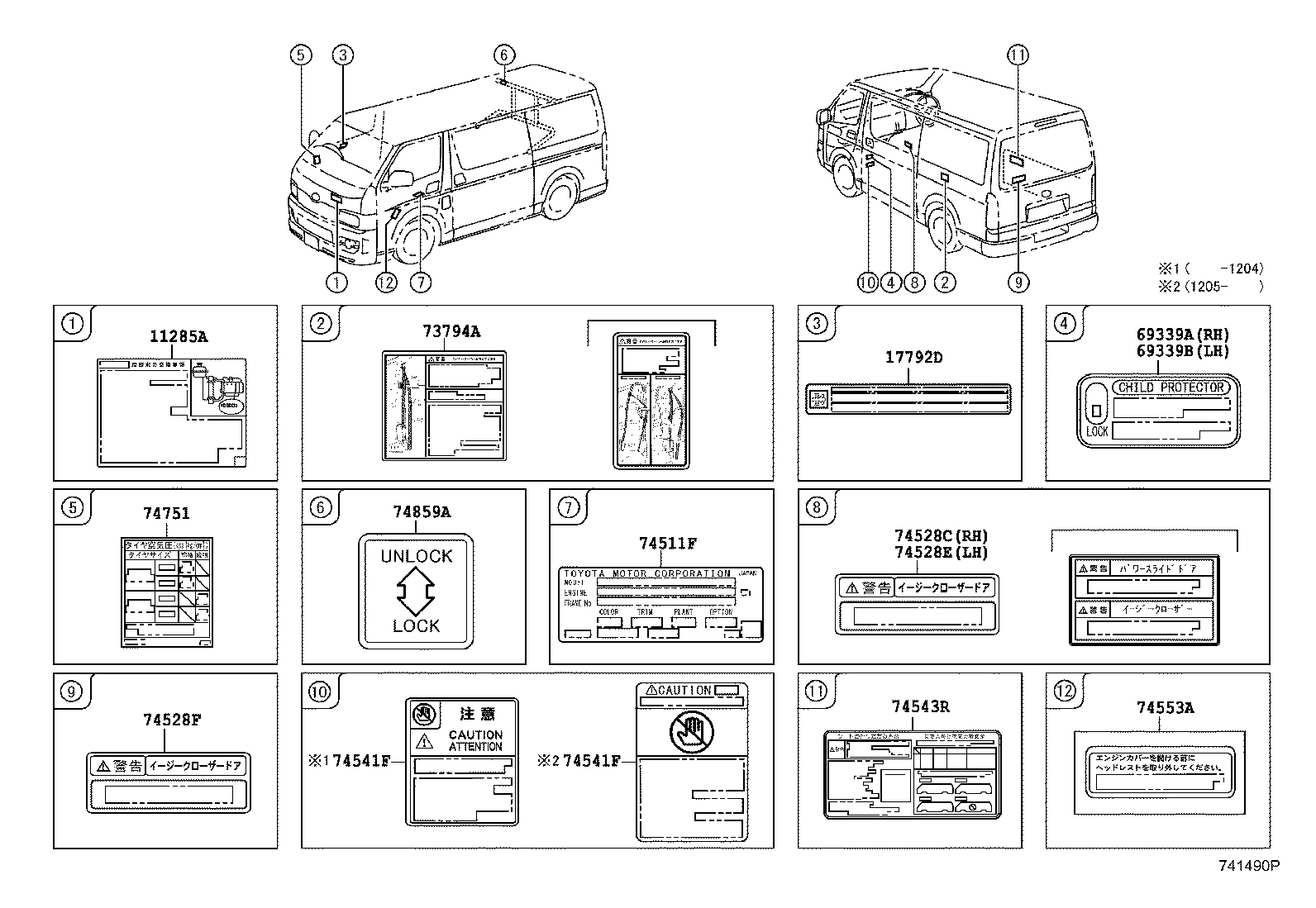

Caution Plate
30 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 11285A | Label, Coolant System Notice |
| 11296C | Label, Engine Service Information |
| 15369A | Label, Engine Oil Information |
| 16793E | Label, Cooling Fan Caution |
| 17791A | Label, Maintenance Information |
| 17792D | Label, Emission Control Device Information |
| 69339A | Plate, Child Protector Lock Caution |
| 69339B | Plate, Child Protector Lock Caution |
| 73794A | Label, Rear Separator Caution |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74528C | Label, Power Slide Door Notice |
| 74528E | Label, Power Slide Door Notice |
| 74528F | Label, Door Closer Caution, RH |
| 74531 | Plate, Door Inside Handle Caution, RH |
| 74532 | Plate, Door Inside Handle Caution, LH |
| 74541F | Label, Slide Door Glass Caution |
| 74543R | Label, Rear Seat Caution |
| 74553A | Plate, Front Seat Caution |
| 74557A | Plate, Engine Service Hole Cover Balance Caution |
| 74559A | Plate, Fuel Caution |
| 74559B | Label, Fuel Information |
| 74561A | Label, Fuel Consumption Information |
| 74562B | Label, Emission Information |
| 74574 | Plate, Noise Identification |
| 74598C | Label, Passenger Airbag Caution |
| 74751 | Label, Tire Pressure Information |
| 74859A | Plate, Caution, Rear Separator |
| 88723E | Label, Cooler Service Caution |
| 89176A | Label, Airbag Deployment Information |
| C6137 | Label, Slide Door Handle Information |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
