Toyota Hiace/Regiusace
2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan
Supported model
Data version 2014-06

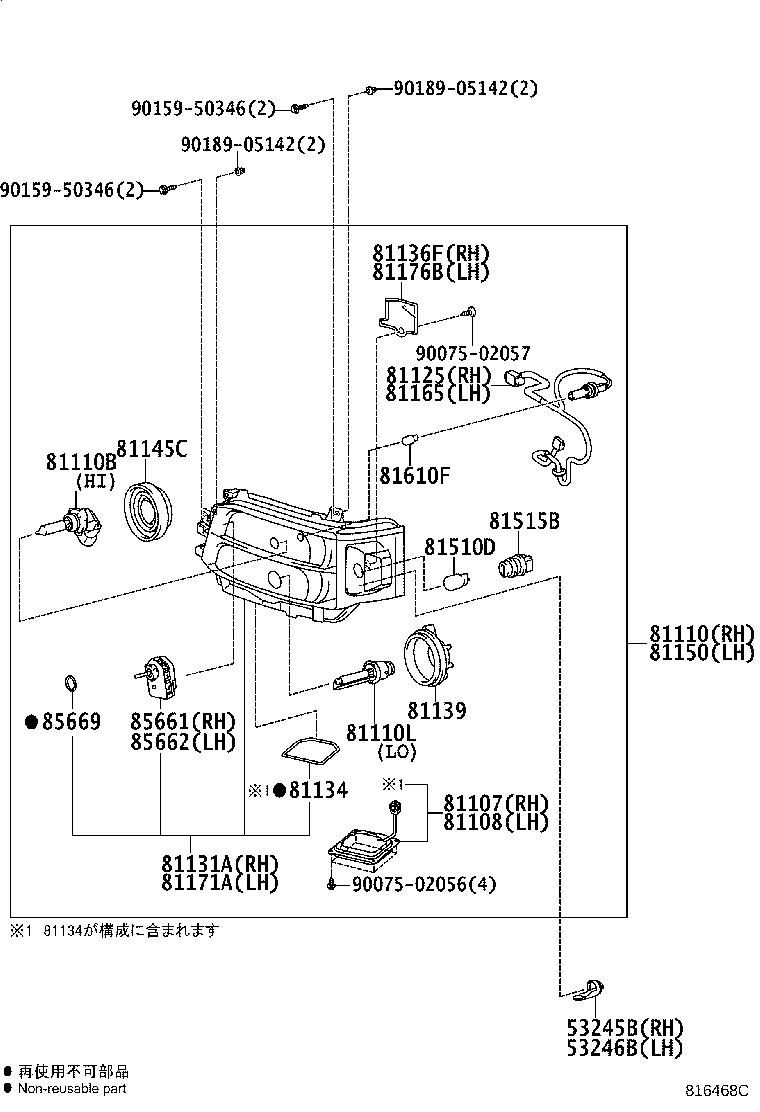

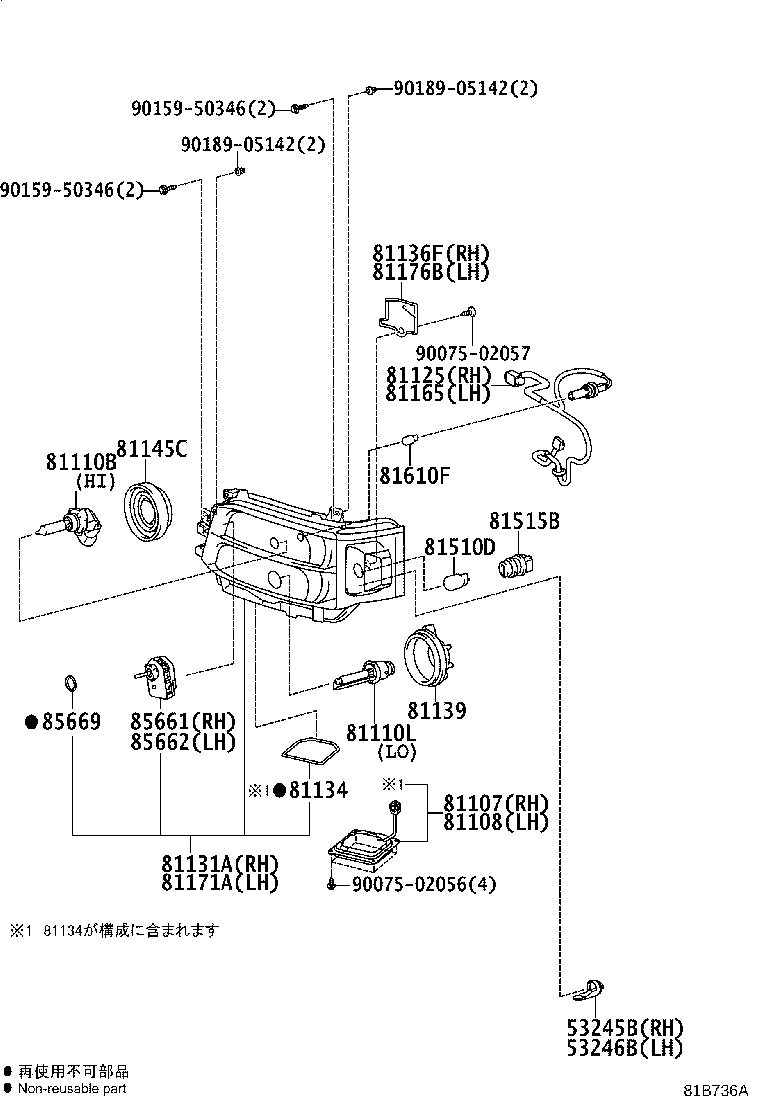

Headlamp
27 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 53245B | Bracket, Headlamp, RH |
| 53246B | Bracket, Headlamp, LH |
| 53271A | Bracket, Headlamp Mounting |
| 81107 | Computer Sub-assy, Headlamp Light Control, RH |
| 81108 | Computer Sub-assy, Headlamp Light Control, LH |
| 81110 | Headlamp Assy, RH |
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81110L | Bulb, Discharge Headlamp |
| 81125 | Cord, Headlamp |
| 81131A | Unit, Headlamp, RH |
| 81134 | Gasket, Headlamp |
| 81136F | Cover, Headlamp, NO.2 RH |
| 81139 | Cover, Headlamp Socket |
| 81144 | Cover, Headlamp, NO.1 |
| 81145C | Cover, Headlamp Socket, NO.2 |
| 81150 | Headlamp Assy, LH |
| 81165 | Cord, Headlamp, LH |
| 81171A | Unit, Headlamp, LH |
| 81176B | Cover, Headlamp, NO.2 LH |
| 81192 | Seal, Headlamp |
| 81510D | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 85661 | Motor, Headlamp Leveling, RH |
| 85662 | Motor, Headlamp Leveling, LH |
| 85669 | Packing, Headlamp Leveling Motor Base |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
