Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

12 part groups · 2 illustrations

Illustrations

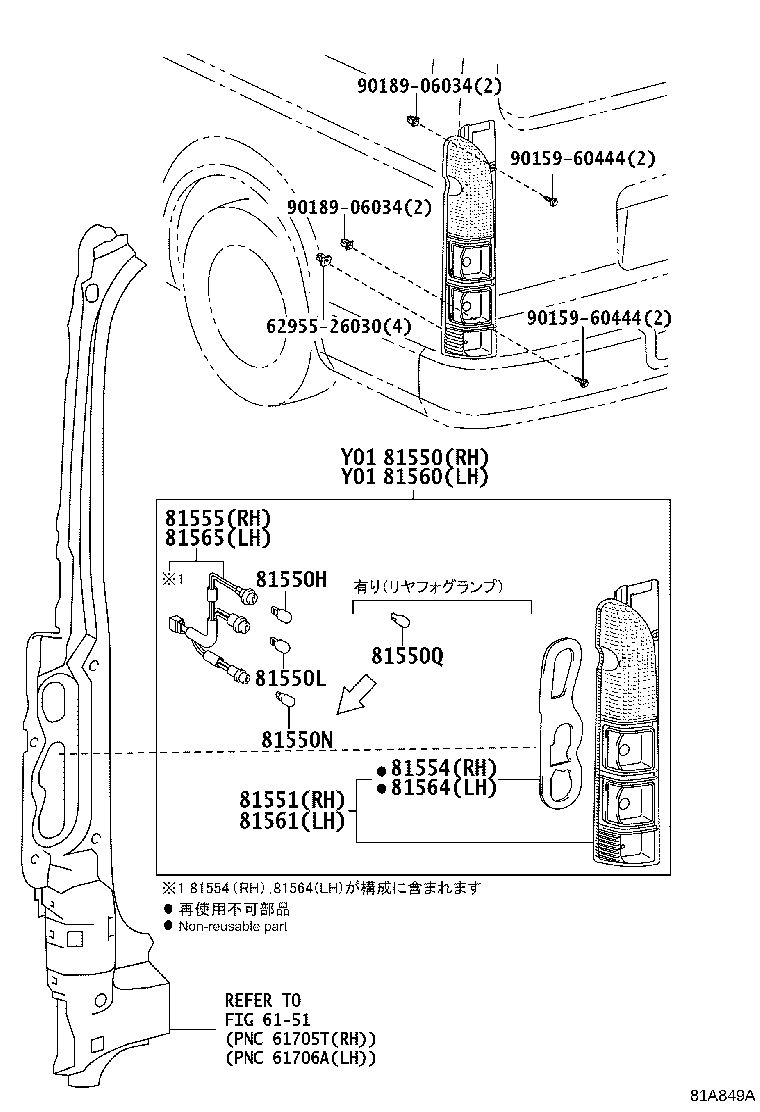

Figure 813052P 813052P 2004-08 → 2005-10 Figure 81A849A 81A849A 2005-10 → —

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550H Bulb, Tail & Stop Lamp
81550L Bulb, Rear Turn Signal Lamp
81550N Bulb, Back UP Lamp
81550Q Bulb, Rear Fog Lamp, NO.1
81551 Lens, Rear Combination Lamp, RH
81554 Gasket, Rear Combination Lamp Body, RH
81555 Socket & Wire Sub-assy, Rear Combination Lamp, RH
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81564 Gasket, Rear Combination Lamp Body, LH
81565 Socket & Wire Sub-assy, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
