Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Battery & Battery Cable

5 part groups · 4 illustrations

Illustrations

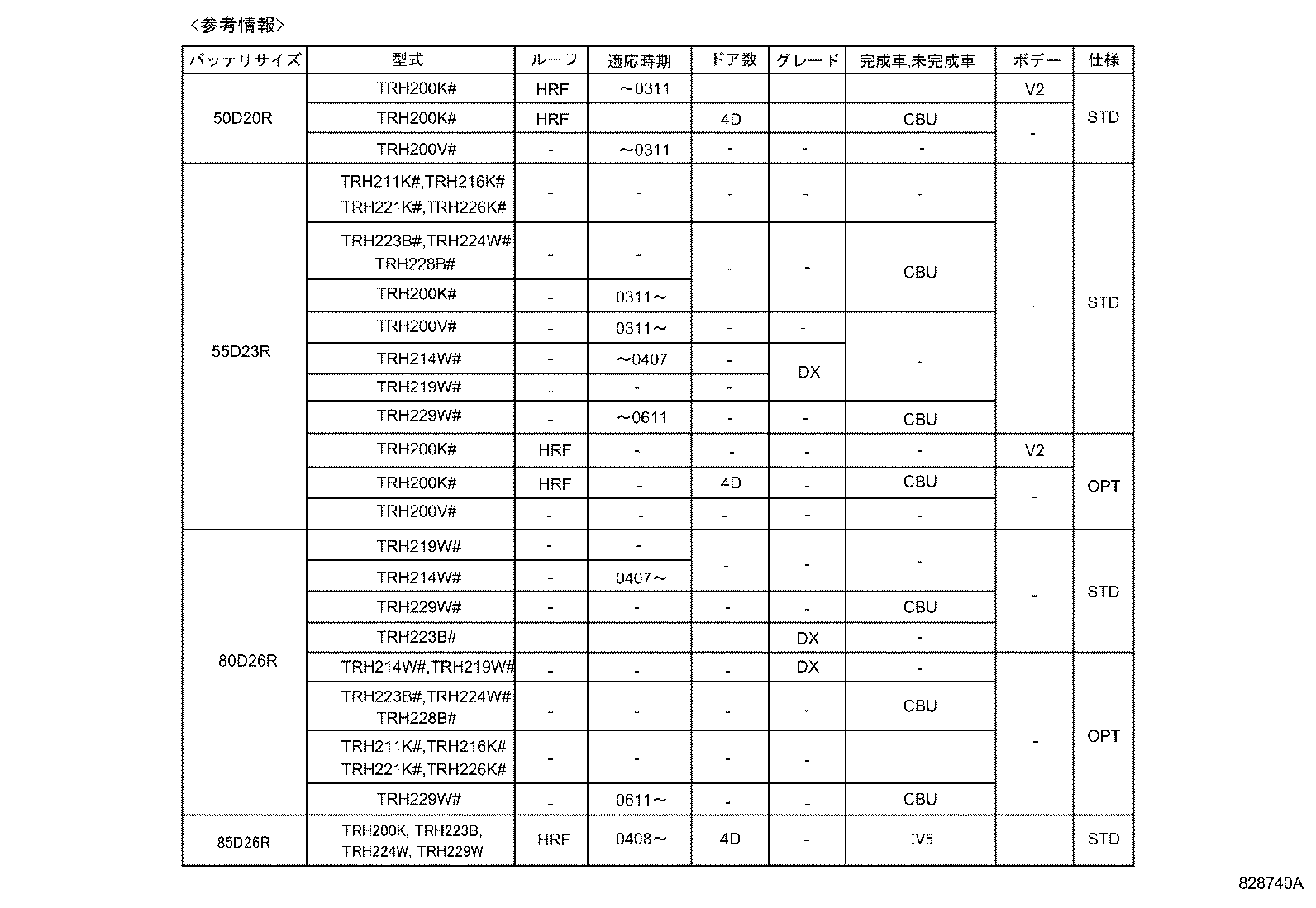

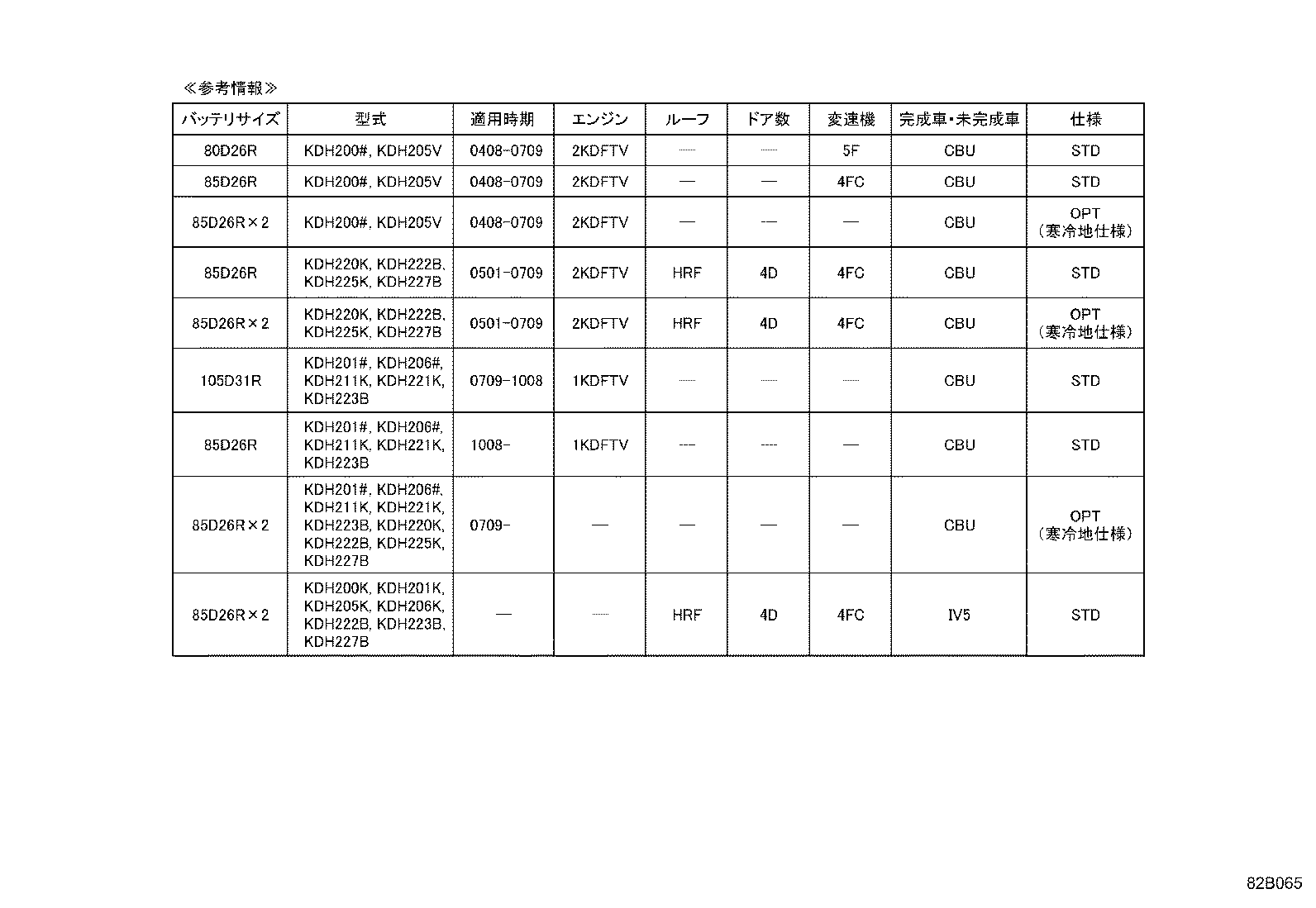

Figure 824094K 824094K 2004-08 → 2013-12 Figure 82B065 82B065 2004-08 → — Figure 824095J 824095J 2004-08 → 2013-12 Figure 828740A 828740A 2004-08 → —

Part groups

PNCDescription
28800A Terminal, Battery Positive
28800D Cover, Connector(FOR BATTERY TERMINAL)
28800J Terminal, Battery Negative
28800M Terminal, Battery Positive
28800N Terminal, Battery Negative
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
