Toyota Hiace/Regiusace
2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan
Supported model
Data version 2014-06
Switch & Relay & Computer
137 part groups · 17 illustrations
Illustrations
Part groups
| PNC | Description |
|---|---|
| 04840 | Switch Kit, Generally Use, Pull Type |
| 28300 | Relay Assy, Starter |
| 28371 | Relay, Ignition, NO.1 |
| 28551 | Controller, Glow Plug |
| 28559 | Bracket, Glow Plug Controller, NO.1 |
| 28559A | Bracket, Glow Plug Controller, NO.2 |
| 28610 | Relay Assy, Intake Heater OR Glow Plug |
| 28850 | Sensor Assy, Battery Current |
| 28865 | Sensor, Battery Thermometer |
| 55901C | Base Sub-assy, Heater Control |
| 55938B | Lens, Center Cluster Module |
| 55941C | Guide, Heater Control Lever |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82351B | Wire,Courtesy Lamp |
| 82600D | Instrument Panel Fuse |
| 82600F | Fuse, Fuse Block |
| 82610A | Block Assy, Fuse |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |

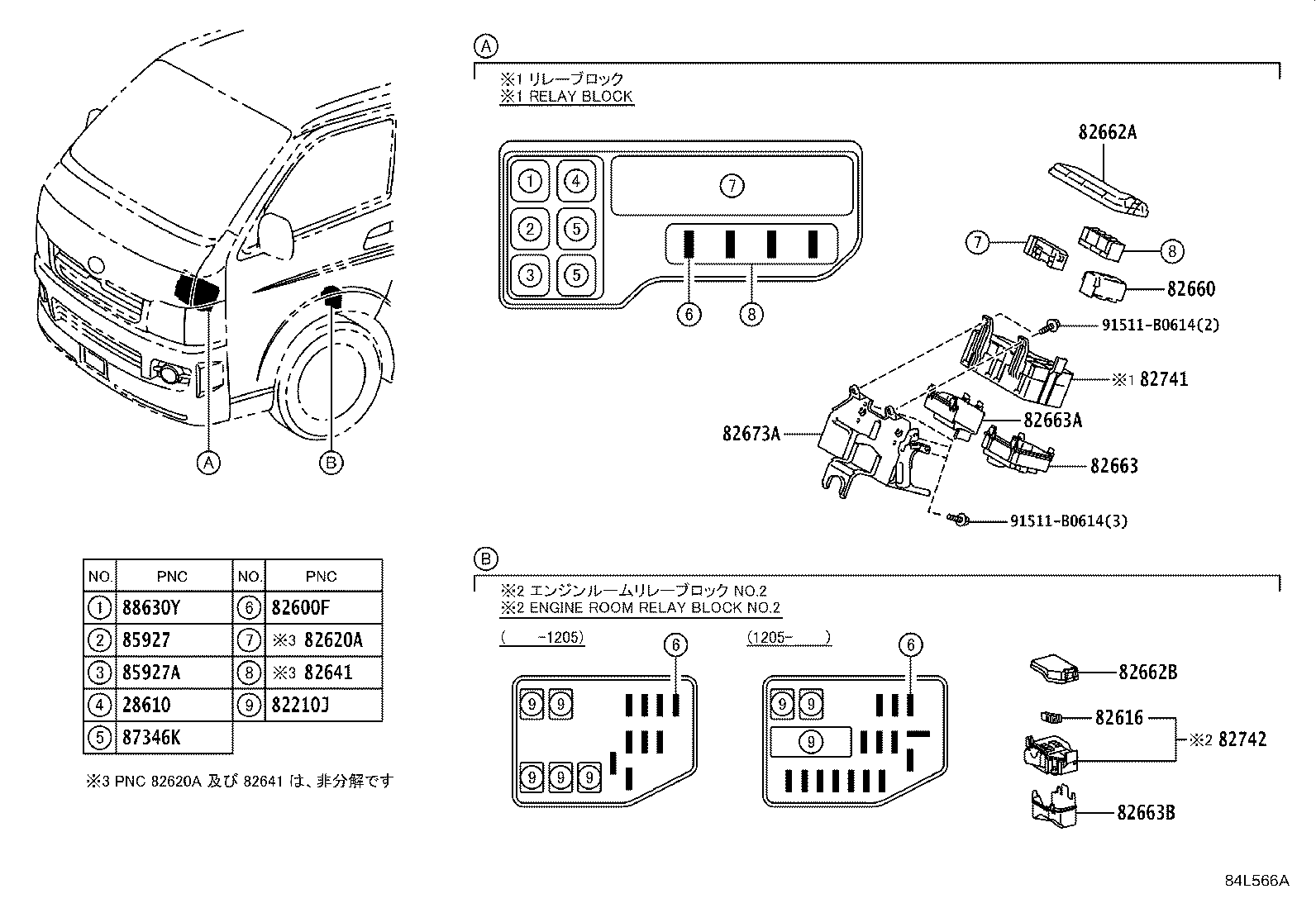

| 82660 | Block Assy, Relay, Engine Room |
| 82660B | Block Assy, Relay |
| 82660C | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82662D | Cover, Relay Block, Upper, NO.4 |
| 82663 | Cover, Relay Block, Lower |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82663C | Cover, Relay Block Lower, NO.4 |
| 82663E | Cover, Relay Block, Lower, NO.7 |
| 82673A | Bracket, Junction Block, NO.1 |
| 82730 | Block Assy, Instrument Panel Junction |
| 82741 | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82743 | Block, Engine Room Relay, NO.3 |
| 83320 | Gage Assy, Fuel Sender |
| 83390 | Switch Assy, Vacuum Warning |
| 83520 | Gage Assy,Oil Pressure Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |

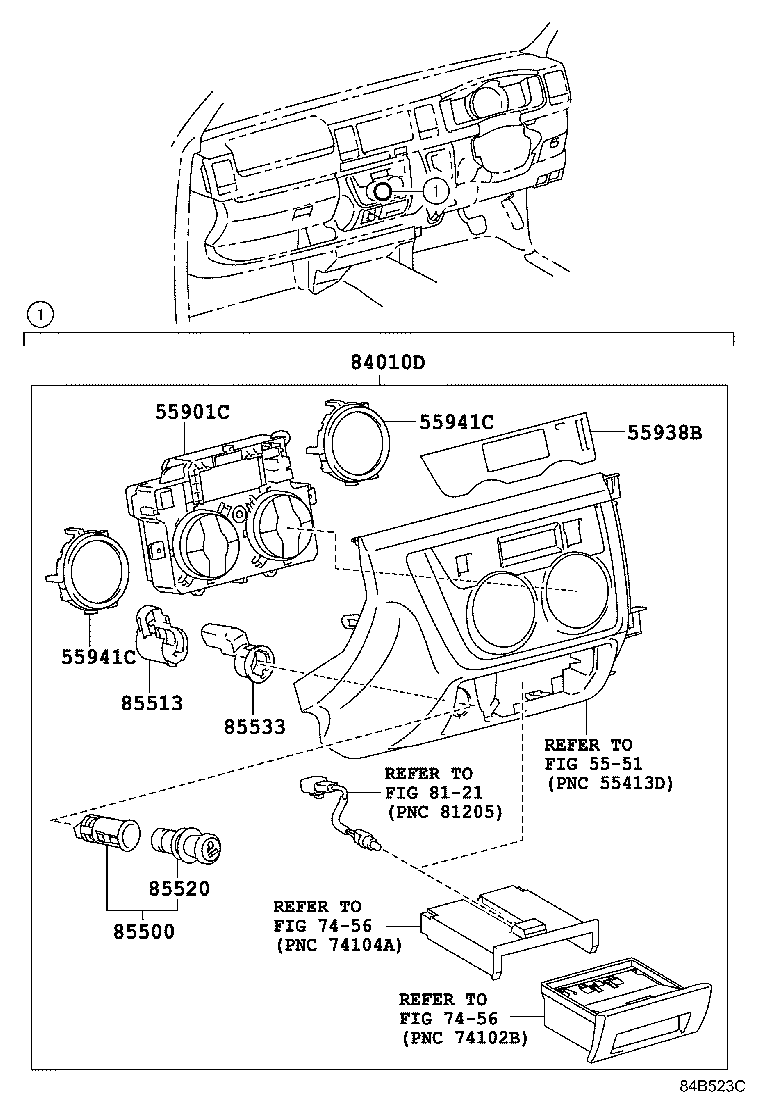

| 84010D | Control & Panel Assy, Integration |
| 84052 | Switch Assy, Un-lock Warning |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84152 | Switch, Headlamp Leveling |
| 84152B | Bulb (FOR HEADLAMP LEVELING SWITCH) |
| 84162 | Switch, Front Fog Lamp |
| 84162A | Switch, Rear Fog Lamp |
| 84162B | Bulb, Fog Lamp Switch |
| 84162C | Bulb (FOR REAR FOG LAMP SWITCH) |
| 84170A | Switch Assy, Room Lamp NO.1 |
| 84170C | Bulb,Room Lamp Switch |

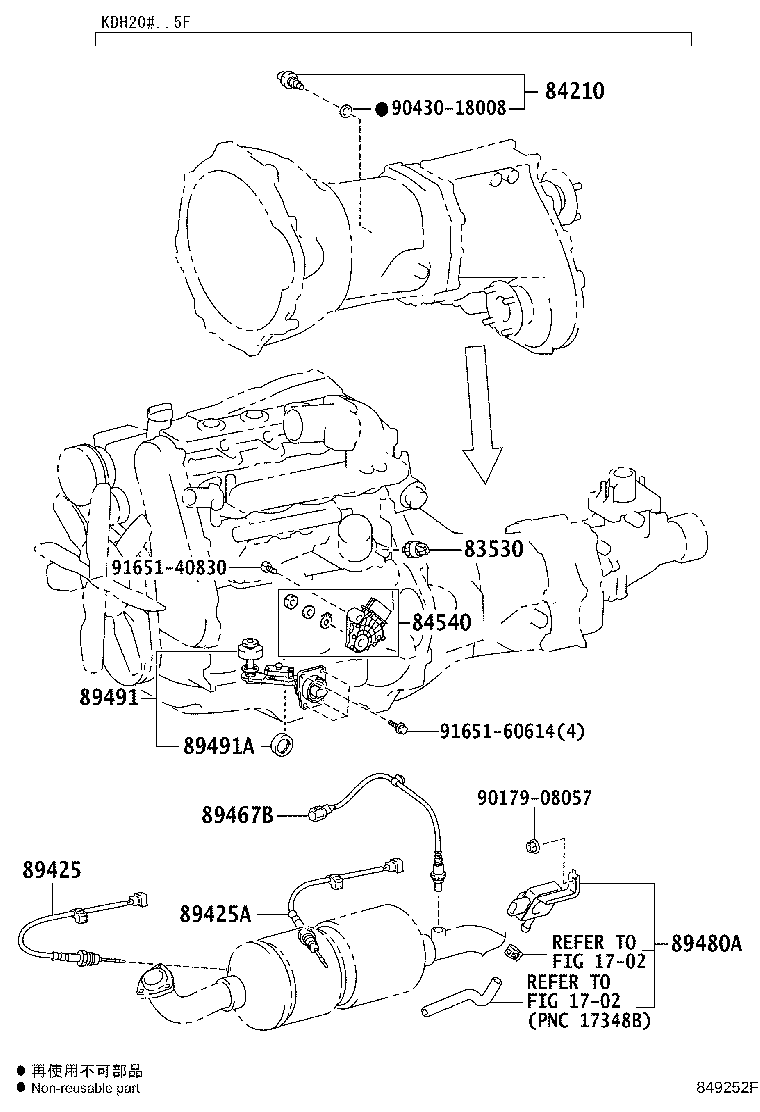

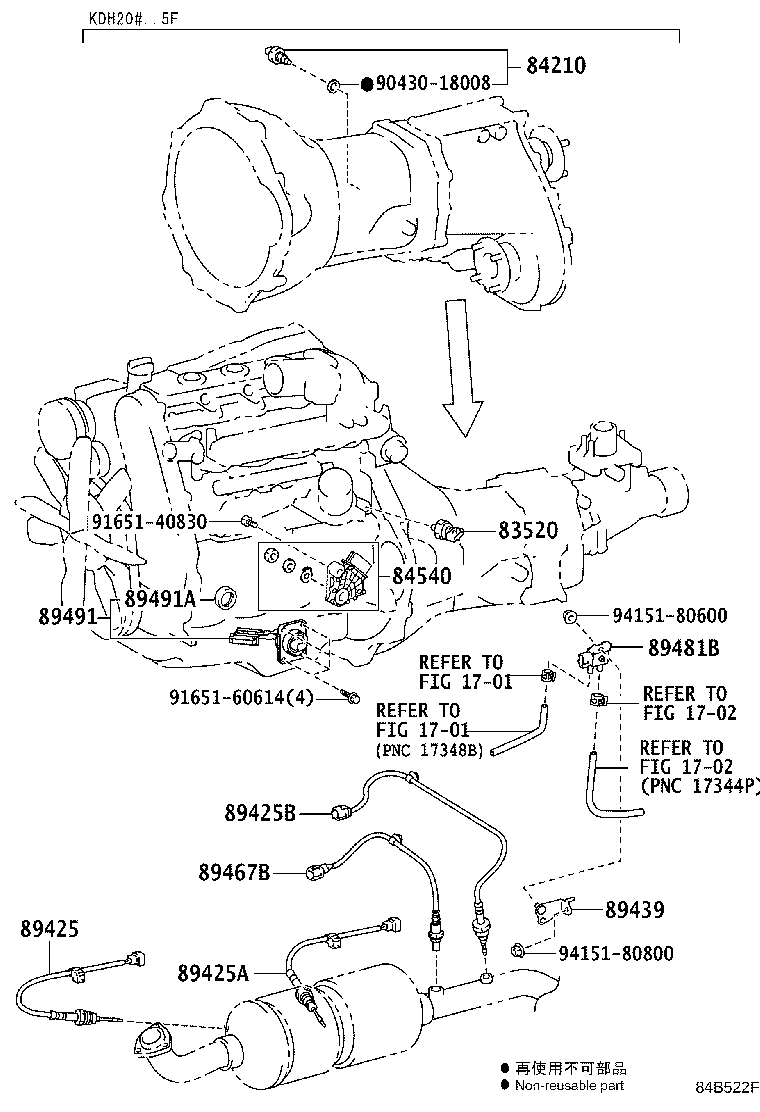

| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84261B | Junction, Slide Door Control,Male |
| 84262B | Junction, Slide Door Control, Female |
| 84270K | Switch Assy, Dpr |
| 84270N | Bulb, Dpr Swich Assy |
| 84306 | Cable Sub-assy, Spiral |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |

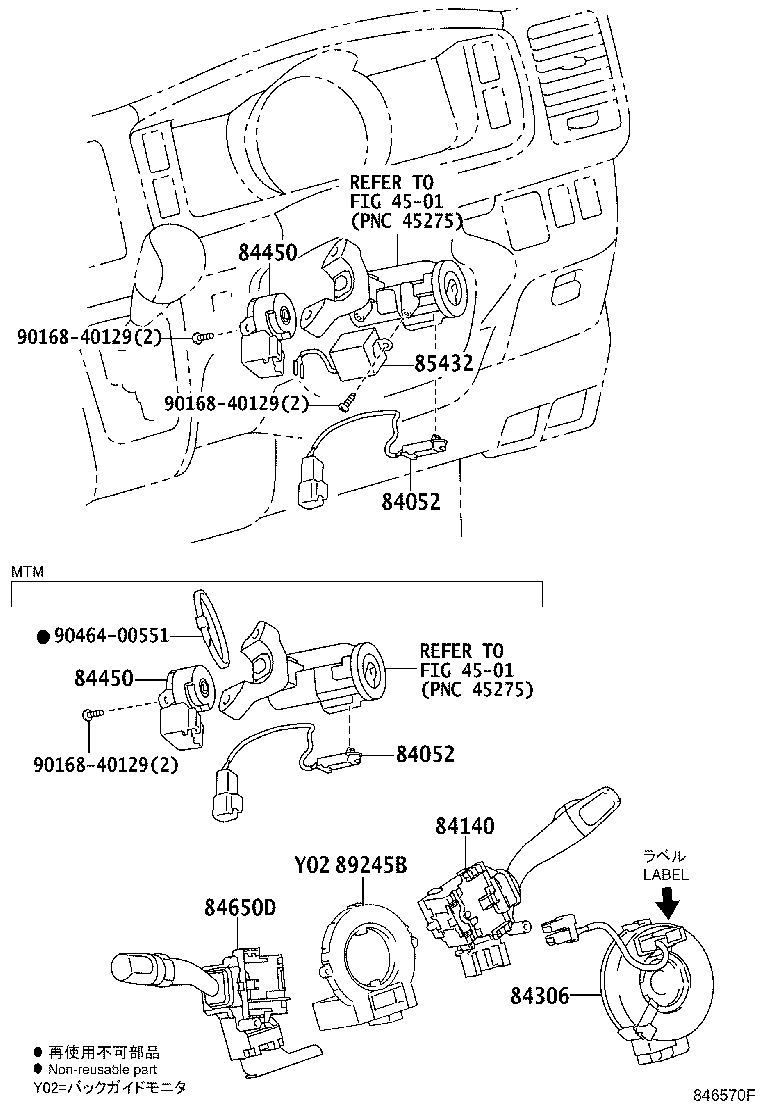

| 84450 | Switch Assy, Ignition OR Starter |
| 84453 | Switch, Idle UP |
| 84453A | Bulb, Idle UP Switch |
| 84480 | Switch Assy, Main |
| 84480B | Bulb, Main Switch Assy |
| 84520 | Switch Assy, Clutch Start |
| 84535C | Switch, Door Lock, RH |
| 84535D | Switch, Door Lock, LH |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |

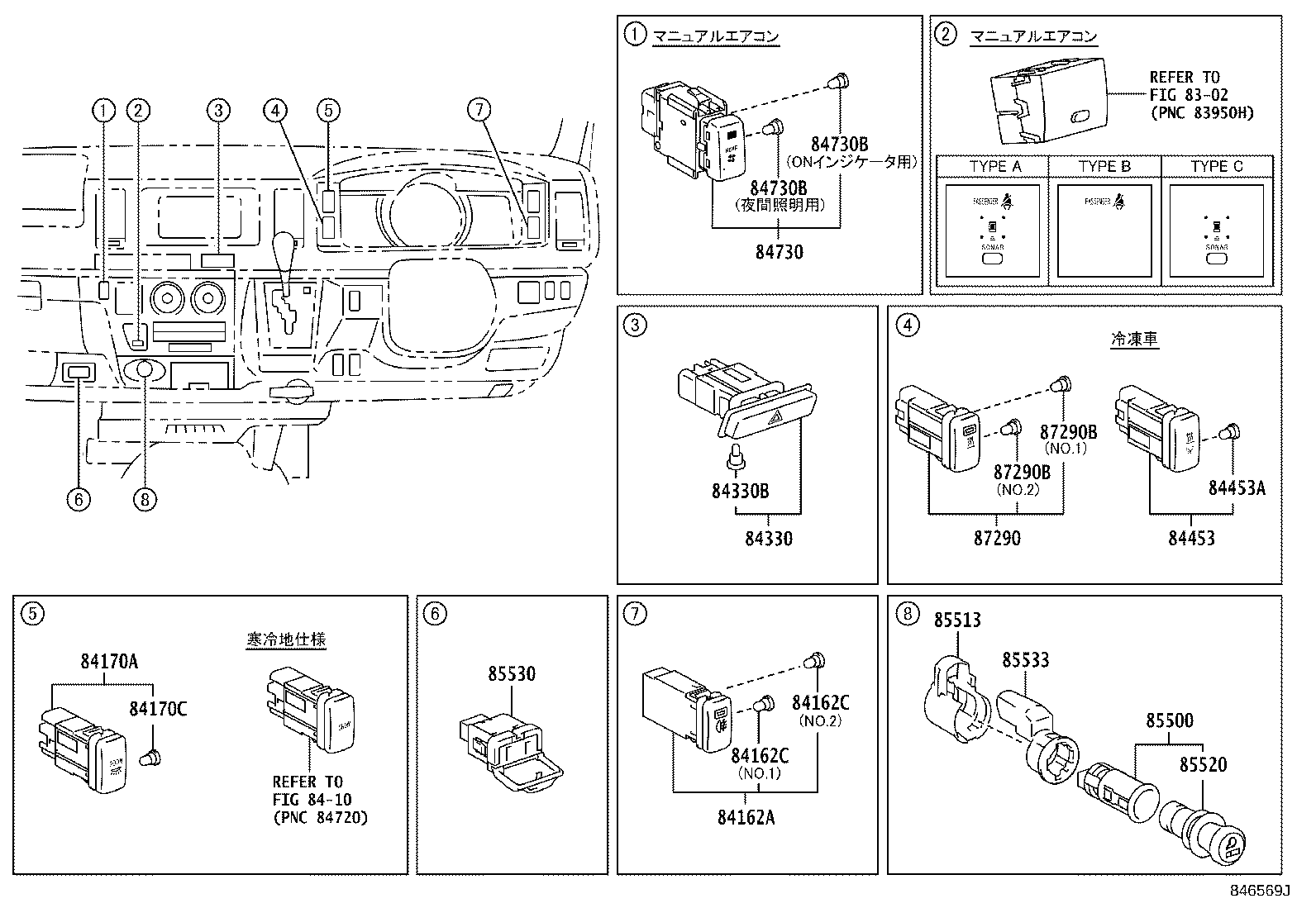

| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |

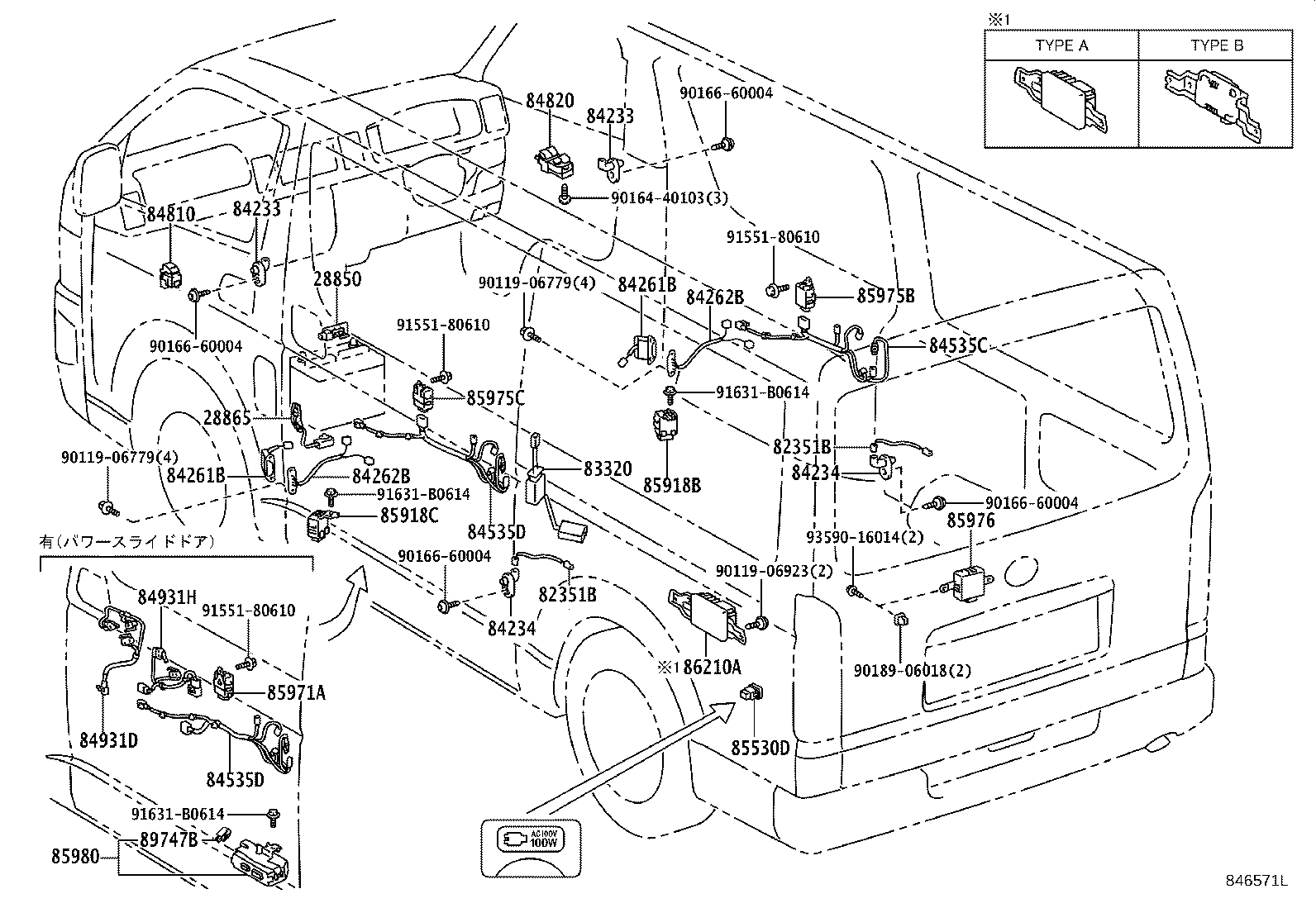

| 84810 | Switch Assy, Power Window Regulator |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84870A | Switch Assy, Outer Mirror |
| 84930 | Switch Assy, Door Control |
| 84930C | Bulb(FOR DOOR CONTROL SWITCH) |
| 84930J | Switch Assy, Auto Slide Door Main |
| 84930K | Switch Assy, Auto Slide Door Control |
| 84930L | Bulb, Auto Slide Door Control Switch |
| 84931D | Switch, Slide Door Control |
| 84931H | Switch, Slide Door Control, LH |
| 85431 | Solenoid, Shift Lock |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85513 | Cover, Cigarette Lighter |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85530D | Socket Assy, Power Outlet, NO.2 |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85915E | Relay |
| 85916D | Relay, Fog Lamp |
| 85916P | Relay, Headlamp |
| 85916U | Relay, Headlamp, NO.2 |
| 85918B | Relay, Door Control, RH |
| 85918C | Relay, Door Control, LH |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85934 | Relay, Magnet-clutch |
| 85971A | Relay, Door Opening |
| 85975B | Relay, Slide Door Closer, RH |
| 85975C | Relay, Slide Door Closer, LH |
| 85976 | Relay, Back Door Closer |
| 85980 | Relay Assy, Door Control |
| 86210A | Inverter Assy, Voltage |
| 86220A | Relay, Inverter |
| 87290 | Switch Assy, Heater |
| 87290B | Bulb (FOR HEATER SWITCH) |
| 87346K | Relay, Ptc Heater |
| 87346L | Relay, Ptc Heater |
| 88280A | Switch Assy, Clutch |
| 88630Y | Relay, Rear Cooler |
| 89245B | Sensor, Steering |

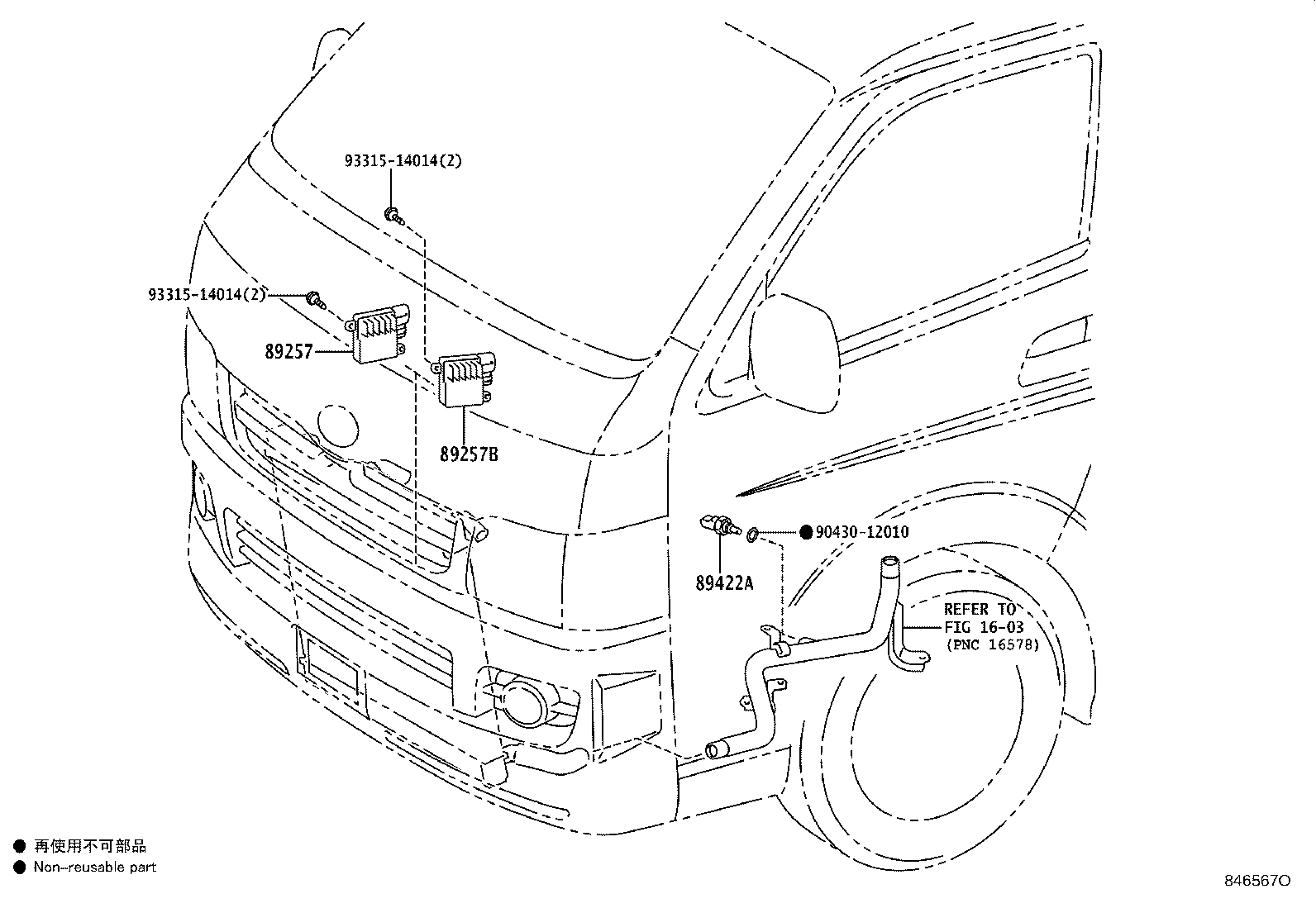

| 89257 | Computer, Cooling Fan |
| 89257B | Computer, Cooling Fan, NO.2 |
| 89422A | Sensor, Water Temperature |
| 89425 | Sensor, Exhaust Gas Temperature |
| 89425A | Sensor, Exhaust Gas Temperature, NO.2 |
| 89425B | Sensor, Exhaust Gas Temperature, NO.3 |
| 89439 | Bracket, Sensor |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 89480A | Sensor Assy, Differential Pressure |
| 89481B | Sensor, Differential Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89615 | Sensor, Knock Control |
| 89747B | Buzzer, Power Slide Door Warning, LH |
| 89960 | Computer Assy, Headlamp Leveling |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
