Toyota Hiace/Regiusace
2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan
Supported model
Data version 2014-06

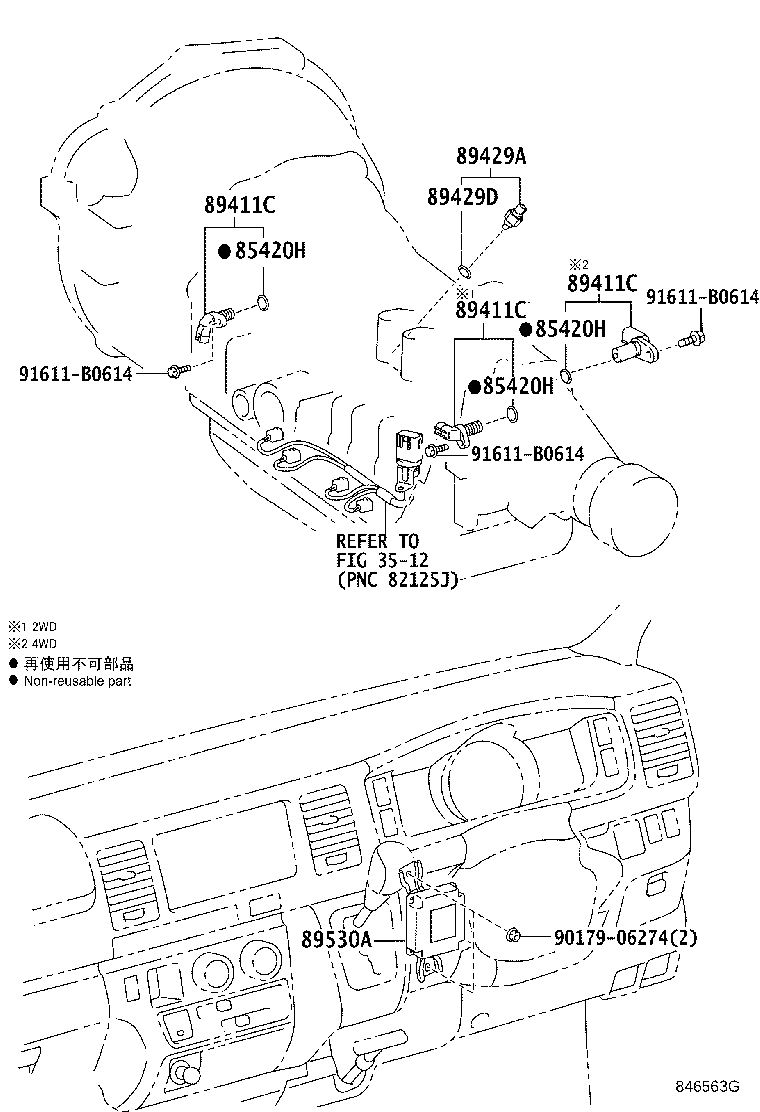

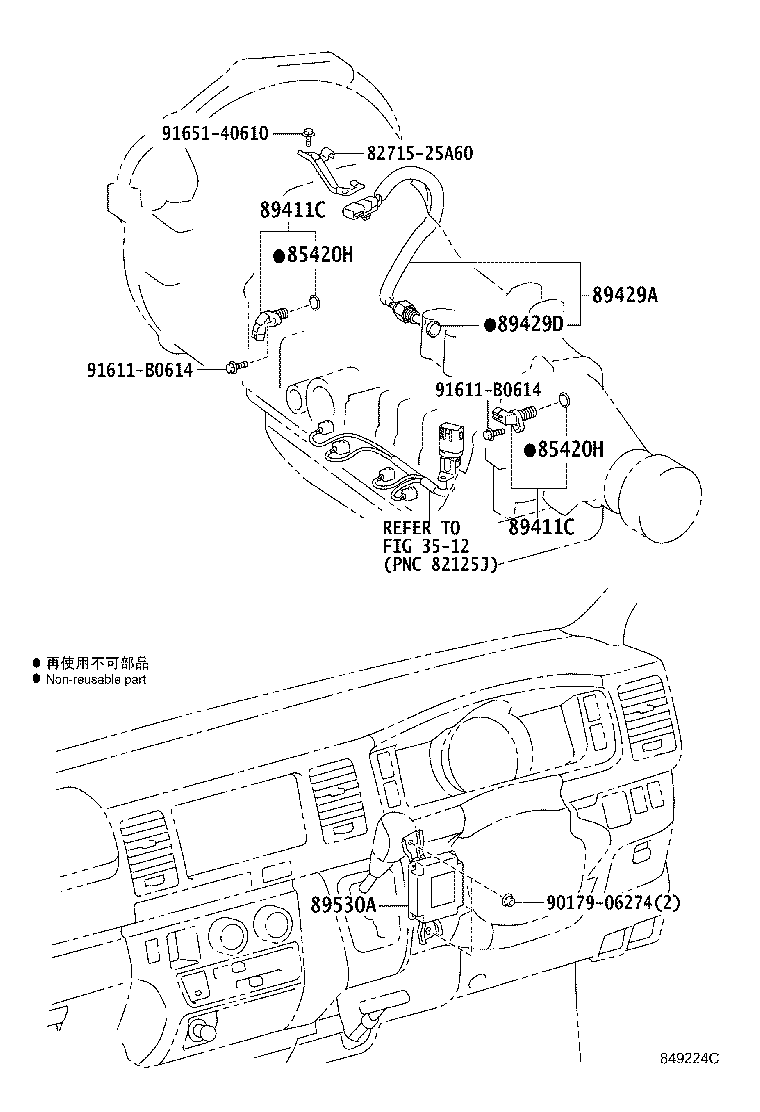

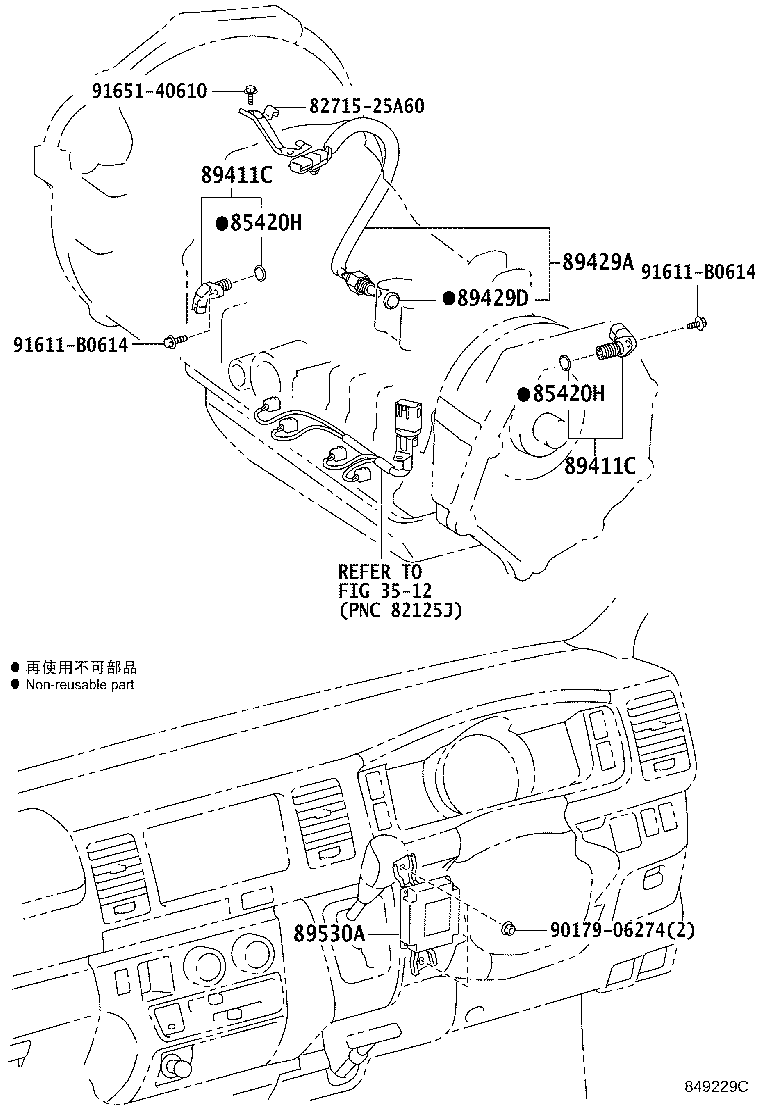

Overdrive & Electronic Controlled Transmission
9 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 84720 | Switch Assy, Pattern Select |
| 84720C | Bulb(FOR PATTERN SELECT SWITCH) |
| 85420H | Ring, O(FOR SPEED SENSOR) |
| 89411C | Sensor, Speed |
| 89413B | Sensor, Transmission Revolution |
| 89413D | Ring, O(FOR TRANSMISSION REVOLUTION SENSOR) |
| 89429A | Sensor, Temperature |
| 89429D | Ring, O(FOR TEMPERATURE SENSOR) |
| 89530A | Computer Assy, Transmission Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
