Toyota Hiace/Regiusace
2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan
Supported model
Data version 2014-06

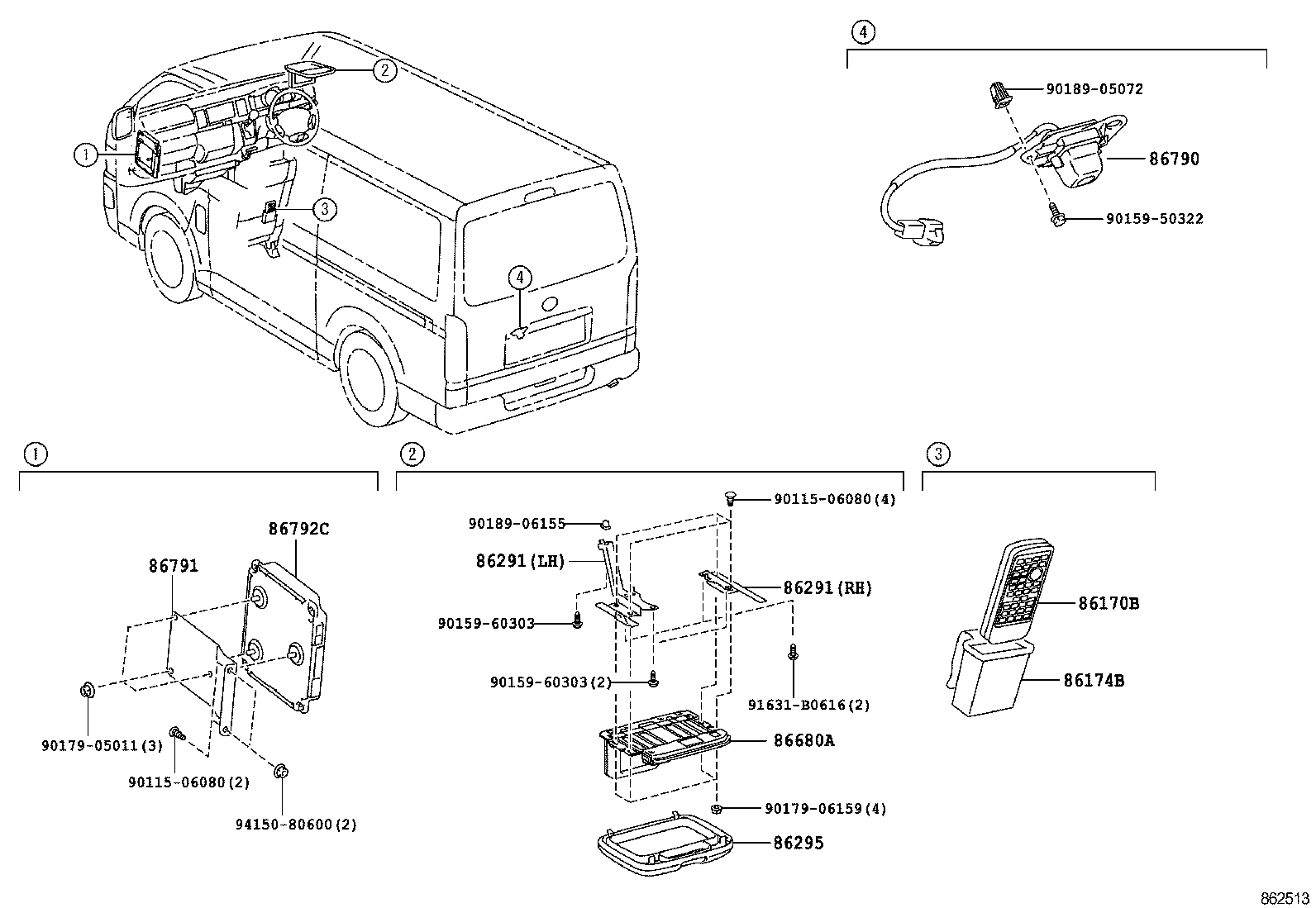

Camera & Rear Monitor Display
10 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 86016 | Parts Set, Television Tuner |
| 86028 | Bracket Sub-assy, Television |
| 86170B | Switch & Volume Assy, Television |
| 86174B | Case, Switch & Volume |
| 86291 | Bracket, Television |
| 86295 | Base, Television |
| 86680A | Display Assy, Television |

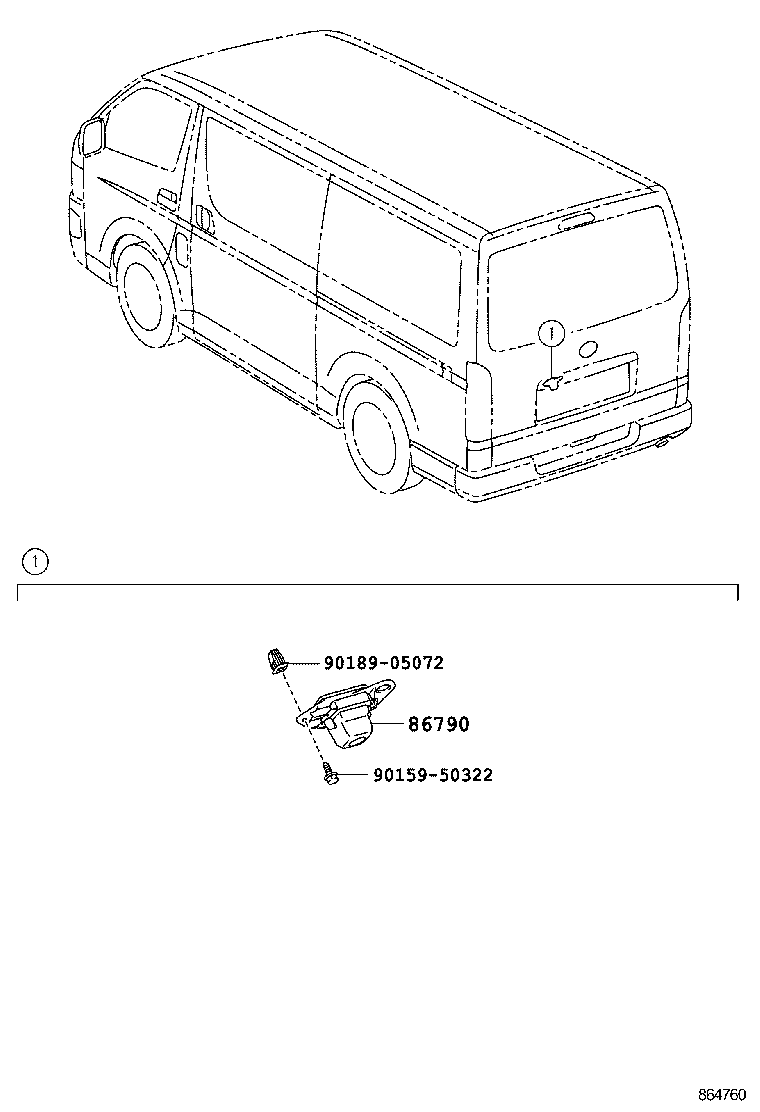

| 86790 | Camera Assy, Television |
| 86791 | Bracket, Television Camera |
| 86792C | Computer, Parking Assist |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
