Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

13 part groups · 2 illustrations

Illustrations

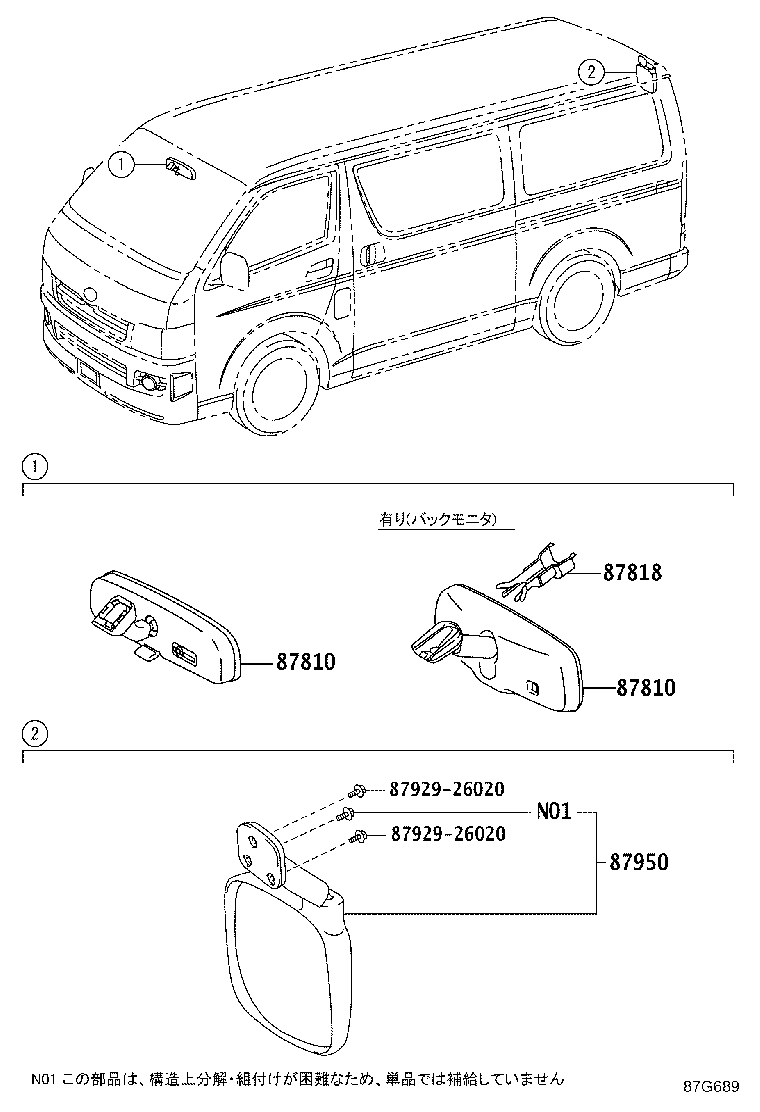

Figure 87A275M 87A275M 2004-08 → — Figure 87G689 87G689 2004-08 → —

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87818 Cover, Inner RR View Mirror
87901B Mirror Sub-assy, Outer Rear View, RH
87905A Arm Sub-assy, Outer Rear View Mirror, LH
87906B Mirror Sub-assy, Outer Rear View, LH
87907 Mirror Sub-assy, Outer Under View
87910 Mirror Assy, Outer Rear View, RH
87930A Mirror Assy, Outer Under View
87940 Mirror Assy, Outer Rear View, LH
87945 Cover, Outer Mirror, LH
87946 Retractor, Outer Mirror, RH
87950 Mirror Assy, Outer Under Rear View
87966 Retractor, Outer Mirror, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
