Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

12 part groups · 16 illustrations

Illustrations

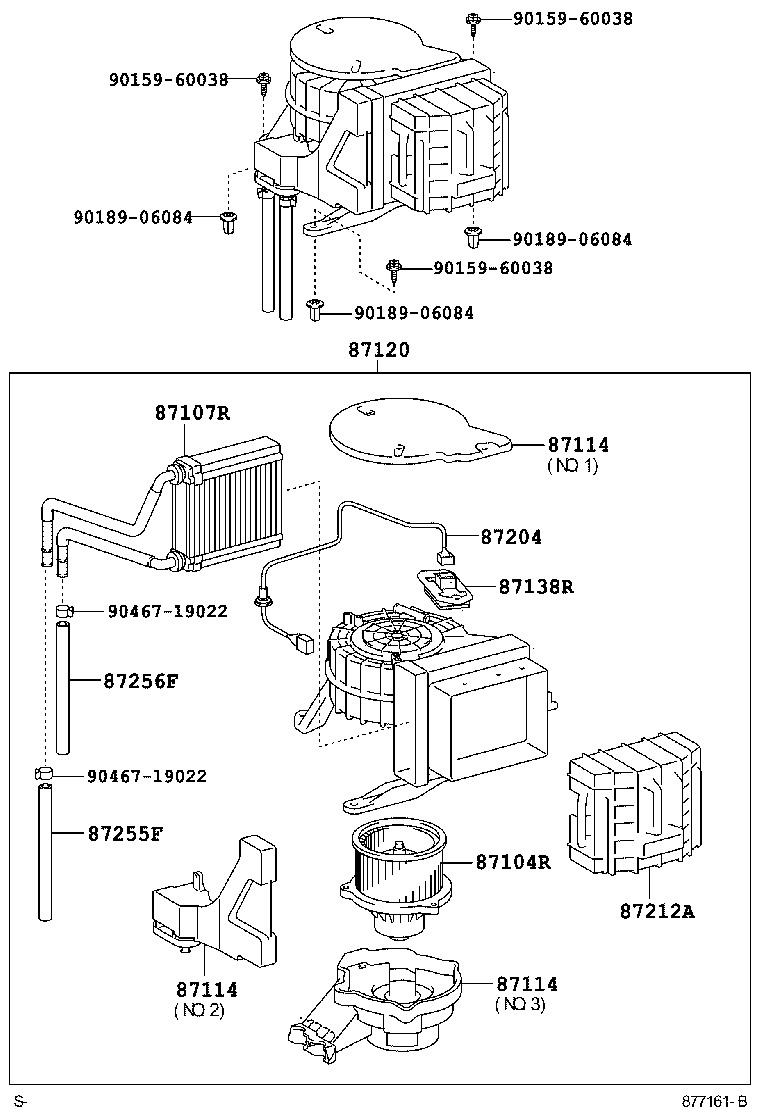

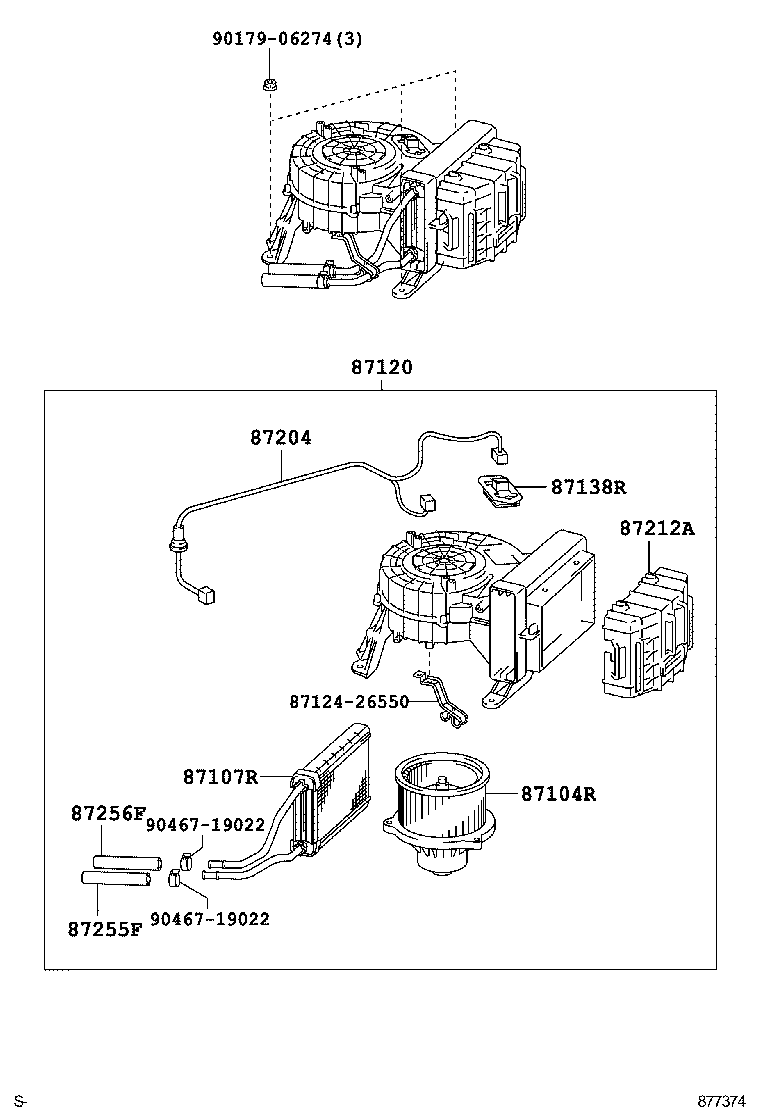

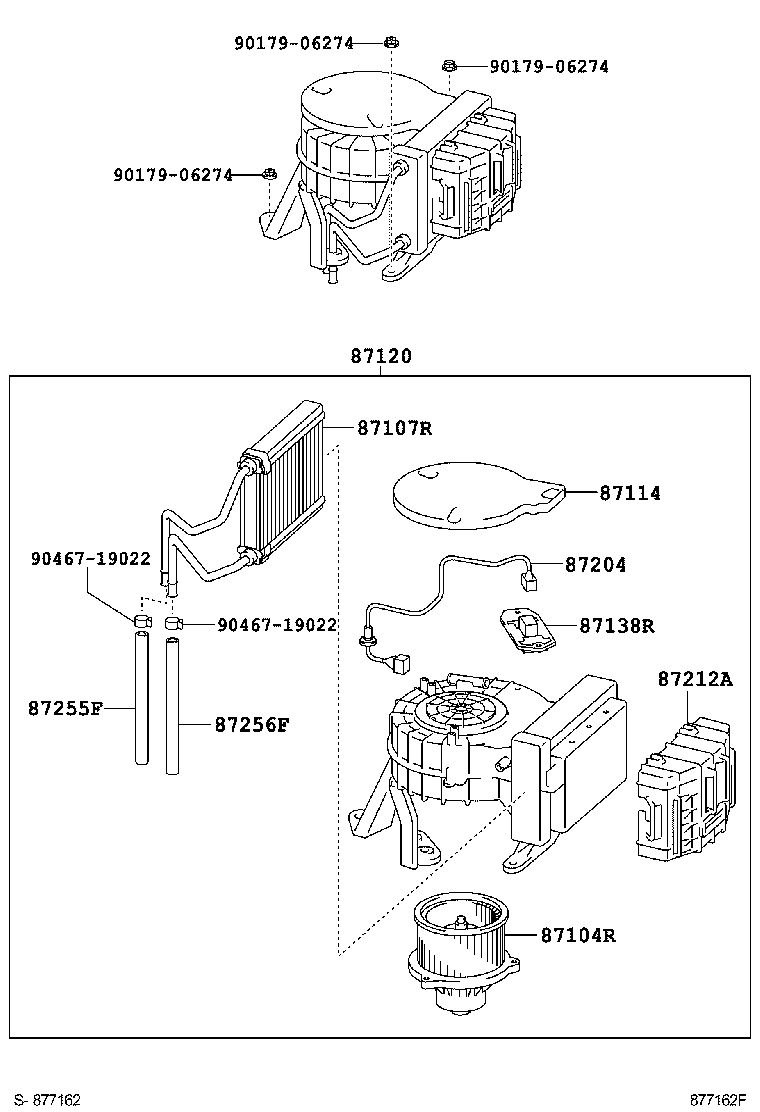

Figure 877160C 877160C 2004-08 → 2007-09 Figure 877160C 877160C 2004-08 → — Figure 877160C 877160C 2005-01 → 2007-09 Figure 877160C 877160C 2005-01 → — Figure 877160C 877160C 2007-09 → — Figure 877162F 877162F 2004-08 → 2007-09 Figure 877162F 877162F 2004-08 → — Figure 877162F 877162F 2007-09 → — Figure 877161B 877161B 2004-08 → — Figure 877161B 877161B 2005-01 → 2007-09 Figure 877161B 877161B 2005-01 → — Figure 877161B 877161B 2007-09 → — Figure 877161B 877161B 2007-09 → — Figure 877374 877374 2005-01 → 2007-09 Figure 877374 877374 2005-01 → — Figure 877374 877374 2007-09 → —

Part groups

PNCDescription
87104R Motor Sub-assy, Rear Heater Blower
87105R Fan Sub-assy, Rear Heater Blower
87107R Unit Sub-assy, Rear Heater
87114 Cover, Heater
87120 Heater Assy, Rear
87125A Grille, Air Outlet
87138R Resistor, Rear Heater Blower
87204 Wire & Piping Sub-assy, Heater Parts
87211E Duct, Air
87212A Duct, Air, Rear NO.1
87255F Hose, Rear Heater Water Inlet, F(FOR HEATER UNIT)
87256F Hose, Rear Heater Water Outlet, F (FOR HEATER UNIT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
