Toyota Hiace/Regiusace
2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan
Supported model
Data version 2014-06
Heating & Air Conditioning - Cooler Unit
33 part groups · 17 illustrations

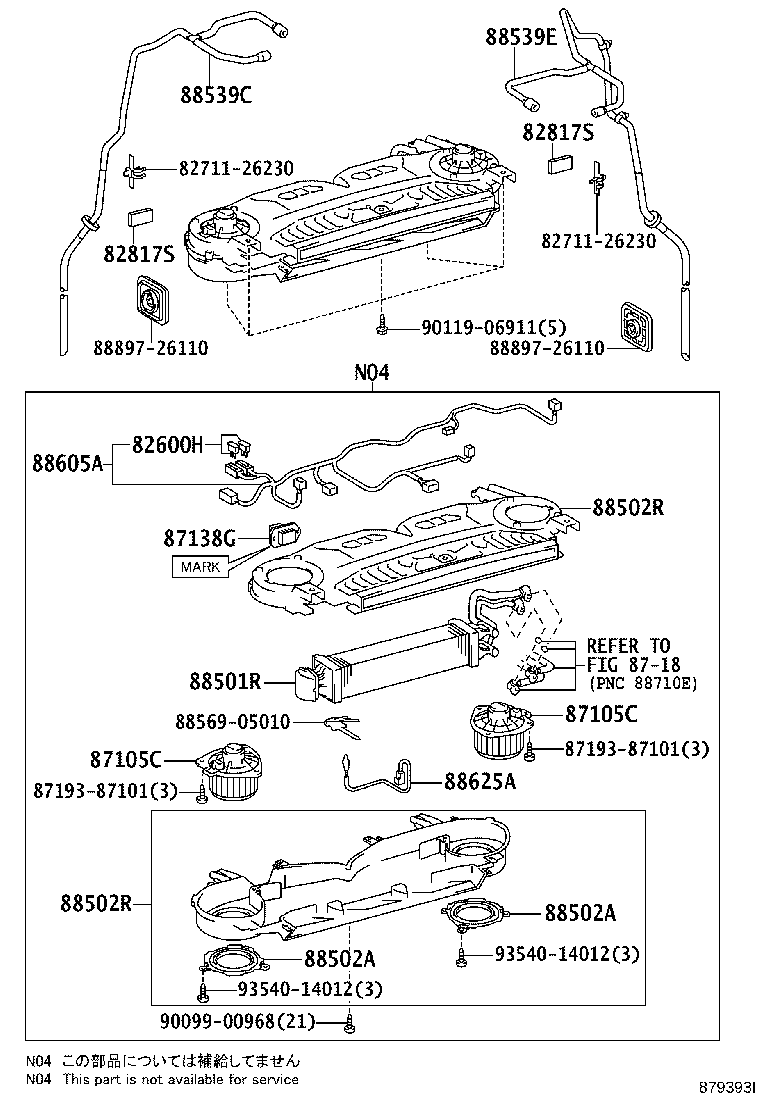

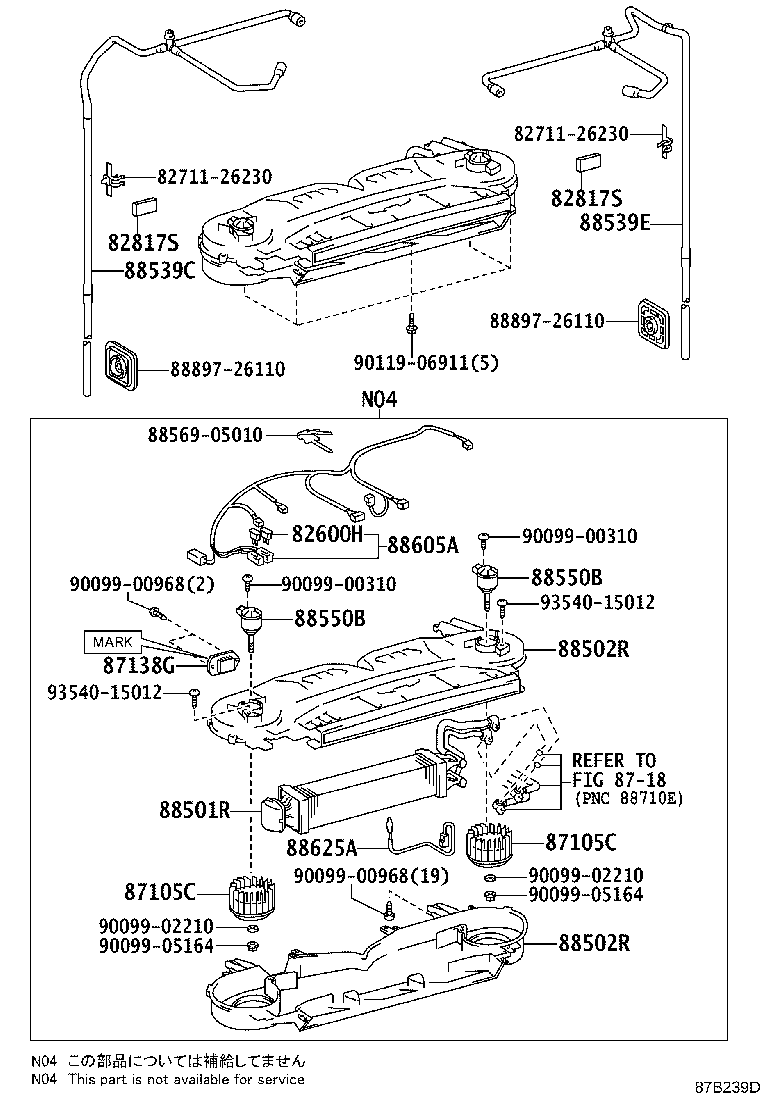

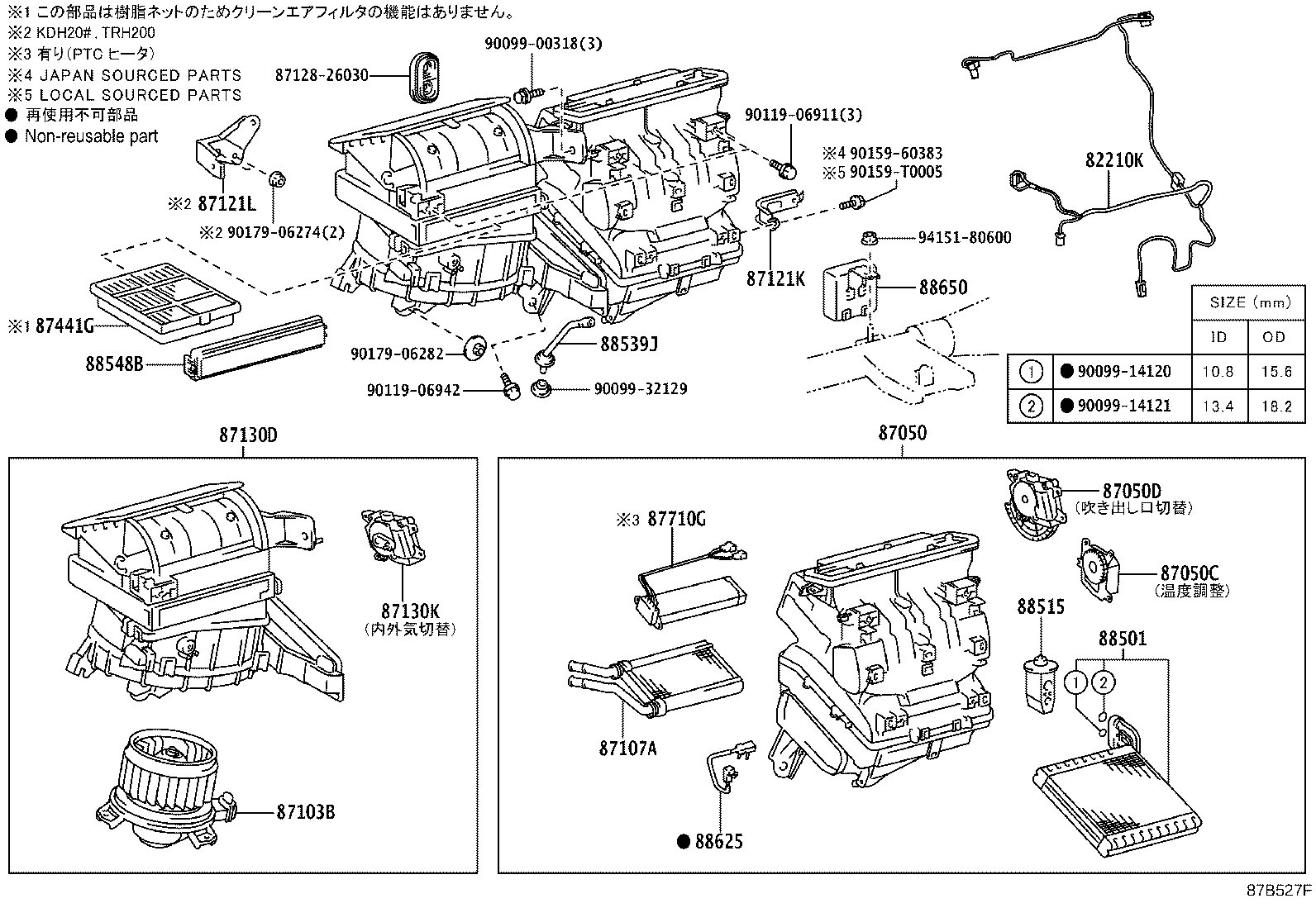

Illustrations
Part groups
| PNC | Description |
|---|---|
| 82210K | Harness Assy, Air Conditioner |
| 82600H | Fuse, Fuse Block |
| 82817S | Protector, Wiring Harness |
| 87050 | Radiator Assy, Air Conditioner |
| 87050C | Damper Servo Sub-assy, Air Conditioner Radiator, NO.1 |
| 87050D | Damper Servo Sub-assy, Air Conditioner Radiator, NO.2 |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87105C | Fan Sub-assy, Blower, Rear |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87121K | Bracket, Heater |
| 87121L | Bracket, Heater |
| 87130D | Blower Assy |
| 87130K | Damper Servo Sub-assy, Blower, NO.1 |
| 87131B | Case, Heater Blower |
| 87138C | Resistor, Blower |
| 87138G | Resistor, Rear Cooler Blower |
| 87441G | Filter, Heater Air |
| 87710G | Quick Heater Assy |
| 88482 | Cap, Cooler |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88501R | Evaporator Sub-assy (REAR) |
| 88502A | Case Sub-assy, Cooling Unit |
| 88502R | Case Sub-assy, Cooling Unit |
| 88515 | Valve, Cooler Expansion |
| 88539C | Hose, Cooler Unit Drain, NO.2 |
| 88539E | Hose, Cooler Unit Drain, NO.3 |
| 88539J | Hose, Drain Cooler |
| 88548B | Case, Air Filter |
| 88550B | Motor Assy, Blower |
| 88605A | Harness Sub-assy, Cooler Wiring |
| 88625 | Thermistor, Cooler, NO.1 |
| 88625A | Thermistor, Cooler NO.2 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
