Heating & Air Conditioning - Water Piping

25 part groups · 34 illustrations

Illustrations

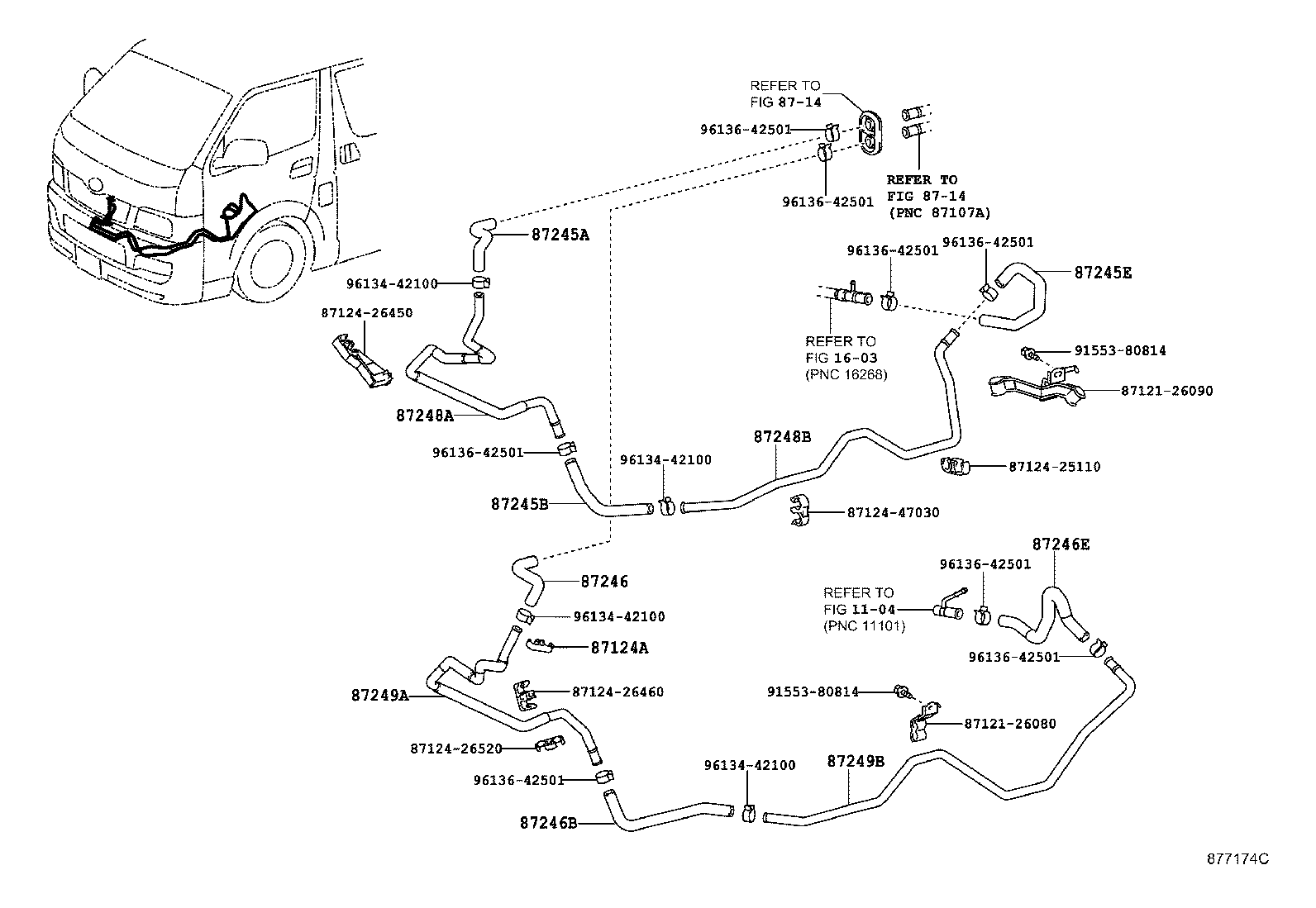

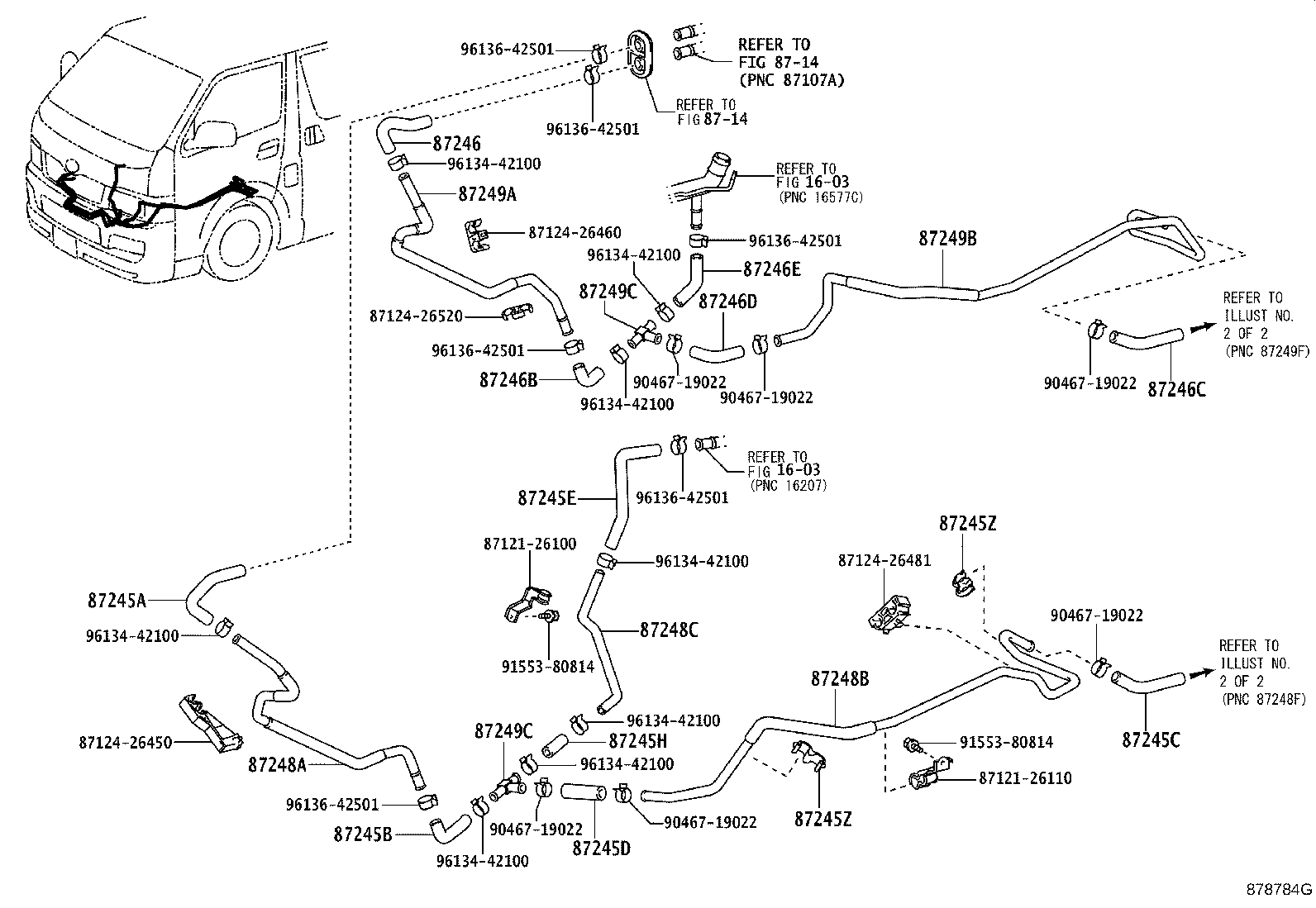

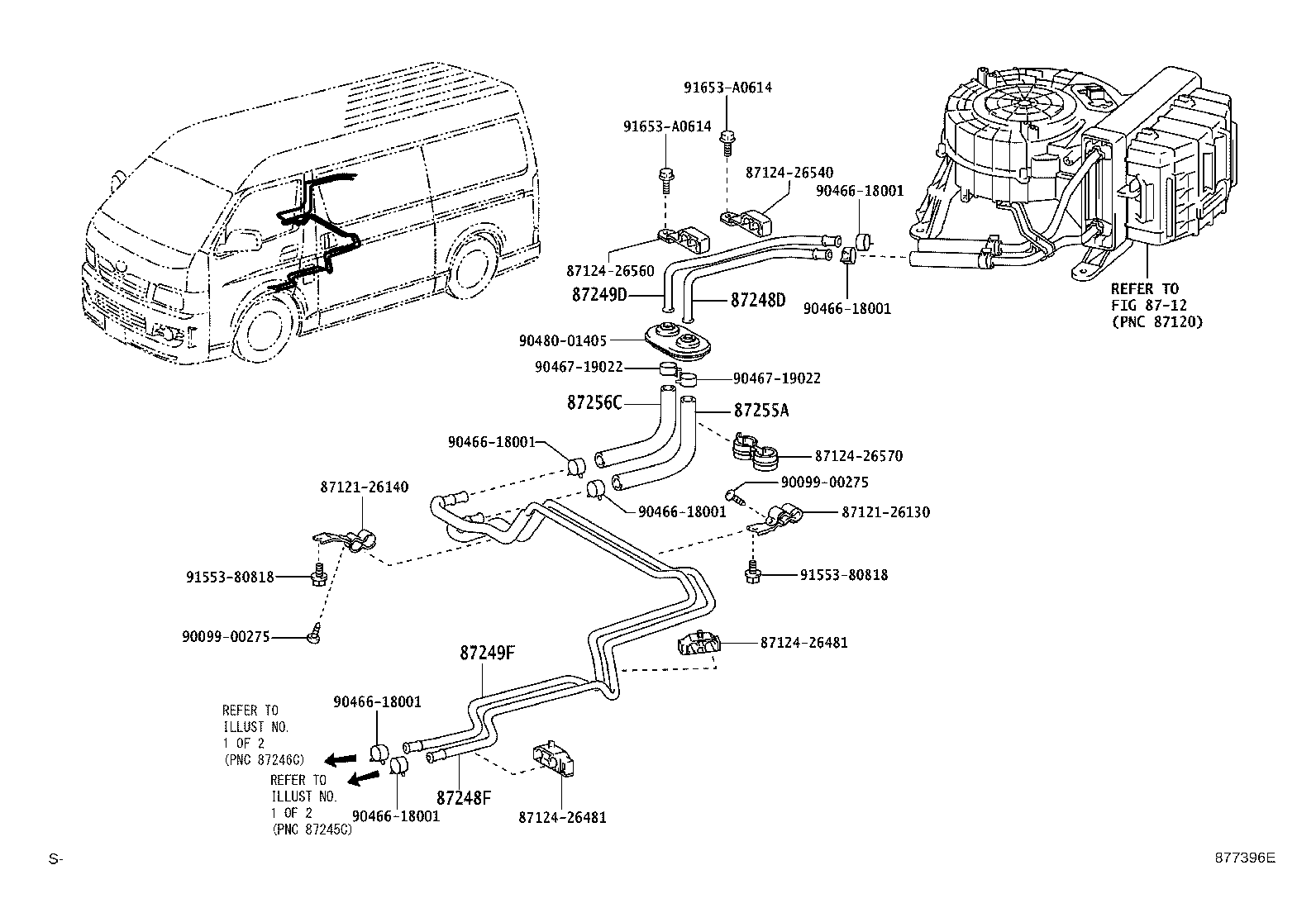

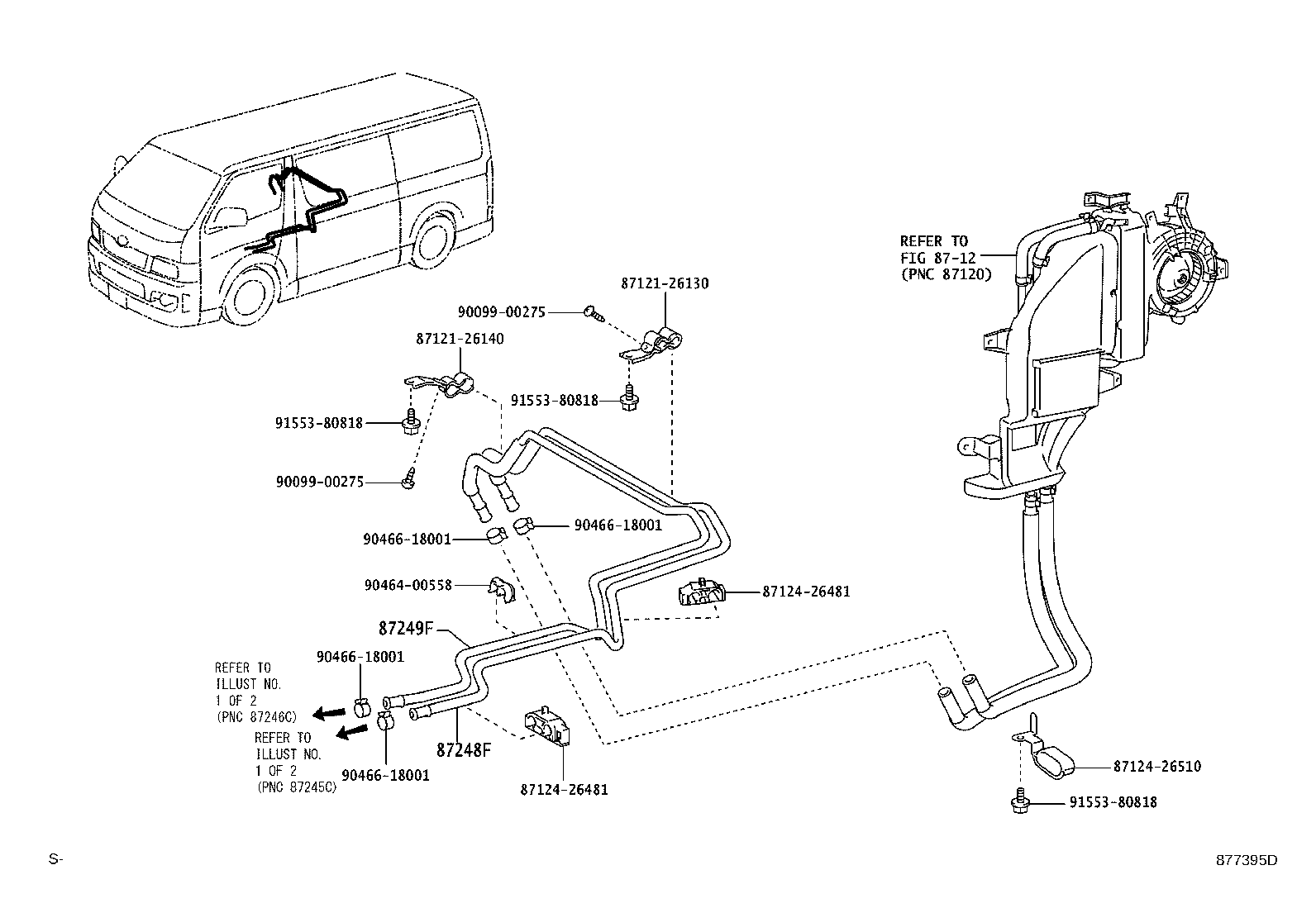

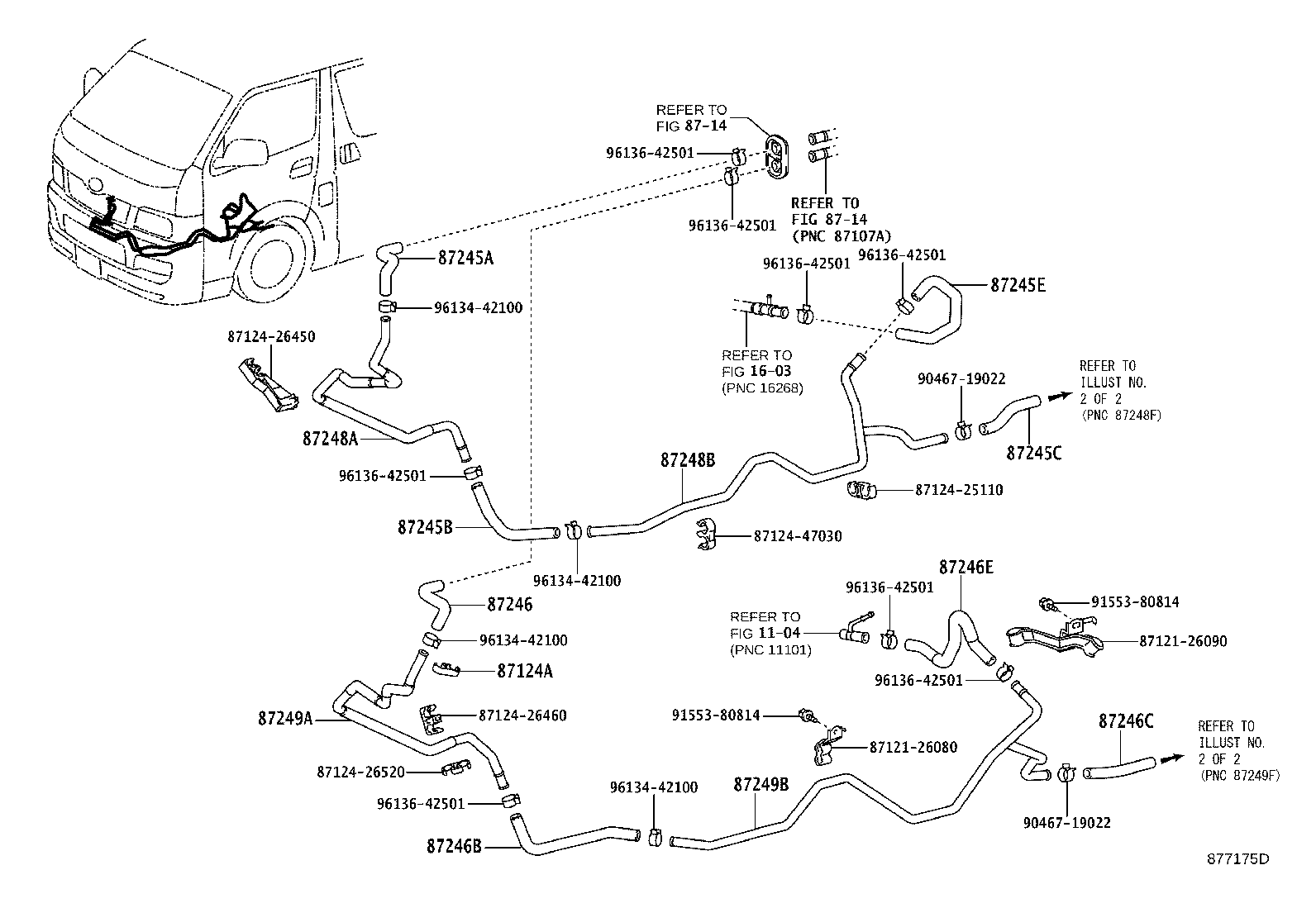

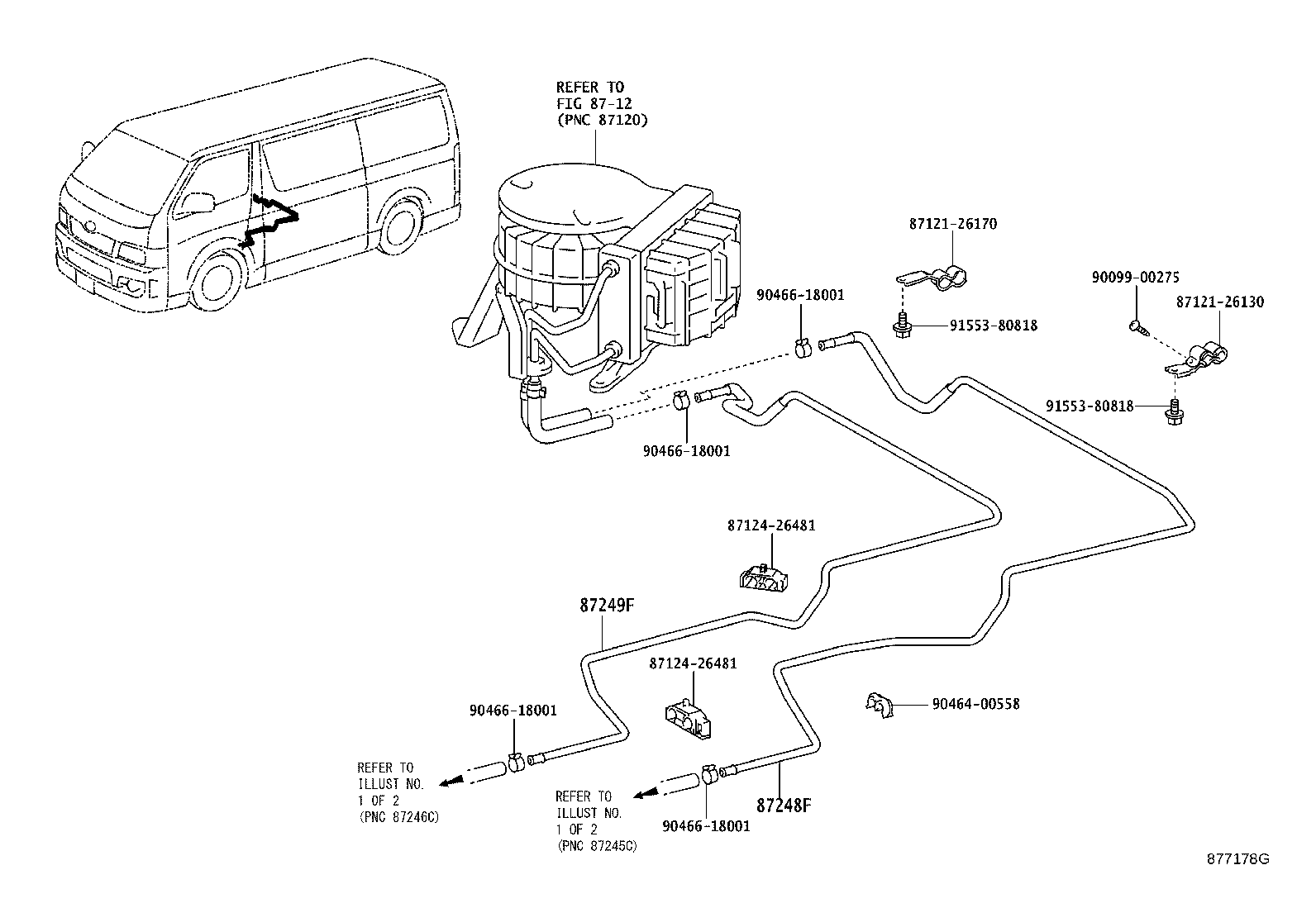

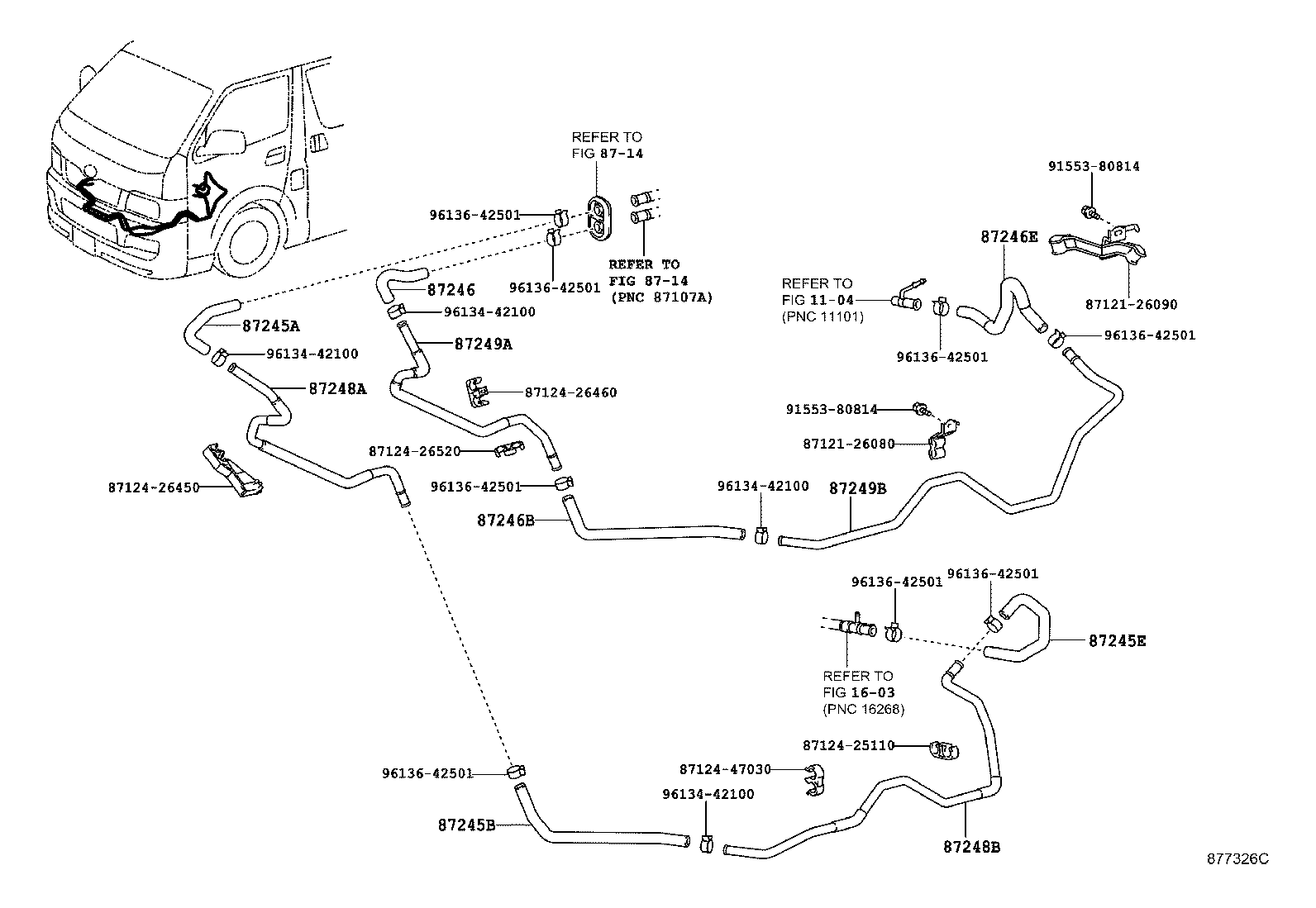

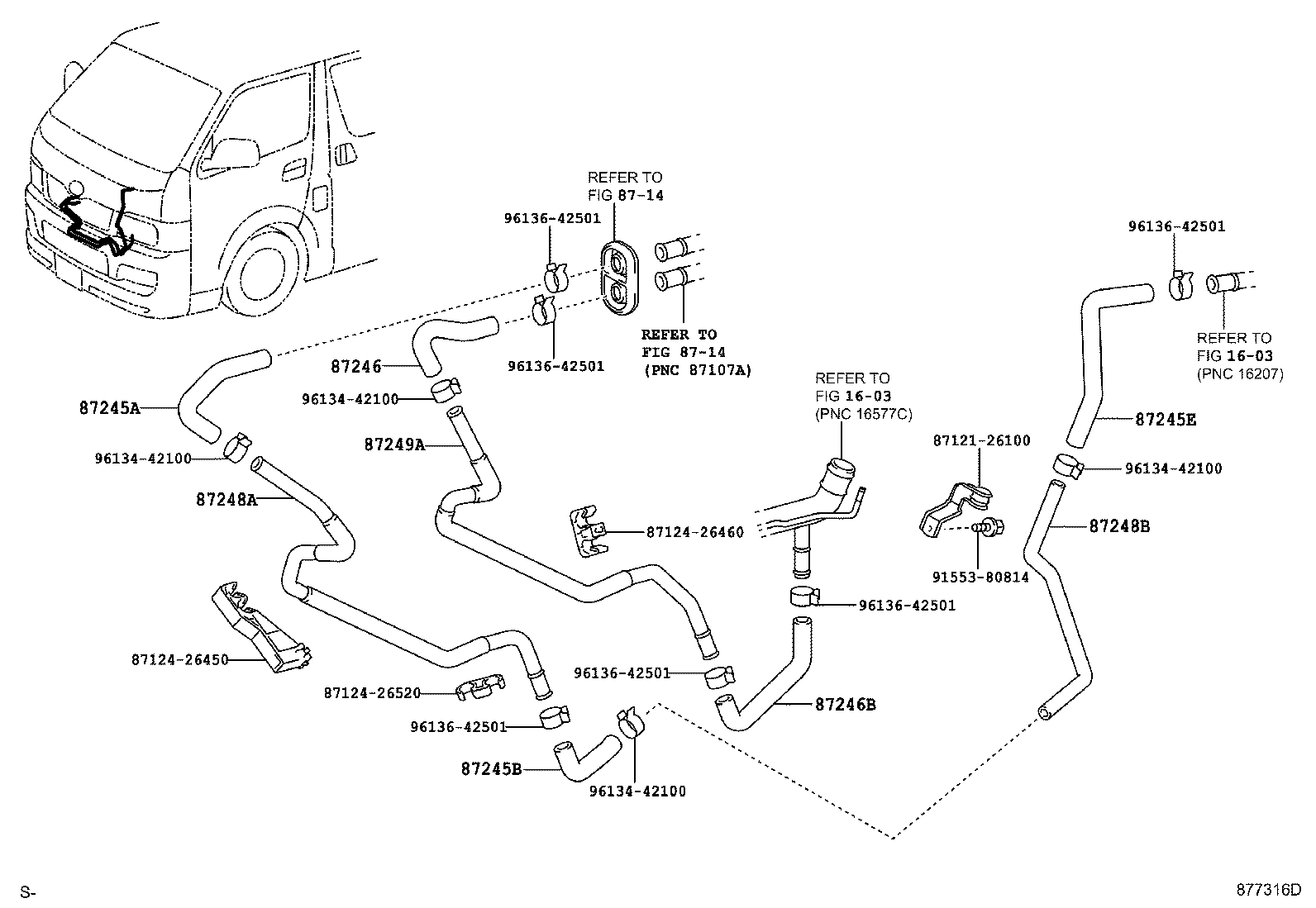

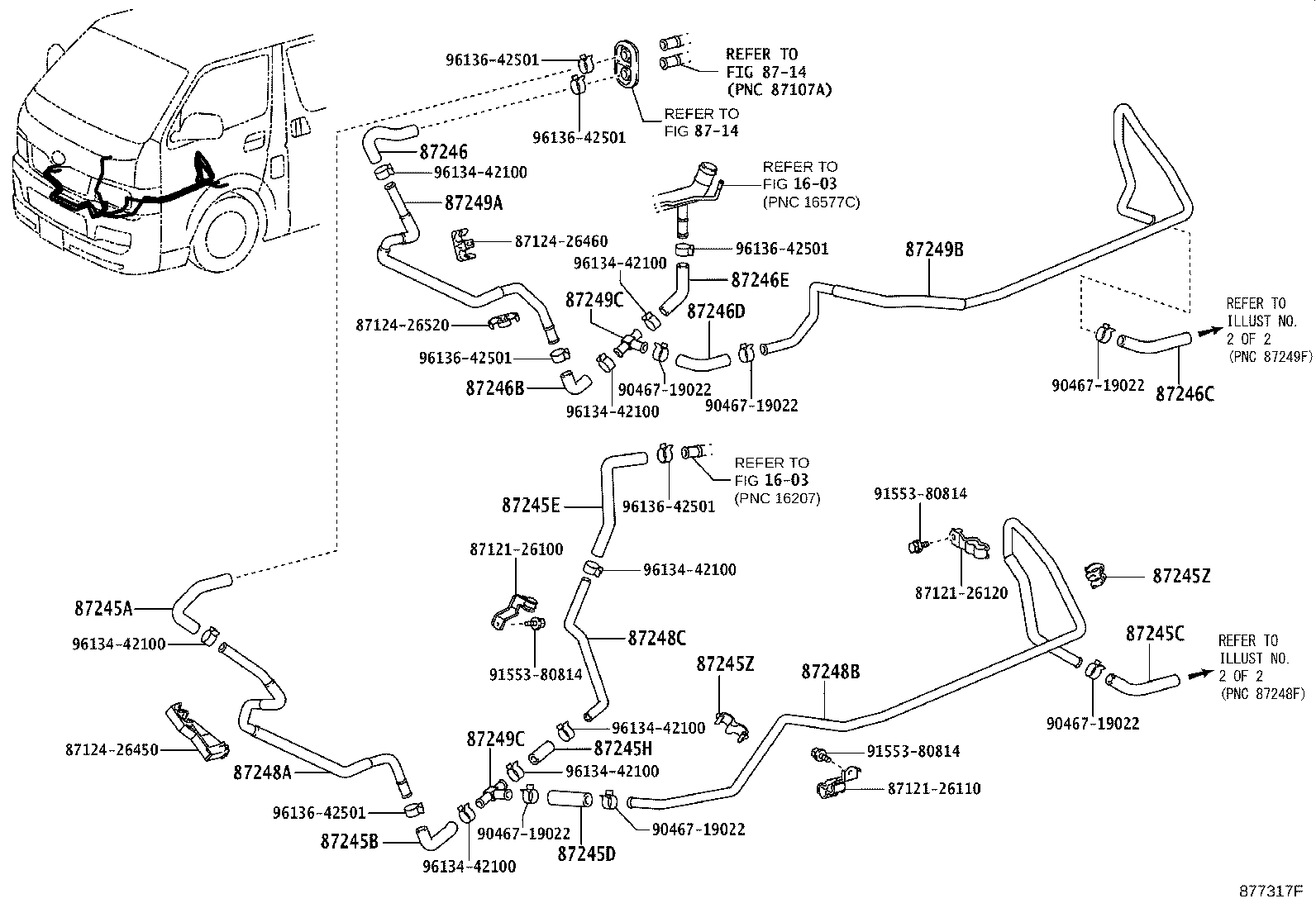

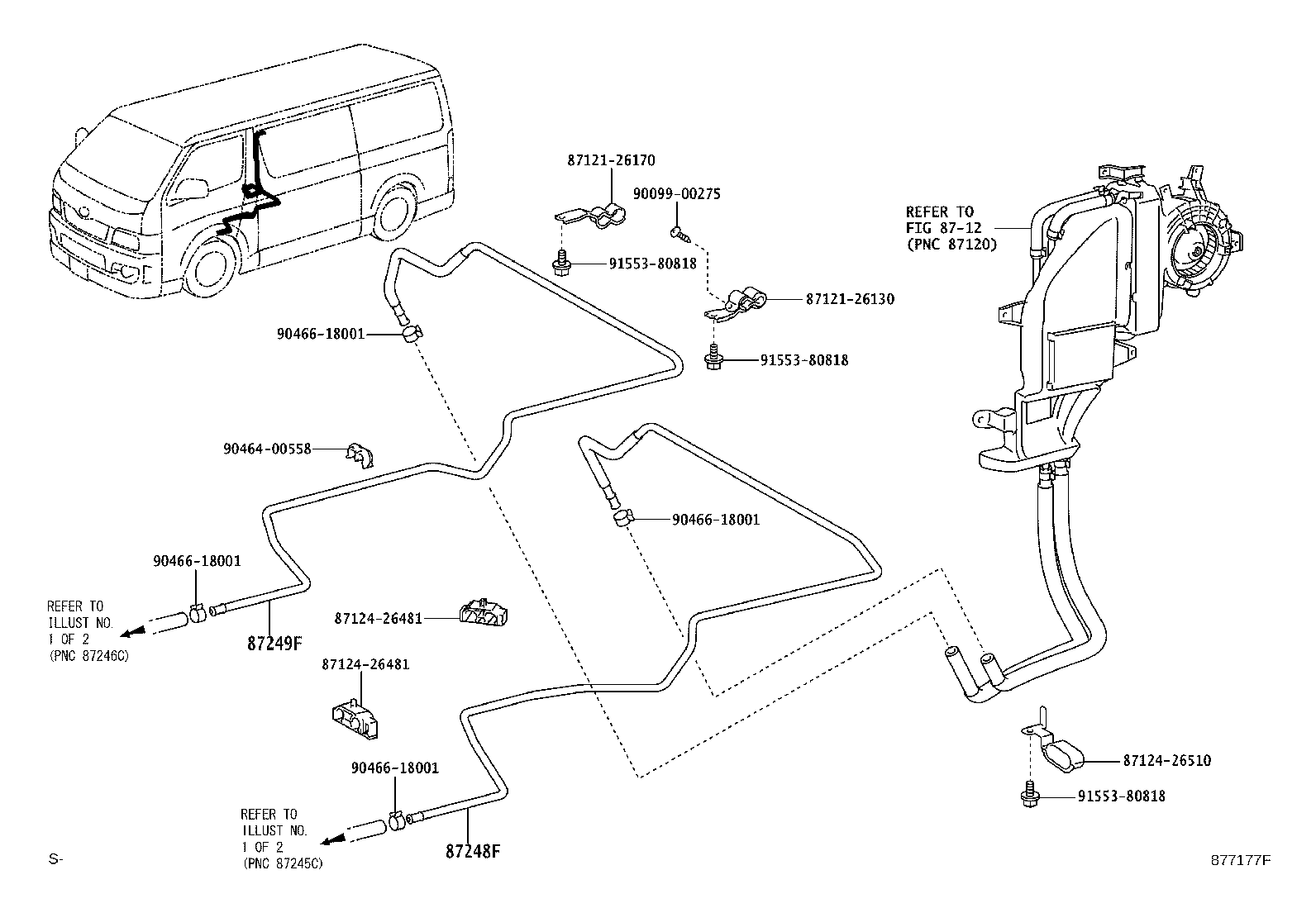

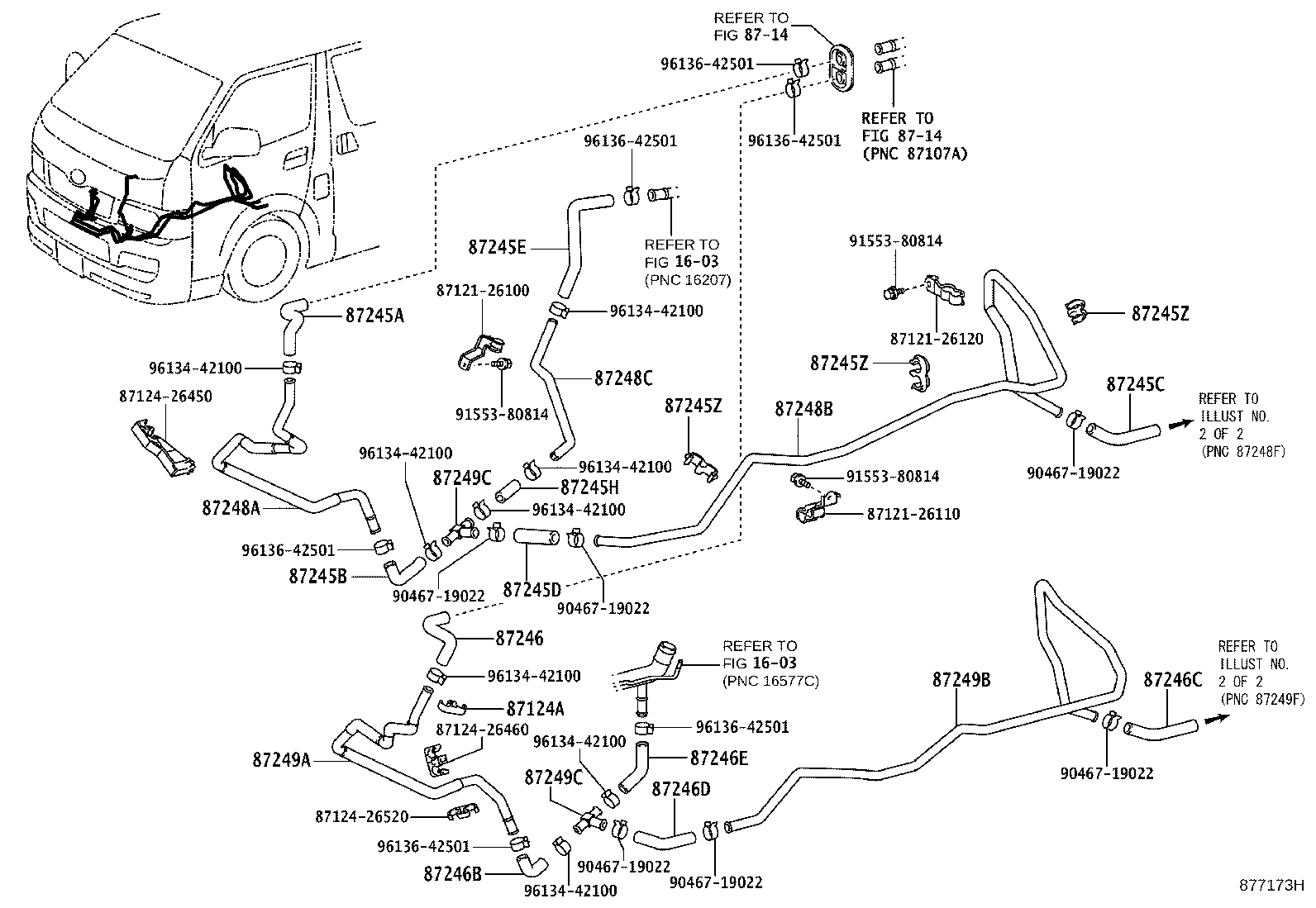

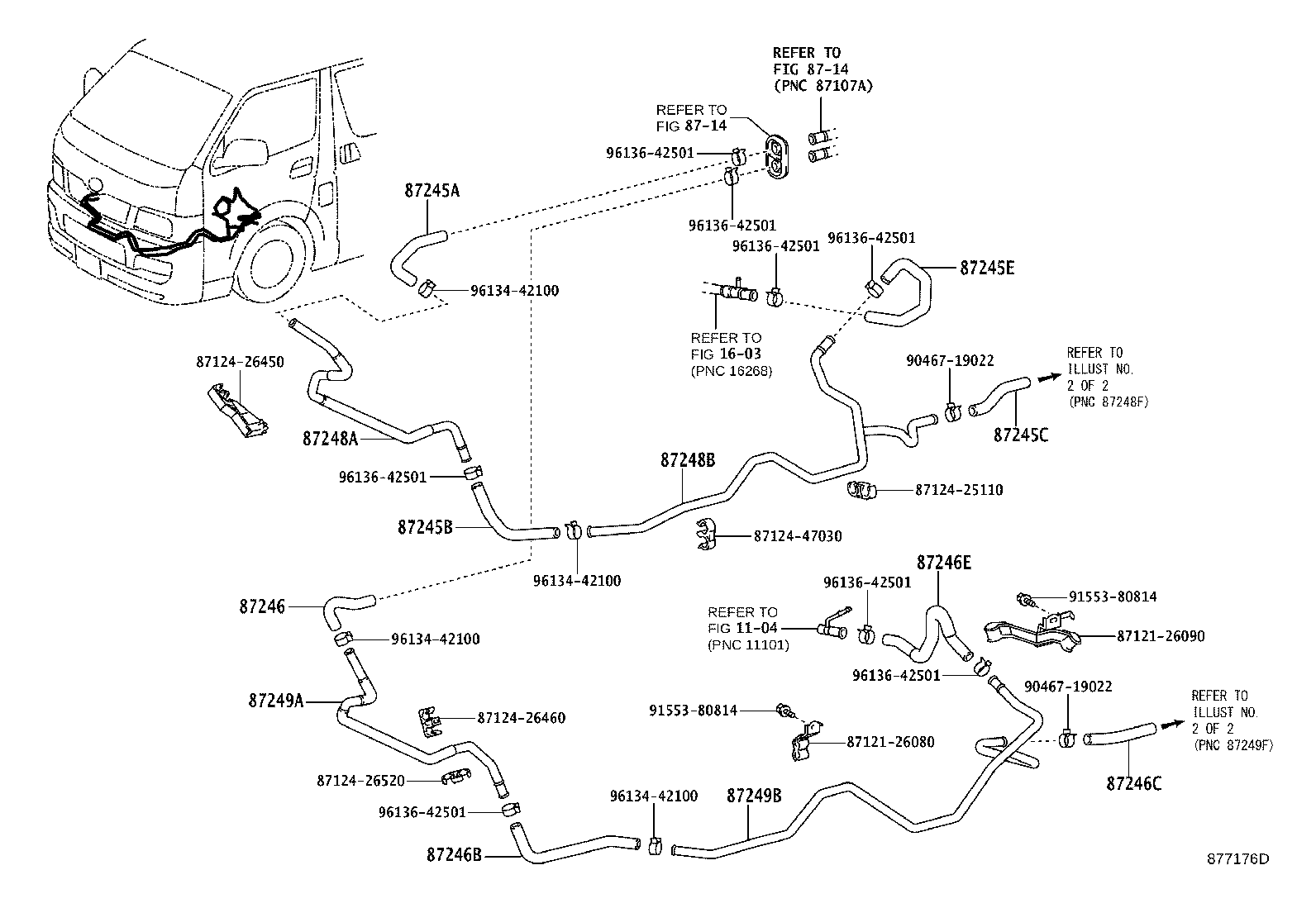

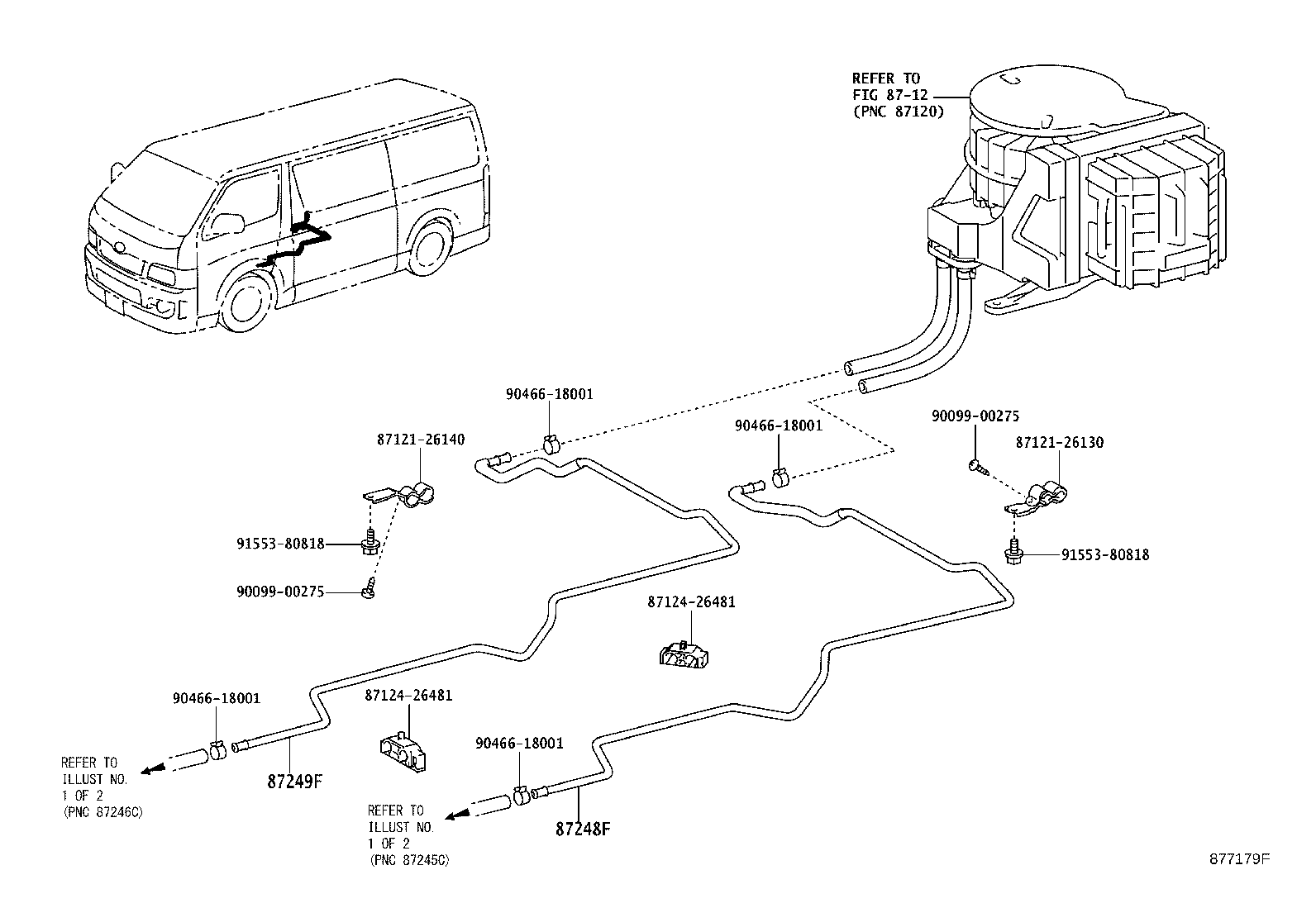

Figure 877172D 877172D 2004-08 → 2007-09 Figure 877172D 877172D 2007-09 → — Figure 877173H 877173H 2004-08 → 2007-09 Figure 877173H 877173H 2007-09 → — Figure 877316D 877316D 2005-01 → 2007-09 Figure 877316D 877316D 2007-09 → — Figure 877317F 877317F 2005-01 → 2006-10 Figure 878784G 878784G 2006-10 → 2007-09 Figure 878784G 878784G 2007-09 → — Figure 877174C 877174C 2004-08 → — Figure 877174C 877174C 2007-09 → — Figure 877175D 877175D 2004-08 → — Figure 877175D 877175D 2007-09 → — Figure 877326C 877326C 2005-01 → — Figure 877176D 877176D 2004-08 → — Figure 877176D 877176D 2005-01 → — Figure 877176D 877176D 2007-09 → — Figure 877177F 877177F 2004-08 → 2007-09 Figure 877177F 877177F 2004-08 → — Figure 877177F 877177F 2007-09 → — Figure 877395D 877395D 2005-01 → 2007-09 Figure 877395D 877395D 2005-01 → — Figure 877395D 877395D 2007-09 → — Figure 877178G 877178G 2004-08 → 2007-09 Figure 877178G 877178G 2004-08 → — Figure 877178G 877178G 2007-09 → — Figure 877179F 877179F 2004-08 → — Figure 877179F 877179F 2005-01 → 2007-09 Figure 877179F 877179F 2005-01 → — Figure 877179F 877179F 2007-09 → — Figure 877179F 877179F 2007-09 → — Figure 877396E 877396E 2005-01 → 2007-09 Figure 877396E 877396E 2005-01 → — Figure 877396E 877396E 2007-09 → —

Part groups

PNCDescription
87124A Clamp, Heater
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245C Hose, Heater Water ,Inlet C
87245D Hose, Heater Water, Inlet D
87245E Hose, Heater Water, Inlet E
87245H Hose, Heater Water, Inlet H
87245Z Clip OR Clamp (FOR HEATER WATER HOSE)
87246 Hose, Heater Water, Outlet
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87248F Pipe, Heater Water Inlet, F
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87249F Pipe, Heater Water Outlet, F
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87256C Hose, Rear Heater Water Outlet, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
