Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

30 part groups · 43 illustrations

Illustrations

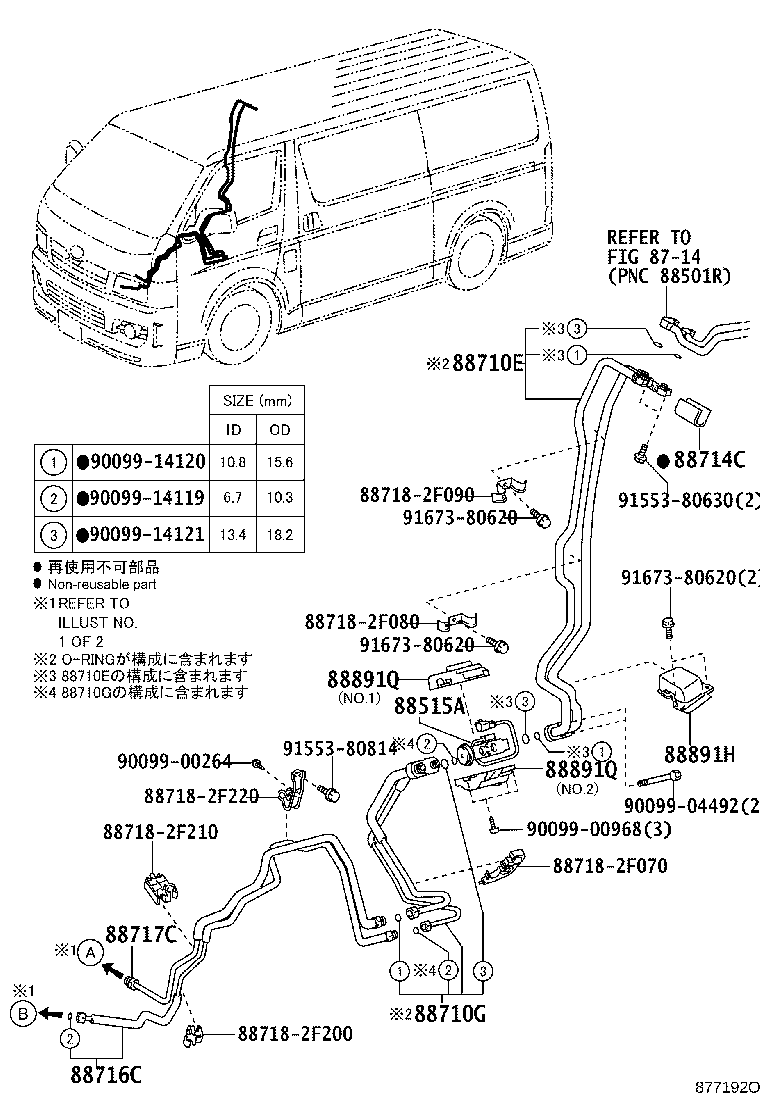

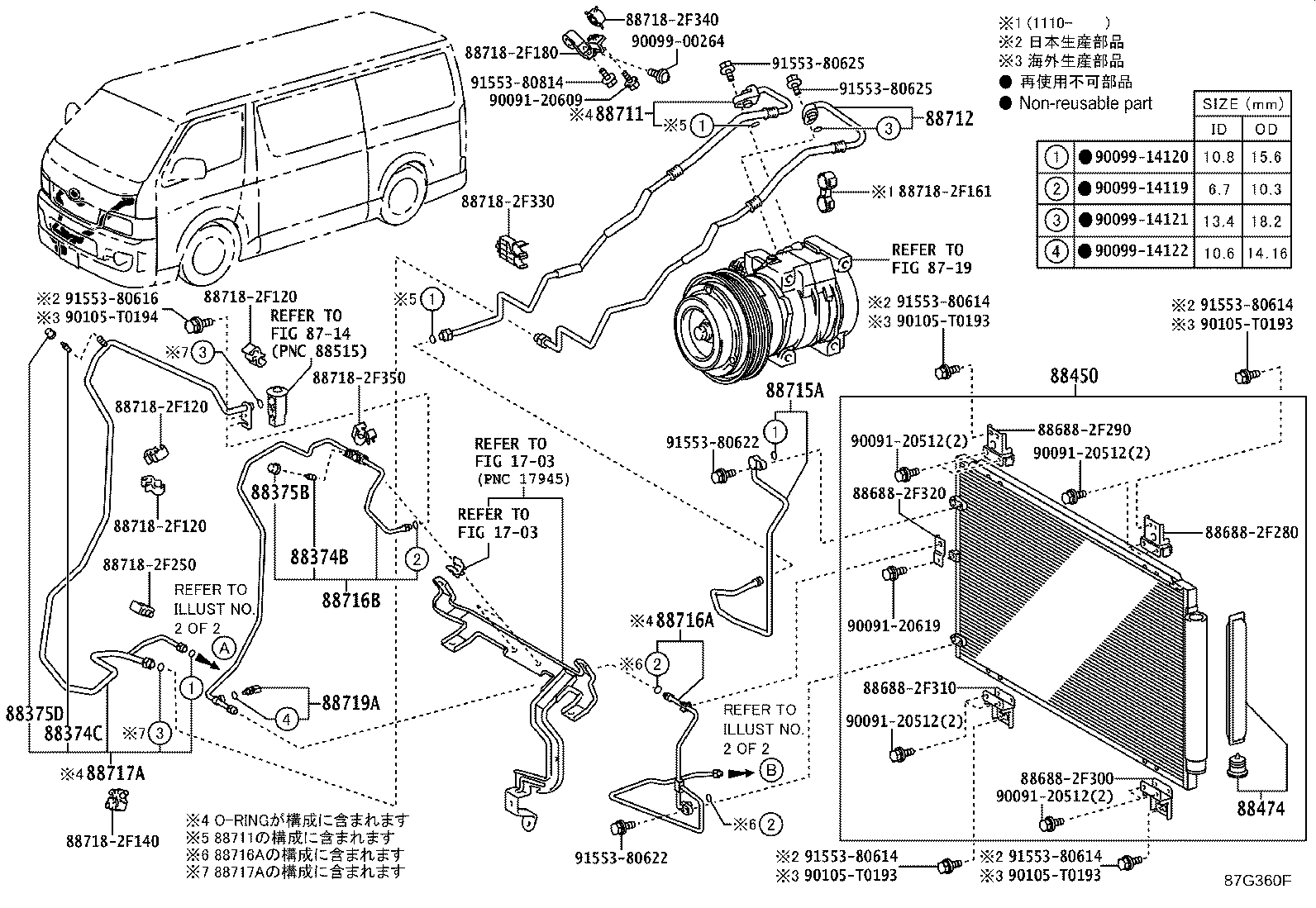

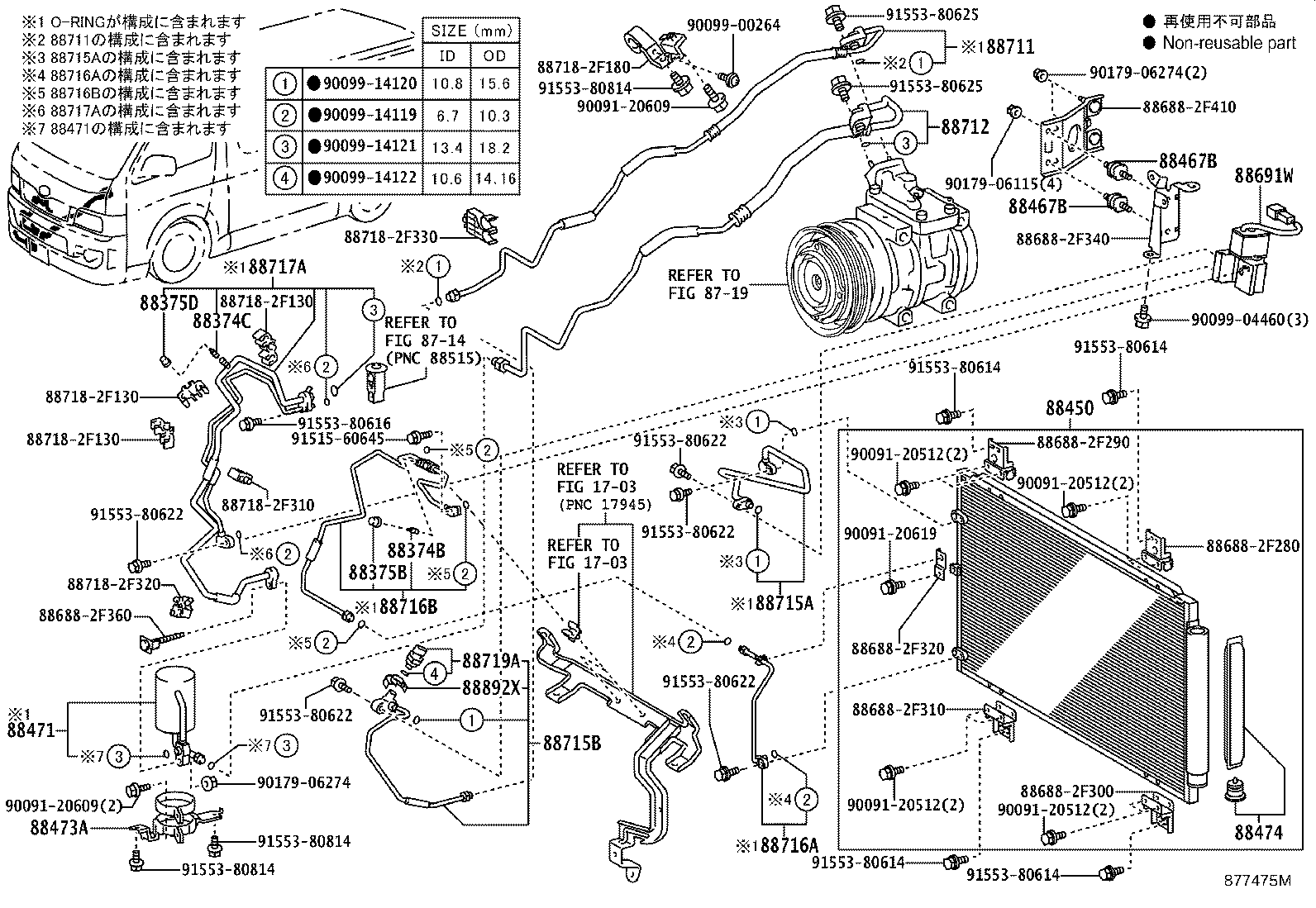

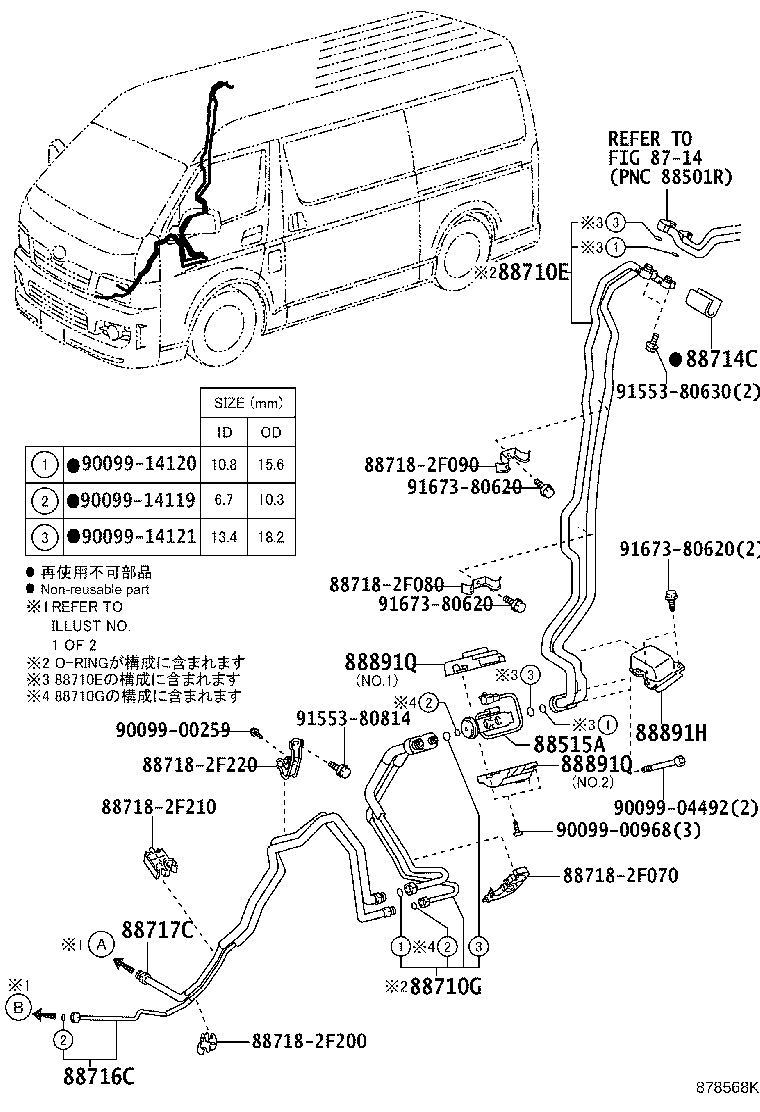

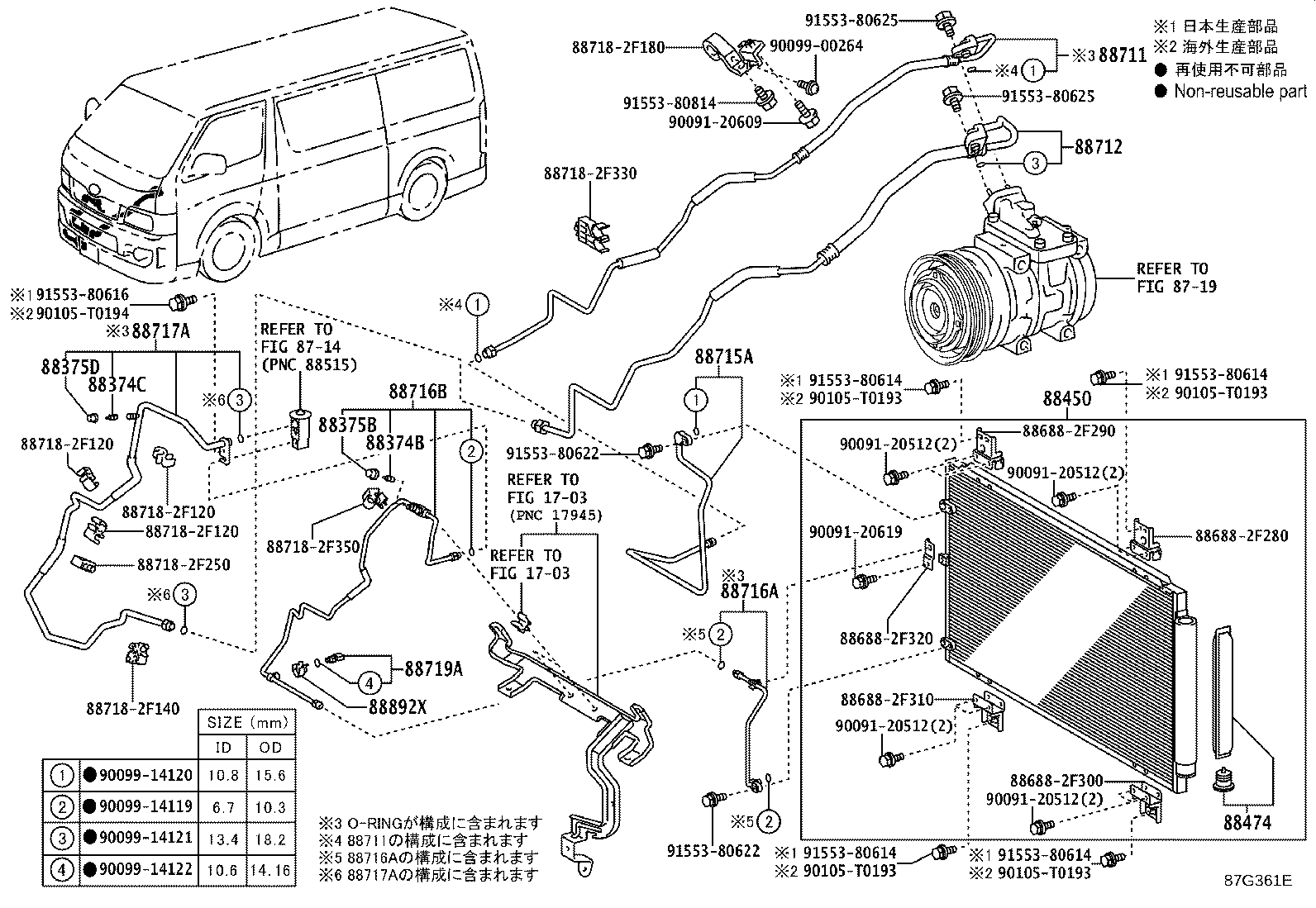

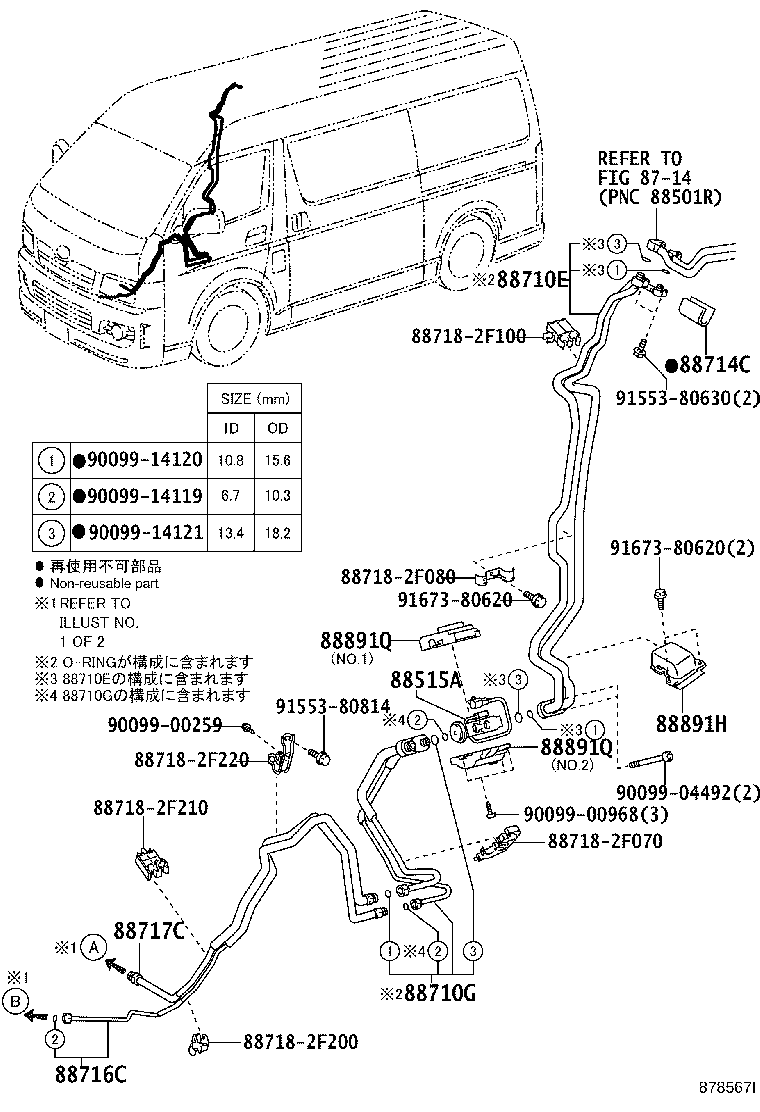

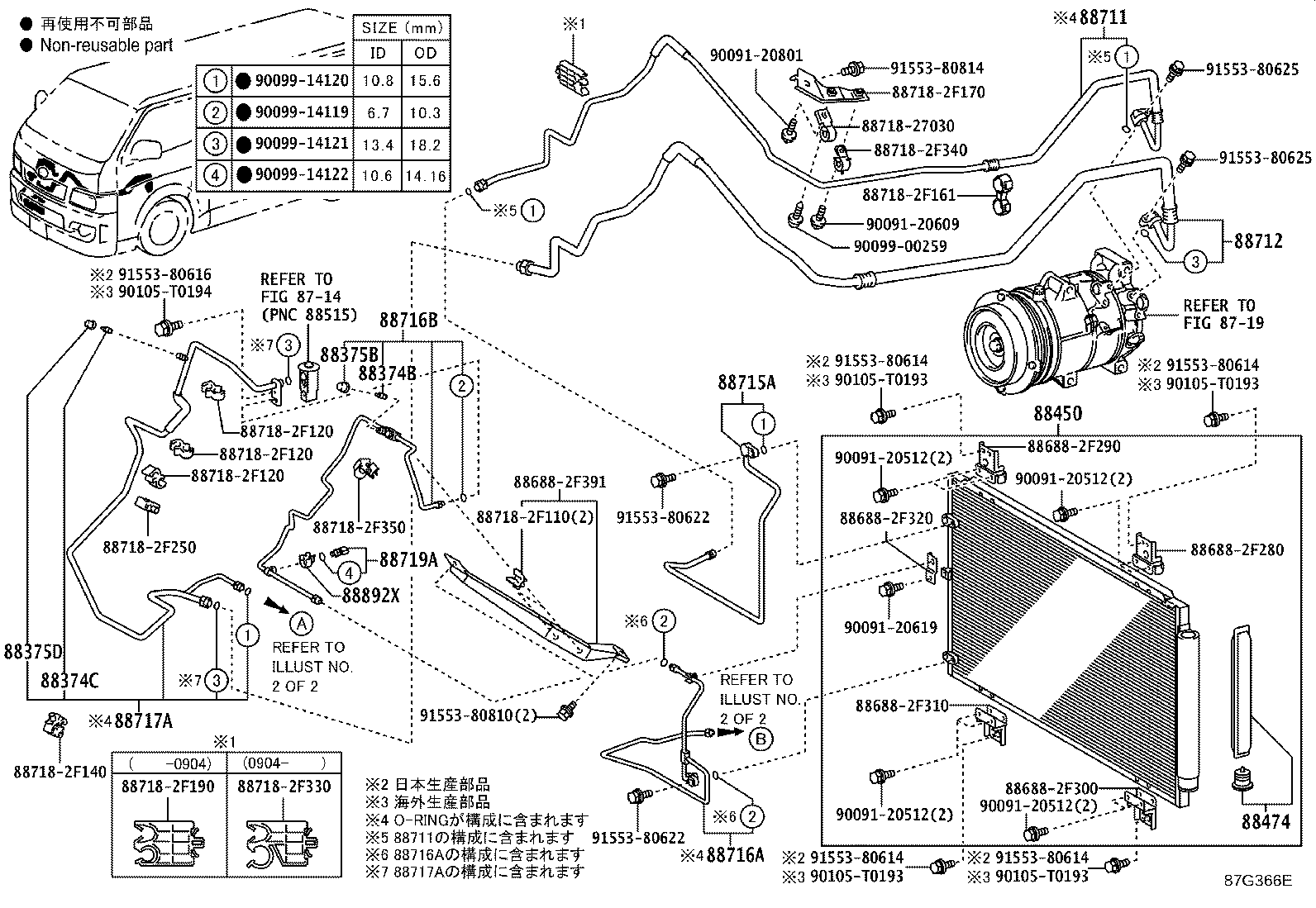

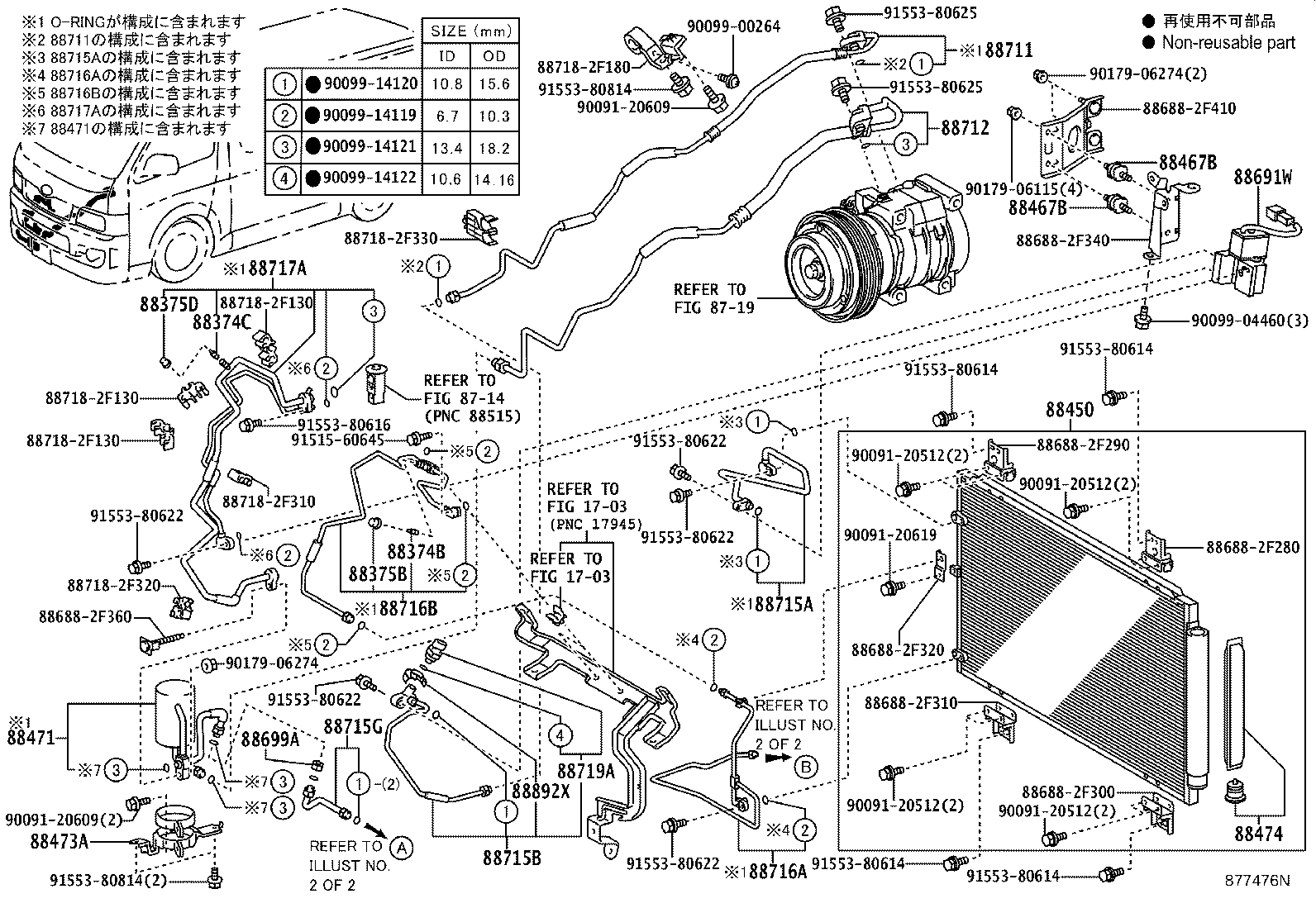

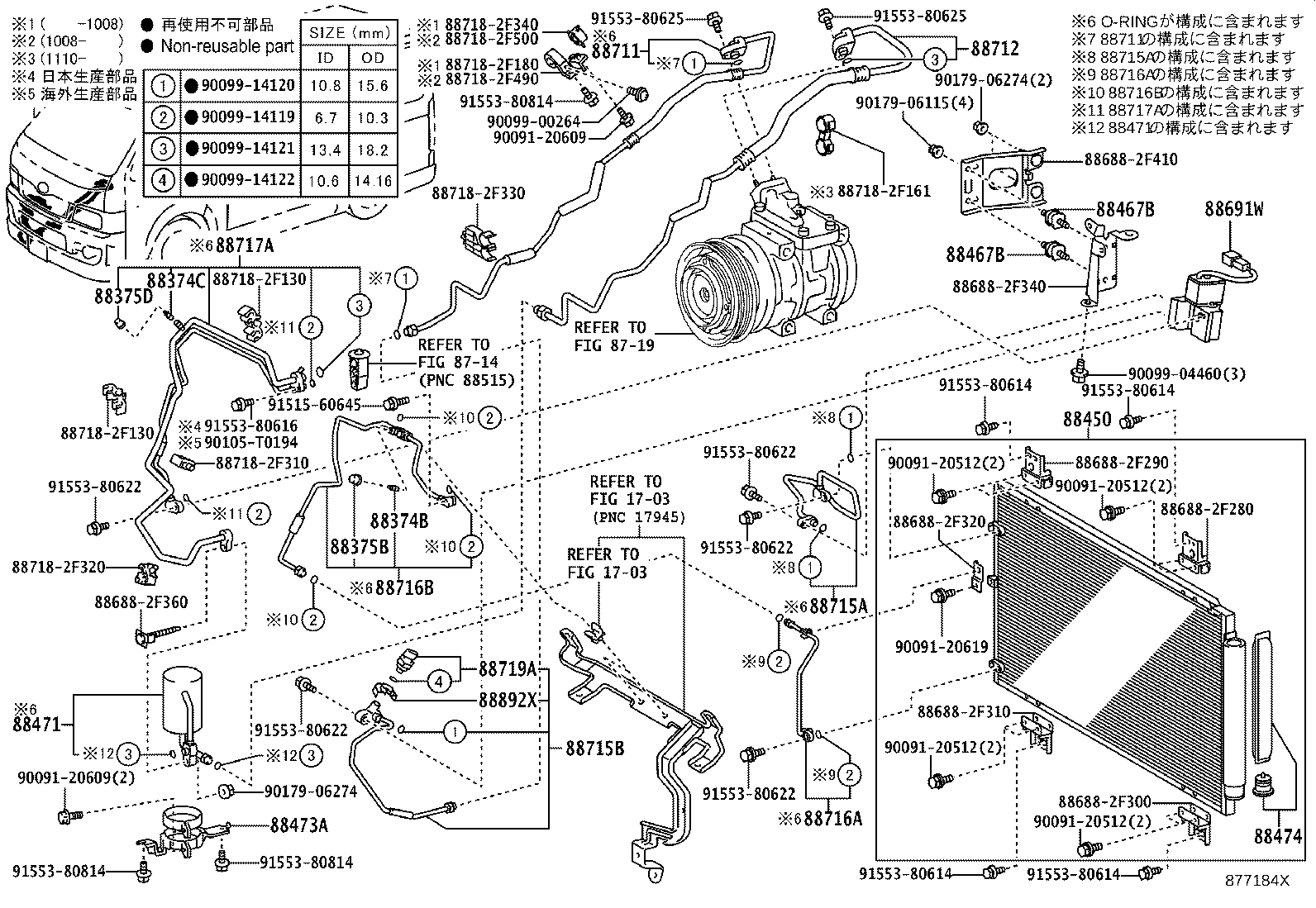

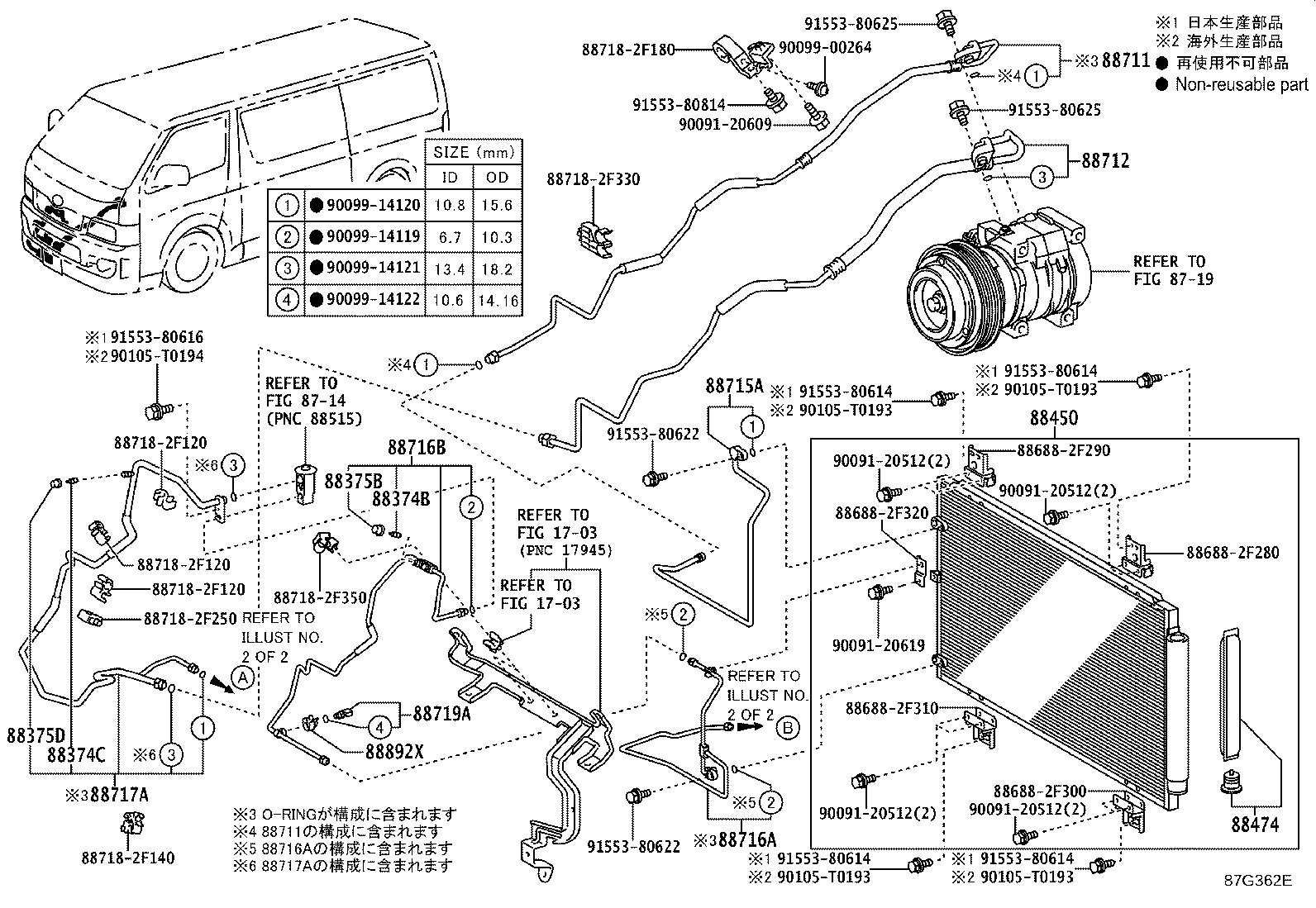

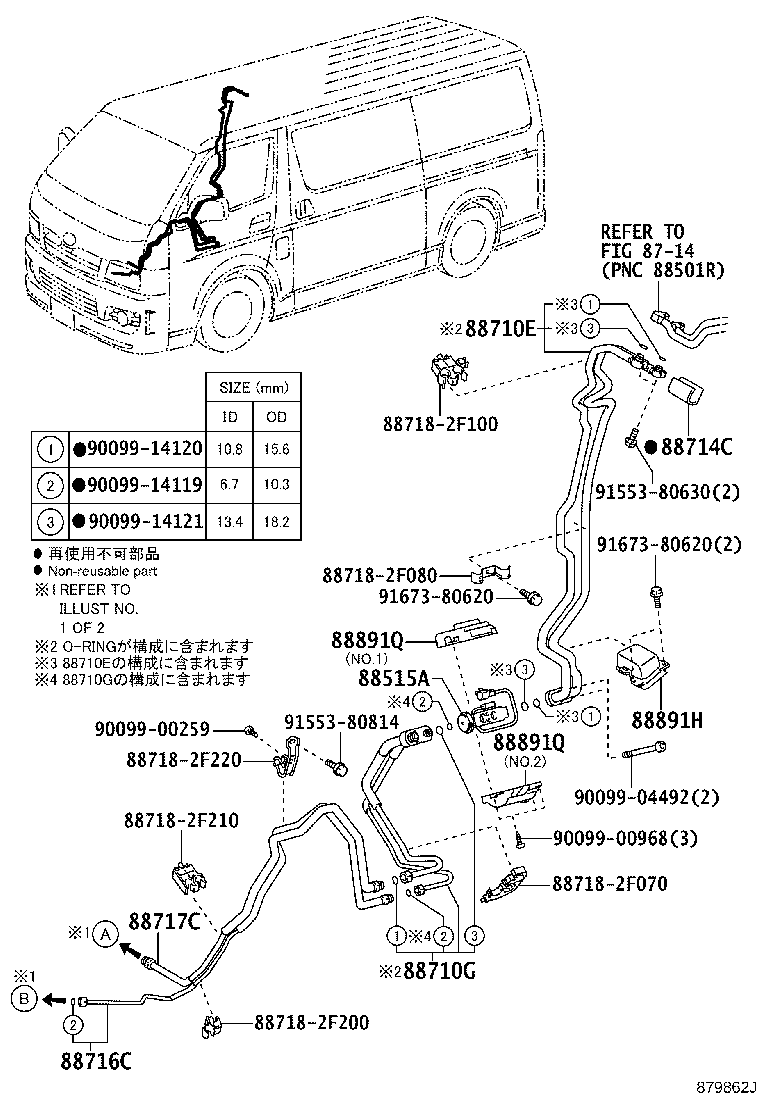

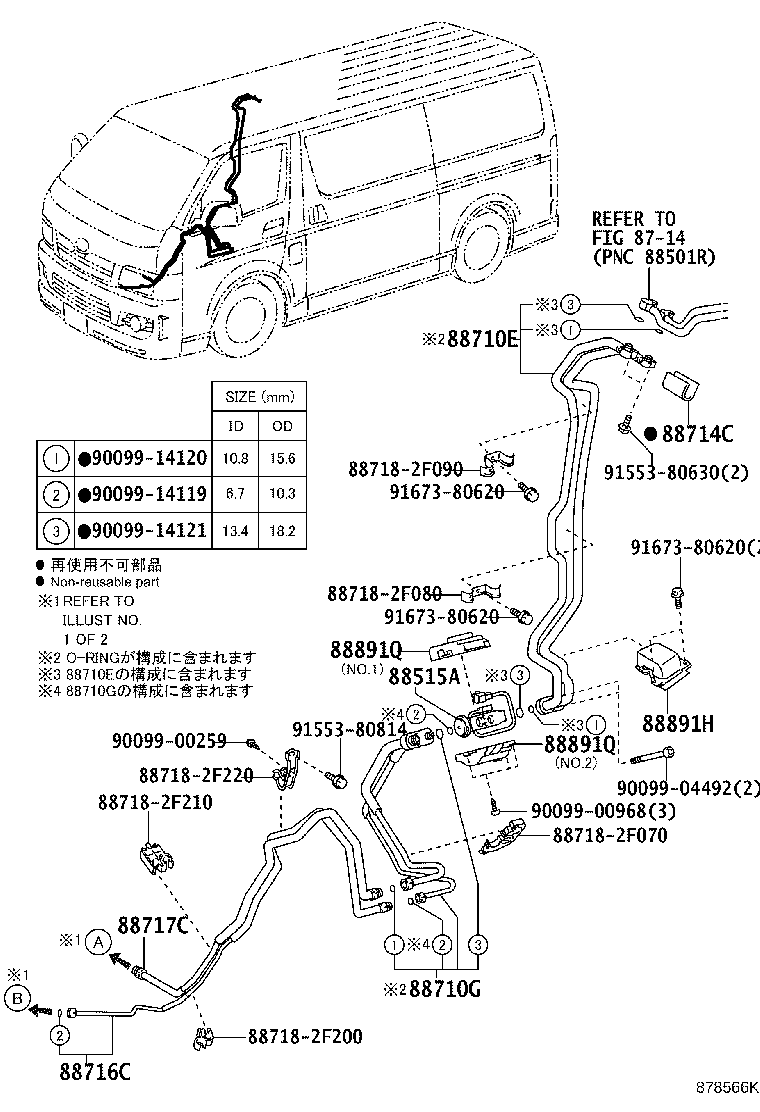

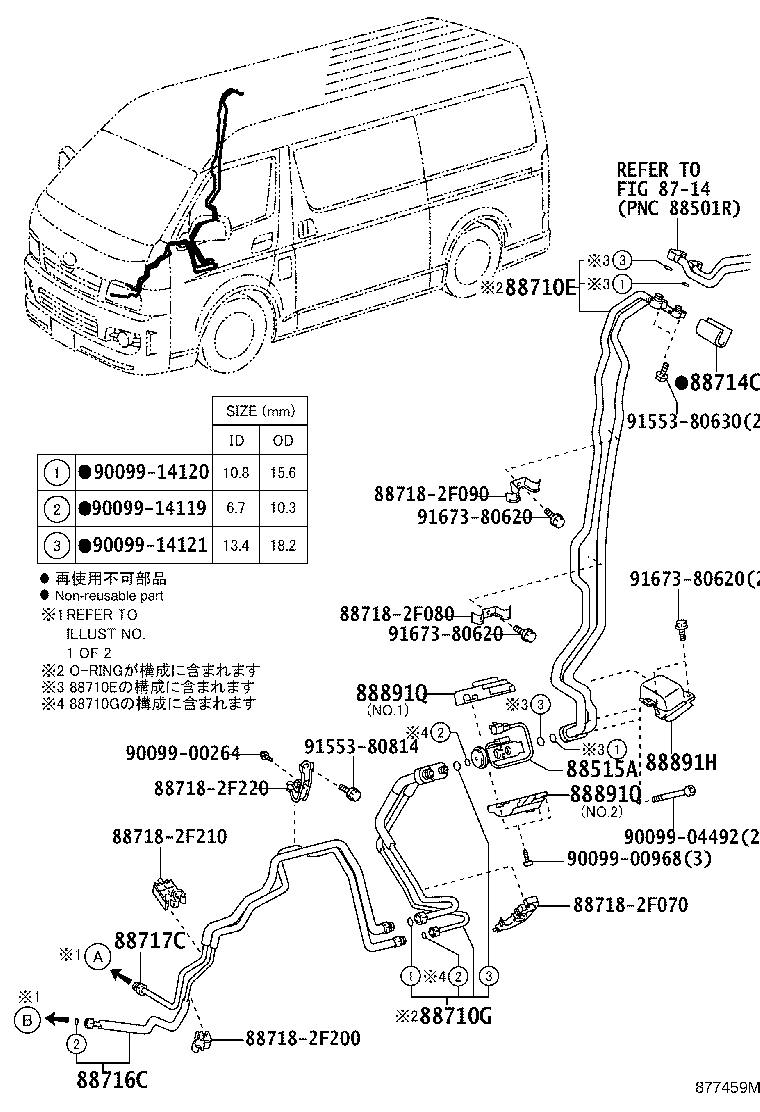

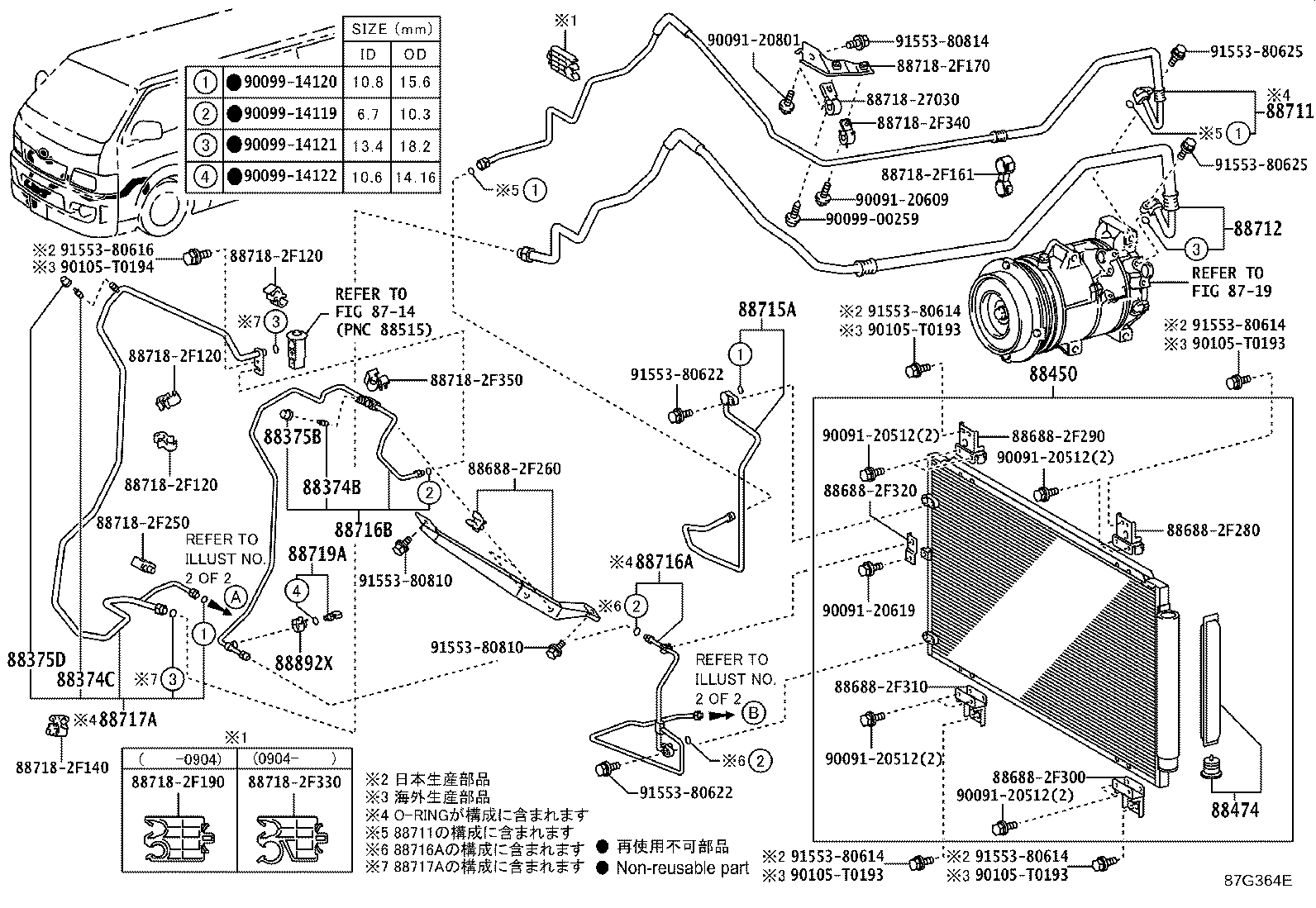

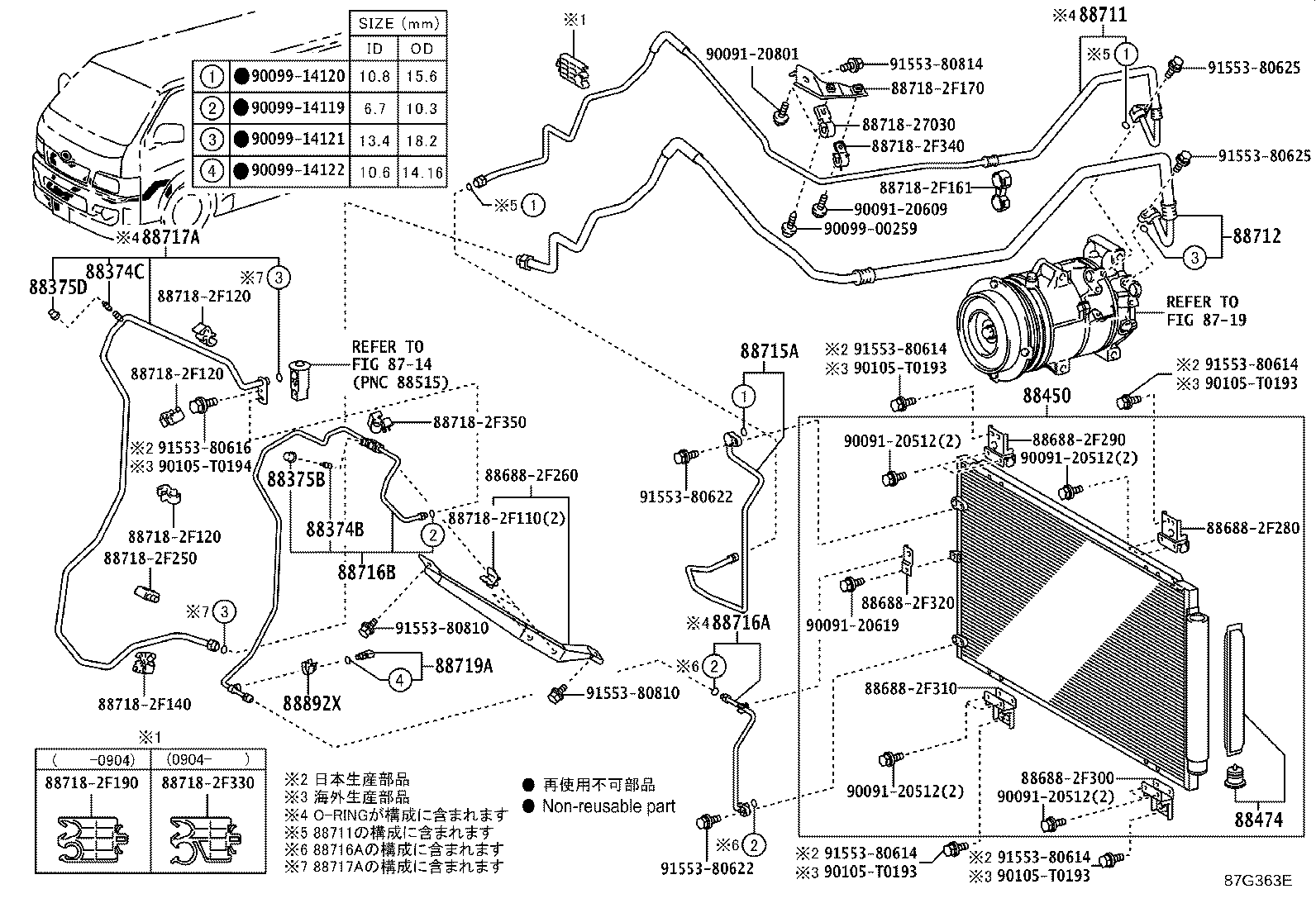

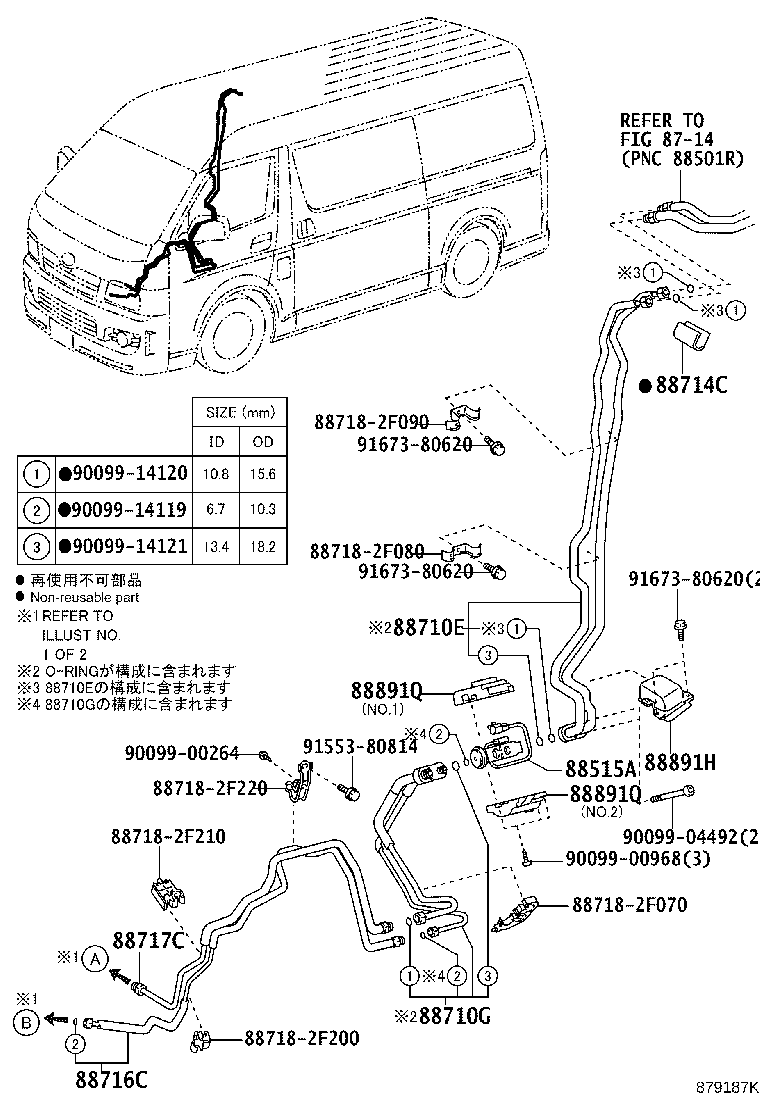

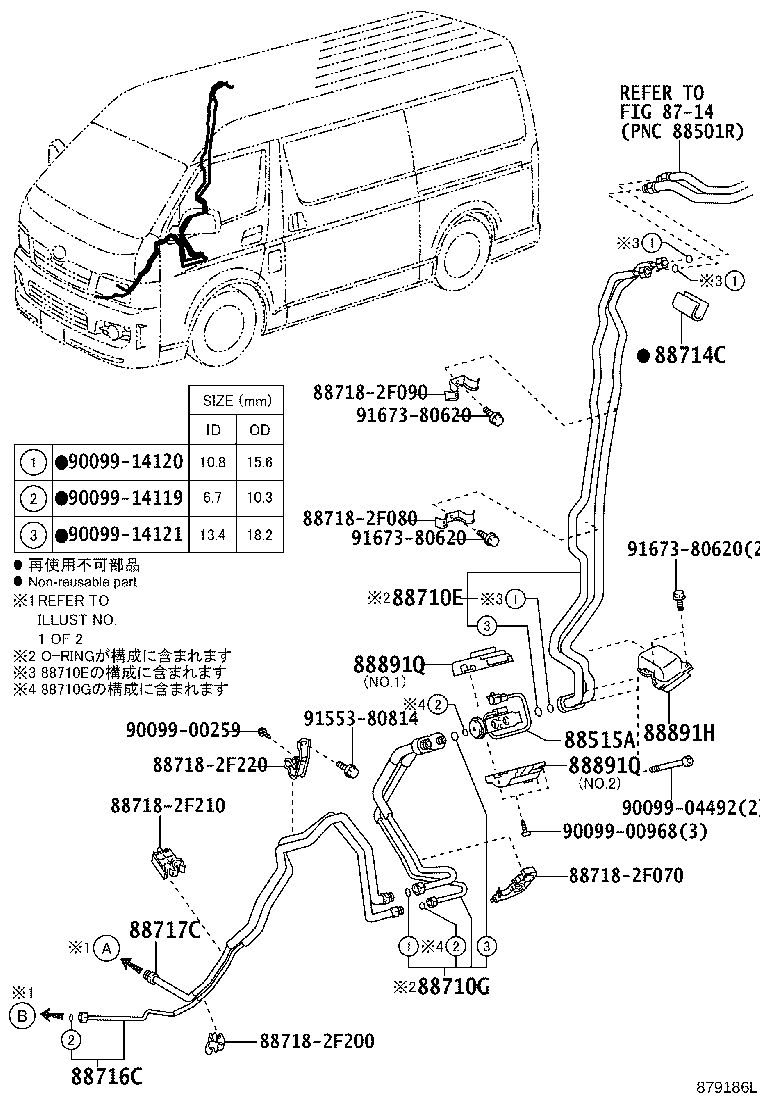

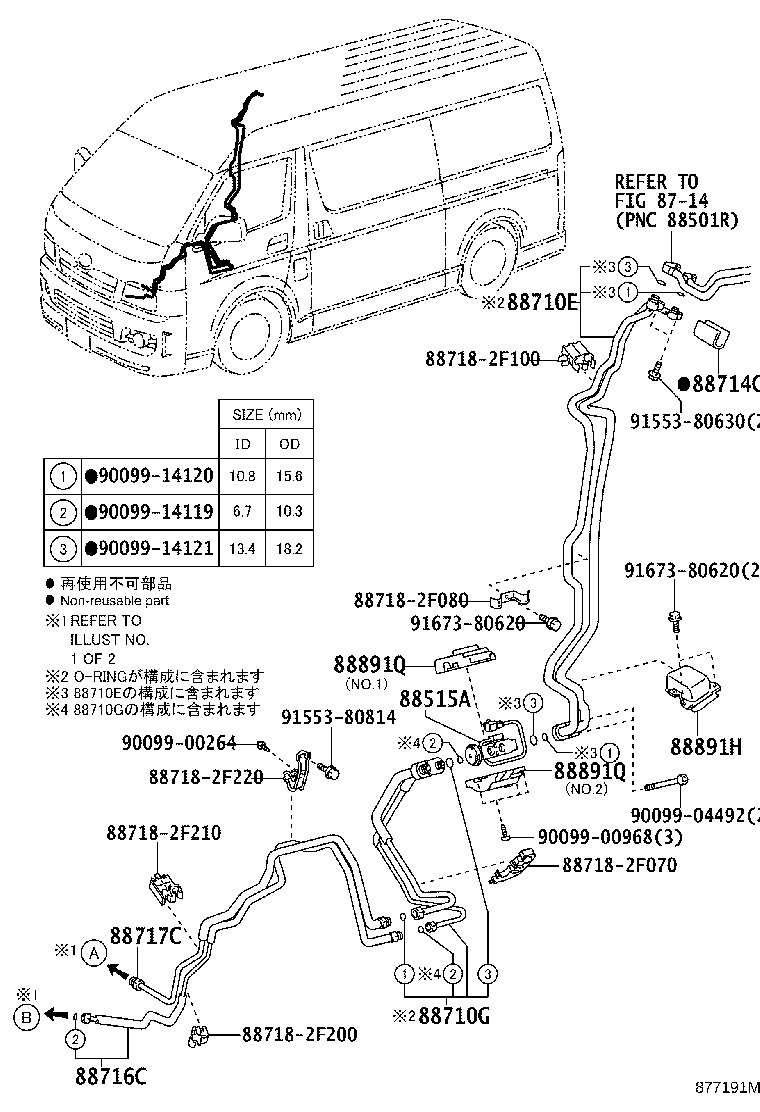

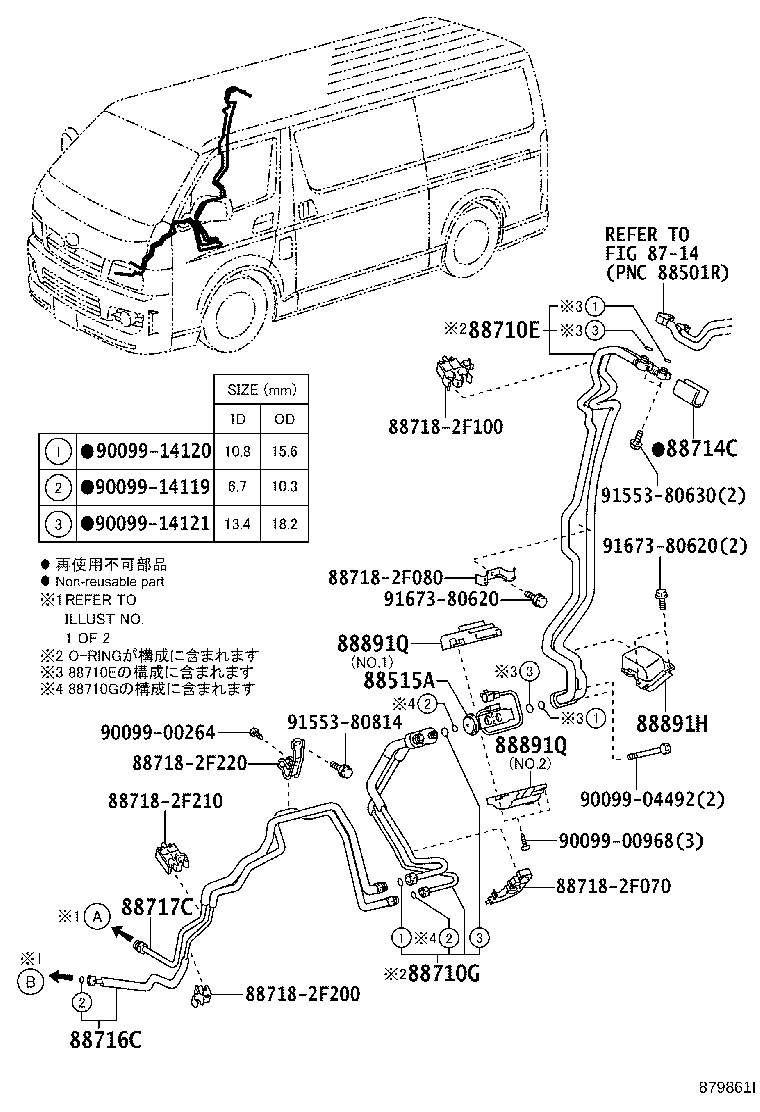

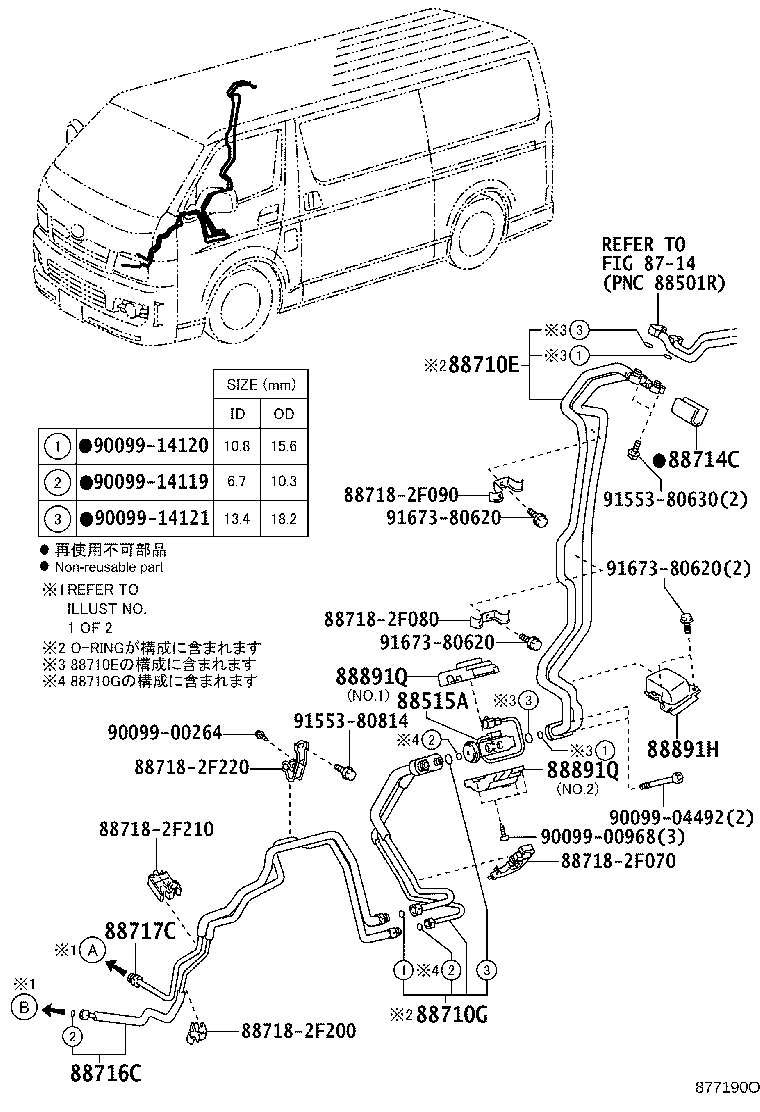

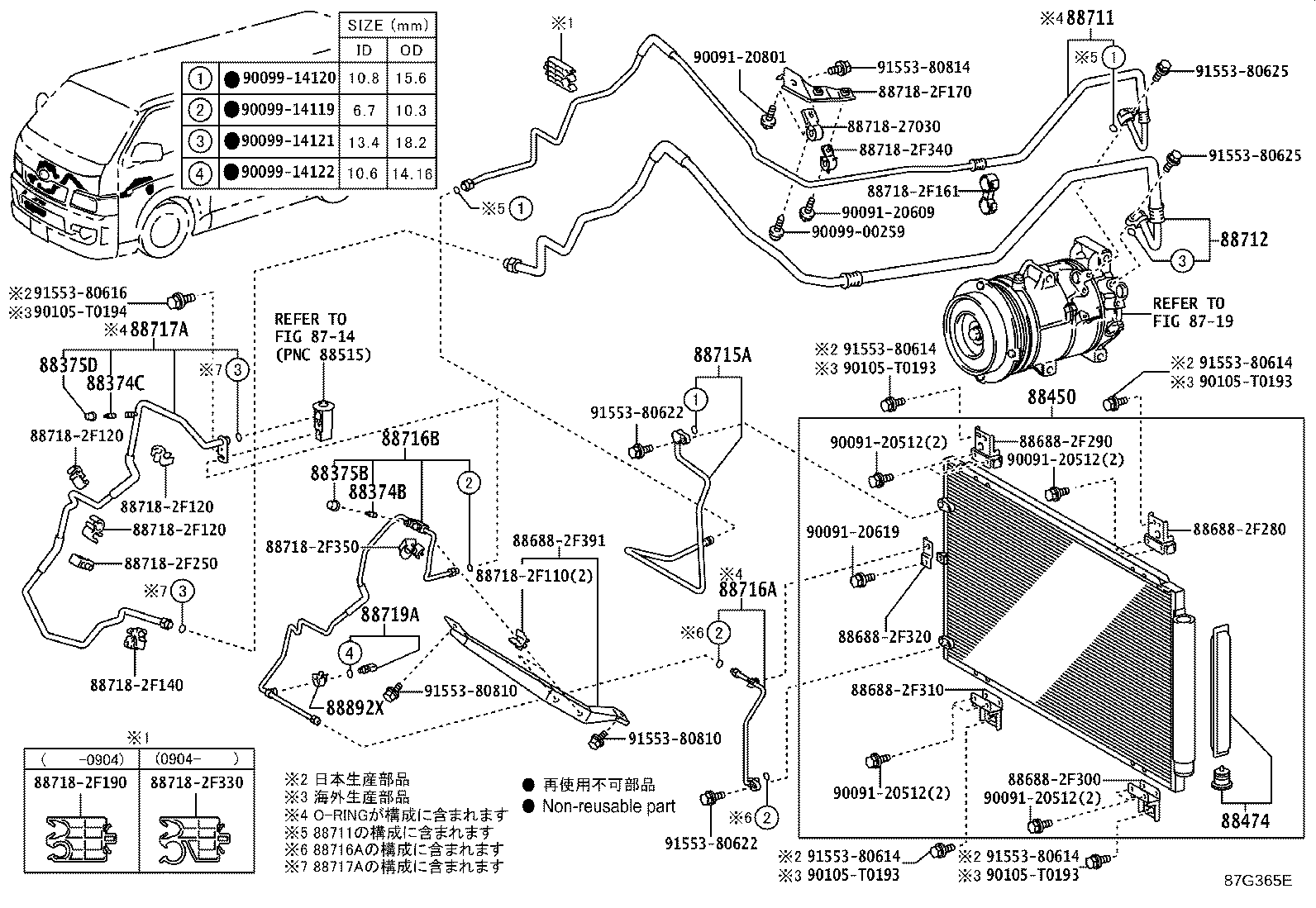

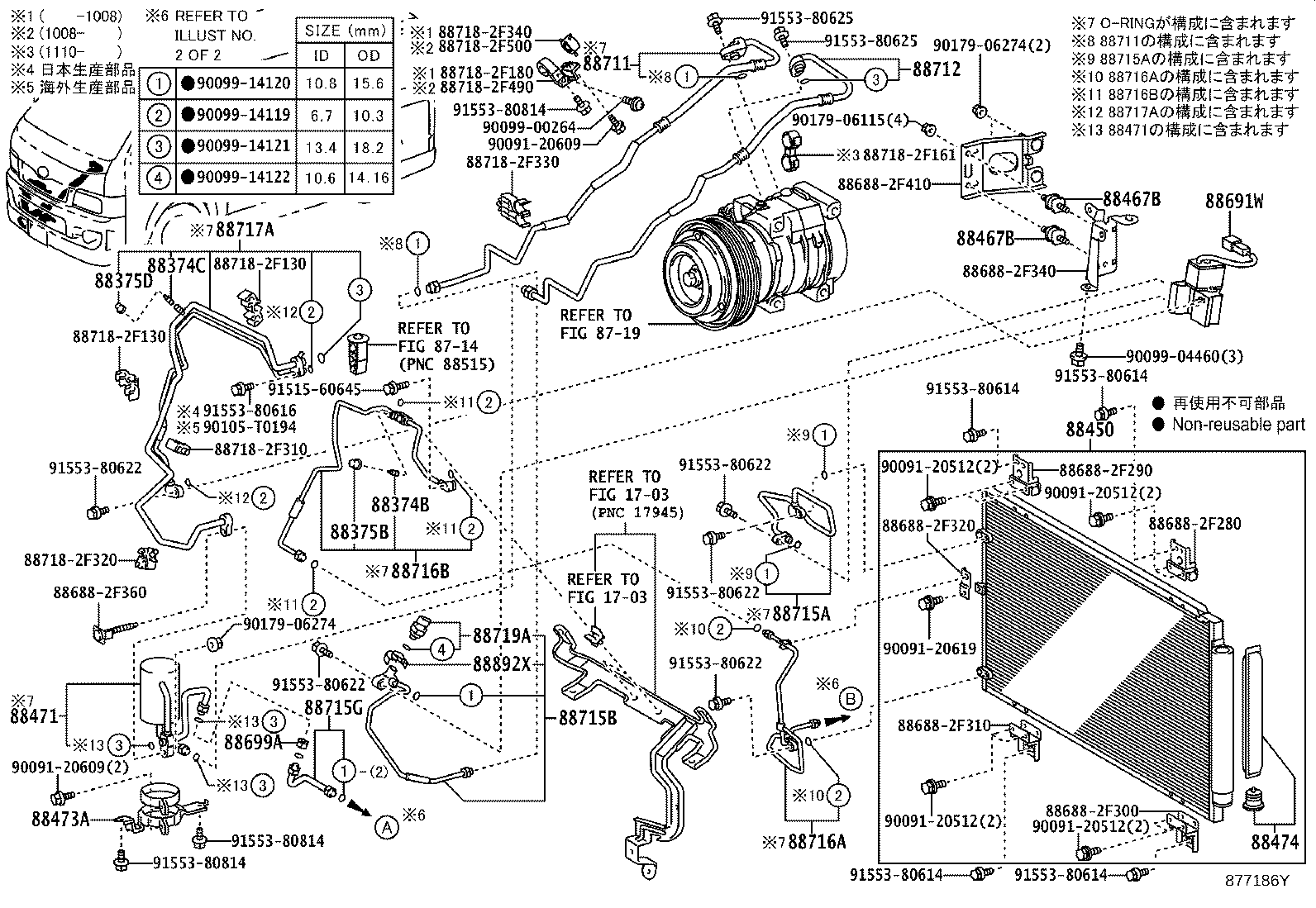

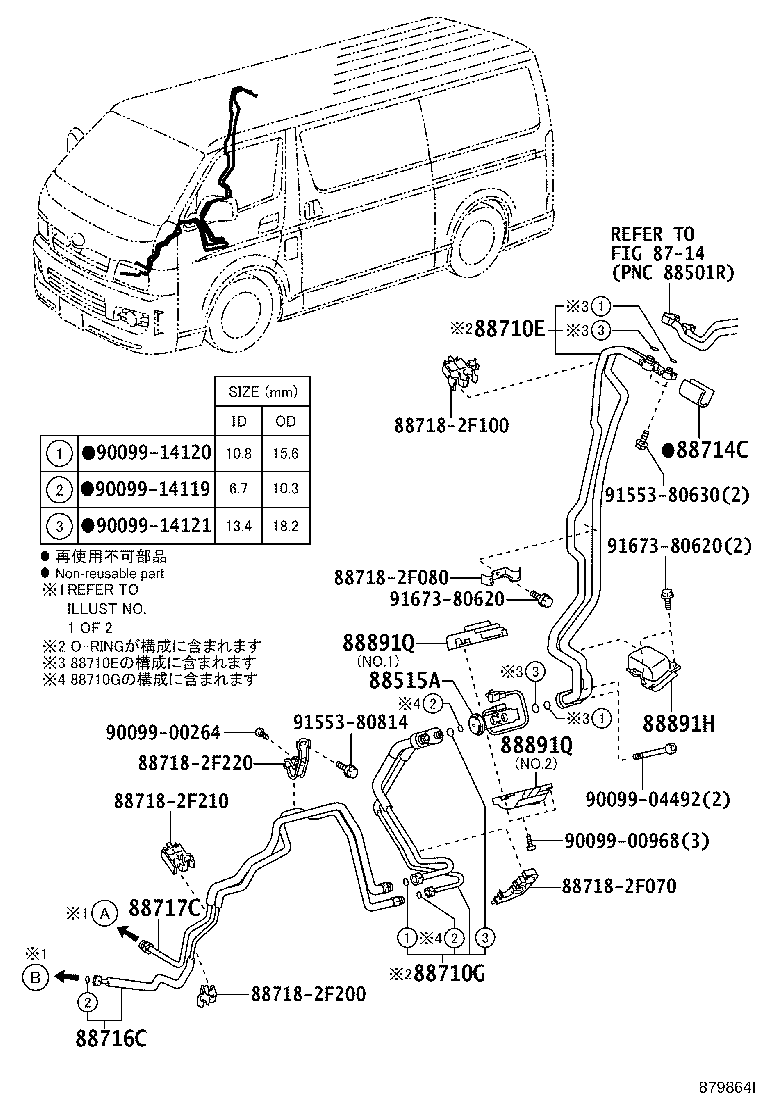

Figure 87G359F 87G359F 2004-08 → 2007-09 Figure 87G359F 87G359F 2007-09 → — Figure 877184X 877184X 2004-08 → 2007-09 Figure 877184X 877184X 2007-09 → — Figure 87G360F 87G360F 2004-08 → 2007-09 Figure 87G360F 87G360F 2007-09 → — Figure 877186Y 877186Y 2004-08 → 2007-09 Figure 877186Y 877186Y 2007-09 → — Figure 87G361E 87G361E 2005-01 → 2007-09 Figure 87G361E 87G361E 2007-09 → — Figure 877475M 877475M 2005-01 → 2007-09 Figure 877475M 877475M 2007-09 → — Figure 87G362E 87G362E 2005-01 → 2007-09 Figure 87G362E 87G362E 2007-09 → — Figure 877476N 877476N 2005-01 → 2007-09 Figure 877476N 877476N 2007-09 → — Figure 87G363E 87G363E 2004-08 → — Figure 87G363E 87G363E 2007-09 → — Figure 87G364E 87G364E 2004-08 → — Figure 87G364E 87G364E 2007-09 → — Figure 87G365E 87G365E 2005-01 → — Figure 87G366E 87G366E 2004-08 → — Figure 87G366E 87G366E 2005-01 → — Figure 87G366E 87G366E 2007-09 → — Figure 877190O 877190O 2004-08 → 2006-10 Figure 877190O 877190O 2004-08 → — Figure 878566K 878566K 2006-10 → 2007-09 Figure 878566K 878566K 2007-09 → — Figure 877191M 877191M 2004-08 → 2006-10 Figure 877191M 877191M 2004-08 → — Figure 877191M 877191M 2007-09 → — Figure 878567I 878567I 2006-10 → 2007-09 Figure 878567I 878567I 2007-09 → — Figure 877192O 877192O 2004-08 → 2007-09 Figure 879864I 879864I 2007-09 → — Figure 877459M 877459M 2005-01 → 2006-10 Figure 877459M 877459M 2005-01 → 2006-11 Figure 878568K 878568K 2006-10 → 2006-11 Figure 879186L 879186L 2006-11 → 2007-09 Figure 879186L 879186L 2007-09 → — Figure 879187K 879187K 2006-11 → — Figure 879862J 879862J 2007-09 → — Figure 879861I 879861I 2007-09 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88450 Condenser Assy, W/Receiver
88467B Insulator, Cooler Condenser Mounting
88471 Tank, Receiver Air Conditioner
88473A Holder, Receiver
88474 Dryer, Cooler
88515A Valve, Cooler Expansion
88691W Valve, Magnet
88699A Valve, Air
88710E Tube & Accessory Assy, Air Conditioner
88710G Tube & Accessory Assy, Air Conditioner, NO.2
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714C Insulator, Cooler Refrigerant Hose, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88715B Pipe, Cooler Refrigerant Discharge, B
88715G Tube, Discharge, G
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716C Pipe, Cooler Refrigerant Liquid, C
88717A Pipe, Cooler Refrigerant Suction, A
88717C Pipe, Cooler Refrigerant Suction, C
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
88891Q Cover, Cooler, NO.2
88892X Cover, Cooler, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
