Toyota Hiace/Regiusace

2004-08 → 2013-12 · chassis KDH2##,TRH2## · catalogue 711150 · Japan

Supported model Data version 2014-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

7 part groups · 3 illustrations

Illustrations

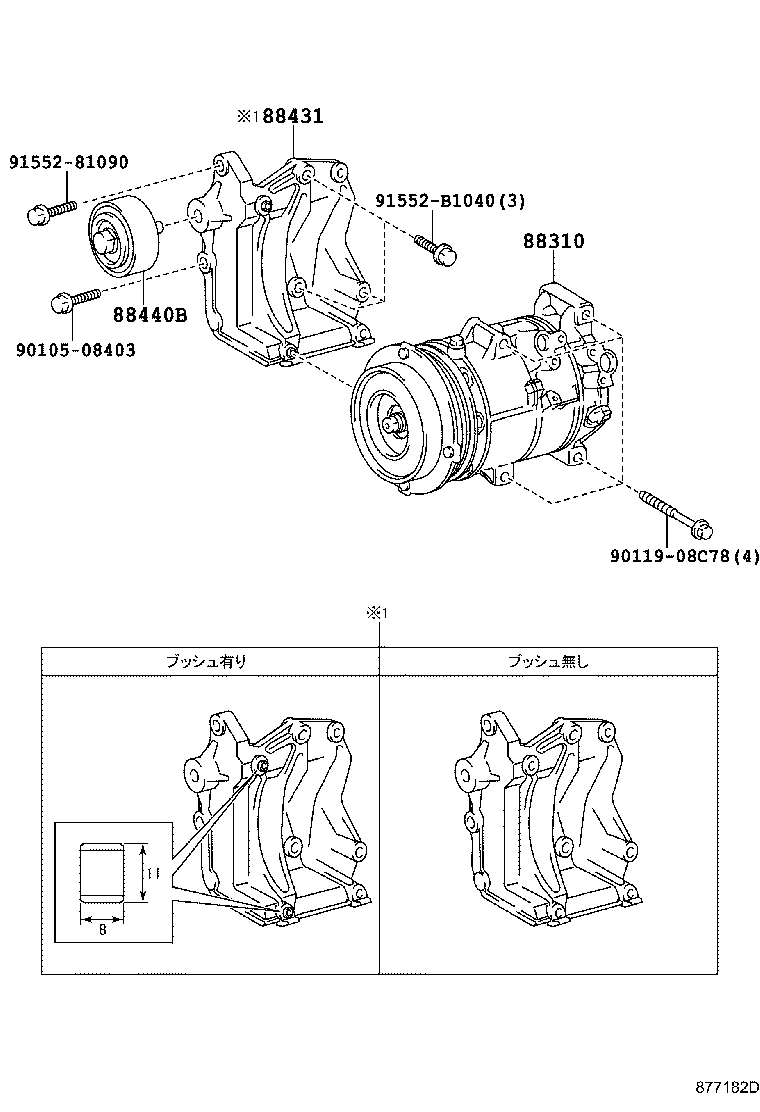

Figure 877181H 877181H 2004-08 → 2007-09 Figure 877181H 877181H 2007-09 → — Figure 877182D 877182D 2004-08 → —

Part groups

PNCDescription
88310 Compressor Assy, W/Pulley
88320 Compressor Assy, Cooler
88330A Washer (FOR MAGNET CLUTCH)
88410 Clutch Assy, Magnet
88431 Bracket, Compressor Mounting, NO.1
88440B Pulley Assy, Idle
88440D Pulley Assy, Idle NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
