Toyota Hiace/Regiusace
2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan
Supported model
Data version 2020-05

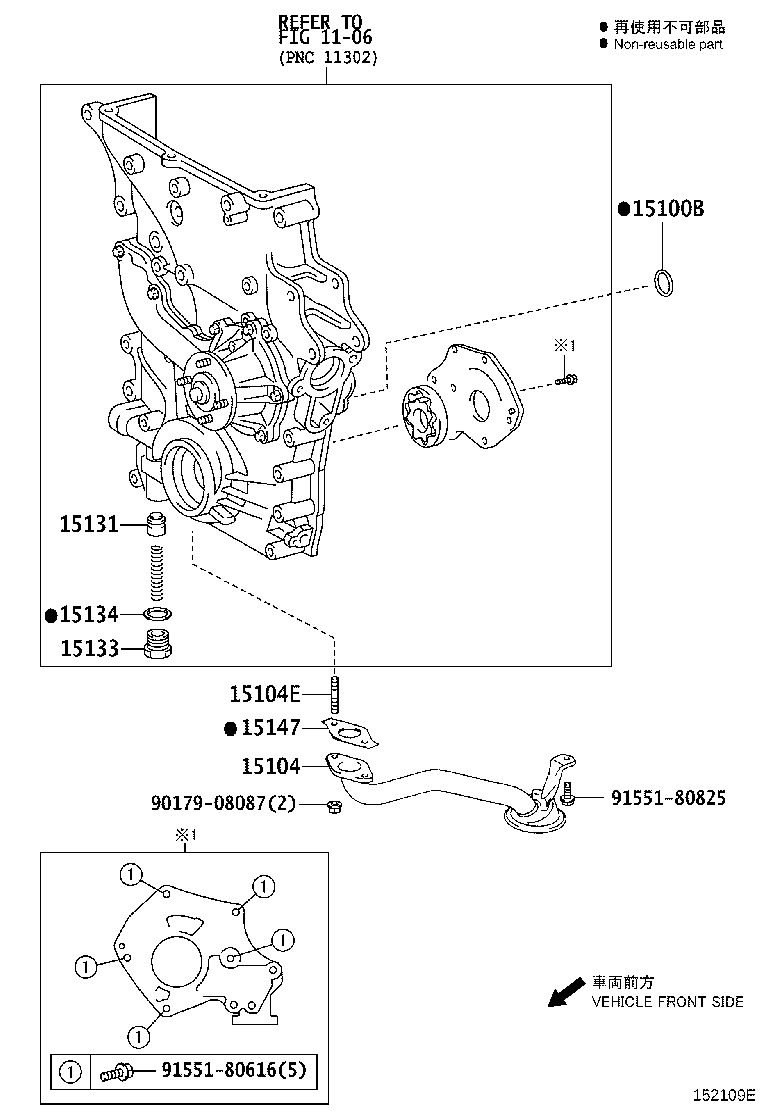

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 15100B — Ring, O(FOR OIL PUMP) | ||||
| 90301-19021 |
Ring, O(FOR OIL PUMP)
2013-12 → 2023-12
ended
|
1TRFE TRH200 V2 HRF +7 | ¥140 | |
| 90301-19021 |
Ring, O(FOR OIL PUMP)
2013-12 → 2021-07
ended
|
1TRFE TRH200 5F | ¥140 | |
| 90301-19021 |
Ring, O(FOR OIL PUMP)
2013-12 → —
|
2TRFE 03S .SRF TRH21#,22#;1TRFE +20 | ¥140 | |
| 15104 — Strainer Sub-assy, Oil | ||||
| 15104-11220 |
Strainer Sub-assy, Oil
2017-12 → 2020-05
ended
|
1GDFTV GDH20#,211,22# | ¥6,400 | |
| 15104-11220 |
Strainer Sub-assy, Oil
2017-12 → 2020-06
ended
|
1GDFTV GDH221,226 IV6 | ¥6,400 | |
| 15104-11221 |
Strainer Sub-assy, Oil
2020-06 → 2021-07
ended
|
1GDFTV GDH201,223 IV5 | ¥4,780 | |
| 15104-11221 |
Strainer Sub-assy, Oil
2020-06 → 2023-12
ended
|
1GDFTV CBU GDH201 V2 +9 | ¥4,780 | |
| 15104-11221 |
Strainer Sub-assy, Oil
2020-06 → —
|
1GDFTV 5D;1GDFTV ,211,22# GDH20# +19 | ¥4,780 | |
| 15104-67060 |
Strainer Sub-assy, Oil
2013-12 → 2017-11
ended
|
1KDFTV KDH20#,211,22# | ¥6,000 | |
| 15104-75111 |
Strainer Sub-assy, Oil
2013-12 → 2014-11
ended
|
1TRFE TRH200 SRF 5F;1TRFE +4 | ¥6,300 | |
| 15104-75111 |
Strainer Sub-assy, Oil
2013-12 → 2015-01
ended
|
1TRFE TRH200 V2 HRF +3 | ¥6,300 | |
| 15104-75220 |
Strainer Sub-assy, Oil
2014-11 → 2021-07
ended
|
1TRFE TRH200 SRF 5F;1TRFE +4 | ¥4,360 | |
| 15104-75220 |
Strainer Sub-assy, Oil
2015-01 → 2021-07
ended
|
1TRFE TRH200 V2 HRF +1 | ¥4,360 | |
| 15104-75220 |
Strainer Sub-assy, Oil
2014-11 → 2022-12
ended
|
1TRFE,2TRFE TRH200,21#,22# 6FC | ¥4,360 | |
| 15104-75221 |
Strainer Sub-assy, Oil
2023-01 → 2023-12
ended
|
1TRFE TRH200 V2 HRF +7 | ¥3,960 | |
| 15104-75221 |
Strainer Sub-assy, Oil
2023-01 → —
|
1TRFE S) TRH200 6FC;1TRFE,2TRFE +13 | ¥3,960 | |
| 15104E — Bolt, Stud(FOR OIL STRAINER) | ||||
| 90116-06140 |
Bolt, Stud(FOR OIL STRAINER)
2013-12 → 2017-11
ended
|
1KDFTV KDH20#,211,22# | ¥100 | |
| 90126-08052 note |
Bolt, Stud(FOR OIL STRAINER)
2013-12 → 2014-11
ended
|
1TRFE TRH200 SRF 5F;1TRFE +4 | ¥80 | |
| 90126-08052 note |
Bolt, Stud(FOR OIL STRAINER)
2013-12 → 2015-01
ended
|
1TRFE TRH200 V2 HRF +3 | ¥80 | |
| 15131 — Valve, Oil Pump Relief | ||||
| 15131-46040 |
Valve, Oil Pump Relief
2013-12 → 2021-07
ended
|
1TRFE TRH200 5F | ¥310 | |
| 15131-46040 |
Valve, Oil Pump Relief
2013-12 → 2023-12
ended
|
1TRFE TRH200 V2 HRF +7 | ¥310 | |
| 15131-46040 |
Valve, Oil Pump Relief
2013-12 → —
|
2TRFE 03S .SRF TRH21#,22#;1TRFE +20 | ¥310 | |
| 15133 — Plug, Oil Pump Relief Valve | ||||
| 15133-17010 |
Plug, Oil Pump Relief Valve
2013-12 → 2014-06
ended
|
1TRFE TRH200 | ¥280 | |
| 15133-33040 |
Plug, Oil Pump Relief Valve
2014-06 → 2021-07
ended
|
1TRFE TRH200 5F | ¥260 | |
| 15133-33040 |
Plug, Oil Pump Relief Valve
2014-06 → 2023-12
ended
|
1TRFE TRH200 V2 HRF +7 | ¥260 | |
| 15133-33040 |
Plug, Oil Pump Relief Valve
2014-06 → —
|
1TRFE TRH200 H200,21#,22# TRH200 +20 | ¥260 | |
| 15134 — Gasket, Oil Pump Relief Valve | ||||
| 15134-67020 |
Gasket, Oil Pump Relief Valve
2013-12 → 2023-12
ended
|
1TRFE TRH200 V2 HRF +7 | ¥240 | |
| 15134-67020 |
Gasket, Oil Pump Relief Valve
2013-12 → —
|
2TRFE 03S .SRF TRH21#,22#;1TRFE +20 | ¥240 | |
| 15134-67020 |
Gasket, Oil Pump Relief Valve
2013-12 → 2021-07
ended
|
1TRFE TRH200 5F | ¥240 | |
| 15147 — Gasket, Oil Strainer | ||||
| 15147-75030 |
Gasket, Oil Strainer
2013-12 → 2014-11
ended
|
1TRFE TRH200 SRF 5F;1TRFE +4 | ¥270 | |
| 15147-75030 |
Gasket, Oil Strainer
2013-12 → 2015-01
ended
|
1TRFE TRH200 V2 HRF +3 | ¥270 | |
| 15147-75040 |
Gasket, Oil Strainer
2014-11 → 2017-10
ended
|
1TRFE 2# TRH200 (COM,V1,WG) +9 | ¥460 | |
| 15147-75040 |
Gasket, Oil Strainer
2015-01 → 2017-10
ended
|
1TRFE TRH200 V2 HRF +1 | ¥460 | |
| 15147-75041 |
Gasket, Oil Strainer
2017-11 → 2021-07
ended
|
1TRFE TRH200 5F | ¥380 | |
| 15147-75041 |
Gasket, Oil Strainer
2017-11 → 2023-01
ended
|
1TRFE,2TRFE TRH200,21#,22# 6FC | ¥380 | |
| 15147-75042 |
Gasket, Oil Strainer
2023-01 → 2023-12
ended
|
1TRFE TRH200 V2 HRF +7 | ¥340 | |
| 15147-75042 |
Gasket, Oil Strainer
2023-01 → —
|
1TRFE S) TRH200 6FC;1TRFE,2TRFE +13 | ¥340 | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
