Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

10 part groups · 5 illustrations

Illustrations

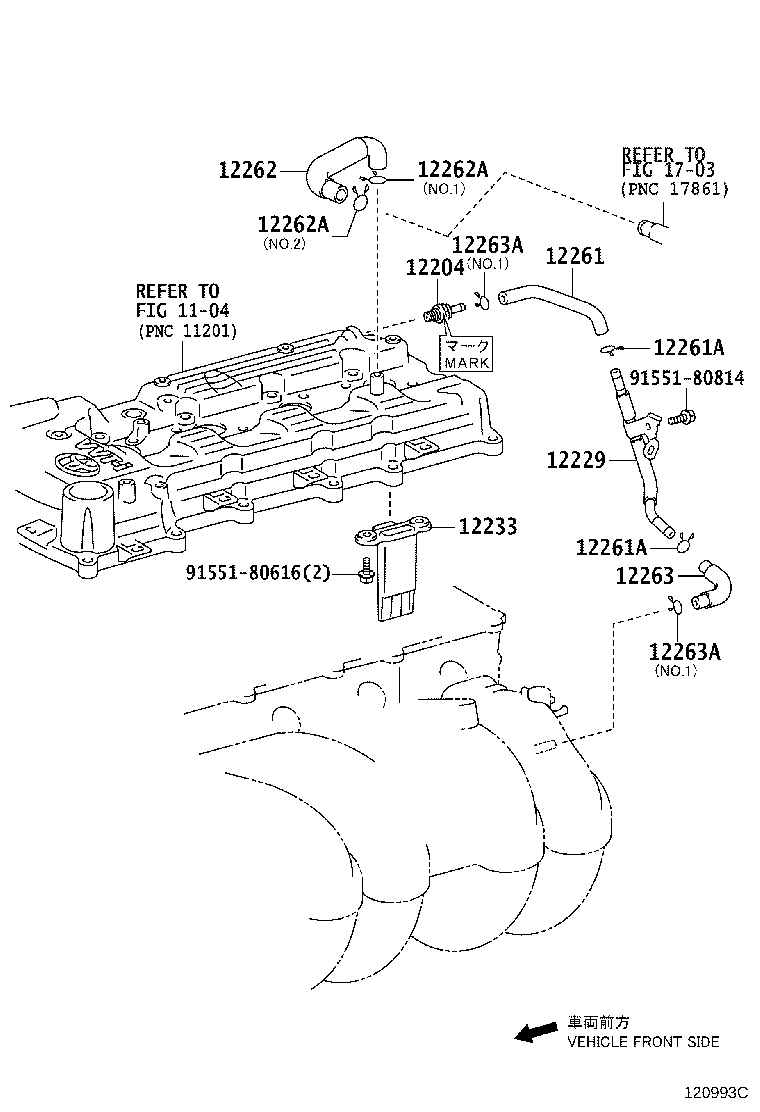

Figure 121160A 121160A 2017-12 → — Figure 120931A 120931A 2013-12 → — Figure 120926C 120926C 2013-12 → 2015-01 Figure 120993C 120993C 2015-01 → — Figure 120993C 120993C 2017-12 → —

Part groups

PNCDescription
12204 Valve Sub-assy, Ventilation
12229 Pipe, Ventilation
12233 Connector, Ventilation NO.1
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
1629F Hose, Water By-pass, NO.19
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
