Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator & Water Outlet

107 part groups · 17 illustrations

Illustrations

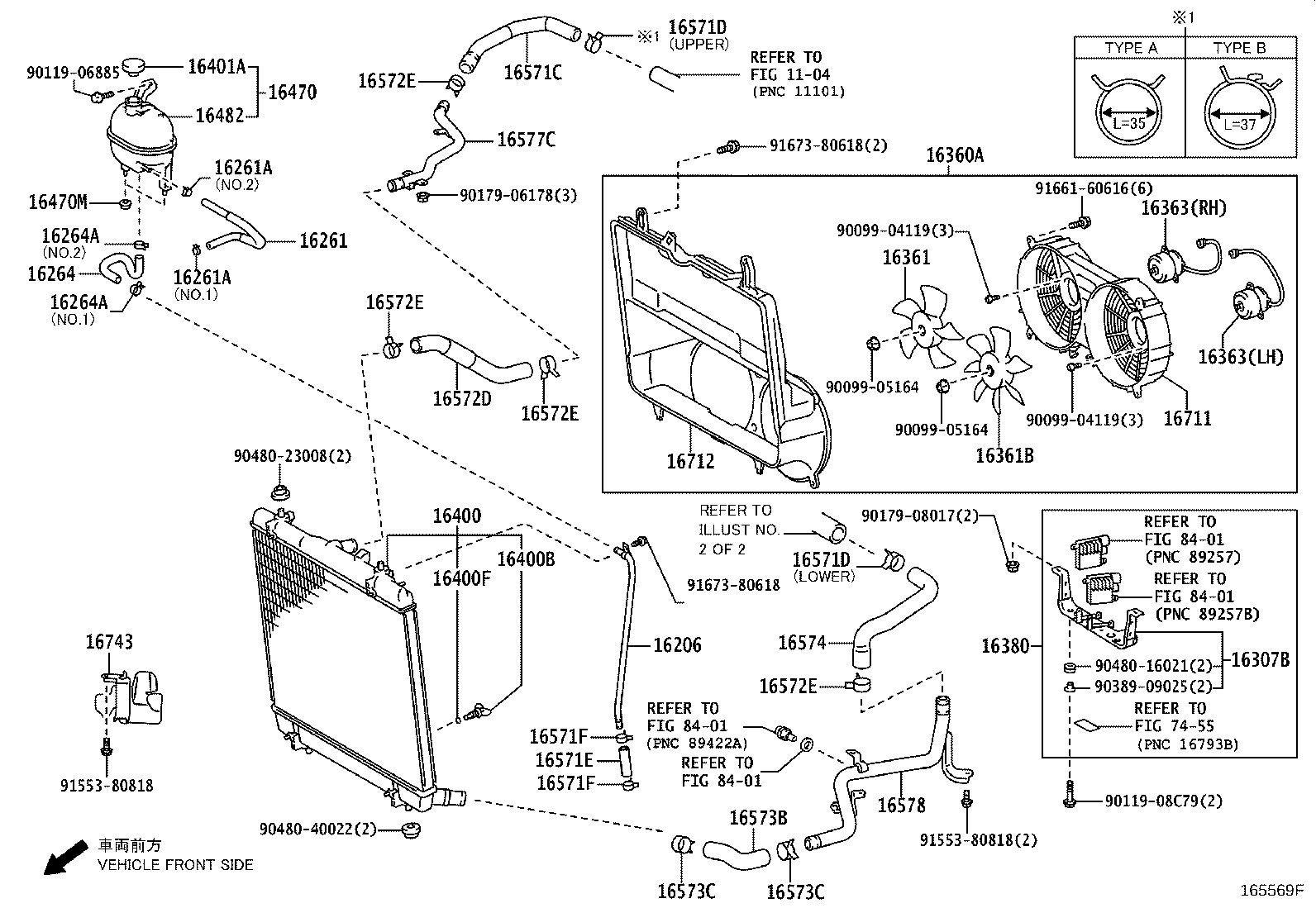

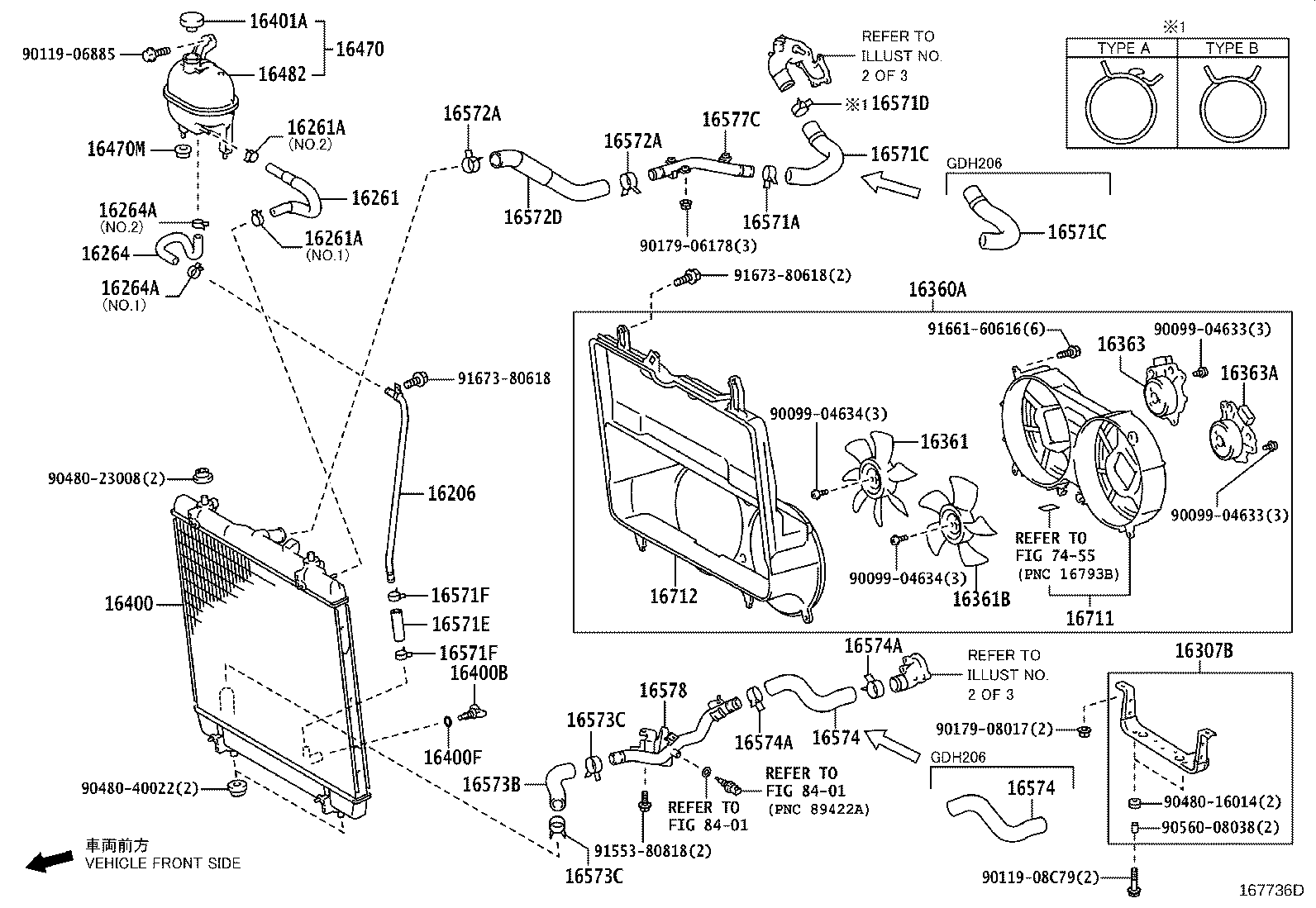

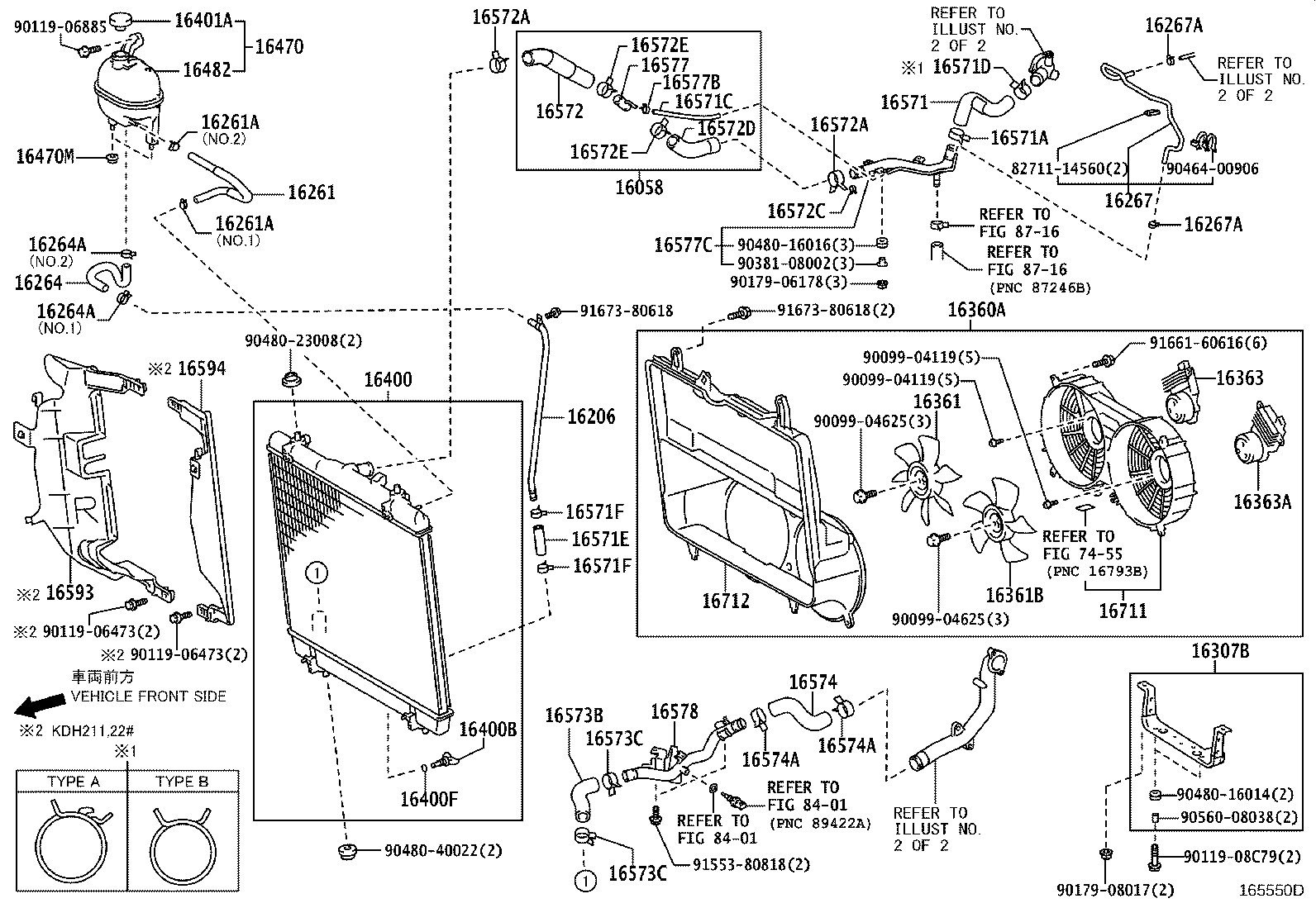

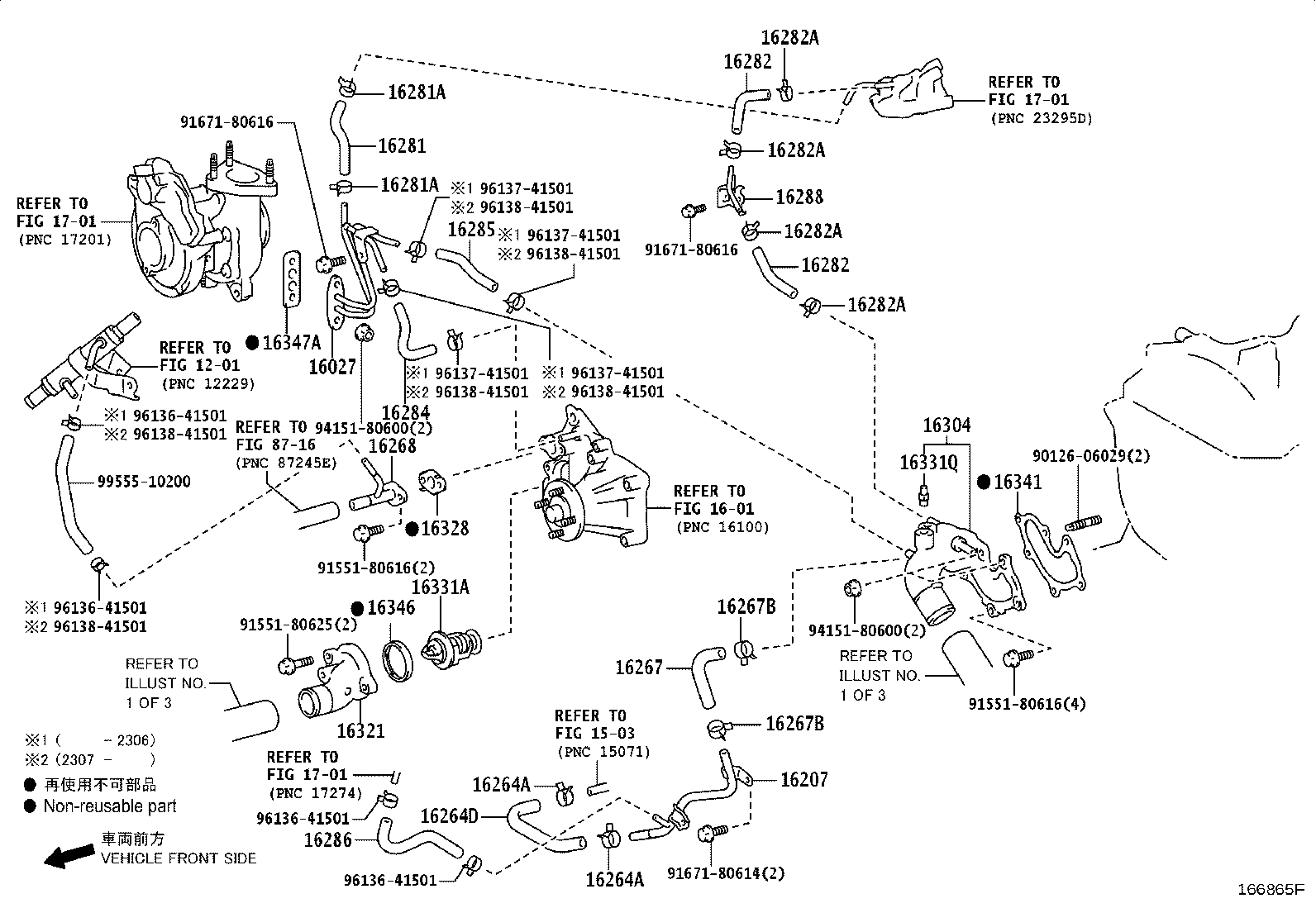

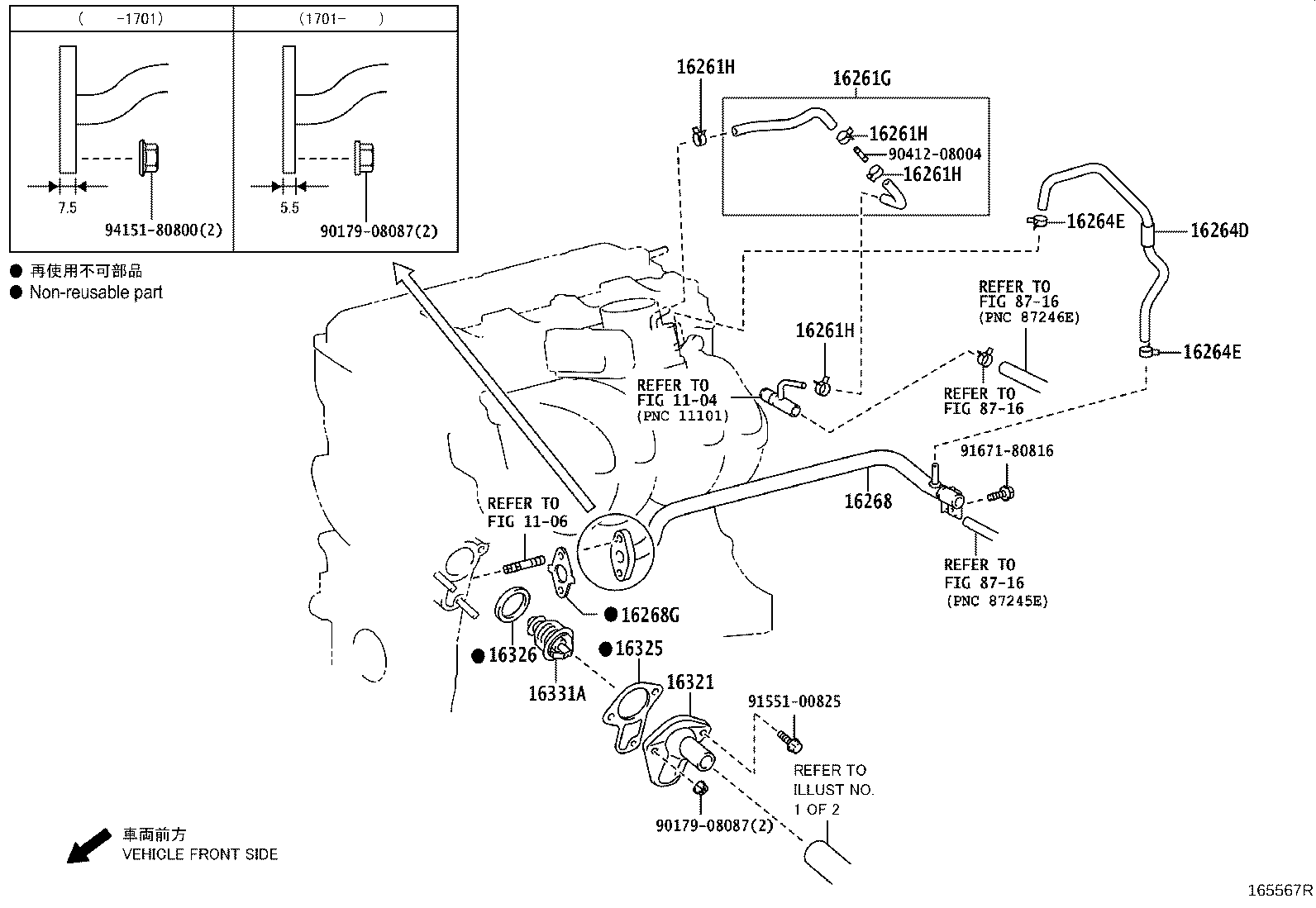

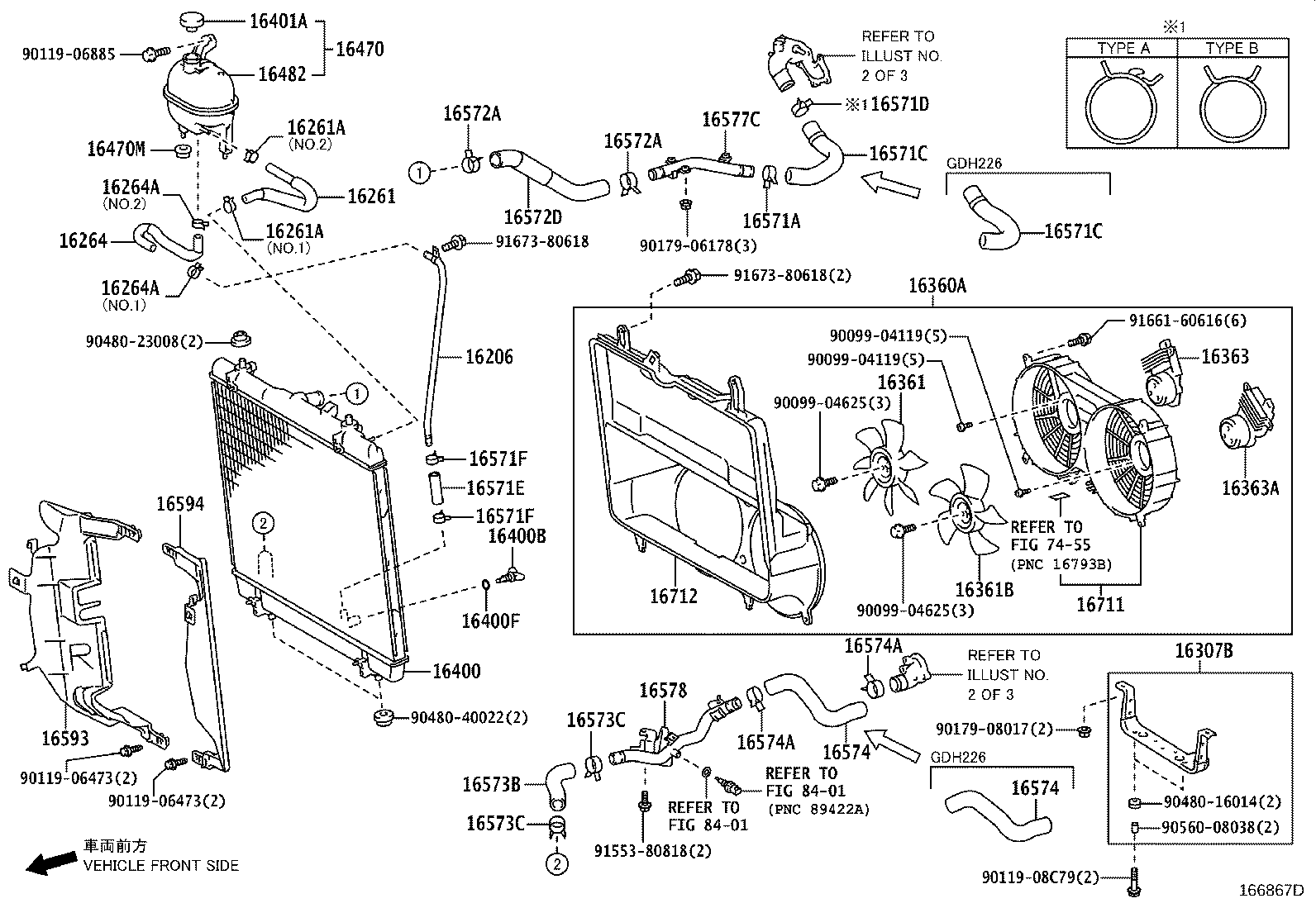

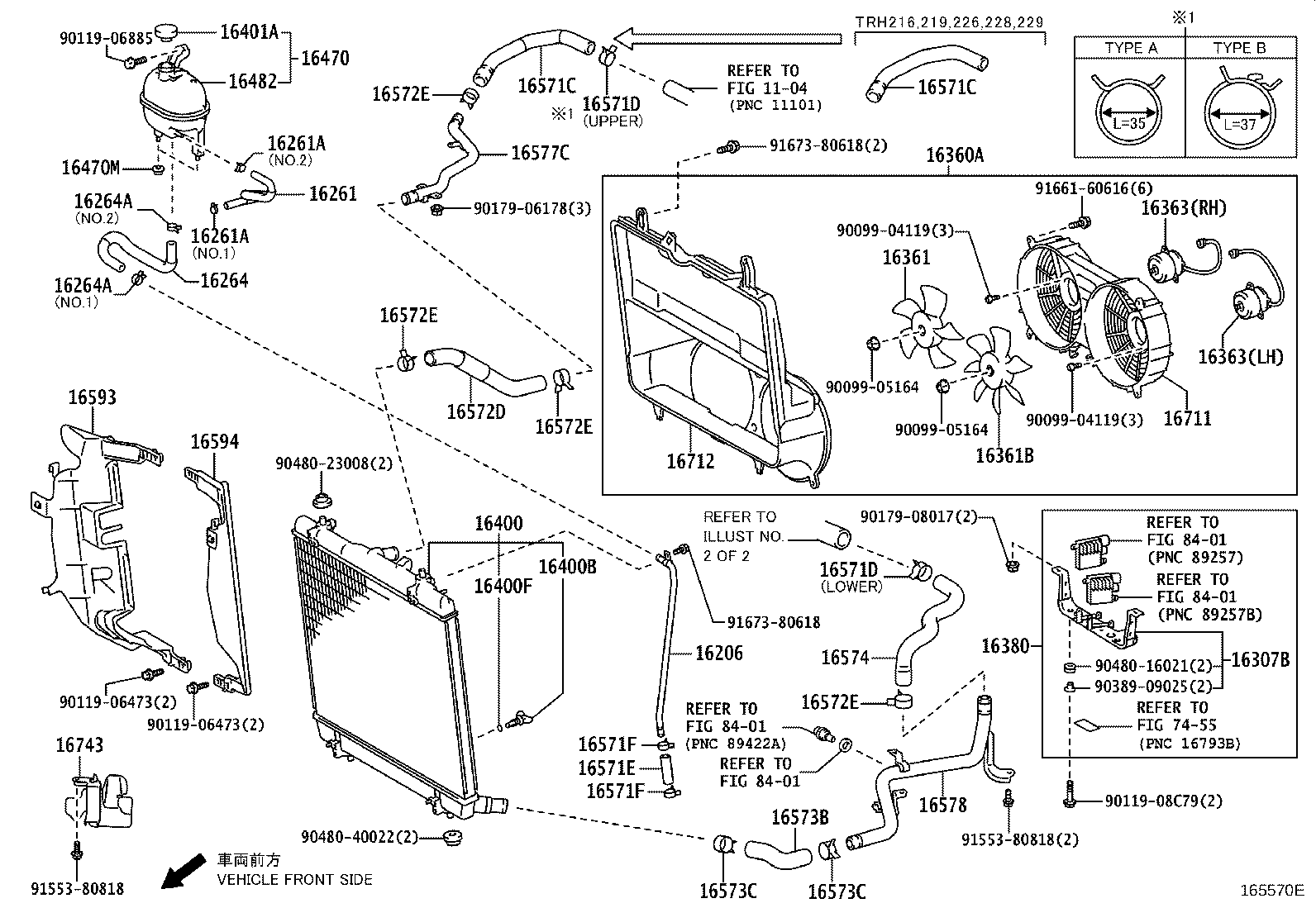

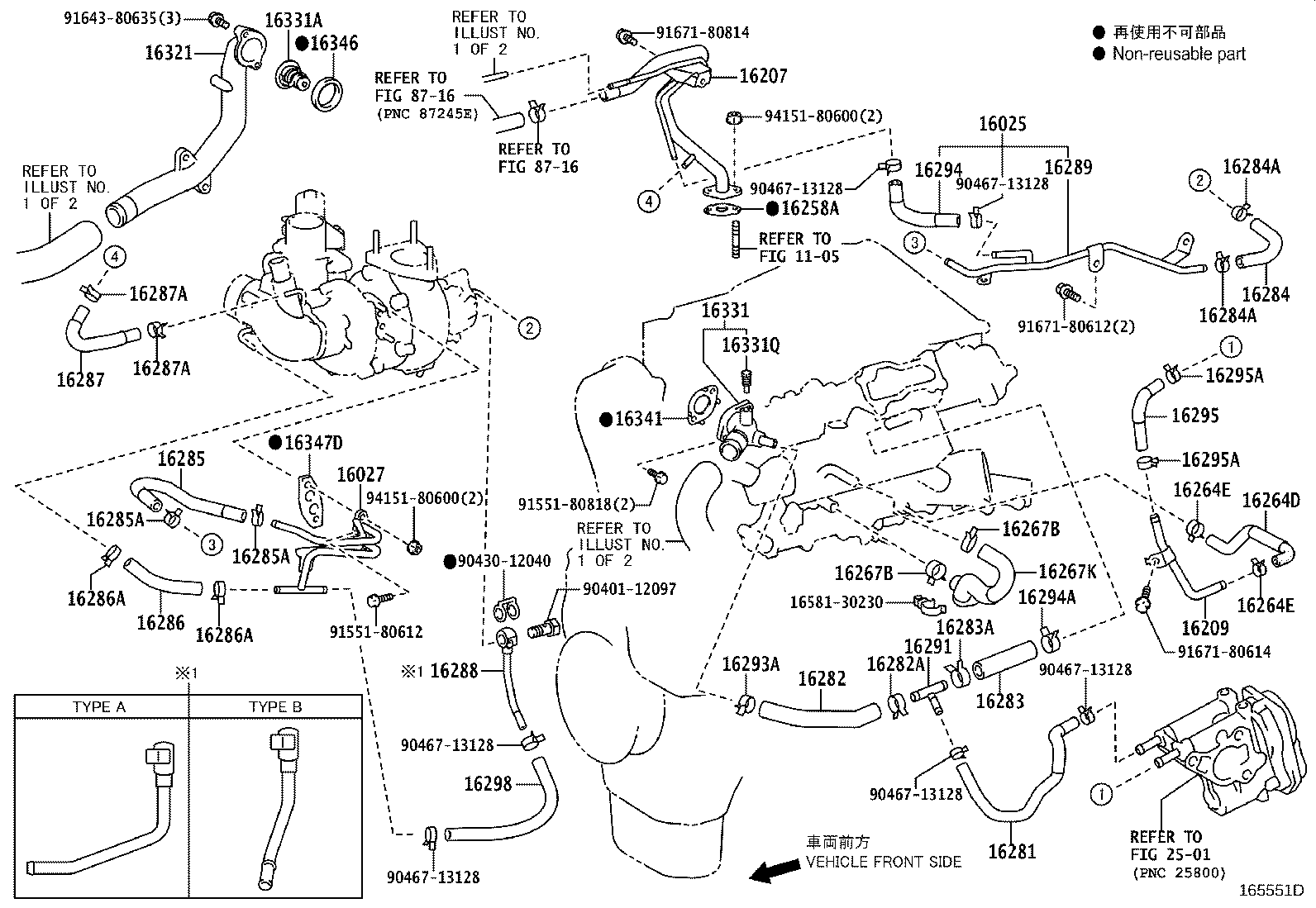

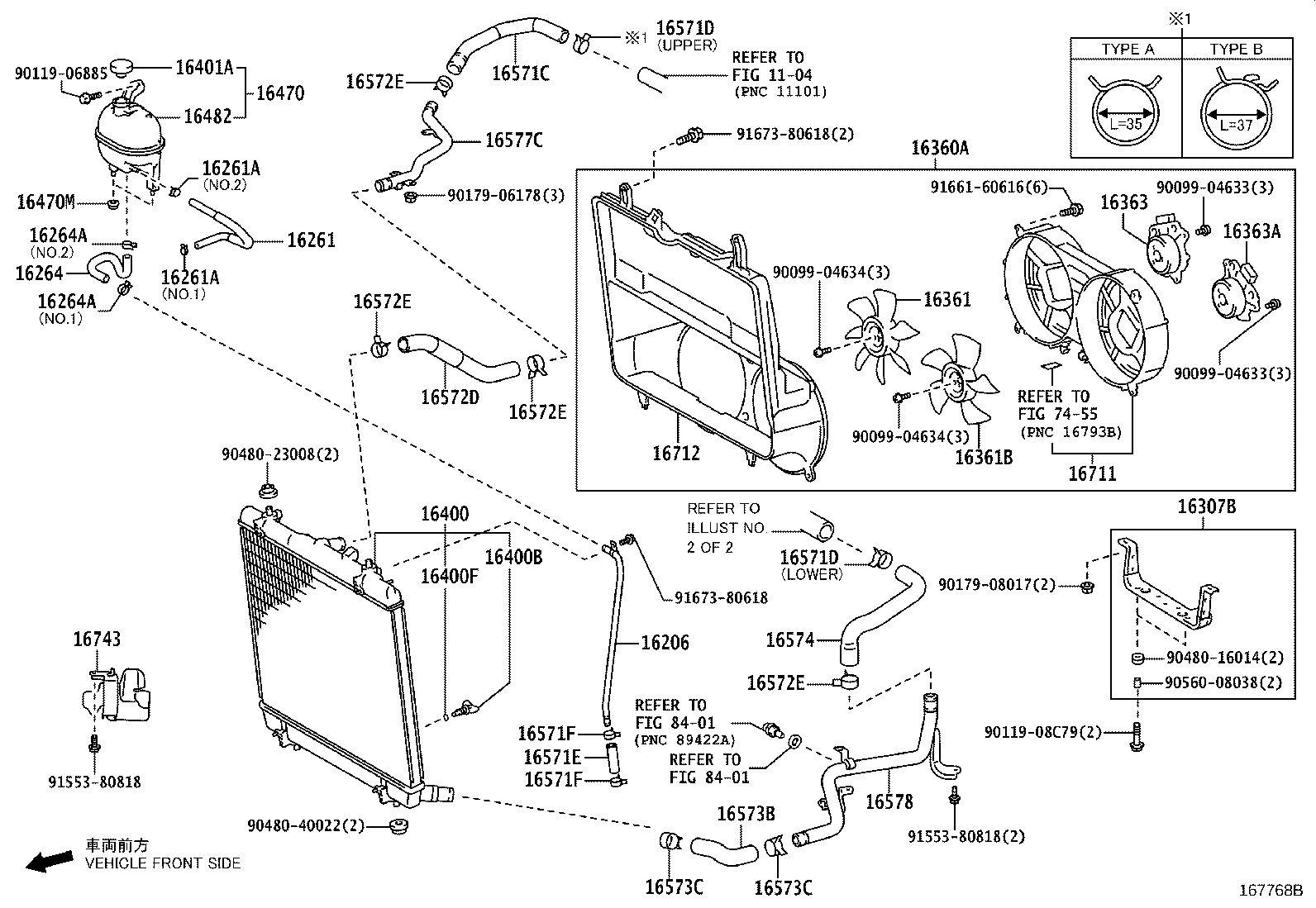

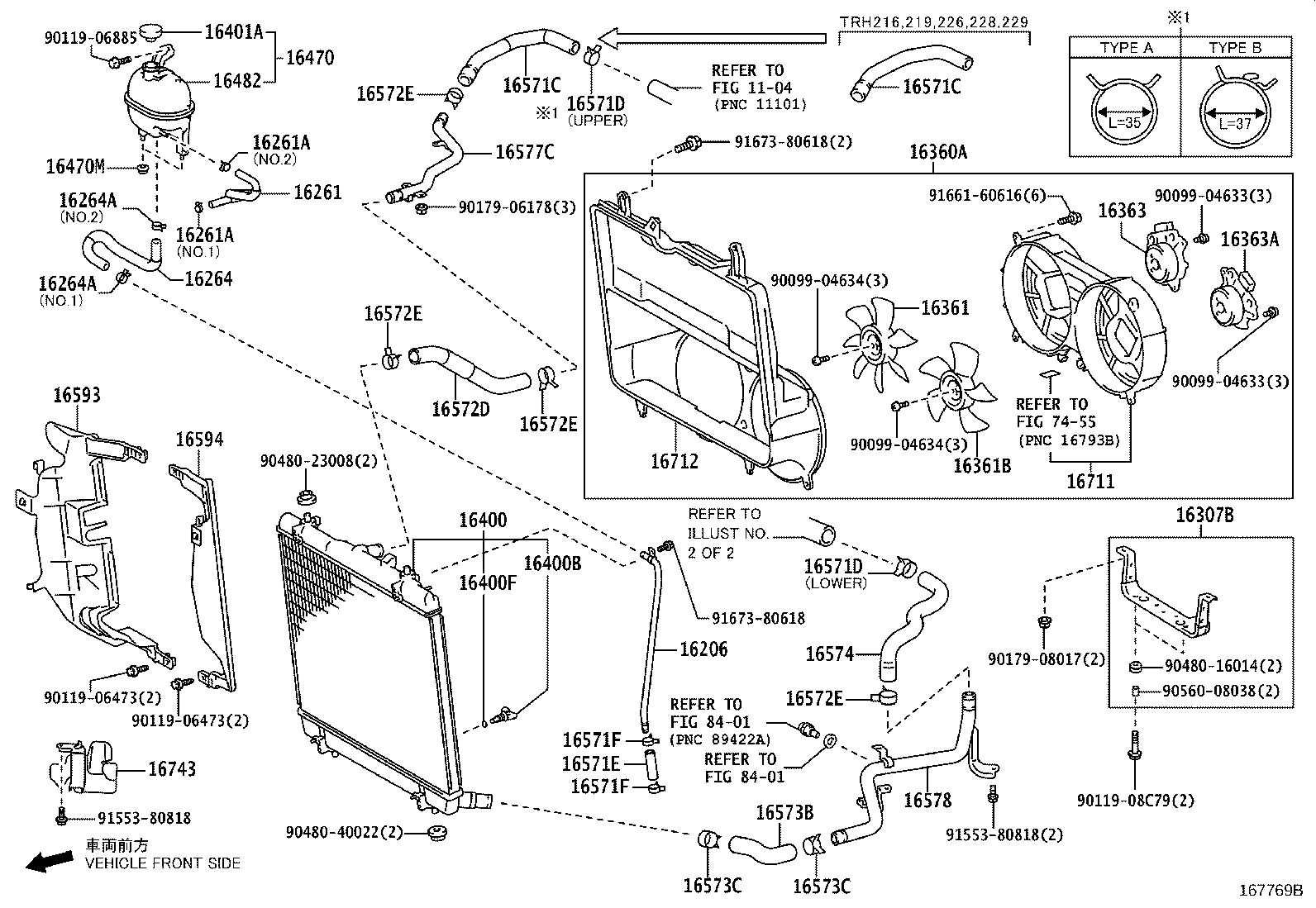

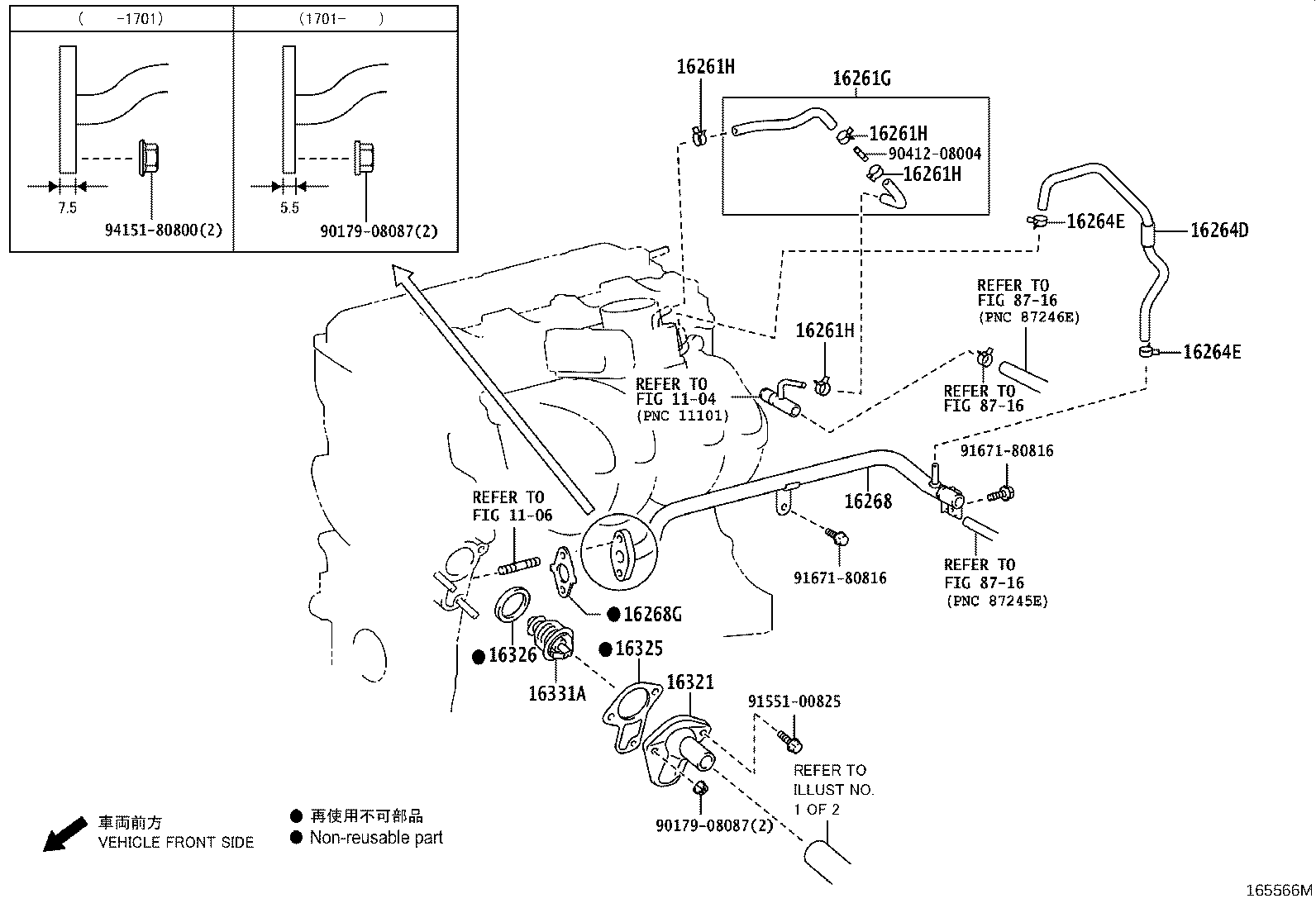

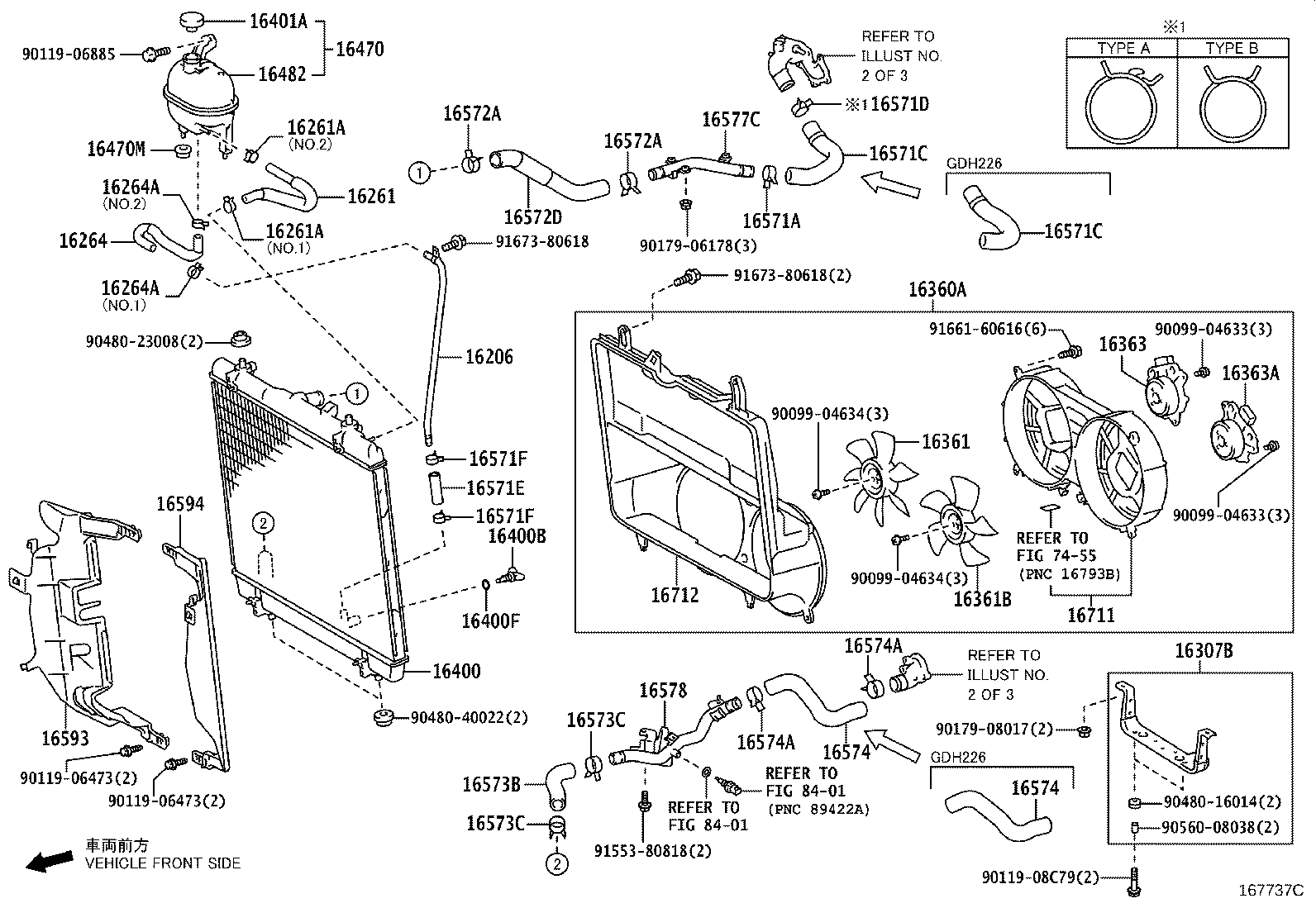

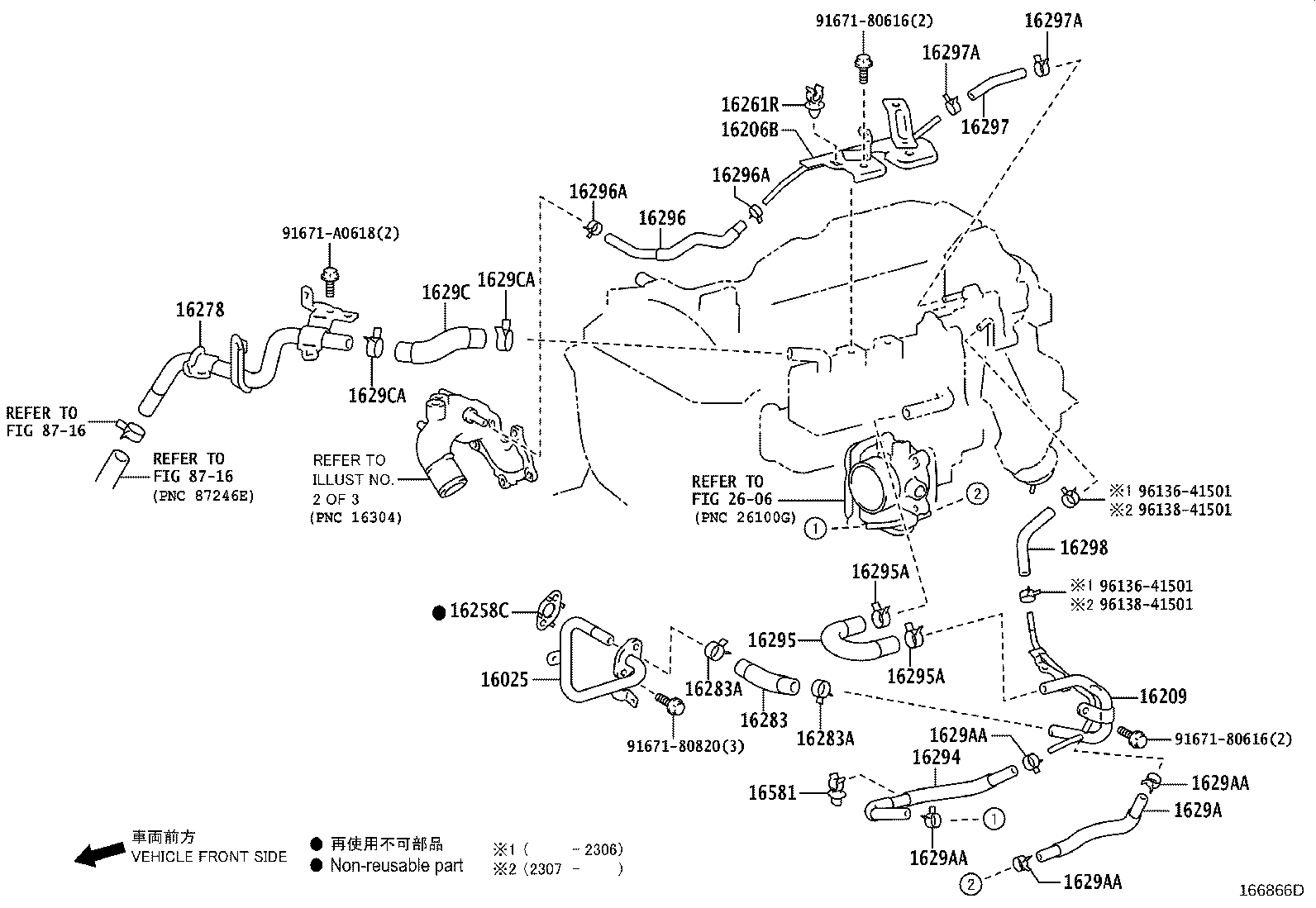

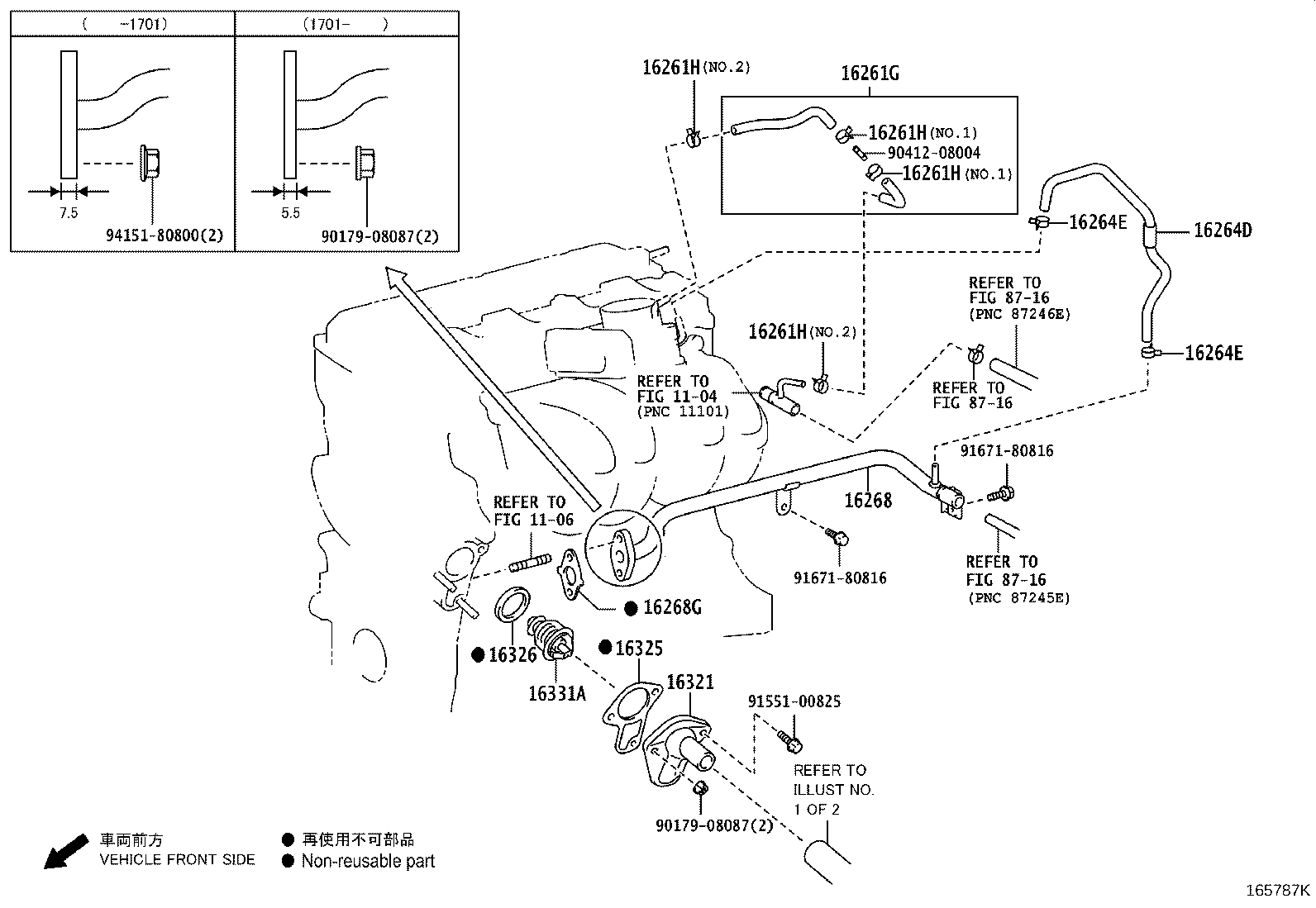

Figure 166869D 166869D 2017-12 → 2020-05 Figure 167736D 167736D 2020-05 → — Figure 166867D 166867D 2017-12 → 2020-05 Figure 167737C 167737C 2020-05 → — Figure 166865F 166865F 2017-12 → — Figure 166866D 166866D 2017-12 → — Figure 165550D 165550D 2013-12 → — Figure 165551D 165551D 2013-12 → — Figure 165569F 165569F 2013-12 → 2020-05 Figure 167768B 167768B 2020-05 → — Figure 165570E 165570E 2013-12 → 2020-05 Figure 167769B 167769B 2020-05 → — Figure 165566M 165566M 2013-12 → 2014-11 Figure 165566M 165566M 2013-12 → — Figure 165787K 165787K 2014-11 → — Figure 165567R 165567R 2013-12 → — Figure 165567R 165567R 2017-12 → —

Part groups

PNCDescription
16025 Pipe Sub-assy, Water By-pass, NO.5
16027 Pipe Sub-assy, Turbo Water, NO.1
16058 Hose Sub-assy, Radiator, NO.2
16206 Pipe Sub-assy, Water By-pass
16206B Pipe Sub-assy, Water By-pass, NO.3
16207 Pipe Sub-assy, Water By-pass, NO.2
16209 Pipe Sub-assy, Water By-pass, NO.4
16258A Gasket(FOR HEATER RETURN)
16258C Gasket(FOR WATER BY-PASS PIPE)
16261 Hose, Water By-pass
16261A Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
16261G Hose, Water By-pass, NO.1
16261H Clip(FOR WATER BY-PASS HOSE NO.1)
16261R Clamp OR Clip(FOR WATER BY-PASS HOSE)
16264 Hose, Water By-pass, NO.2
16264A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
16264D Hose, Water By-pass, NO.2
16264E Clip(FOR WATER BY-PASS HOSE NO.2)
16267 Hose, Water By-pass, NO.3
16267A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.3)
16267B Clip(FOR WATER BY-PASS HOSE)
16267K Hose, Water By-pass, NO.3
16268 Pipe, Water By-pass, NO.1
16268G Gasket(FOR WATER BY-PASS PIPE)
16278 Pipe, Water By-pass, NO.2
16281 Hose, Water By-pass, NO.4
16281A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.4)
16282 Hose, Water By-pass, NO.5
16282A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.5)
16283 Hose, Water By-pass, NO.6
16283A Clamp OR Clip(FOR WATER BY-PASS HOSE NO.6)
16284 Hose, Turbo Water, NO.1
16284A Clip(FOR TURBO WATER HOSE NO.1)
16285 Hose, Turbo Water, NO.2
16285A Clip(FOR TURBO WATER HOSE NO.2)
16286 Hose, Turbo Water, NO.3
16286A Clip(FOR TURBO WATER HOSE NO.3)
16287 Hose, Turbo Water, NO.4
16287A Clip(FOR TURBO WATER HOSE NO.4)
16288 Pipe, Water By-pass, NO.4
16289 Pipe, Water By-pass, NO.5
16291 Joint, Water Hose
16293A Clip(FOR WATER BY-PASS HOSE NO.10)
16294 Hose, Water By-pass, NO.11
16294A Clip(FOR WATER BY-PASS HOSE NO.11)
16295 Hose, Water By-pass, NO.7
16295A Clip(FOR WATER BY-PASS HOSE NO.7)
16296 Hose, Water By-pass, NO.8
16296A Clip(FOR WATER BY-PASS HOSE NO.8)
16297 Hose, Water By-pass, NO.9
16297A Clip(FOR WATER BY-PASS HOSE NO.9)
16298 Hose, Water By-pass, NO.12
1629A Hose, Water By-pass, NO.14
1629AA Clip(FOR WATER BY-PASS HOSE NO.14)
1629C Hose, Water By-pass, NO.16
1629CA Clip(FOR WATER BY-PASS HOSE NO.16)
16304 Outlet Sub-assy, Water
16307B Bracket Sub-assy, Fan
16321 Inlet, Water
16325 Gasket, Water Inlet Housing, NO.1
16326 Gasket, Water Inlet Housing, NO.2
16328 Gasket, Water Inlet Pipe
16331 Outlet, Water
16331A Thermostat
16331Q Plug(FOR WATER OUTLET)
16341 Gasket, Water Outlet
16346 Gasket, Thermostat
16347A Gasket(FOR TURBO WATER PIPE)
16347D Gasket, Water By-pass
16360A Fan Assy, W/Motor
16361 Fan
16361B Fan, NO.2
16363 Motor, Cooling Fan
16363A Motor, Cooling Fan, NO.2
16380 Bracket Assy, Fan
16400 Radiator Assy
16400B Plug, Radiator Drain Cock
16400F Packing(FOR RADIATOR DRAIN COCK)
16401A Cap Sub-assy, Radiator Reserve Tank
16470 Tank Assy, Radiator Reserve
16470M Grommet
16482 Tank Sub-assy, Radiator Reserve
16571 Hose, Radiator, Inlet
16571A Clamp OR Clip, Hose(FOR RADIATOR INLET)
16571C Hose, Radiator, NO.1
16571D Clip, Radiator Hose, NO.1
16571E Hose, Water
16571F Clamp OR Clip(FOR WATER HOSE)
16572 Hose, Radiator, Outlet
16572A Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.1)
16572C Clamp OR Clip, Hose(FOR RADIATOR OUTLET NO.2)
16572D Hose, Radiator, NO.2
16572E Clip, Radiator Hose, NO.2
16573B Hose, Radiator, NO.3
16573C Clamp OR Clip, Radiator Hose, NO.3
16574 Hose, Radiator, NO.4
16574A Clip, Radiator Hose, NO.4
16577 Pipe, Radiator, NO.7
16577B Clamp OR Clip, Hose(FOR RADIATOR PIPE)
16577C Pipe, Radiator
16578 Pipe, Radiator, NO.2
16581 Clamp, Hose(FOR WATER HOSE)
16593 Guide, Radiator Air, NO.1
16594 Guide, Radiator Air, NO.2
16711 Shroud, Fan
16712 Shroud, Fan, NO.2
16743 Protector, Fan Shroud
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
