Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

55 part groups · 12 illustrations

Illustrations

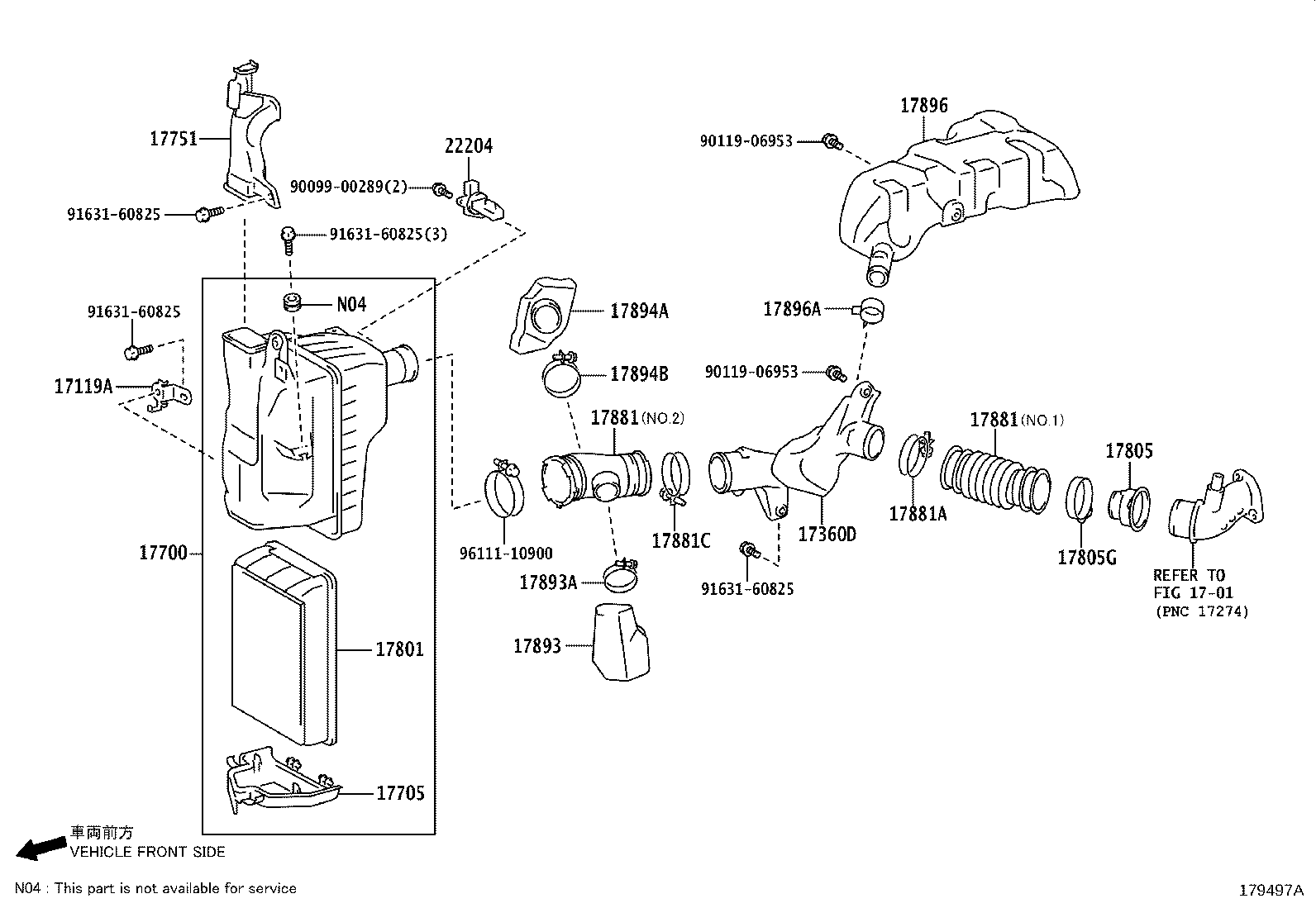

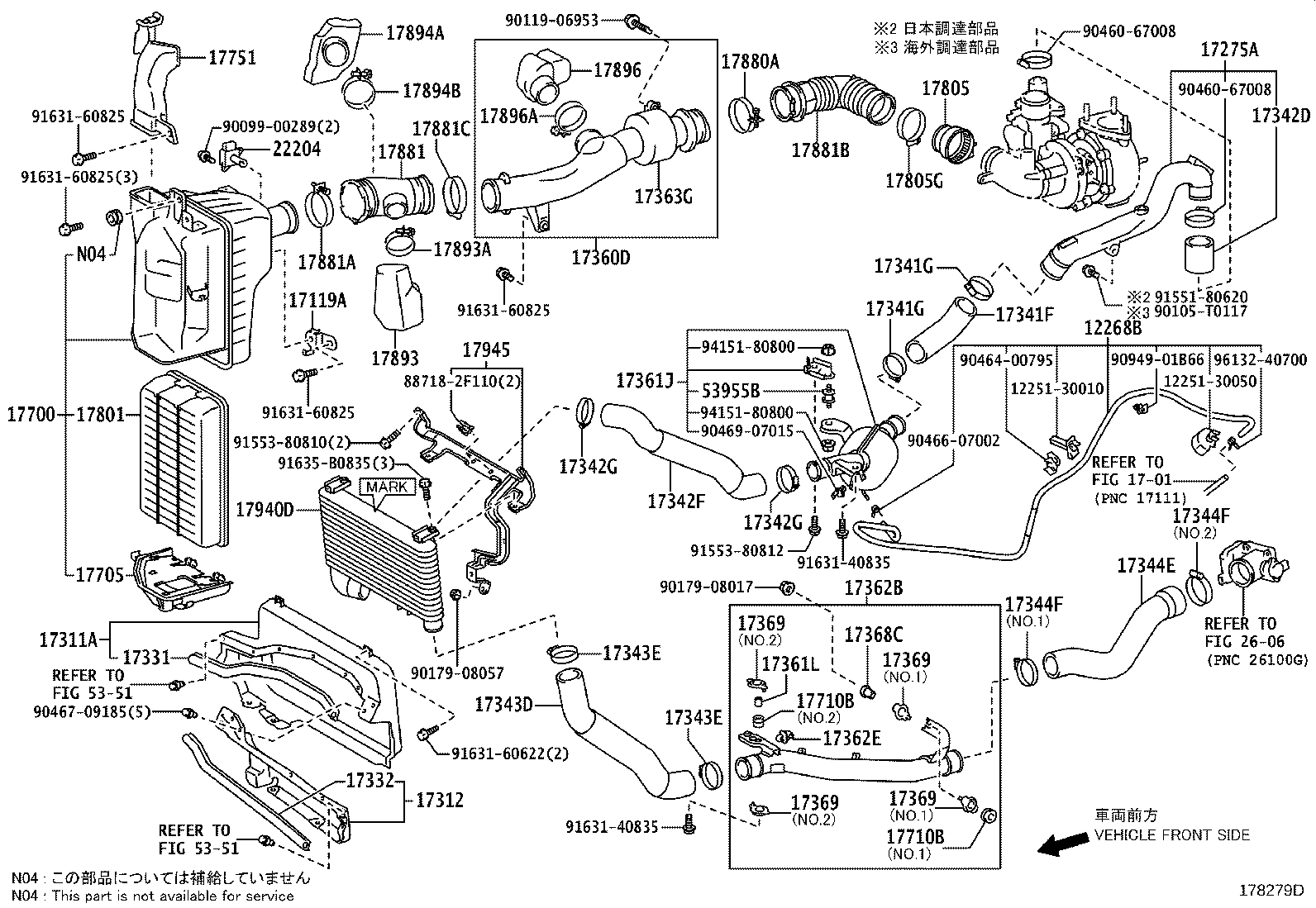

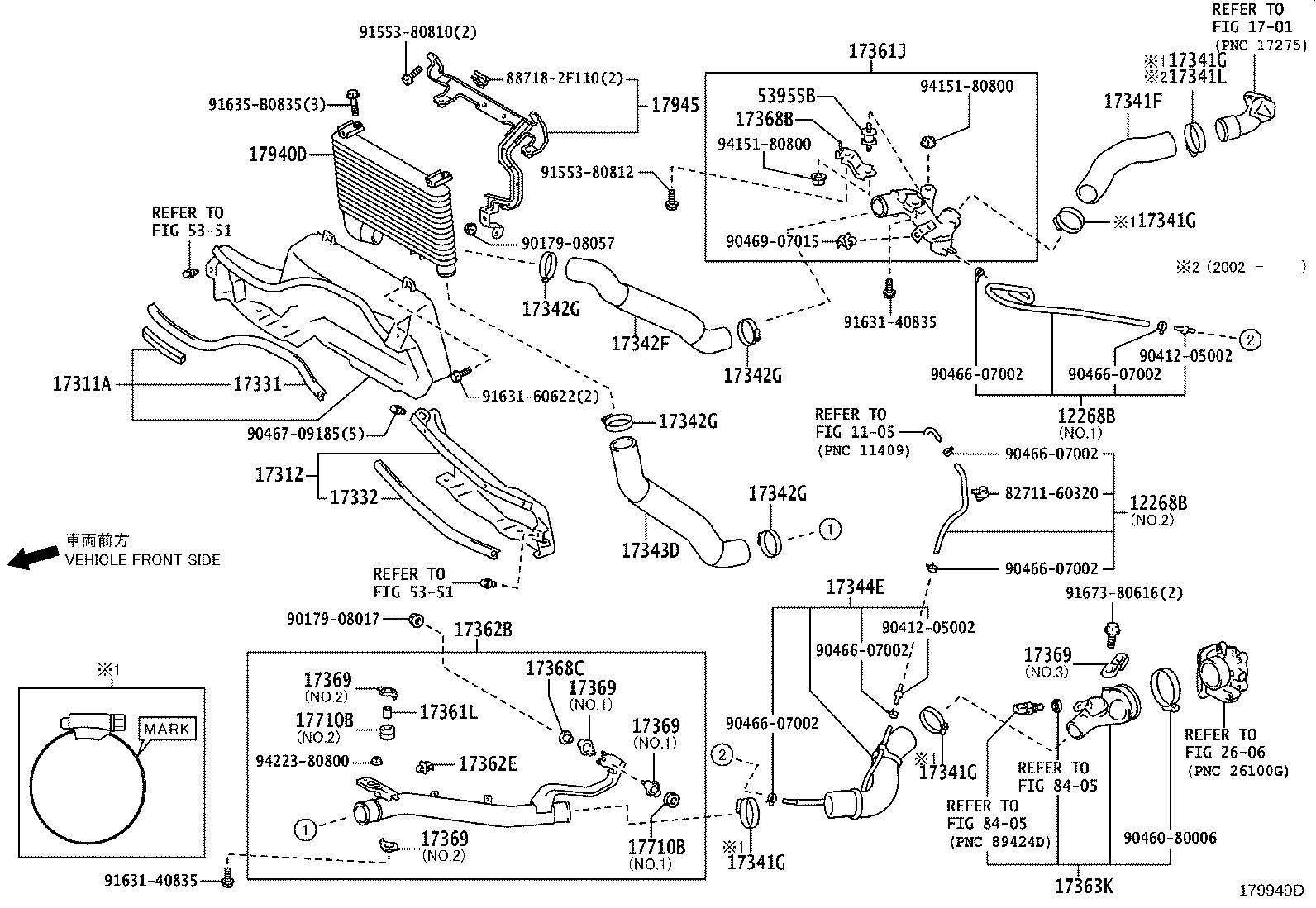

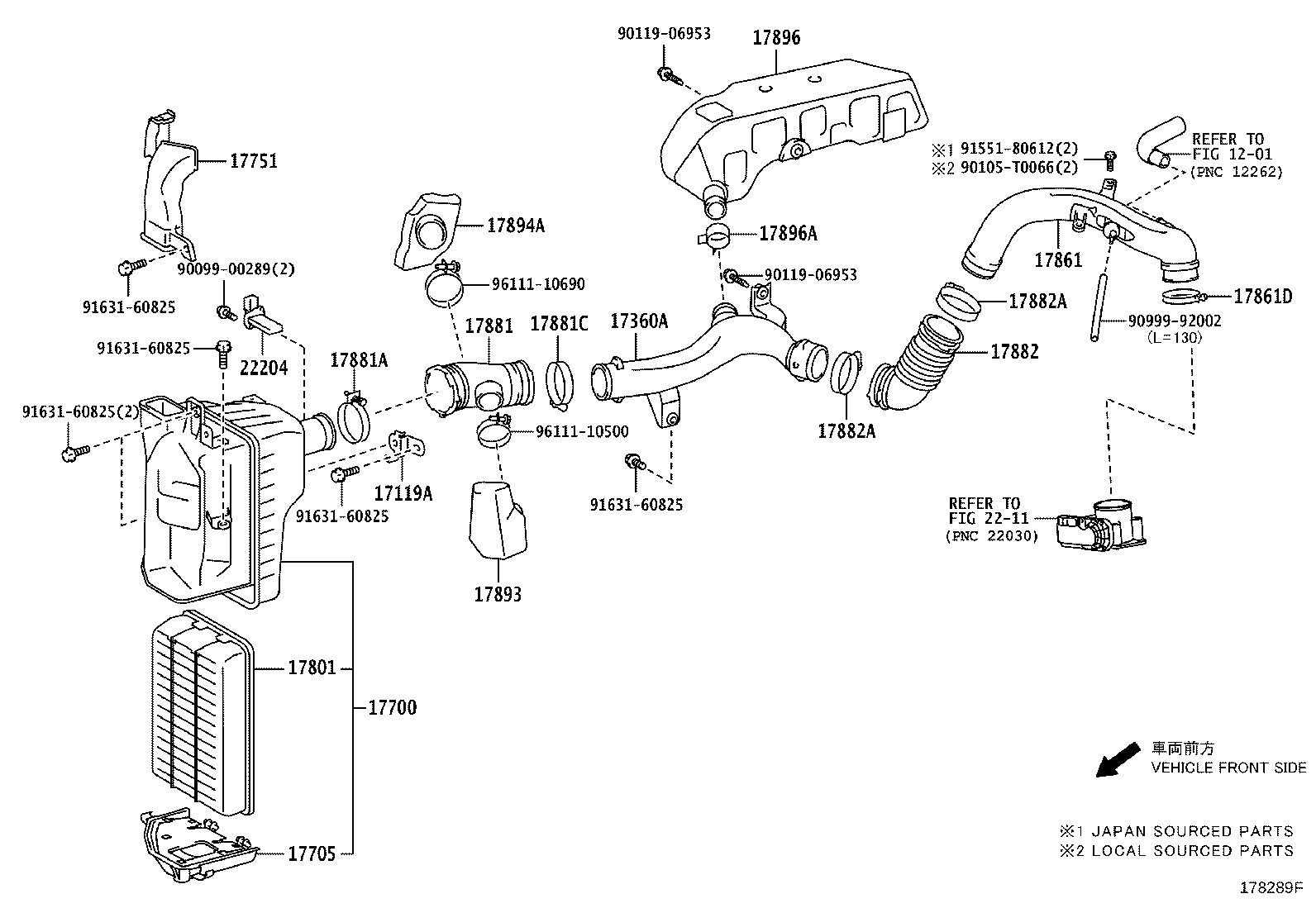

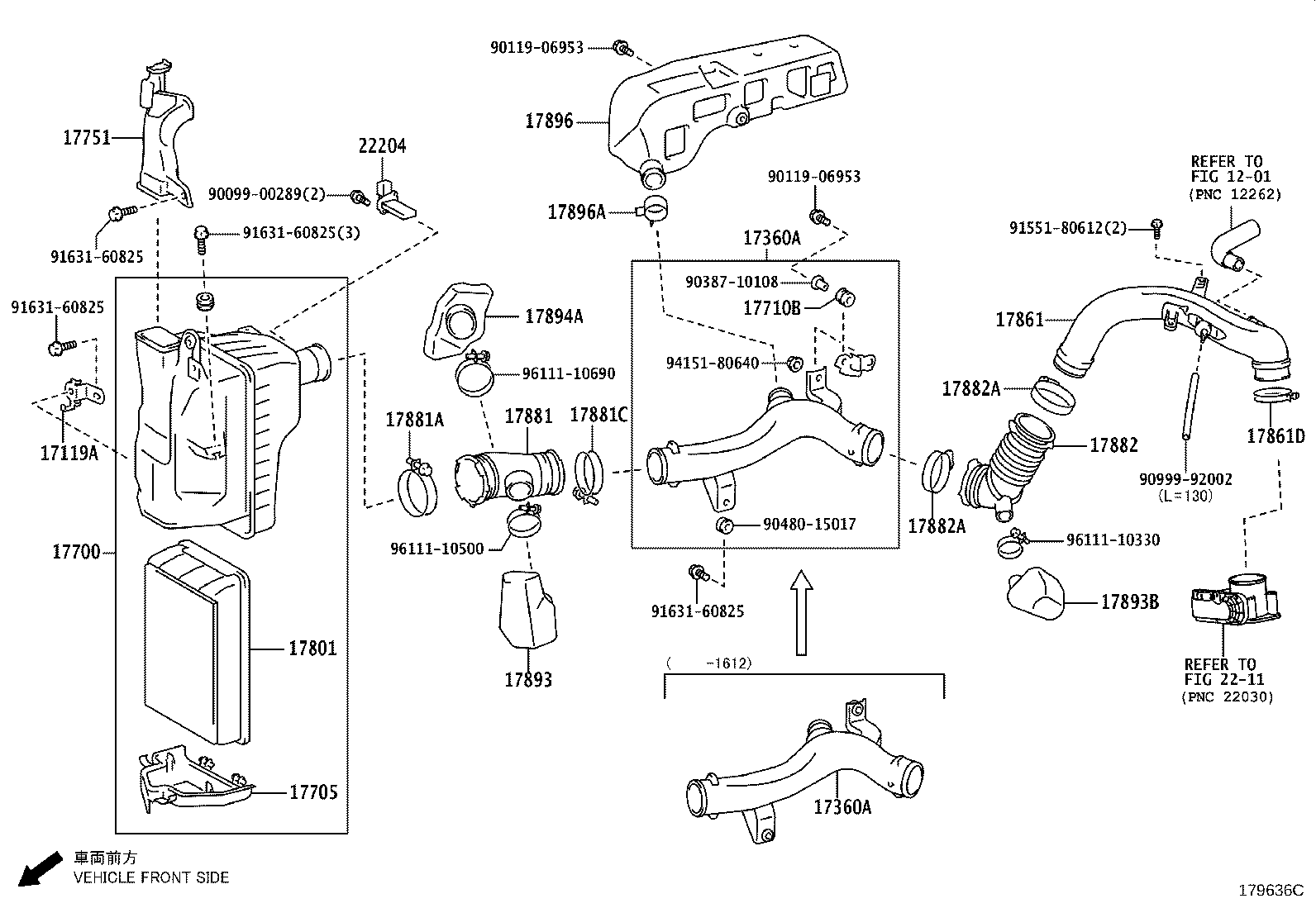

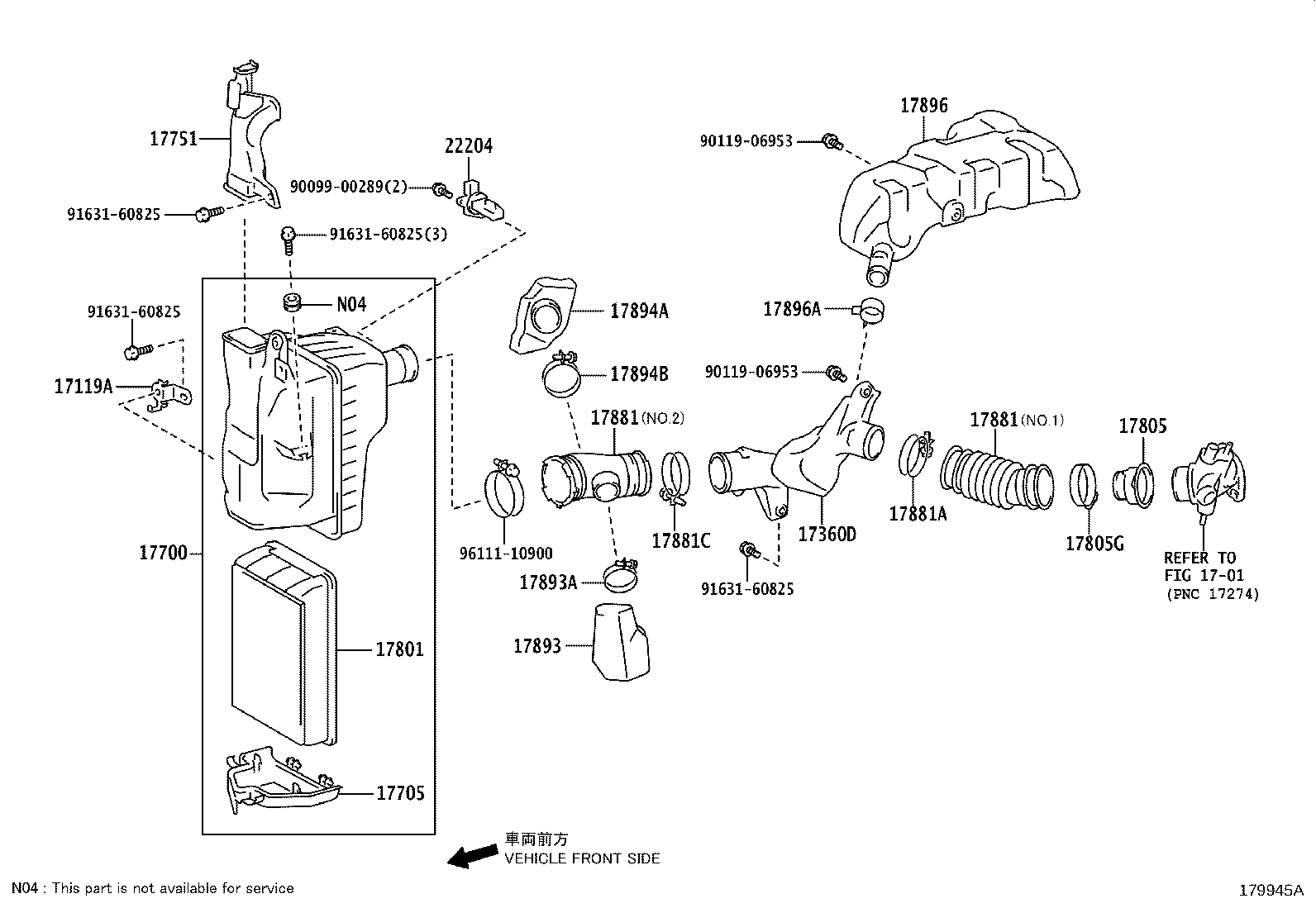

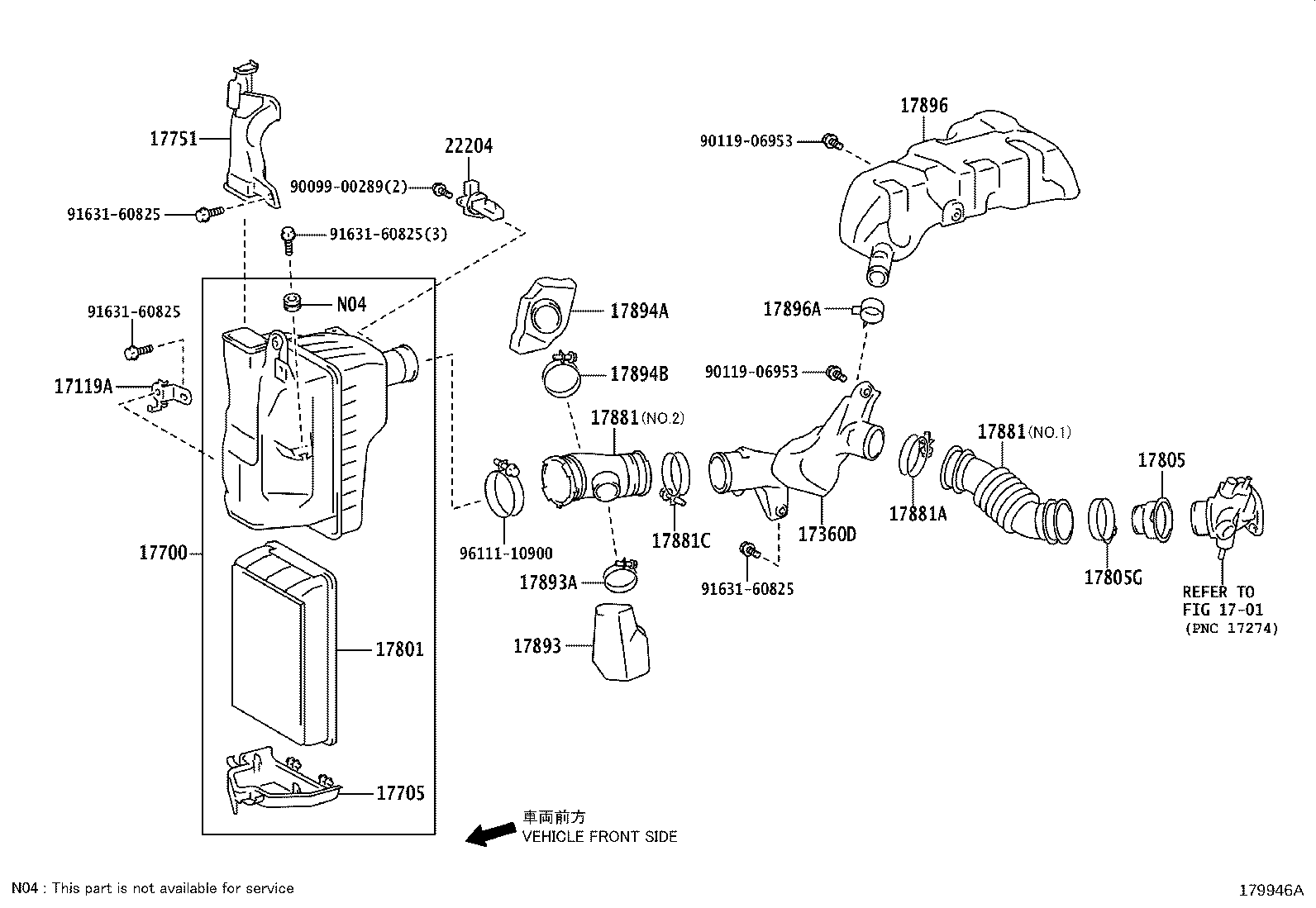

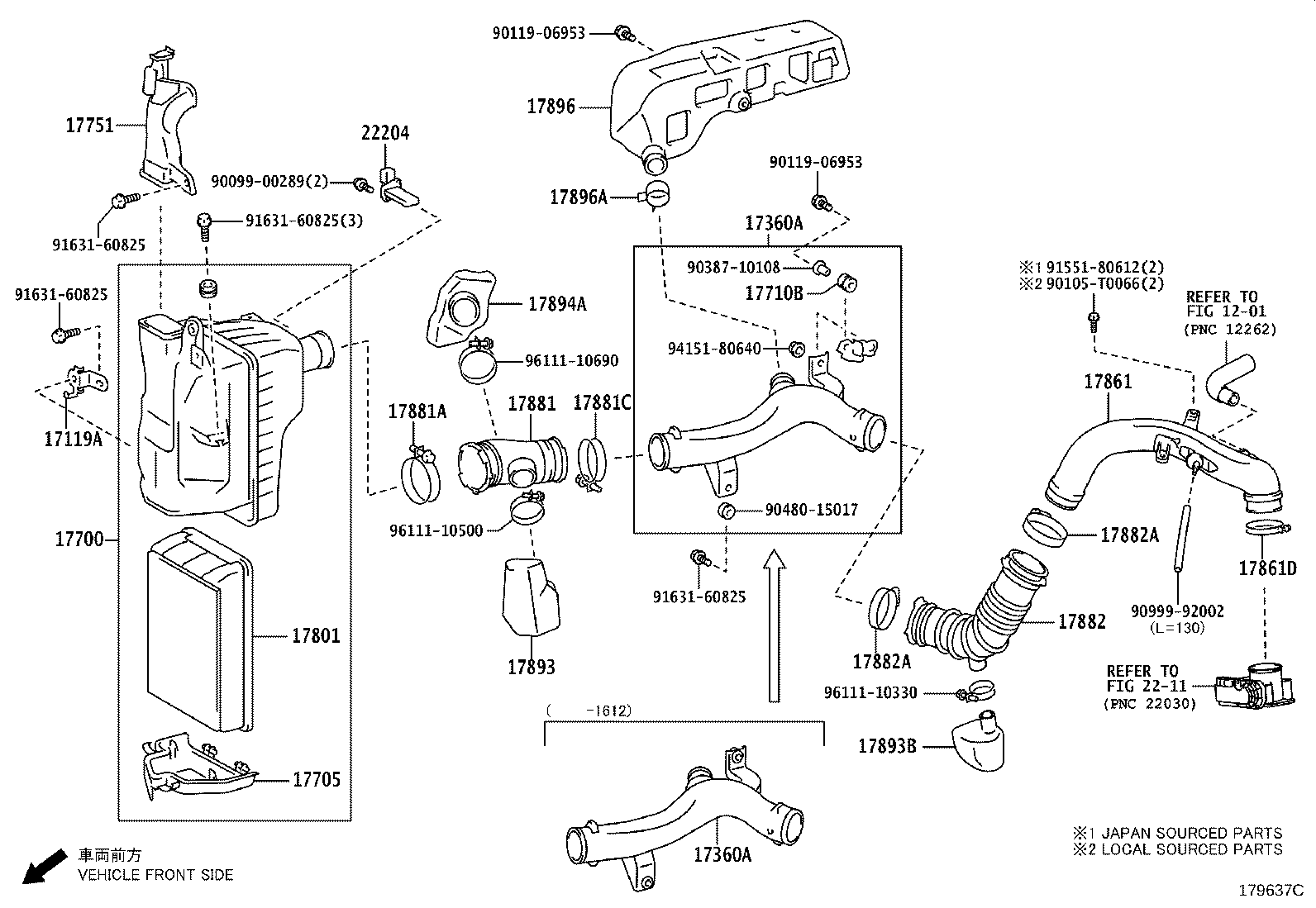

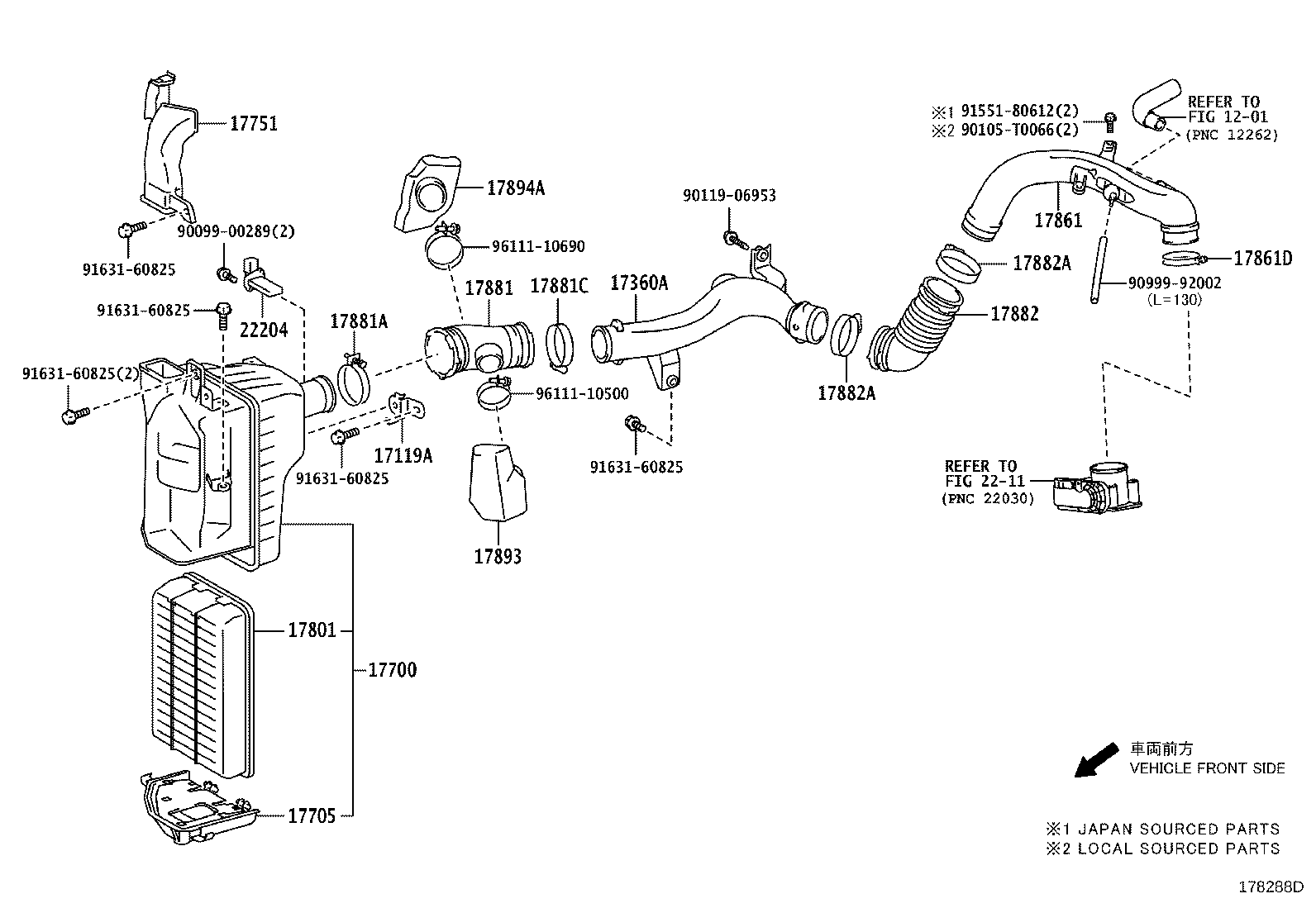

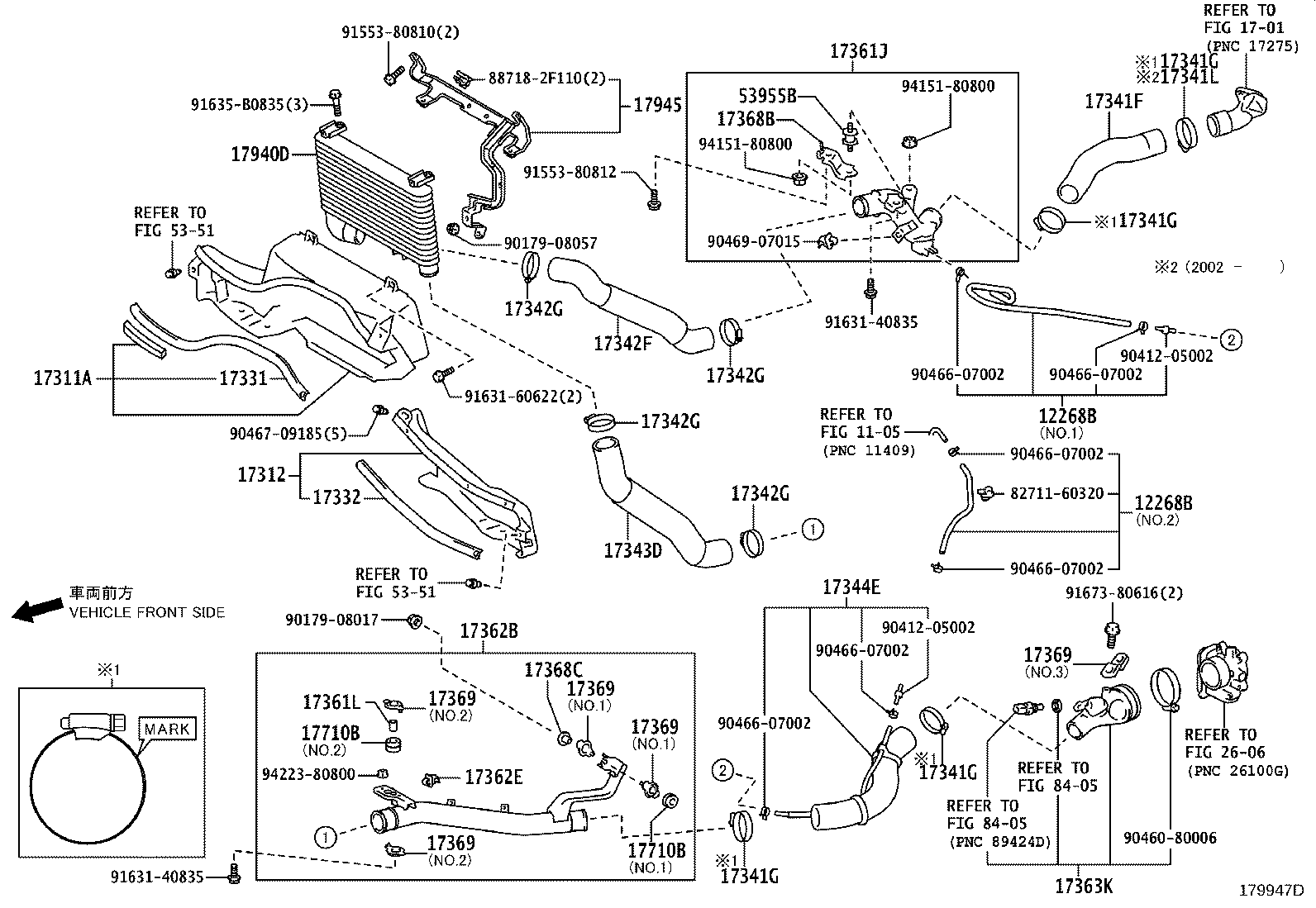

Figure 179496F 179496F 2017-12 → — Figure 179497A 179497A 2017-12 → — Figure 179947D 179947D 2017-12 → — Figure 179945A 179945A 2017-12 → — Figure 179949D 179949D 2017-12 → — Figure 179946A 179946A 2017-12 → — Figure 178279D 178279D 2013-12 → — Figure 178288D 178288D 2013-12 → 2015-01 Figure 178289F 178289F 2013-12 → 2015-01 Figure 179636C 179636C 2015-01 → — Figure 179637C 179637C 2015-01 → — Figure 179637C 179637C 2017-12 → —

Part groups

PNCDescription
12268B Hose, Oil Return
17119A Bracket, Air Cleaner
17275A Elbow, Compressor Outlet
17311A Duct, Air Inlet, NO.1
17312 Duct, Air Inlet, NO.2
17331 Seal, Duct Air Inlet NO.1
17332 Seal, Duct Air Inlet NO.2
17341F Hose, Air, NO.1
17341G Clamp OR Clip(FOR AIR HOSE, NO.1)
17341L Clamp, Hose
17342D Hose, Air, NO.2
17342F Hose, Air, NO.2(FOR INTERCOOLER)
17342G Clamp, Hose, NO.2(FOR INTERCOOLER)
17343D Hose, Air, NO.3
17343E Clamp, Hose(FOR AIR HOSE, NO.3)
17344E Hose, Air, NO.4
17344F Clamp, Hose(FOR AIR HOSE, NO.4)
17360A Tube Assy, Air
17360D Pipe Assy, Air
17361J Tube, Air, NO.1
17361L Pin, Ring(FOR AIR TUBE)
17362B Tube, Air, NO.2
17362E Clamp, NO.2(FOR AIR TUBE, NO.2)
17363G Tube, Air, NO.3
17363K Tube, Air, NO.3(FOR INTERCOOLER)
17368B Support, Air Tube
17368C Bush(FOR AIR TUBE SUPPORT)
17369 Bracket, Air Tube Support
17700 Cleaner Assy, Air
17705 Cap Sub-assy, Air Cleaner
17710B Grommet
17751 Inlet, Air Cleaner, NO.1
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17805G Clamp, Hose(FOR AIR CONNECTOR)
17861 Connector, Intake Air
17861D Clamp(FOR INTAKE AIR CONNECTOR)
17880A Clamp, Hose
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17881B Hose, Air Cleaner, NO.1
17881C Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17893 Resonator, Intake Air
17893A Clamp, Hose
17893B Resonator, Intake Air, NO.2
17894A Resonator, Intake Air, NO.2
17894B Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2)
17896 Resonator, Intake Air, NO.3
17896A Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.3)
17940D Intercooler Assy
17945 Bracket, Intercooler Support
22204 Meter Sub-assy, Intake Air Flow
53955B Cushion, Air Cleaner Inlet, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
