Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

22 part groups · 5 illustrations

Illustrations

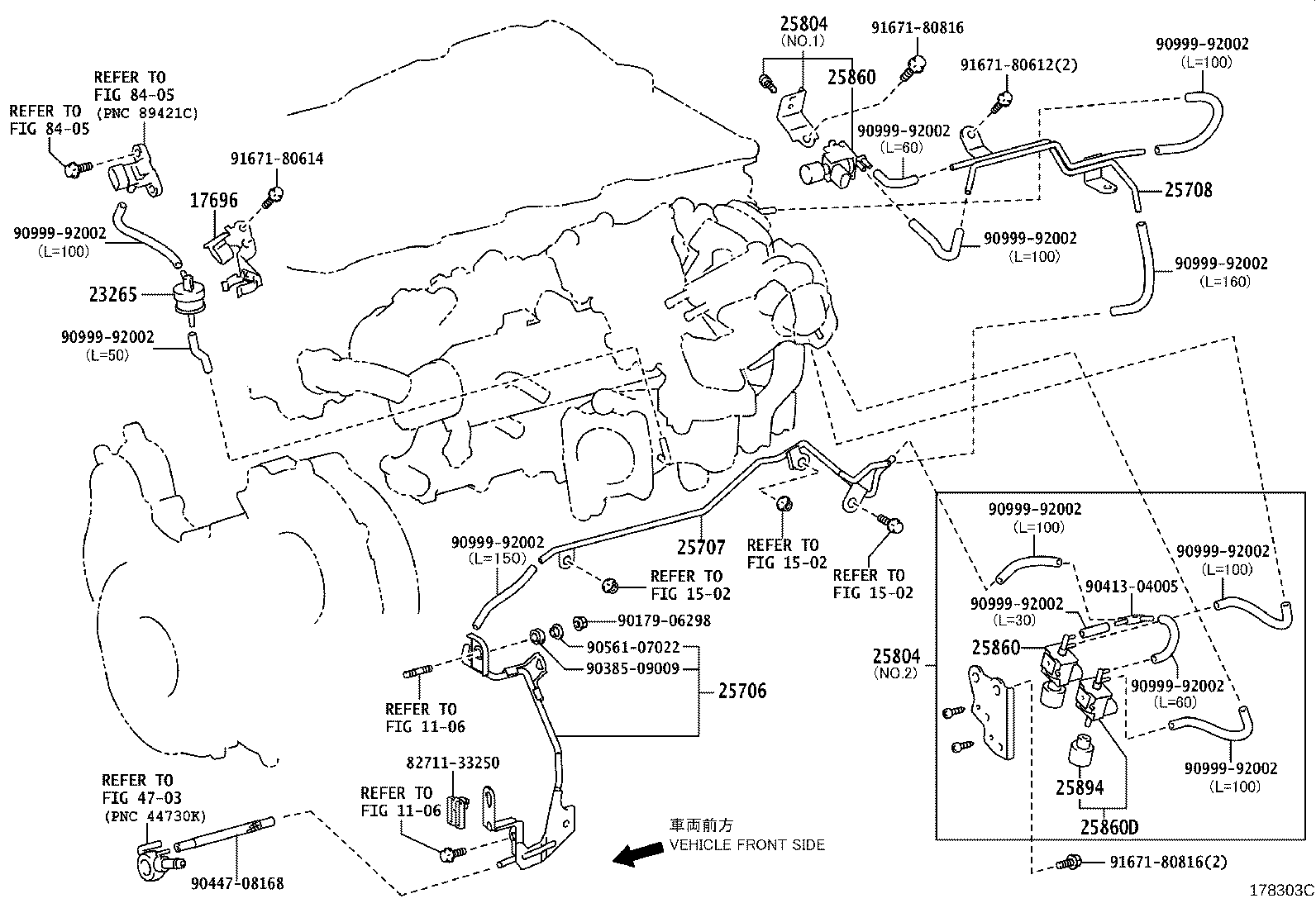

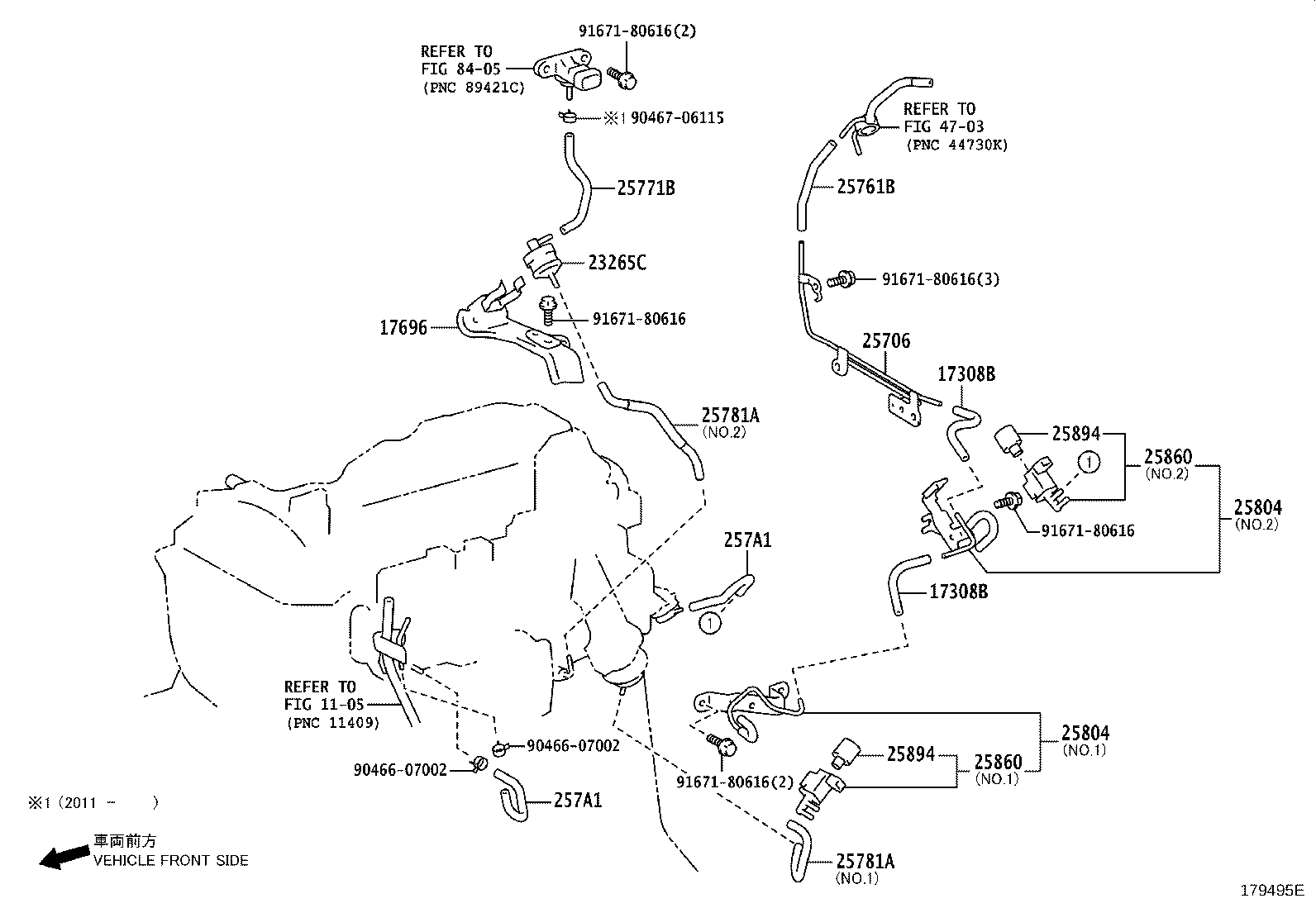

Figure 179494D 179494D 2017-12 → — Figure 179495E 179495E 2017-12 → — Figure 178303C 178303C 2013-12 → — Figure 178229D 178229D 2013-12 → — Figure 178229D 178229D 2017-12 → —

Part groups

PNCDescription
17308B Hose Sub-assy, Vacuum
17341P Hose, Air
17578B Clamp, Pipe
17696 Bracket, Gas Filter
23265 Filter, Gas, NO.1
23265C Filter, Gas
23820 Hose Assy, Fuel Vapor Feed
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25707 Pipe Sub-assy, Vacuum Transmitting, NO.2
25708 Pipe Sub-assy, Vacuum Transmitting, NO.3
25733A Pipe, Vacuum, NO.1
25734 Pipe, Vacuum, NO.2
25761B Hose, Vaccum Transmitting, NO.1
25771B Hose, Vaccum Transmitting, NO.2
25781A Hose, Vacuum Transmitting, NO.3
257A1 Hose, Vacuum Transmitting, NO.5
25804 Valve Set, Vacuum Control
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
25894 Filter, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
