Toyota Hiace/Regiusace
2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan
Supported model
Data version 2020-05

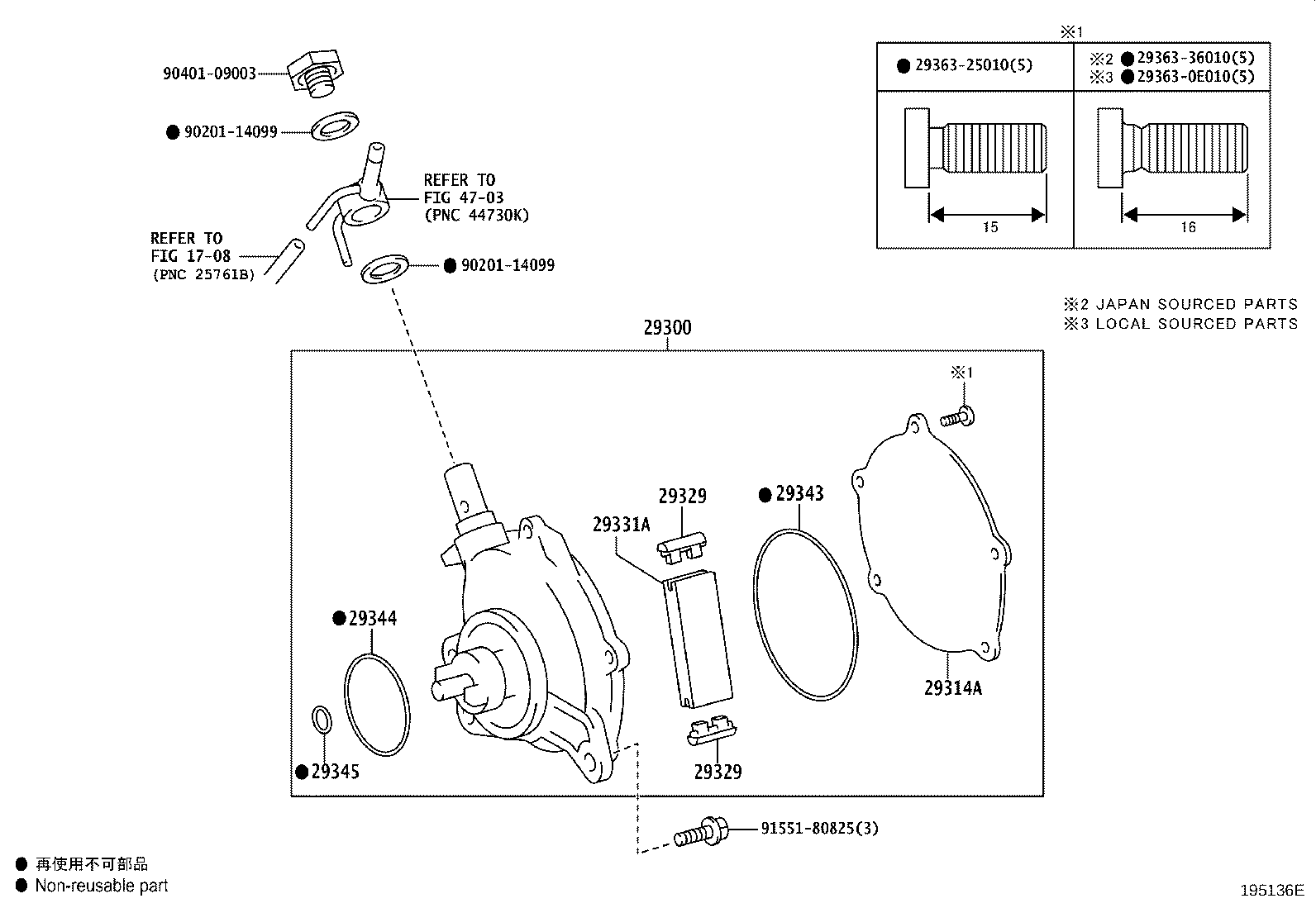

Vacuum Pump
16 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 29300 | Pump Assy, Vacuum |
| 29303 | Rotor Sub-assy, Vacuum Pump |
| 29311 | Pin, Vacuum Pump Dowel, NO.1 |
| 29314A | Cover, End |
| 29322B | Bearing, Vacuum Pump |
| 29329 | Cap, Vacuum Pump Vane |
| 29331 | Blade, Vacuum Pump, A |
| 29331A | Vane, Vacuum Pump |
| 29336 | Shaft, Vacuum Pump |
| 29342 | Packing, Vacuum Pump |
| 29343 | Ring, O Vacuum Pump, NO.1 |
| 29344 | Ring, O Vacuum Pump, NO.2 |
| 29345 | Ring, O Vacuum Pump, NO.3 |
| 29351 | Gear, Vacuum Pump |
| 29364 | Washer, Vacuum Pump |
| 29369 | Valve Sub-assy, Check |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
