Toyota Hiace/Regiusace
2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan
Supported model
Data version 2020-05

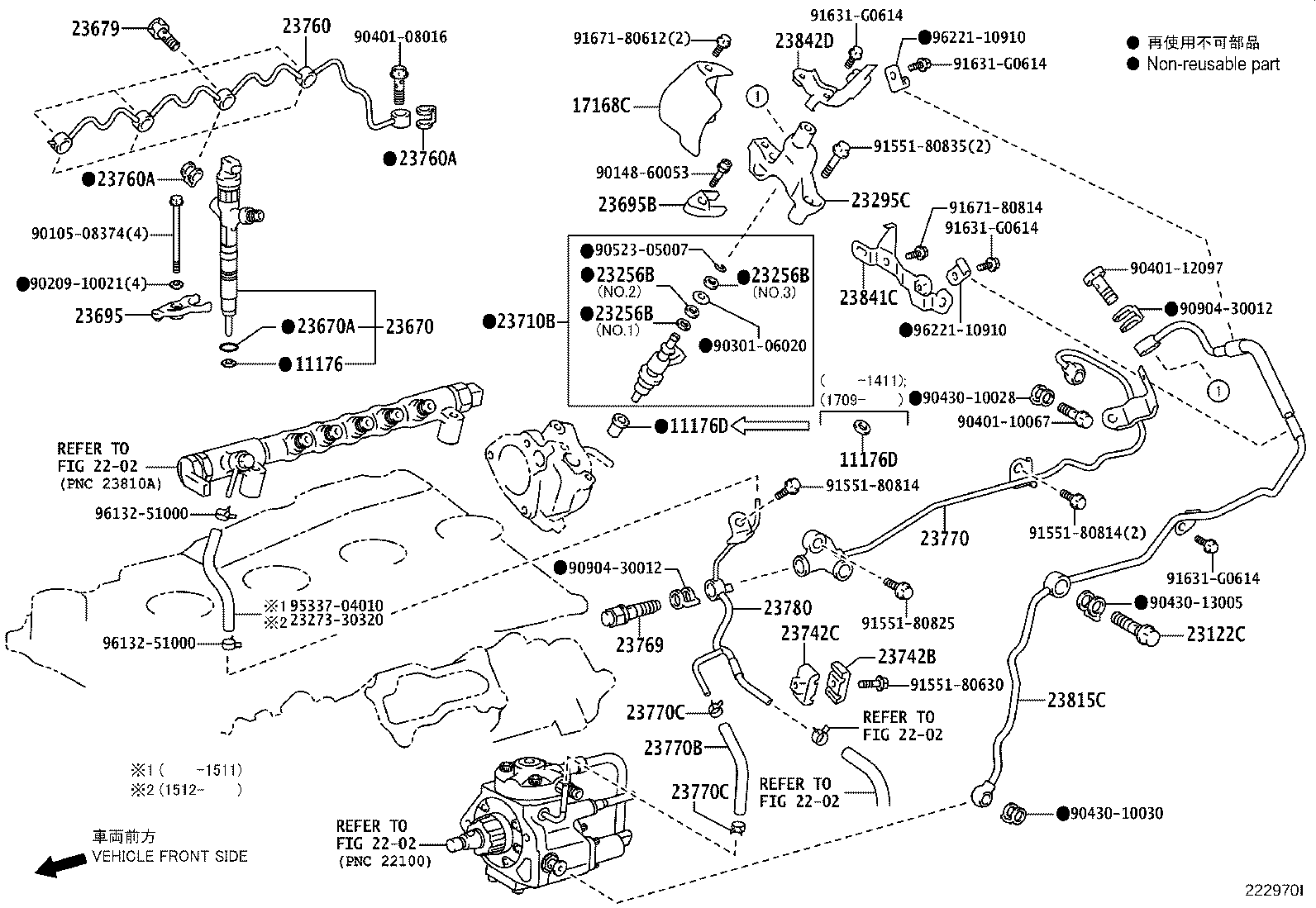

Injection Nozzle
31 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11176 | Seat, Injection Nozzle |
| 11176D | Seat, Injection Nozzle, NO.2 |
| 17168C | Insulator, Exhaust Manifold Heat, NO.2 |
| 23122C | Valve, Check |
| 23256B | Ring, Fuel Injector Back-up, NO.1 |
| 23257B | Ring, Fuel Injector Back-up, NO.2 |
| 23258B | Ring, Fuel Injector Back-up, NO.3 |
| 23282H | Hose, Fuel, NO.4 |
| 23284C | Hose, Fuel, NO.5 |
| 23286C | Hose, Fuel, NO.6 |
| 23295C | Holder, Injector |
| 23670 | Injector Assy |
| 23670A | Ring, O(FOR INJECTOR ASSY) |
| 23679 | Screw, Injector Follow |
| 23695 | Clamp, Nozzle Holder, NO.1 |
| 23695B | Clamp, Nozzle Holder, NO.2 |
| 23699A | Seat, Nozzle Holder Clamp |
| 23710B | Injector Assy, Exhaust Fuel Addition |
| 23742B | Clamp, Injection Pipe, NO.2 |
| 23742C | Clamp, Injection Pipe, NO.3 |
| 23760 | Pipe Assy, Nozzle Leakage |
| 23760A | Gasket |
| 23769 | Valve, Fuel Check |
| 23770 | Pipe Assy, Nozzle Leakage, NO.2 |
| 23770B | Hose, Fuel |
| 23770C | Clamp OR Clip(FOR FUEL HOSE SET) |
| 23780 | Pipe, Nozzle Leakage, NO.3 |
| 23811H | Pipe, Fuel, NO.1 |
| 23815C | Pipe, Fuel, NO.3 |
| 23841C | Clamp, Fuel Pipe, NO.1 |
| 23842D | Clamp, Fuel Pipe, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
