Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (ATM)

3 part groups · 7 illustrations

Illustrations

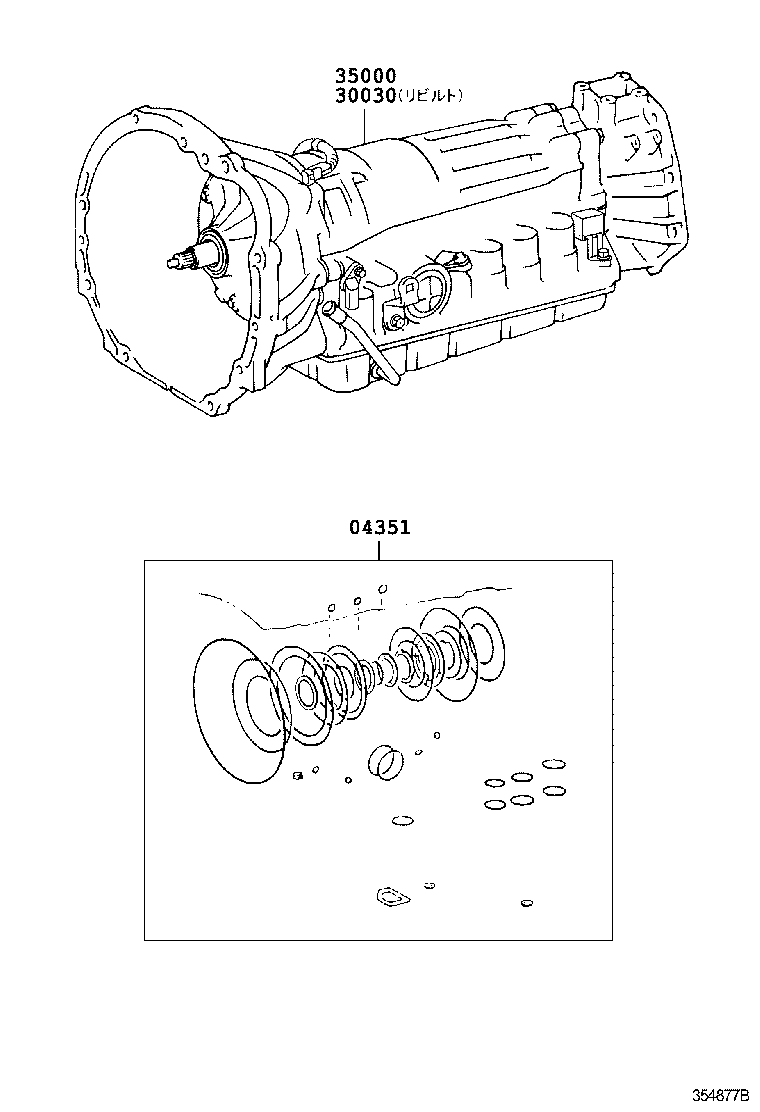

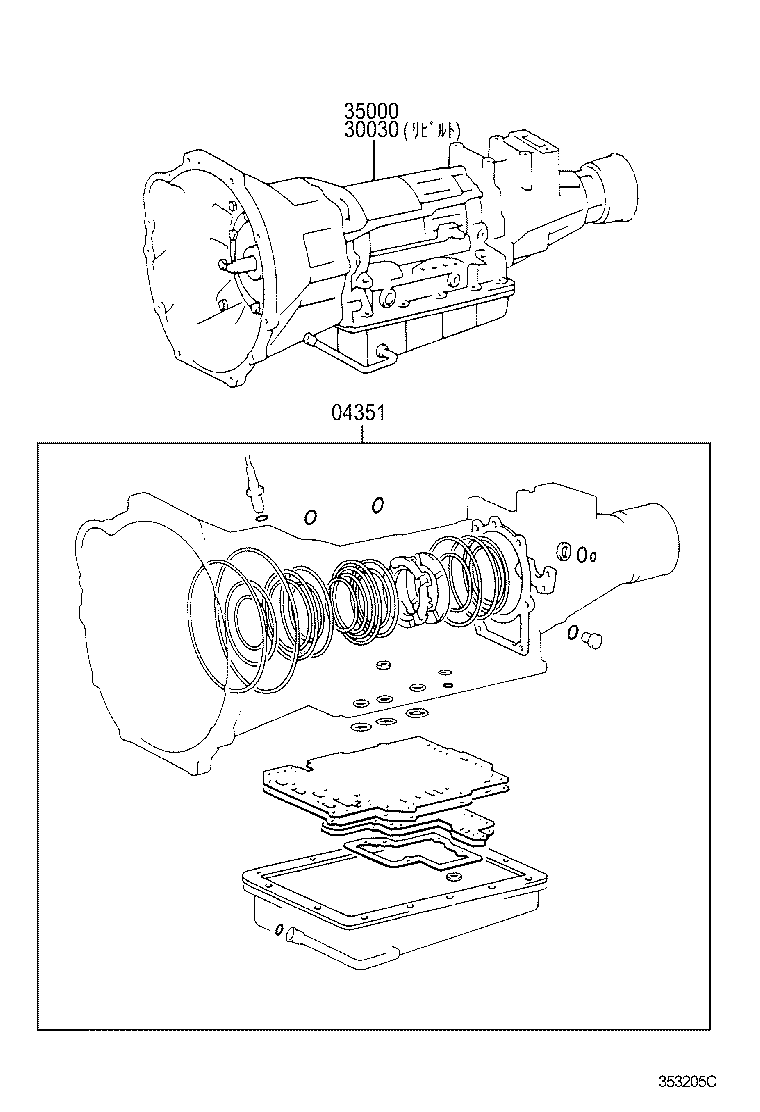

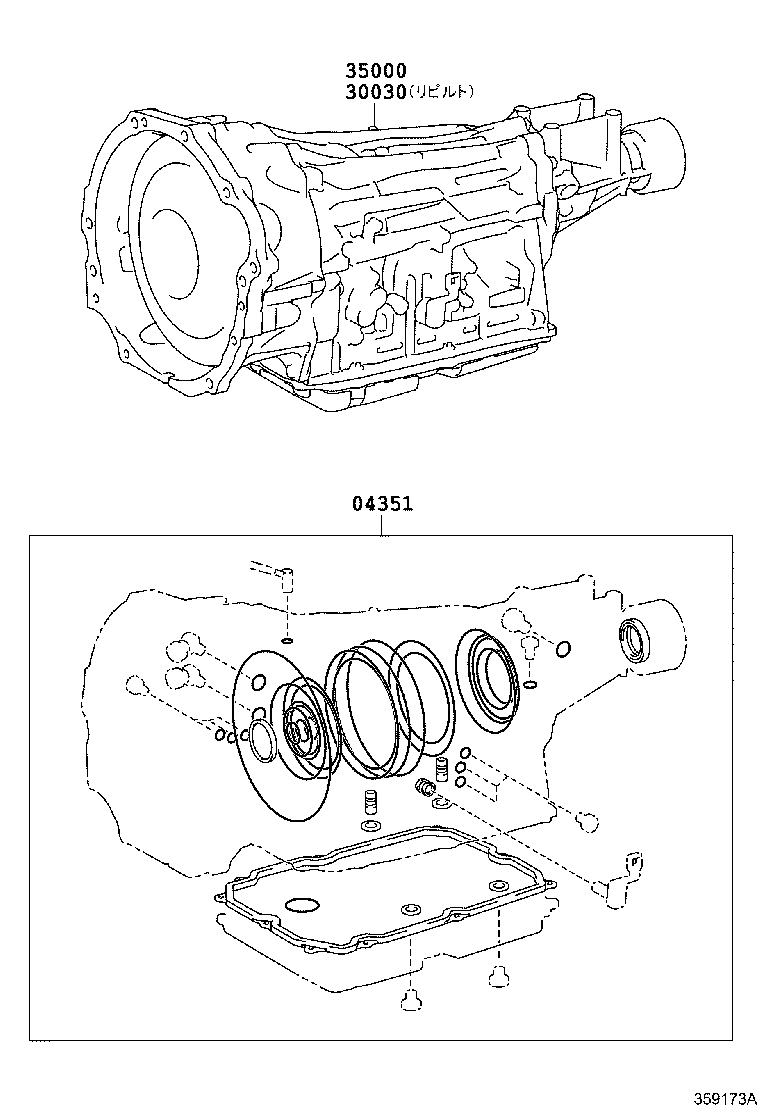

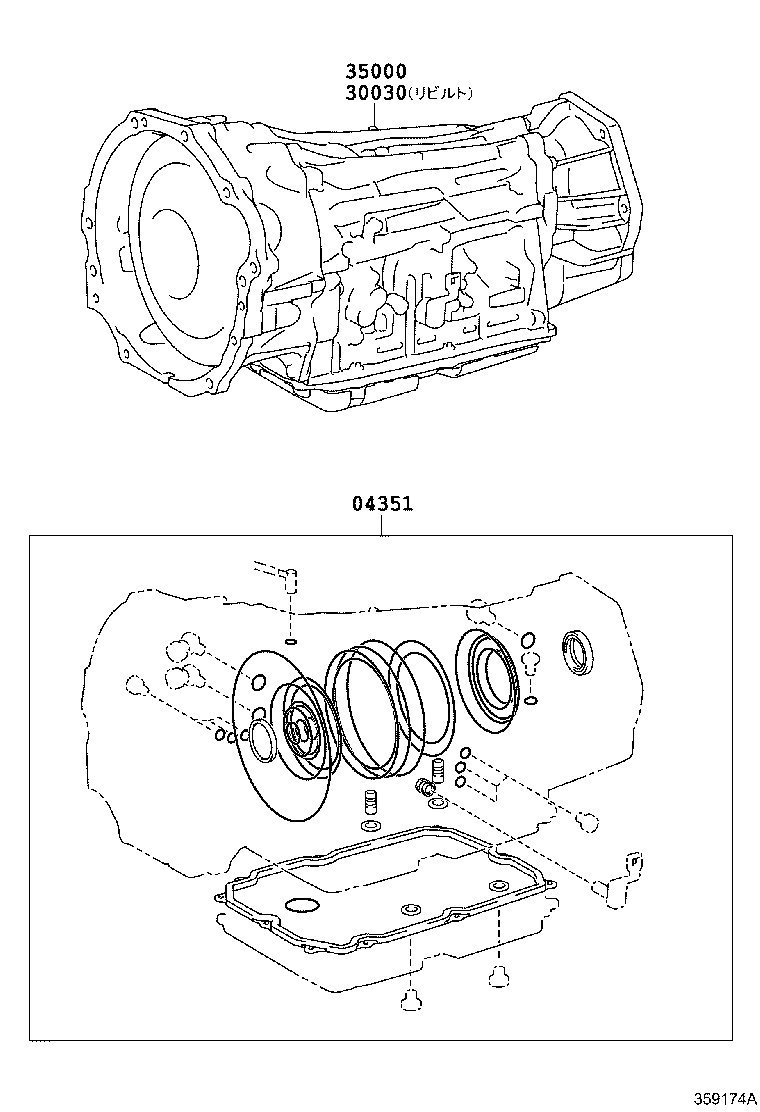

Figure 354878B 354878B 2013-12 → — Figure 354877B 354877B 2013-12 → — Figure 353205C 353205C 2013-12 → 2015-01 Figure 359173A 359173A 2015-01 → — Figure 359173A 359173A 2017-12 → — Figure 359174A 359174A 2015-01 → — Figure 359174A 359174A 2017-12 → —

Part groups

PNCDescription
04351 Gasket Kit, Automatic Transmission Overhaul
30030 Transmission Assy, Rebuilt
35000 Transmission Assy, Automatic
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
