Toyota Hiace/Regiusace

2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan

Supported model Data version 2020-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

7 part groups · 9 illustrations

Illustrations

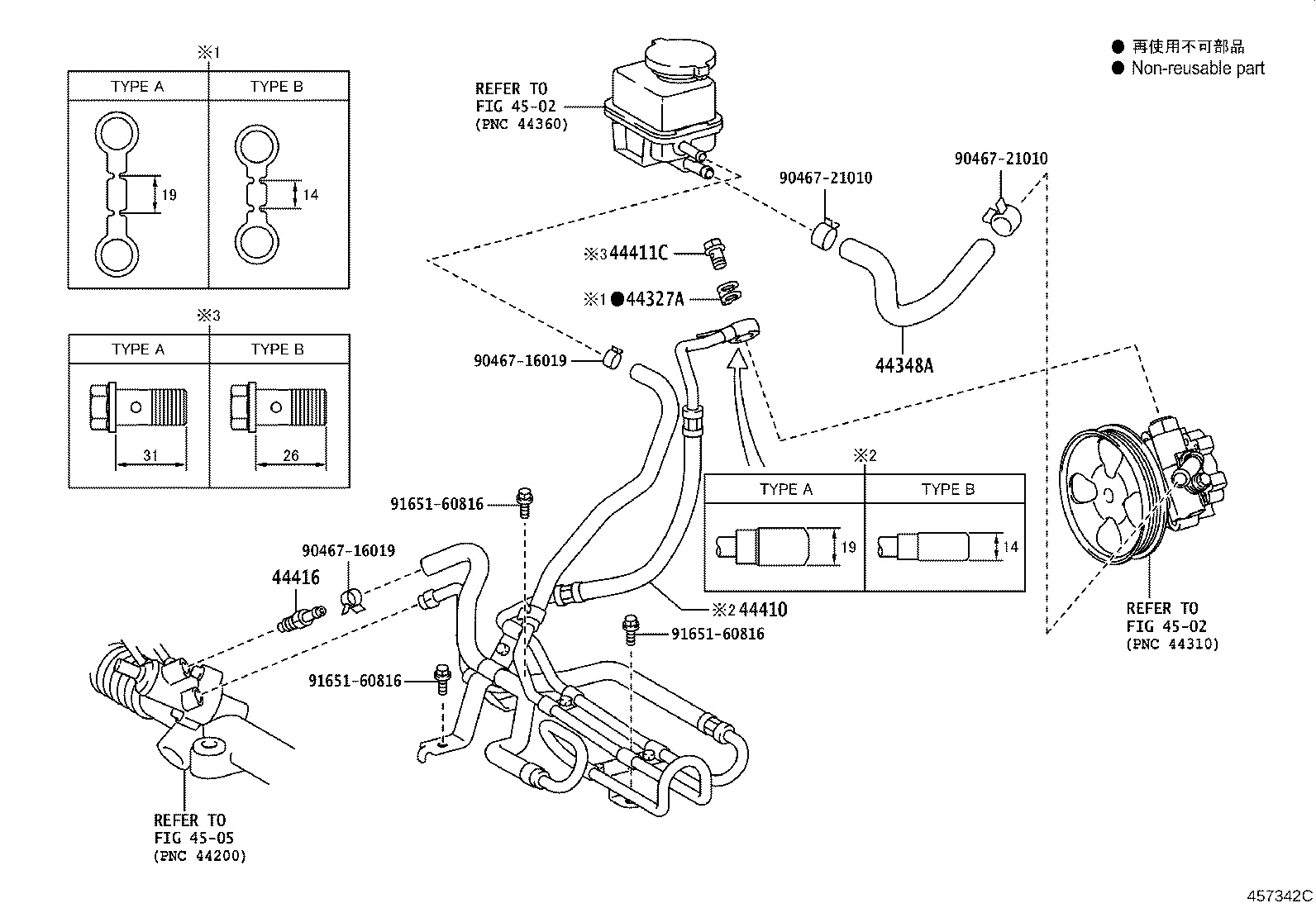

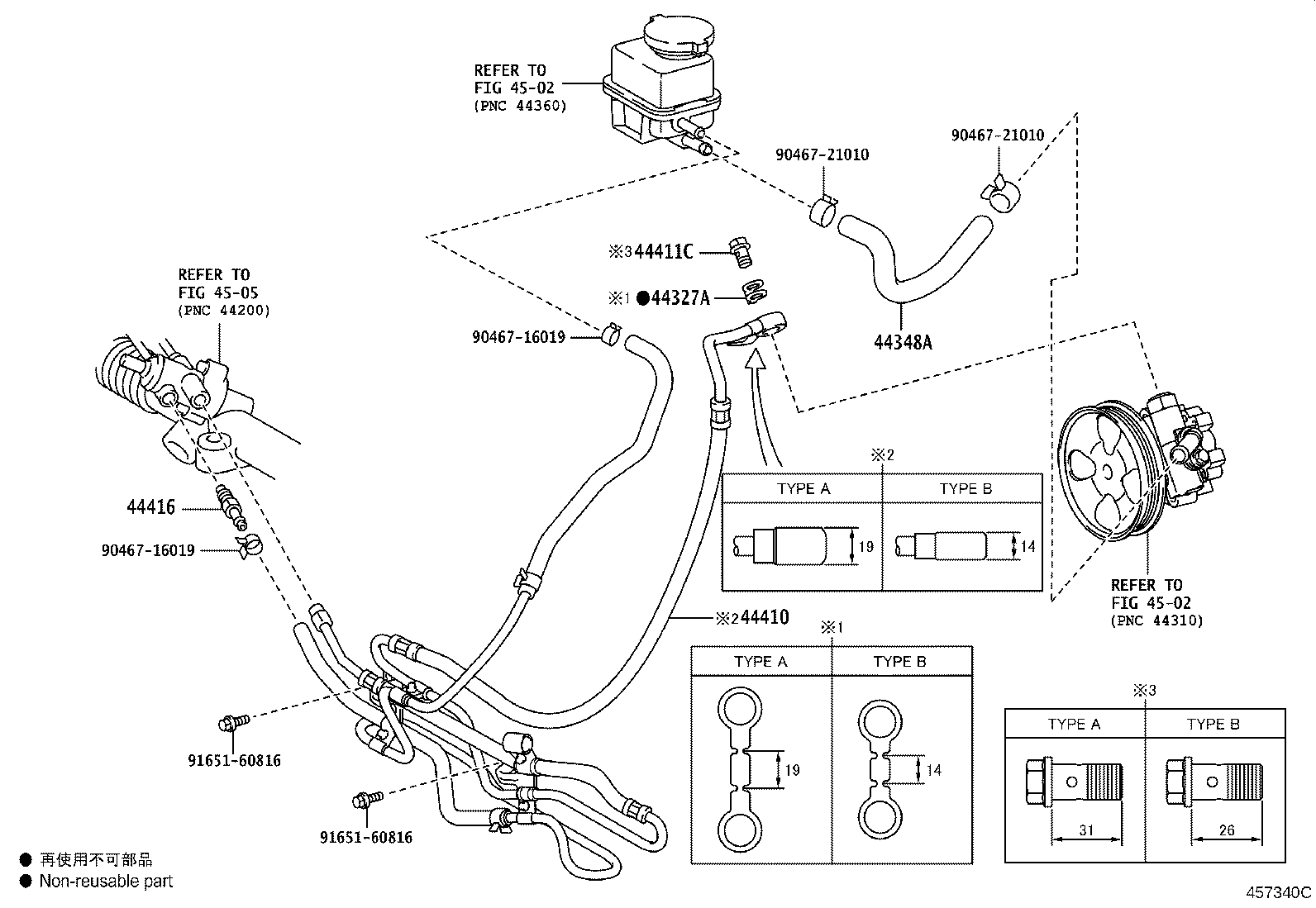

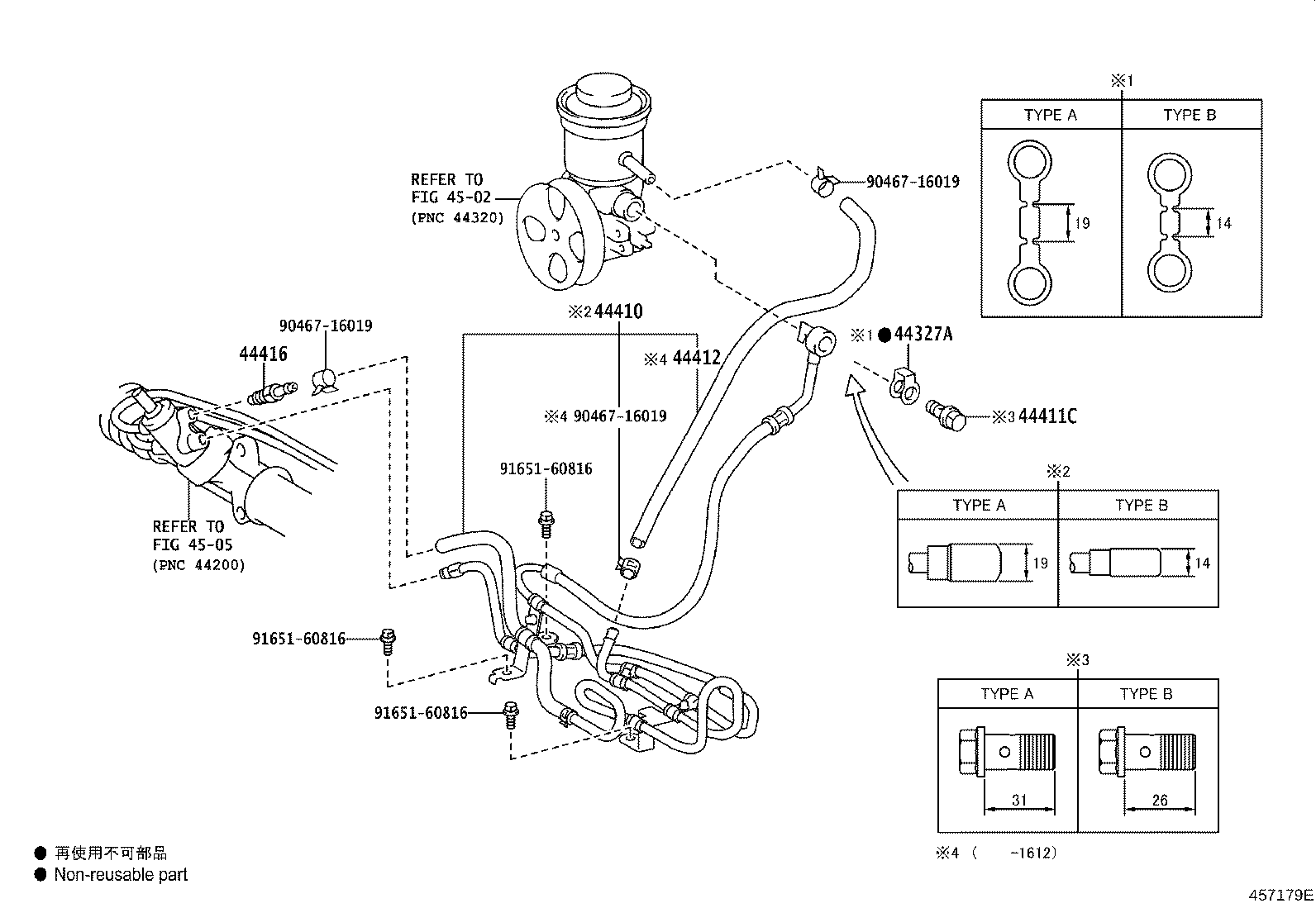

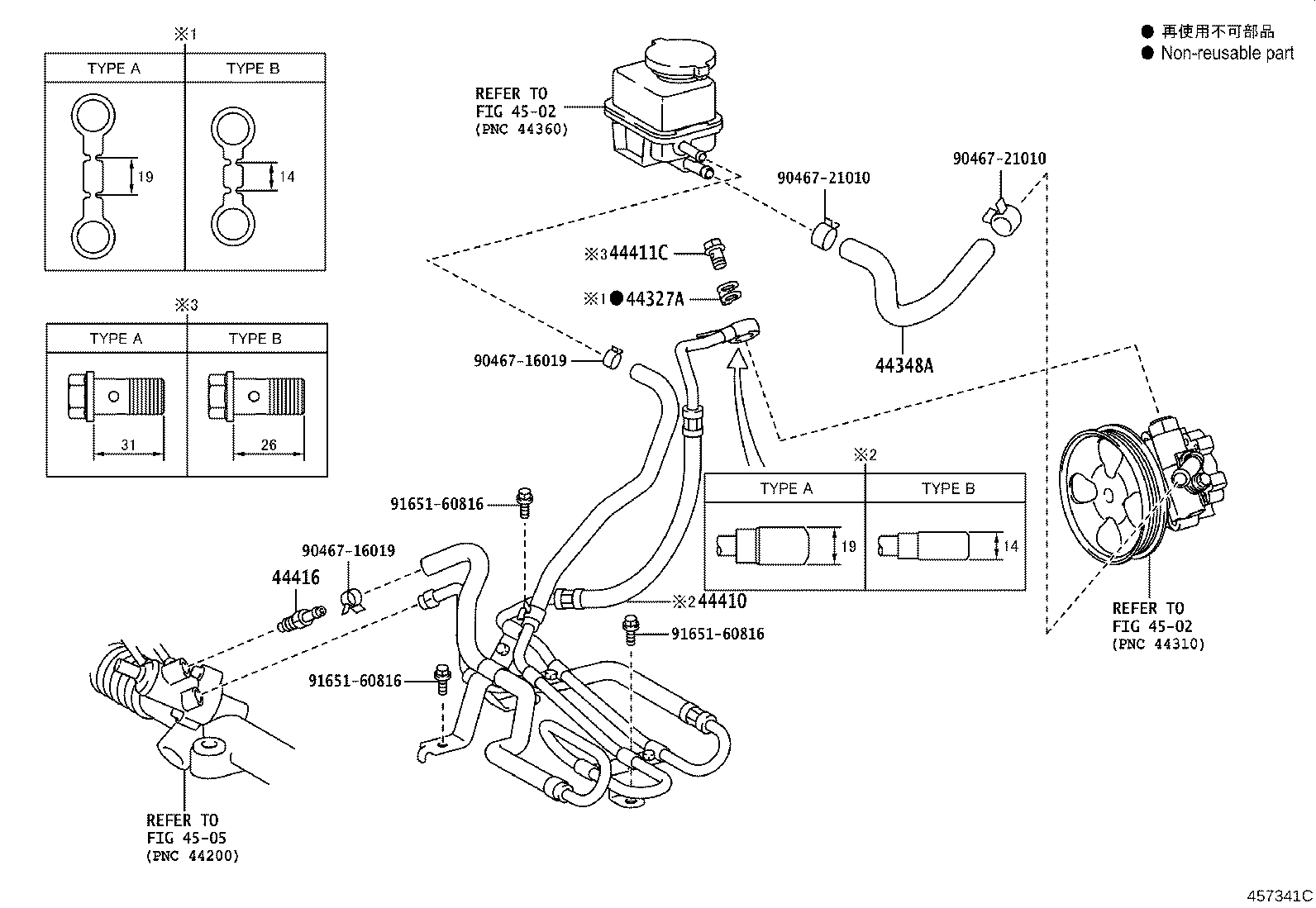

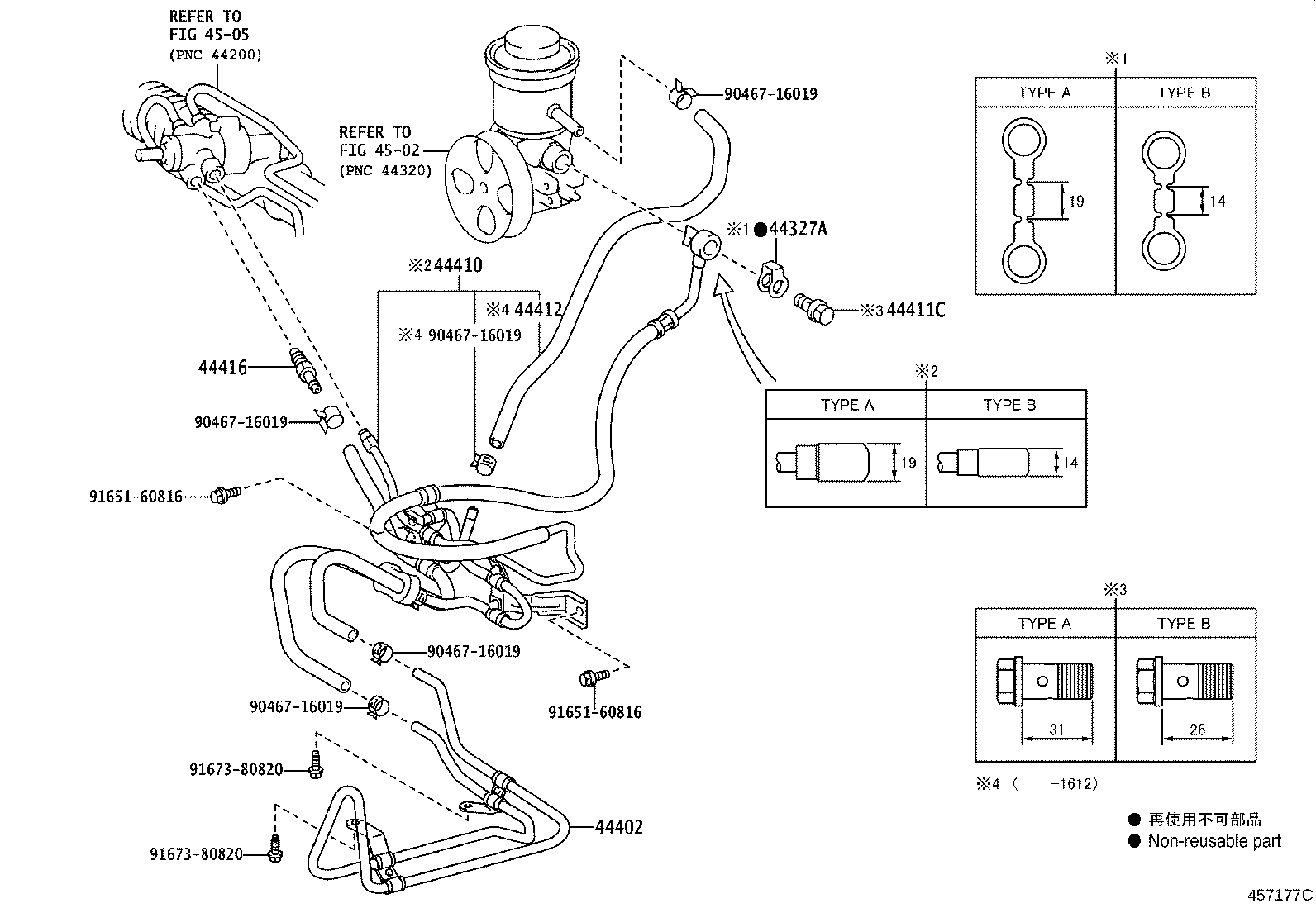

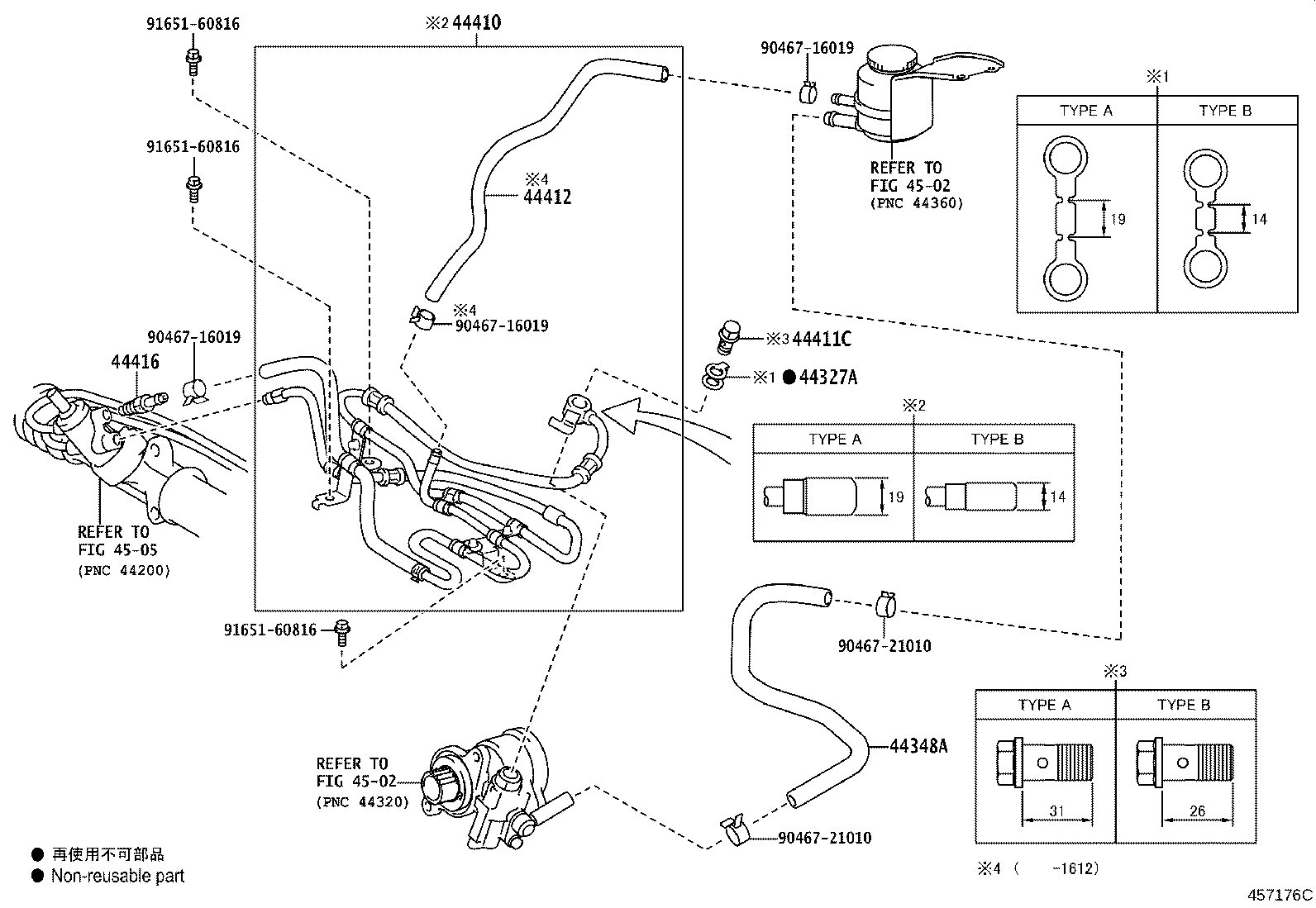

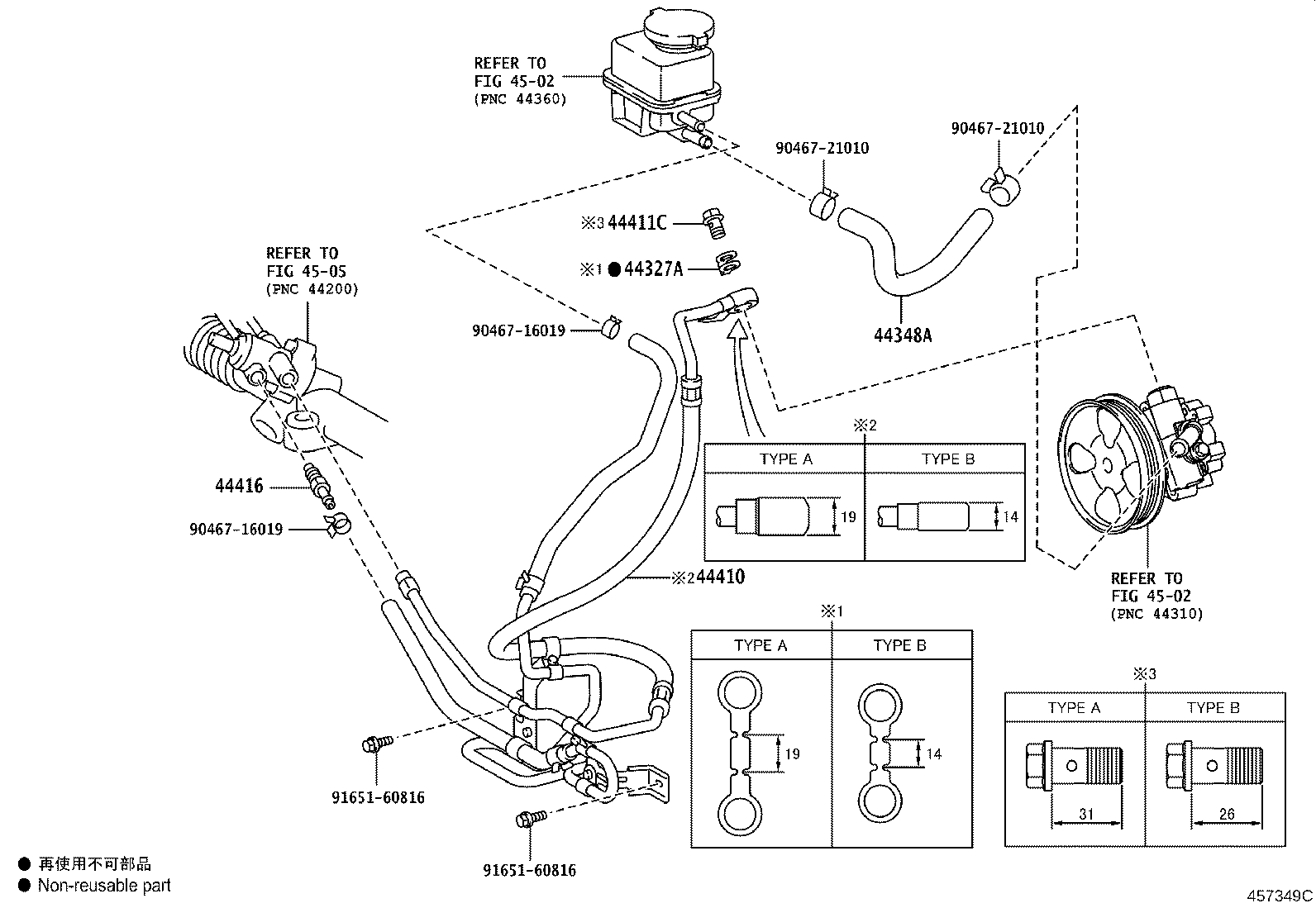

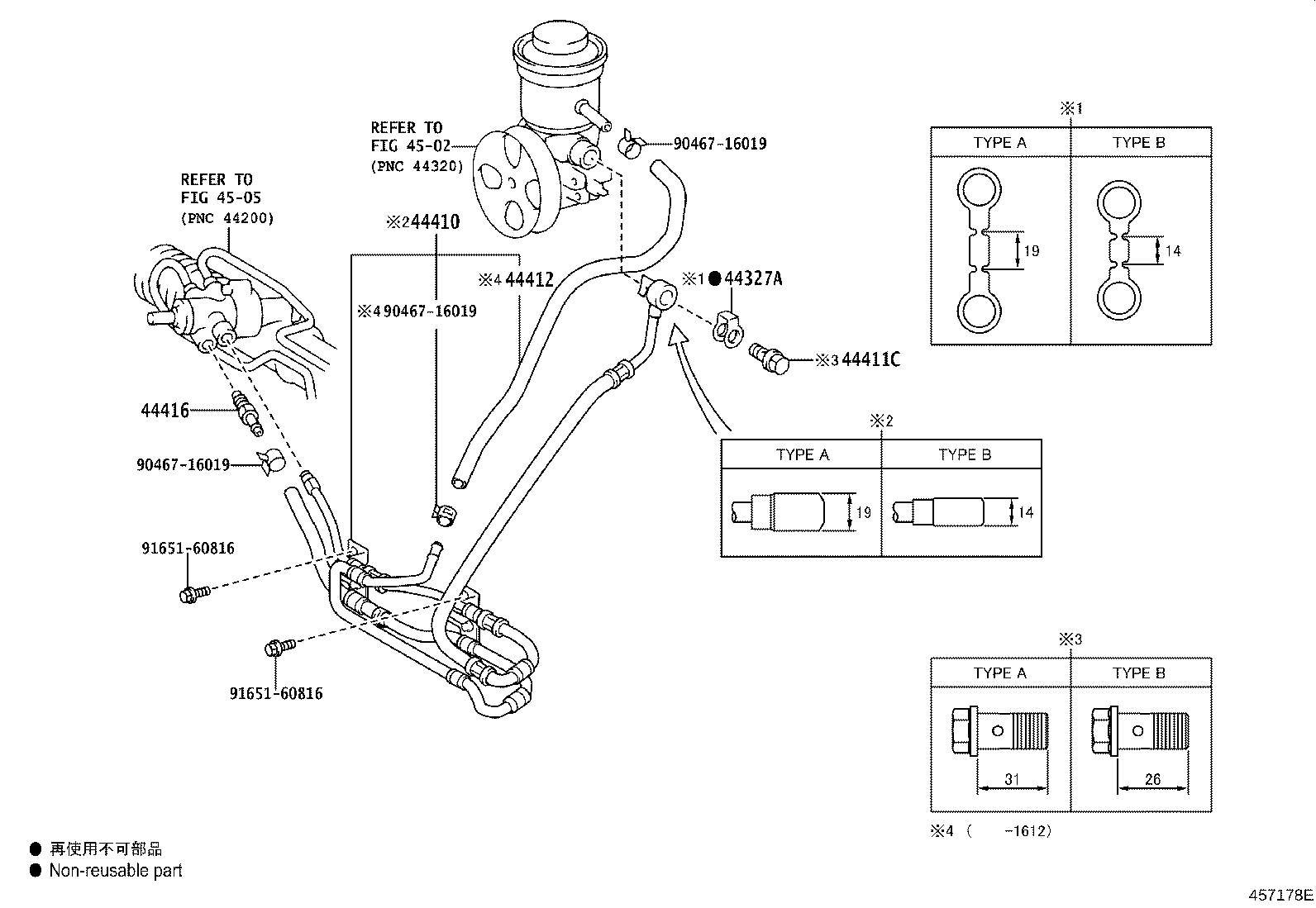

Figure 457175D 457175D 2013-12 → — Figure 457176C 457176C 2013-12 → — Figure 457177C 457177C 2013-12 → — Figure 457178E 457178E 2013-12 → — Figure 457179E 457179E 2013-12 → — Figure 457349C 457349C 2017-12 → — Figure 457340C 457340C 2017-12 → — Figure 457341C 457341C 2017-12 → — Figure 457342C 457342C 2017-12 → —

Part groups

PNCDescription
44327A Gasket, Pressure Port, NO.1
44348A Hose, Oil Reservoir TO Pump, NO.1
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44410 Tube Assy, Pressure Feed
44411C Bolt, Union(FOR PRESSURE FEED HOSE)
44412 Hose, Return
44416 Tube, Return(FOR STEERING GEAR OUTLET)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
