Toyota Hiace/Regiusace
2013-12 → present · chassis KDH2##,TRH2##,GDH2## · catalogue 711160 · Japan
Supported model
Data version 2020-05

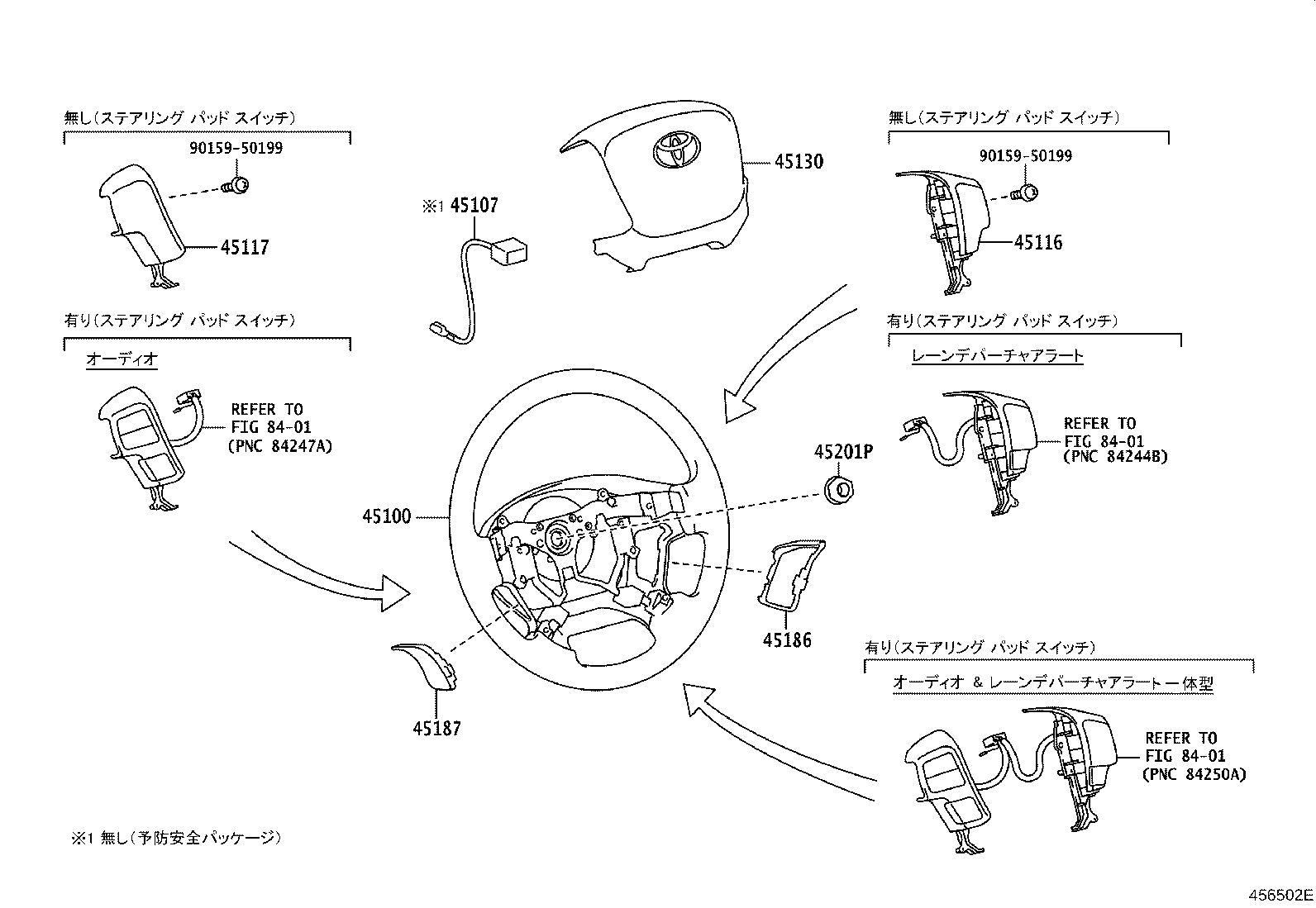

Steering Wheel
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45107 | Wire Sub-assy, Horn Button |
| 45116 | Ornament, Steering Wheel, NO.1 |
| 45117 | Ornament, Steering Wheel, NO.2 |
| 45130 | Button Assy, Horn |
| 45186 | Cover, Steering Wheel, Lower NO.2 |
| 45187 | Cover, Steering Wheel, Lower NO.3 |
| 45201P | Nut, Steering Wheel Set |
| 84258 | Cover, Steering Pad, RH |
| 84259 | Cover, Steering Pad, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
